Siemens 6ES7522-1BH10-0AA0 S7-1500 16-Channel Digital Output Module

Siemens 6ES7522-1BH10-0AA0 S7-1500 16-Channel Digital Output Module

$235.99 USD
$235.99 USD
Распродажа Продано
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7522-1BH10-0AA0 S7-1500 Digital Output Module

SM 522 | DQ 16x24VDC/0.5A BA | 16 Channels | Push-in Connector
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Catalog Number Verified on Carton
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 6ES7522-1BH10-0AA0
Product Family SIMATIC S7-1500 / ET 200MP
Module Family SM 522
Product Designation DQ 16x24VDC/0.5A BA
Product Type Digital Output Module
Performance Class BA - Basic
Digital Output Channels 16
Channel Grouping 2 Groups of 8
Output Type Sourcing / Transistor Output
Rated Output Voltage 24V DC
Rated Output Current per Channel 0.5 A
Maximum Current per Group 4 A
Rated Supply Voltage 24V DC
Permissible Supply Range 19.2-28.8V DC
Reverse Polarity Protection Yes
Maximum Supply Current Consumption 30 mA
Backplane Bus Power Consumption 1.15 W
Typical Power Loss 2.2 W
Safety-Oriented Load-Group Shutdown Supported under specified system conditions
Shutdown Safety Reference Up to SIL 2 / Category 3 PL d in specified configurations
Isochronous Mode Not Supported
PWM Mode Not Supported
Prioritized Startup Supported
I&M Data I&M0 to I&M3
TIA Portal Engineering From V13
Module Width 25 mm
Front Connector Type Push-in
Front Connector Included Yes - Manufacturer Delivery Configuration
U-Connector Included Yes - Manufacturer Delivery Configuration
Net Weight 0.312 kg
Packaging Dimensions 20.4 x 15.1 x 3.7 cm
EAN / GTIN 4047623402510
Packaging Quantity 1 Piece
Country of Origin (Actual Carton) Made in China
Manufacturer Lifecycle Active Product

Product Overview

The Siemens 6ES7522-1BH10-0AA0 is a SIMATIC S7-1500 SM 522 digital output module for industrial PLC control systems. This DQ 16x24VDC/0.5A BA module provides 16 digital sourcing output channels arranged in two groups of eight. Each channel is rated for 24V DC and 0.5A, with a maximum load current of 4A per group. The module operates with a rated 24V DC load supply and supports a permissible voltage range of 19.2-28.8V DC. Its compact 25mm design is intended for compatible SIMATIC S7-1500 and ET 200MP automation configurations. Siemens specifies support for safety-oriented shutdown of load groups up to SIL 2 and Category 3 / PL d under the applicable system design requirements. This standard digital output module must not be confused with a dedicated fail-safe F-DQ module. The manufacturer package includes a push-in front connector and U-connector. Actual Siemens packaging photographs show the matching catalog number 6ES7522-1BH10-0AA0, while the internal module nameplate and included accessories have not been separately photographed.

Key Product Features

  • SIMATIC S7-1500 Digital Output Module — Siemens SM 522 BA module for compatible S7-1500 and ET 200MP systems.
  • 16 Digital Outputs — Sixteen sourcing output channels arranged in two groups of eight.
  • 24V DC / 0.5A per Channel — Digital output rating for compatible industrial loads.
  • 4A Maximum per Group — Specified combined current limit for each group of eight outputs.
  • 24V DC Supply — Permissible operating supply range of 19.2-28.8V DC.
  • Safety-Oriented Group Shutdown — Supports specified SIL 2 / PL d load-group shutdown configurations.
  • Compact 25mm Design — Basic performance-class digital output module.
  • Push-in Front Connector Included — Manufacturer delivery includes the front connector and U-connector.

Actual Product Verification

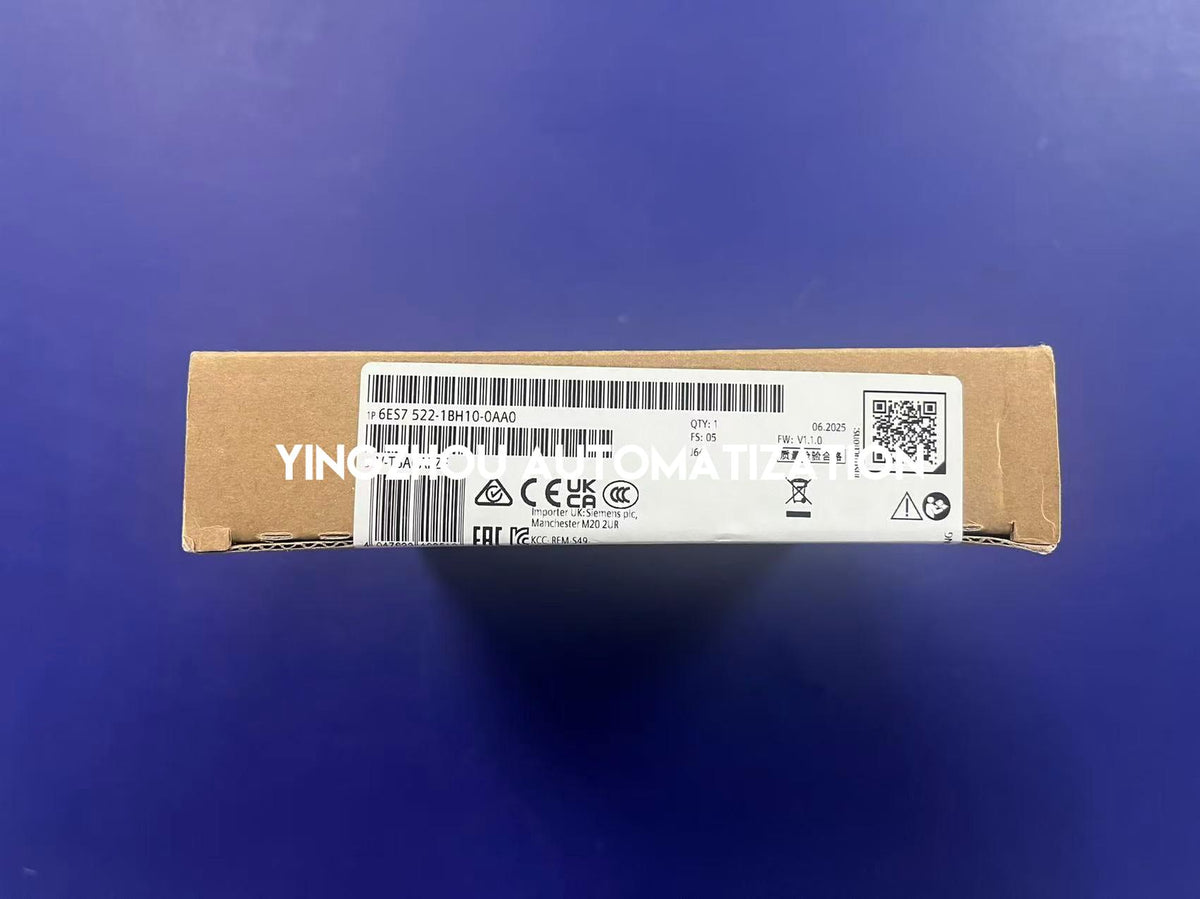

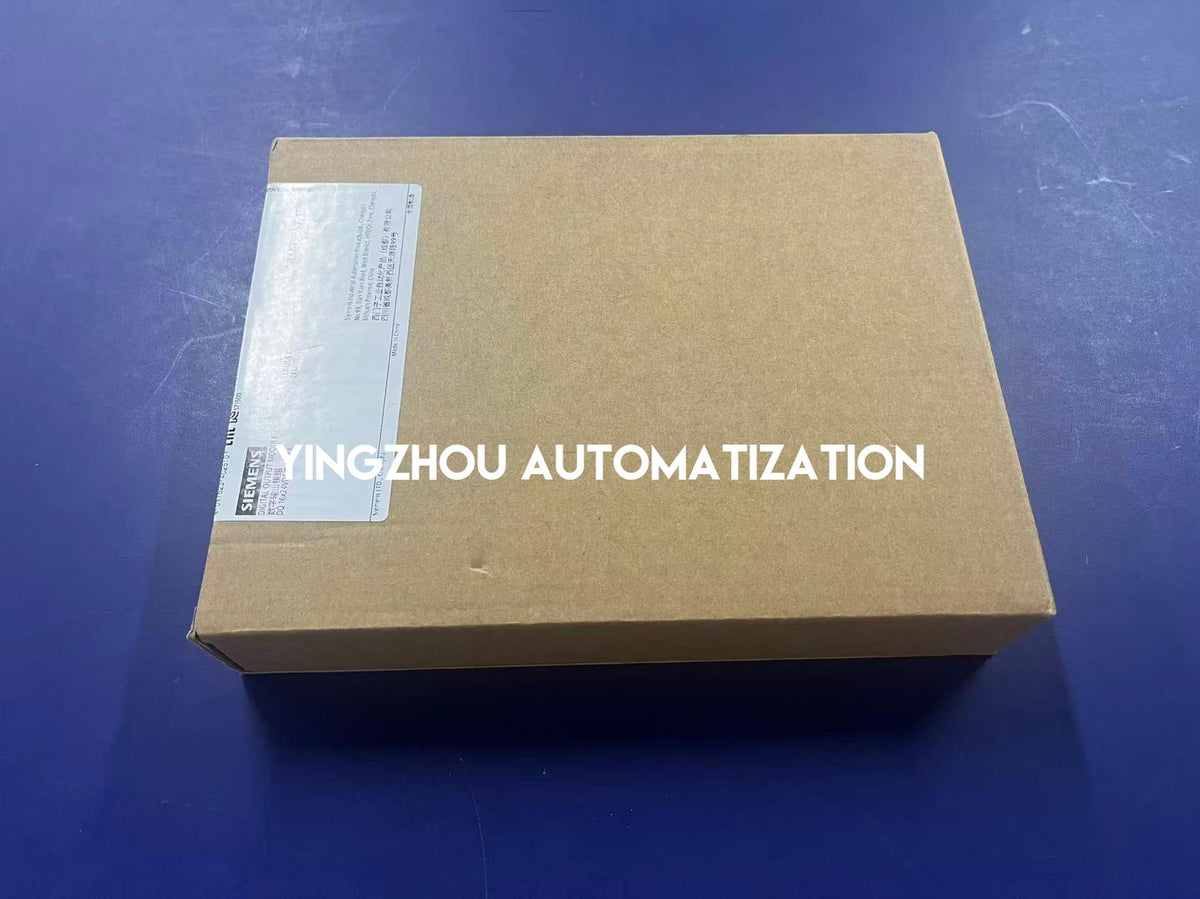

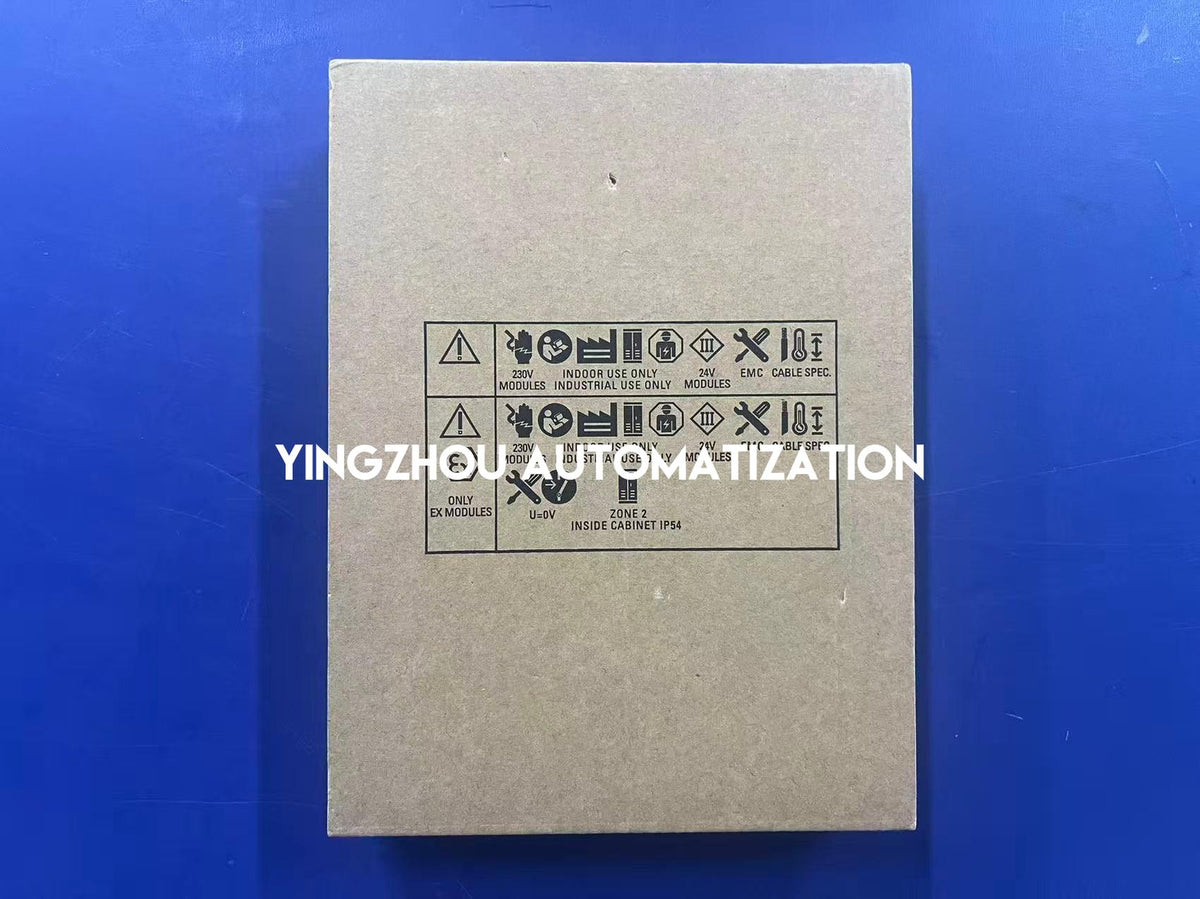

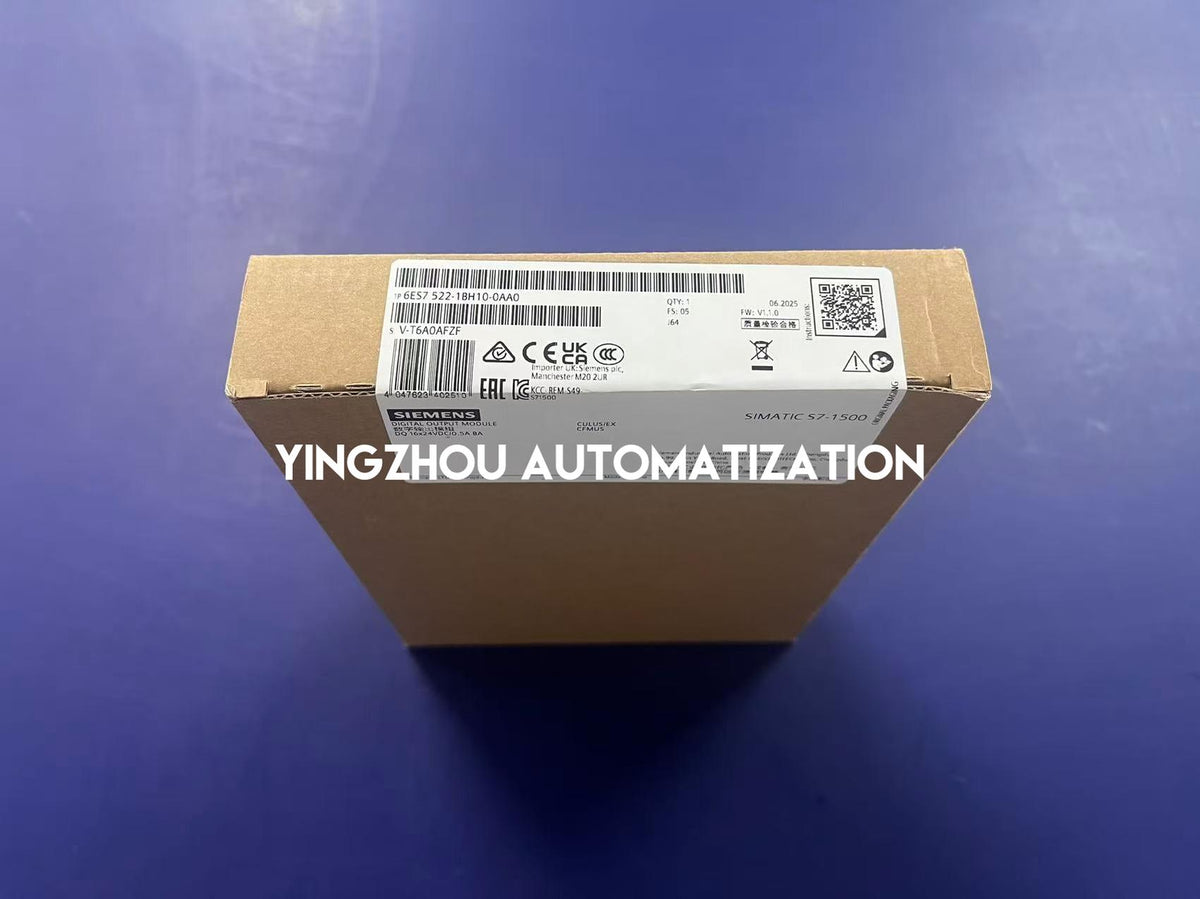

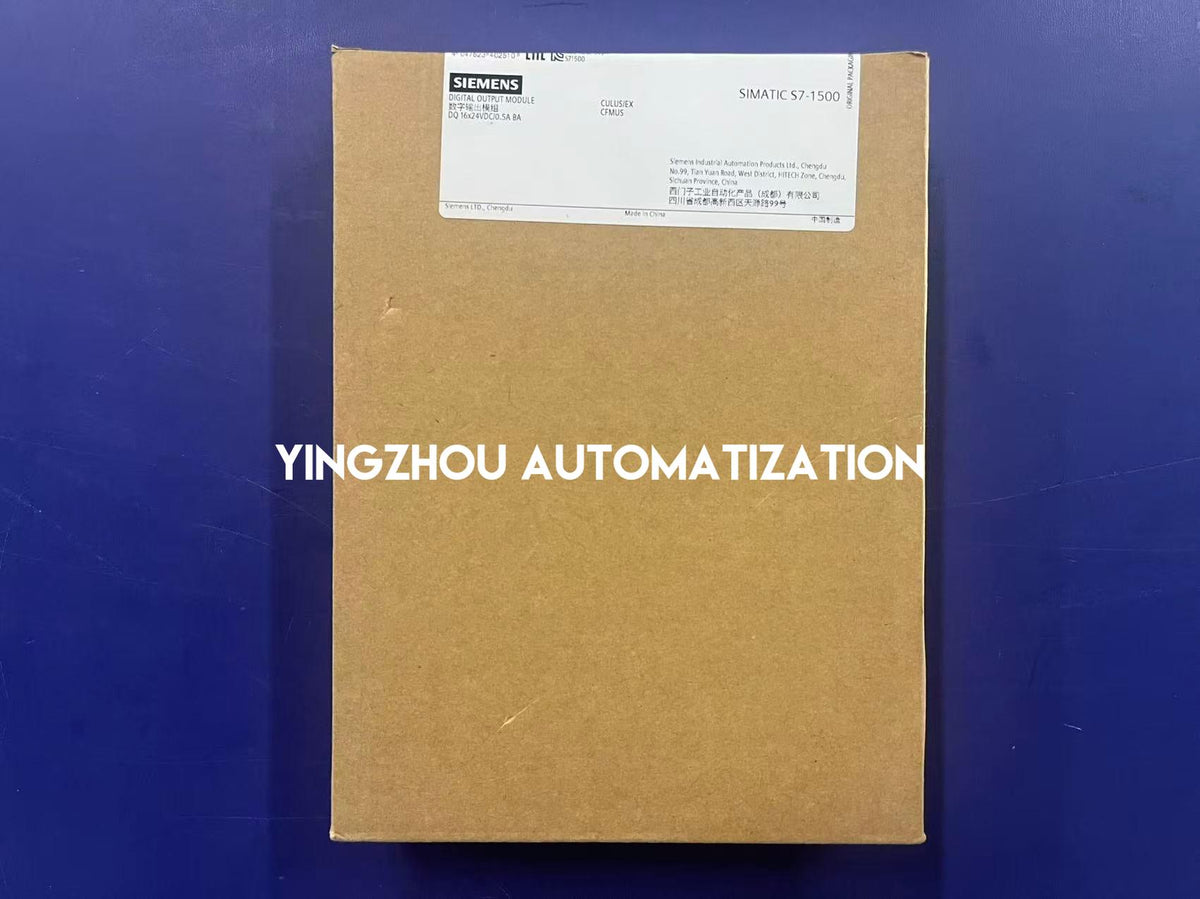

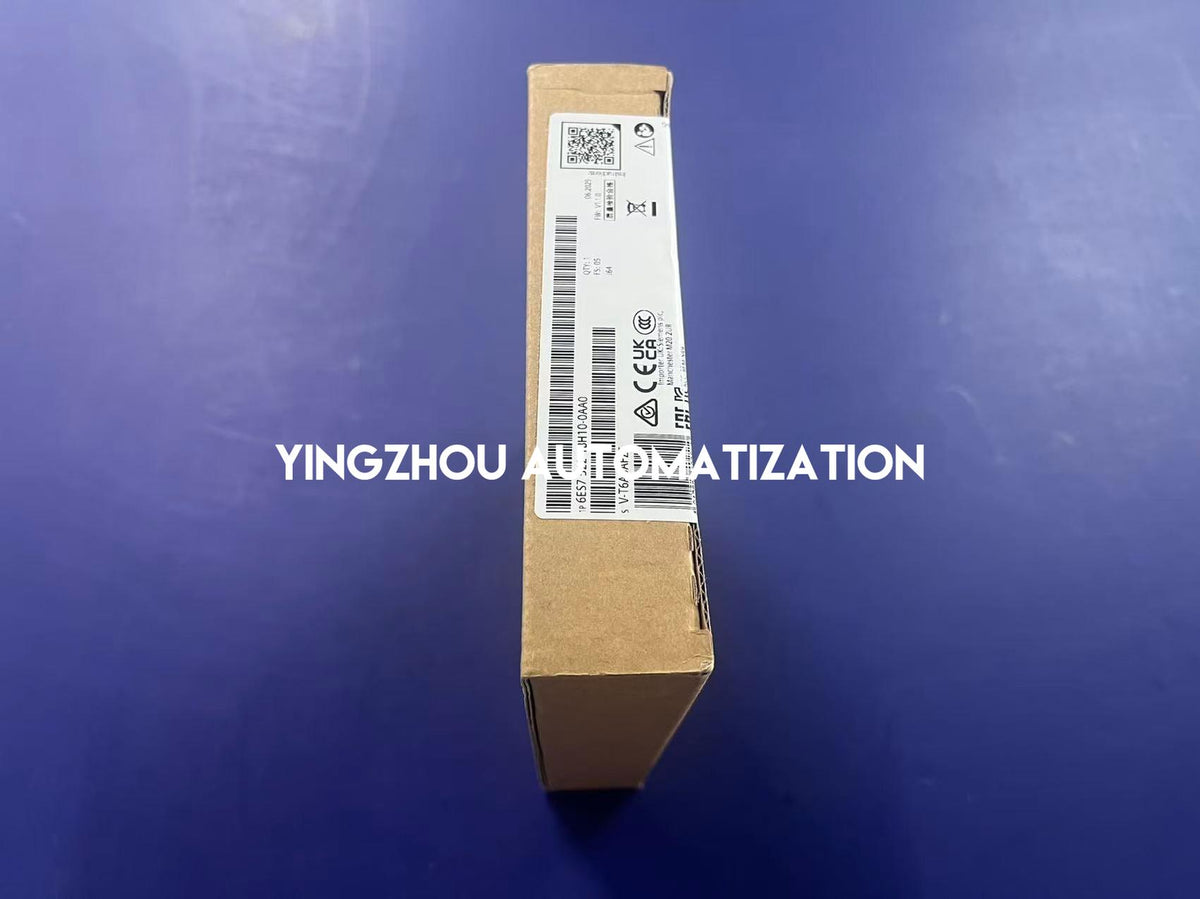

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7522-1BH10-0AA0
✓ Product family: SIMATIC S7-1500
✓ Packaging identifies a Digital Output Module
✓ Product designation: DQ 16x24VDC/0.5A BA
✓ Functional status marking: FS 05
✓ Firmware marking: FW V1.0.0
✓ Packaging date marking: 06.2025
✓ Actual carton marked Made in China
✓ Physical module nameplate not separately photographed
✓ Confirm the included push-in front connector and U-connector before shipment

In Stock & Available to Order

Siemens 6ES7522-1BH10-0AA0 is marked in stock based on the supplied inventory information. Actual Siemens packaging photographs show the matching catalog number and SIMATIC S7-1500 DQ 16x24VDC/0.5A BA product designation. This SM 522 digital output module is offered for industrial PLC maintenance, machine automation and control-system procurement. Please confirm the required quantity, 16 digital output channels, 24V DC supply, 0.5A per-channel rating and 4A maximum per group before ordering. Siemens specifies the push-in front connector and U-connector as included in the standard delivery configuration; physical contents should be checked before shipment.

IN STOCK

Siemens 6ES7522-1BH10-0AA0

Contact us for exact-model verification, multiple units and industrial PLC module sourcing. Please confirm your S7-1500 system configuration, 24V DC load requirements, channel current and installation accessories before ordering.
