Schneider ATV12H075M2 Altivar 12 AC Variable Frequency Drive
| Specification | Verified Product Data |
|---|---|
| Manufacturer | Schneider Electric |
| Catalog Number | ATV12H075M2 |
| Product Family | Altivar 12 |
| Product Type | AC Variable Frequency Drive |
| Product Destination | Asynchronous Motors |
| Product Application | Simple Industrial Machines |
| Assembly Style | With Heat Sink |
| Rated Motor Power | 0.75 kW / 1 HP |
| Rated Input Voltage | 200-240 V AC |
| Input Phase | Single-Phase (1PH) |
| Supply Voltage Tolerance | -15% to +10% |
| Input Frequency | 50/60 Hz (+/-5%) |
| Input Current at 200 V | 10.2 A |
| Input Current at 240 V | 8.5 A |
| Output Phase | Three-Phase (3PH) |
| Output Voltage | Up to 240 V AC, 3-Phase |
| Continuous Output Current | 4.2 A at 4 kHz |
| Maximum Transient Current | 6.3 A for 60 Seconds |
| Short-Duration Transient Current | 6.9 A for 2 Seconds |
| Output Frequency | 0.5-400 Hz |
| Nominal Switching Frequency | 4 kHz |
| Adjustable Switching Frequency | 2-16 kHz, Derating as Applicable |
| Motor Control - V/F | Voltage/Frequency Ratio |
| Motor Control - Quadratic | Quadratic V/F Ratio |
| Motor Control - Vector | Sensorless Flux Vector Control |
| Speed Range | 1:20 |
| Built-In Communication | Modbus Serial |
| Physical Communication Interface | 2-Wire RS485 |
| Communication Connector | 1 x RJ45 |
| Modbus Transmission Frame | RTU |
| Modbus Transmission Rates | 4800 / 9600 / 19200 / 38400 bit/s |
| Analog Inputs | 1 |
| Analog Outputs | 1 |
| Discrete Inputs | 4 |
| Relay Outputs | 1 |
| PID Regulation | Adjustable PID Controller |
| Braking Method | DC Injection |
| Integrated Brake Chopper | Not Included |
| EMC Filter | Integrated |
| Cooling Construction | Heat Sink, Without Built-In Fan |
| Protection Rating | IP20 |
| Motor Thermal Protection | I²t Calculation / Class 10 Nameplate |
| Mounting Type | Cabinet Mounting |
| Dimensions (W x H x D) | 72 x 143 x 131.2 mm |
| Net Weight | 0.8 kg |
| Operating Temperature | -10°C to +40°C Without Derating |
| Extended Operating Temperature | +40°C to +60°C With Derating |
| Storage Temperature | -25°C to +70°C |
| Operating Humidity | 5-95% RH, Non-Condensing |
| Operating Altitude | Up to 1000 m Without Derating |
| Applicable Standards | IEC 61800-3 / IEC 61800-5-1 |
| Country of Manufacture | China (Actual Unit and Carton Markings) |
| Packaging Quantity | 1 Piece |
| Packaging EAN | 3606480071072 |
Product Overview

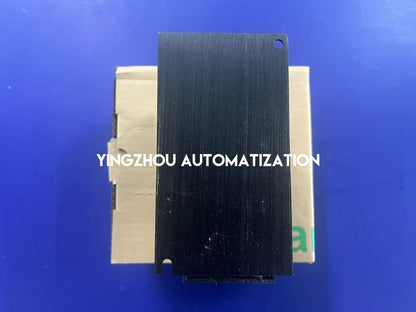

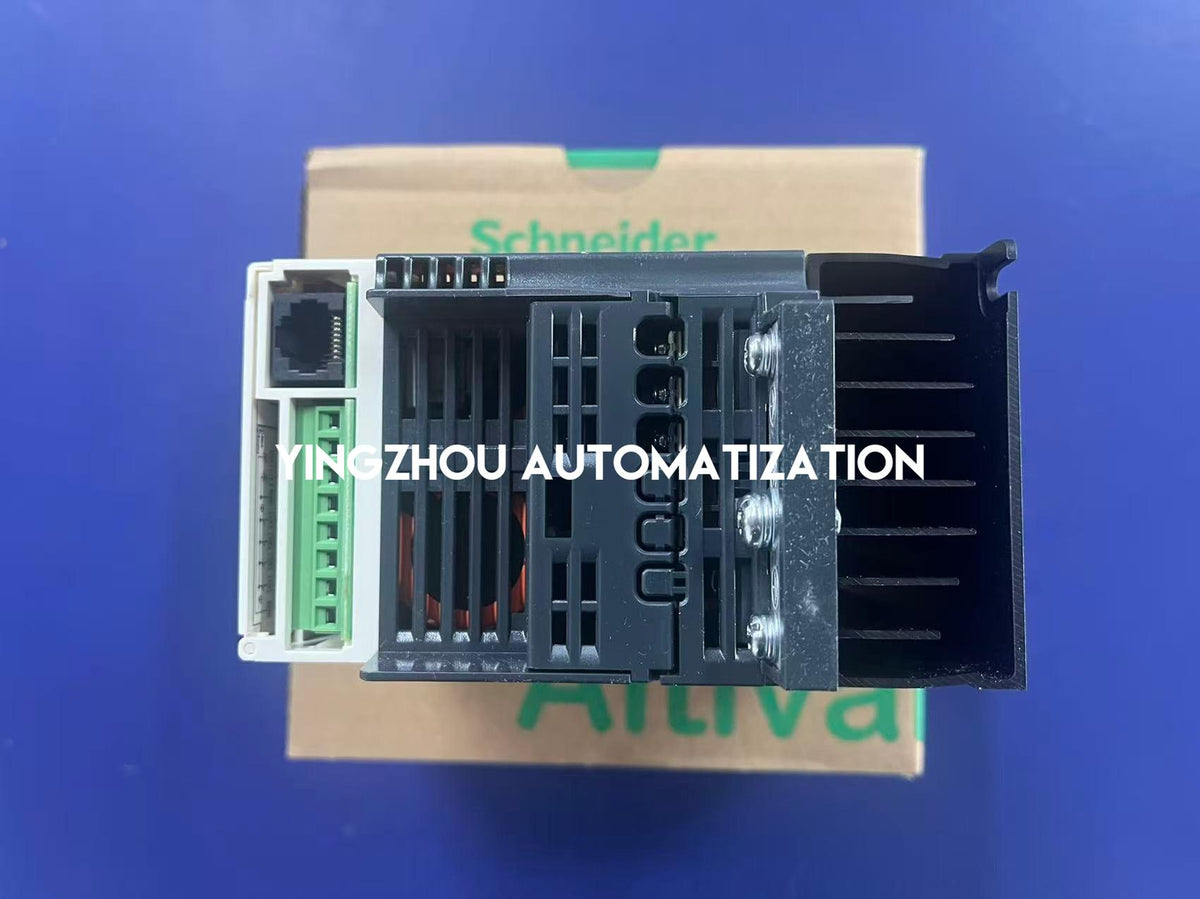

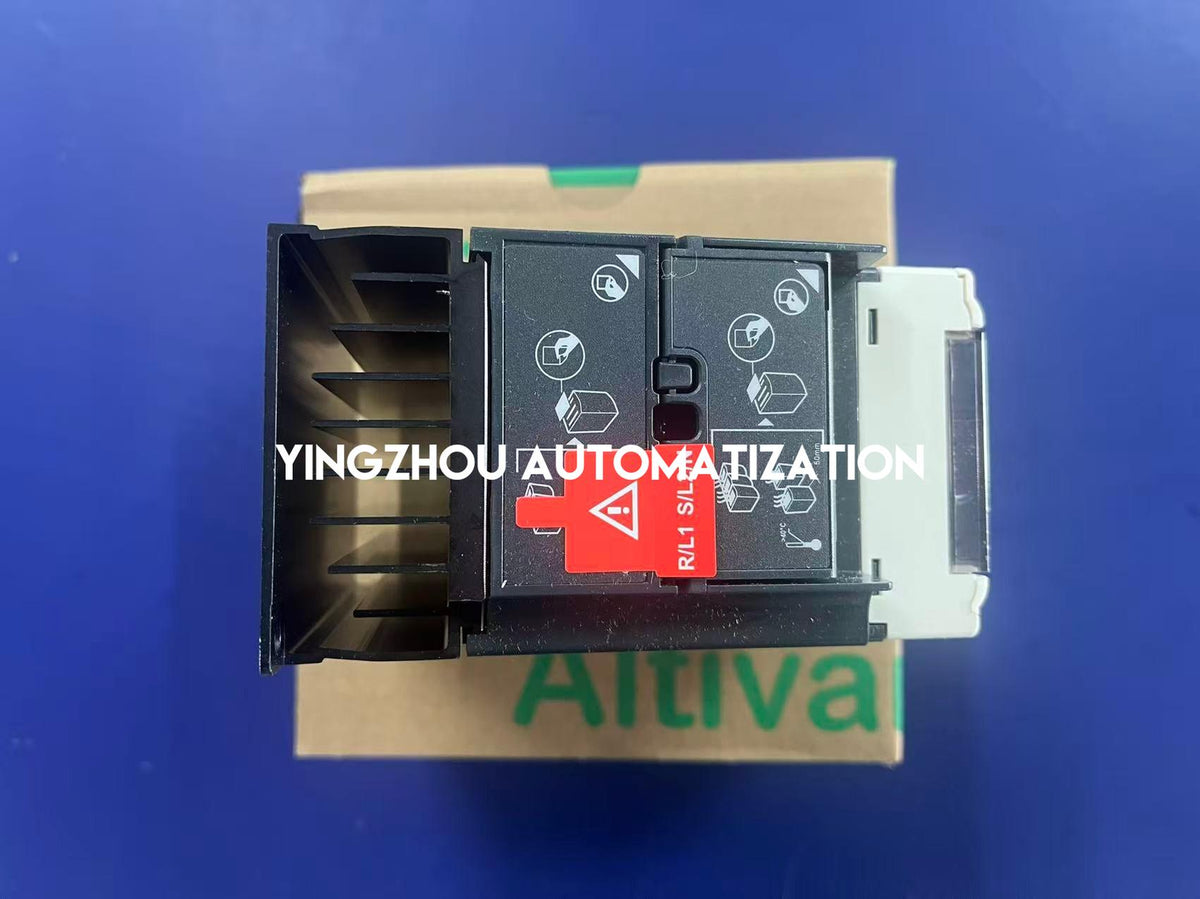

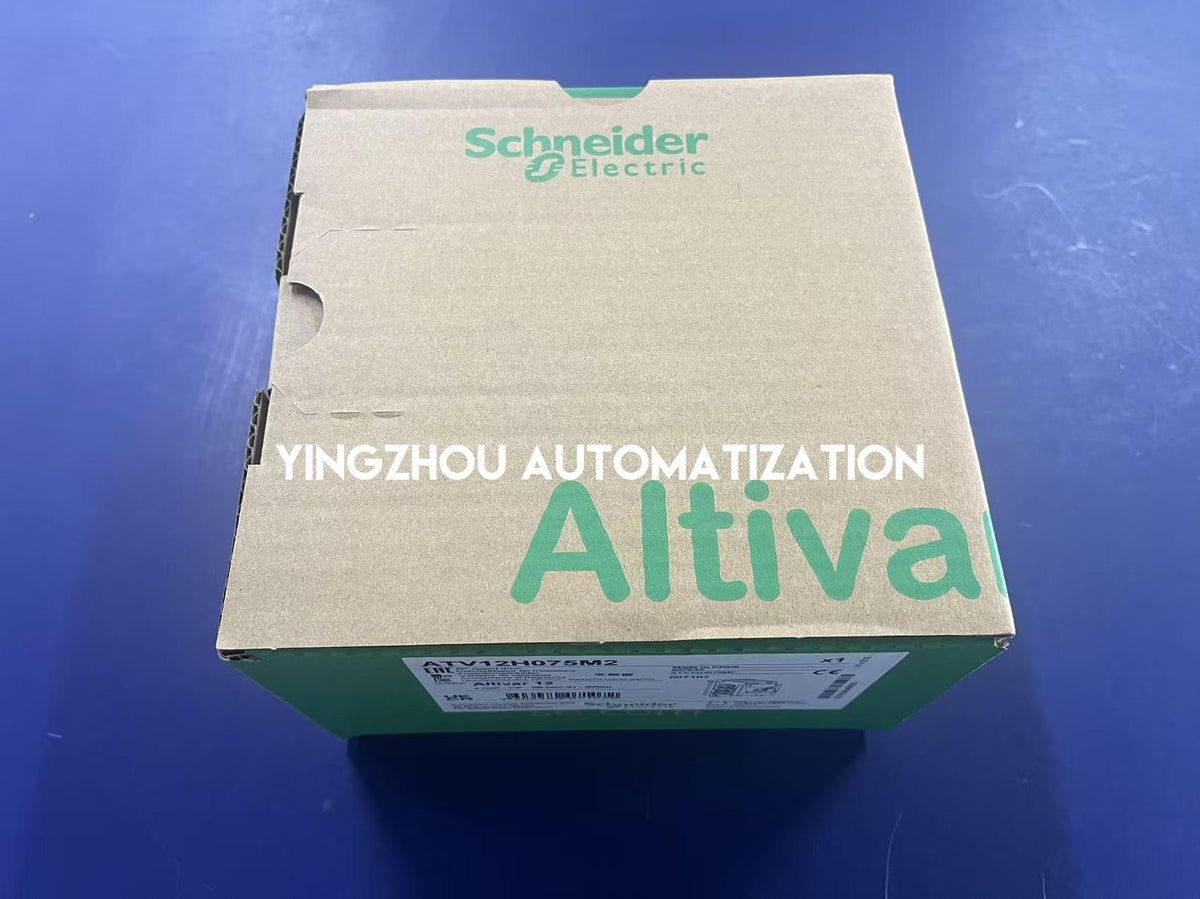

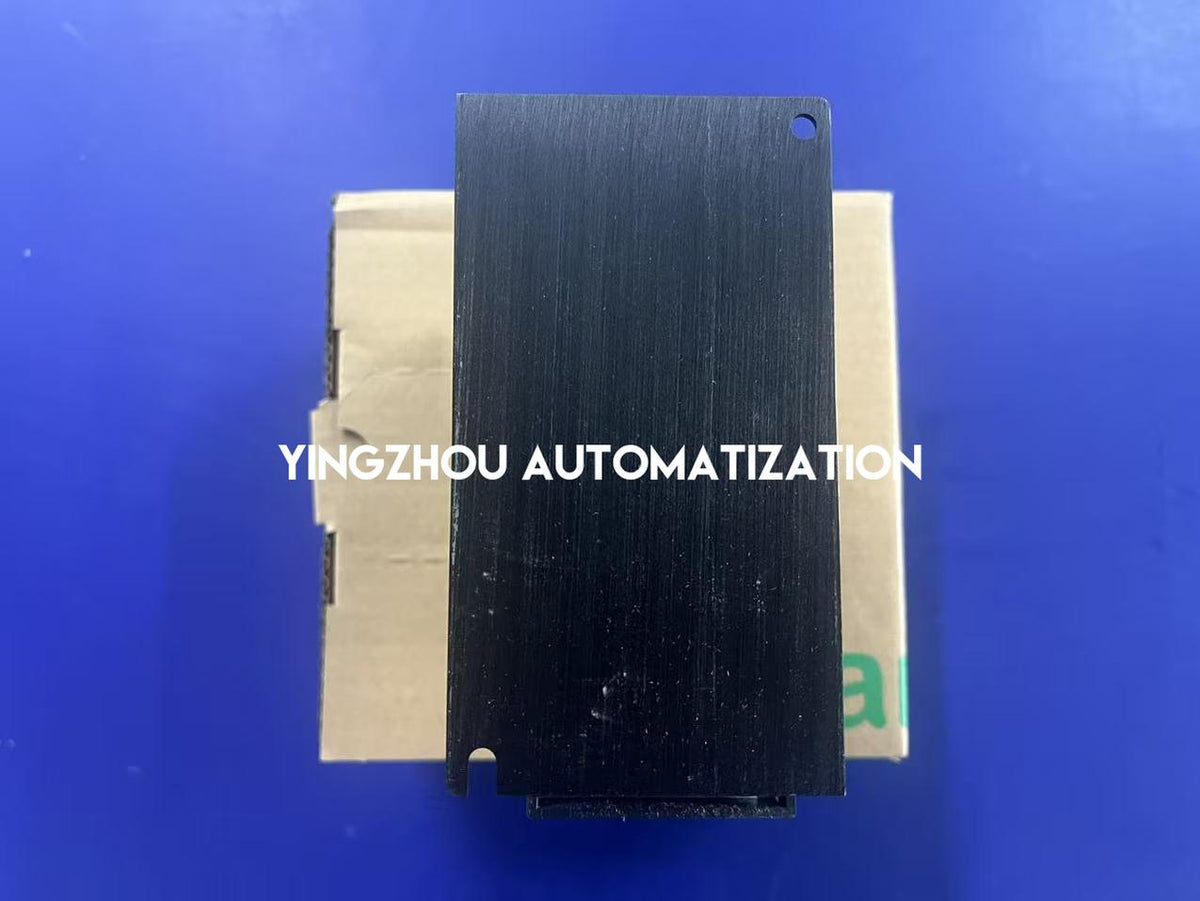

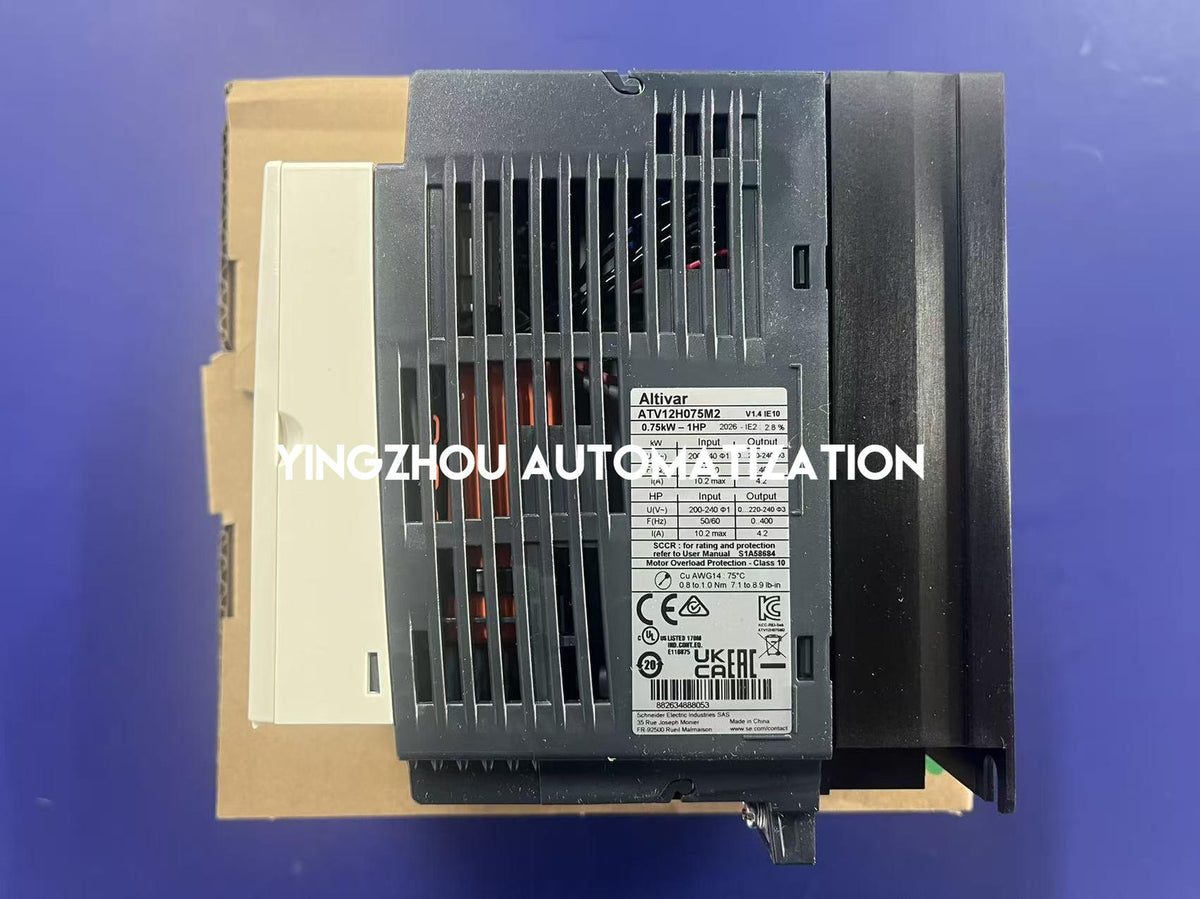

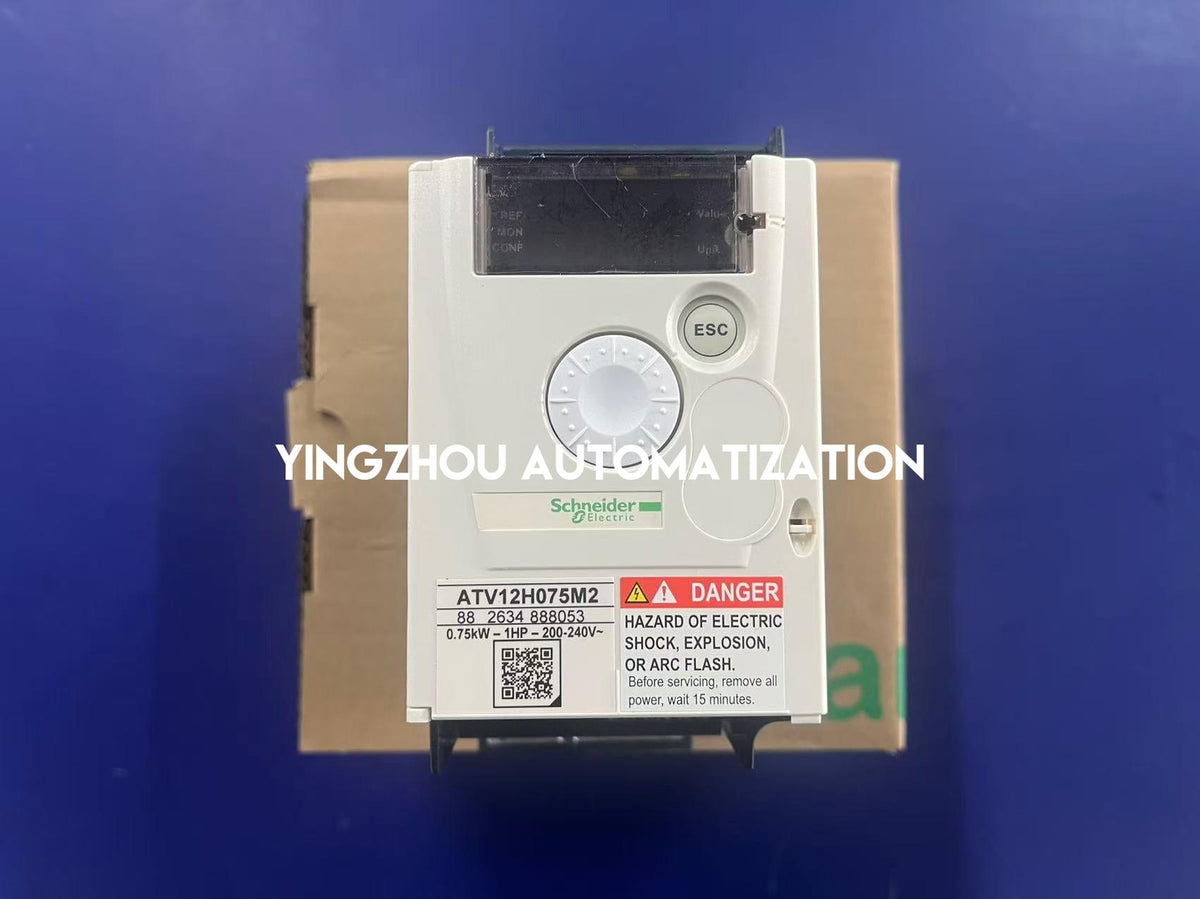

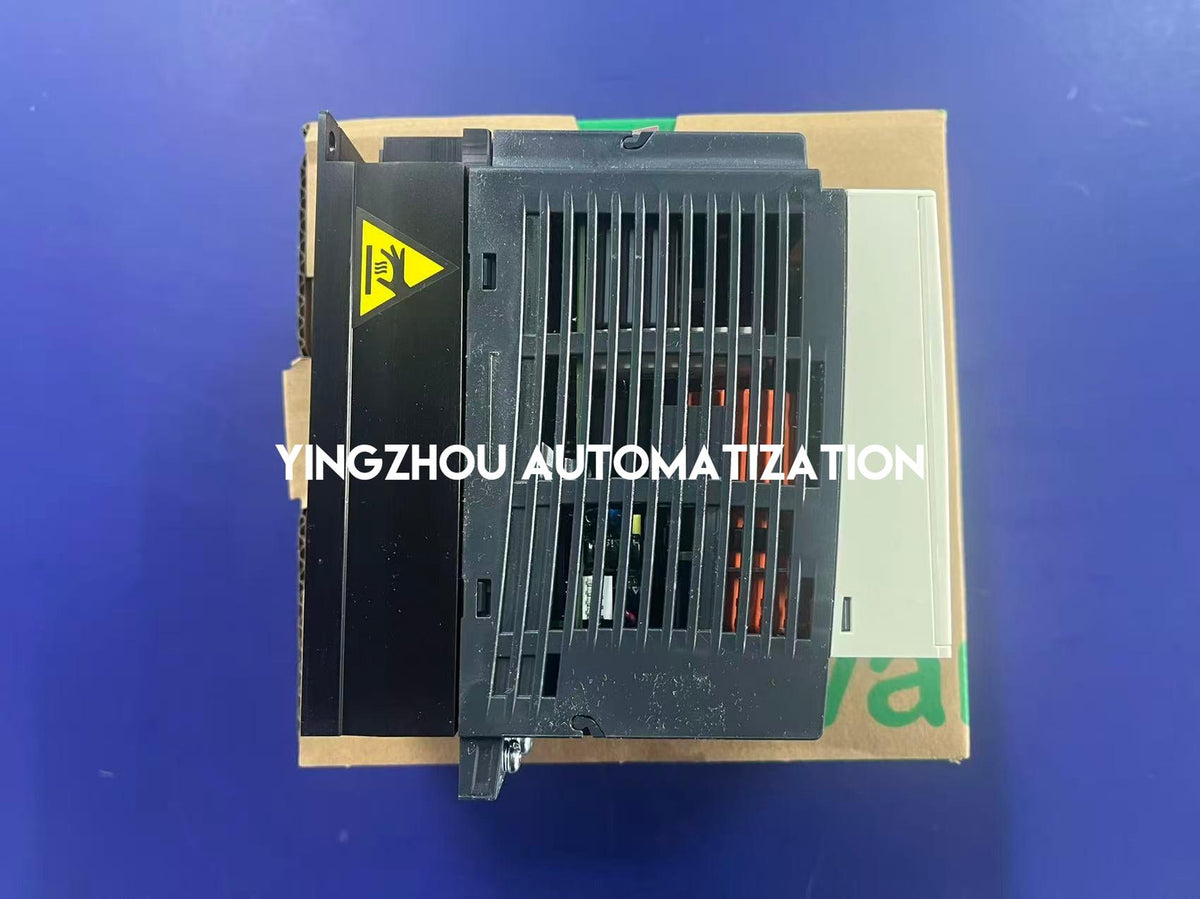

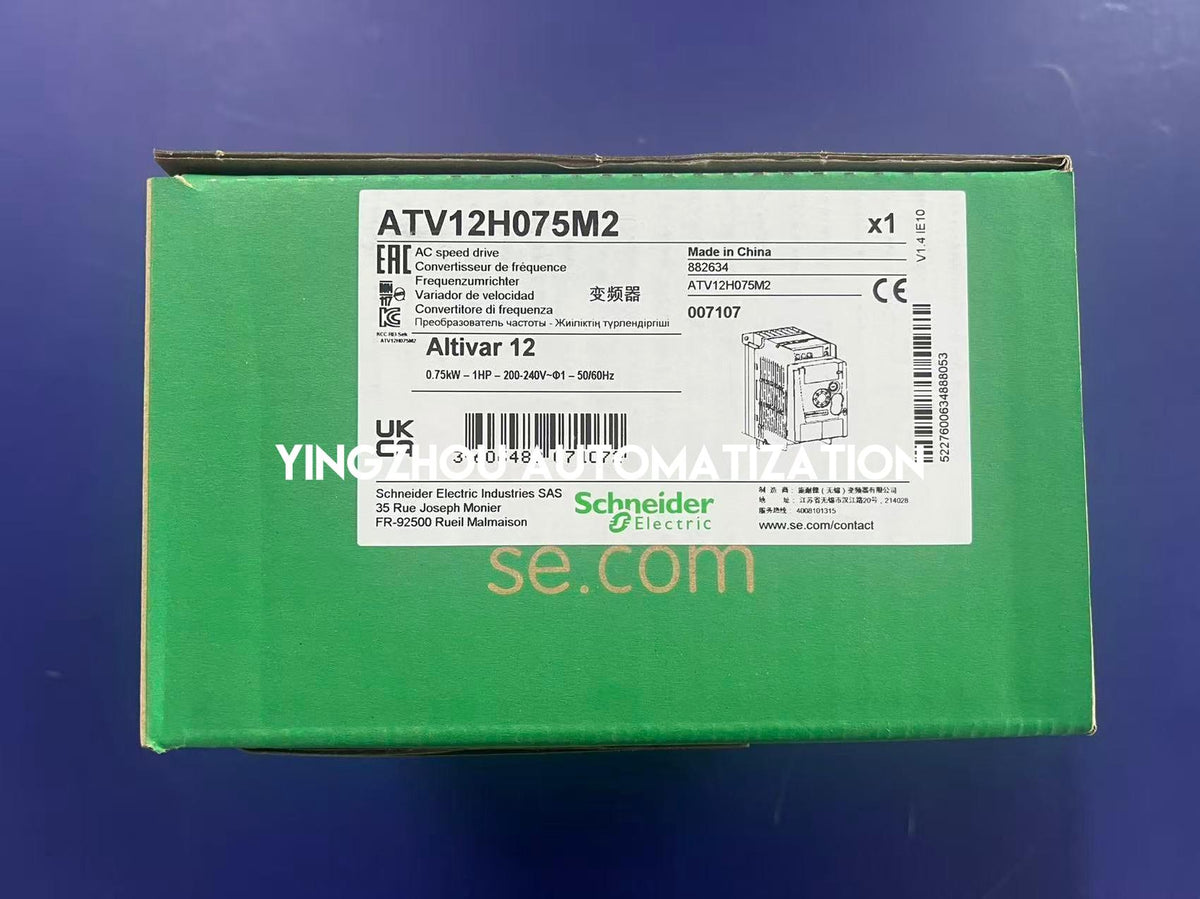

The Schneider Electric ATV12H075M2 is an Altivar 12 adjustable-frequency AC drive designed for speed control of compatible three-phase asynchronous motors in simple industrial machines. The drive is rated for 0.75 kW / 1 HP motor power and operates from a 200-240 V AC single-phase input supply at 50/60 Hz. It delivers a three-phase motor output rated at 4.2 A continuous current at 4 kHz, with a manufacturer-specified output frequency range of 0.5-400 Hz. The ATV12H075M2 provides voltage/frequency and sensorless flux vector motor control modes for suitable applications. The standard drive includes Modbus serial communication through a two-wire RS485 interface with an RJ45 connector; the RJ45 is not an Ethernet port. The unit has an integrated EMC filter, an IP20 enclosure and a heat-sink design without a built-in cooling fan. It supports DC injection braking but does not contain an integrated brake chopper. Its compact dimensions are 72 x 143 x 131.2 mm. Original product photographs show ATV12H075M2 on both the drive nameplate and carton label, with corresponding 0.75 kW, single-phase 200-240 V input and 4.2 A three-phase output markings. Before ordering, confirm the motor nameplate voltage and current, available single-phase power supply, control requirements and installation environment.
Key Product Features
- Altivar 12 AC Drive — Schneider Electric ATV12 variable frequency drive for simple industrial machines.
- 0.75 kW / 1 HP Motor Rating — Rated motor power for compatible asynchronous motors.
- 200-240 V Single-Phase Input — Rated AC power supply at 50/60 Hz.
- 4.2 A Three-Phase Output — Continuous motor output current at 4 kHz switching frequency.
- 0.5-400 Hz Output Frequency — Adjustable output frequency for motor speed control.
- Sensorless Vector Control — V/F, quadratic V/F and sensorless flux vector control modes.
- Integrated Modbus RS485 — Serial communication through the built-in RJ45 connector.
- Integrated EMC Filter — Built-in filtering for properly designed EMC installations.
- Compact IP20 Design — Heat-sink construction for suitable electrical cabinet mounting.
- Adjustable PID Regulation — Built-in PID control for appropriate simple process applications.
Actual Product Verification
In Stock & Available to Order
Schneider Electric ATV12H075M2 is marked in stock based on YINGZHOU inventory information. Actual drive and packaging photographs are available for exact-model verification. This Altivar 12 variable frequency drive is rated for a 0.75 kW / 1 HP asynchronous motor and operates from a 200-240 V single-phase AC input, supplying a three-phase motor output rated at 4.2 A. It includes Modbus RS485 serial communication, an integrated EMC filter and an IP20 heat-sink enclosure. For machine maintenance, VFD replacement, electrical control cabinets, industrial project sourcing or multiple-unit procurement, please confirm the exact motor rating, input power supply, output voltage, quantity and dispatch arrangements before ordering.
Schneider ATV12H075M2
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 0.75kW motor rating, 200-240V single-phase input, 4.2A three-phase output, installation and communication requirements before ordering.
Request Bulk PricingLooking for other Schneider Electric industrial automation products?
Explore Schneider Electric Industrial Automation ProductsShare
