Omron H3DK-M2 Multi-Mode Timer Relay
24–240VAC/DC | DPDT Relay Output | 9 Terminals | 0.1s–1200h | DIN Rail
| Specification |
Verified Product Data |
| Manufacturer |
OMRON Corporation |
| Model |
H3DK-M2 |
| Product Family |
H3DK-M / H3DK-S |
| Product Type |
Multi-Range, Multi-Mode Timer Relay |
| Supply Voltage |
24–240 VAC/DC |
| Supply Frequency |
50/60 Hz |
| Allowable Voltage Fluctuation |
85%–110% of Rated Voltage |
| Timing Range |
0.1 s–1,200 h Across Selectable Ranges |
| Time-Range Settings |
0.1 s, 1 s, 10 s, 1 min, 10 min, 1 h, 10 h, 100 h |
| Operating Modes |
A, B, B2, C, D, E, G, J |
| Input Type |
Voltage Input |
| Control Output |
Relay Contact Output, DPDT |
| Output Configuration |
Time-Limit DPDT or Time-Limit SPDT + Instantaneous SPDT, Switch-Selectable |
| Terminal Configuration |
9 Terminals |
| Rated Contact Capacity |
5 A at 250 VAC, Resistive Load; 5 A at 30 VDC, Resistive Load |
| Maximum Power Consumption |
6.6 VA at 240 VAC |
| Operating Temperature |
−20°C to +55°C, Without Icing |
| Storage Temperature |
−40°C to +70°C, Without Icing |
| Operating Humidity |
25%–85% RH |
| Protection Rating |
IP30; Terminal Block IP20 |
| Mounting |
DIN Rail Mounting |
| Product Width |
22.5 mm |
| Minimum Power-OFF Reset Time |
0.1 s |
Product Overview
The Omron H3DK-M2 is a multi-range, multi-mode timer relay designed for industrial control panels. It supports a 24–240 VAC/DC power supply and offers selectable timing ranges from 0.1 seconds to 1,200 hours. The H3DK-M2 supports eight operating modes and provides DPDT relay contact output with a switch-selectable output configuration. Its 22.5 mm-wide DIN rail-mounted design helps integrate timing control into panel installations. Confirm the required operating mode, timing range, supply voltage and terminal wiring against the official Omron documentation before installation.
Key Product Features
-
Multi-Range Timer Relay — Selectable time ranges from 0.1 seconds to 1,200 hours.
-
Eight Operating Modes — A, B, B2, C, D, E, G and J timing functions.
-
Wide-Range Power Supply — 24–240 VAC/DC, 50/60 Hz.
-
DPDT Relay Contact Output — Switch-selectable time-limit output configuration.
-
9-Terminal Design — Manufacturer-specified terminal configuration.
-
Compact DIN Rail Mounting — 22.5 mm-wide timer for control-panel installation.
-
Actual Product Verification — The unit's rear label and packaging both identify model H3DK-M2.
Actual Product Verification
✓ Actual product photographs supplied

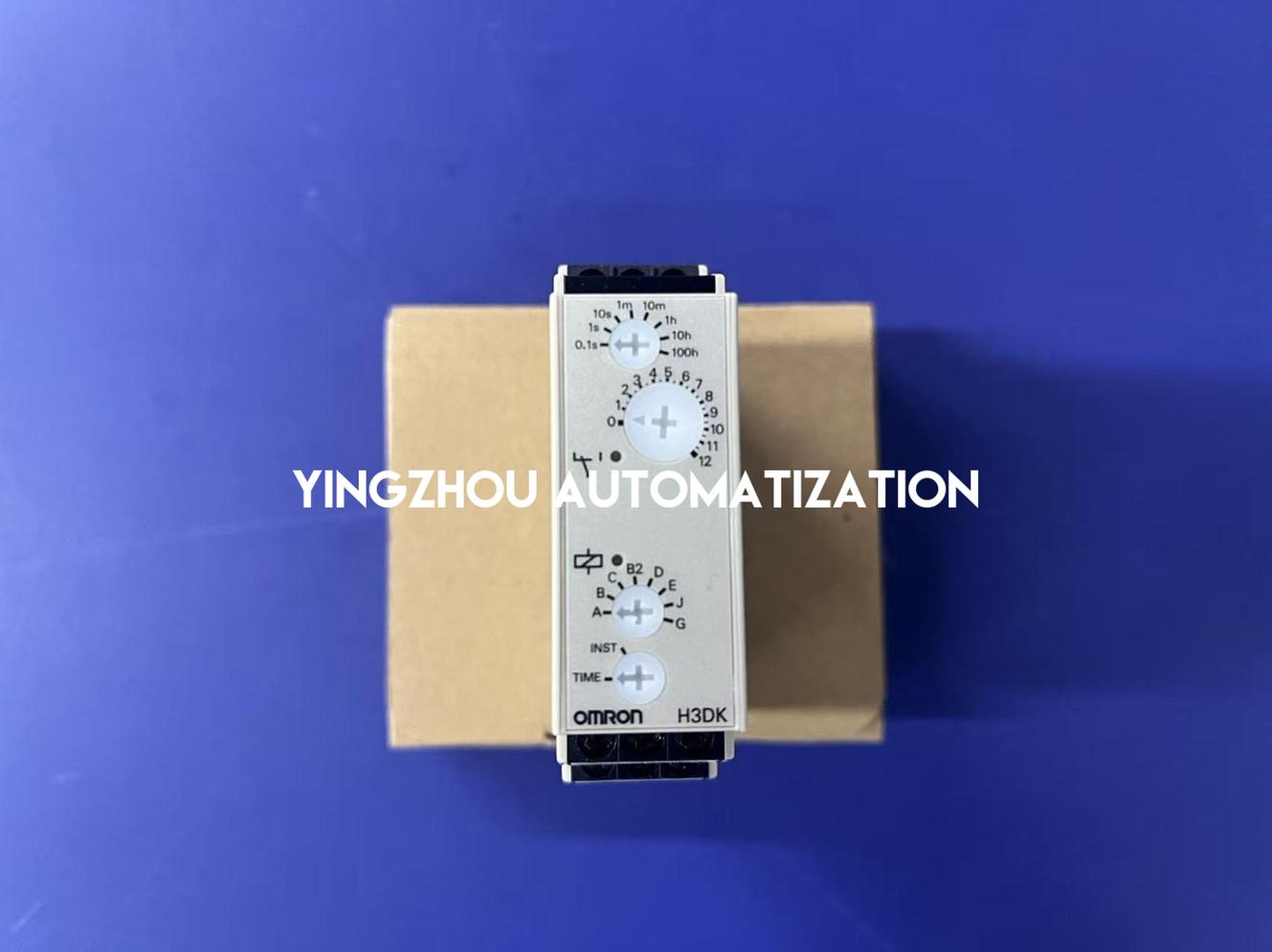

✓ Product front and rear labels shown

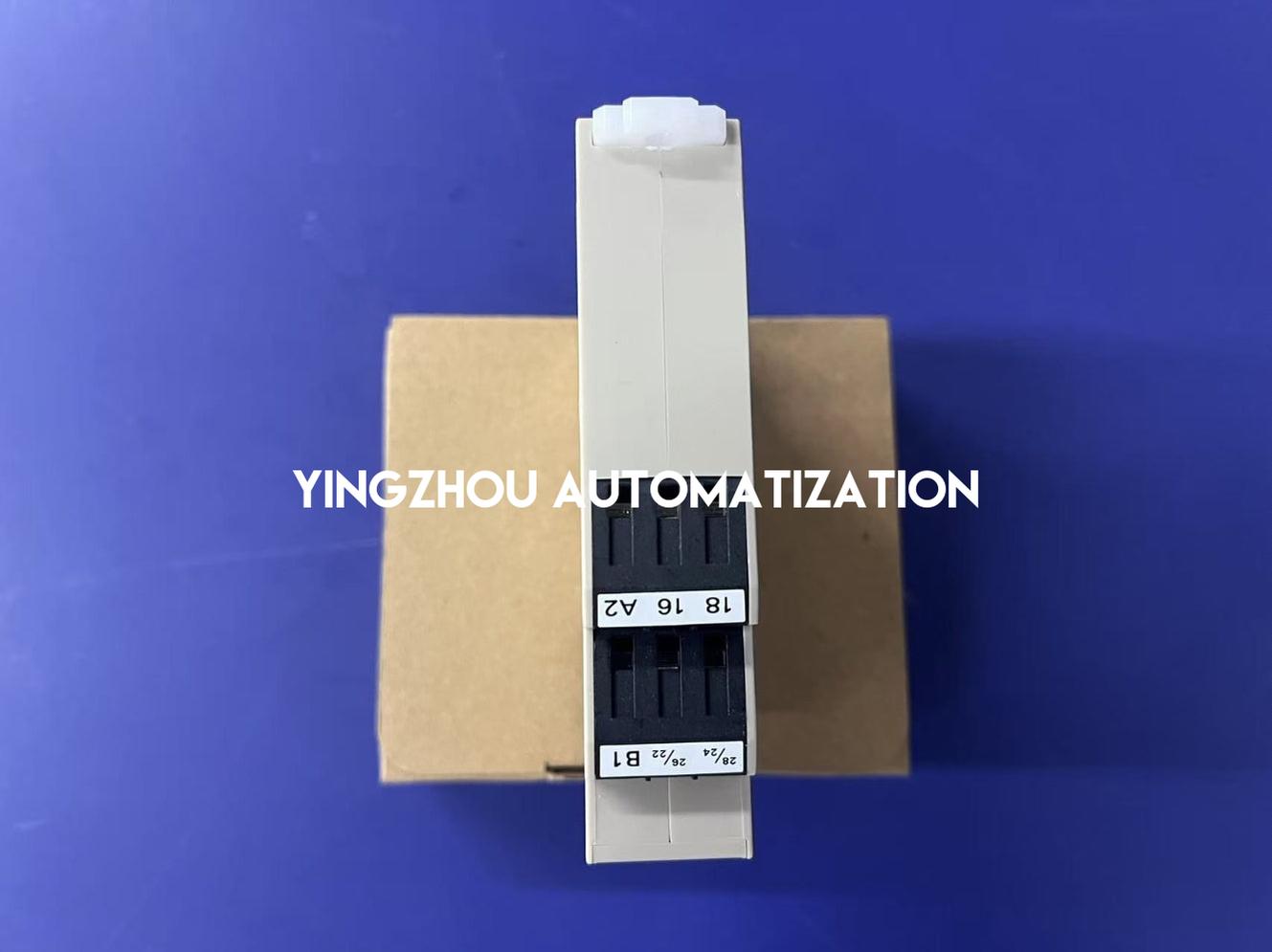

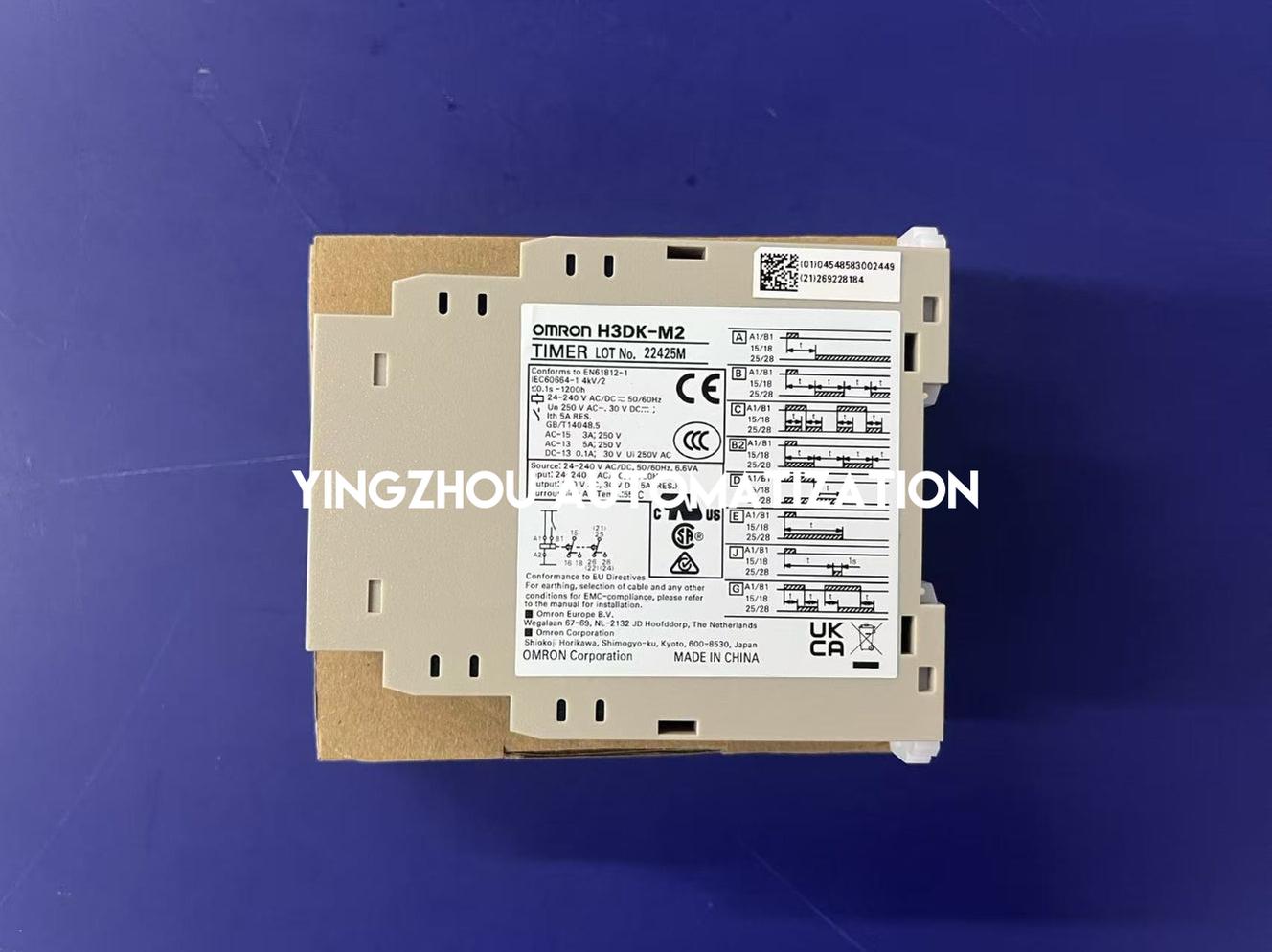

✓ Unit label identifies H3DK-M2

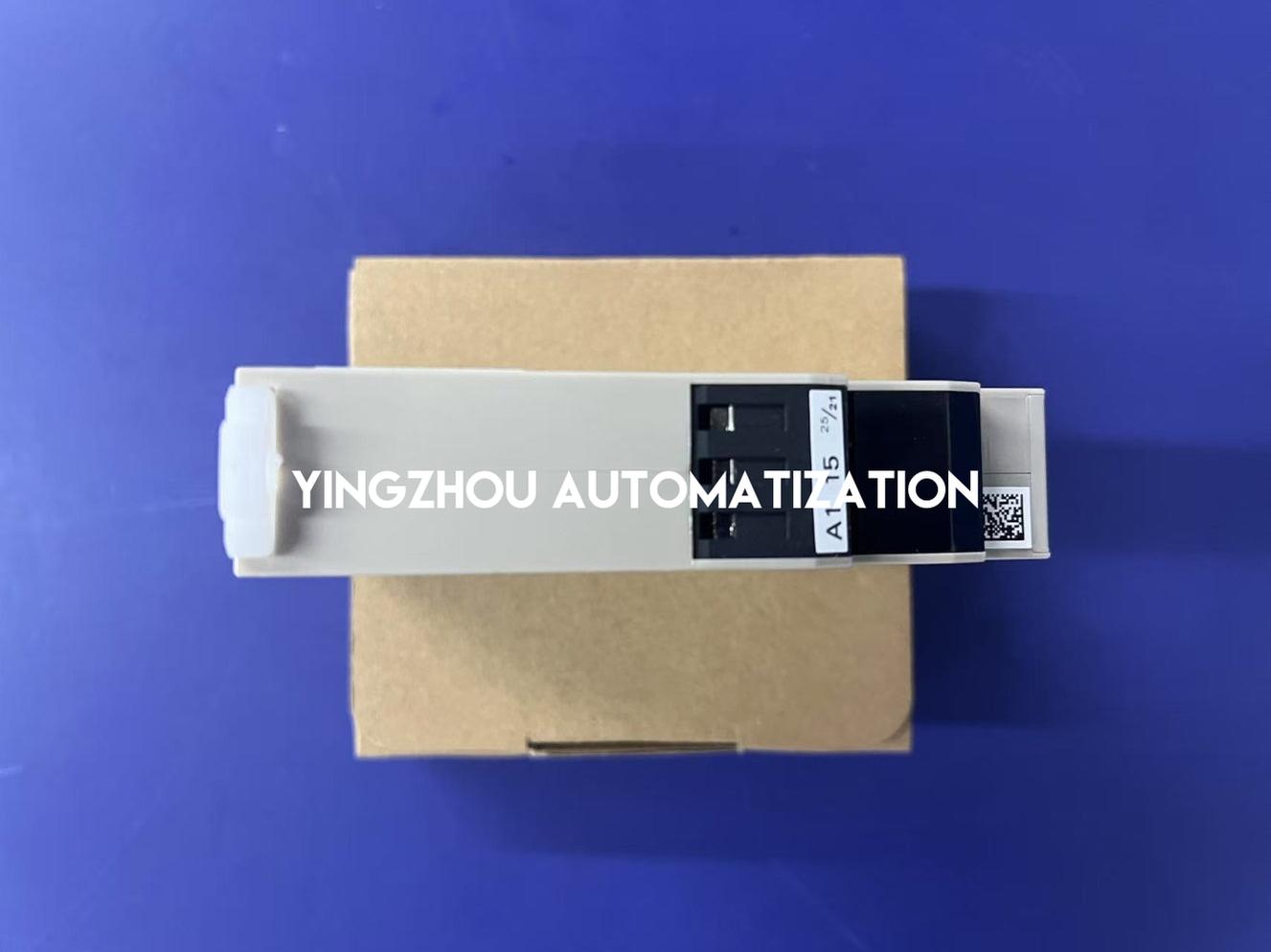

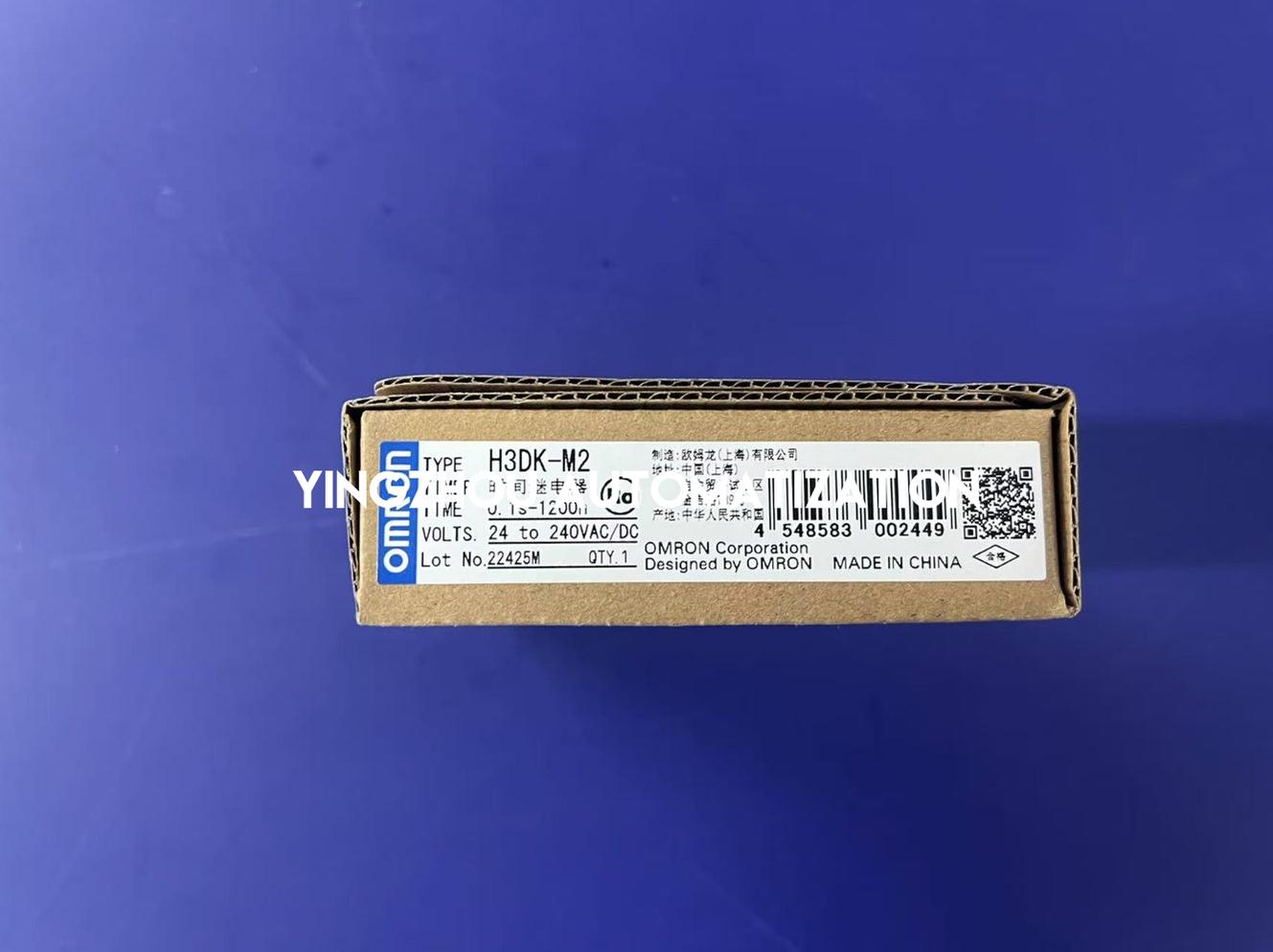

✓ Packaging label identifies H3DK-M2
✓ Both labels match the requested model
✓ Packaging voltage and timing range match the official product family specifications
✓ Confirm the required timing mode and terminal wiring before installation
In Stock & Available to Order
Omron H3DK-M2 is marked in stock based on the supplied inventory information. The actual unit and packaging both identify the requested model. Before installation, verify that the 24–240 VAC/DC supply, selected timing function, output-contact configuration and terminal wiring match your control-panel requirements.
IN STOCK
Omron H3DK-M2
Contact YINGZHOU for bulk orders and industrial automation sourcing. Confirm the required timing mode, supply voltage and output configuration before ordering.
