FESTO ADVU-80-125-A-P-A Compact Pneumatic Cylinder
Part No. 156048 | 80mm Bore | 125mm Stroke | Double-Acting
| Specification |
Verified Product Data |
| Manufacturer |
Festo SE & Co. KG |
| Catalog Number |
156048 |
| Exact Model |
ADVU-80-125-A-P-A |
| Product Family |
ADVU Compact Cylinder |
| Product Type |
Compact Pneumatic Cylinder |
| Piston Diameter |
80 mm |
| Stroke |
125 mm |
| Mode of Operation |
Double-Acting |
| Piston Rod End |
External Thread |
| Piston Rod Thread |
M16 × 1.5 |
| Cushioning |
Elastic Cushioning Rings/Pads at Both Ends |
| Position Sensing |
For Proximity Sensor |
| Operating Pressure |
0.06–1 MPa (0.6–10 bar) |
| Operating Medium |
Compressed Air to ISO 8573-1:2010 [7:4:4] |
| Pneumatic Connection |
G1/8 |
| Mounting Position |
Any |
| Mounting Type |
Through-Hole or with Accessories |
| Ambient Temperature |
−20°C to +80°C |
| Corrosion Resistance Class |
CRC 2 — Moderate Corrosion Stress |
| Theoretical Force at 6 bar, Advancing |
3,016 N |
| Theoretical Force at 6 bar, Retracting |
2,827 N |
Product Overview
The FESTO ADVU-80-125-A-P-A, part number 156048, is a compact pneumatic cylinder with an 80mm piston diameter and 125mm stroke. This double-acting cylinder uses a piston rod with an external M16 × 1.5 thread and features elastic cushioning rings or pads at both ends. The specified operating pressure range is 0.6–10 bar, with a G1/8 pneumatic connection. It is designed for position sensing via a proximity sensor. At 6 bar, the theoretical advancing force is 3,016 N and the theoretical retracting force is 2,827 N. Confirm mechanical mounting, port connections, sensor requirements and operating conditions before installation.
Key Product Features
-
80mm Bore — Compact pneumatic cylinder with an 80mm piston diameter.
-
125mm Stroke — Specified stroke for model ADVU-80-125-A-P-A.
-
Double-Acting Design — Pneumatic actuation for extension and retraction.
-
0.6–10 Bar Operating Pressure — Manufacturer-specified pressure range.
-
M16 × 1.5 External Thread — Specified piston rod thread.
-
Elastic End Cushioning — Cushioning rings or pads at both ends.
-

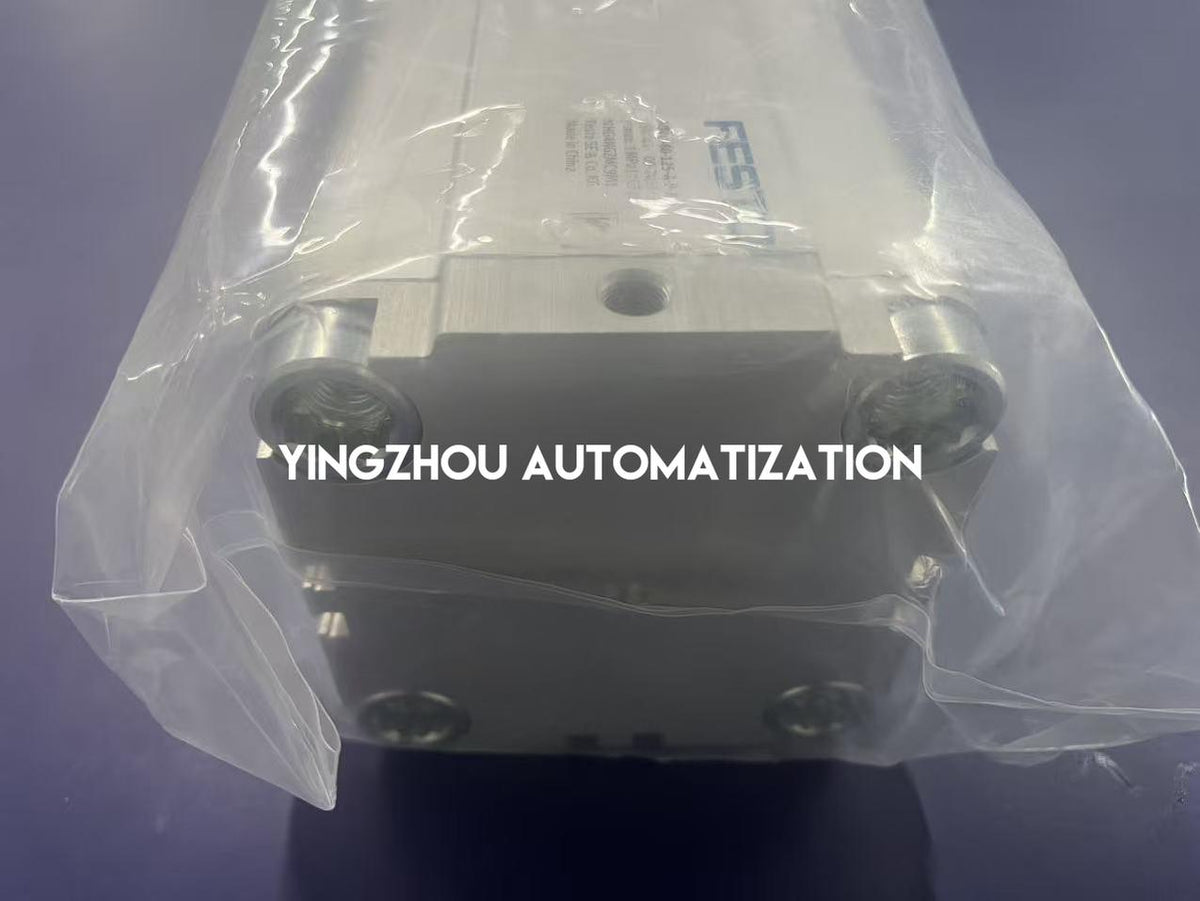

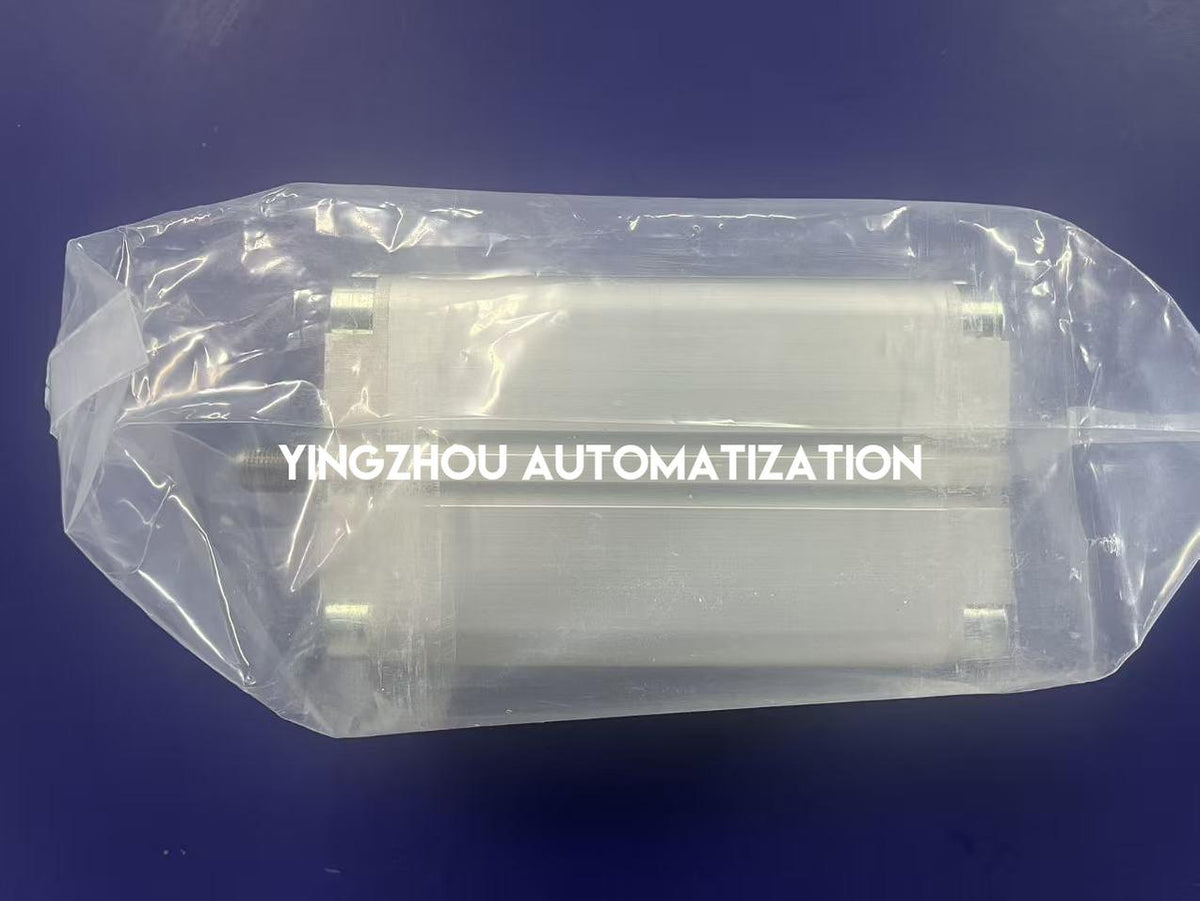

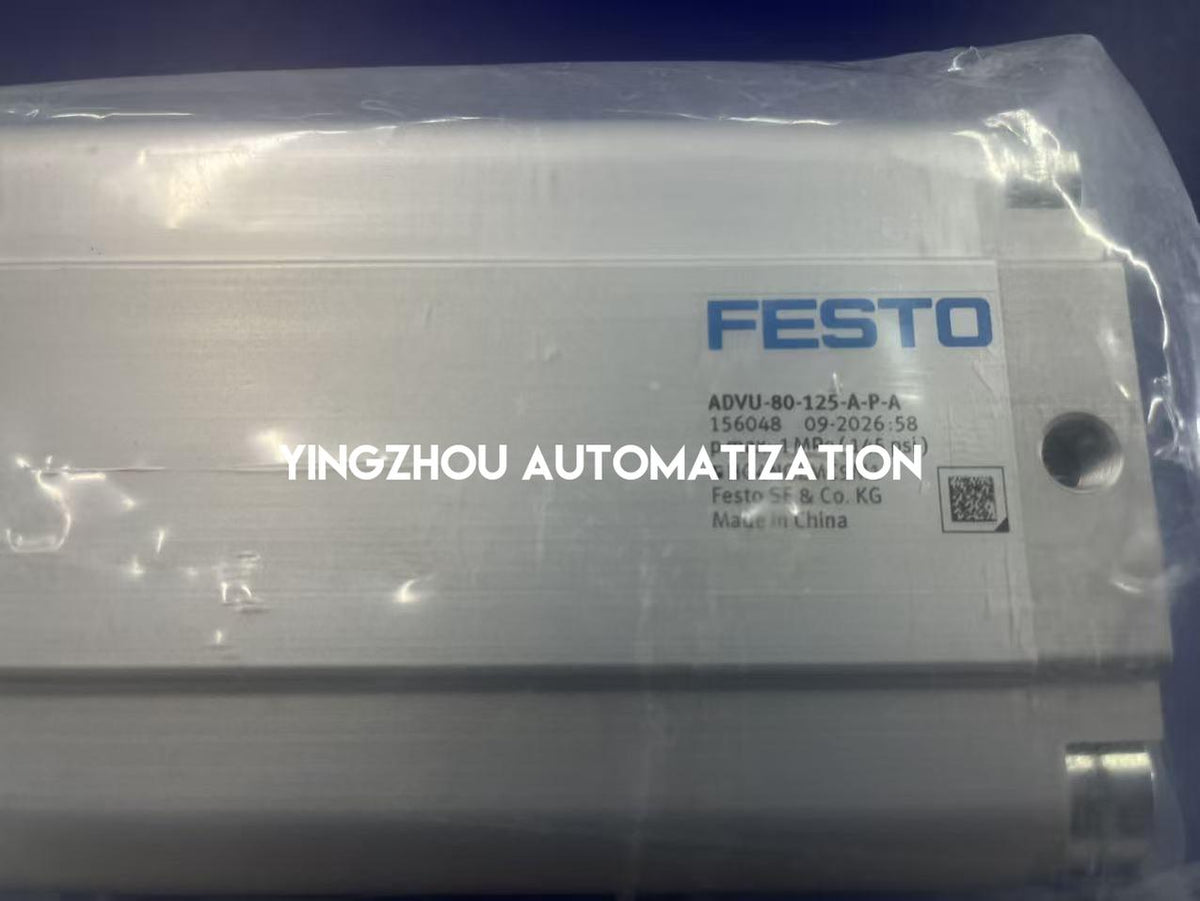

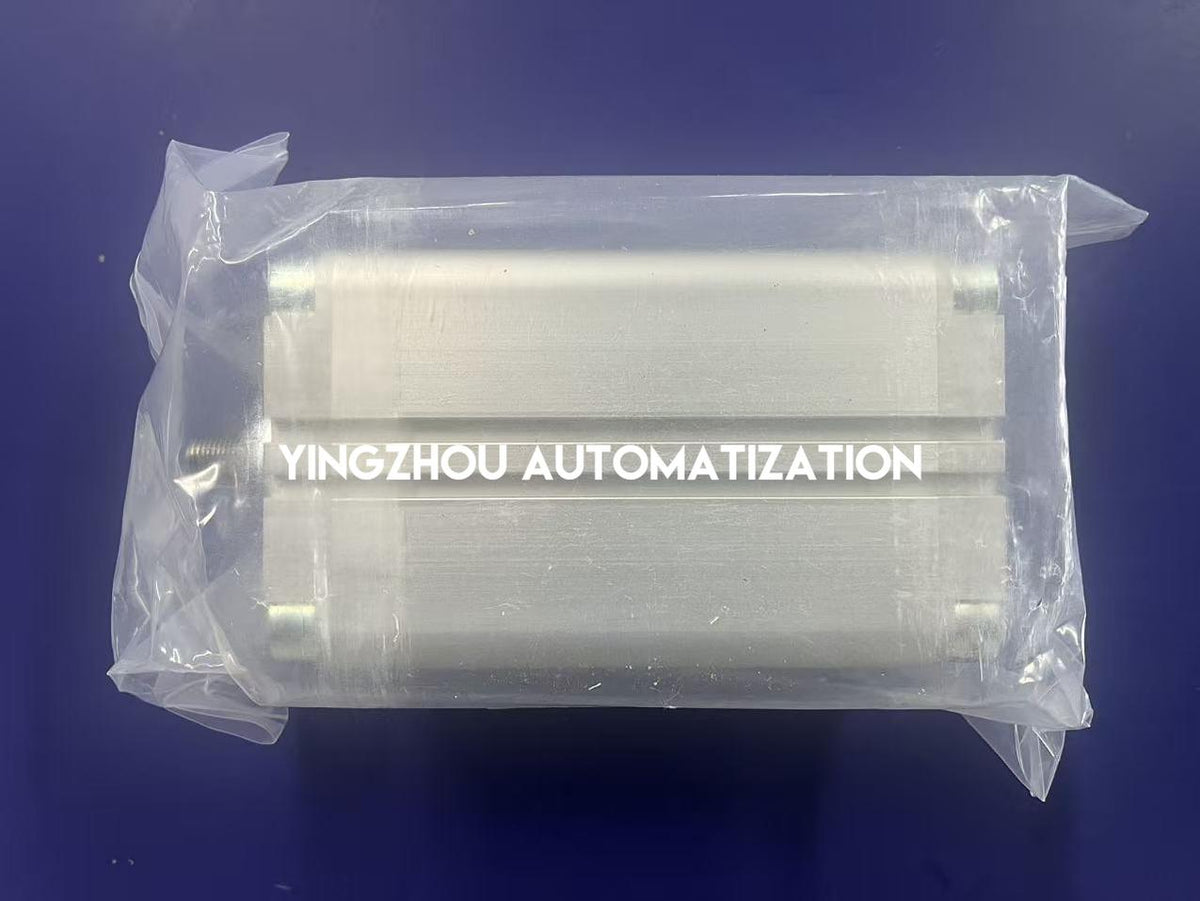

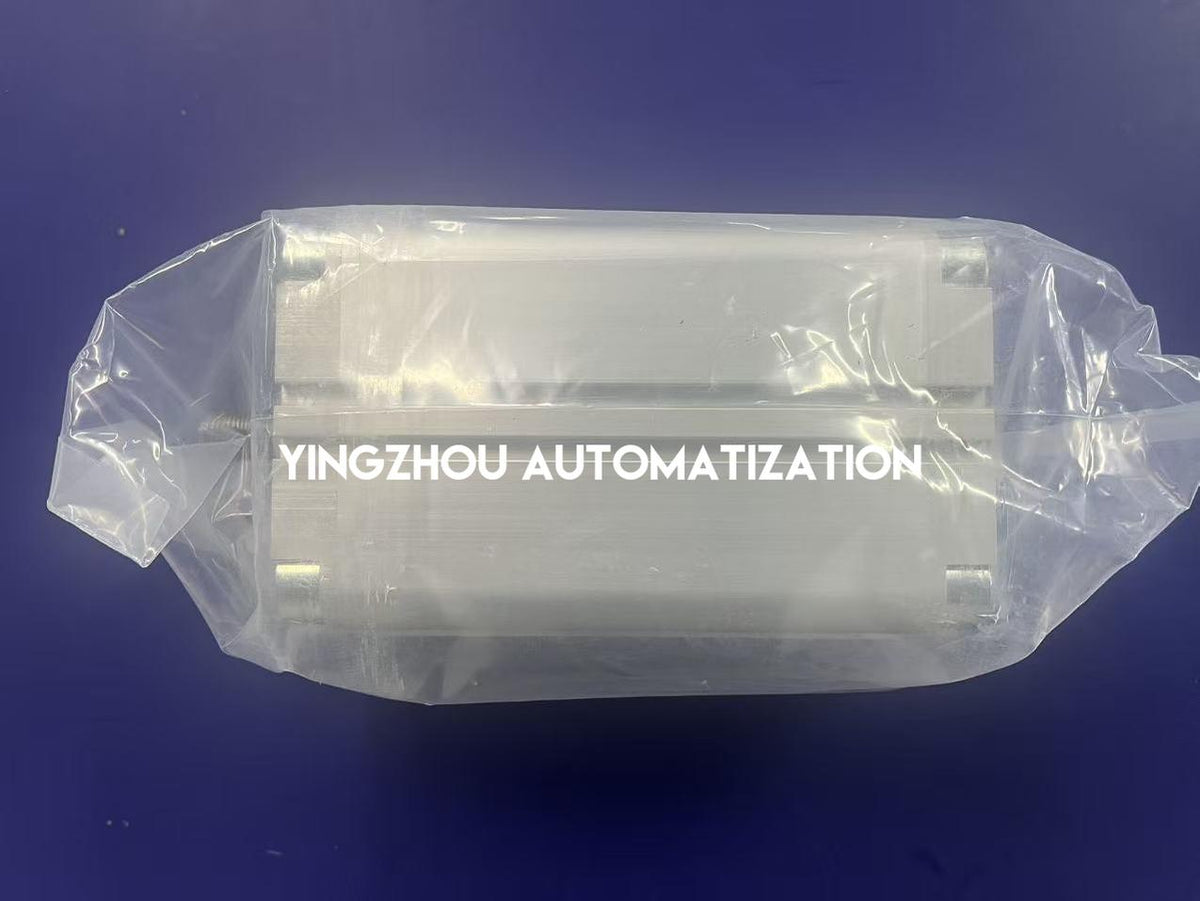

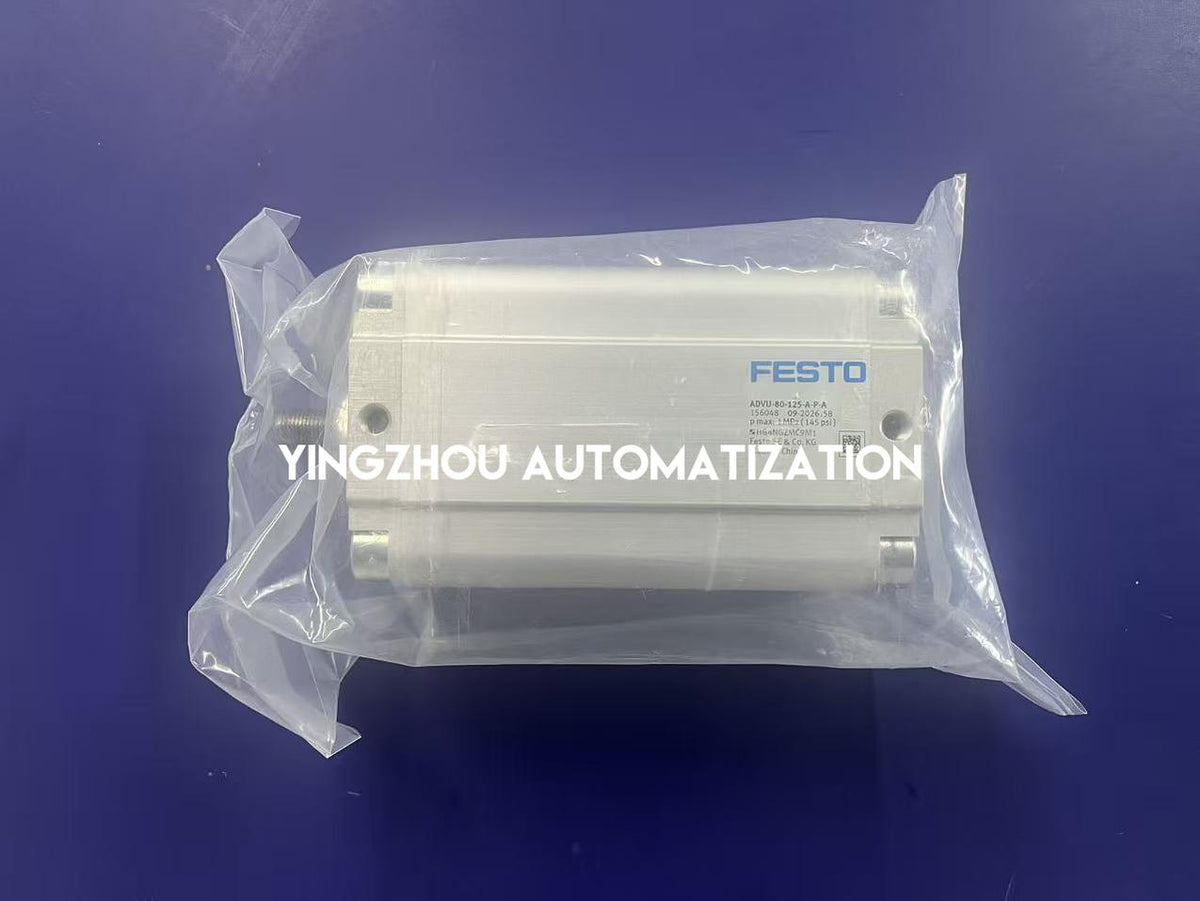

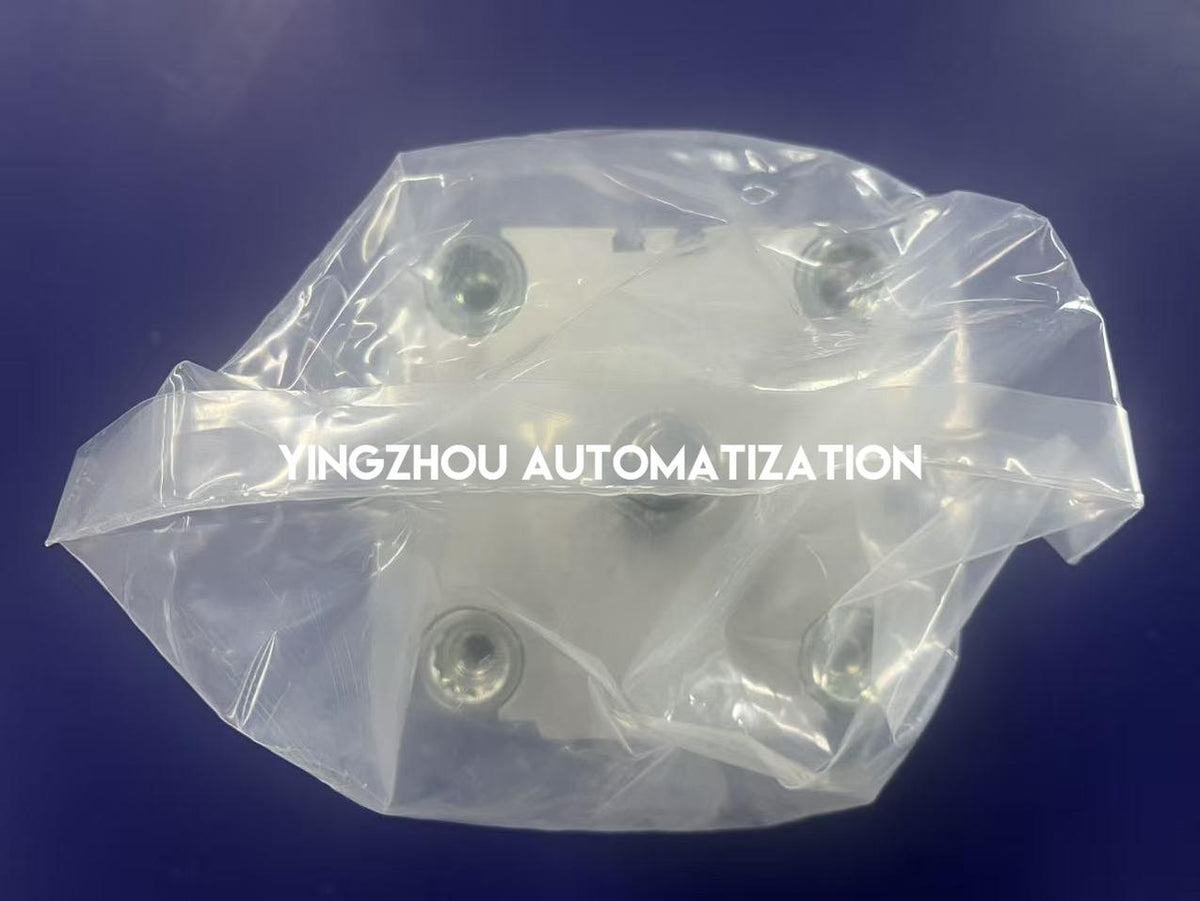

Actual Product Photos — Supplied product label identifies model ADVU-80-125-A-P-A and part number 156048.
Actual Product Verification
✓ Actual product photograph supplied
✓ Manufacturer marking: FESTO
✓ Model marking: ADVU-80-125-A-P-A
✓ Part number: 156048
✓ Photo label shows maximum operating pressure of 1 MPa (145 psi)
✓ Product identity matches the supplied model
✓ Functional operation has not been independently tested
In Stock & Available to Order
FESTO ADVU-80-125-A-P-A (156048) is listed as in stock based on the supplied inventory information. Actual product photography is available for model identification. Please confirm the required cylinder stroke, mounting arrangement, pneumatic connection and operating pressure before ordering.
IN STOCK
FESTO ADVU-80-125-A-P-A
Contact YINGZHOU for quantity quotations, pneumatic component sourcing and multi-brand industrial purchasing.
Request Bulk Pricing
