Enerpac HC9210 700 Bar 10 ft Hydraulic Hose 1/4 Inch ID with CH604 Coupler
Enerpac HC9210 700 Bar 10 ft Hydraulic Hose 1/4 Inch ID with CH604 Coupler
Не удалось загрузить сведения о доступности самовывоза
Enerpac HC9210 900 Series Hydraulic Hose
| Specification | Verified Product Data |
|---|---|
| Manufacturer | Enerpac |
| Catalog Number | HC9210 |
| Product Family | 900 Series / H900 |
| Product Type | Heavy-Duty Rubber Hydraulic Hose Assembly |
| Maximum Working Pressure | 700 Bar / 10,000 PSI |
| Hose Length | 10 ft / 3.0 m |
| Internal Diameter | 0.25 Inch / 6.4 mm |
| Hose Material | Heavy-Duty Rubber |
| Hose Reinforcement | Two Layers of Steel Wire Braids |
| End One Connection | 3/8" NPTF |
| End Two Connection | CH604 High-Flow Male Coupler |
| CH604 Coupler Type | Male Half |
| CH604 Maximum Rated Pressure | 700 Bar |
| CH604 Maximum Flow Capacity | 35 L/min (Coupler Rating) |
| Hose Oil Capacity | 5.89 in³ / Approx. 96.5 mL |
| Strain Relief | Crimped-On Rubber Strain Relief |
| Hose Flexibility | Flexible, Low-Memory Construction |
| Hose Standard Reference | Designed to Comply with MHI IJ-100 |
| Nominal Weight | 4.3 lb / Approx. 1.95 kg |
| Actual Pressure Marking | WP 700 BAR / 10,000 PSI |
| Actual Hose Series Marking | 900 SERIES |
| Packaging Catalog Number | HC9210 |

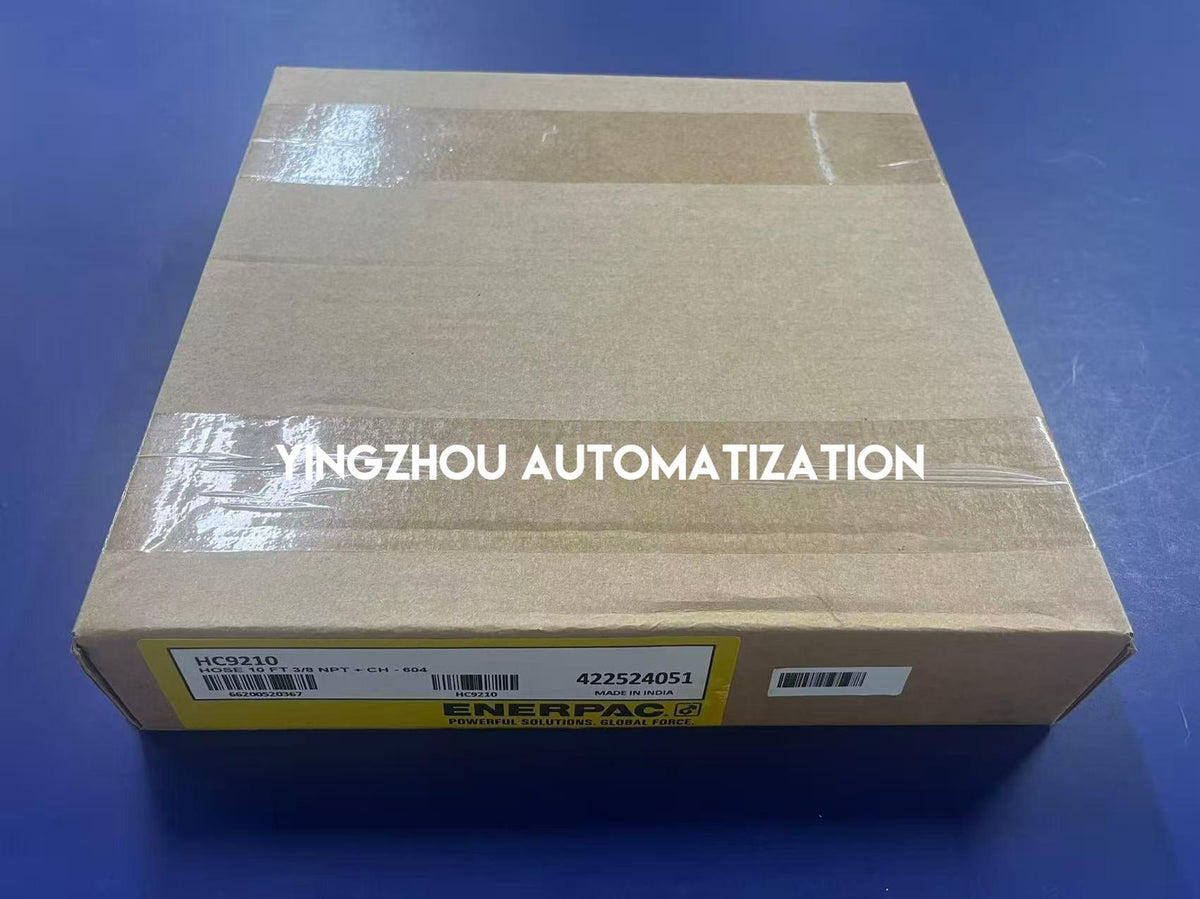

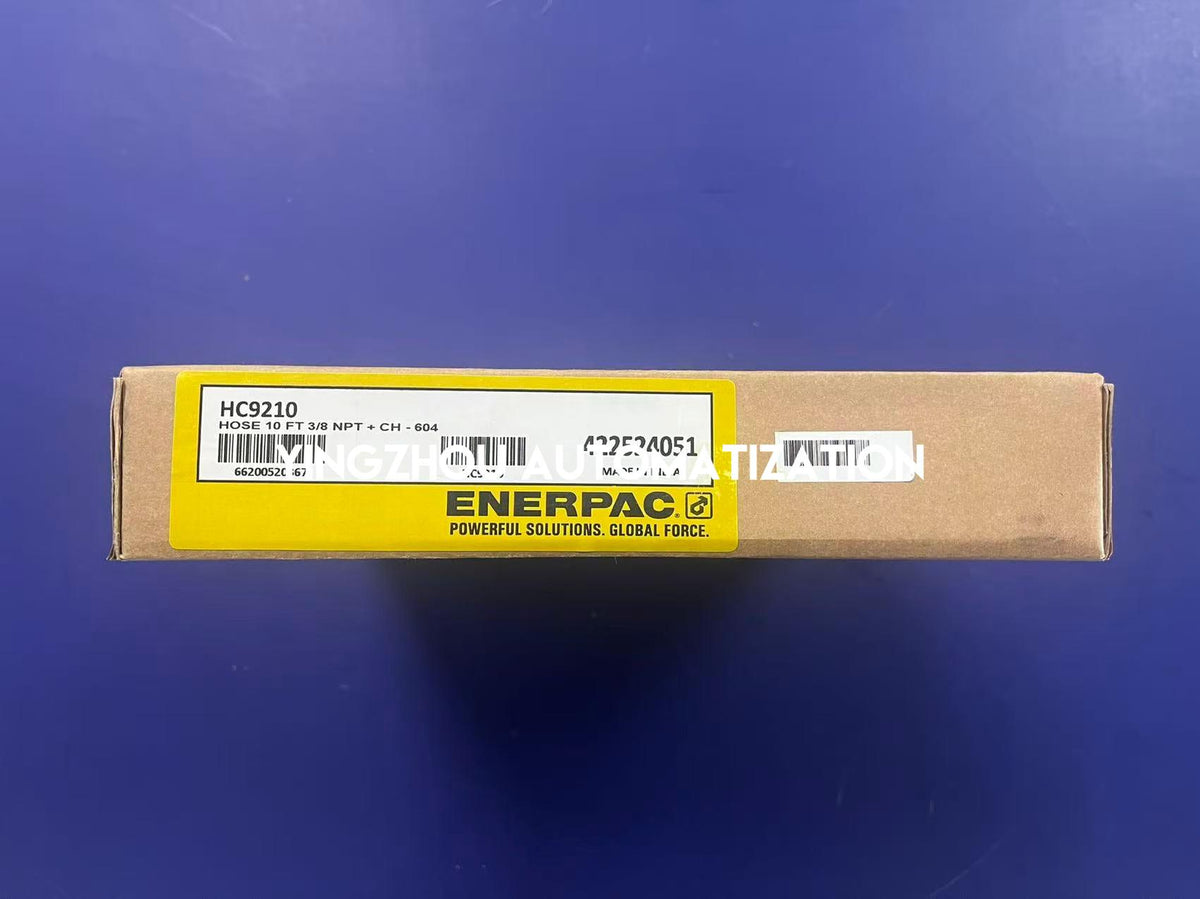

| Packaging Description | HOSE 10 FT 3/8 NPT + CH-604 |
| Country of Manufacture | Made in India (Actual Packaging) |
Product Overview

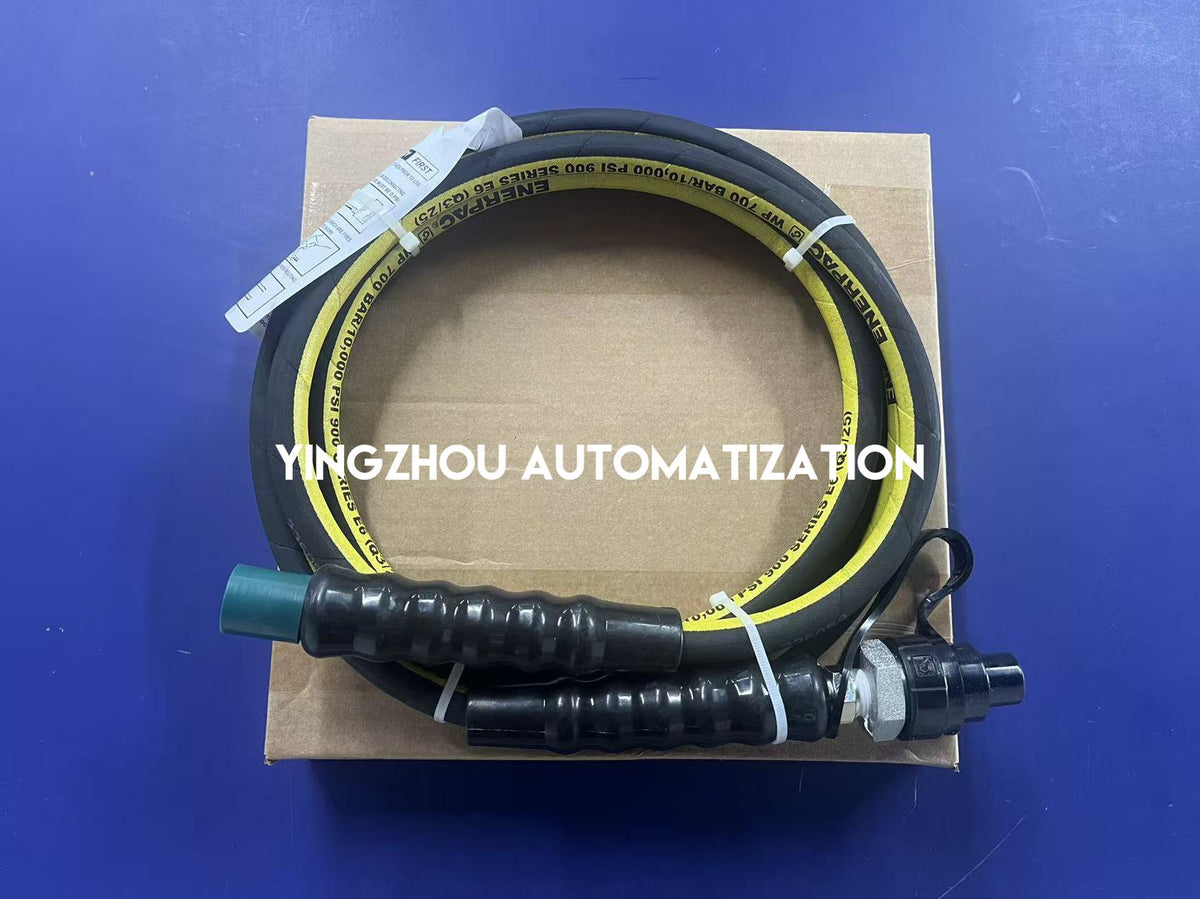

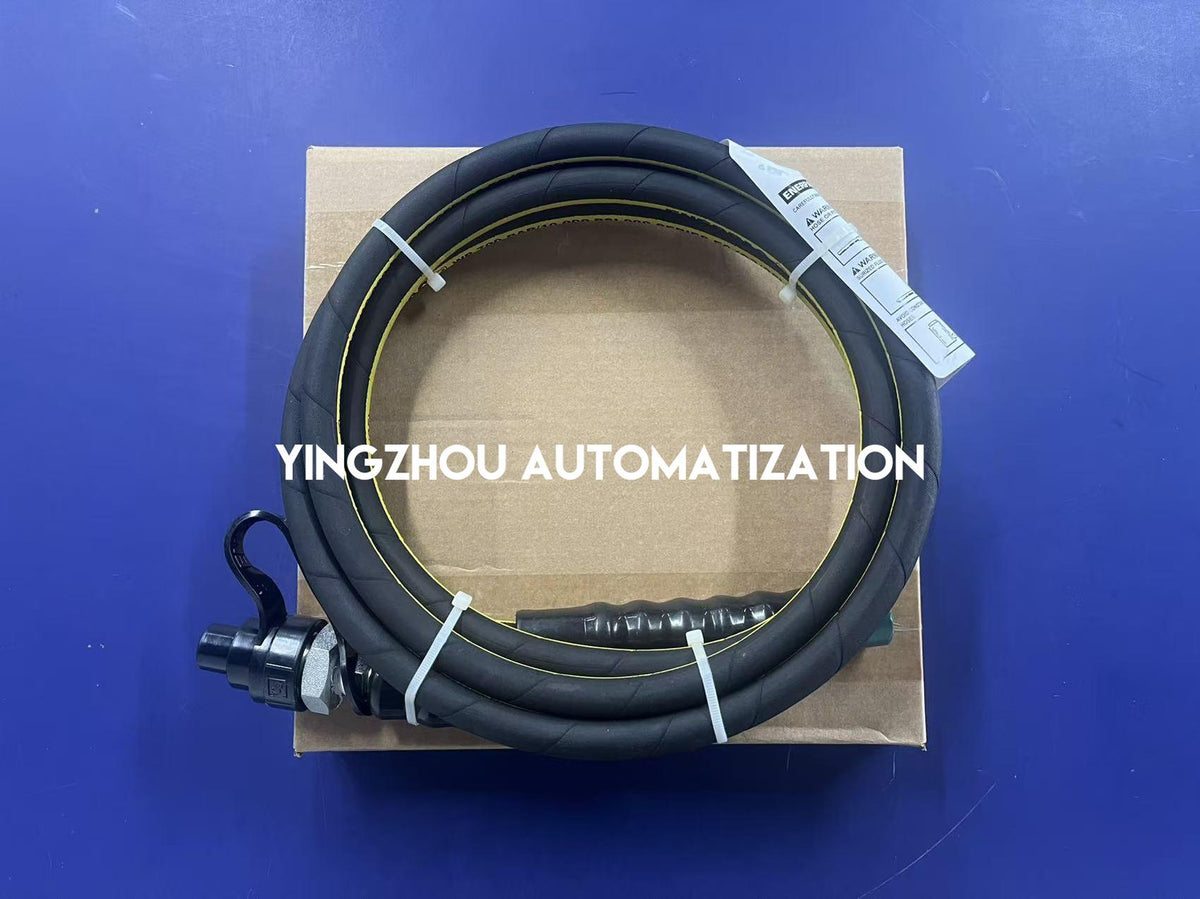

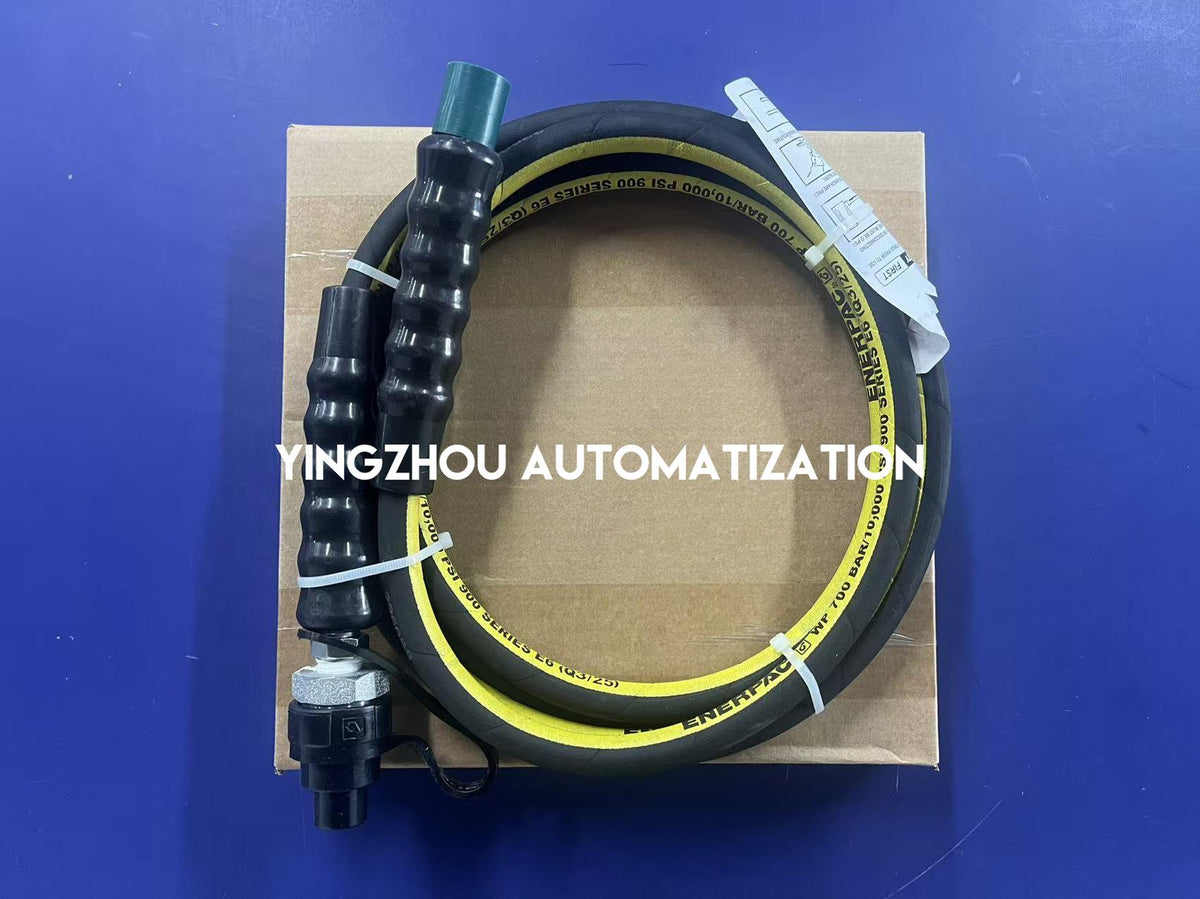

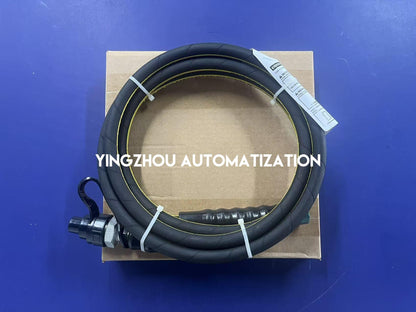

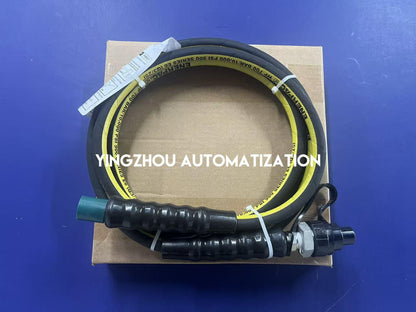

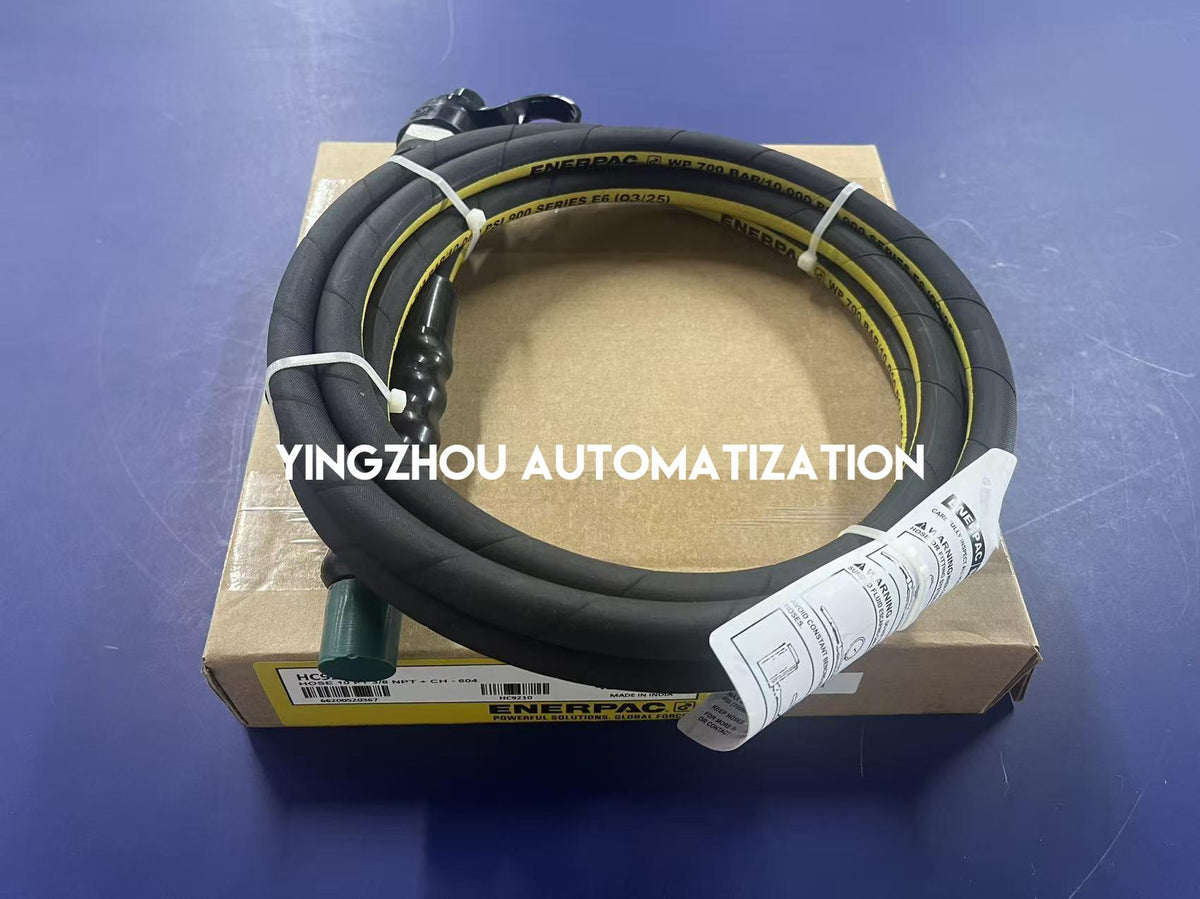

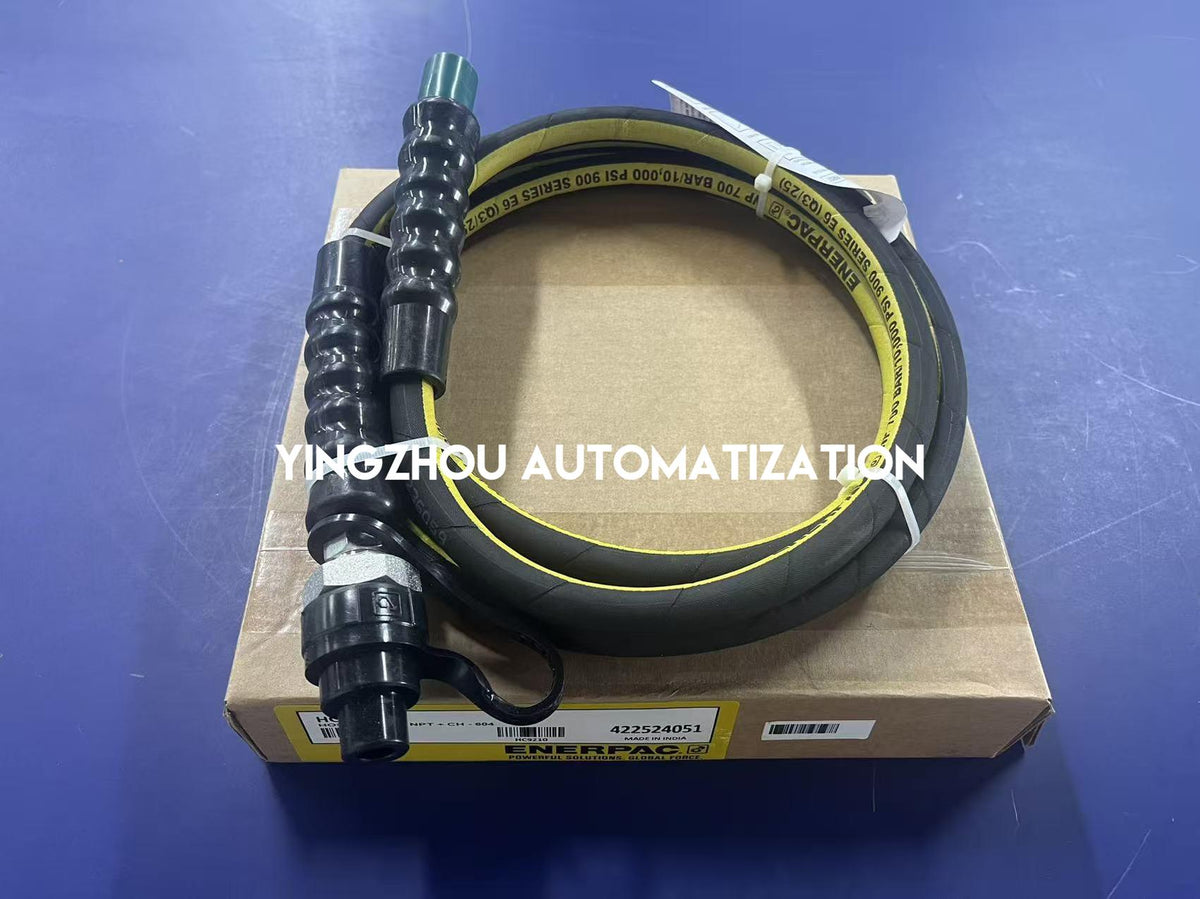

The Enerpac HC9210 is a 900 Series heavy-duty rubber high-pressure hydraulic hose assembly designed for use with compatible high-pressure hydraulic tools, pumps and cylinders. The hose has a maximum rated working pressure of 700 bar / 10,000 psi, a length of 10 feet / approximately 3.0 meters, and a 0.25-inch / 6.4 mm internal diameter. Its specific connection configuration includes a 3/8-inch NPTF connection at one end and an Enerpac CH604 high-flow male quick coupler at the other end. The CH604 male half is designed for connection to a compatible mating female hydraulic coupler; the correct mating component must be checked before installation. The hose construction incorporates two layers of steel wire braids with a heavy-duty rubber covering for high-pressure applications. Crimped-on rubber strain relief helps protect the end connections, and the flexible, low-memory construction is suitable for longer hydraulic hose runs. The rated internal oil capacity is 5.89 cubic inches, approximately 96.5 mL, and the nominal assembly weight is 4.3 lb / approximately 1.95 kg. The hose is designed to comply with the Material Handling Institute IJ-100 specification. Actual product photographs show an Enerpac-branded 900 Series hydraulic hose and original carton labeling marked HC9210 with the description HOSE 10 FT 3/8 NPT + CH-604. Before ordering, verify the required hose length, connection dimensions, CH604 coupler compatibility, maximum working pressure and complete hydraulic system configuration.
Key Product Features
- 10,000 PSI Maximum Working Pressure — High-pressure hydraulic hose rated for 700 bar operation.
- 10-Foot Hose Length — Approximately 3.0 meters for hydraulic equipment connections.
- 1/4-Inch Internal Diameter — 0.25-inch / 6.4 mm hose bore for hydraulic oil flow.
- CH604 High-Flow Male Coupler — Manufacturer-specified quick-connect fitting on one hose end.
- 3/8-Inch NPTF Connection — Threaded fitting at the other hose end.
- 900 Series Heavy-Duty Rubber — Flexible hose construction for demanding hydraulic applications.
- Double Steel Wire Braid — Reinforced structure for high-pressure hydraulic service.
- Crimped-On Rubber Strain Relief — Designed to improve durability near hose-end connections.
- Low-Memory Construction — Provides flexibility for longer hose routing arrangements.
- 5.89 in³ Hose Oil Capacity — Approximately 96.5 mL internal volume for the complete 10-foot hose.
Actual Product Verification
In Stock & Available to Order
Enerpac HC9210 is marked in stock based on YINGZHOU inventory information. Actual Enerpac hydraulic hose and packaging photographs are available for product verification. This 900 Series heavy-duty rubber high-pressure hydraulic hose assembly features a 700 bar / 10,000 psi maximum working pressure, 10-foot length, 1/4-inch internal diameter, and a 3/8-inch NPTF connection paired with an Enerpac CH604 high-flow male coupler. The double steel wire braid construction and rubber strain relief are designed for demanding hydraulic system connections. For industrial hydraulic tool maintenance, pump-to-cylinder hose connections, replacement hose assemblies or multiple-unit procurement, please confirm the exact model, working pressure, hose length, mating couplers, equipment compatibility, quantity and dispatch arrangements before ordering.
Enerpac HC9210
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 700 bar working pressure, 10 ft hose length, 1/4-inch internal diameter, 3/8-inch NPTF fitting, CH604 male coupler and compatible female connection before ordering.
