Delta CMM-EC02 M300 Series EtherCAT Communication Option Card
EtherCAT | Dual RJ45 | 100Mbps | CiA 402 Velocity Mode | MS300 / MH300
|
Specification
|
Product Data
|
| Brand |
Delta Electronics |
| Exact Model |
CMM-EC02 |
| Product Family |
M300 Series AC Drive Accessories |
| Product Type |
EtherCAT Communication Option Card |
| Compatible Drive Series |
Delta MS300 / MH300 |
| Network Protocol |
EtherCAT |
| Network Role |
EtherCAT Slave / Drive Option Card |
| Application Profile |
CANopen over EtherCAT (CoE) |
| Drive Profile |
CiA 402 |
| Supported Operating Mode |
Velocity Mode |
| Synchronization Mode |
Free Run (Asynchronous) |
| Network Interface |
RJ45 |
| EtherCAT Port Count |
2 Ports |
| Port Designations |
IN / OUT |
| Ethernet Standards |
IEEE 802.3 / IEEE 802.3u |
| Transmission Speed |
10 / 100Mbps Auto Detection |
| Recommended Ethernet Cable |
Shielded Category 5e |
| Maximum Cable Segment |
100m |
| Process Data Object (PDO) |
Supported |
| Service Data Object (SDO) |
Supported |
| Emergency Object (EMCY) |
Supported |
| PDO Mapping |
Configurable |
| EtherCAT Slave Information |
ESI / XML File |
| EtherCAT Operating States |
Init / Pre-Operational / Safe-Operational / Operational |
| Drive Status Reading |
Supported through EtherCAT Objects |
| Drive Parameter Read / Write |
Supported through SDO |
| Remote I/O Function |
Supported |
| Communication Interruption Protection |
Supported |
| Dynamic Series Recognition |
Not Supported by CMM-EC02 |
| ESI Product Code Configuration |
Manual Configuration May Be Required |
| RUN Status Indicator |
Green LED |
| ERR Status Indicator |
Red LED |
| IN Link Indicator |
Green LED |
| OUT Link Indicator |
Green LED |
| Control Board Connection |
Internal Drive Connection Port |
| Ground Connection |
Ground Terminal Block |
| Card Power Supply |
15VDC Supplied by MS300 / MH300 Drive |
| Power Consumption |
0.8W |
| Insulation Voltage |
500VDC |
| Approximate Weight |
27g |
| Operating Temperature |
-10°C to +50°C |
| Storage Temperature |
-25°C to +70°C |
| Operating Humidity |
Up to 90% |
| Storage Humidity |
Up to 95% |
| Card Firmware Reference |
2021 Manual: V1.01+; 2023 Manual: V2.01+ |
| Drive Firmware |
Verify MS300 / MH300 Firmware Against Applicable Manual |
| Installation |
Compatible M300 Drive Option-Card Mounting Position |
| Required Connection Cable |
CBM-CL01A / CBM-CL02A, Selected by Installation |
| Standalone Communication Device |
No - AC Drive Option Card |
Product Overview
The Delta CMM-EC02 is an
EtherCAT communication option card
designed for compatible
Delta MS300 and MH300 Series AC motor drives.
It provides two RJ45 communication ports
with 100Mbps EtherCAT network communication.
The card supports the CiA 402 drive profile
and velocity mode, together with
Process Data Objects (PDO), Service Data Objects (SDO)
and Emergency Objects (EMCY).
EtherCAT services enable data exchange,
drive status monitoring and parameter access
through a compatible EtherCAT master.
Additional supported functions include
configurable PDO mapping, remote I/O communication
and communication interruption protection.
The CMM-EC02 operates in
Free Run (asynchronous) mode
and does not support automatic dynamic
series recognition; ESI product-code
configuration may be required.
It uses 15VDC supplied by the compatible drive
with 0.8W power consumption.
An appropriate connection cable and compatible
firmware configuration are required for installation.
Key Product Features
-
EtherCAT communication option card
for compatible Delta MS300 and MH300 AC motor drives
-
Dual RJ45 ports
with 100Mbps EtherCAT industrial network communication
-
CiA 402 velocity mode
for supported EtherCAT drive-control applications
-
PDO, SDO and EMCY services
for process data exchange, parameter access
and communication status management
-
Configurable PDO mapping and ESI integration
with product-code configuration as required
-
Remote I/O and communication interruption protection
for compatible drive systems
-
Compact drive-powered option card
using 15VDC supplied by the drive
with 0.8W power consumption
Actual Product Verification
✓

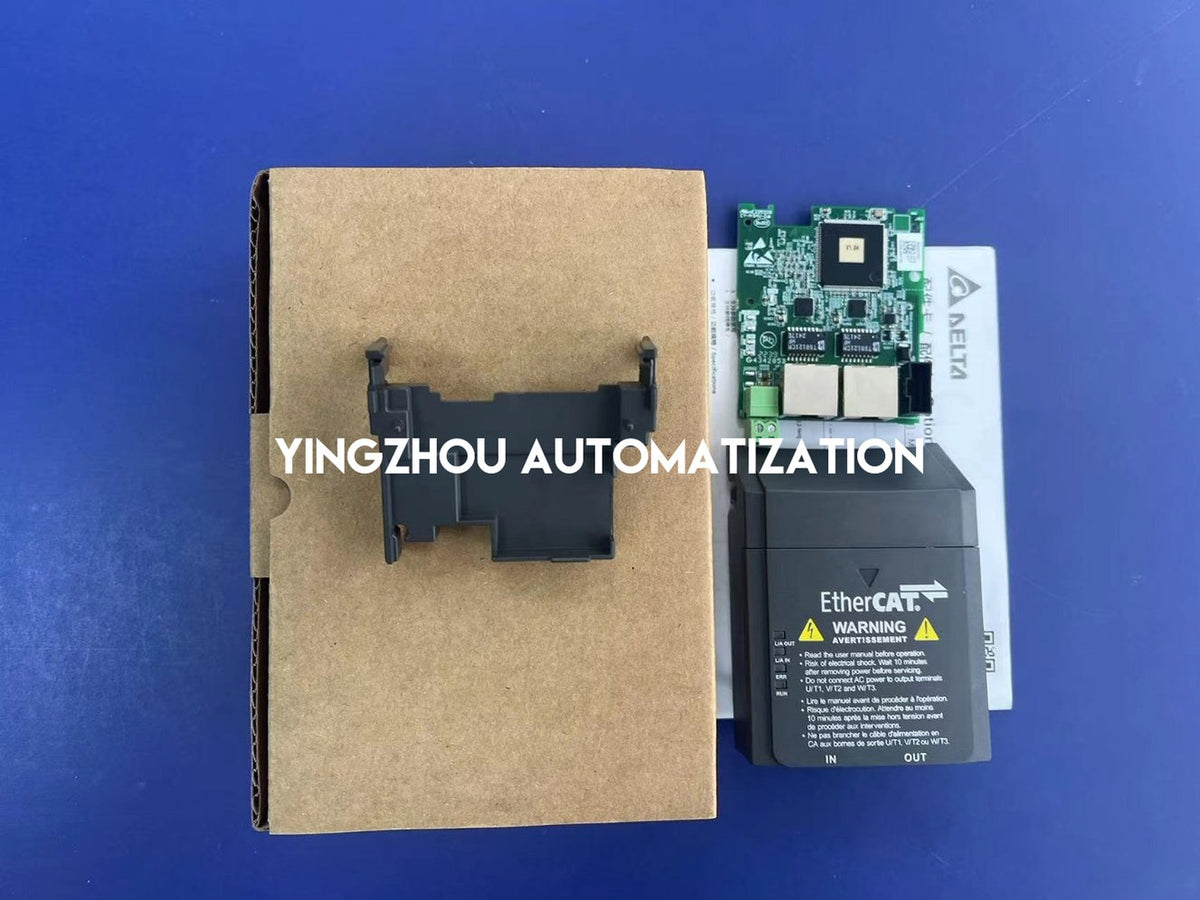

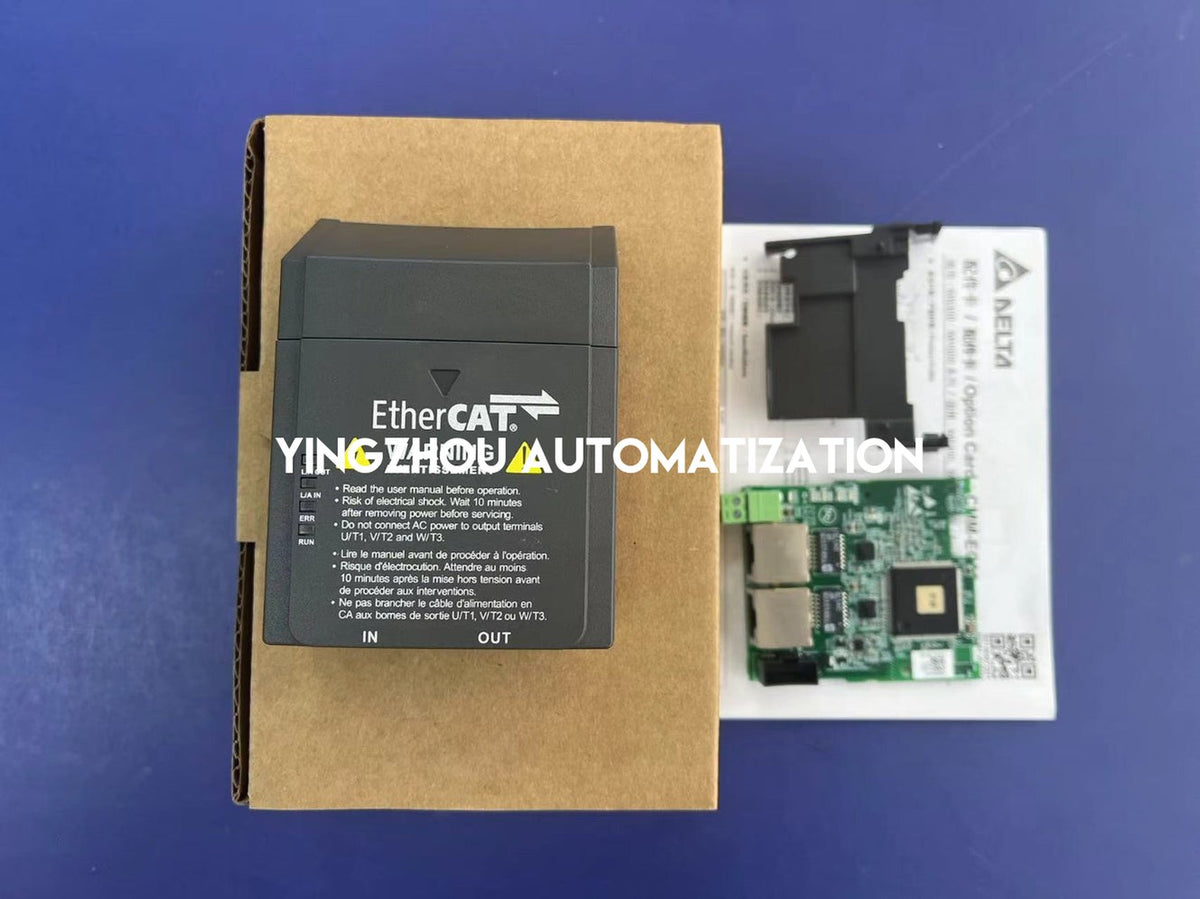

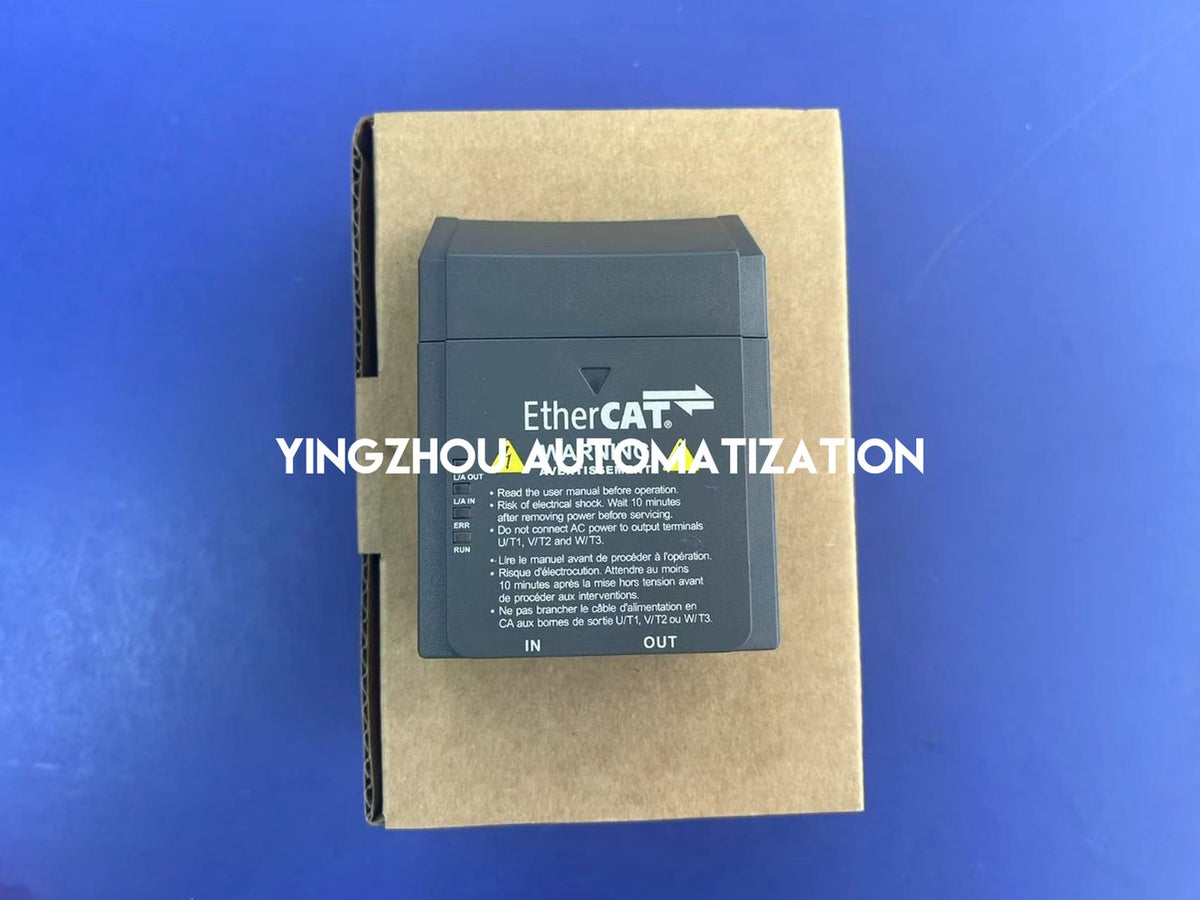

Actual product photos
✓

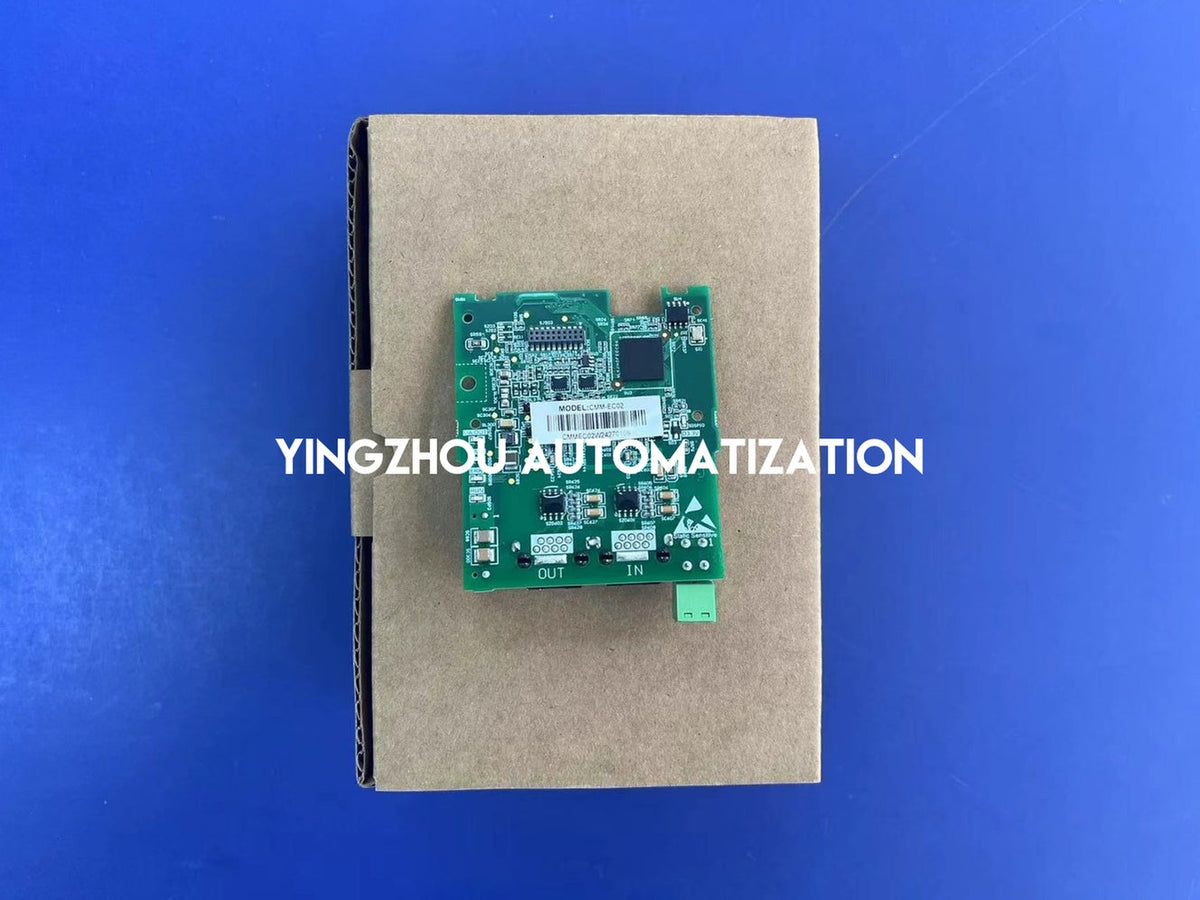

Product circuit board model label visible:
CMM-EC02
✓
Packaging model label shown:
CMM-EC02
✓
Product and packaging model identification match
✓

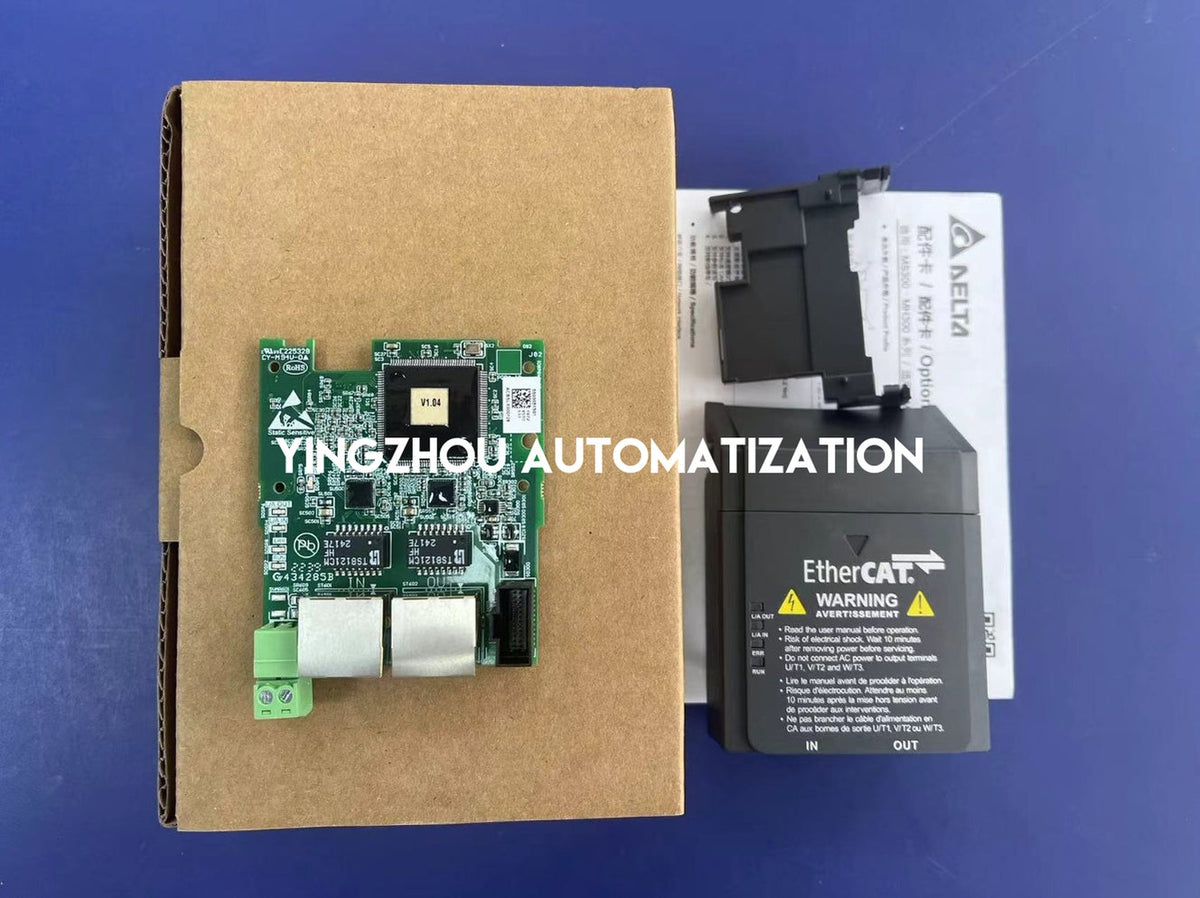

Actual circuit board, IN / OUT markings
and grounding terminal area shown
✓
Verify the exact model, compatible drive,
firmware, ESI configuration and
required connection cable before ordering
In Stock & Ready to Order
Delta CMM-EC02 is currently in stock.
Actual circuit board and packaging photos
are available for buyer reference.
Please confirm the exact model,
MS300 / MH300 drive compatibility,
the required EtherCAT network protocol,
applicable firmware, ESI product-code configuration,
mounting position and corresponding
CBM-CL01A / CBM-CL02A connection cable
before ordering.
