UNI-T UT371 Digital Non-Contact Tachometer
10–99,999 RPM | 0–99,999 Counts | Laser Targeting | MAX/MIN/AVG | 50–200mm
| Specification |
Verified Product Data |
| Manufacturer |
UNI-T / Uni-Trend |
| Model |
UT371 |
| Product Series |
UT370 Series |
| Product Type |
Digital Non-Contact Tachometer |
| Measurement Method |
Optical / Laser Non-Contact |
| RPM Measurement Range |
10–99,999 RPM |
| RPM Accuracy (10–99 RPM) |
±0.03% |
| RPM Accuracy (100–99,999 RPM) |
±(0.04% + 2 digits) |
| RPM Resolution |
0.001 / 0.01 / 0.1 / 1 RPM |
| Counting Range |
0–99,999 |
| Counting Resolution |
1 Count |
| Maximum Input Frequency |
10kHz |
| Input Signal Bandwidth |
5% Pulse Width |
| Target Distance |
50–200mm |
| Measuring Angle |
Within 30° from perpendicular |
| Display Type |
5-Digit LCD |
| Maximum Display |
99,999 |
| Display Count Specification |
100,000 |
| Measurement Modes |
RPM / COUNT |
| MAX / MIN / AVG |
Supported |
| Data Hold |
Supported |
| Laser Pointer |
Switchable ON/OFF |
| Sampling Rate |
5–255ms Adjustable |
| Clock Display |
Supported |
| Auto Power Off |
Supported |
| Low Battery Indication |
Supported |
| Sensor Type |
Photodiode and Laser Tube |
| Power Supply |
4 × 1.5V AA / LR6 Batteries |
| Typical Battery Life |
Approximately 40 Hours |
| Display Size |
53 × 41mm |
| Product Color |
Red and Grey |
| Product Dimensions |
183.8 × 56 × 34mm |
| Product Net Weight |
Approximately 100g (Without Batteries) |
| Drop Resistance |
1m |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to +60°C |
| Maximum Operating Altitude |
2,000m |
| Safety Standards |
GB4793.1 / EN61010-1 / EN61010-031 / EN61326 |
| Pollution Degree |
2 |
| Standard Accessories |
Reflective Tape / English User Manual / 4 AA Batteries |
| Standard Packaging |
Blister Packaging |
Product Overview
The UNI-T UT371 is a digital non-contact tachometer designed to measure the rotational speed and count of rotating shafts, disks and other moving objects. Using optical laser detection and reflective tape, it measures rotational speeds from 10 to 99,999 RPM and supports counting from 0 to 99,999 without physical contact with the target. The instrument features a five-digit LCD, MAX/MIN/AVG measurement modes, data hold, adjustable sampling rate and switchable laser operation. Its measurement distance is 50–200mm. Powered by four 1.5V AA batteries, the compact UT371 is suitable for portable rotational speed inspection and maintenance applications. Please note that USB communication and PC software are features of the UT372 model, not the UT371.
Key Product Features
-
Non-Contact RPM Measurement — Measures rotating speed without physical contact with the target object.
-
10–99,999 RPM Range — Supports rotational speed measurement across a wide operating range.
-
RPM and COUNT Functions — Measures rotational speed and counts from 0 to 99,999.
-
Optical Laser Targeting — Uses laser detection and reflective tape for speed measurement.
-
MAX / MIN / AVG Modes — Supports maximum, minimum and average measurement readings.
-
50–200mm Measurement Distance — Allows non-contact measurement at the specified working distance.
-
Portable Battery Operation — Powered by four 1.5V AA batteries for field measurement.
Actual Product Verification

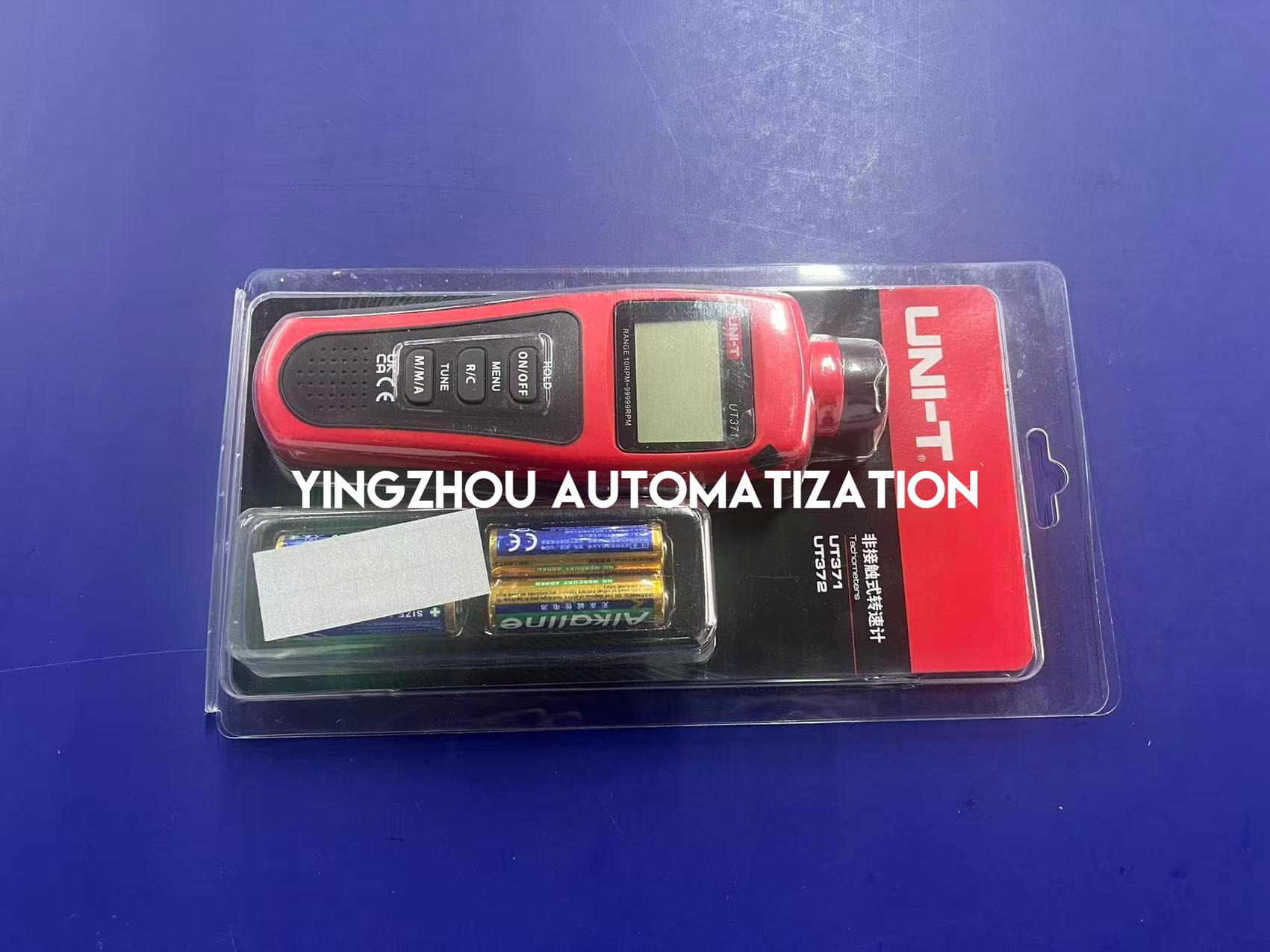

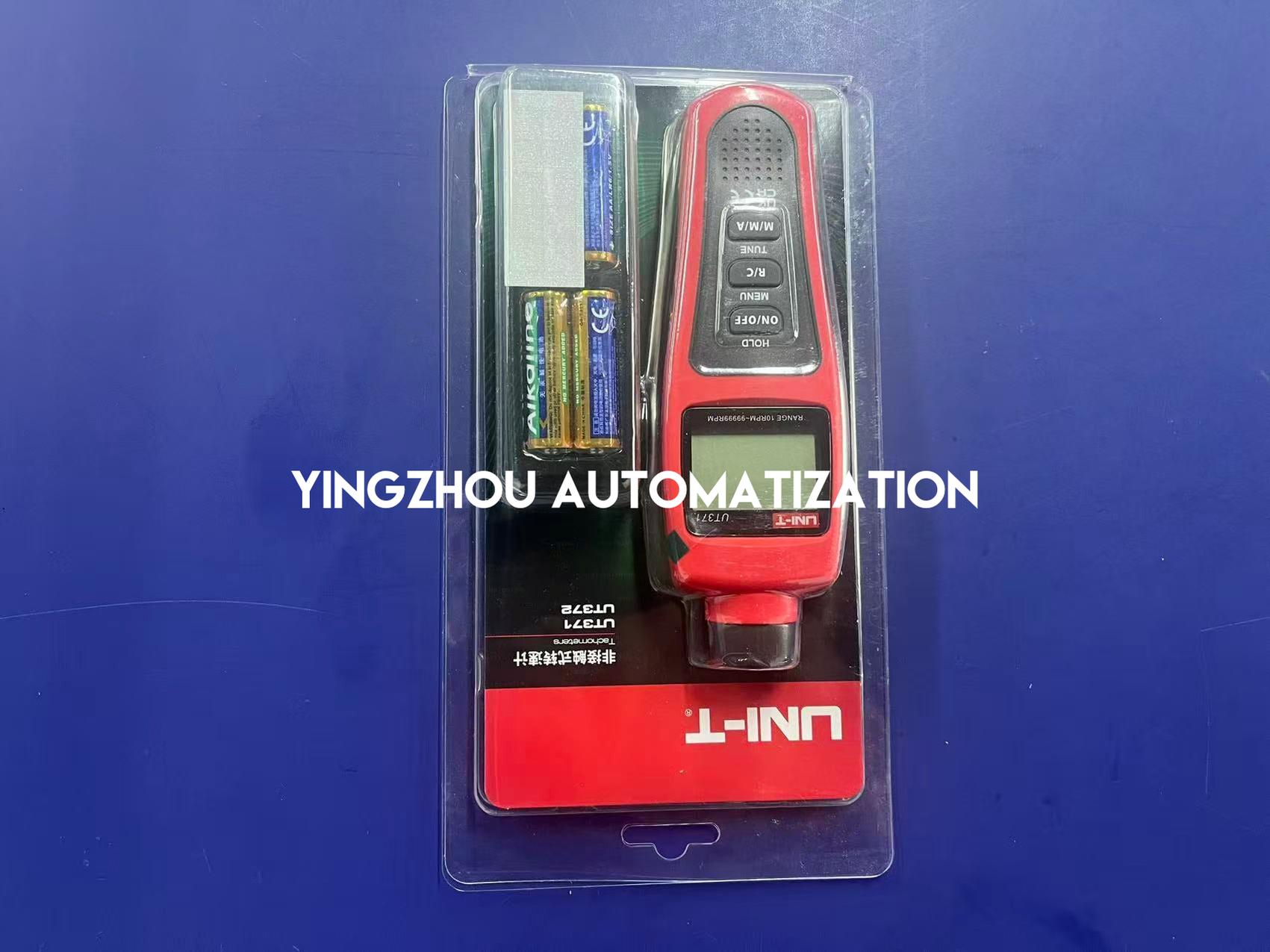

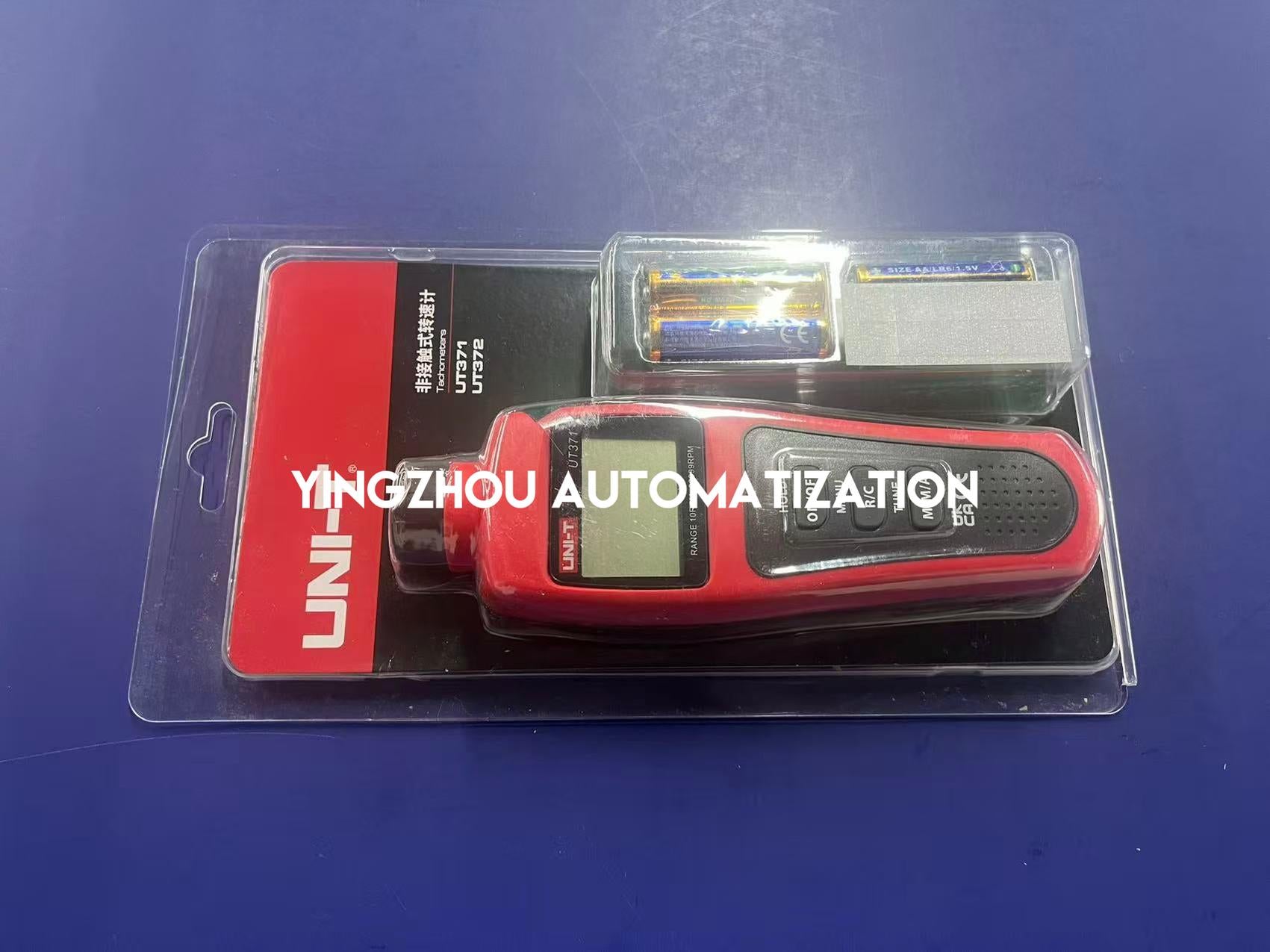

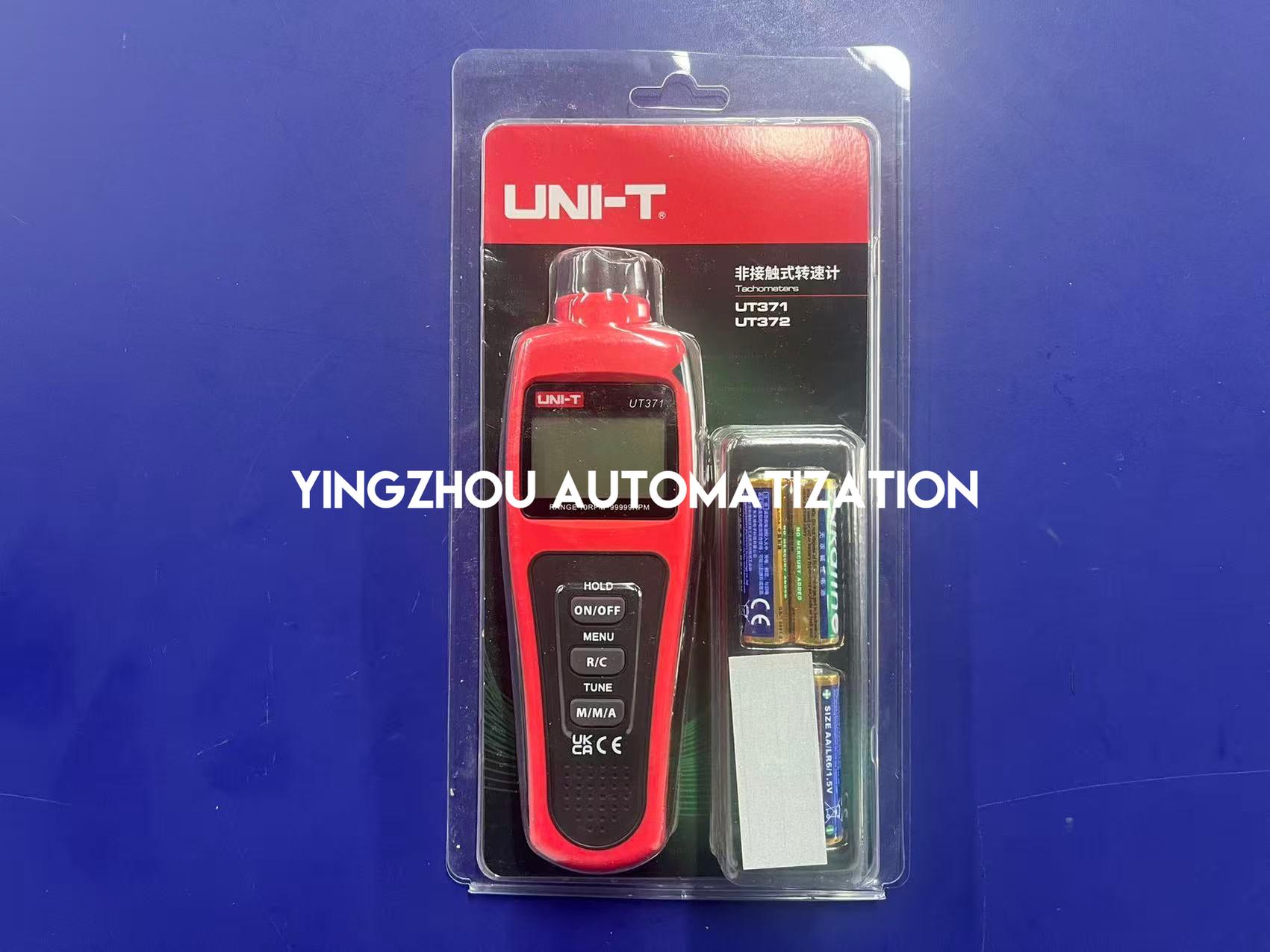

✓ Actual product and packaging photographs supplied
✓ Product front marking clearly identifies UT371

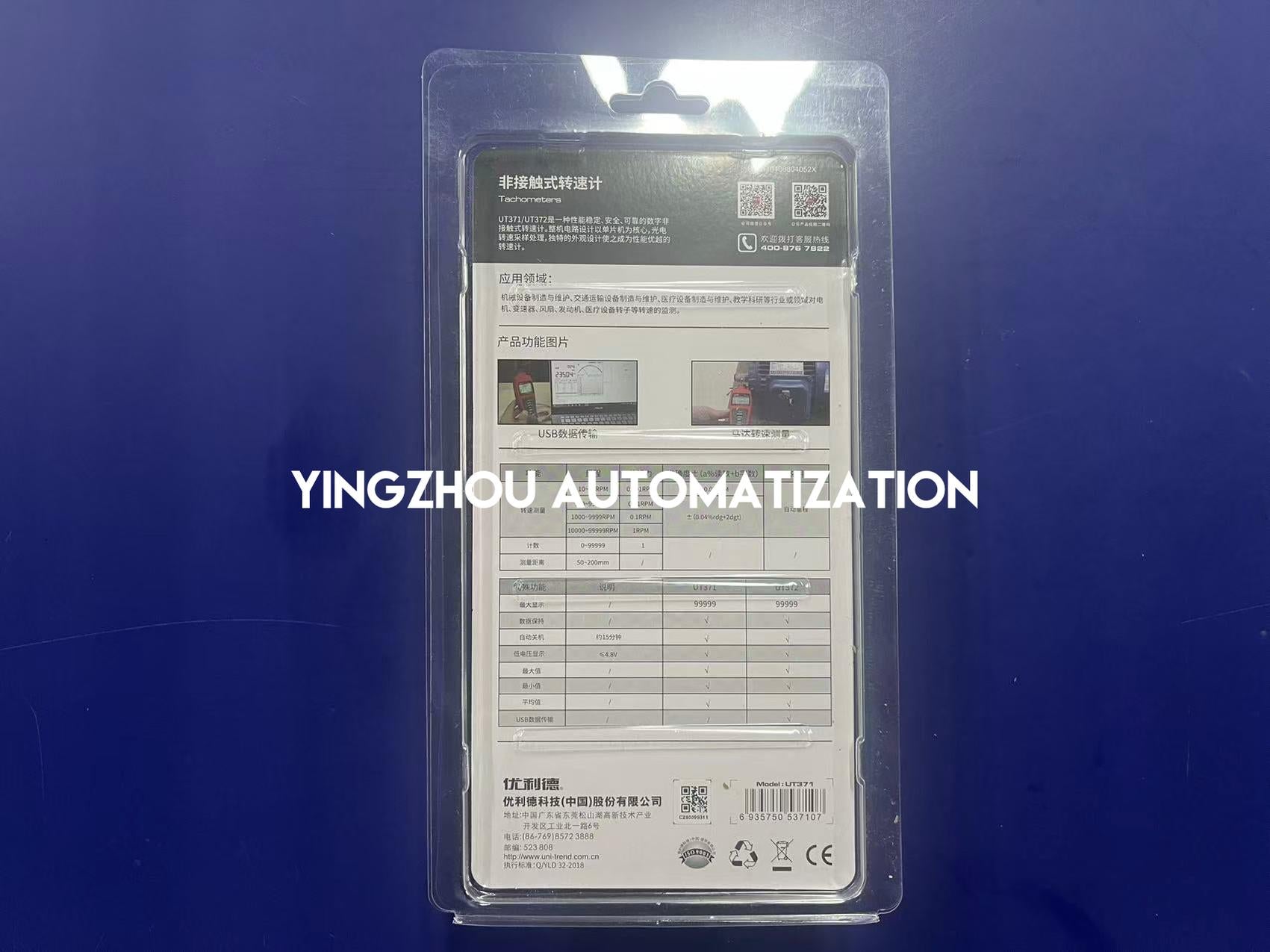

✓ Packaging displays the UT371 / UT372 series models
✓ Actual red and grey product appearance shown
✓ Product model confirmed as UT371, not UT372
✓ Confirm included reflective tape and accessories before ordering
In Stock & Available to Order
The UNI-T UT371 Digital Non-Contact Tachometer is listed as in stock based on the supplied inventory information. Actual product and packaging photographs are available for visual reference. Contact YingZhou for order confirmation, quantity requirements and international procurement support.
