UNI-T UT207B 1000A True RMS AC/DC Digital Clamp Meter
1000A AC/DC | 1000V AC/DC | 6000 Counts | Inrush | LPF | LoZ | NCV
| Specification |
Verified Product Data |
| Manufacturer |
UNI-T / Uni-Trend |
| Model |
UT207B |
| Product Series |
UT200 Series |
| Product Type |
True RMS Digital Clamp Meter |
| AC Current Range |
60A / 600A / 1000A |
| DC Current Range |
60A / 600A / 1000A |
| AC Current Accuracy (60A) |
±(2.0% + 9) |
| AC Current Accuracy (600A/1000A) |
±(2.0% + 5) |
| DC Current Accuracy |
±(2.0% + 5) |
| AC Current Frequency Response |
40Hz–400Hz |
| Inrush Current Range |
60A / 600A / 1000A |
| Inrush Current Accuracy |
±(10.0% + 10) |
| DC Voltage Range |
600mV / 6V / 60V / 600V / 1000V |
| DC Voltage Accuracy |
±(0.8% + 3) to ±(0.5% + 5) |
| AC Voltage Range |
6V / 60V / 600V / 1000V |
| AC Voltage Accuracy |
±(1.2% + 3) to ±(1.0% + 8) |
| LPF AC Voltage |
600V / 1000V |
| LPF Attenuation Frequency |
2.5kHz, -3dB |
| LPF Accuracy |
±(2.0% + 5) |
| LoZ AC Voltage |
600V / 1000V |
| LoZ Accuracy |
±(2.0% + 5) |
| Resistance Range |
600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance Range |
60nF–60mF |
| Low Voltage Frequency |
10Hz–1MHz |
| Frequency Accuracy |
±(0.1% + 3) |
| Duty Cycle |
10%–90% |
| Duty Cycle Accuracy |
±(2.6% + 7) |
| Display Count |
6000 |
| True RMS |
Yes |
| Auto / Manual Range |
Yes |
| Clamp Jaw Opening |
42mm |
| NCV |
Yes |
| Diode Test |
Yes |
| Continuity Test |
Yes |
| Continuity Buzzer |
≤30Ω |
| MAX / MIN |
Yes |
| Relative Measurement |
Yes |
| Data Hold |
Yes |
| Zero Function |
Yes |
| Backlight |
Yes |
| Flashlight |
Yes |
| Analog Bar |
31 Segments |
| Auto Power Off |
Yes |
| Input Impedance |
≥10MΩ |
| Battery |
3 × 1.5V AAA |
| Display Size |
43 × 45mm |
| Product Color |
Red and Grey |
| Product Dimensions |
272 × 81 × 43.5mm |
| Net Weight |
Approximately 420g (without batteries) |
| Drop Test |
1m (function protection; accuracy not guaranteed) |
| Protection Rating |
IP40 |
| Safety Category |
CAT III 1000V / CAT IV 600V |
| Standard Accessories |
Test Leads and Batteries |
Product Overview
The UNI-T UT207B is a 1000A True RMS AC/DC digital clamp meter from the UT200 Series, designed for industrial electrical testing, maintenance and troubleshooting. It measures AC and DC current up to 1000A and AC/DC voltage up to 1000V. The instrument features a 6000-count display, inrush current measurement, low-pass filter (LPF) voltage measurement and low-impedance (LoZ) voltage input. Additional functions include resistance, capacitance, frequency, duty cycle, diode, continuity and non-contact voltage detection. With a 42mm clamp jaw, backlit LCD, flashlight and CAT III 1000V / CAT IV 600V safety ratings, the UT207B supports a wide range of electrical inspection tasks. DC current measurement requires zero adjustment before testing.
Key Product Features
-
1000A AC/DC Current Measurement — Measures alternating and direct current up to 1000A.
-
True RMS Technology — Supports accurate electrical readings for industrial measurement tasks.
-
1000V AC/DC Voltage — Supports high-voltage electrical testing.
-
Inrush Current Measurement — Captures equipment and motor startup current.
-
LPF and LoZ Functions — Provides filtered voltage measurement and low-impedance input.
-
6000-Count Display — Features a clear LCD with backlight and 31-segment analog bar.
-
42mm Clamp Jaw — Supports measurement around larger electrical conductors.
-
NCV and Multi-Function Testing — Includes non-contact voltage, resistance, capacitance, frequency, diode and continuity functions.
Actual Product Verification

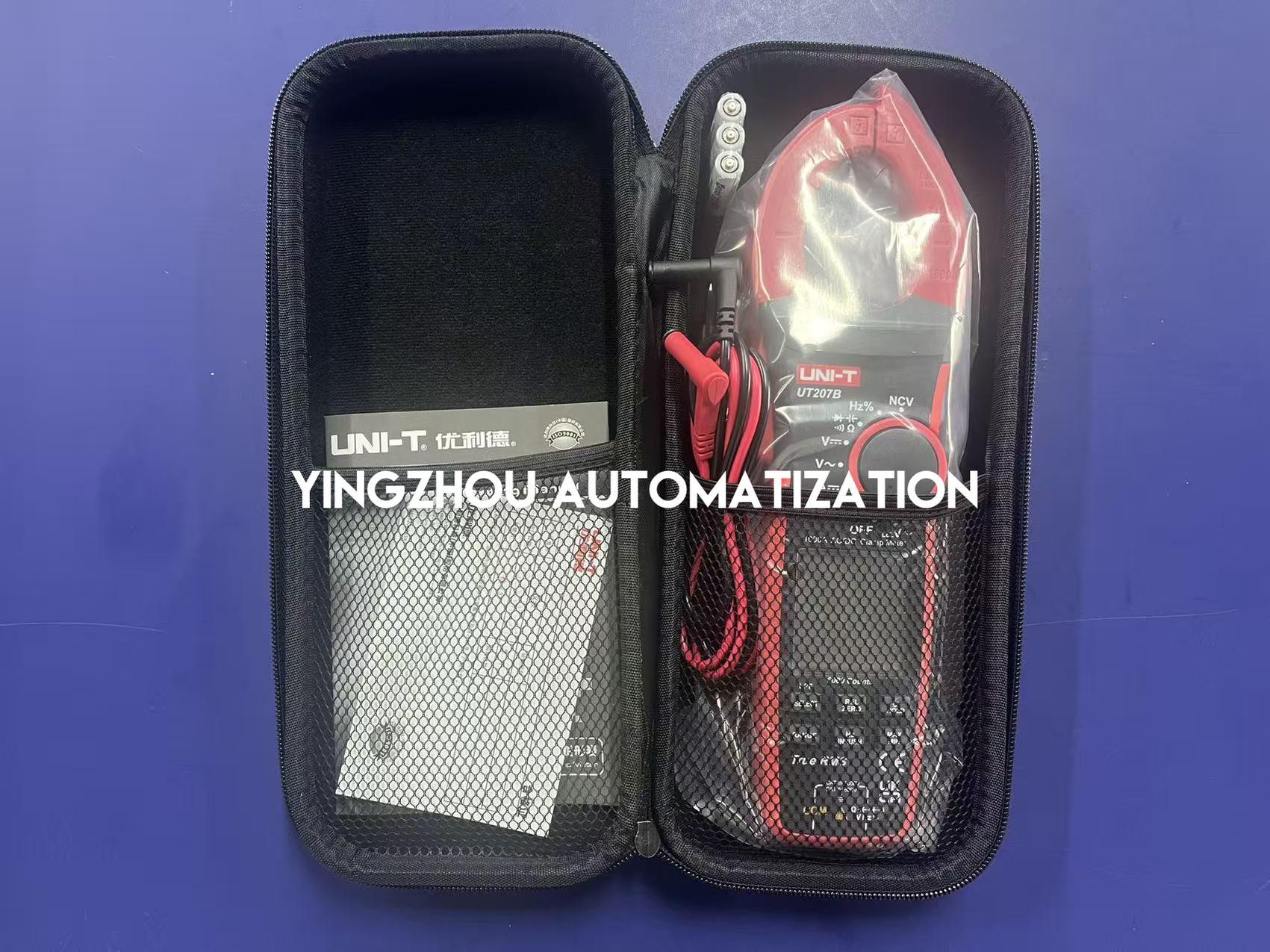

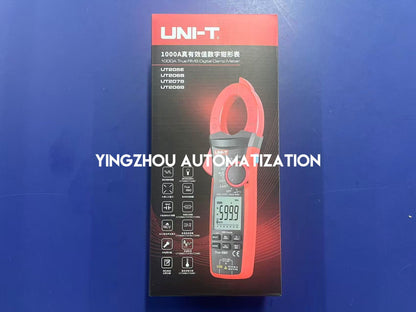

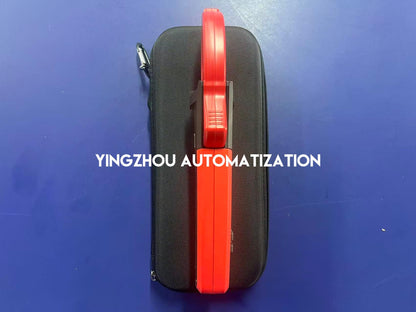

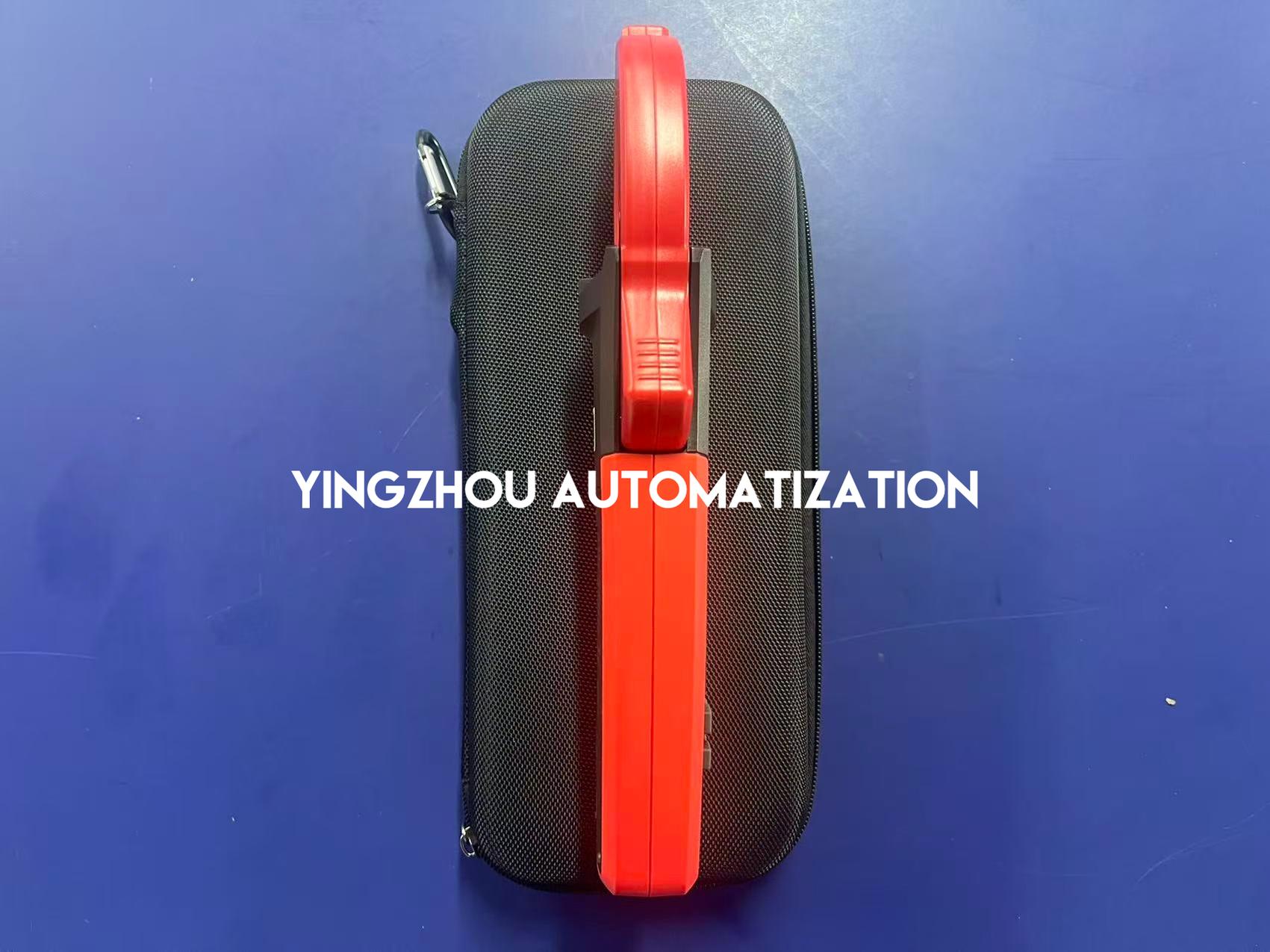

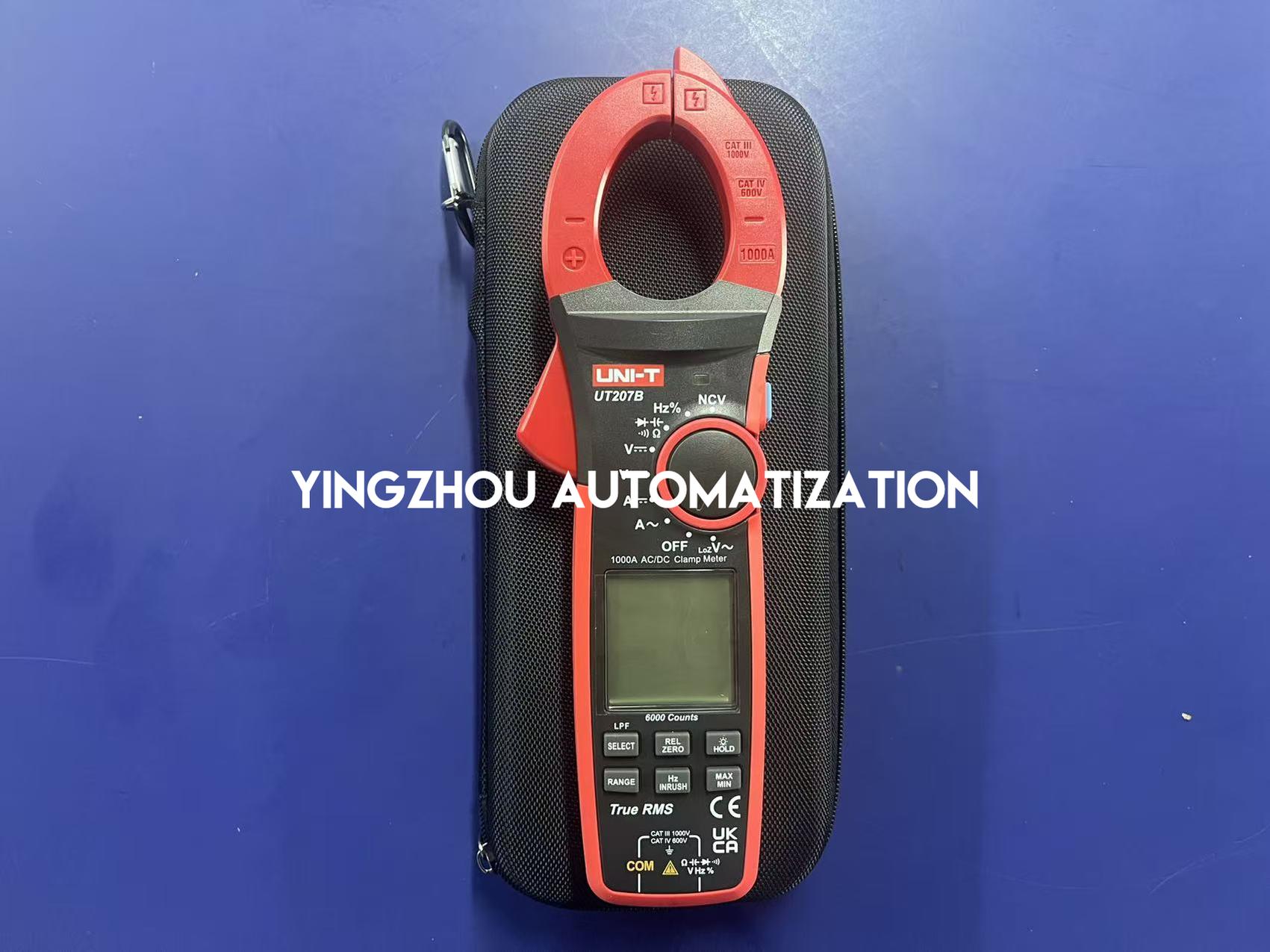

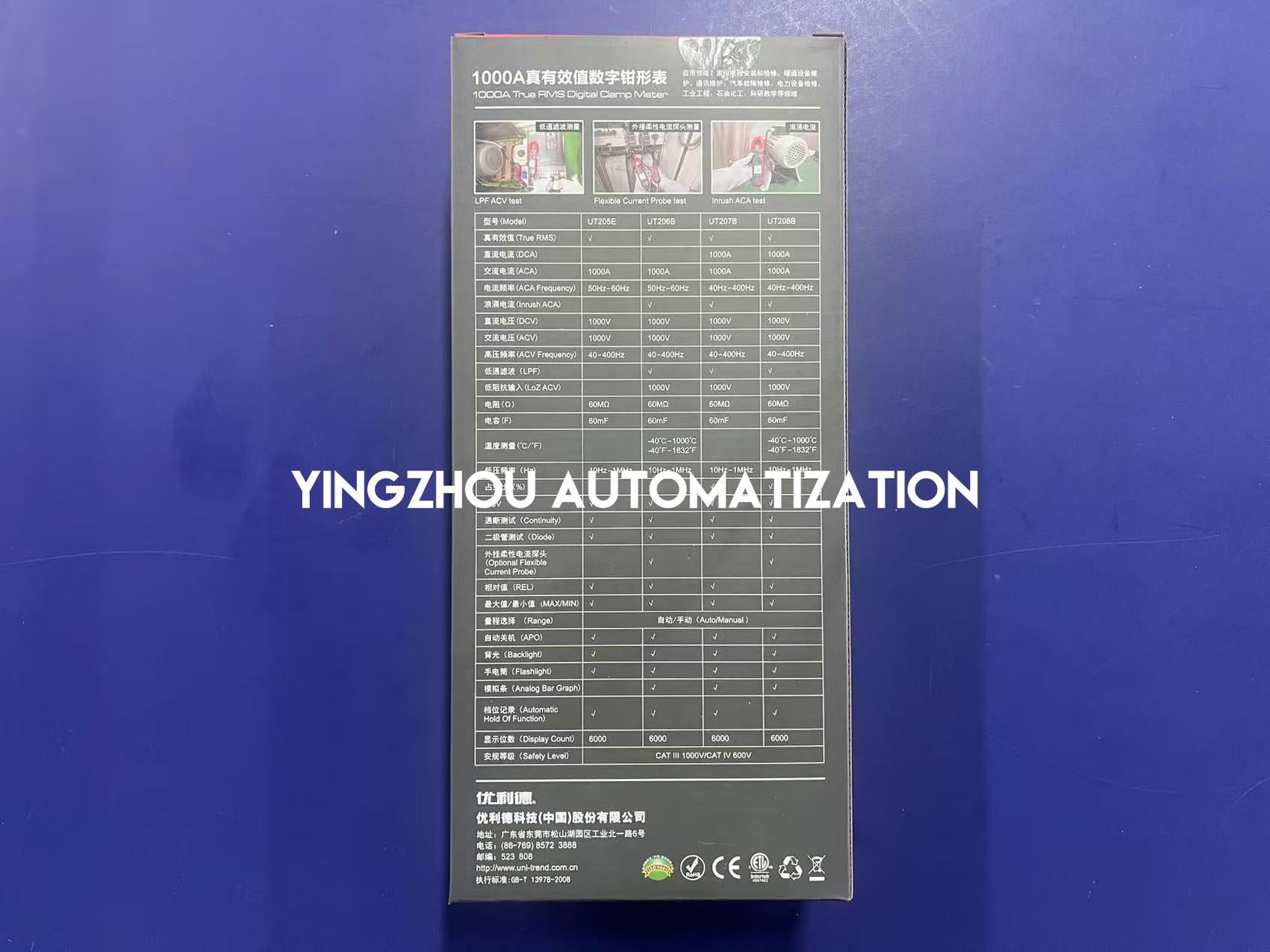

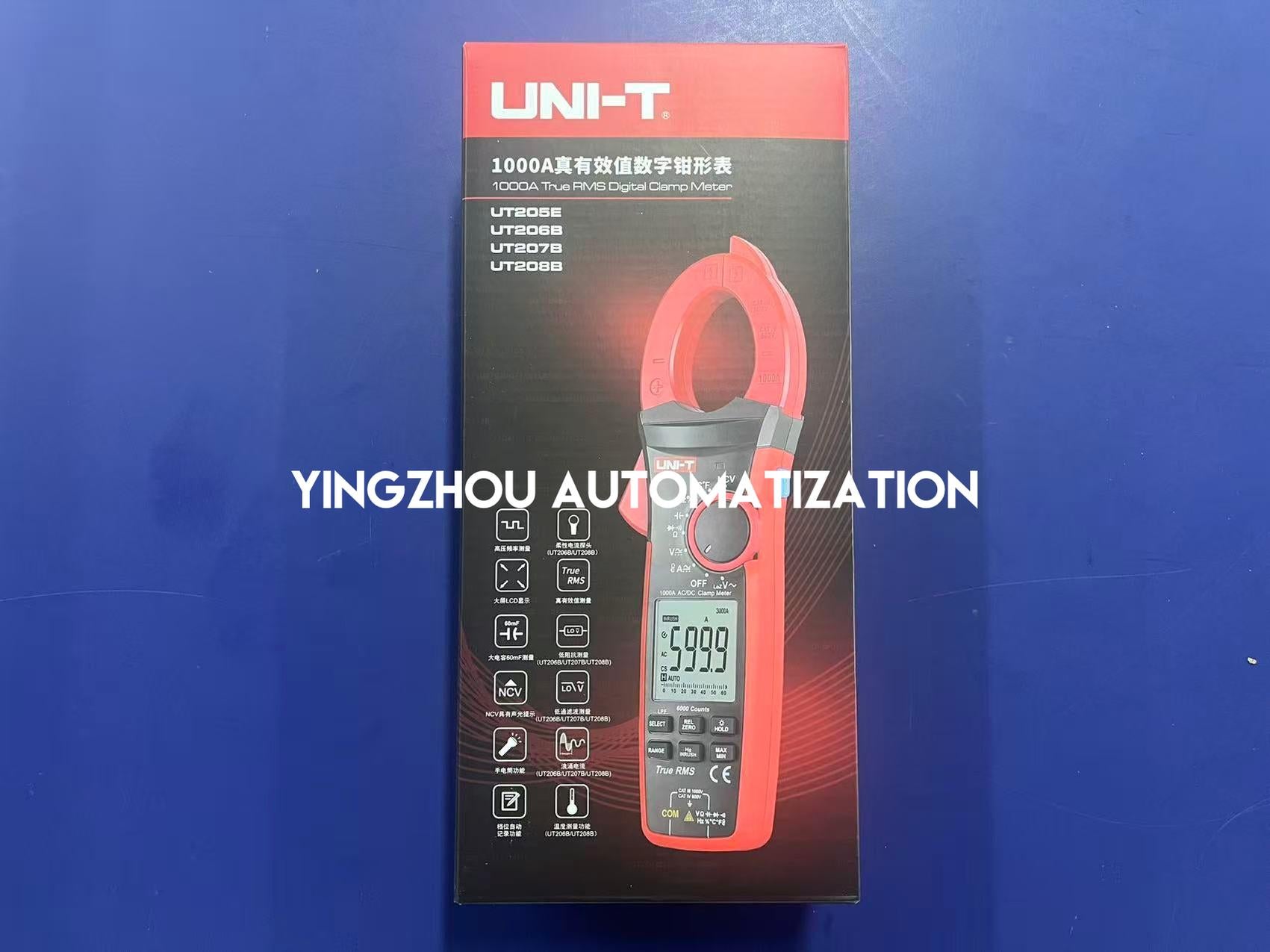

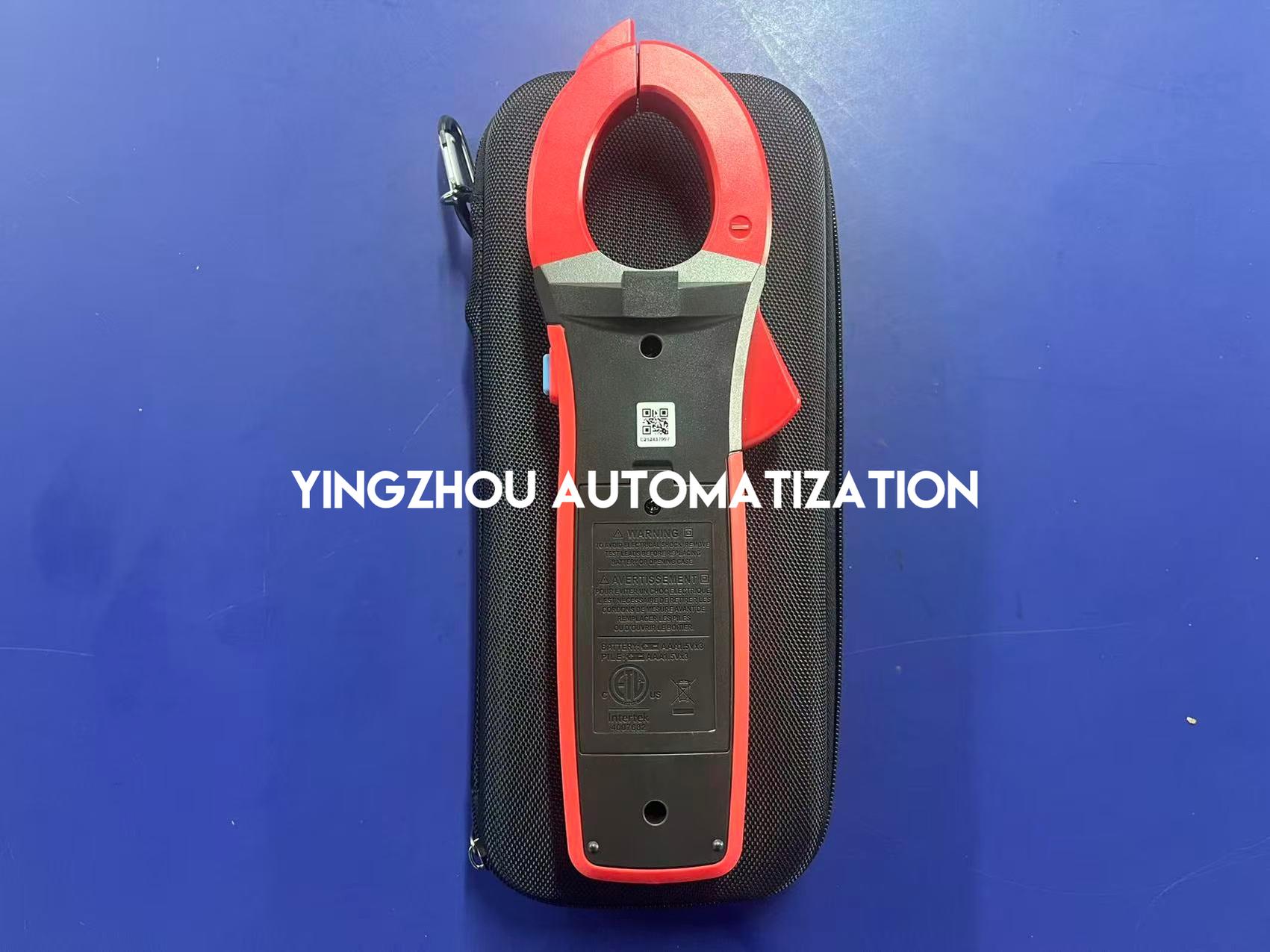

✓ Actual product photography declared by seller
✓ Requested catalog number: UT207B
✓ Official product specifications matched to UT207B
✓ UT207B supports both AC and DC current measurement
✓ UT207B includes LPF, LoZ and inrush current functions
✓ UT207B does not include the UT206B / UT208B temperature measurement function
✓ Confirm the physical product nameplate and included accessories before dispatch
In Stock & Available to Order
The UNI-T UT207B True RMS Digital Clamp Meter is listed as in stock based on the supplied inventory information. Actual product photography is declared available by the seller. Contact YingZhou for order confirmation, quantity requirements and international procurement support.
