SMC ZSE20-P-01-L ZSE20 Series Digital Vacuum Pressure Switch PNP 12-24VDC R1/8

SMC ZSE20-P-01-L ZSE20 Series Digital Vacuum Pressure Switch PNP 12-24VDC R1/8

$28.99 USD
$28.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

SMC ZSE20-P-01-L ZSE20 Series Digital Vacuum Pressure Switch

0 to -101 kPa | PNP Output | 12-24VDC | R1/8 Port | 2m Cable
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Packaging Model Verified
Specification Verified Product Data
Manufacturer SMC Corporation
Catalog Number ZSE20-P-01-L
Product Family ZSE20 Series
Product Type Digital Vacuum Pressure Switch
Display 3-Screen LCD
Rated Pressure Range 0 to -101 kPa
Set Pressure Range +10 to -105 kPa
Smallest Settable Increment 0.1 kPa
Pressure Resistance 500 kPa
Output Type PNP Open Collector, 1 Output
Maximum Load Current 80 mA
Output Modes Hysteresis / Window Comparator / Error / OFF
Response Time 1.5 ms or Less (Without Digital Filter)
Power Supply Voltage 12 to 24 VDC ±10%
Current Consumption 25 mA or Less
Display Accuracy ±2% F.S. ±1 Digit (25 ±3°C)
Repeatability ±0.2% F.S. ±1 Digit
Port Connection R1/8
Unit Selection With Unit Switching Function
Lead Wire With Connector, 2 m
Connector Cable Part ZS-46-3L
Protection Rating IP40
Operating Temperature -5 to +50°C (No Freezing)
Applicable Fluids Air / Non-Corrosive Gas / Non-Flammable Gas
Body Weight Approx. 32 g (Excluding Lead Wire)

Product Overview

The SMC ZSE20-P-01-L is a ZSE20 Series high-precision digital vacuum pressure switch designed for monitoring vacuum pressure in industrial pneumatic systems. It features a three-screen LCD display, a rated pressure range of 0 to -101 kPa and a single PNP open collector output. The switch operates on a 12 to 24 VDC power supply and uses an R1/8 threaded pressure port. The specified configuration includes a 2 m lead wire with connector and a unit switching function. The ZSE20 series supports configurable pressure thresholds, hysteresis and window comparator operation. Please confirm the PNP input compatibility, R1/8 connection, wiring and intended vacuum pressure range before ordering.

Key Product Features

  • SMC ZSE20 Digital Vacuum Pressure Switch — High-precision vacuum monitoring with a three-screen display.
  • 0 to -101 kPa Pressure Range — Manufacturer-specified vacuum pressure measurement range.
  • Single PNP Switching Output — PNP open collector output for industrial control systems.
  • 12 to 24 VDC Power Supply — Standard DC supply voltage with polarity protection.

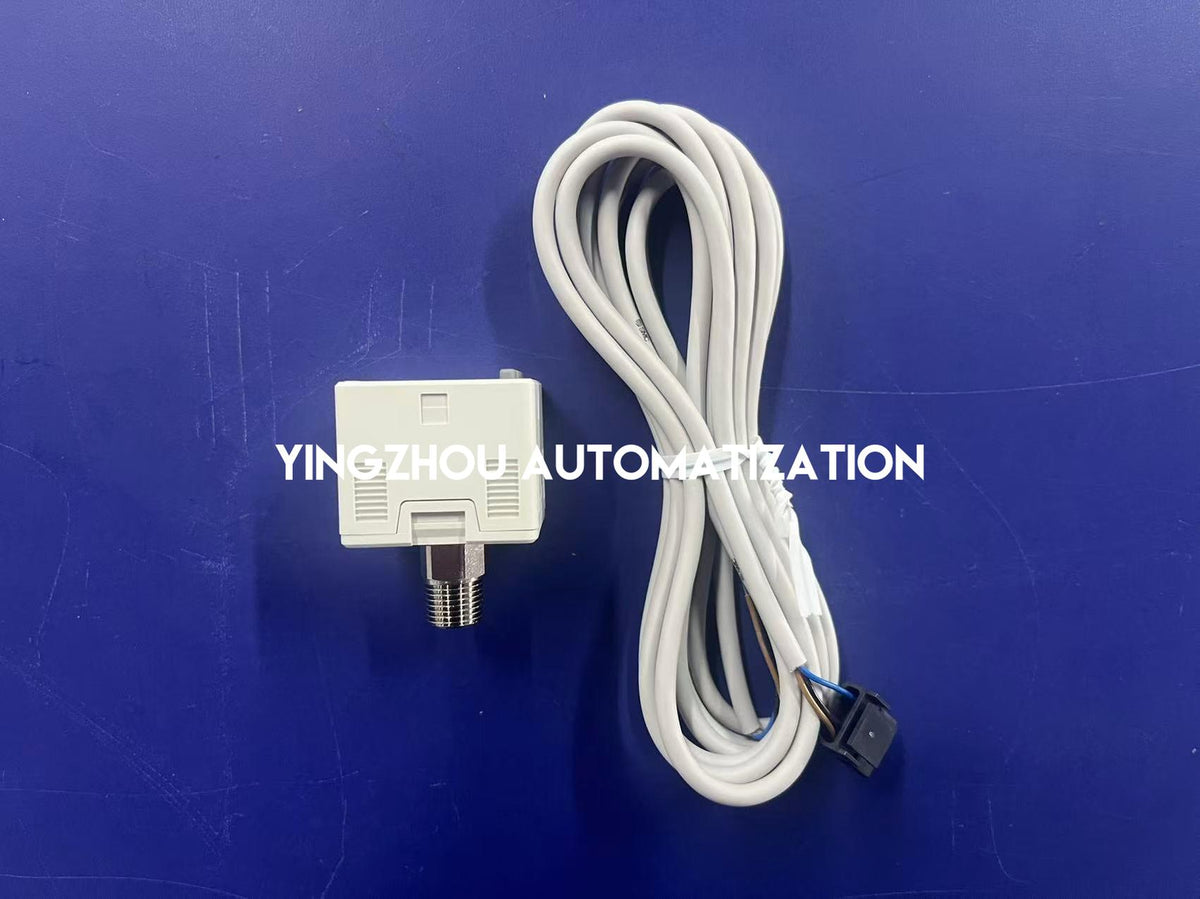

  • R1/8 Pressure Port — Threaded pneumatic pressure connection.
  • 2 m Connector Cable — Manufacturer-specified lead wire with connector.

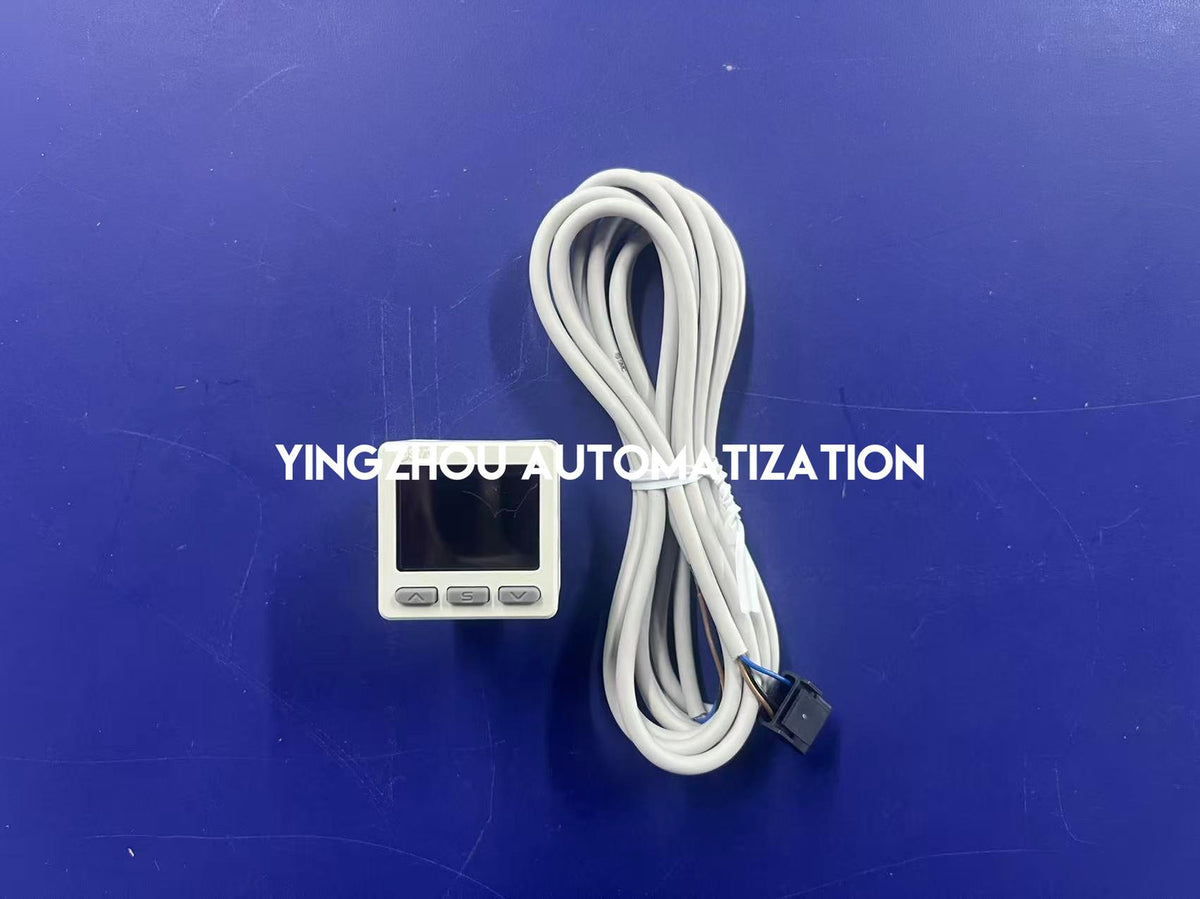

  • Three-Screen LCD — Enables current pressure readings and configurable setting information to be viewed.

Actual Product Verification

✓ Actual product and packaging photographs supplied

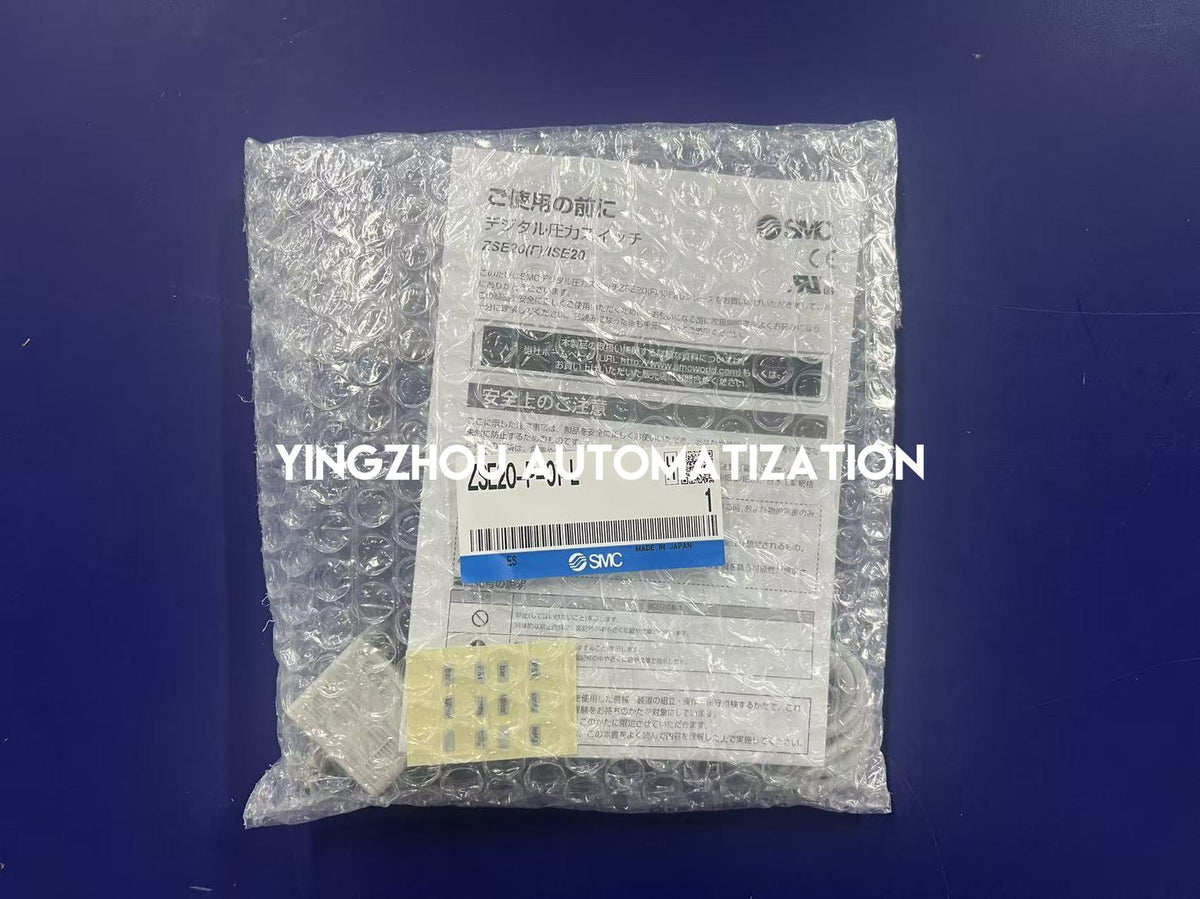

✓ Packaging label displays ZSE20-P-01-L
✓ SMC manufacturer logo visible on packaging
✓ Made in Japan marking visible on packaging

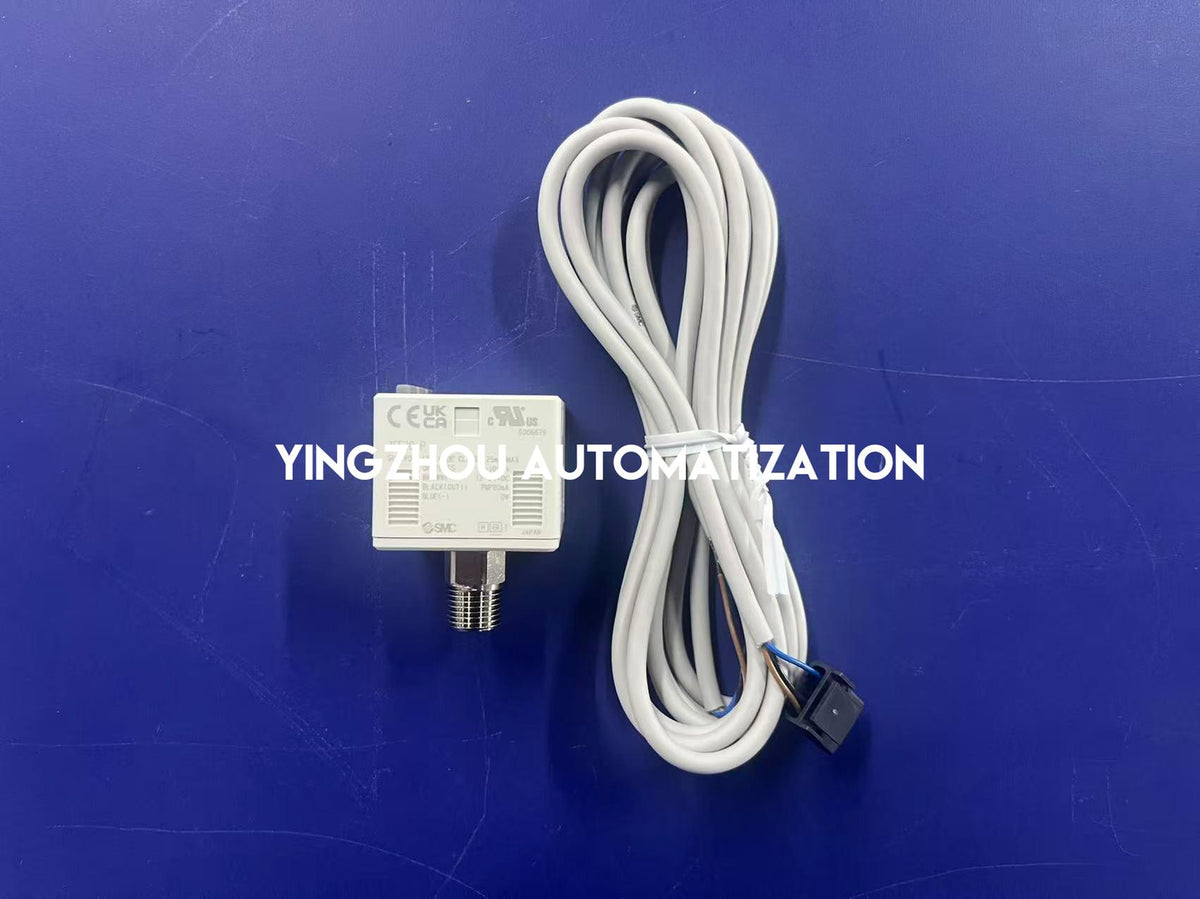

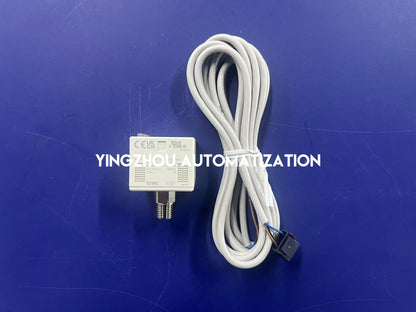

✓ Product body marking shows ZSE20-P

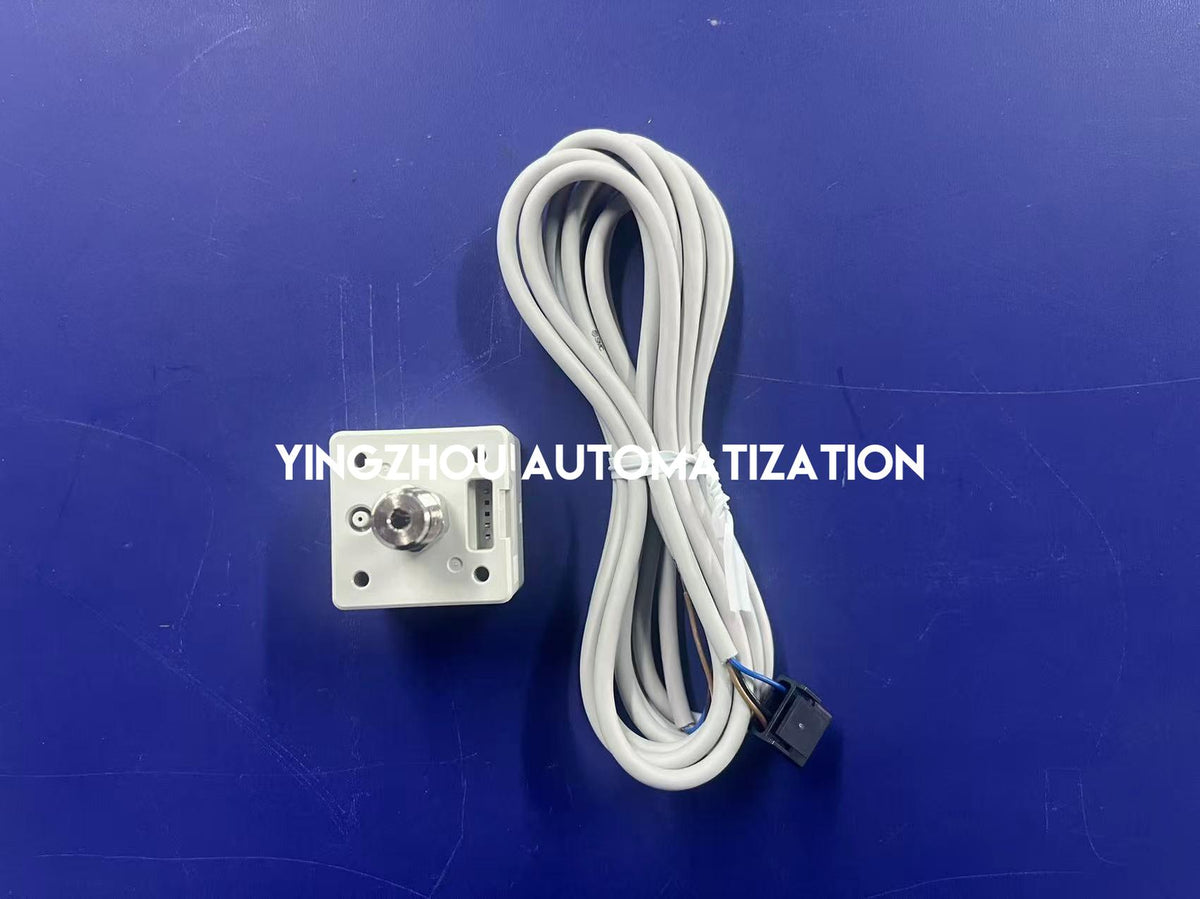

✓ Attached lead wire and electrical connector visible
✓ Full model suffix is verified from packaging; not independently visible on the device body

In Stock & Available to Order

SMC ZSE20-P-01-L is marked IN STOCK based on the supplied inventory information. This three-screen digital vacuum pressure switch features a 0 to -101 kPa rated pressure range, PNP open collector output, R1/8 port and a 2 m connector cable. Actual product and packaging photographs are available for model identification. Contact YingZhou for multiple units, compatible pressure switch accessories and consolidated industrial automation sourcing.

IN STOCK

SMC ZSE20-P-01-L

Contact us for exact-model confirmation, bulk pricing and industrial sensor sourcing. Please confirm the PNP output, R1/8 pressure port and electrical requirements before ordering.
