Siemens 6ES7223-1PL32-0XB0 S7-1200 SM1223 16DI/16DO Relay Module

Siemens 6ES7223-1PL32-0XB0 S7-1200 SM1223 16DI/16DO Relay Module

$371.99 USD
$371.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7223-1PL32-0XB0 SIMATIC S7-1200 SM1223 Module

16 Digital Inputs | 16 Relay Outputs | 24V DC | 2A Relay
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Device Nameplate Verification Pending
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 6ES7223-1PL32-0XB0
Product Family SIMATIC S7-1200
Product Series SM 1223
Product Type Digital Input/Output Signal Module
Module Designation DI 16 x 24 V DC / DQ 16 x Relay
Digital Inputs 16
Digital Input Type DC Sink/Source
Rated Input Voltage 24 V DC
Input Signal 0 5 V DC at 1 mA
Input Signal 1 15 V DC at 2.5 mA
Typical Input Current (Signal 1) 4 mA
Digital Outputs 16
Output Technology Electromechanical Relay
Relay Output Rating 2 A per output
Rated Supply Voltage 24 V DC
Supply Voltage Range 20.4–28.8 V DC
Backplane Bus Current (5V) 180 mA maximum
Typical Power Loss 10 W
Product Net Weight 0.319 kg
Packaging Dimensions 8.80 x 11.00 x 8.50 cm
Packaging Quantity 1 Piece
Manufacturer Lifecycle PM300 - Active Product
Manufacturer Catalog Origin Germany
Photographed Packaging Origin Made in China (carton marking; batch confirmation pending)

Product Overview

The Siemens 6ES7223-1PL32-0XB0 is a SIMATIC S7-1200 SM 1223 digital input/output signal module designed to expand the digital I/O capability of Siemens S7-1200 PLC systems. The module provides 16 digital inputs rated at 24 V DC and 16 electromechanical relay outputs rated at 2 A. Its digital inputs support sink/source input wiring, while its relay outputs are suitable for switching compatible industrial electrical loads within Siemens' specified electrical ratings. The module uses a 24 V DC rated supply with a permissible supply range of 20.4–28.8 V DC. Combining digital inputs and relay outputs in one module supports PLC control applications requiring discrete signal monitoring and relay output switching. The manufacturer's product catalog identifies this model as an active SIMATIC S7-1200 product. Supplied packaging photographs show the exact catalog number 6ES7223-1PL32-0XB0. The physical module nameplate remains unverified. Confirm the complete catalog number, relay load requirements, wiring configuration and S7-1200 system compatibility before installation.

Key Product Features

  • SIMATIC S7-1200 Expansion Module — Siemens SM 1223 digital I/O signal module.
  • 16 Digital Inputs — Sixteen 24 V DC digital input channels.
  • 16 Relay Outputs — Sixteen electromechanical relay output channels.
  • 2 A Relay Rating — Per-output current rating subject to specified load conditions.
  • Sink/Source Digital Inputs — Supports 24 V DC sink/source input wiring.
  • 24 V DC Rated Supply — Permissible supply voltage from 20.4 V DC to 28.8 V DC.
  • Combined Input and Output Expansion — Digital signal acquisition and relay switching in one module.
  • SIMATIC S7-1200 Product Family — Designed for Siemens S7-1200 automation systems.
  • Active Manufacturer Product — Listed under PM300 lifecycle status.
  • Actual Packaging Photography — Exact Siemens catalog number visible on supplied packaging photos.

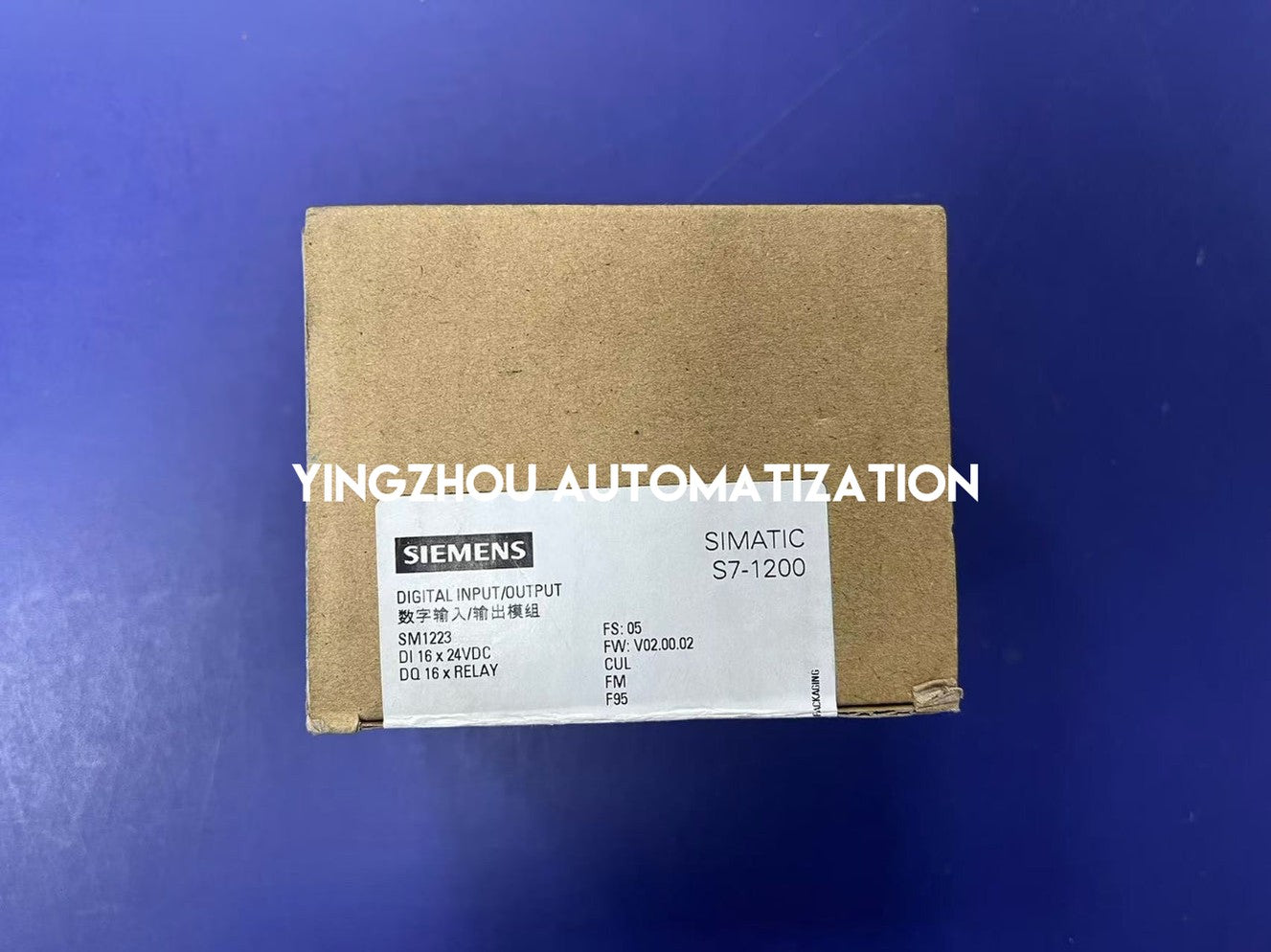

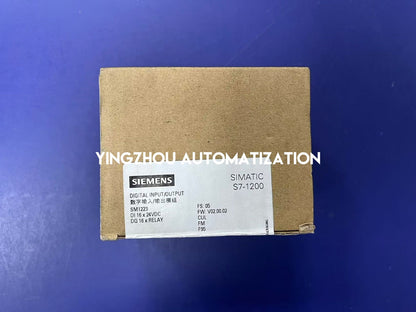

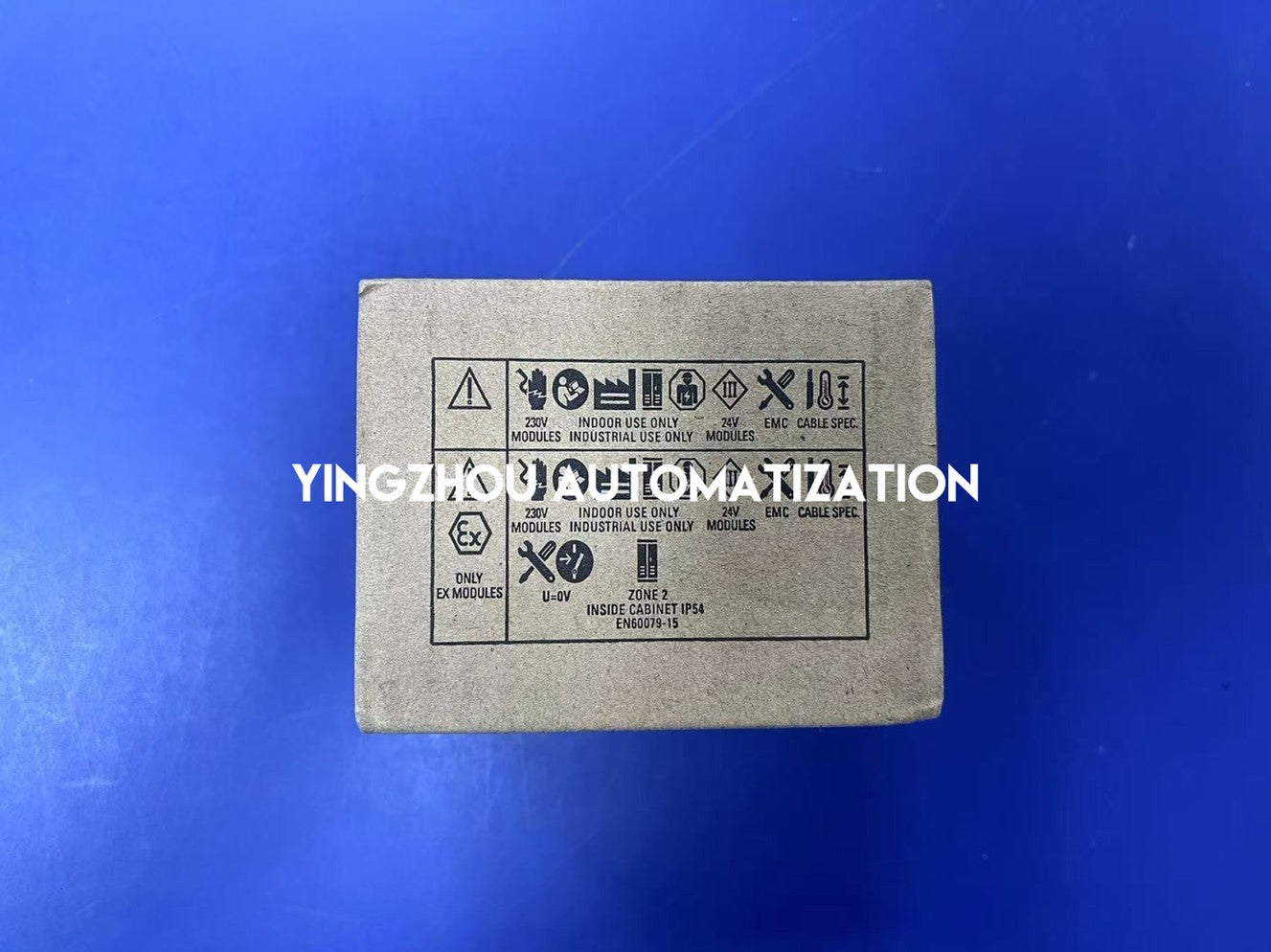

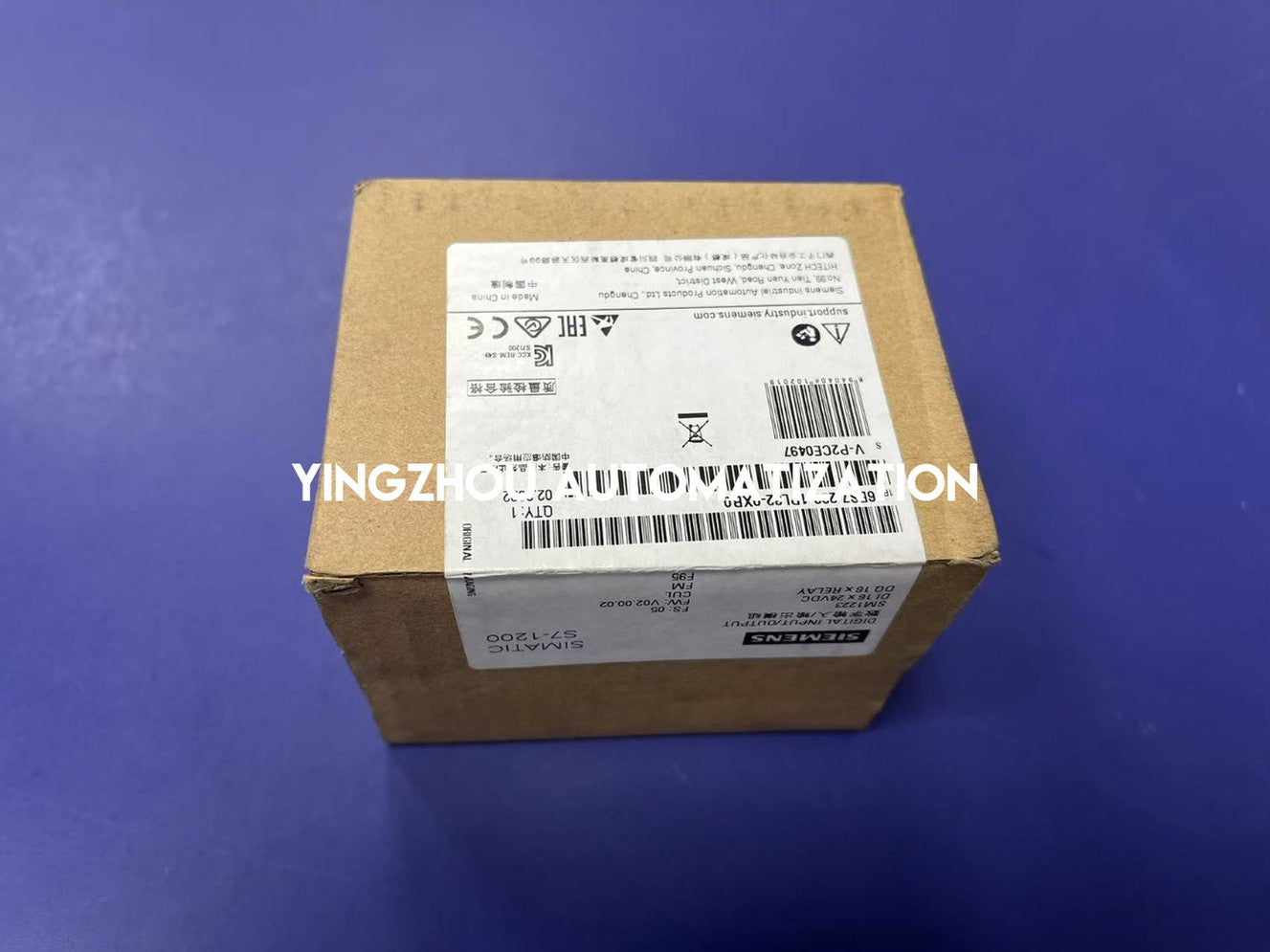

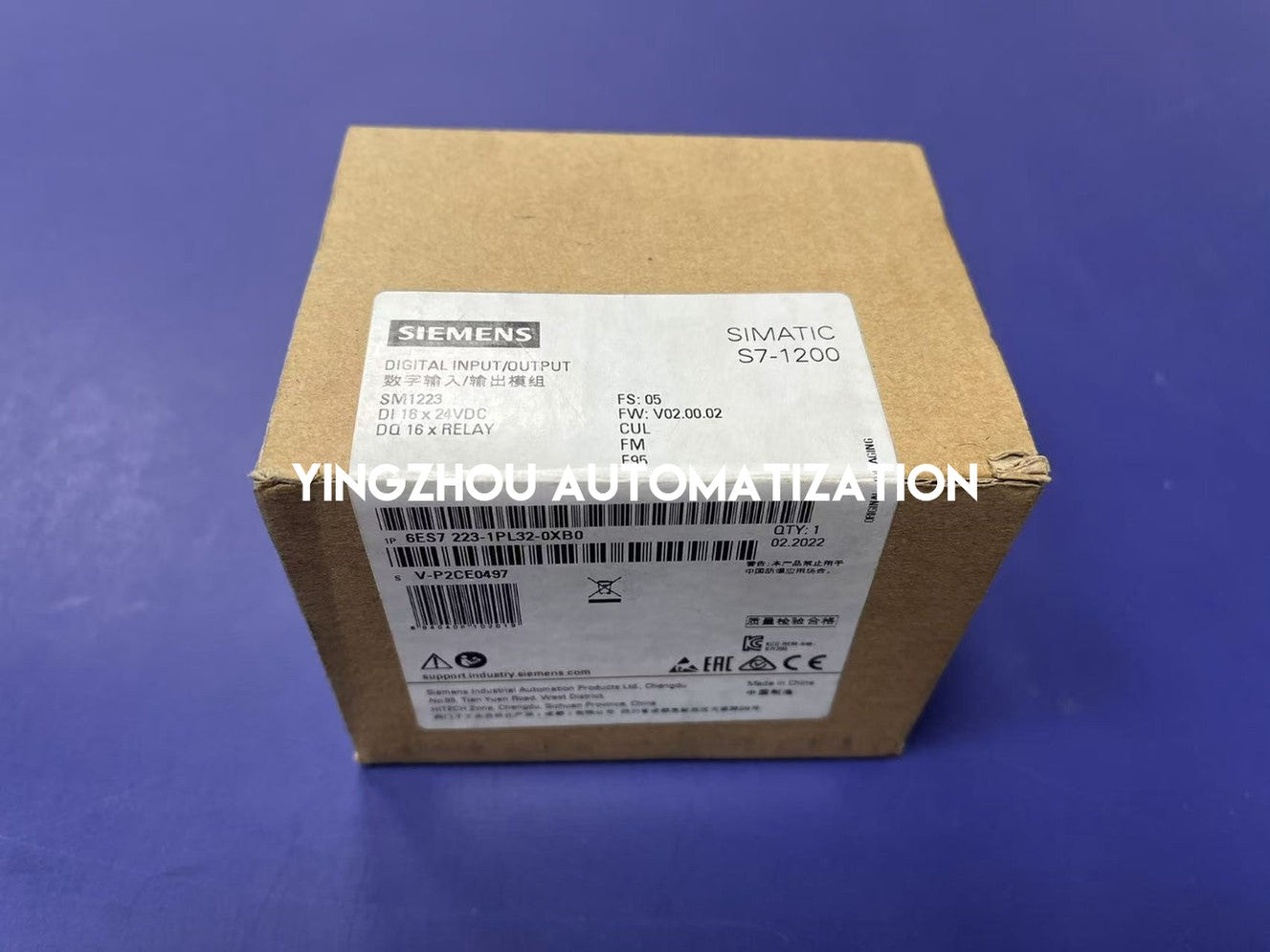

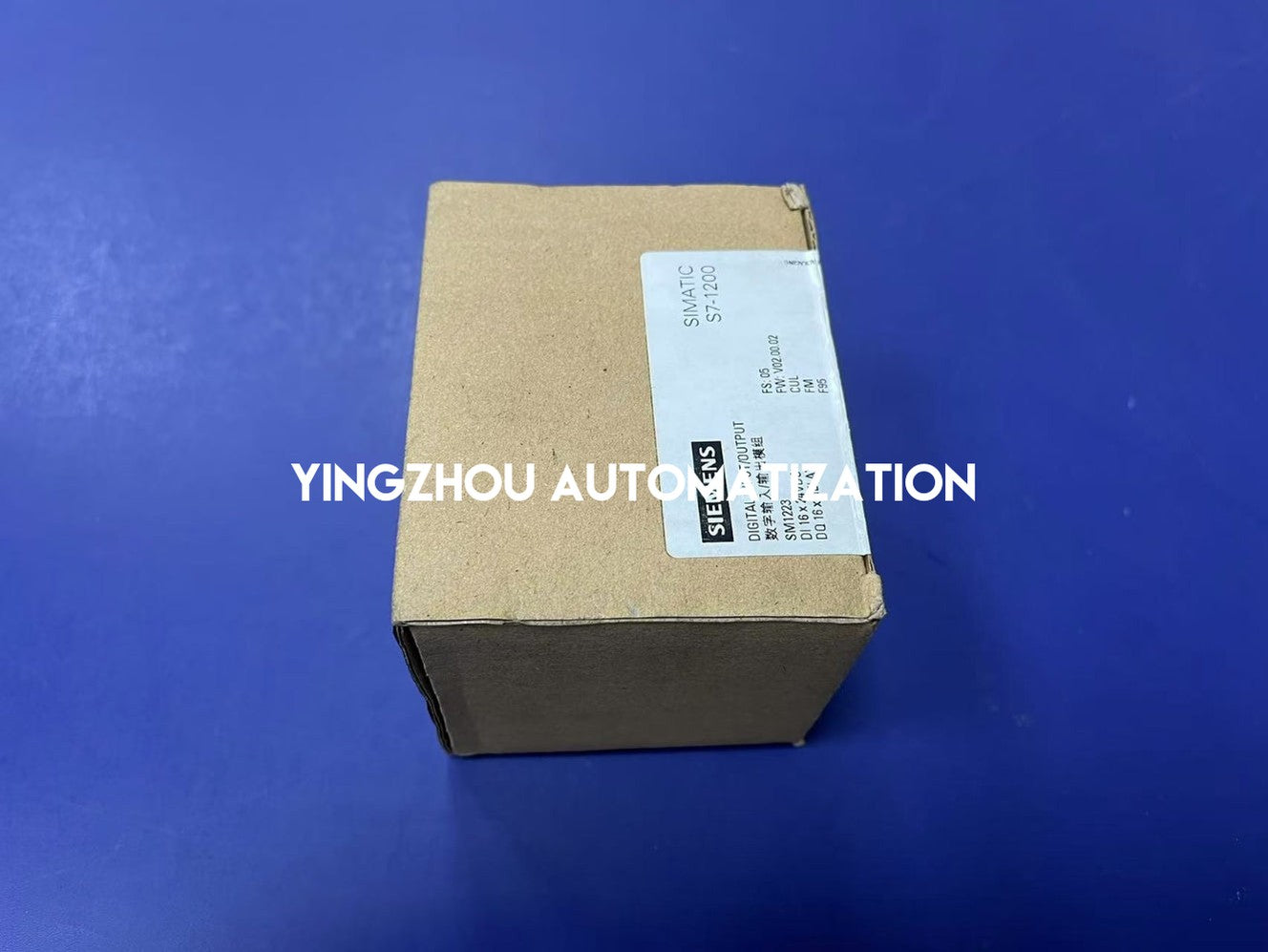

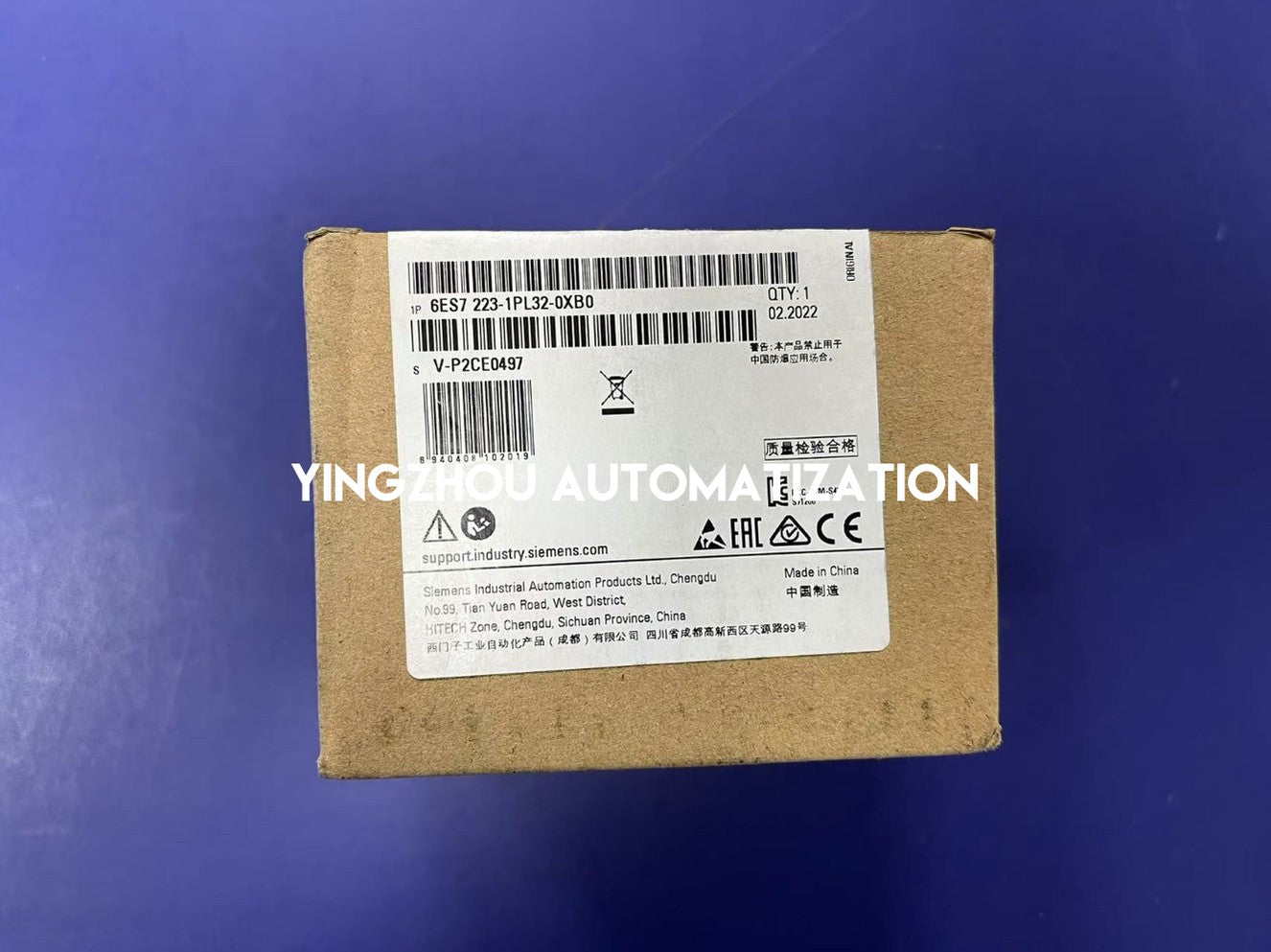

Actual Product Verification

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7223-1PL32-0XB0
✓ Packaging product family: SIMATIC S7-1200
✓ Packaging module designation: SM1223
✓ Packaging digital inputs: 16 x 24 V DC
✓ Packaging digital outputs: 16 x Relay
✓ Packaging hardware marking: FS: 05
✓ Packaging firmware marking: FW: V02.00.02
✓ Packaging date marking: 02.2022
✓ Packaging origin marking: Made in China
✓ Manufacturer catalog currently lists Germany as country of origin; batch-specific confirmation is pending
✓ Physical module nameplate has not been photographed
✓ Confirm exact module identity and the required relay output specifications before ordering

In Stock & Available to Order

Siemens 6ES7223-1PL32-0XB0 is in stock according to the supplied inventory information. This SIMATIC S7-1200 SM1223 module provides 16 digital inputs at 24V DC and 16 relay outputs rated at 2A. Actual packaging photographs are available for catalog-number checking. Please confirm the exact module, required quantity, relay load type, available stock and dispatch arrangements before placing an order. Contact YINGZHOU for multiple units, replacement sourcing and mixed-brand industrial automation purchasing requirements.

IN STOCK

Siemens 6ES7223-1PL32-0XB0

Contact us for exact-model verification, available quantities and bulk pricing. Please confirm the S7-1200 system, 16 digital inputs, 16 relay outputs, 24 V DC supply and 2 A relay rating before ordering.

Request Bulk Pricing
