Siemens 6ES7134-6HD01-0BA1 ET 200SP 4-Channel Analog Input Module

Siemens 6ES7134-6HD01-0BA1 ET 200SP 4-Channel Analog Input Module

$214.99 USD
$214.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7134-6HD01-0BA1 ET 200SP Analog Input Module

AI 4xU/I 2-wire ST | 4 Analog Inputs | 16-Bit | 24V DC | BaseUnit A0/A1
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Packaging Model Verified
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 6ES7134-6HD01-0BA1
Product Family SIMATIC ET 200SP
Product Type Analog Input Module
Product Designation AI 4xU/I 2-wire ST
Module Version Standard (ST)
Analog Input Channels 4
Input Signal Types Voltage / Current
Sensor Connection 2-Wire
Analog Input Resolution 16-Bit
Basic Accuracy ±0.3%
Rated Supply Voltage 24V DC
Permissible Supply Voltage 19.2-28.8V DC
Maximum Module Current Consumption 37 mA (Without Sensor Supply)
24V Sensor Supply Available
Sensor Supply Short-Circuit Protection Yes
Sensor Supply Current 20 mA Maximum per Channel (Specified Transient Allowance)
Compatible BaseUnit Type A0 / Type A1
Color Code CC03
Module Diagnostics Supported
Firmware Update Supported
I&M Data I&M0 to I&M3
Isochronous Mode Not Supported
TIA Portal Configuration From V14
Net Weight Approx. 40 g
Manufacturer Lifecycle PM300 — Active Product

Product Overview

The Siemens 6ES7134-6HD01-0BA1 is a SIMATIC ET 200SP analog input module with the manufacturer designation AI 4xU/I 2-wire ST. This standard module provides 4 analog input channels for supported voltage and current signals with 16-bit resolution and a specified basic accuracy of ±0.3%. It is designed for two-wire sensor connection according to the Siemens module wiring requirements. The module operates from a 24V DC supply, with a permissible voltage range of 19.2-28.8V DC. It also provides a 24V sensor supply with short-circuit protection and supports module diagnostics. Compatible ET 200SP BaseUnits include Type A0 and Type A1, with the specified module color code CC03. The module supports firmware updates, identification and maintenance data, and configuration using supported Siemens STEP 7 TIA Portal versions. Siemens identifies catalog number 6ES7134-6HD01-0BA1 as an active product. The supplied packaging photographs show the matching exact catalog number, functional state FS:01, firmware marking V2.0.0, packaging date 06.2018, and country marking Made in Germany. Physical module identification and included accessories should be confirmed before dispatch.

Key Product Features

  • SIMATIC ET 200SP Analog Input Module — Siemens standard analog input module for industrial distributed I/O systems.
  • 4 Analog Input Channels — Accepts supported voltage and current input signals.
  • 16-Bit Resolution — Designed for analog process signal acquisition.
  • ±0.3% Basic Accuracy — Manufacturer-specified basic accuracy rating.
  • Two-Wire Sensor Connection — Supports the specified sensor wiring arrangement.
  • 24V DC Module Supply — Permissible supply voltage range of 19.2-28.8V DC.
  • BaseUnit A0 / A1 Compatibility — Compatible with Siemens ET 200SP BaseUnit Type A0 and Type A1.
  • Module Diagnostics — Supports monitoring and diagnostic functions.
  • Firmware Update Support — Manufacturer-supported firmware update capability.
  • TIA Portal Integration — Configurable in supported Siemens STEP 7 engineering environments.

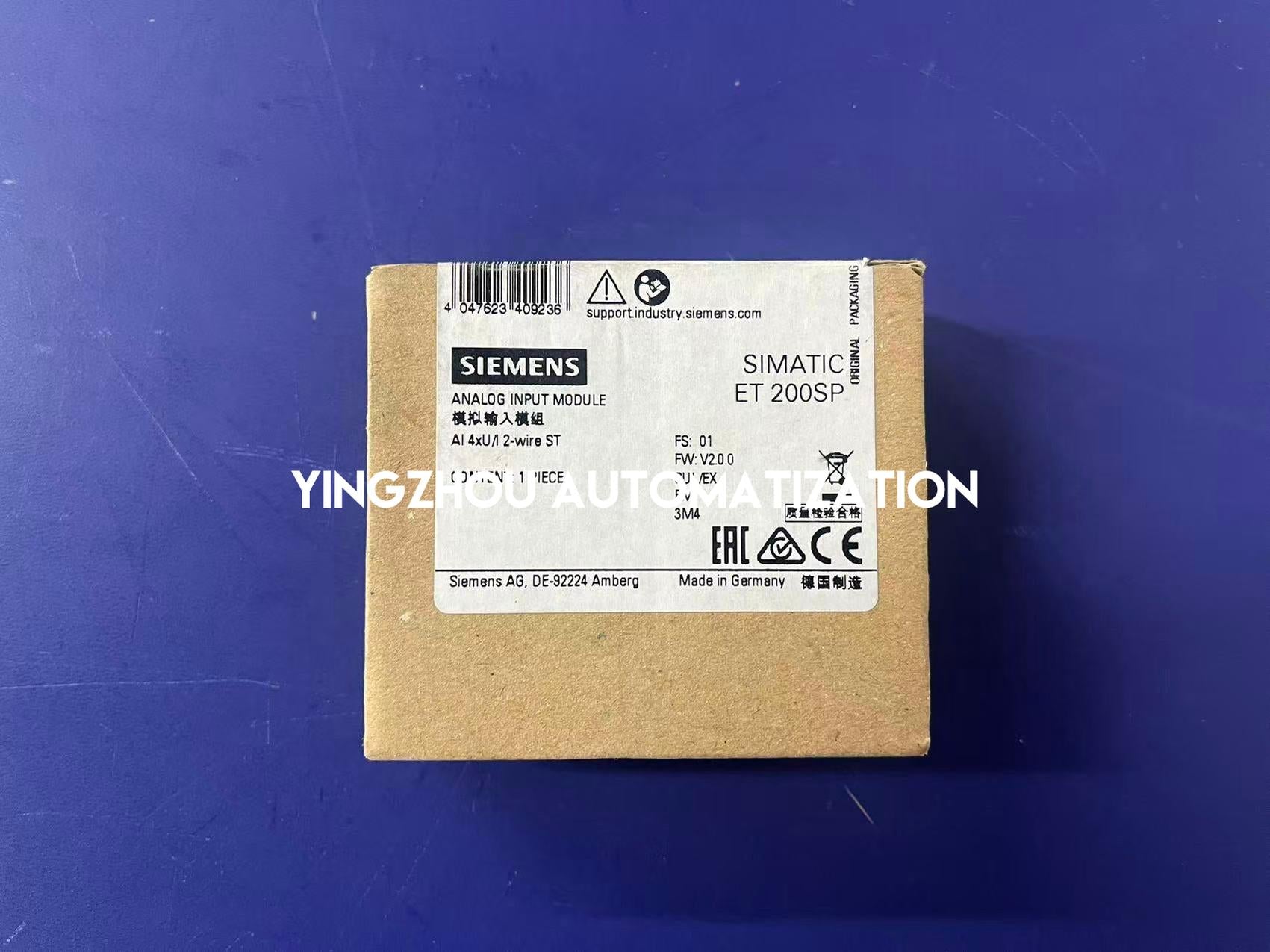

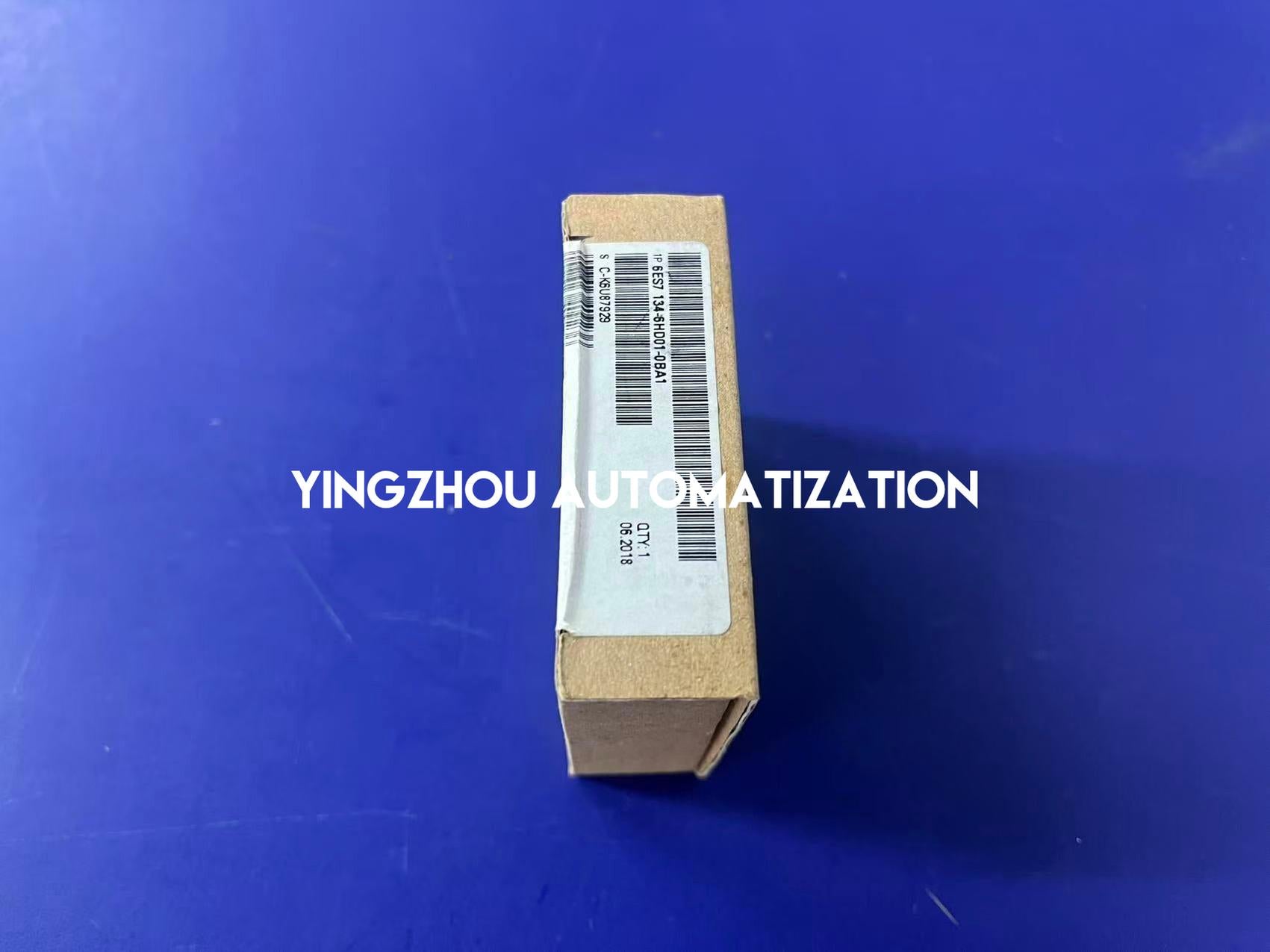

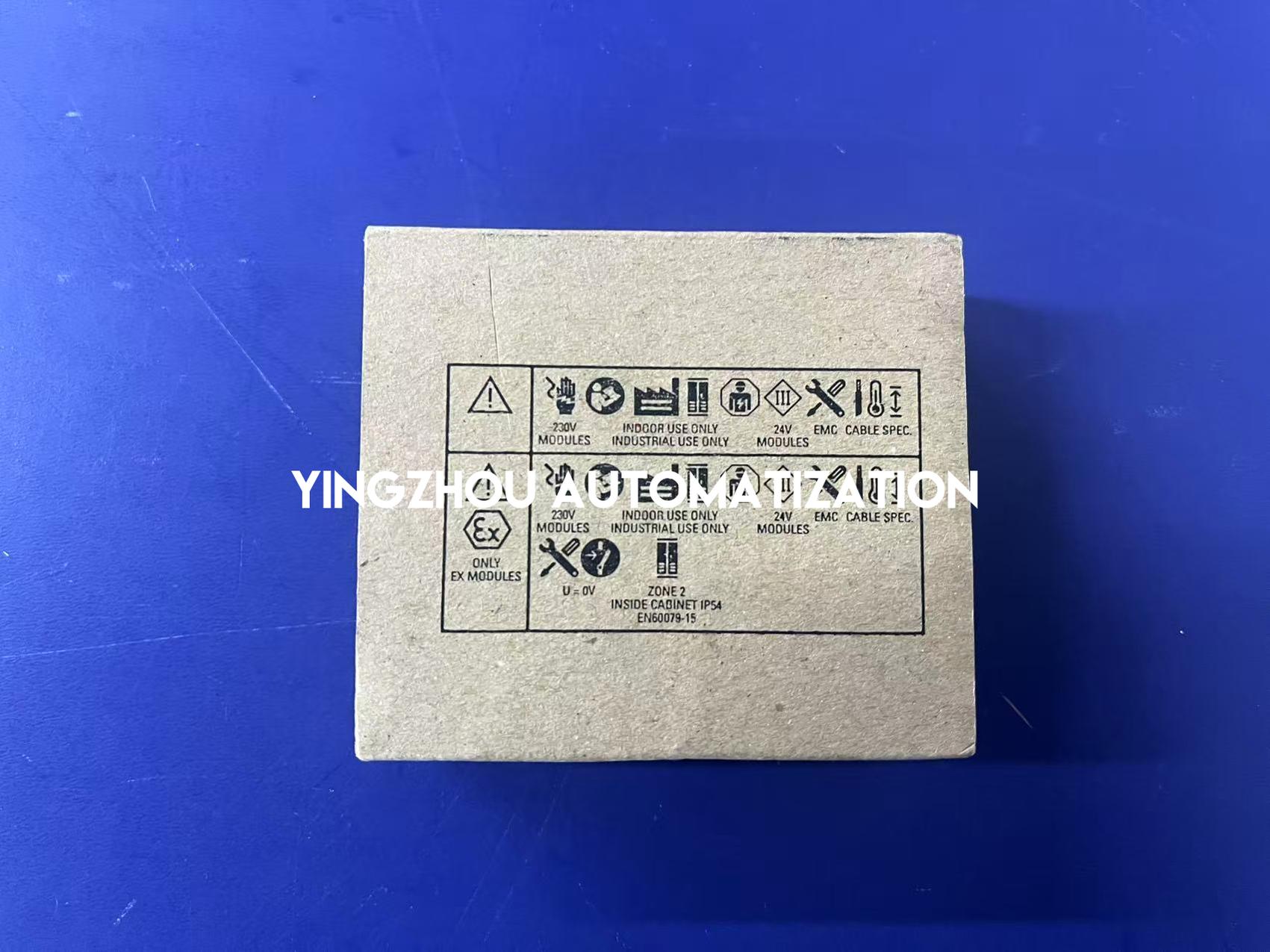

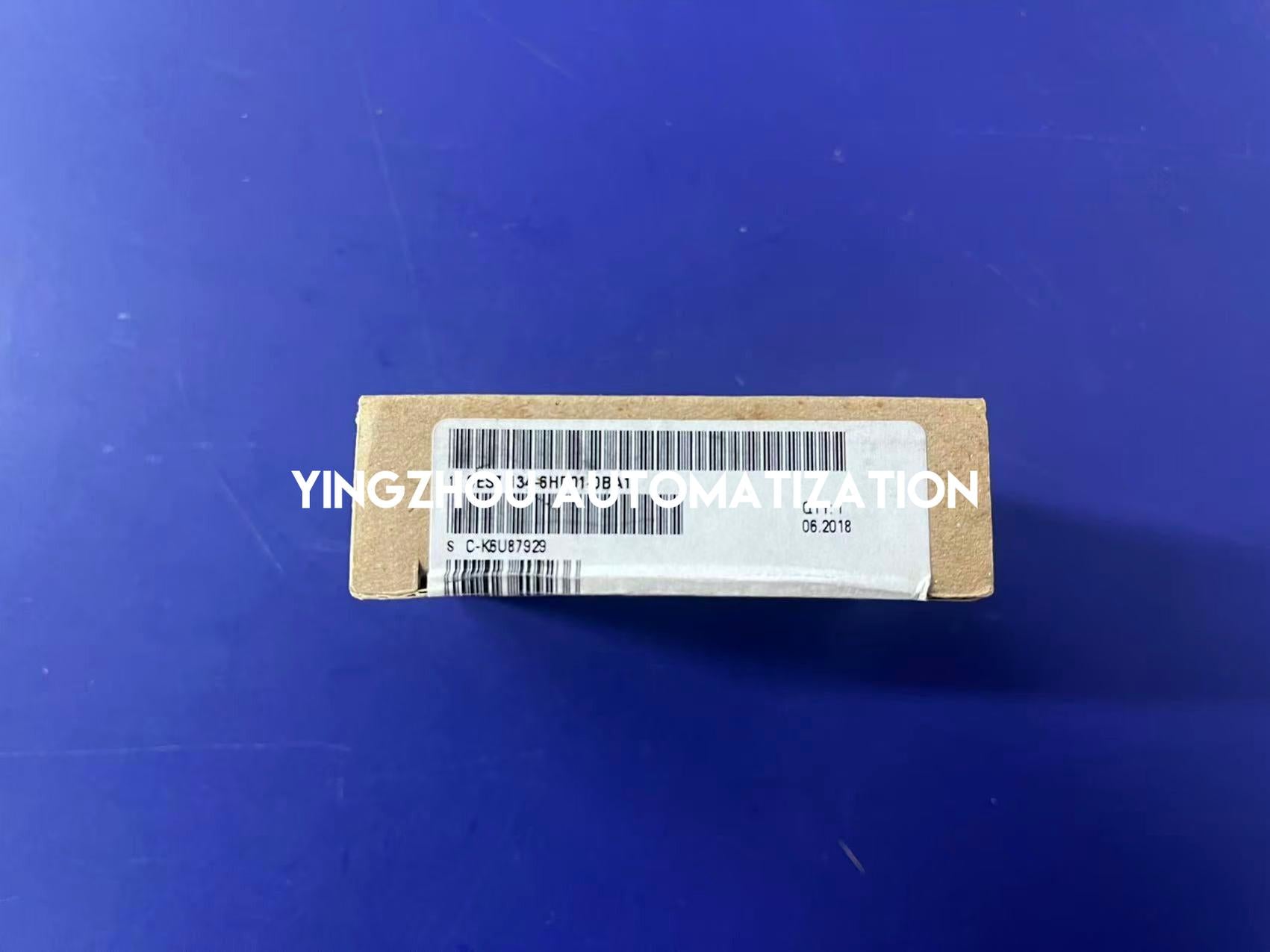

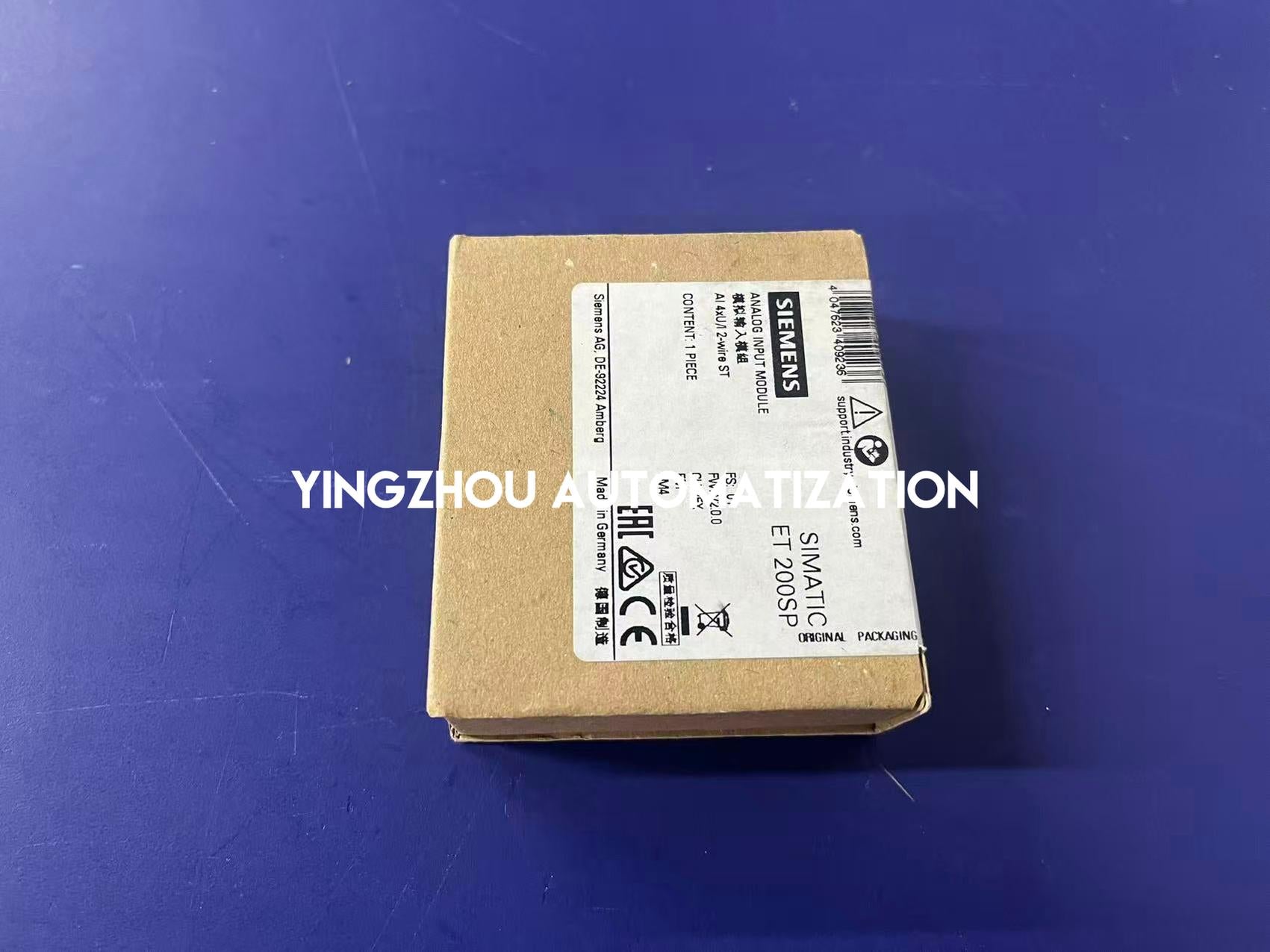

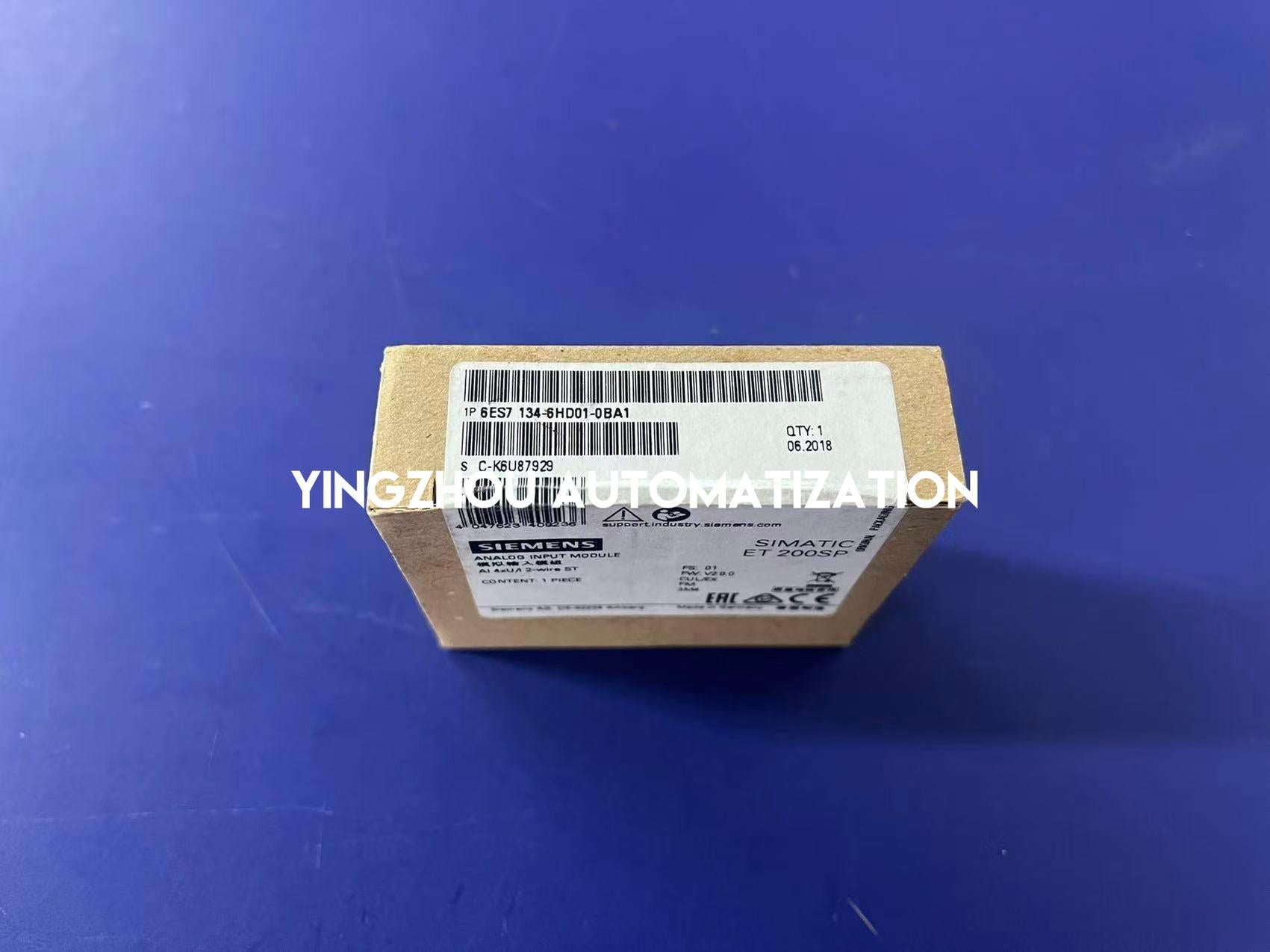

Actual Product Verification

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7134-6HD01-0BA1
✓ Product series: SIMATIC ET 200SP
✓ Product type: Analog Input Module
✓ Product designation: AI 4xU/I 2-wire ST
✓ Packaging functional state: FS:01
✓ Packaging firmware marking: FW: V2.0.0
✓ Packaging date marking: 06.2018
✓ Country marking: Made in Germany
✓ Packaging quantity: 1 Piece
✓ Packaging model matches the requested exact catalog number
✓ Confirm physical module nameplate, BaseUnit and included accessories before ordering

In Stock & Available to Order

Siemens 6ES7134-6HD01-0BA1 is marked in stock according to the supplied inventory information. The SIMATIC ET 200SP AI 4xU/I 2-wire ST module provides 4 analog input channels for supported voltage and current measurements. Its 16-bit resolution, module diagnostics, 24V DC operating supply and BaseUnit A0/A1 compatibility make it suitable for exact-model automation maintenance and distributed I/O procurement. The supplied Siemens packaging photographs show the matching catalog number and relevant packaging markings. Before ordering, please confirm the complete model number, required signal type, sensor connection, input measurement requirements, compatible BaseUnit, quantity and accessories. YINGZHOU supports individual units, bulk purchases and mixed-brand industrial automation sourcing. Final available quantities and dispatch arrangements are subject to confirmation.

IN STOCK

Siemens 6ES7134-6HD01-0BA1

Contact us for exact-model verification, available quantities and bulk pricing. Please confirm the 4-channel voltage/current input requirements, two-wire sensor connection, 24V DC module supply and BaseUnit Type A0/A1 before ordering.
