Siemens 6AV2128-3QB06-0AX1 MTP1500 Unified Comfort HMI 15.6"
Siemens 6AV2128-3QB06-0AX1 MTP1500 Unified Comfort HMI 15.6"
Couldn't load pickup availability
Siemens 6AV2128-3QB06-0AX1 MTP1500 Unified Comfort HMI
| Specification | Verified Product Data |
|---|---|
| Manufacturer | Siemens AG |
| Catalog Number | 6AV2128-3QB06-0AX1 |
| Product Family | SIMATIC HMI Unified Comfort Panels Standard |
| Product Designation | MTP1500 Unified Comfort |
| Product Type | Industrial HMI Operator Panel |
| Display Technology | Widescreen TFT |
| Screen Size | 15.6 inches |
| Screen Resolution | 1366 x 768 Pixels |
| Display Colors | 16,777,216 |
| Display Active Width | 344.2 mm |
| Display Active Height | 197 mm |
| Operation | Capacitive Multi-Touch |
| Backlight MTBF | 50,000 Hours at 25°C |
| Rated Power Supply | 24V DC |
| Permissible Supply Range | 19.2-28.8V DC |
| Industrial Ethernet Interfaces | 2 Interfaces (2-Port Switch + Independent Port) |
| PROFINET Communication | Supported |
| Serial Interface | 1 x RS422/RS485 Combined |
| USB Interfaces | 4 x USB 3.1 Gen 1 Type A |
| SD Card Slots | 2 |
| Engineering Software | WinCC Unified Comfort |
| Minimum Engineering Version | V16 |
| Portrait Mounting | Supported |
| Landscape Mounting | Supported |
| Front Protection Rating | IP65 |
| Rear Protection Rating | IP20 |
| Indoor Use | Specified |
| Packaging Dimensions | 46 x 30 x 14 cm |
| EAN / GTIN | 4047618128012 |
| Packaging Quantity | 1 Piece |
| Country of Origin | Made in Germany |
| Manufacturer Lifecycle | Active Product |
Product Overview

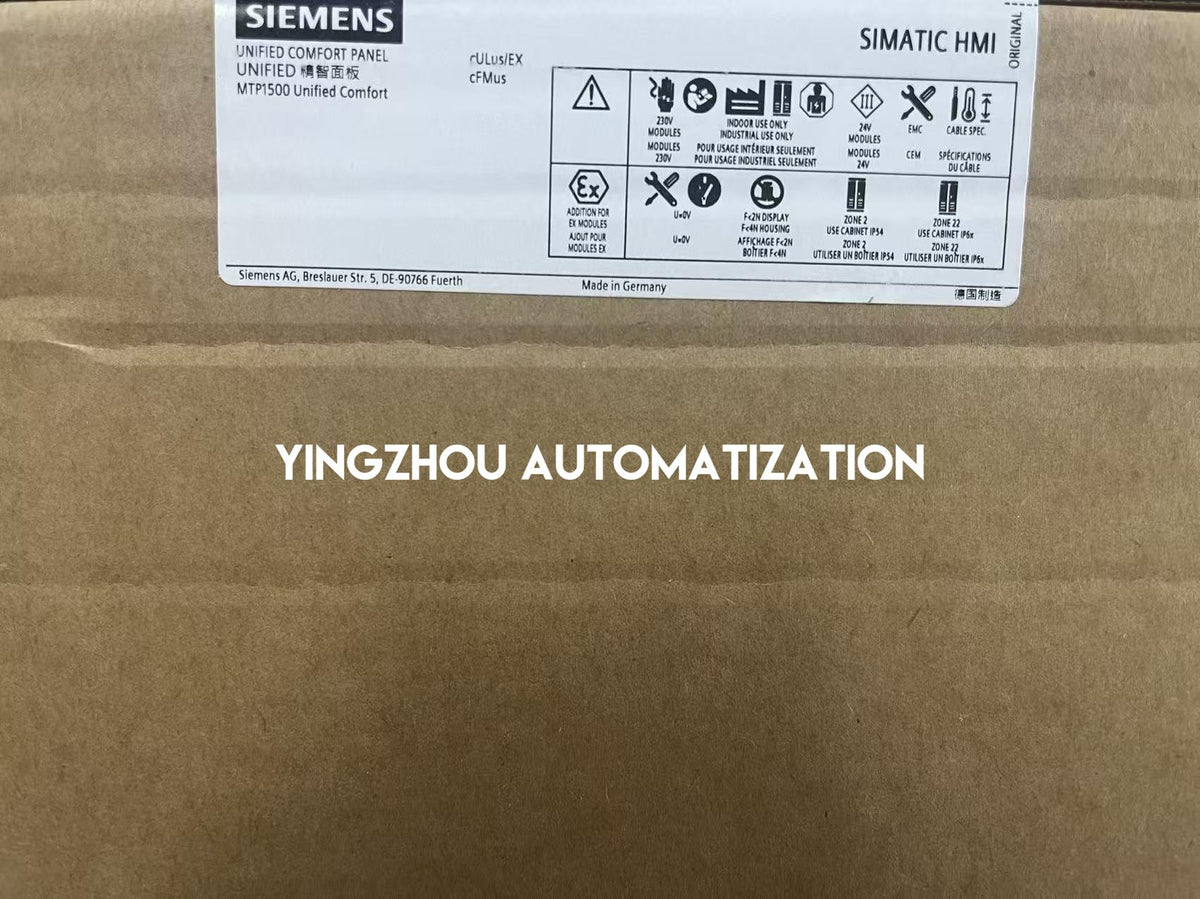

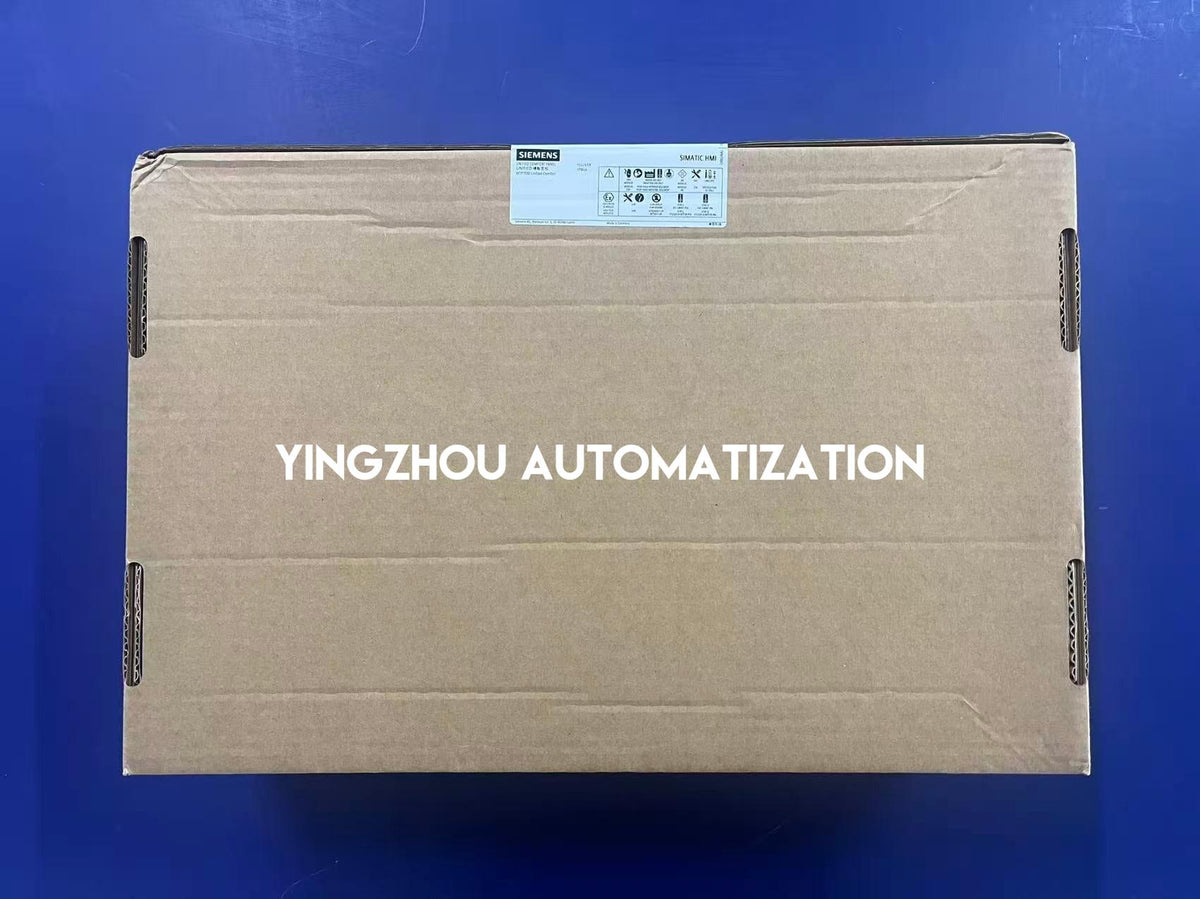

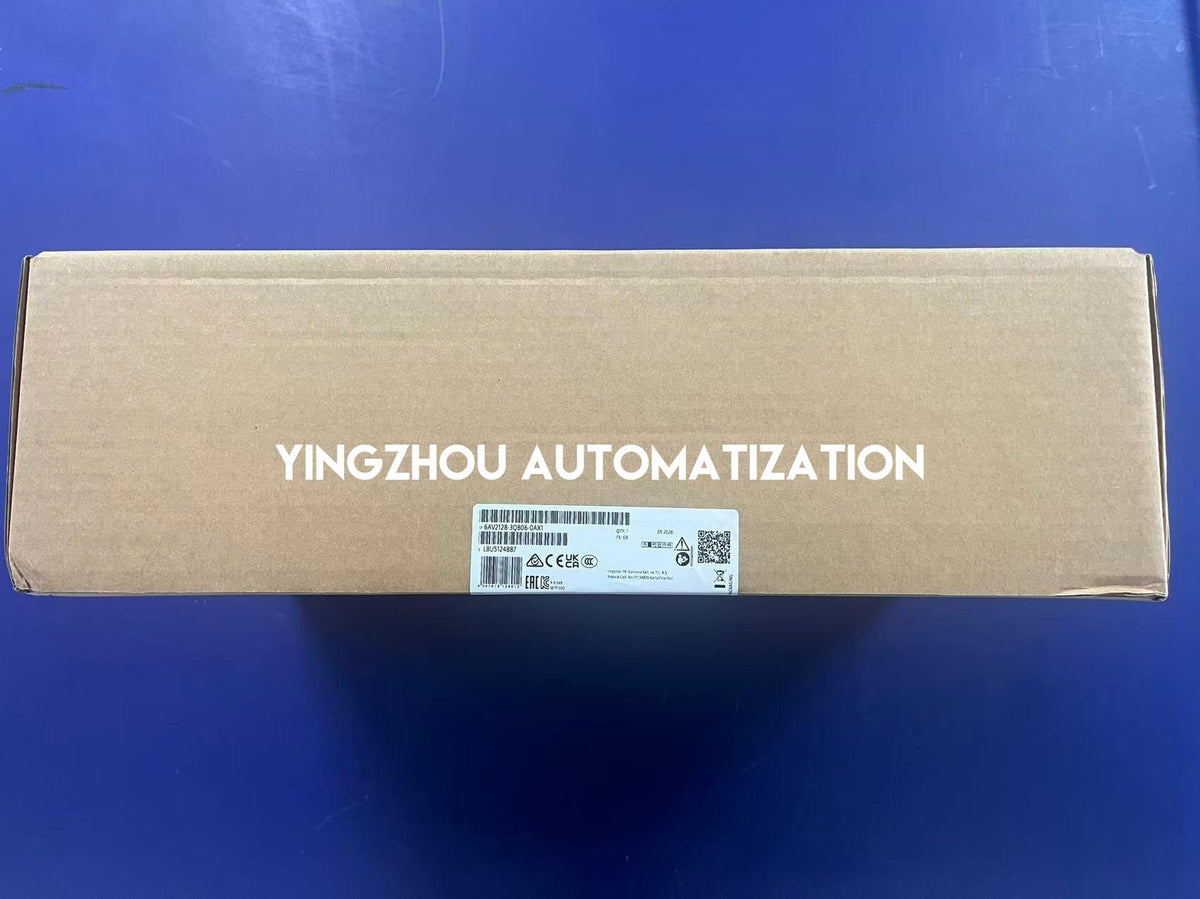

The Siemens 6AV2128-3QB06-0AX1 is a SIMATIC HMI MTP1500 Unified Comfort Panel designed for industrial machine visualization and operator control applications. It features a 15.6-inch widescreen TFT display with 1366 x 768 pixel resolution and 16,777,216 display colors. The panel supports capacitive multi-touch operation for modern HMI interaction. Industrial communication interfaces include PROFINET and industrial Ethernet, together with a combined RS422/RS485 serial interface, USB connections and SD card slots. The device operates from a 24V DC power supply with a permissible range of 19.2-28.8V DC. It is configurable using SIMATIC WinCC Unified Comfort V16 or later, subject to the applicable engineering environment and project requirements. Siemens specifies IP65 protection at the front and IP20 at the rear under appropriate installation conditions. Actual Siemens packaging photographs show the matching catalog number 6AV2128-3QB06-0AX1 and the MTP1500 Unified Comfort designation. The physical HMI panel and accessories inside the carton have not been separately inspected from the supplied photographs.
Key Product Features
- SIMATIC HMI MTP1500 Unified Comfort — Siemens industrial operator panel for compatible WinCC Unified applications.
- 15.6-Inch TFT Widescreen — Large industrial display with 1366 x 768 pixel resolution.
- Capacitive Multi-Touch — Touchscreen interaction for industrial operator interfaces.
- 16.7 Million Colors — Display capability of 16,777,216 colors.
- PROFINET and Industrial Ethernet — Supports compatible industrial Ethernet communication.
- 24V DC Operation — Supply voltage range of 19.2-28.8V DC.
- WinCC Unified Comfort V16+ — Engineering support from version V16.
- IP65 Front Protection — IP65 front and IP20 rear protection when installed according to Siemens instructions.
Actual Product Verification
In Stock & Available to Order

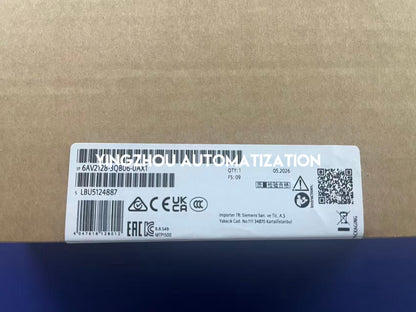

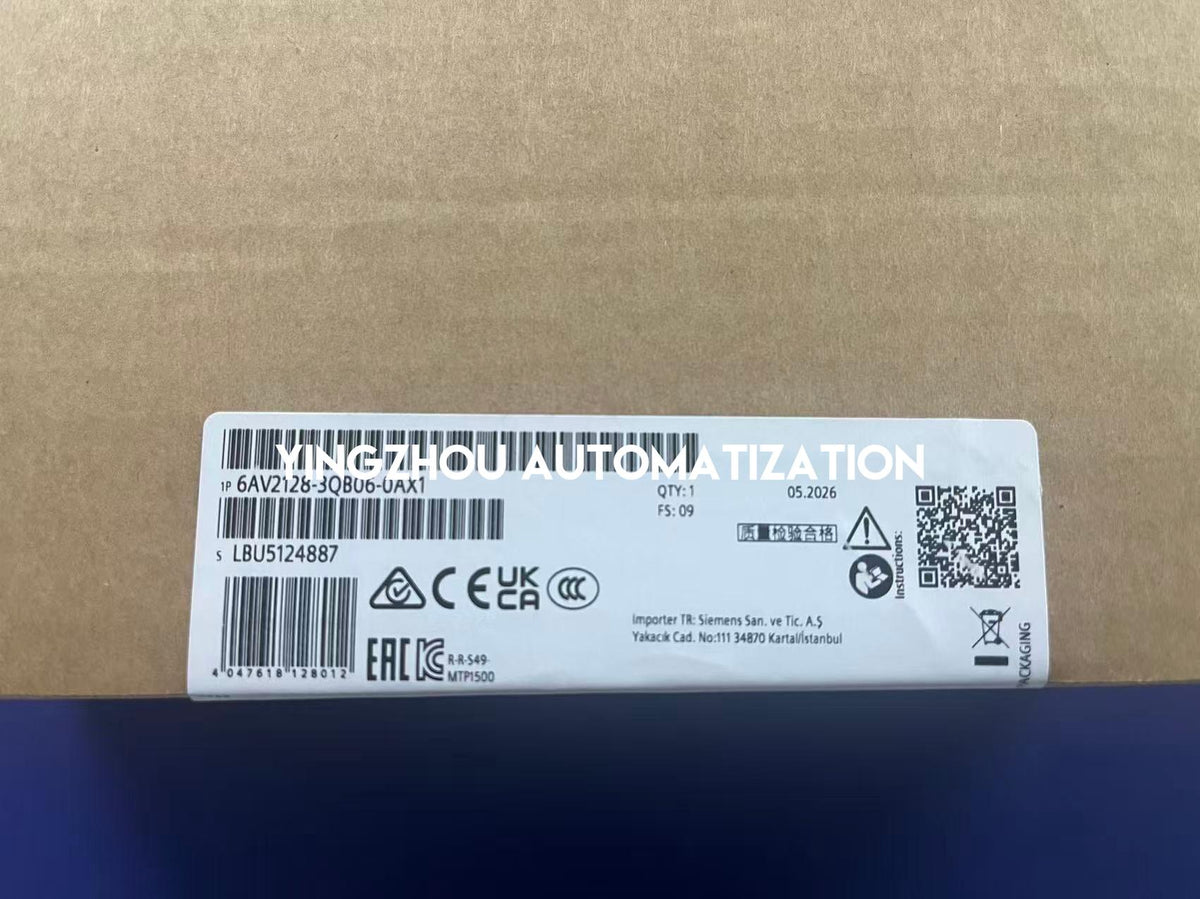

Siemens 6AV2128-3QB06-0AX1 is marked in stock based on the supplied inventory information. Actual Siemens packaging photographs show the matching catalog number and MTP1500 Unified Comfort identification. This 15.6-inch industrial HMI operator panel is offered for machine automation, operator interface replacement and industrial visualization procurement. Please confirm the required quantity, 15.6-inch display, WinCC Unified engineering compatibility, 24V DC supply and PROFINET requirements before completing an order. Replacement projects should also verify cabinet cutout dimensions and existing HMI project migration needs. The actual panel, accessories and operational status should be checked before shipment.
Siemens 6AV2128-3QB06-0AX1
Contact us for exact-model verification, bulk quantities and industrial HMI sourcing. Please confirm your MTP1500 model, WinCC Unified software version, power supply and installation requirements before ordering.
