Siemens 3RW5536-6HA14 SIRIUS 3RW55 90kW 171A Soft Starter

Name: Siemens 3RW5536-6HA14 SIRIUS 3RW55 90kW 171A Soft Starter
Brand: SIEMENS
SKU: 3RW5536-6HA14
Price: 3571.99 USD
Availability: InStock

Siemens 3RW5536-6HA14 SIRIUS 3RW55 90kW 171A Soft Starter

$3,571.99 USD

Sale Sold out

Model Number 3RW5536-6HA14

Product variants

Quantity

YingZhou Industrial Automation | Product Information

Siemens 3RW5536-6HA14 SIRIUS 3RW55 Soft Starter

90kW @ 400V | 171A | 200–480V AC | 110–250V AC Control | Screw Terminals

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Exact Model Verified

Specification	Verified Product Data
Manufacturer	Siemens AG
Catalog Number	3RW5536-6HA14
Product Family	SIRIUS
Product Series	3RW55
Product Type	AC Semiconductor Motor Soft Starter
Main Operating Voltage	200–480V AC
Main Supply Frequency	50/60Hz
Motor Supply	Three-Phase AC
Rated Operational Current	171A at 40°C
Motor Power at 400V	90kW
Control Supply Voltage	110–250V AC
Control Supply Frequency	50/60Hz
Terminal Connection	Screw Terminals
Starting Voltage Range	20–100%
Stopping Voltage	50%, Fixed
Start-Up Ramp Time	0–360 Seconds
Ramp-Down Time	0–360 Seconds
Starting Torque Setting	10–100%
Stopping Torque Setting	10–100%
Torque Limitation Range	20–200%
Adjustable Current Limitation	125–800%
Parameter Sets	3
Rated Insulation Voltage	480V
Impulse Withstand Voltage	6kV
Net Weight	10kg
Packaging Dimensions	402 × 304 × 328mm
EAN / GTIN	4047621040998
Country of Origin	Czech Republic
Manufacturer Lifecycle	PM300 — Active Product

Product Overview

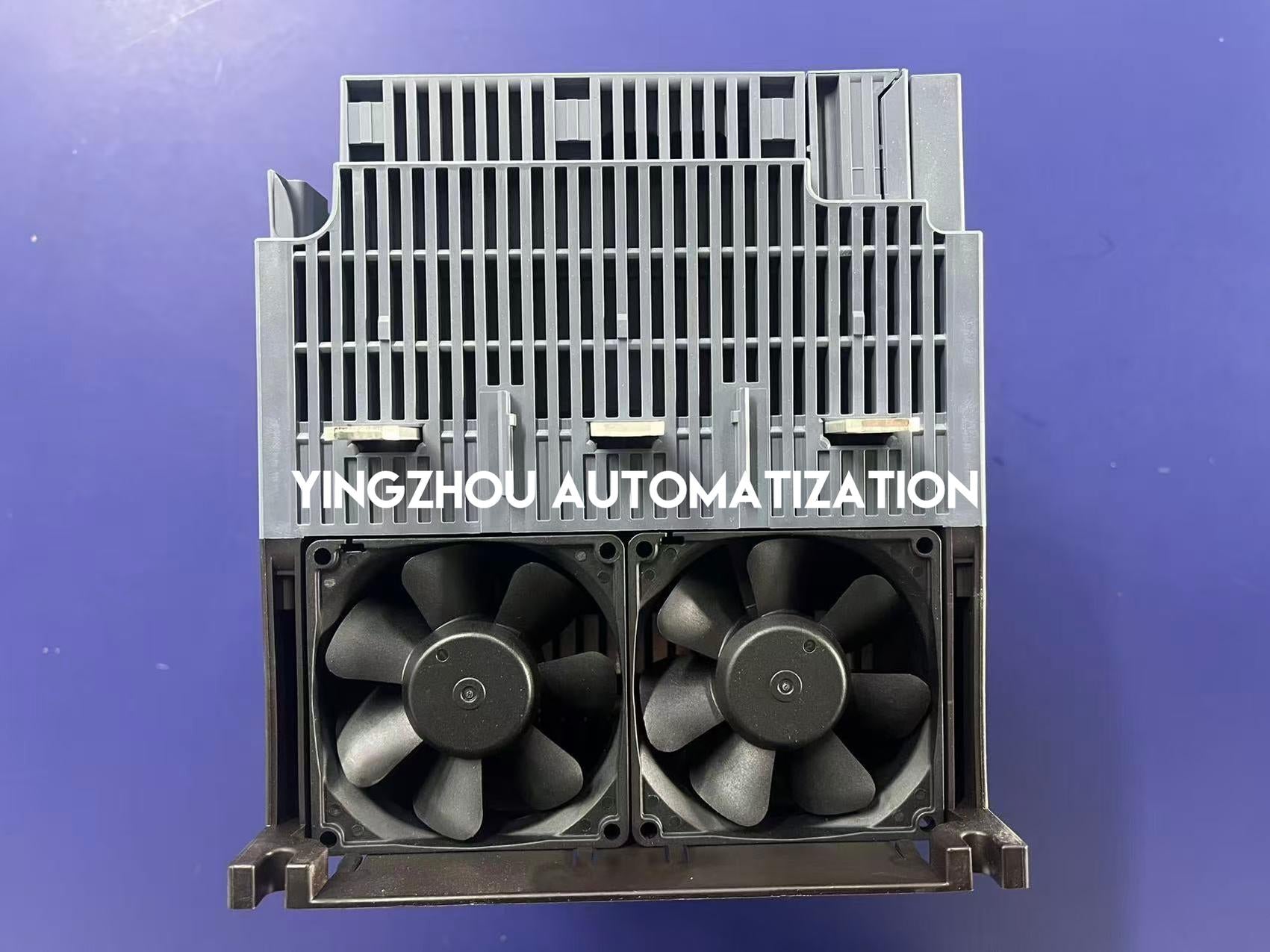

The Siemens 3RW5536-6HA14 is a SIRIUS 3RW55 high-performance soft starter designed for controlled starting and stopping of three-phase AC motors. It is rated for a main operating voltage of 200–480V AC, with a rated operational current of 171A at 40°C and a motor power rating of 90kW at 400V. The unit uses a separate 110–250V AC control supply and screw terminal connections. The Siemens SIRIUS 3RW55 soft starter provides adjustable motor-starting parameters, including starting voltage, starting and stopping ramp times, torque limitation and current limitation. For this model, the starting voltage adjustment range is 20–100%, while the starting and stopping ramp times can be adjusted within 0–360 seconds. Three parameter sets are available for configuration. The product is intended for industrial motor starting applications where controlled acceleration and deceleration are required. Its soft-starting functionality should not be confused with variable-frequency speed control. The supplied actual photographs show a Siemens unit marked 3RW5536-6HA14 and corresponding Siemens packaging carrying the same catalog number. The labels identify the product as a 171A soft starter with 200–480V AC main voltage and 110–250V AC control supply. Before ordering, verify the motor rated current, operating voltage, load starting requirements, control supply and installation conditions against the Siemens technical documentation.

Key Product Features

Siemens SIRIUS 3RW55 Soft Starter — High-performance motor starting device for three-phase AC applications.
171A Rated Operational Current — Manufacturer-specified rating at 40°C under the applicable operating conditions.
90kW Motor Power at 400V — Motor power rating for the specified voltage class.
200–480V AC Main Operating Voltage — Designed for the specified three-phase motor supply range.
110–250V AC Control Supply — Separate control supply for the electronic starter.
Adjustable Motor Starting — Starting voltage from 20% to 100% and configurable ramp times.
Torque and Current Limitation — Adjustable motor starting parameters for supported operating conditions.
Three Parameter Sets — Supports different configured motor-starting settings.
Actual Product Photography — Physical nameplate and original packaging show matching Siemens catalog numbers.

Actual Product Verification

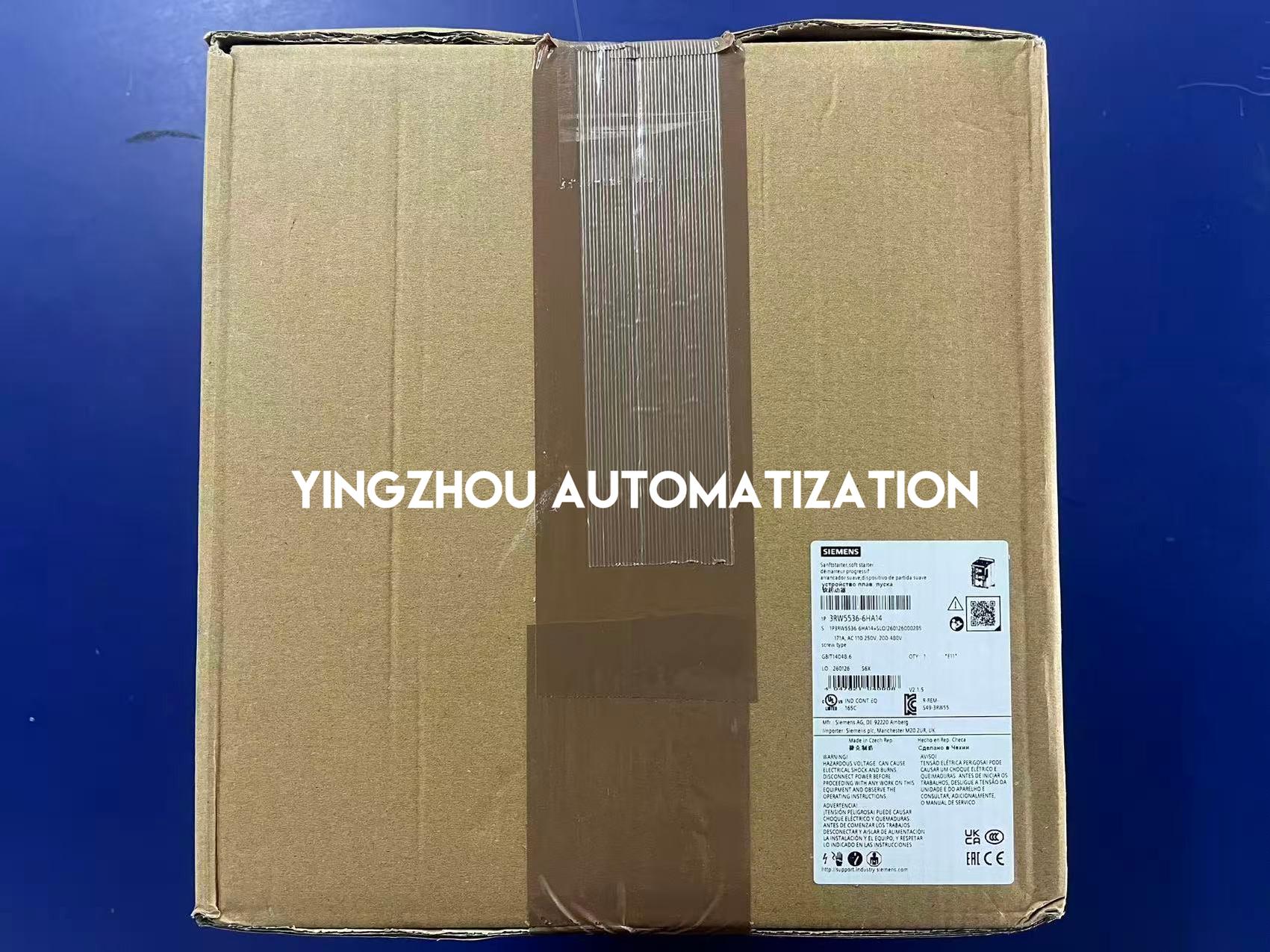

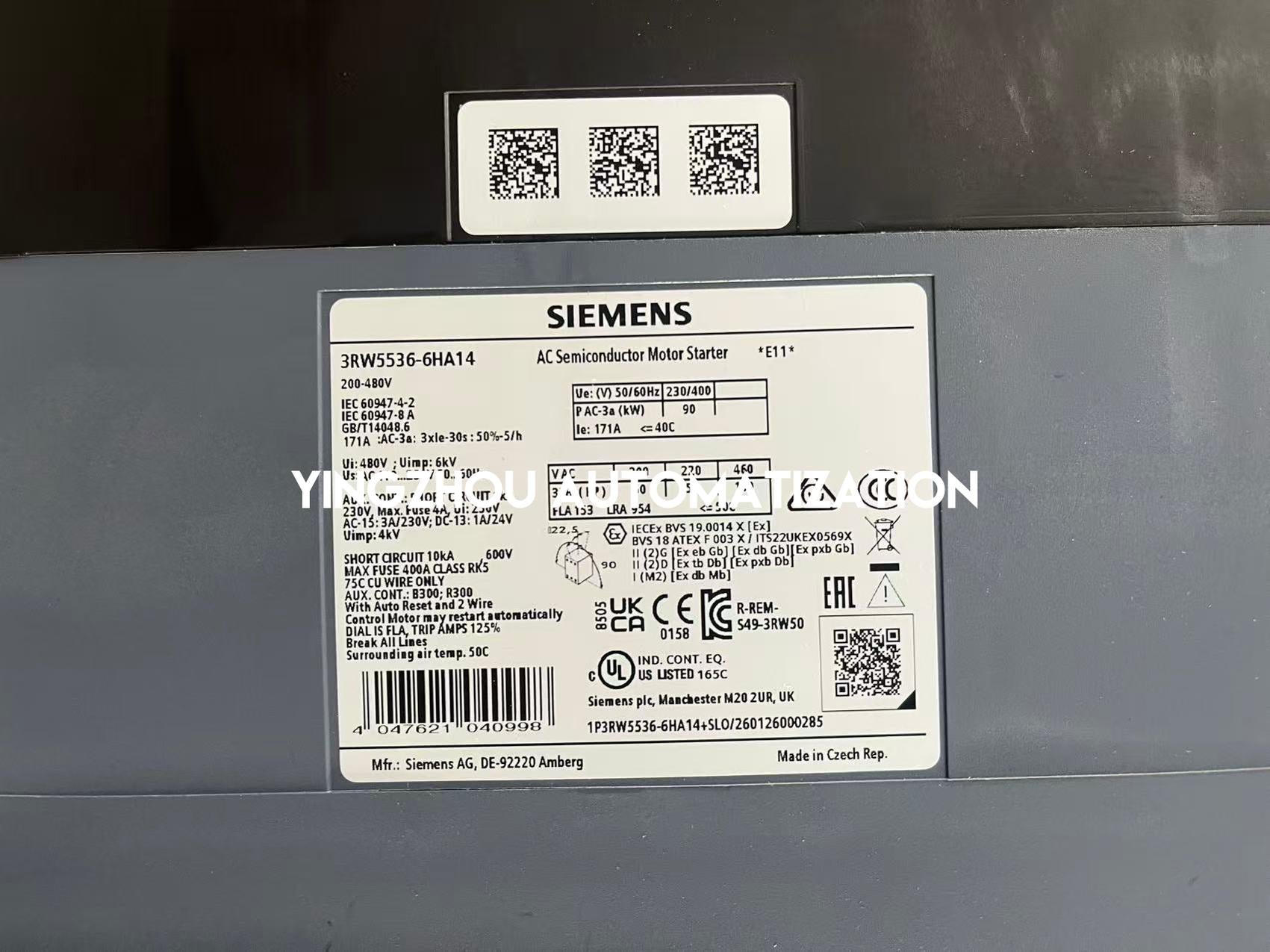

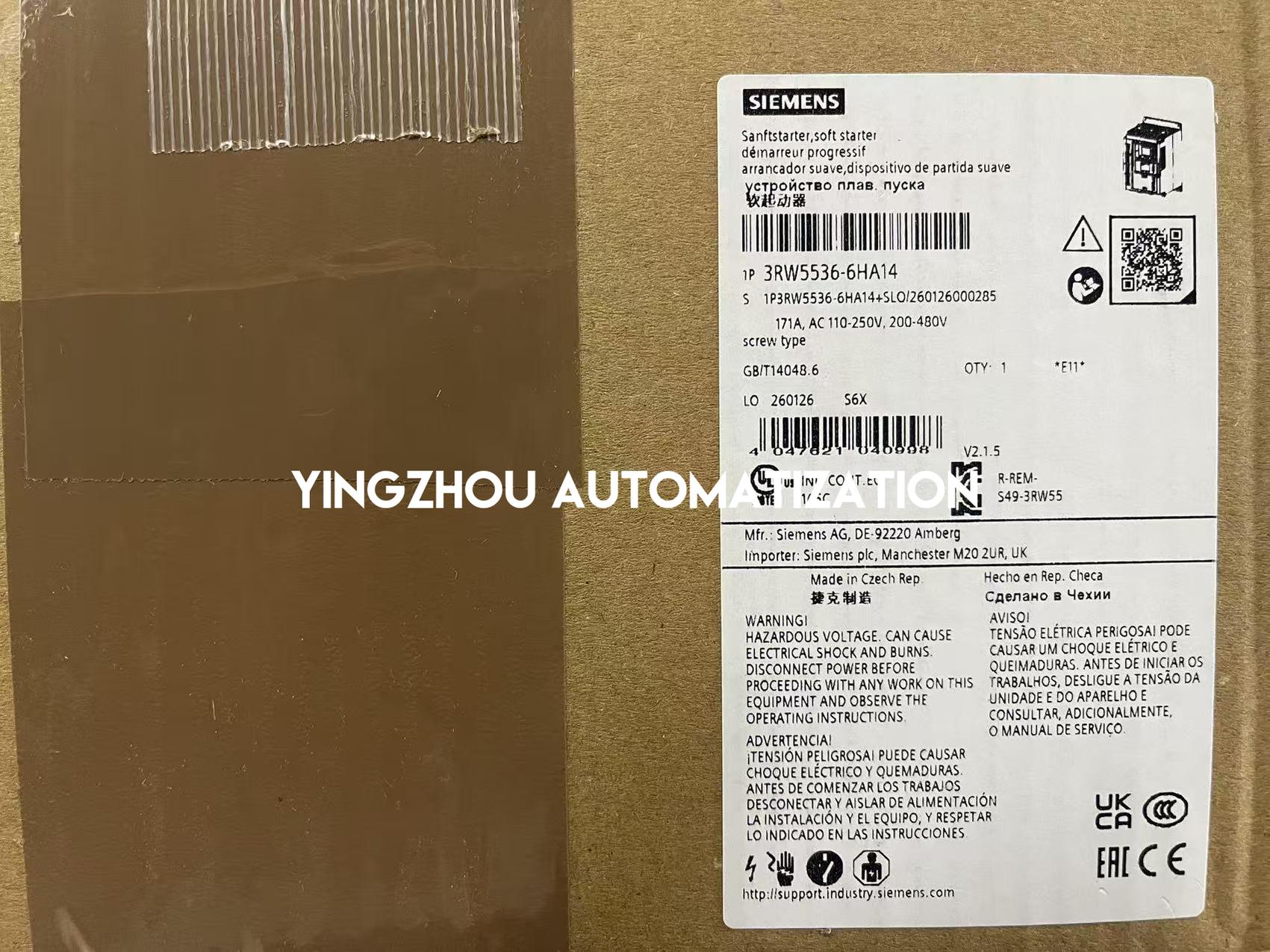

✓ Actual Siemens product nameplate and packaging photographs supplied

✓ Packaging catalog number: 3RW5536-6HA14

✓ Physical device catalog number: 3RW5536-6HA14

✓ Product family: SIRIUS 3RW55

✓ Product type: AC Semiconductor Motor Starter

✓ Main operating voltage: 200–480V AC

✓ Rated operational current: 171A

✓ Control supply: 110–250V AC

✓ Connection type: Screw Terminals

✓ Packaging quantity: 1 piece

✓ Packaging EAN: 4047621040998

✓ Country of manufacture: Czech Republic

✓ Packaging and device catalog numbers match

✓ Verify motor current, voltage and starting duty before ordering

In Stock & Available to Order

Siemens 3RW5536-6HA14 is marked in stock based on the supplied inventory information. This SIRIUS 3RW55 soft starter is rated for 171A at 40°C, with 200–480V AC main operating voltage and 110–250V AC control supply. Actual photographs of the Siemens product and corresponding packaging are available for exact-model identification. The packaging is marked Qty: 1. Please confirm your motor ratings, starting requirements, installation conditions and order quantity before purchase.

IN STOCK

Siemens 3RW5536-6HA14

Contact us for exact-model verification, available quantities, bulk procurement and Siemens SIRIUS soft starter sourcing. Please confirm the 171A current rating, 200–480V motor supply and 110–250V AC control supply before ordering.
