Siemens 3RP2535-1AW30 SIRIUS OFF-Delay Time Relay 12-240V AC/DC

Siemens 3RP2535-1AW30 SIRIUS OFF-Delay Time Relay 12-240V AC/DC

$92.99 USD
$92.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Siemens 3RP2535-1AW30 SIRIUS OFF-Delay Time Relay

OFF Delay with Control Signal | 0.05s–100h | 12–240V AC/DC | 1 Changeover Contact
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Photo Verified
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 3RP2535-1AW30
Product Family SIRIUS
Product Series 3RP25
Product Type Electronic Timing Relay
Timing Function OFF Delay with Control Signal
Adjustable Time Range 0.05 s – 100 h
Control Supply Voltage AC 12–240 V AC
Control Supply Voltage DC 12–240 V DC
AC Supply Frequency 50/60 Hz
Output Contact Arrangement 1 Changeover Contact (1 CO)
Thermal Current 5 A
Operational Current AC-15 @ 250V 3 A
Operational Current DC-13 @ 24V 1 A
Minimum Control Signal ON Duration 35 ms
Recovery Time 250 ms
Relative Repeat Accuracy ±1%
Protection Rating IP20 (Front)
Electrical Connection Screw Terminal
Mounting 35 mm DIN Rail / Screw Mounting
Dimensions (H × W × D) 100 × 17.5 × 90 mm
Operating Ambient Temperature −25°C to +60°C
Country of Manufacture Germany (Packaging and Device Labels)

Product Overview

The Siemens 3RP2535-1AW30 is a SIRIUS 3RP25 electronic timing relay designed for industrial control circuits requiring an OFF-delay function with a control signal. This model provides an adjustable timing interval from 0.05 seconds to 100 hours and supports a wide 12–240V AC/DC control supply, with 50/60Hz operation for AC supply. It features one changeover relay contact for switching and signaling functions. During operation, the device is supplied through A1/A2. When a control signal is applied to B1, the output relay switches over. After the control signal is removed, the configured OFF-delay interval begins before the output returns to its original switching state. The compact 17.5mm-wide design, screw-type terminals and standard 35mm DIN-rail mounting make this relay suitable for appropriately designed control panels, machinery control circuits and industrial electrical systems. The supplied actual product photographs show matching 3RP2535-1AW30 markings on the Siemens carton and physical device, supporting exact-model confirmation before ordering.

Key Product Features

  • Siemens SIRIUS 3RP25 Time Relay — Electronic timing relay for industrial control.
  • OFF-Delay with Control Signal — Timed output release after the control signal is removed.
  • Adjustable 0.05s–100h Range — Wide delay range for industrial timing requirements.
  • 12–240V AC/DC Control Supply — Wide-range supply with 50/60Hz AC support.
  • One Changeover Contact — Electromechanical output for control and signaling.
  • Compact 17.5mm Width — Suitable for space-conscious control panel layouts.
  • Removable Screw Terminals — Electrical connections for industrial panel wiring.
  • 35mm DIN-Rail Mounting — Standard industrial control cabinet installation.
  • Front Protection Rating IP20 — Protection rating under IEC 60529.
  • Actual Product Photography — Packaging and physical device show catalog number 3RP2535-1AW30.

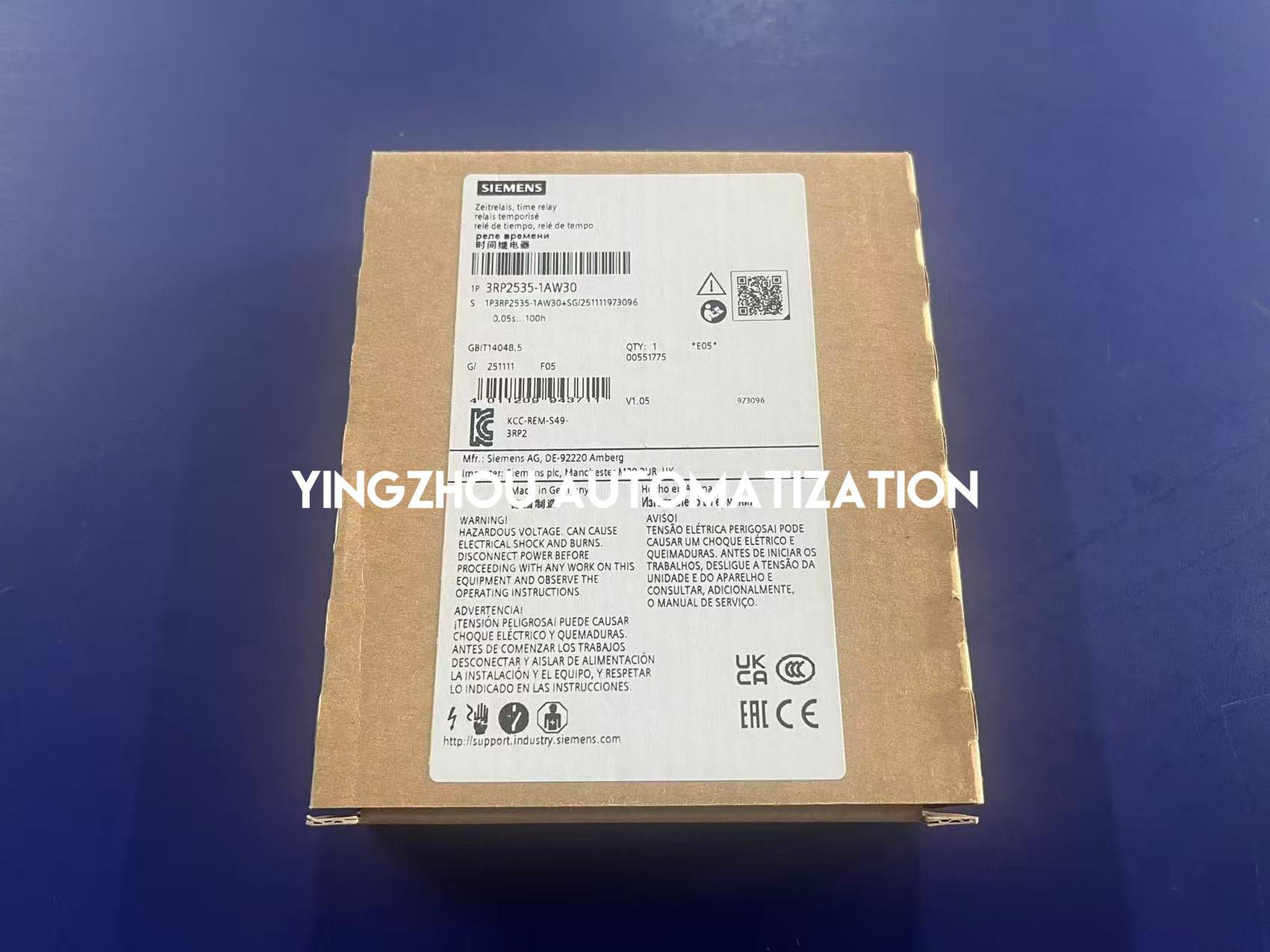

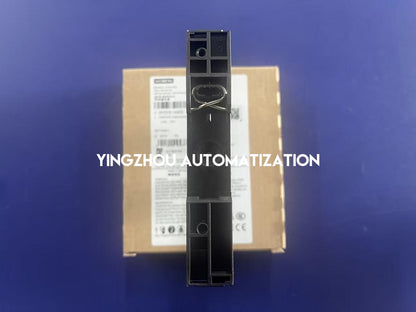

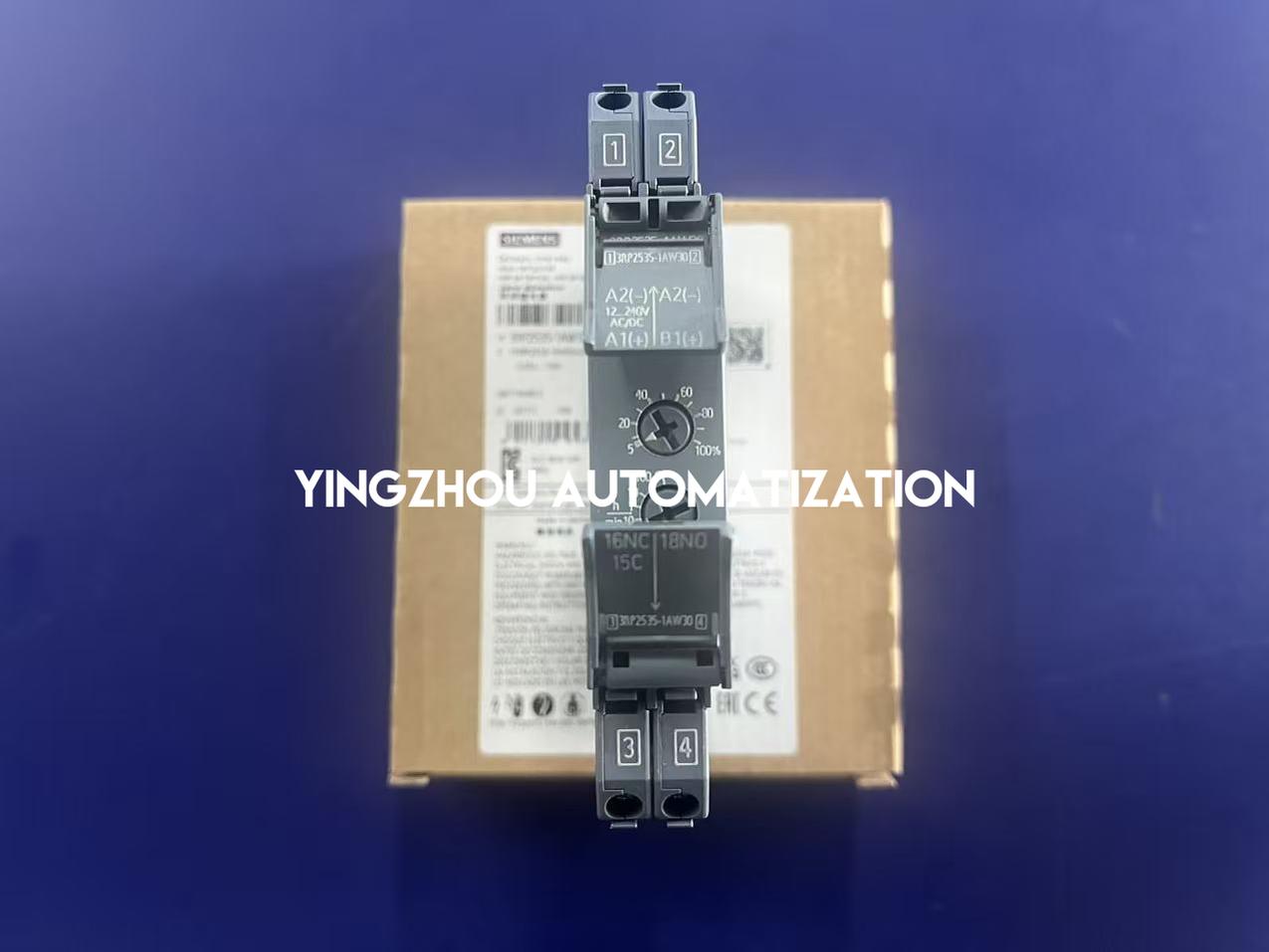

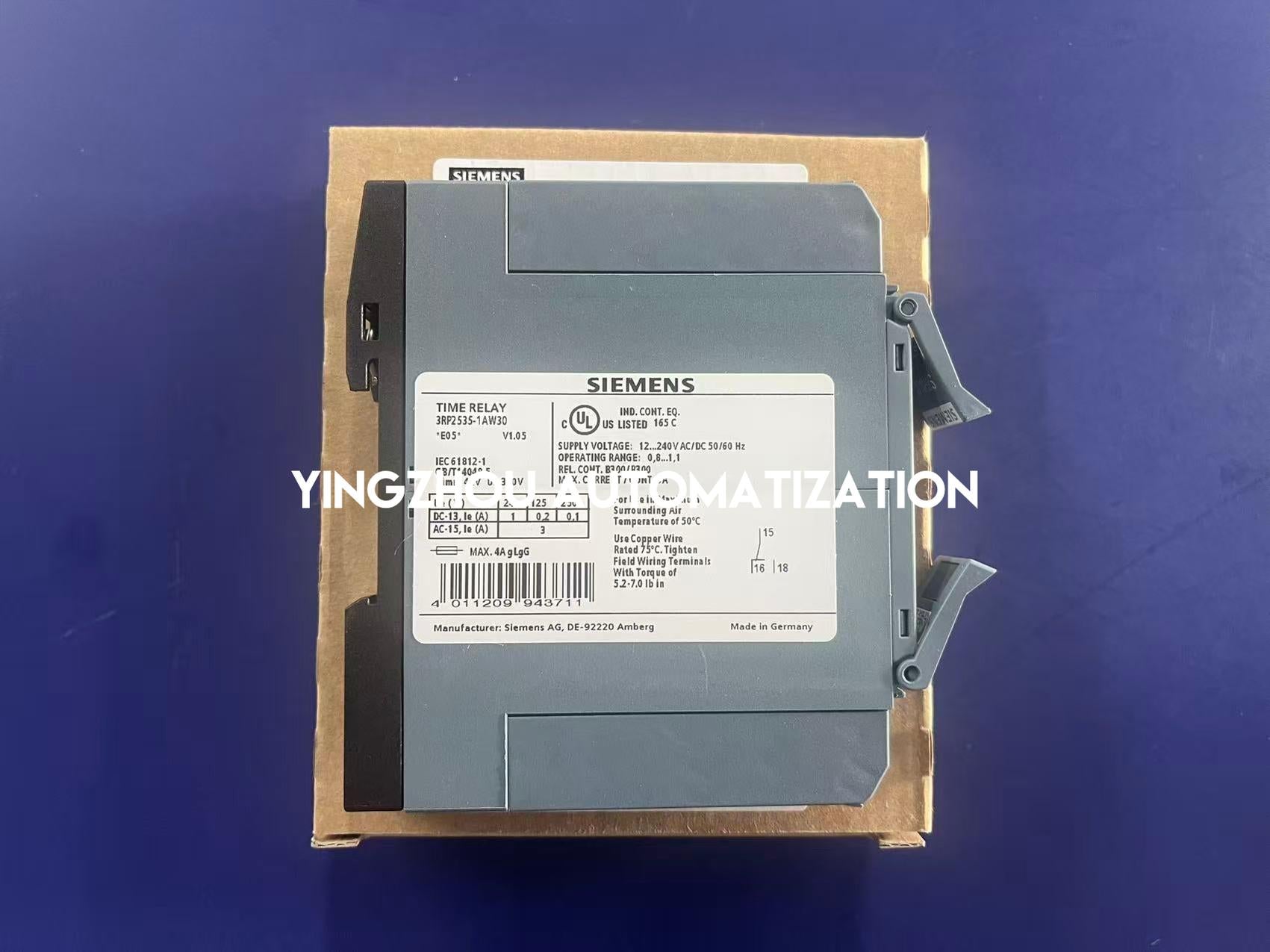

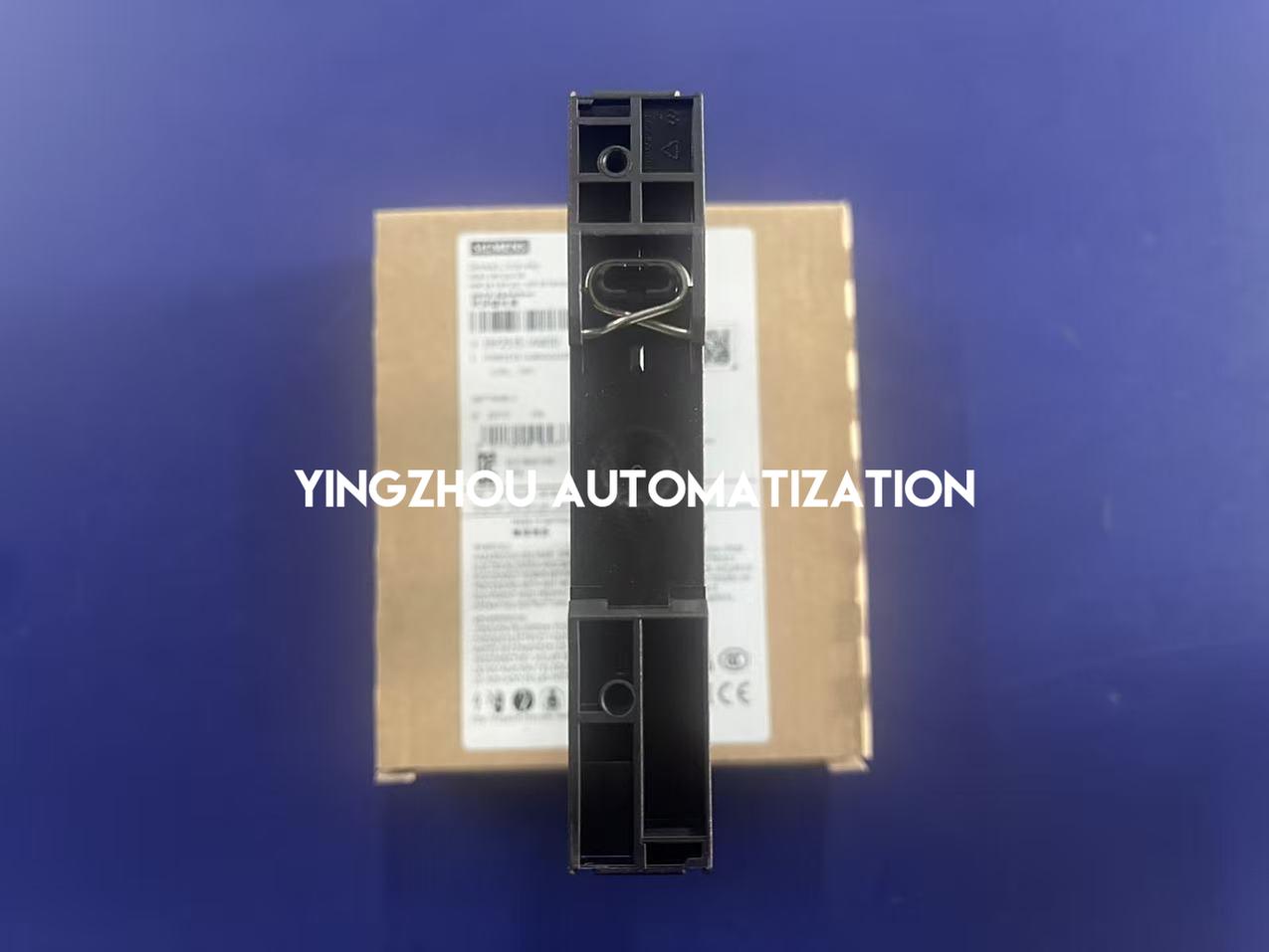

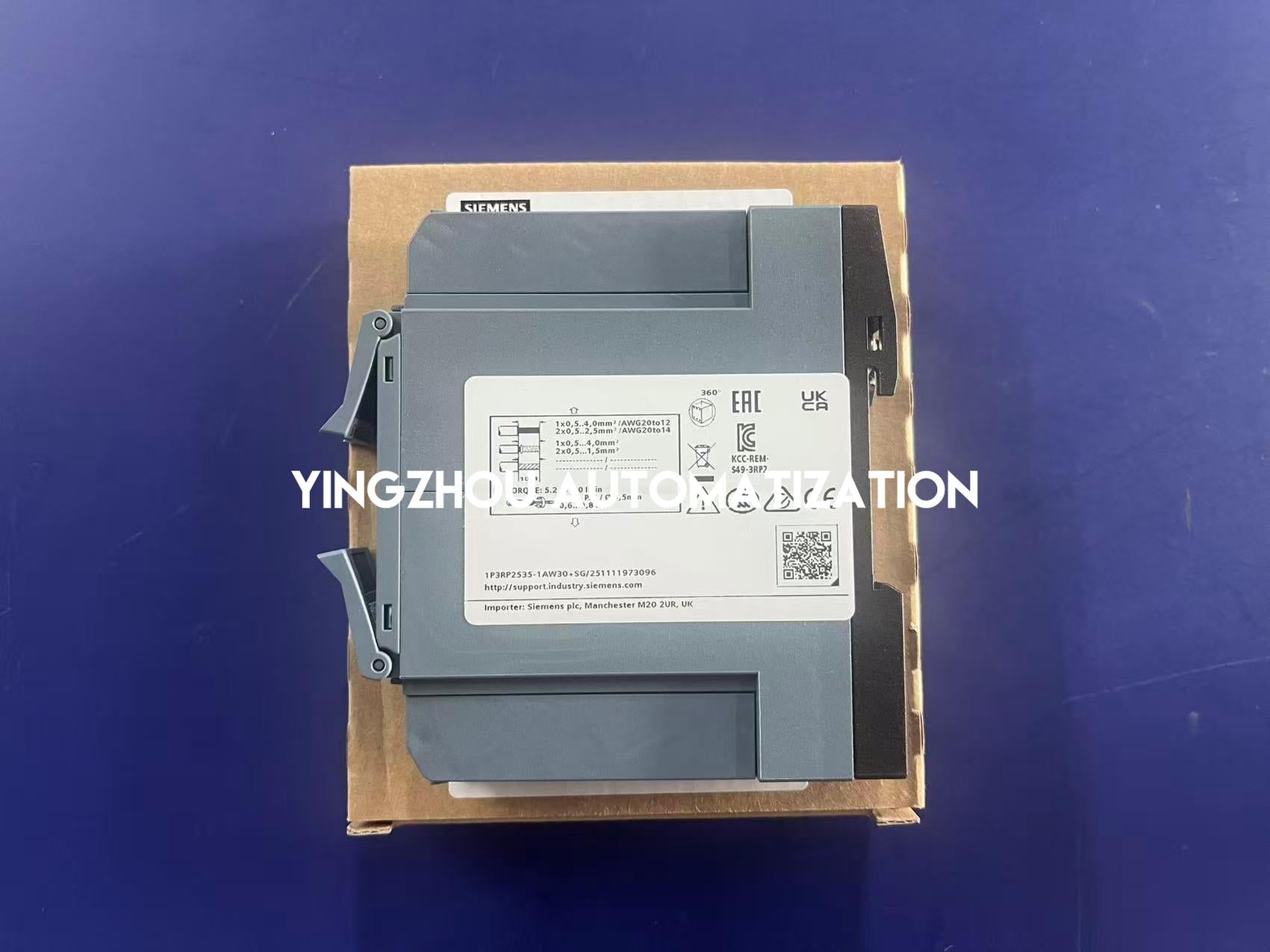

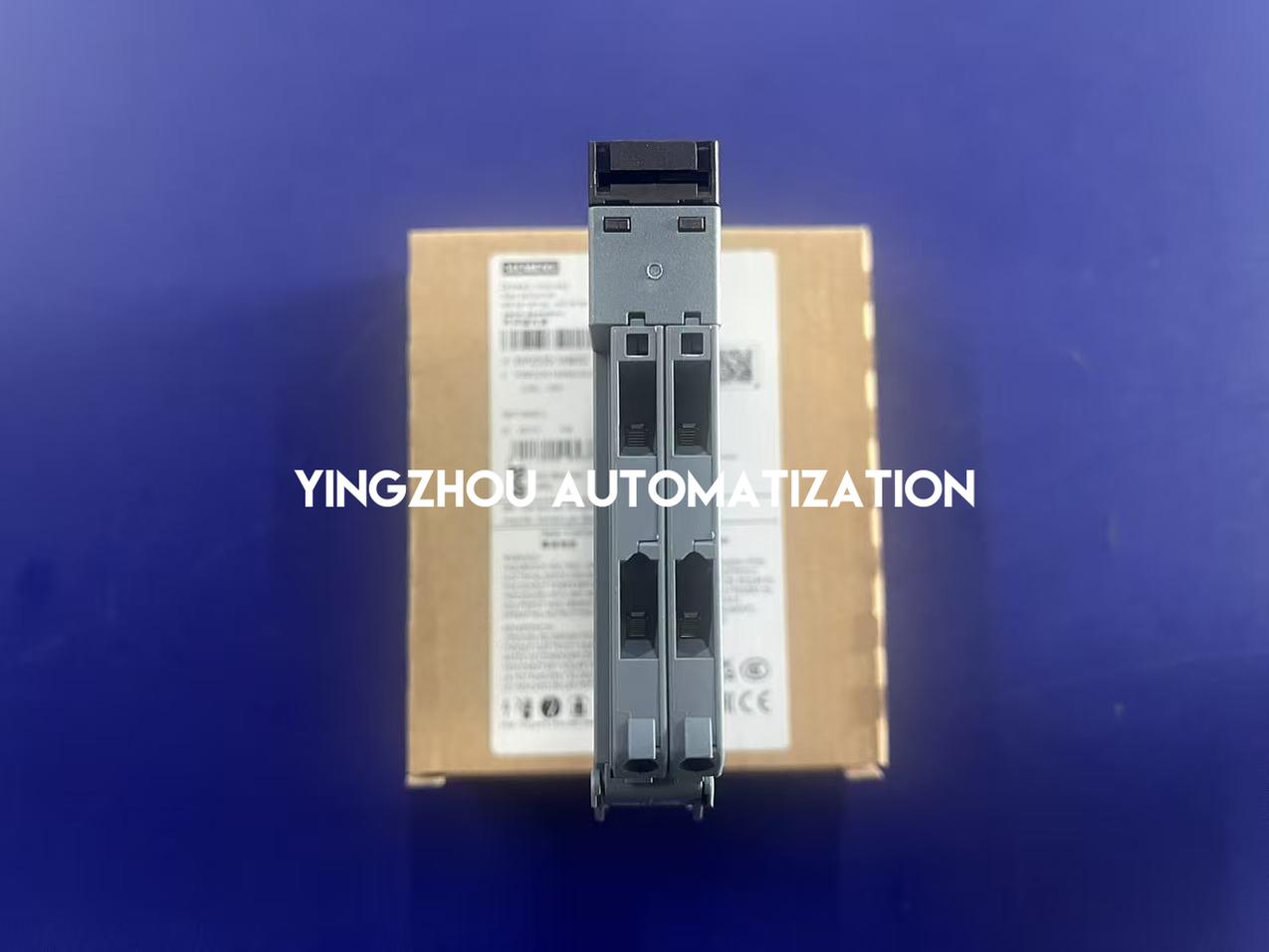

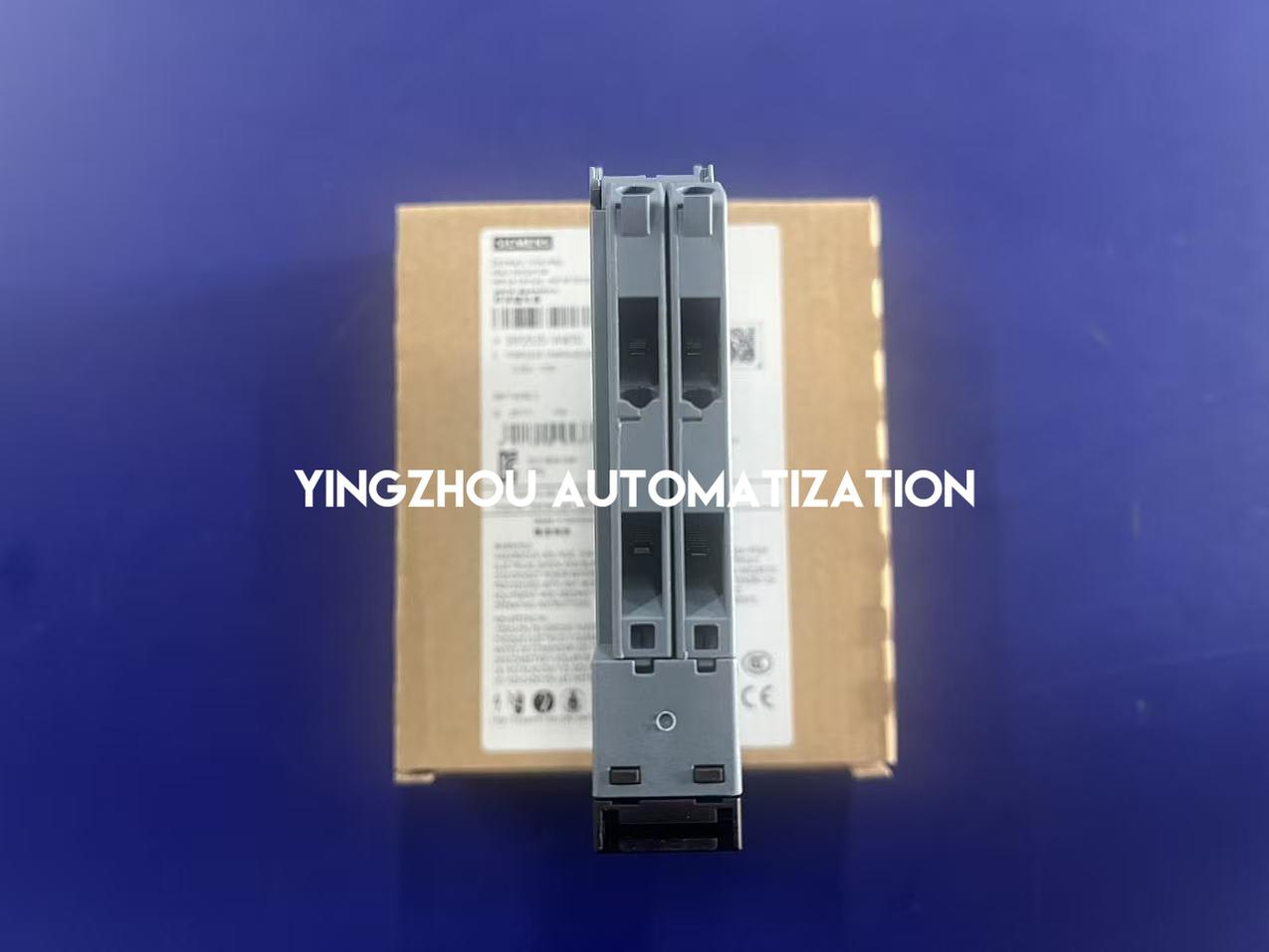

Actual Product Verification

✓ Actual carton and physical relay photographs supplied
✓ Packaging catalog number: 3RP2535-1AW30
✓ Physical device catalog number: 3RP2535-1AW30
✓ Packaging and device catalog numbers match
✓ Timing range: 0.05 seconds to 100 hours
✓ Timing function: OFF delay with control signal
✓ Supply voltage: 12–240V AC/DC
✓ AC frequency: 50/60Hz
✓ Relay output: 1 changeover contact
✓ Packaging quantity: 1 piece
✓ Country marking: Made in Germany
✓ Verify the exact timing function, operating supply, control wiring and relay output rating before installation

In Stock & Available to Order

Siemens 3RP2535-1AW30 is marked in stock according to the supplied inventory information. This Siemens SIRIUS time relay provides an OFF-delay function with control signal, a 0.05s–100h adjustable timing range, 12–240V AC/DC control supply and one changeover relay contact. Actual product and packaging photographs are available for model confirmation. For industrial maintenance, control panel construction, spare-part procurement or mixed-model purchasing, please confirm the exact model number, quantity, required timing behavior, supply voltage and dispatch arrangements before ordering.

IN STOCK

Siemens 3RP2535-1AW30

Contact us for exact-model confirmation, available quantities, bulk pricing and industrial control component sourcing. Please confirm the OFF-delay function, 0.05s–100h timing range, 12–240V AC/DC supply and single changeover output before ordering.
