Siemens 3NW7231 SENTRON 3-Pole 100A 690V Fuse Holder 22x58mm

Siemens 3NW7231 SENTRON 3-Pole 100A 690V Fuse Holder 22x58mm

$157.99 USD
$157.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

Siemens 3NW7231 SENTRON Cylindrical Fuse Holder

22x58mm | 3-Pole | 100A | 690V AC | DIN Rail
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 3NW7231
Product Family SENTRON 3NW7
Product Designation Cylindrical Fuse Holder
Product Type Fuse Base / Fuse Holder
Fuse Link Size 22 x 58 mm
Number of Poles 3
Neutral Conductor Switching No
Rated Operating Current 100 A
Rated Operating Voltage 690V AC
Electrical Application Cylindrical Fuse System
Mounting Type DIN Rail
Degree of Protection IP20
Height 117 mm
Width 108 mm
Depth 70 mm
Net Weight 503 g
Modular Width 6 Modules
Fuse System Standards IEC 60269 Series
Product Marking IEC 60947-3
Voltage Application AC
Load Switching Not Intended for Switching Under Load
Fuse Links Included Not Confirmed
Country of Origin Slovenia
GTIN / EAN 4001869208831
Packaging Quantity 1 Piece

Product Overview

The Siemens 3NW7231 is a SENTRON 3NW7 three-pole cylindrical fuse holder designed for industrial electrical distribution and circuit protection systems. It accommodates 22 x 58 mm cylindrical fuse links and has a rated operational current of 100 A with a rated operational voltage of 690V AC. The three-pole configuration allows the installation of three appropriately rated fuse links within one assembly. The fuse holder is designed for DIN rail mounting and features IP20 protection. Its dimensions are 117 x 108 x 70 mm, with a manufacturer-specified net weight of approximately 503 g. This product is a fuse holder rather than a fuse link and is not intended for switching under load. The supplied actual product photographs show the Siemens electrical ratings, while the original packaging identifies the catalog number 3NW7231. Fuse link selection, operating conditions and any included accessories should be confirmed before ordering.

Key Product Features

  • SENTRON 3NW7 Fuse Holder — Siemens cylindrical fuse base for industrial circuit protection.
  • Three-Pole Configuration — Three fuse-holder positions within one assembly.
  • 22 x 58 mm Fuse Size — Designed for compatible cylindrical fuse links.
  • 100A Rated Current — Rated operational current of 100 A.
  • 690V AC Rating — Rated for the specified AC electrical system voltage.
  • DIN Rail Installation — Designed for compatible rail-mounted electrical enclosures.
  • IP20 Protection — Industrial fuse-holder construction; not intended for switching under load.

Actual Product Verification

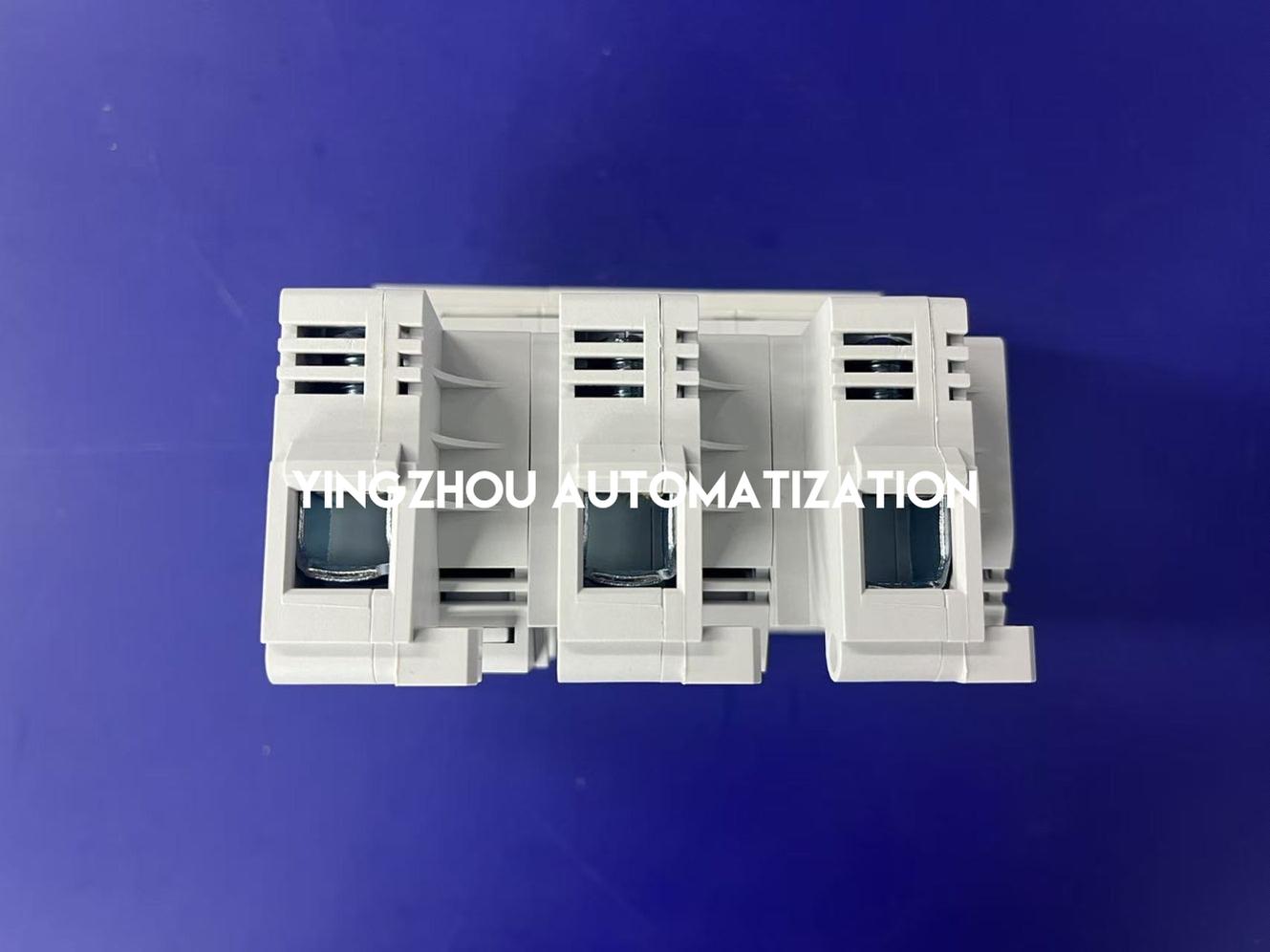

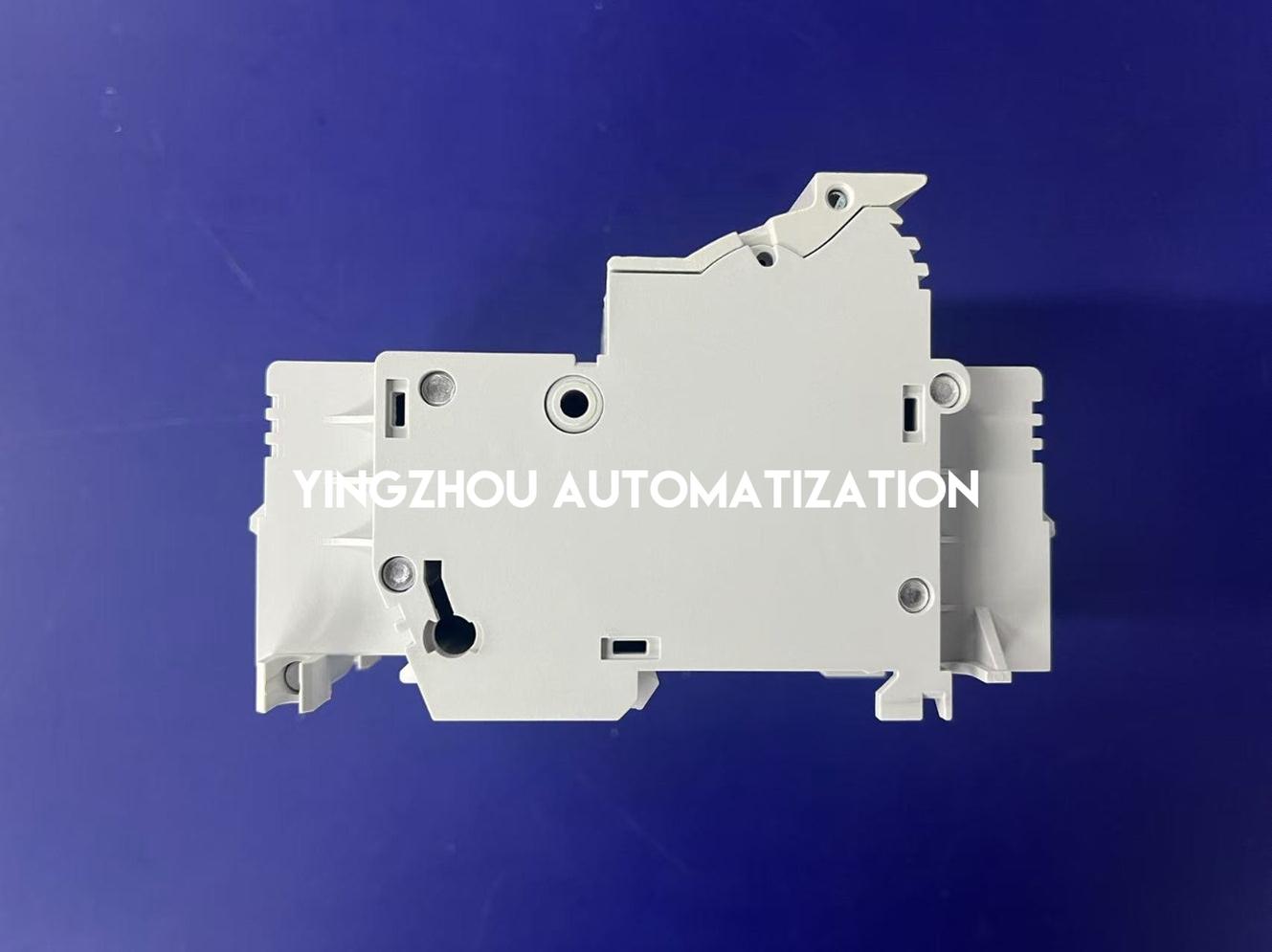

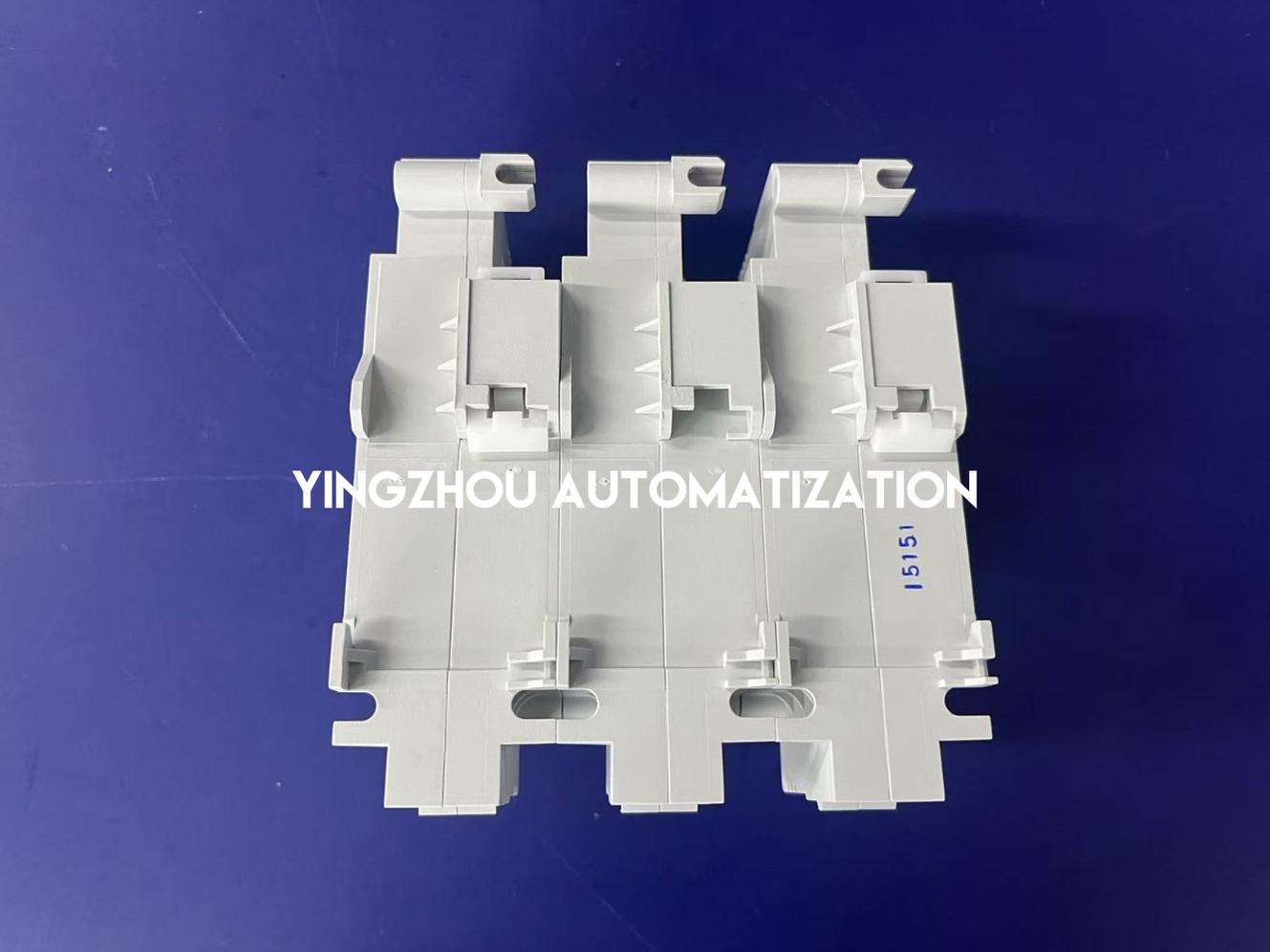

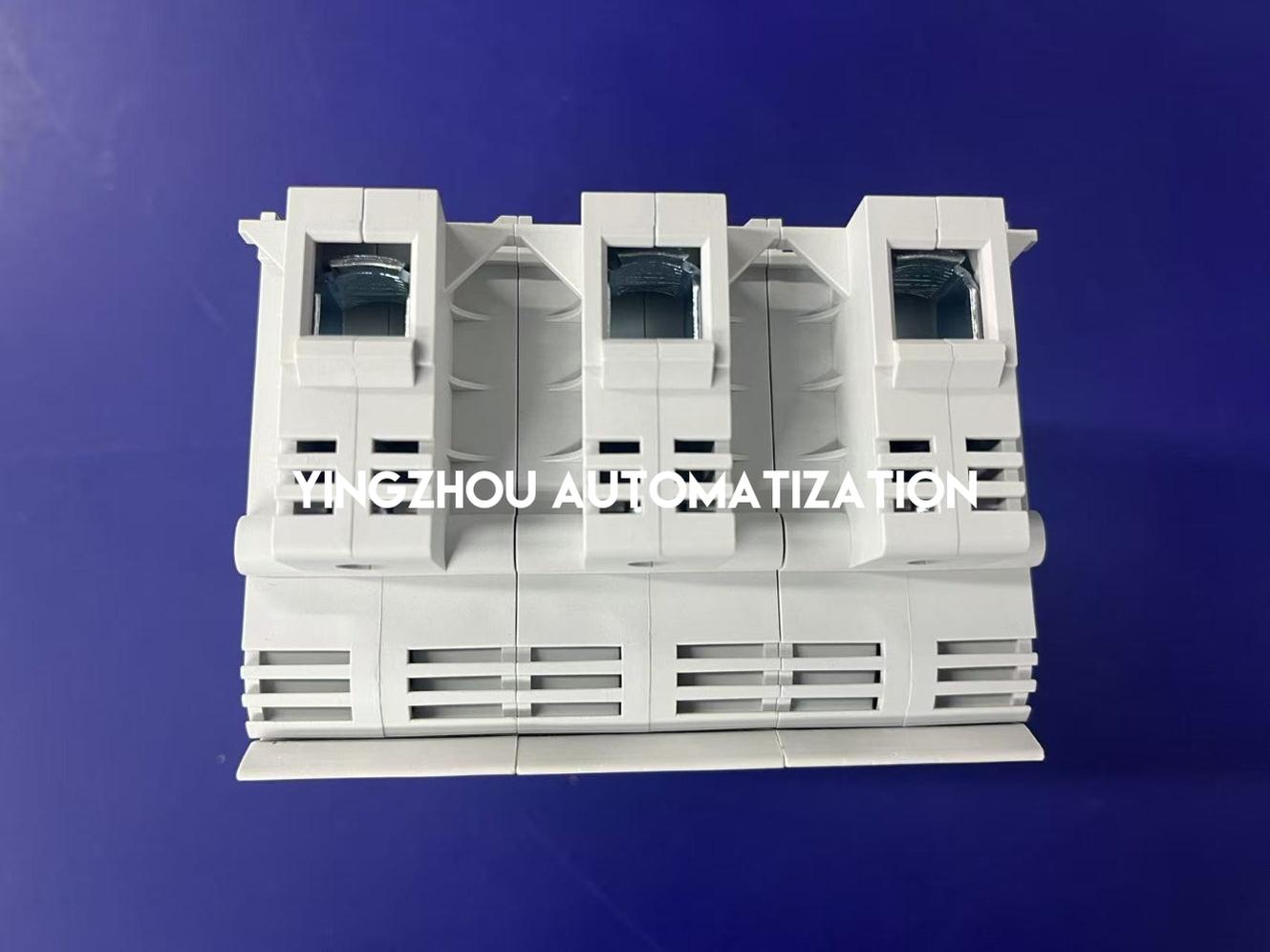

✓ Actual Siemens fuse holder and packaging photographs supplied

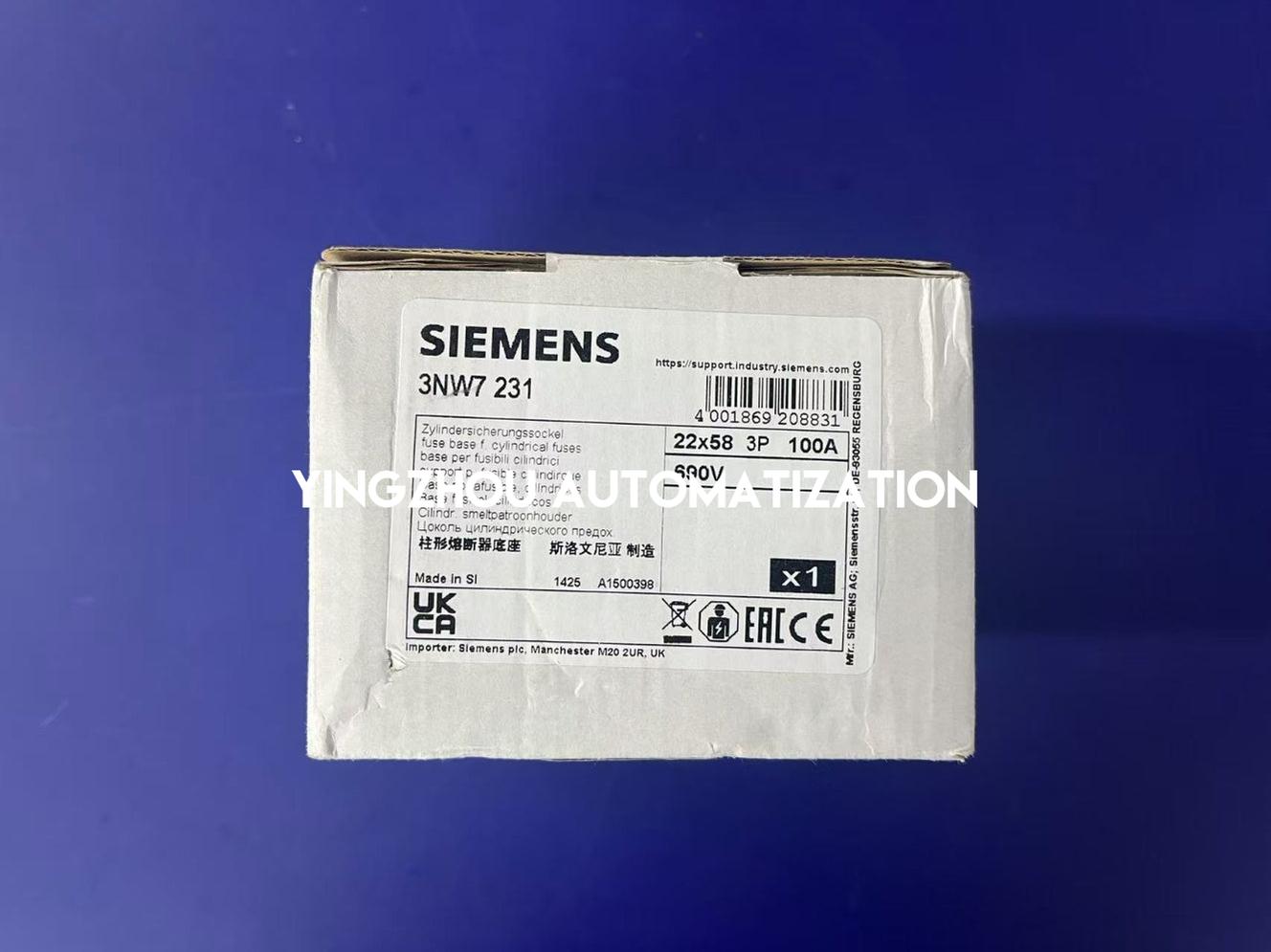

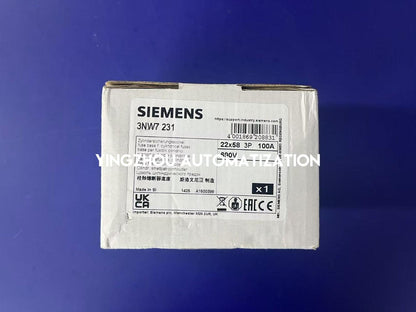

✓ Packaging catalog number: 3NW7231
✓ Packaging identifies 22 x 58 mm, 3-pole, 100 A
✓ Rated operating voltage: 690V AC

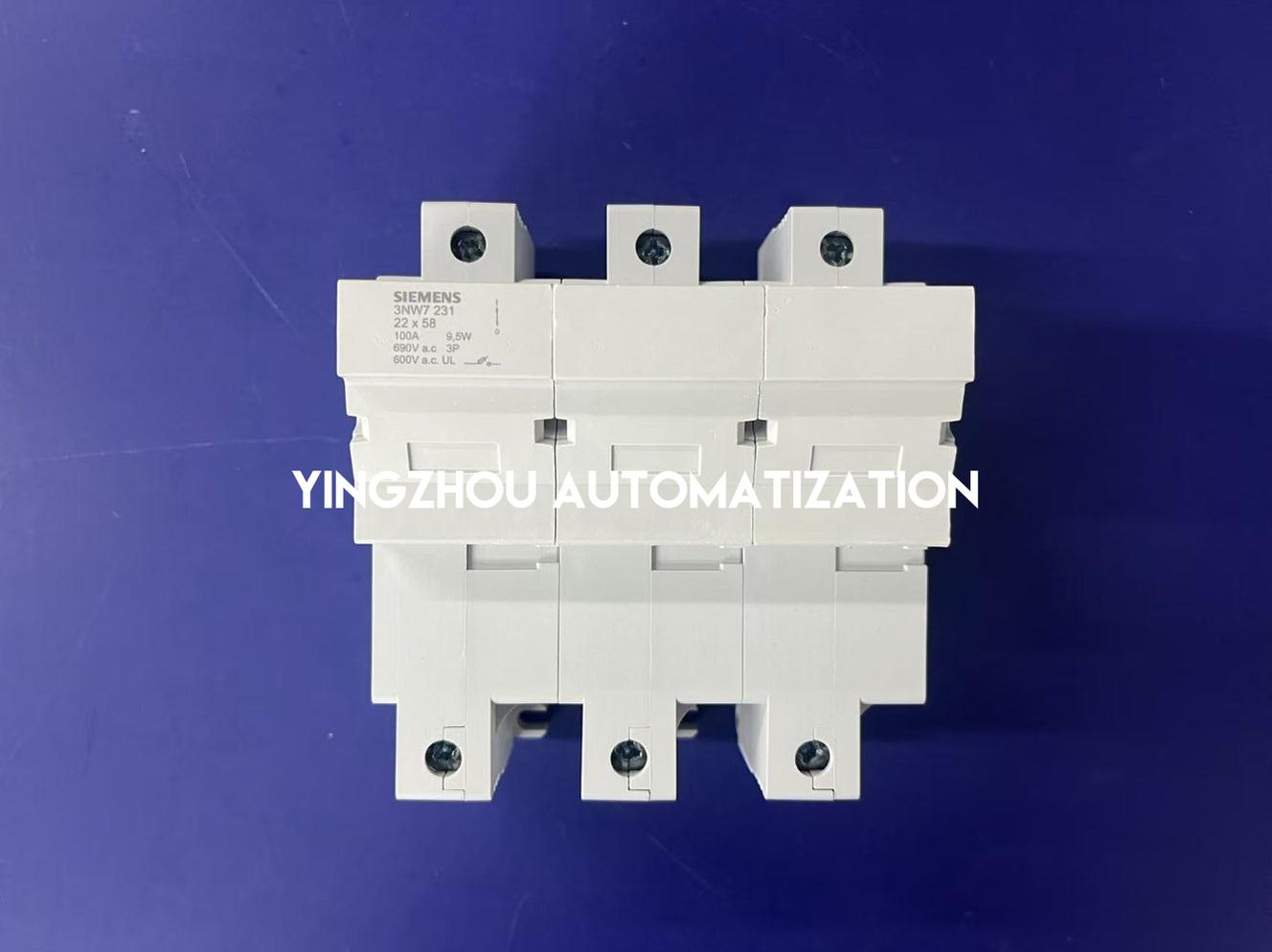

✓ Product body shows Siemens manufacturer marking

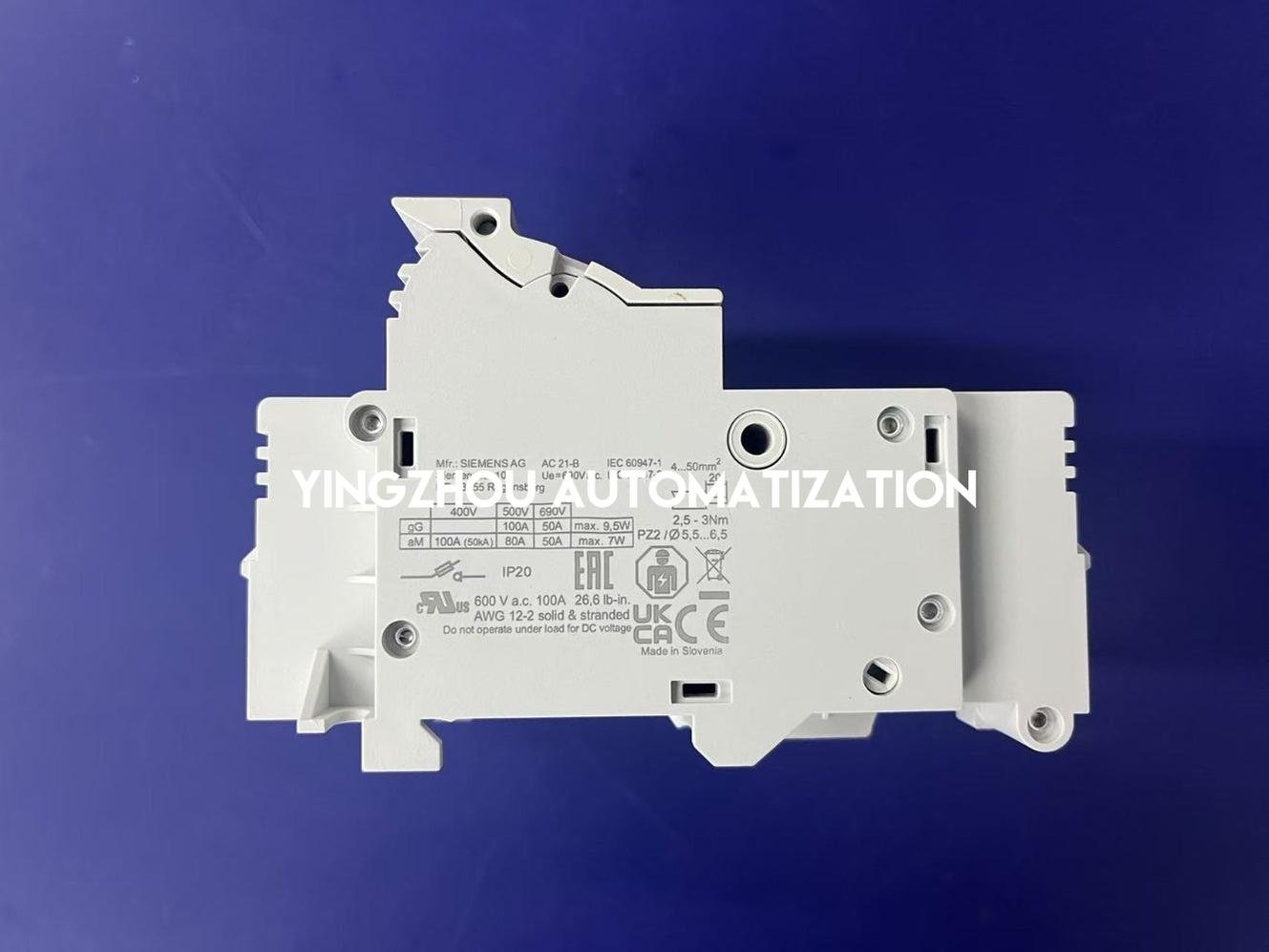

✓ Product body identifies IEC 60947-3 and IP20
✓ Product origin marked Made in Slovenia
✓ Full catalog number not separately visible on product body
✓ Confirm compatible fuse links and included components before ordering

In Stock & Available to Order

Siemens 3NW7231 is marked in stock based on the supplied inventory information. Actual product and packaging photographs are available, with the carton showing the matching catalog number and the product body showing corresponding electrical ratings. This SENTRON cylindrical fuse holder is suitable for procurement involving compatible industrial electrical distribution and fuse protection installations. Please confirm the required quantity, 22 x 58 mm fuse size, three-pole configuration, 100A rating and 690V AC operating voltage before ordering. Fuse links and accessories have not been confirmed as included. Do not use this fuse holder for switching under load.

IN STOCK

Siemens 3NW7231

Contact us for exact-model confirmation, bulk quantities and industrial electrical sourcing. Please verify the 22 x 58 mm fuse dimensions, three-pole configuration, current and voltage ratings and required fuse links before ordering.
