Schneider Electric LADN22C TeSys Deca Auxiliary Contact Block
2NO + 2NC | 10A Ith | Front Mount | Screw Clamp Terminals
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
LADN22C |
| Series |
TeSys Deca |
| Product Type |
Auxiliary Contact Block |
| Device Short Name |
LADN |
| Mounting Location |
Front |
| Auxiliary Contact Operation |
Instantaneous |
| Contact Configuration |
2 NO + 2 NC |
| Normally Open Contact Terminals |
53–54 / 83–84 |
| Normally Closed Contact Terminals |
61–62 / 71–72 |
| Terminal Connection |
Screw Clamp |
| Conventional Thermal Current (Ith) |
10A at ≤60°C |
| Rated Insulation Voltage (Ui) |
690V — IEC 60947-5-1 |
| Rated Operational Voltage (Ue) |
690V AC, 25–400Hz |
| Rated Making Capacity (Irms) |
140A at ≤690V AC — IEC |
| Permissible Short-Time Rating |
100A for 1s at 60°C |
| Short-Circuit Protection |
10A gG Fuse — Manufacturer Specification |
| Mechanical Durability |
30 Million Cycles |
| Contact Overlap Time |
1.5ms |
| Minimum Switching Current |
5mA |
| Minimum Switching Voltage |
17V |
| Insulation Resistance |
>10MΩ |
| Protection Rating |
IP2X — VDE 0106 |
| Operating Temperature |
-5°C to +60°C |
| Storage Temperature |
-60°C to +80°C |
| Operating Altitude |
3000m without temperature derating |
| Product Weight |
0.05kg |
| Applicable Standard |
IEC/EN 60947-5-1 |
| Country of Manufacture |
China (Actual Nameplate) |
Product Overview
The Schneider Electric LADN22C
is a front-mounted auxiliary contact block
from the TeSys Deca range,
designed to provide additional switching
contacts in compatible industrial control
and contactor systems.
The module features
2 normally open (2NO)
and 2 normally closed (2NC)
auxiliary contacts with instantaneous
operation.
The product is rated for a
10A conventional thermal current
at temperatures up to 60°C
and has a manufacturer-specified
690V rated insulation voltage
under IEC 60947-5-1.
The LADN22C features
screw-clamp terminals,
front mounting, and a documented
1.5ms contact overlap characteristic.
Schneider Electric specifies
30 million mechanical operating
cycles under the applicable
test conditions.

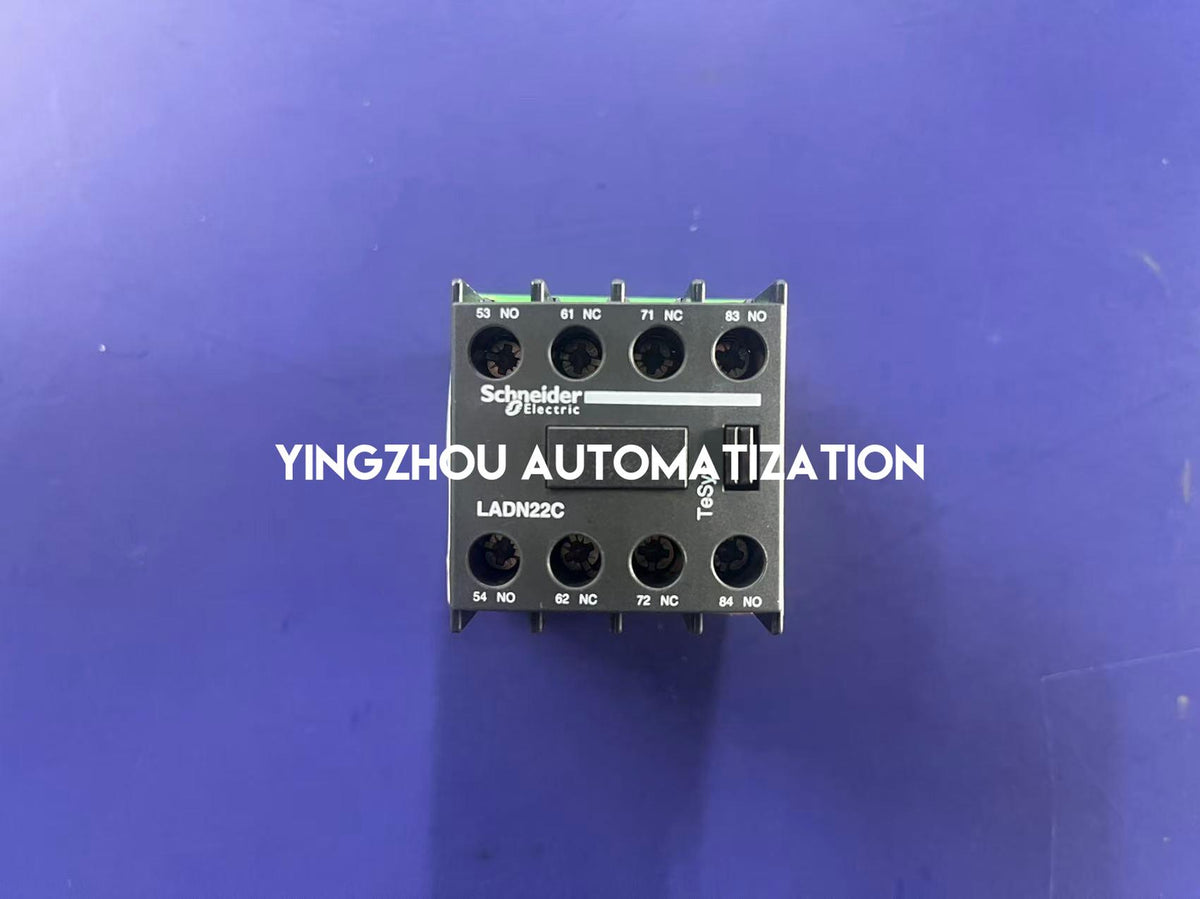

The exact model number, contact
configuration and electrical
markings are visible in the
actual product photographs.
Key Product Features
-
2NO + 2NC auxiliary contact configuration
-
Front mounting for compatible TeSys control devices
-
10A Ith at temperatures up to 60°C
-
690V Ui rated insulation voltage
-
Screw clamp electrical connections
-
1.5ms documented contact overlap time
-
30 million cycles mechanical durability
-
IP2X protection rating according to VDE 0106
-
TeSys Deca auxiliary contact accessory

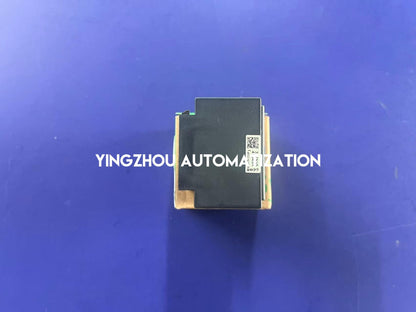

Actual Product Verification
✓

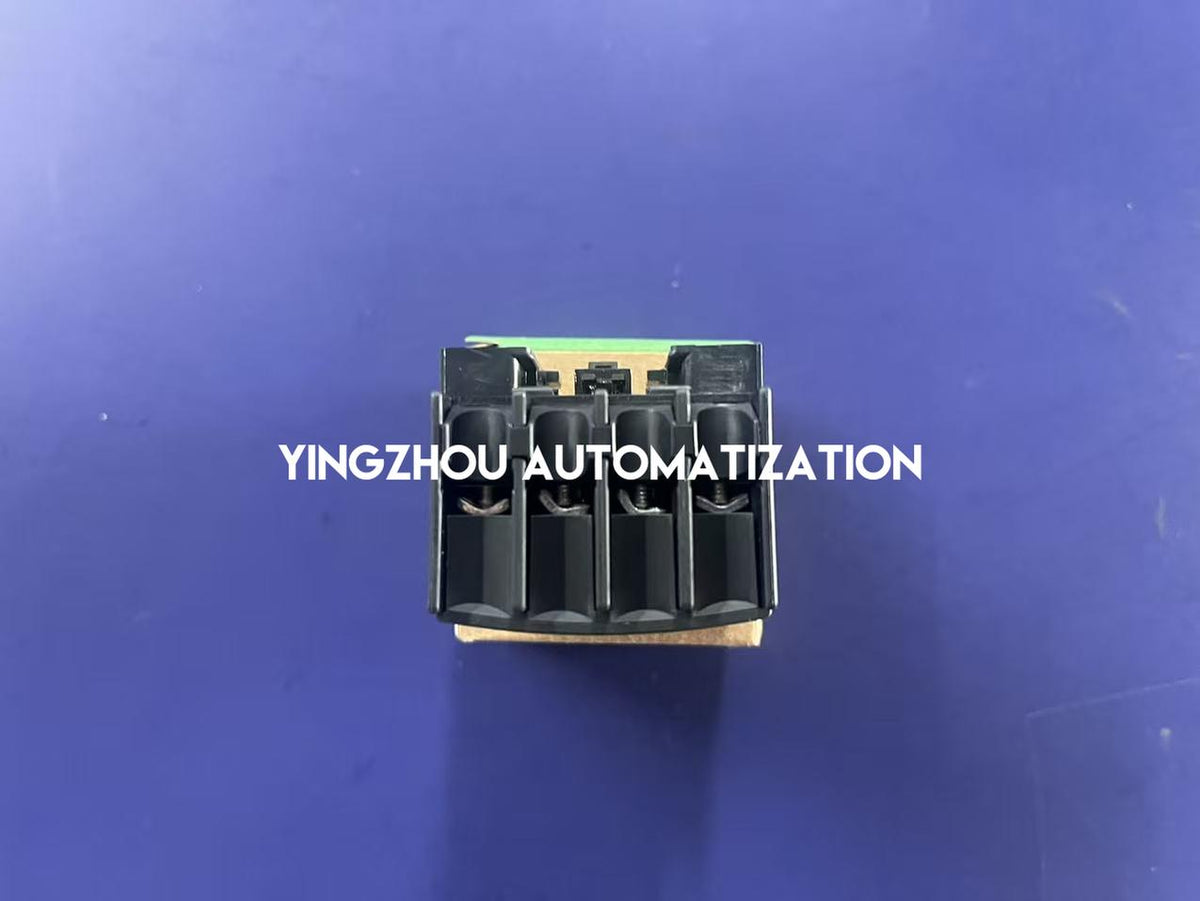

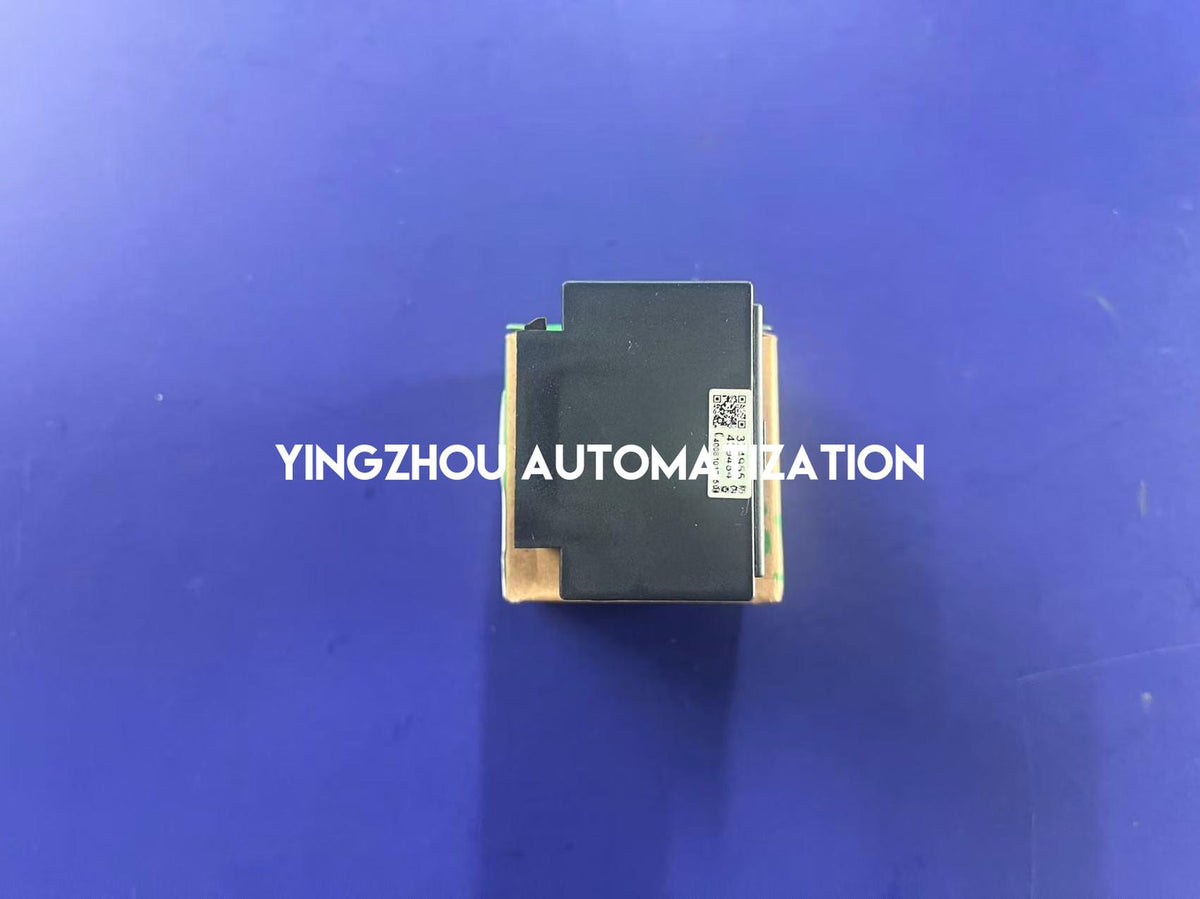

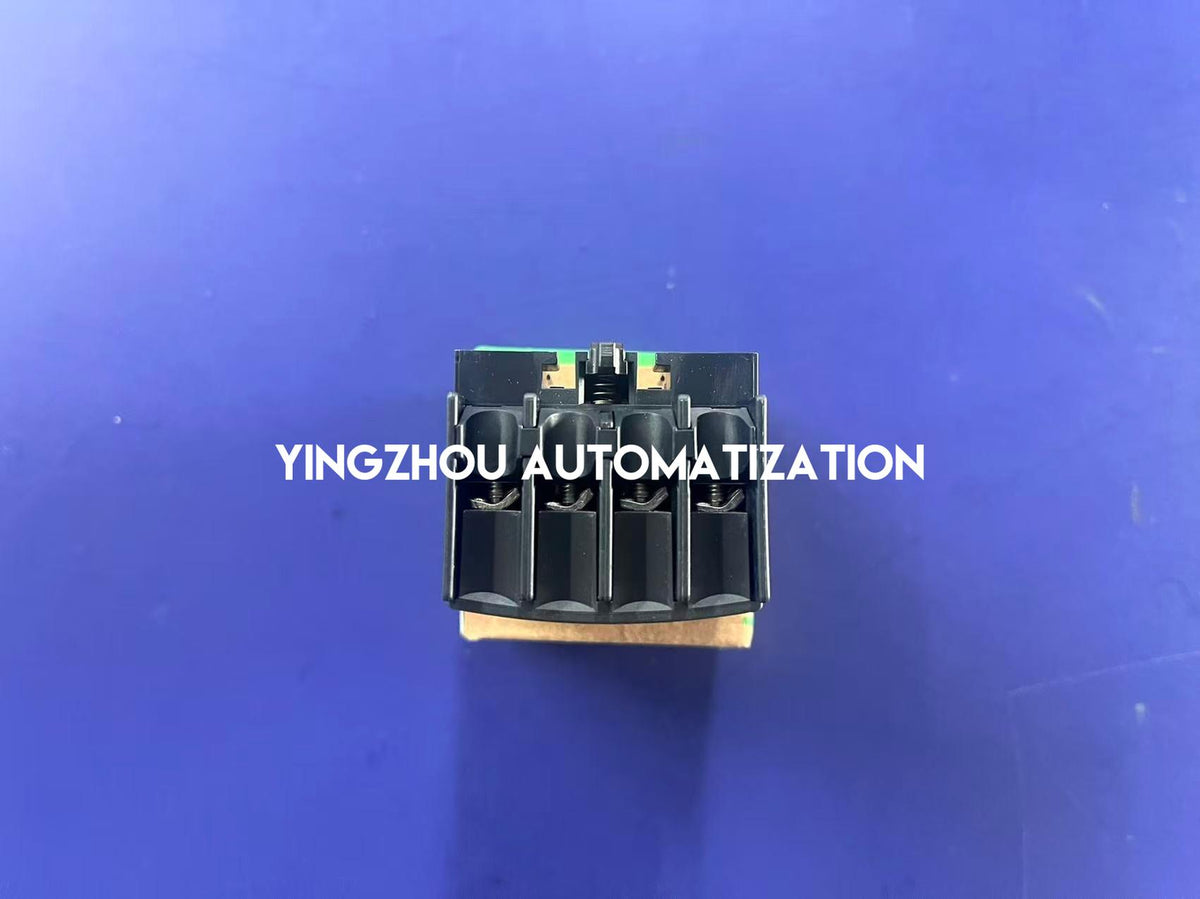

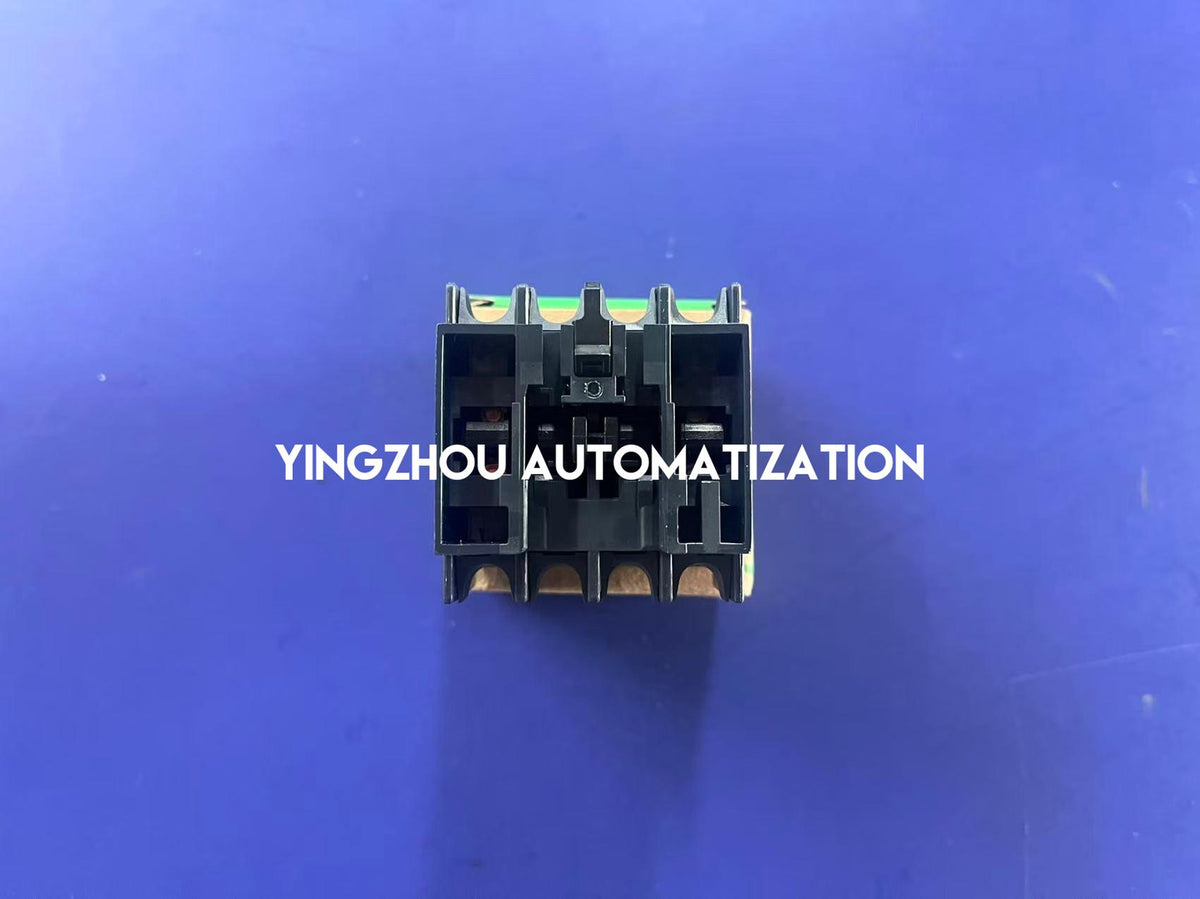

Actual product photos
✓

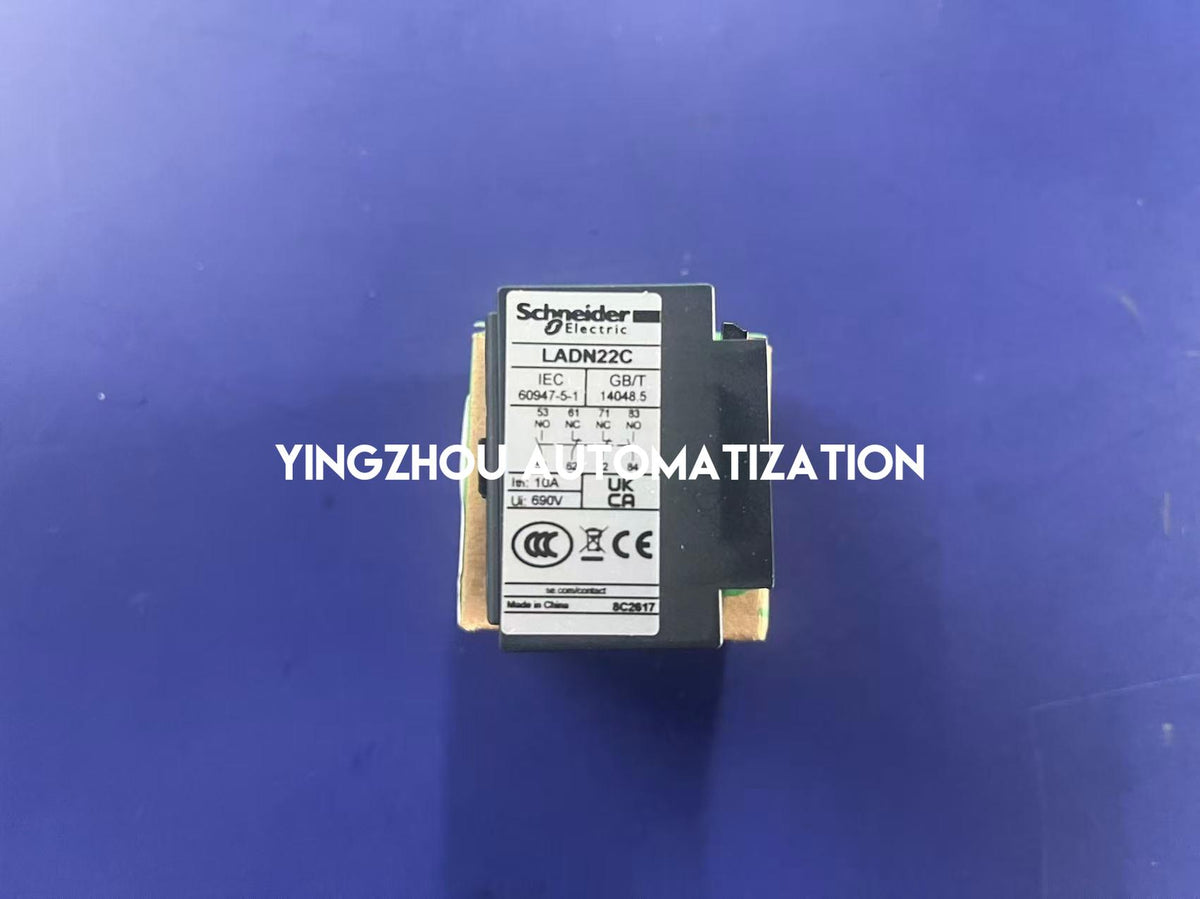

Exact model and electrical nameplate visible
✓
Packaging shown with exact model label
✓
Verify exact model LADN22C before ordering
In Stock & Ready to Order
Schneider Electric LADN22C
is currently in stock according to
our inventory information.
Actual product, electrical nameplate
and packaging photographs are provided
for buyer verification.
Please confirm the exact model,
required quantity, 2NO + 2NC
contact arrangement, screw-clamp
terminal configuration and
host-device compatibility before ordering.
This listing is for the
auxiliary contact block.
A complete contactor is not included
unless separately specified.
