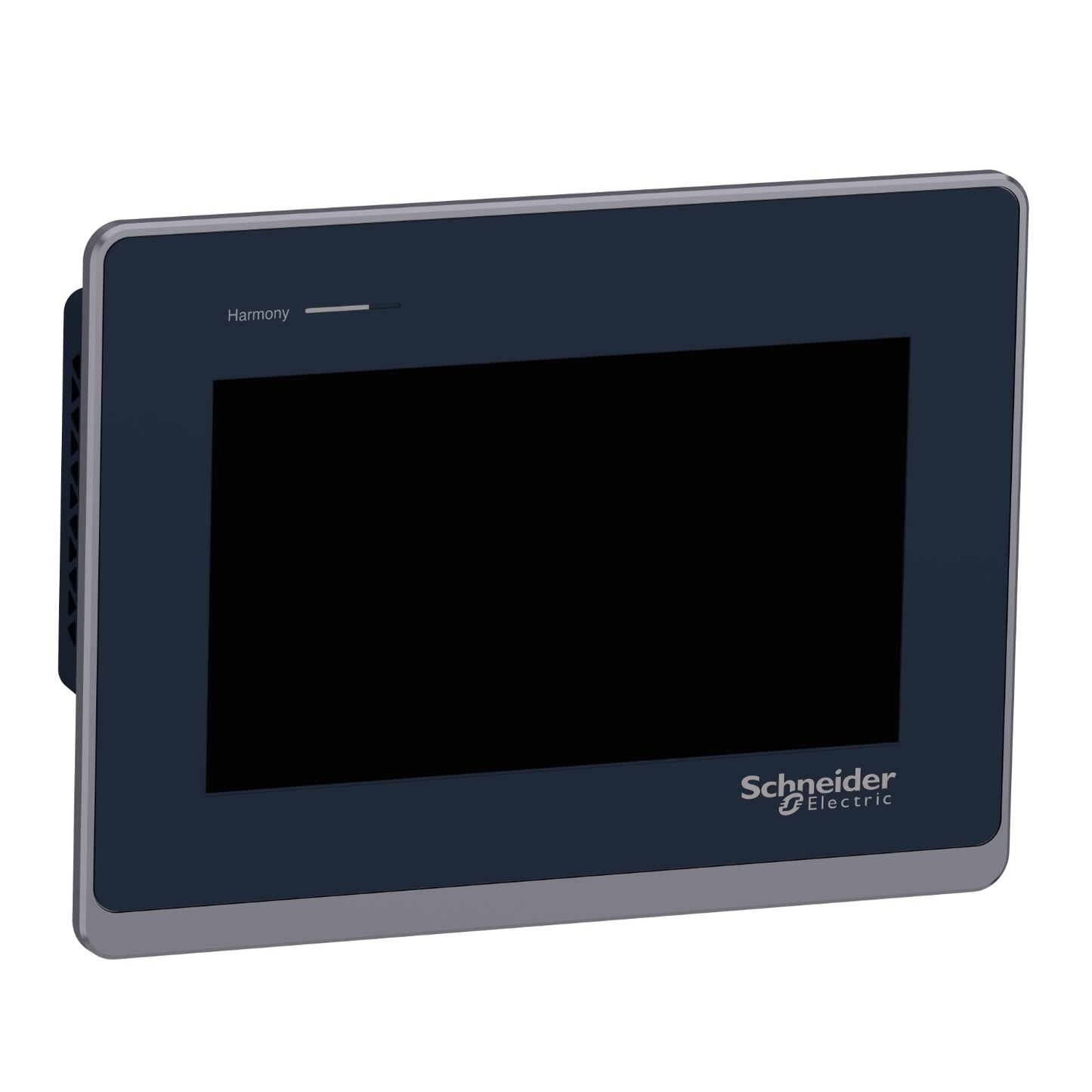

Schneider HMIST6400 Harmony ST6 7-Inch HMI Touch Panel 800×480 Dual Ethernet 24V DC
Schneider HMIST6400 Harmony ST6 7-Inch HMI Touch Panel 800×480 Dual Ethernet 24V DC
Couldn't load pickup availability
Schneider HMIST6400 Harmony ST6 7-Inch HMI Touch Panel
| Specification | Product Data |
|---|---|
| Brand | Schneider Electric |
| Exact Model | HMIST6400 |
| Product Range | Harmony ST6 (Magelis ST6 in earlier datasheets) |
| Product Type | 7-Inch HMI Touch Panel / Operator Interface |
| Display Size | 7-inch wide |
| Display Type | Colour TFT LCD |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Display Colours | 16 million |
| Touch Technology | Single-touch analogue resistive |
| Effective Display Area (W × H) | 154.08 × 85.92 mm |
| Backlight | White LED |
| Backlight Service Life | 50,000 hours or more at 25°C until brightness decreases to 25% |
| Brightness Control | 16 levels |
| Maximum Application Pages | 200 pages (manufacturer-listed) |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Device Memory | 1 GB |
| User Data Memory | 512 MB |
| Backup Memory | 512 kB |
| Configuration Software | EcoStruxure Operator Terminal Expert |
| Ethernet Interfaces | 2 × RJ45 Ethernet ports |
| Ethernet Standard | 10BASE-T / 100BASE-TX, 10/100 Mbit/s |
| Serial COM1 | 1 × SUB-D 9-pin female, RS-232C |
| COM1 Data Rate | 2,400–115,200 bps |
| Serial COM2 | 1 × RJ45, RS-485 |
| COM2 Data Rate | 2,400–115,200 bps (up to 187,500 bps for supported MPI configuration) |
| USB Host | 1 × USB 2.0 Type-A |
| USB Device | 1 × USB 2.0 Micro-B |
| Downloadable Communication Protocols | Modbus, Uni-TE, Modbus Plus and specified third-party protocols (project-dependent) |
| Rated Supply Voltage | 24 V DC ±20% |
| Power Consumption | 9 W |
| Inrush Current | 30 A (manufacturer datasheet) |
| Real-Time Clock | Built-in |
| Front Material | Aluminium |
| Enclosure Material | Polycarbonate (PC) |
| Front Protection Rating | IP65, when correctly installed in panel (official datasheet) |
| Rear Protection Rating | IP20 |
| Front NEMA Rating | NEMA 4 (indoor use) / NEMA 13 (in enclosure), with proper installation |
| Mounting Method | Panel mounting with 4 screws; 1.6–5 mm panel thickness |
| Panel Cut-Out (W × H) | 190 × 135 mm (+1 / −0 mm tolerance) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −20°C to +60°C |
| Relative Humidity | 10–90% non-condensing |
| Dimensions (W × H × D) | 208 × 153 × 45 mm |
| Net Weight | 0.8 kg |
| EAN | 3606489523381 |
Product Overview
The Schneider Electric HMIST6400 is a Harmony ST6 7-inch HMI touch panel featuring a 800 × 480 WVGA colour TFT display, 16 million colours and single-touch analogue resistive operation. It includes two 10/100 Mbit/s Ethernet ports, two serial communication interfaces (COM1 RS-232C and COM2 RS-485), a USB 2.0 Type-A host port and a USB 2.0 Micro-B device port. The terminal uses a 24 V DC ±20% power supply with 9 W power consumption. The processor is an 800 MHz ARM Cortex-A8, and Schneider lists 1 GB device memory, 512 MB user data memory and 512 kB backup memory. Applications are configured with EcoStruxure Operator Terminal Expert. The front panel is IP65 rated when correctly installed, with a manufacturer-listed 190 × 135 mm panel cut-out. Actual photographs show the rear nameplate and labelled carton for the exact HMIST6400 model; power-on testing is not documented. Verify communication wiring, project software, panel opening and accessories before ordering.
