Schneider ATV630D45N4 Altivar Process ATV630 Variable Speed Drive
45 kW / 60 HP (ND) | 380–480 VAC 3-Phase | 88 A (ND) | IP21
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATV630D45N4 |
| Series |
Altivar Process ATV600 / ATV630 |
| Product Type |
Variable Speed Drive |
| Motor Power (Normal Duty) |
45 kW / 60 HP |
| Motor Power (Heavy Duty) |
37 kW / 50 HP |
| Rated Supply Voltage |
3-Phase 380–480 VAC |
| Supply Frequency |
50/60 Hz |
| Continuous Output Current (ND) |
88 A at 4 kHz |
| Continuous Output Current (HD) |
74.5 A at 4 kHz |
| Input Current (ND) |
79.8 A at 380 V / 69.1 A at 480 V |
| Input Current (HD) |
67.1 A at 380 V / 59 A at 480 V |
| Maximum Output Frequency |
500 Hz |
| Nominal Switching Frequency |
4 kHz |
| Communication Protocols |
Ethernet / Modbus TCP / Modbus Serial |
| Safety Function |
STO (Safe Torque Off), SIL 3 |
| EMC Filter |
Integrated, IEC 61800-3 C2 / C3 |
| Protection Rating |
IP21 / UL Type 1 |
| Cooling |
Forced Convection |
| Dimensions |
226 × 673 × 271 mm (W × H × D) |
| Product Net Weight |
28.7 kg |
Product Overview
The Schneider Electric ATV630D45N4 is a
variable speed drive from the
Altivar Process ATV600 Series.
Designed for three-phase 380–480 VAC
industrial power systems, it supports
45 kW / 60 HP in Normal Duty
and 37 kW / 50 HP in Heavy Duty.
The drive provides 88 A Normal Duty
and 74.5 A Heavy Duty continuous output
current at 4 kHz. It features Modbus TCP and
Modbus Serial communication, embedded energy monitoring
and a standard IP21 protection rating
for industrial process and motor control applications.
Key Product Features
-
45 kW / 60 HP Normal Duty motor rating
-
37 kW / 50 HP Heavy Duty motor rating
-
Three-phase 380–480 VAC rated supply voltage
-
88 A ND / 74.5 A HD continuous output at 4 kHz
-
Ethernet / Modbus TCP / Modbus Serial connectivity
-
Embedded energy monitoring for process applications
-
IP21 standard with forced-convection cooling
Actual Product Verification
✓

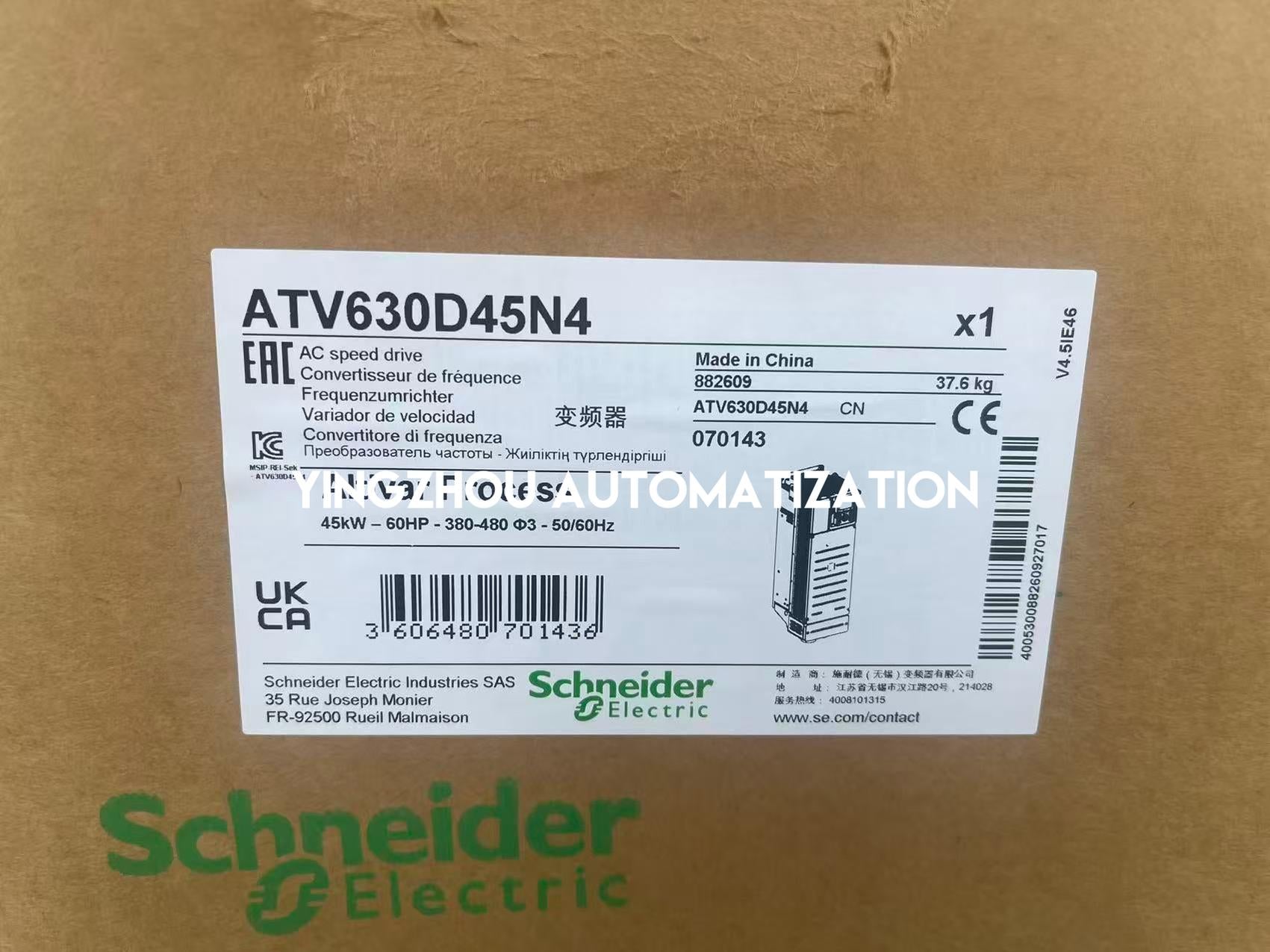

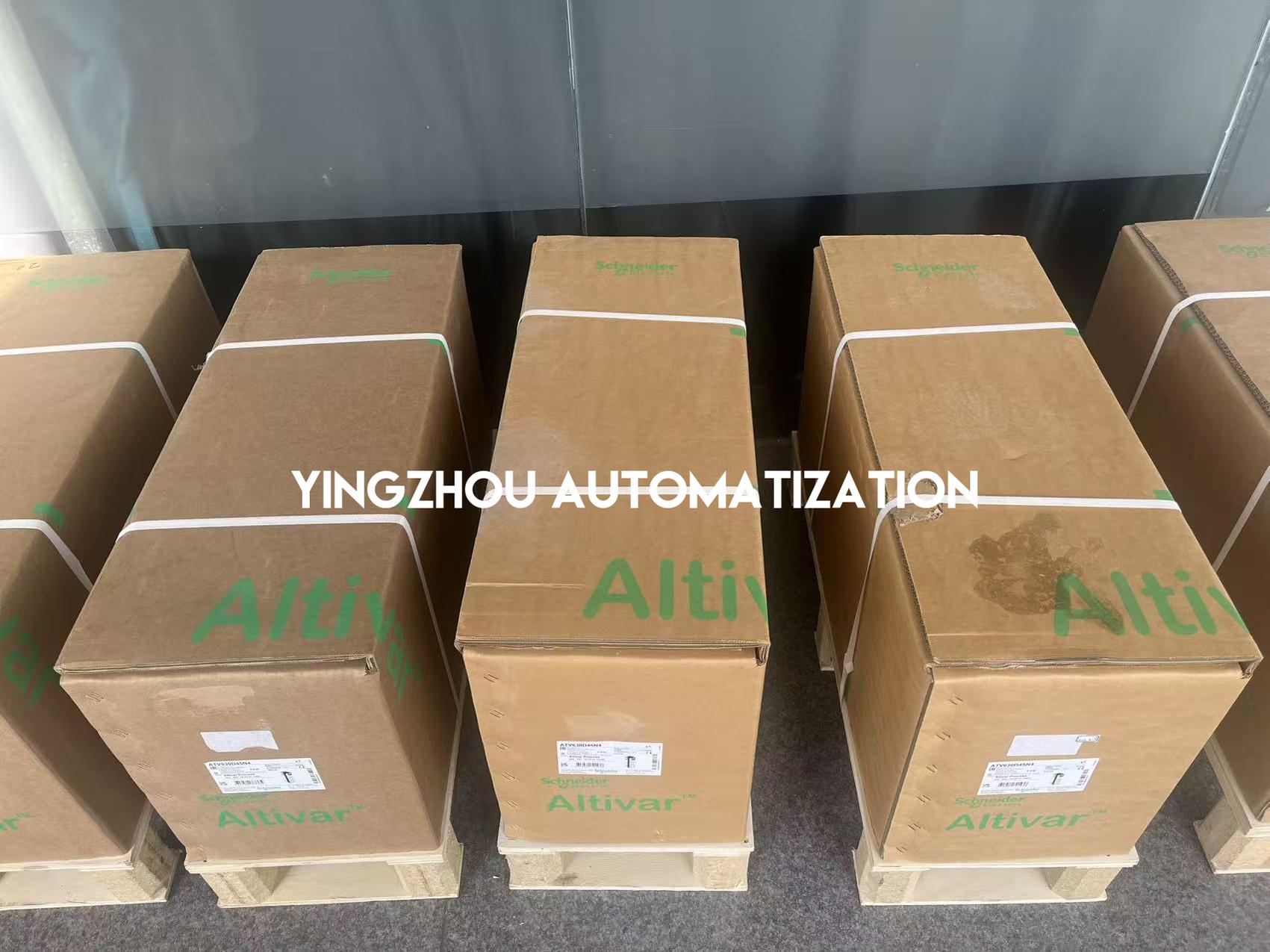

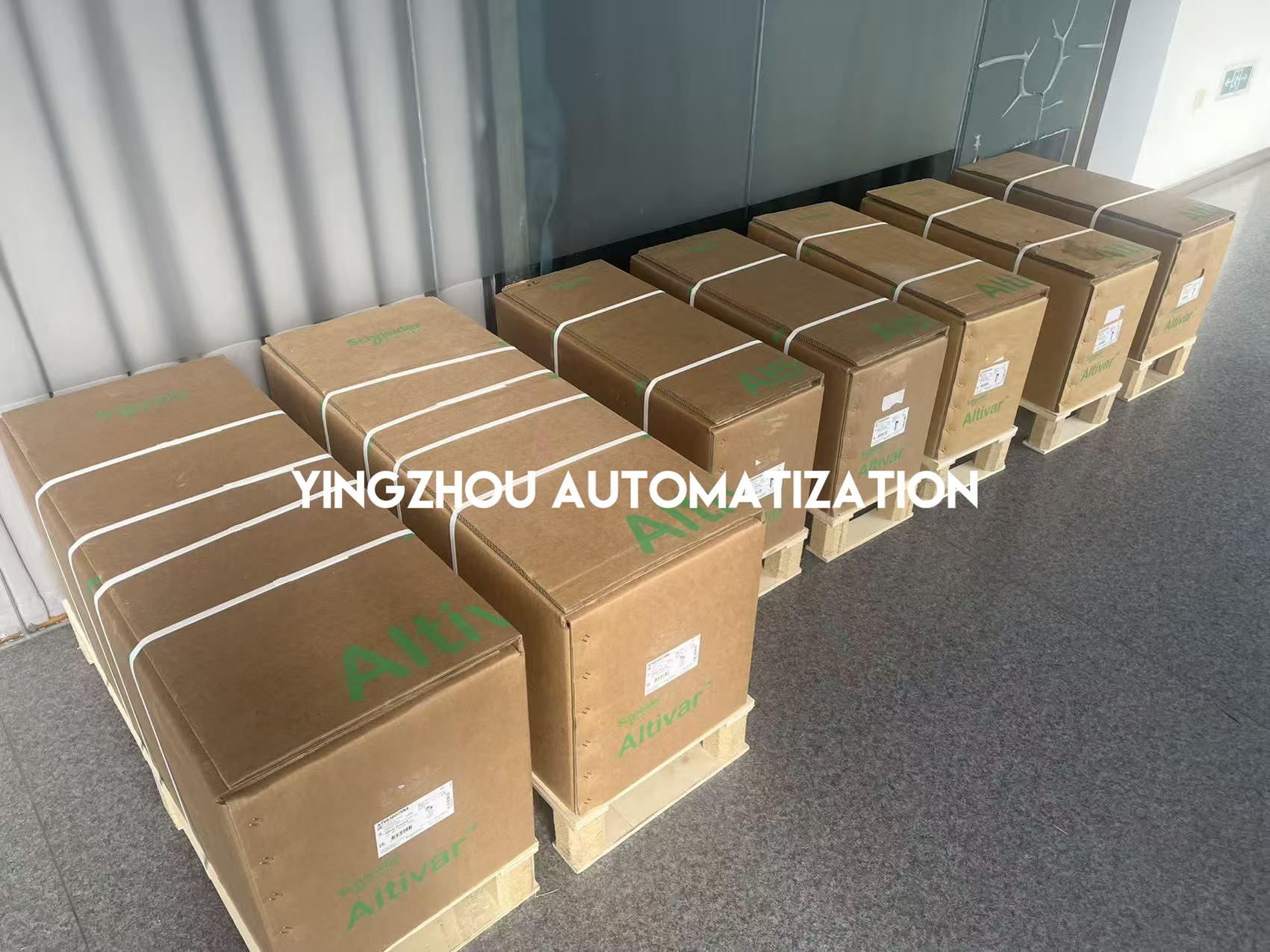

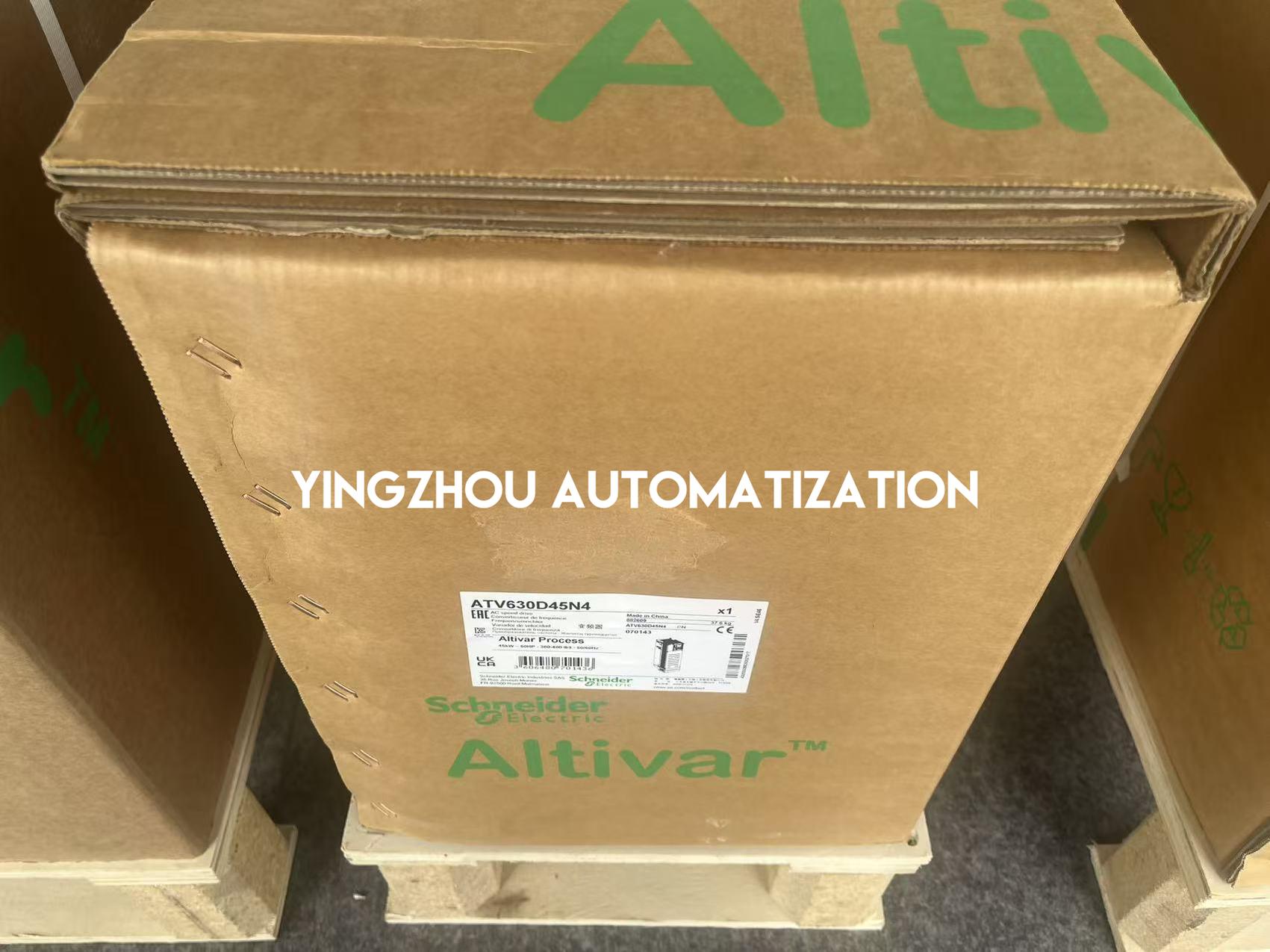

Actual packaging photo
✓
ATV630D45N4 model label visible on packaging
✓
Schneider Electric branded packaging shown
✓
Verify exact model ATV630D45N4 before ordering
In Stock & Ready to Order
Schneider Electric ATV630D45N4 is currently
in stock. Actual model-labeled packaging photos are
provided for buyer verification.
IN STOCK
Schneider ATV630D45N4
Order online or contact us for project and quantity pricing.
Request Project Pricing
