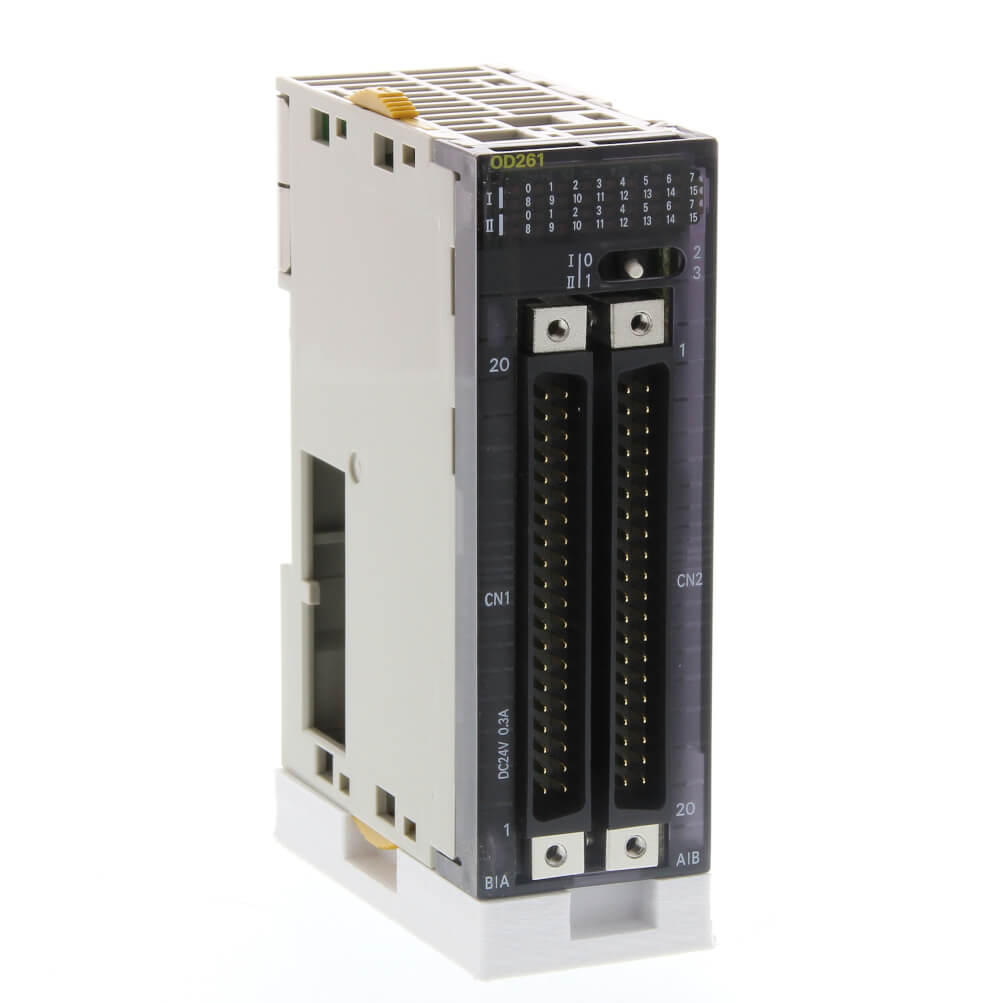

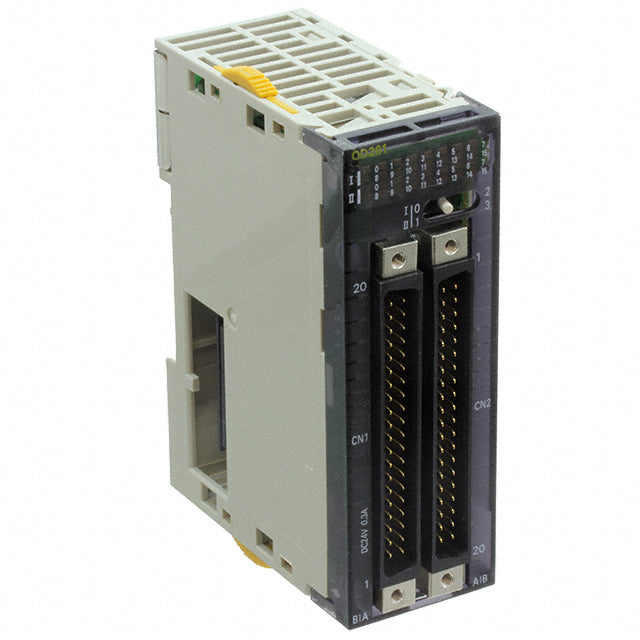

Omron CJ1W-OD261 Sysmac PLC High-Density Output Unit | 64-Point, 12-24V DC, Transistor (Sinking)

Omron CJ1W-OD261 Sysmac PLC High-Density Output Unit | 64-Point, 12-24V DC, Transistor (Sinking)

$102.99 USD
$102.99 USD
Sale Sold out
Model Number
Technical Specifications | CJ1W-OD261
Parameter Item Detailed Description
Output Points 64 Points
Rated Load Voltage 12 to 24 V DC
Max. Switching Capacity 0.3 A/point, 2.4 A/common, 4.8 A/unit
Output Type Transistor (Sinking / NPN)
Response Time ON: 0.1ms max, OFF: 0.5ms max
External Connection Two 40-pin MIL Connectors
Internal Current Consumption 0.17 A (at 5V DC)
Dimensions (W×H×D) 31 × 90 × 65 mm
