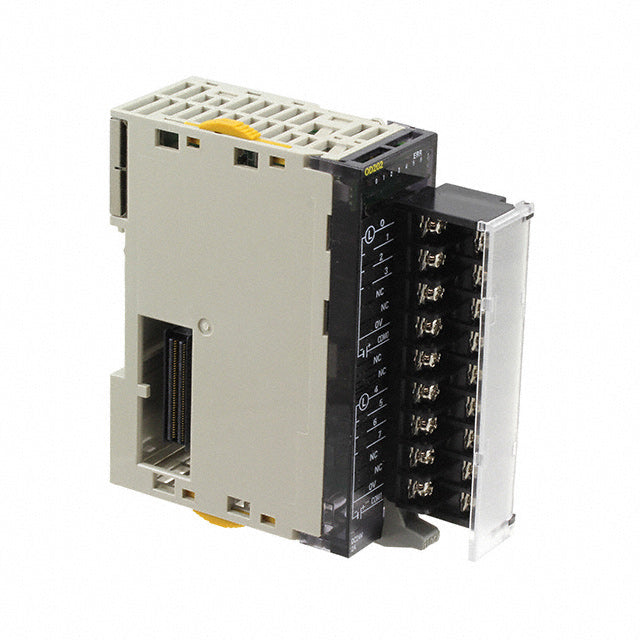

Omron CJ1W-OD202 Sysmac PLC Transistor Output Unit | 8-Point, 24V DC, 0.5A, Sinking (NPN) with Short-Circuit Protection

Omron CJ1W-OD202 Sysmac PLC Transistor Output Unit | 8-Point, 24V DC, 0.5A, Sinking (NPN) with Short-Circuit Protection

$113.99 USD
$113.99 USD
Sale Sold out
Model Number
Technical Specifications | CJ1W-OD202
Parameter Item Detailed Description
Output Points 8 Points
Output Type Transistor (Sinking / NPN)
Rated Load Voltage 24 V DC (Operating: 20.4 to 26.4 V)
Max. Load Current 0.5 A/point, 4.0 A/unit
Safety Feature Load Short-Circuit Protection
Response Time ON: 0.1ms max, OFF: 0.8ms max
Internal Current Consumption 0.10 A (at 5V DC)
Dimensions (W×H×D) 31 × 90 × 65 mm
