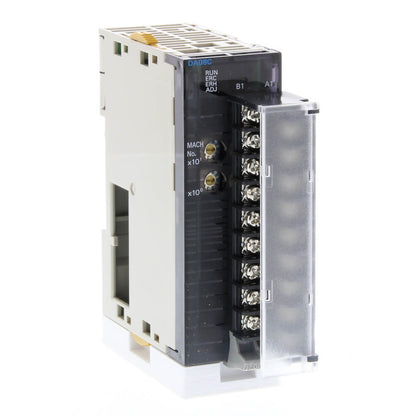

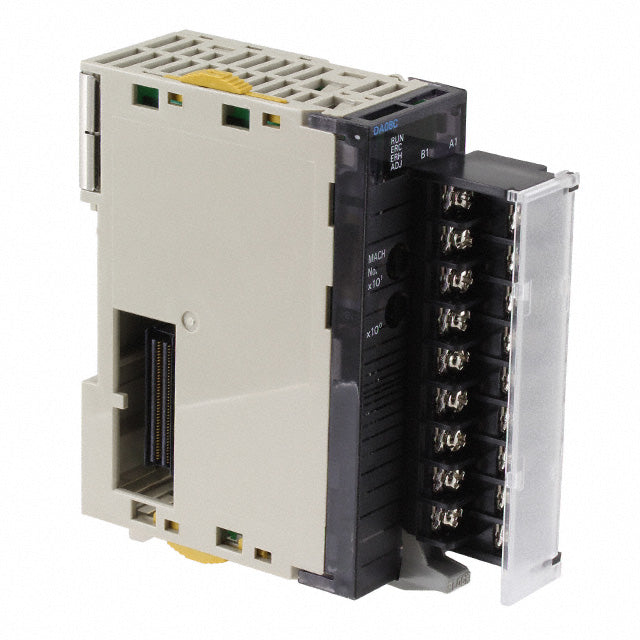

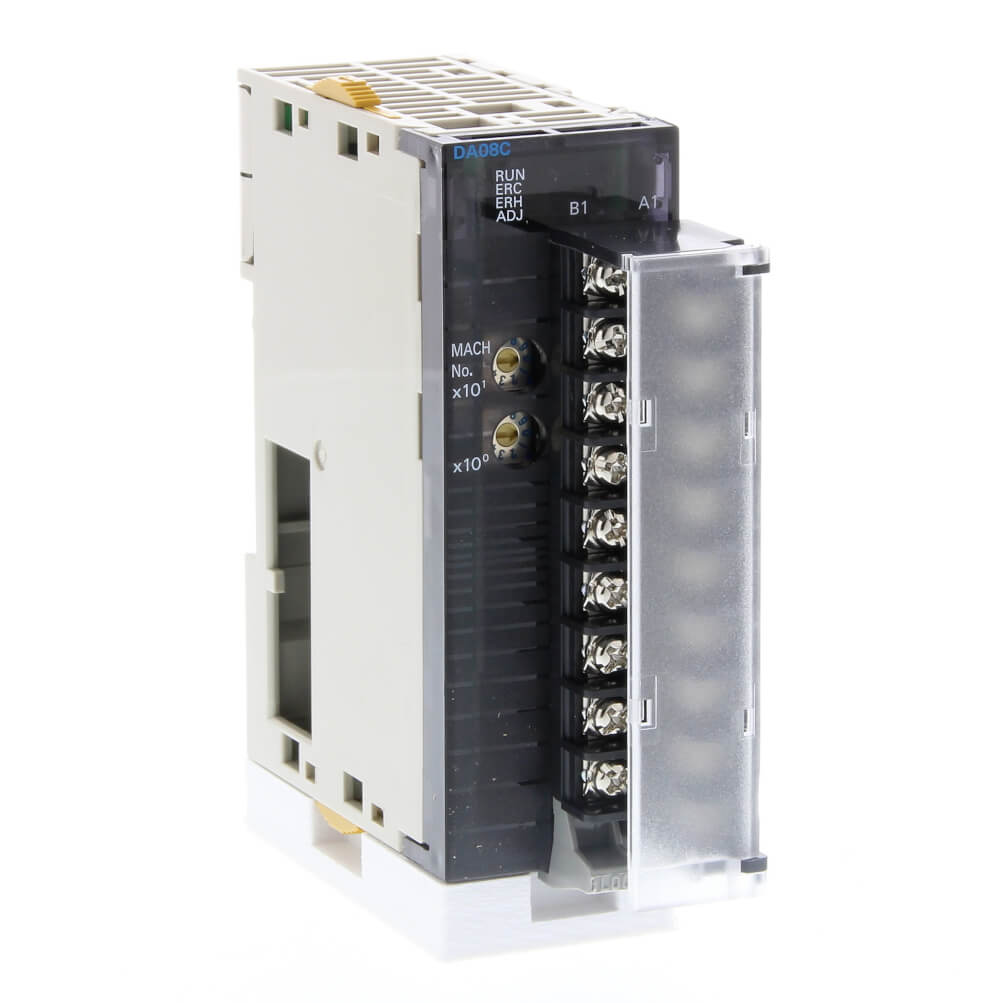

Omron CJ1W-DA08C Sysmac PLC Analog Output Unit | 8-Channel, 4-20mA Current Output

Omron CJ1W-DA08C Sysmac PLC Analog Output Unit | 8-Channel, 4-20mA Current Output

$275.99 USD
$275.99 USD
Sale Sold out
Model Number
Technical Specifications | CJ1W-DA08C
Parameter Item Detailed Description
Unit Type Analog Output Unit (High Density)
Output Points 8 Channels
Output Signal 4 to 20 mA
Resolution 1/4000 (Settable to 1/8000)
Conversion Speed 1.0 ms / channel max.
External Load Resistance 600 Ω max.
Internal Current Consumption 0.14 A (at 5V DC)
Dimensions (W×H×D) 31 × 90 × 65 mm
