FESTO

FESTO QB-M5-1/4-U-M 533212 M5 Male Thread 1/4 Inch Push-in Fitting

Name: FESTO QB-M5-1/4-U-M 533212 M5 Male Thread 1/4 Inch Push-in Fitting
Brand: FESTO
SKU: 575264
Price: 1.49 USD
Availability: InStock

FESTO QB-M5-1/4-U-M 533212 M5 Male Thread 1/4 Inch Push-in Fitting

$1.49 USD

Sale Sold out

Model Number QB-M5-1/4-U-M

Product variants

Quantity

YingZhou Industrial Automation | Product Information

FESTO QB-M5-1/4-U-M 533212 Push-in Fitting

M5 Male Thread | 1/4 Inch OD Tube | Straight Design | 0.95–10 Bar

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Exact Model Verified

Specification	Verified Product Data
Manufacturer	FESTO
Part Number	533212
Exact Model	QB-M5-1/4-U-M
Product Type	Push-in Fitting
Series	QB, Inch
Design	Straight Design
Pneumatic Connection 1	Male Thread M5
Pneumatic Connection 2	For Tubing Outside Diameter 1/4 in
Nominal Size	0.098 in
Thread Sealing Type	Sealing Ring
Operating Pressure	0.95–10 bar
Ambient Temperature	0–60°C
Operating Medium	Compressed Air to ISO 8573-1:2010 [7:-:-]
Lubricated Operation	Permitted
Nominal Tightening Torque	0.5 Nm
Torque Tolerance	±10%
Mounting	External Hexagon, A/F 13 mm
Housing Material	PBT
Thread Seal Material	NBR
Release Ring Material	POM
Tube Clamp Component	High-Alloy Stainless Steel
Release Ring Color	Grey
Corrosion Resistance Class	CRC 1 — Low Corrosion Stress
PWIS Conformity	VDMA24364 Zone III
RoHS	Manufacturer Datasheet States RoHS-Compliant
Product Weight	0.31 oz (Approx. 8.8 g)
Manufacturer Pack Size	10 pcs

Product Overview

The FESTO QB-M5-1/4-U-M, part number 533212, is a straight pneumatic push-in fitting from the FESTO QB inch series. It features an M5 male threaded connection and a push-in connection for tubing with a 1/4-inch outside diameter. The manufacturer specifies an operating pressure range of 0.95–10 bar and an ambient temperature range of 0–60°C. The fitting uses a PBT housing, an NBR thread seal and a POM release ring. It is designed for compressed-air applications in accordance with the manufacturer's stated medium specification. Confirm the tubing outside diameter and M5 thread compatibility before installation.

Key Product Features

FESTO QB Series Fitting — Exact model QB-M5-1/4-U-M, part number 533212.
M5 Male Thread — Manufacturer-specified threaded pneumatic connection.
1/4-Inch Tube Connection — Push-in connection for tubing with a 1/4-inch outside diameter.
Straight Design — Straight configuration for pneumatic line connections.
0.95–10 Bar Operating Pressure — Manufacturer-specified operating range.
Specified Material Construction — PBT housing, NBR thread seal and POM release ring.
Actual Product Photos — Supplied packaging label matches the requested model and part number.

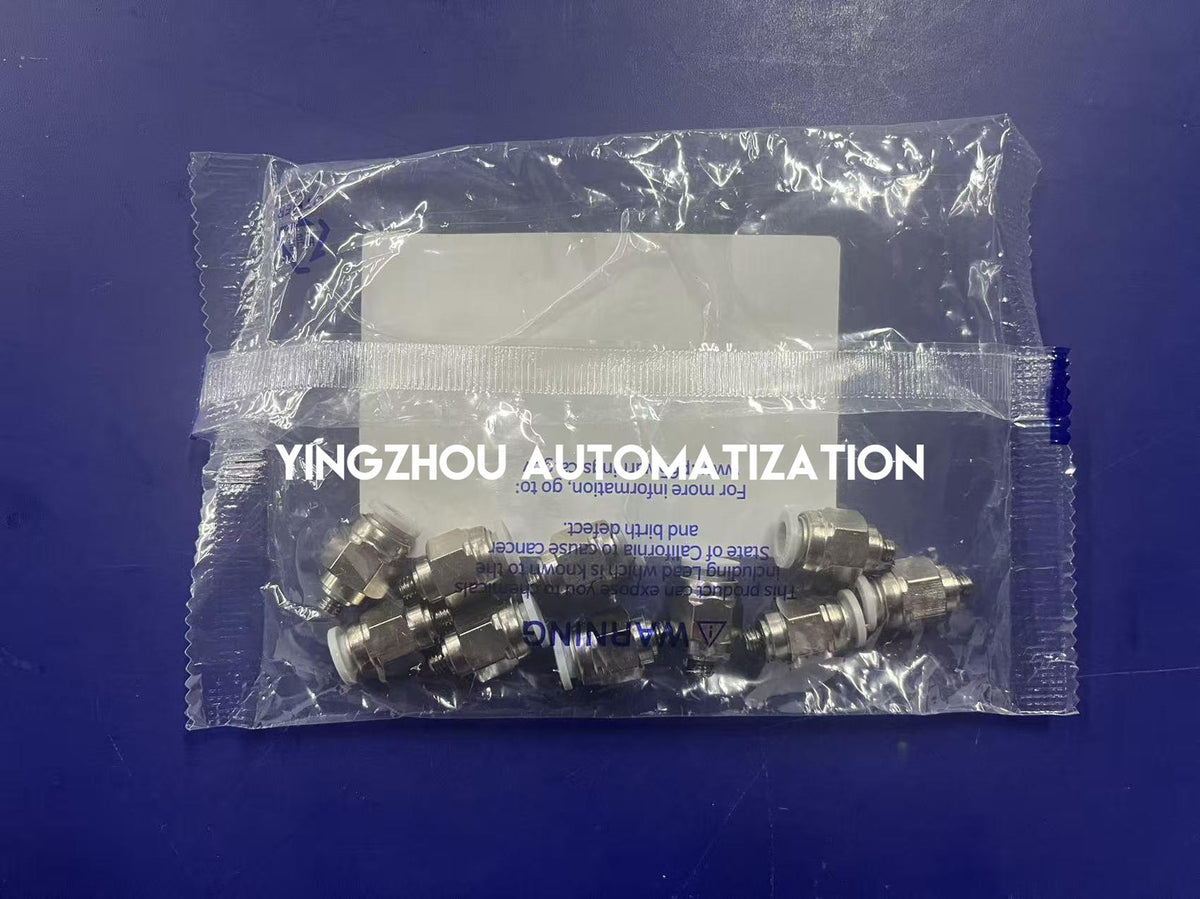

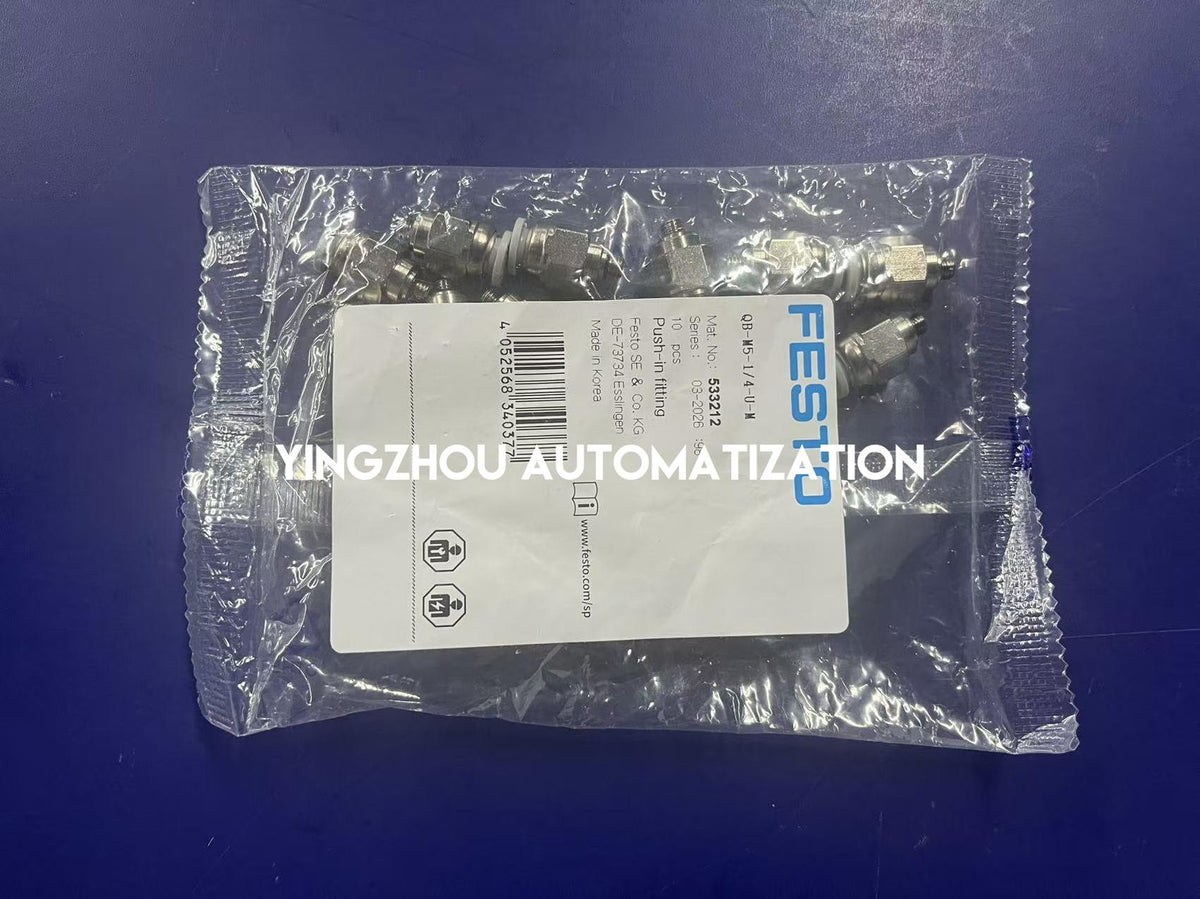

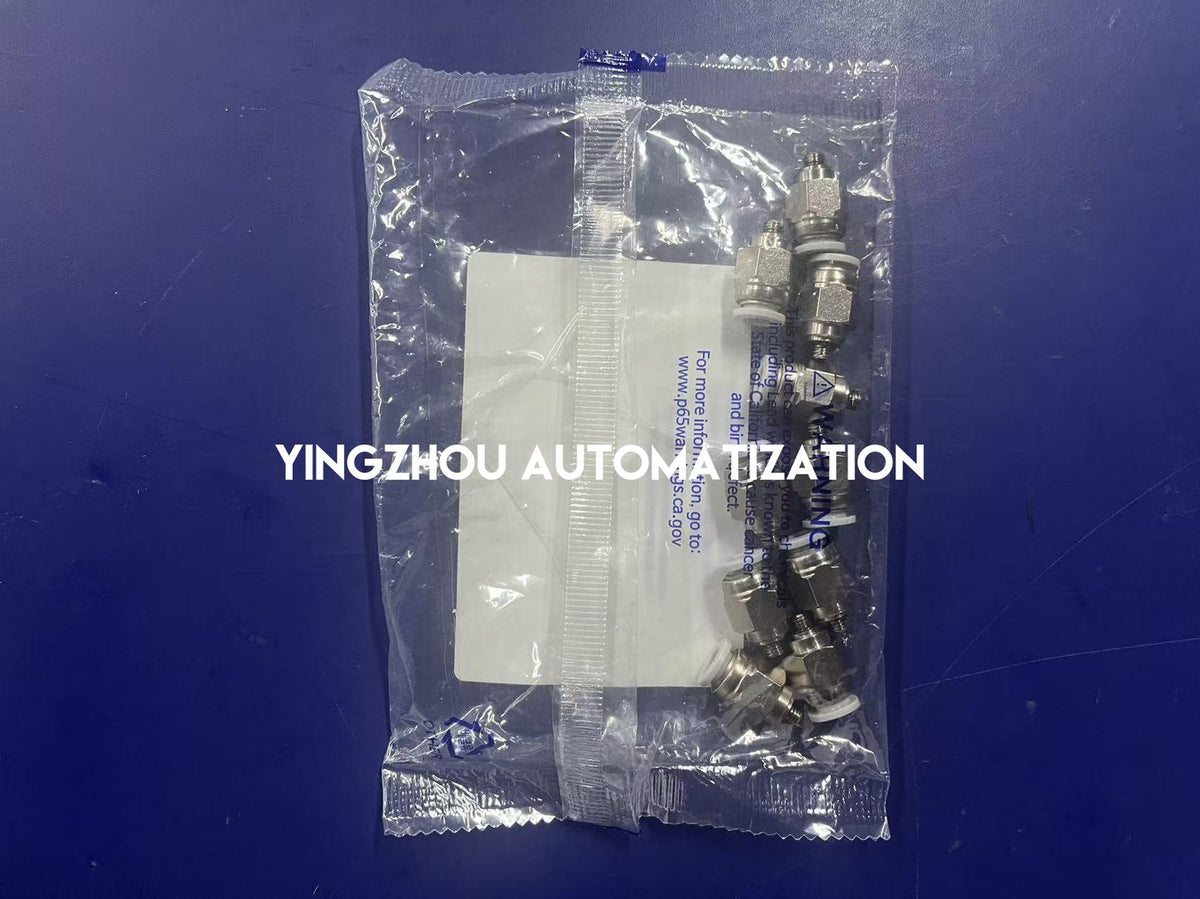

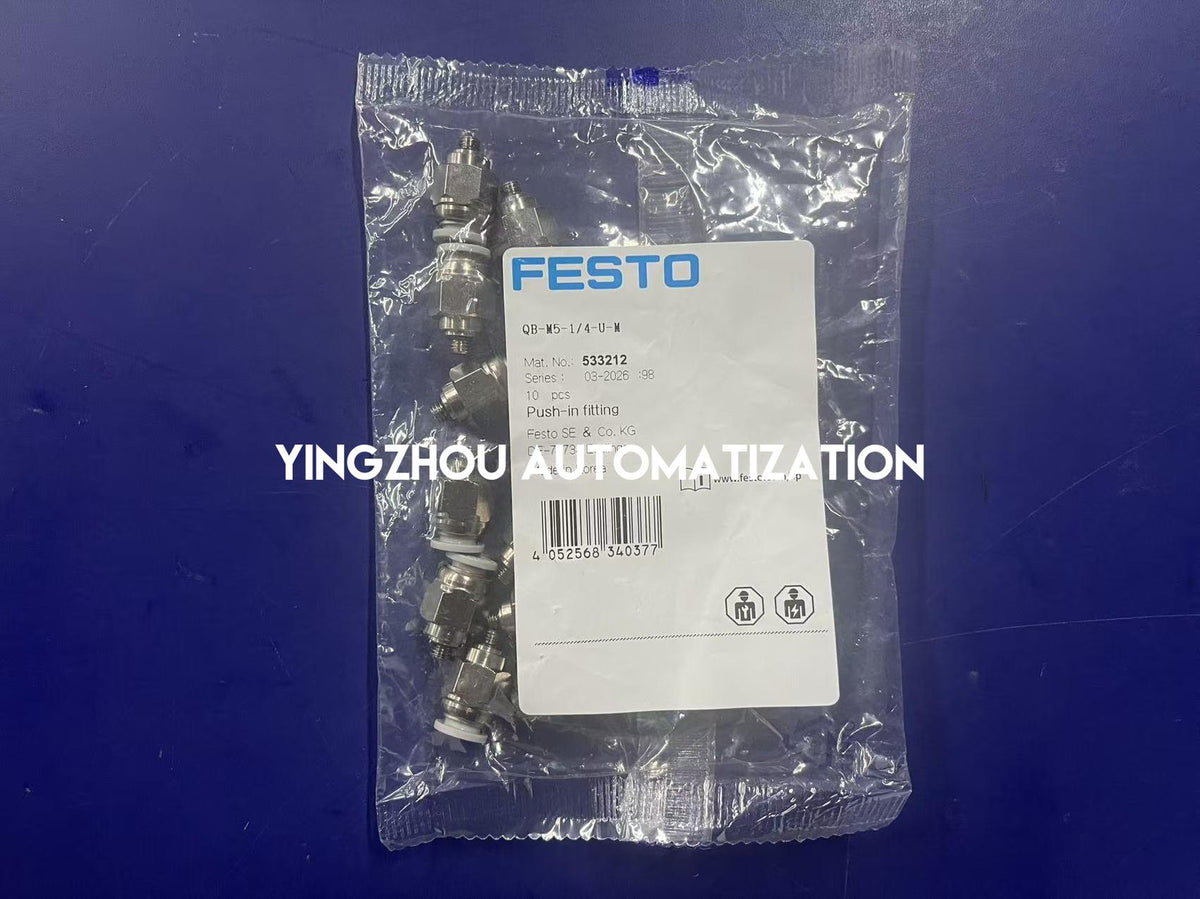

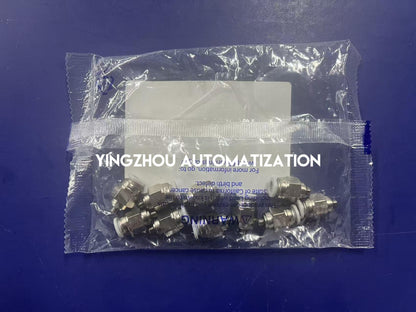

Actual Product Verification

✓ Actual product packaging photograph supplied

✓ Brand shown on label: FESTO

✓ Model shown on label: QB-M5-1/4-U-M

✓ Material number shown on label: 533212

✓ Label description: Push-in fitting

✓ Manufacturer label indicates 10 pcs per pack

✓ Country-of-origin marking on supplied label: Made in Korea

✓ Physical pressure and leakage tests have not been performed

In Stock & Available to Order

FESTO QB-M5-1/4-U-M, part number 533212, is marked in stock based on the supplied inventory information. The seller-reported inventory quantity is 1. The manufacturer packaging label specifies a pack size of 10 pcs. Please confirm whether the listed inventory and selling unit refer to one fitting or one pack before placing an order.

IN STOCK
