| Order Code (Model) |
PEV-1/4-B |
| Festo Part Number |
10773 |
| Switch Function |
Mechanical Diaphragm Pressure Converter Module |
| Pneumatic Connection Port |
G1/4 Female Parallel Thread Matrix |
| Pressure Adjustment Range |
1 ~ 10 bar Adjustable Tracking Interval |
| Electrical Configuration |
Single-Pole Double-Throw (SPDT) Contact System |
| Operating Voltage Boundaries |
Supports both AC and DC Multi-Voltage Control Interlocks |
| Housing Core Profile |
Die-Cast Aluminum with Reinforced Polymer Enclosure |
Performance Overview

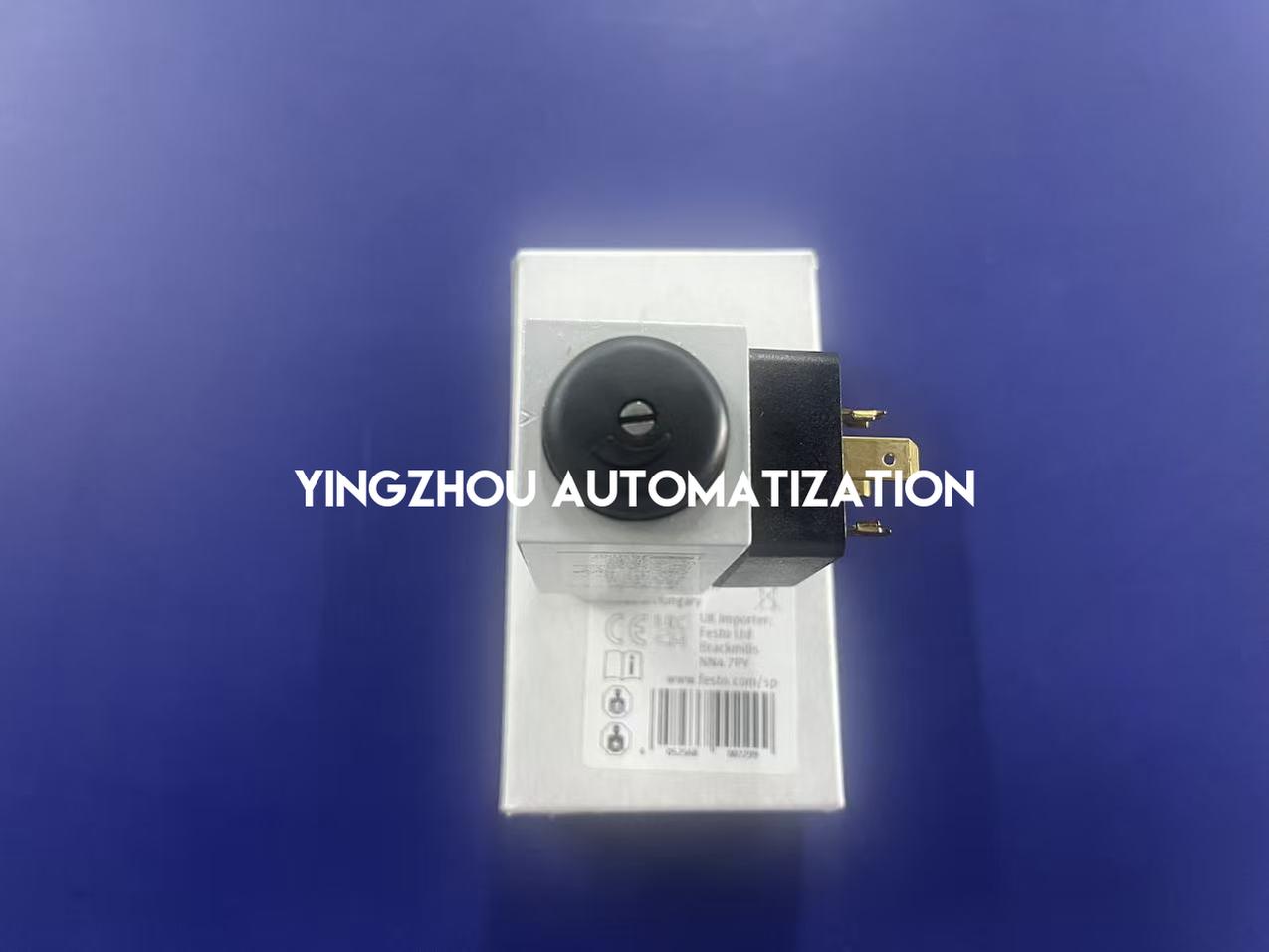

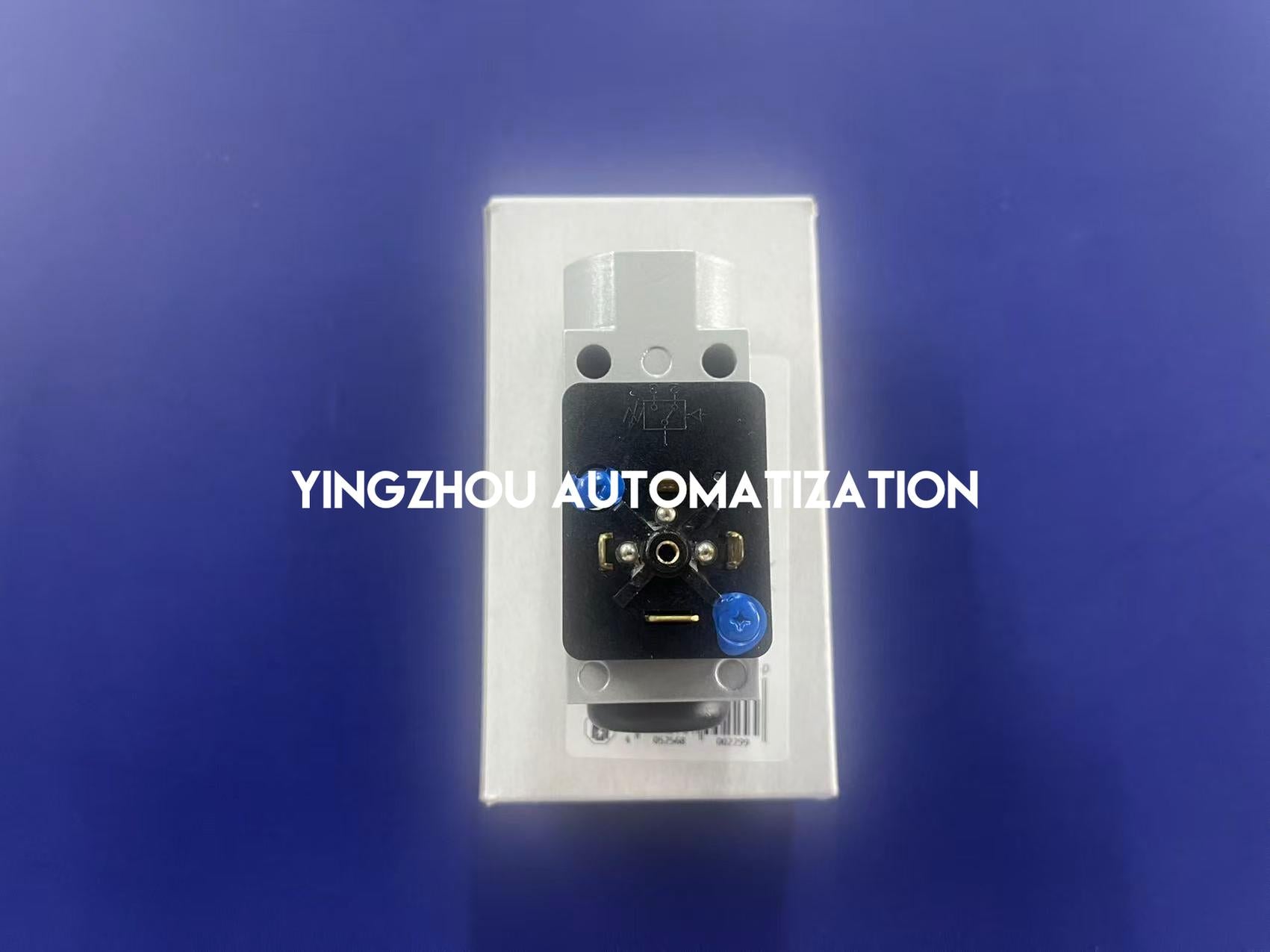

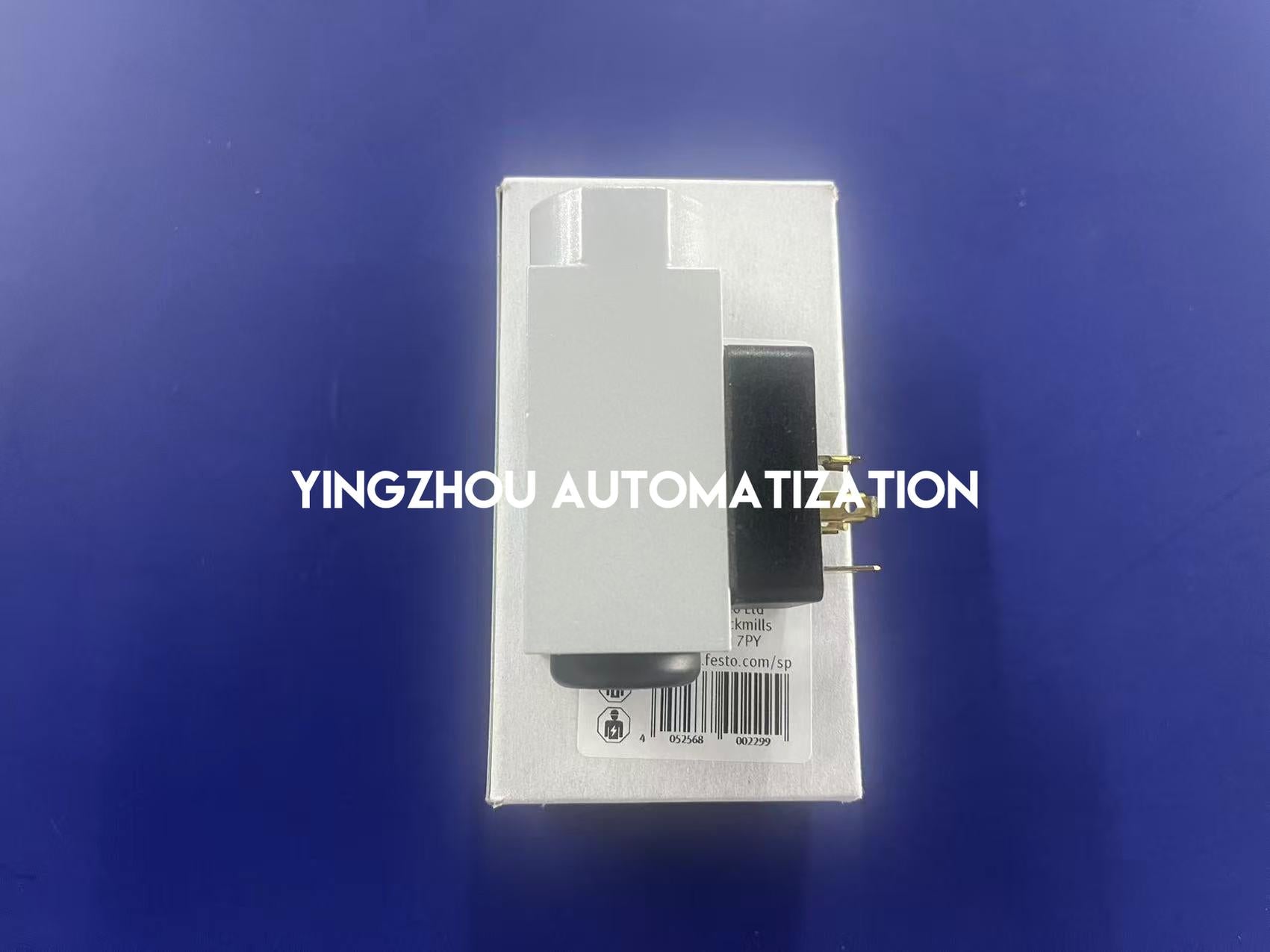

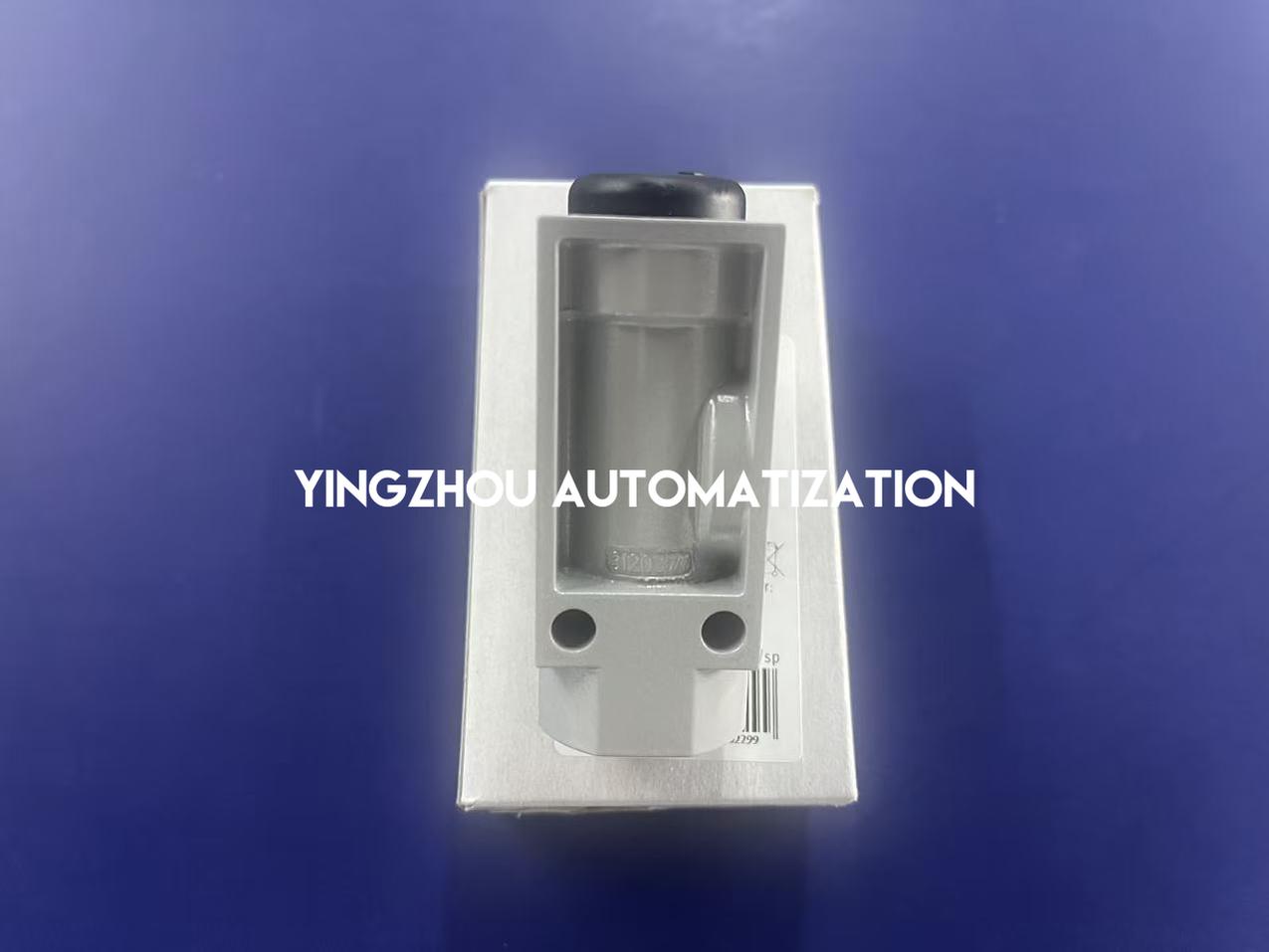

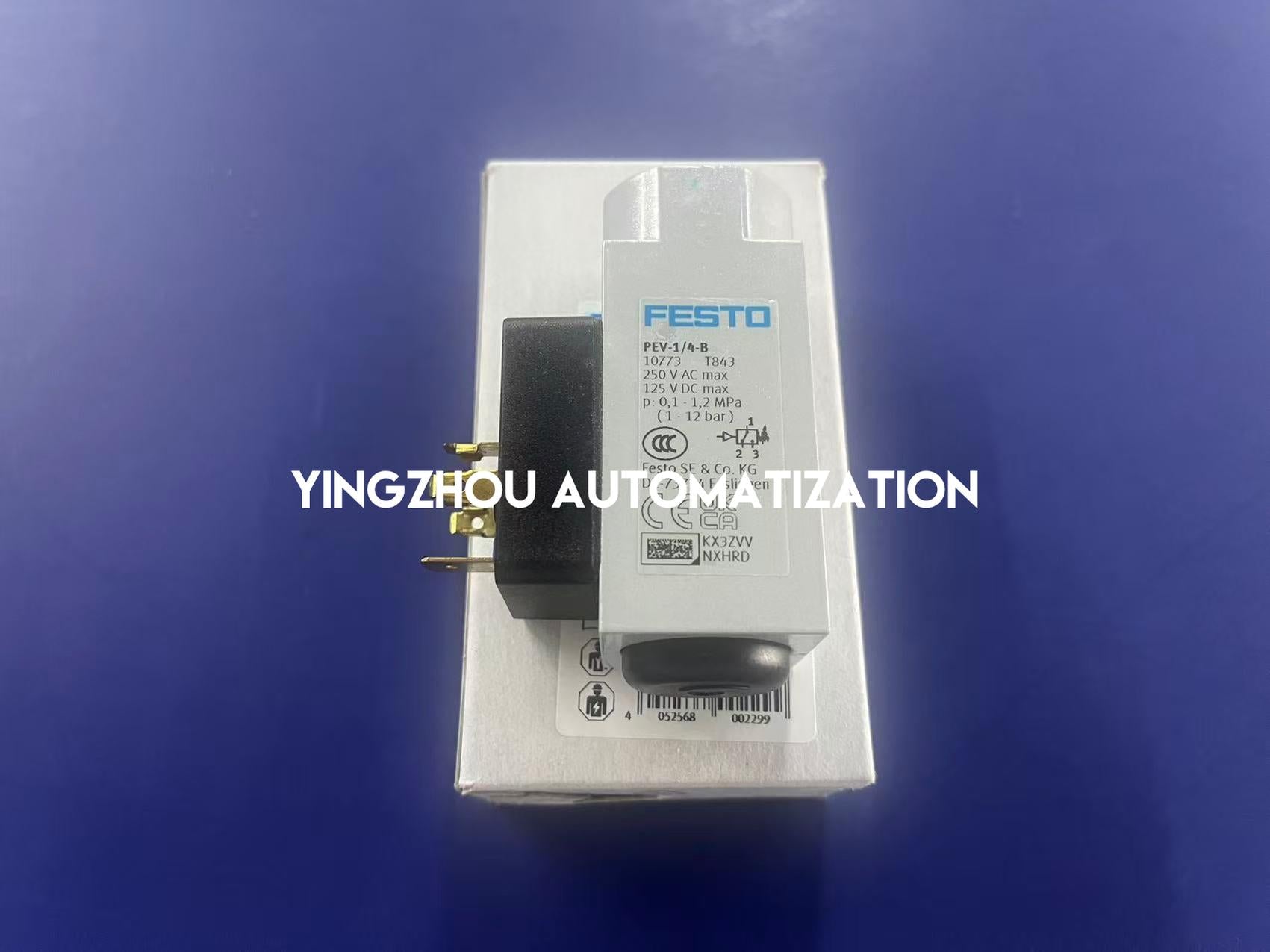

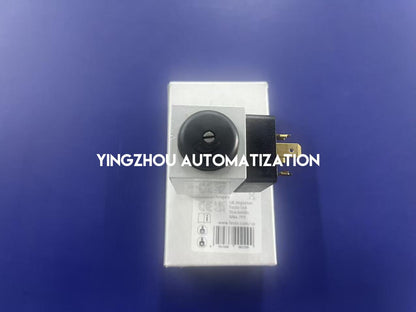

The Festo PEV-1/4-B (Part Number: 10773) is an industrial-tier premium mechanical pressure switch engineered specifically to operate as a high-reliability electromechanical signal converter inside rugged factory automation grids. Machined with a robust standard G1/4 parallel porting layout, this highly responsive monitoring component handles setting tracking limits from 1 to 10 bar safely. The internal logic sensor is optimized with a sensitive diaphragm block to capture line fluid pressure thresholds, converting mechanical displacements into crisp electrical state loops via an integrated SPDT contact module. Built using a high-density die-cast aluminum core paired with premium seals, it coordinates safety interlocking arrays with total consistency.
📋 Critical Application Check
-
Industry: Main Compressors Pressure Monitors, Pneumatic Clamping Interlock Loops, Vacuum Reservoir Safety Stops, Assembly Line Under-Pressure Tripwires, Automation Plant Cabinet Monitors.
-
Flexible Setting Scaling: Onboard adjustment screw permits precise calibrations across the 1-10 bar spectrum, cutting setup time while improving tool security tracks.
-
Robust Mechanical Integrity: High overpressure proof design handles temporary grid pressure surges effortlessly, safeguarding tool uptime and machine network diagnostics.
