FESTO MFH-5/3G-D-3-C 151873 Pneumatic Solenoid Valve 5/3 Closed Center 4100 L/min 3–10 Bar ISO 5599-1

FESTO MFH-5/3G-D-3-C 151873 Pneumatic Solenoid Valve 5/3 Closed Center 4100 L/min 3–10 Bar ISO 5599-1

$161.99 USD
$161.99 USD
Sale Sold out
Model Number
YingZhou Industrial Automation | Product Information

FESTO MFH-5/3G-D-3-C Pneumatic Solenoid Valve

5/3 Closed Center | 4100 L/min | 3–10 Bar | ISO 5599-1 | Part No. 151873
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO / Festo SE & Co. KG
Catalog Number MFH-5/3G-D-3-C
Part Number 151873
Product Type Pneumatic Solenoid Directional Control Valve
Valve Function 5/3-Way, Closed Center
Actuation Type Electrical, Pilot-Operated
Pilot Air Supply Internal
Reset Method Mechanical Spring
Standard ISO 5599-1
Nominal Flow Rate 4100 L/min
Operating Pressure 3–10 bar
Construction Width 65 mm
Nominal Size 14.5 mm
Working Port Sub-base Size 3 to ISO 5599-1 / G1/2
Operating Voltage Via separately selected solenoid coil
Protection Rating IP65
Operating Medium Compressed Air per ISO 8573-1:2010 [7:4:4]
Ambient Temperature −5°C to +40°C
Medium Temperature −10°C to +60°C
Switching Time On / Off 36 ms / 77 ms
Flow Direction Non-Reversible
Mounting Type On Sub-base
Housing Material Die-Cast Aluminum
Product Weight 1040 g
Photographed Packaging Origin Made in Hungary

Product Overview

The FESTO MFH-5/3G-D-3-C (part number 151873) is an electrically actuated, pilot-operated 5/3-way closed-center pneumatic solenoid valve designed in accordance with ISO 5599-1. It offers a standard nominal flow rate of 4100 L/min, an operating pressure range of 3–10 bar and a size 3 sub-base mounting configuration. Mechanical spring centering returns the valve to its closed center position when control signals are removed. Solenoid coils and electrical connectors must be selected and confirmed separately according to the installation requirements.

Key Product Features

  • 5/3 Closed-Center Valve — Three-position directional control with a closed center state.
  • 4100 L/min Nominal Flow — Manufacturer-specified pneumatic flow capacity.
  • 3–10 Bar Operating Pressure — Verified compressed-air operating pressure range.
  • ISO 5599-1 Size 3 — Standardized sub-base mounting arrangement.
  • Pilot-Operated Electrical Control — Internal pilot air supply with electrical actuation.
  • Spring-Centered Operation — Mechanical return to center.
  • IP65 Protection Rating — Manufacturer-specified protection under suitable installation conditions.

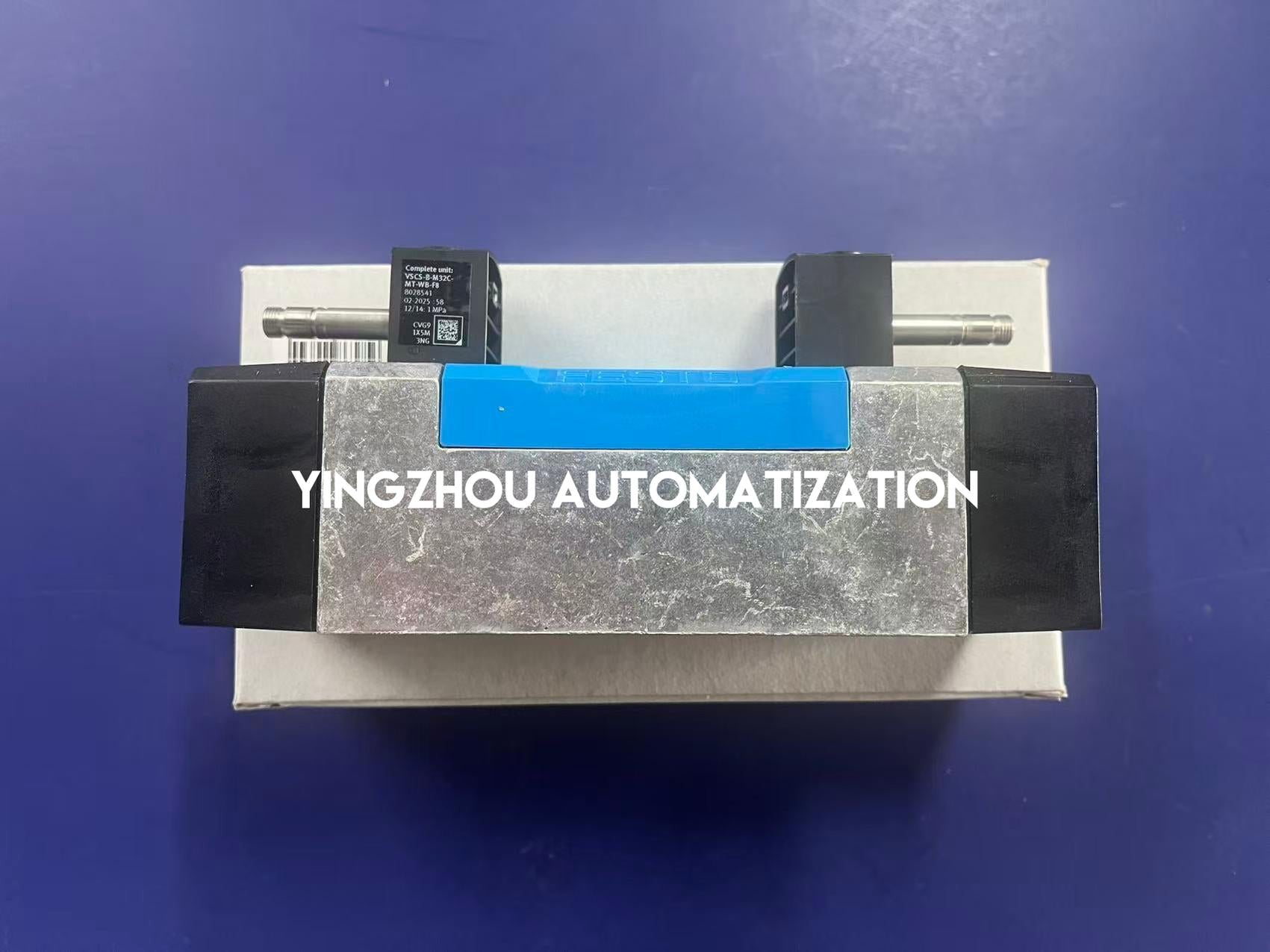

Actual Product Verification

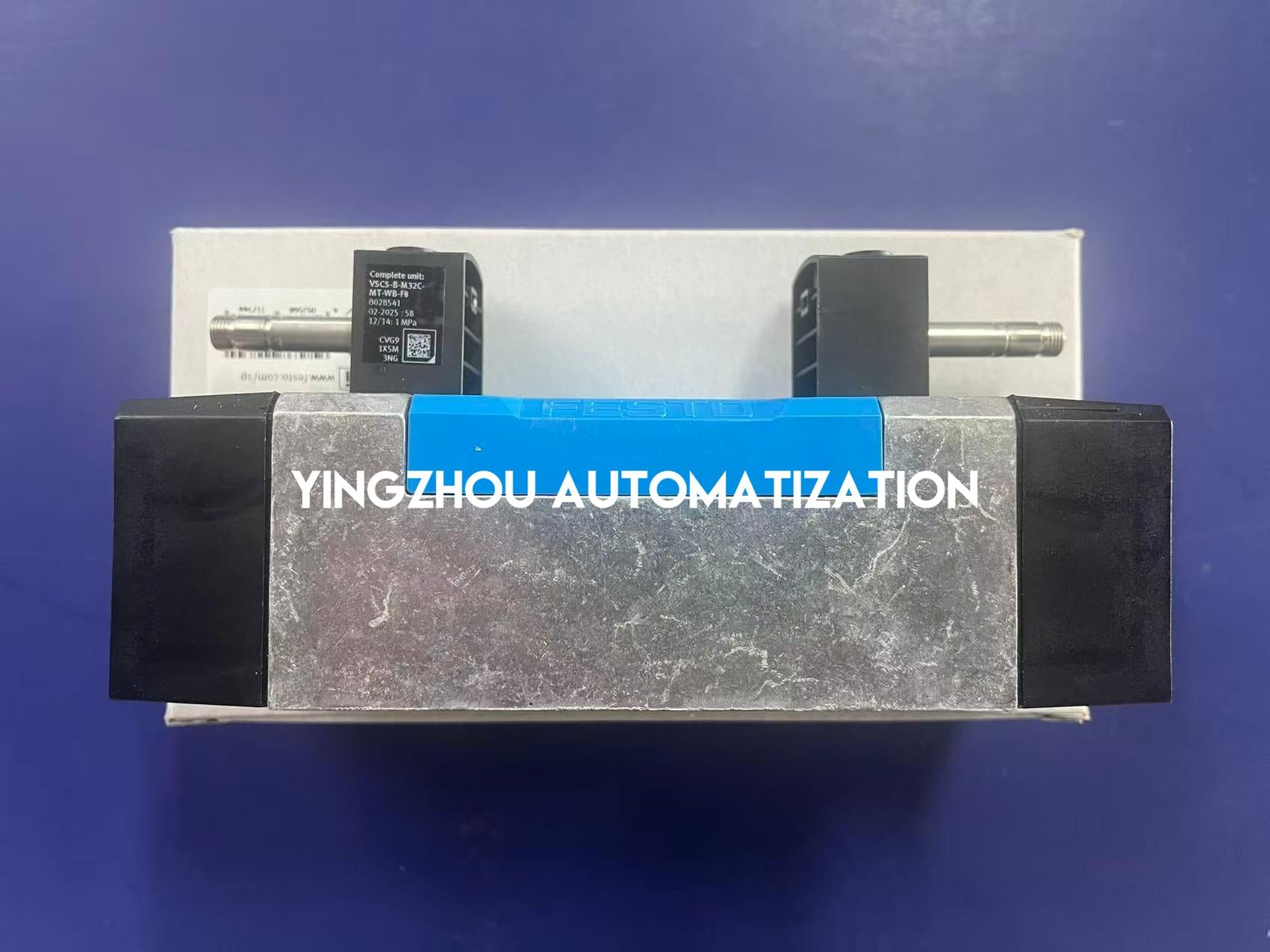

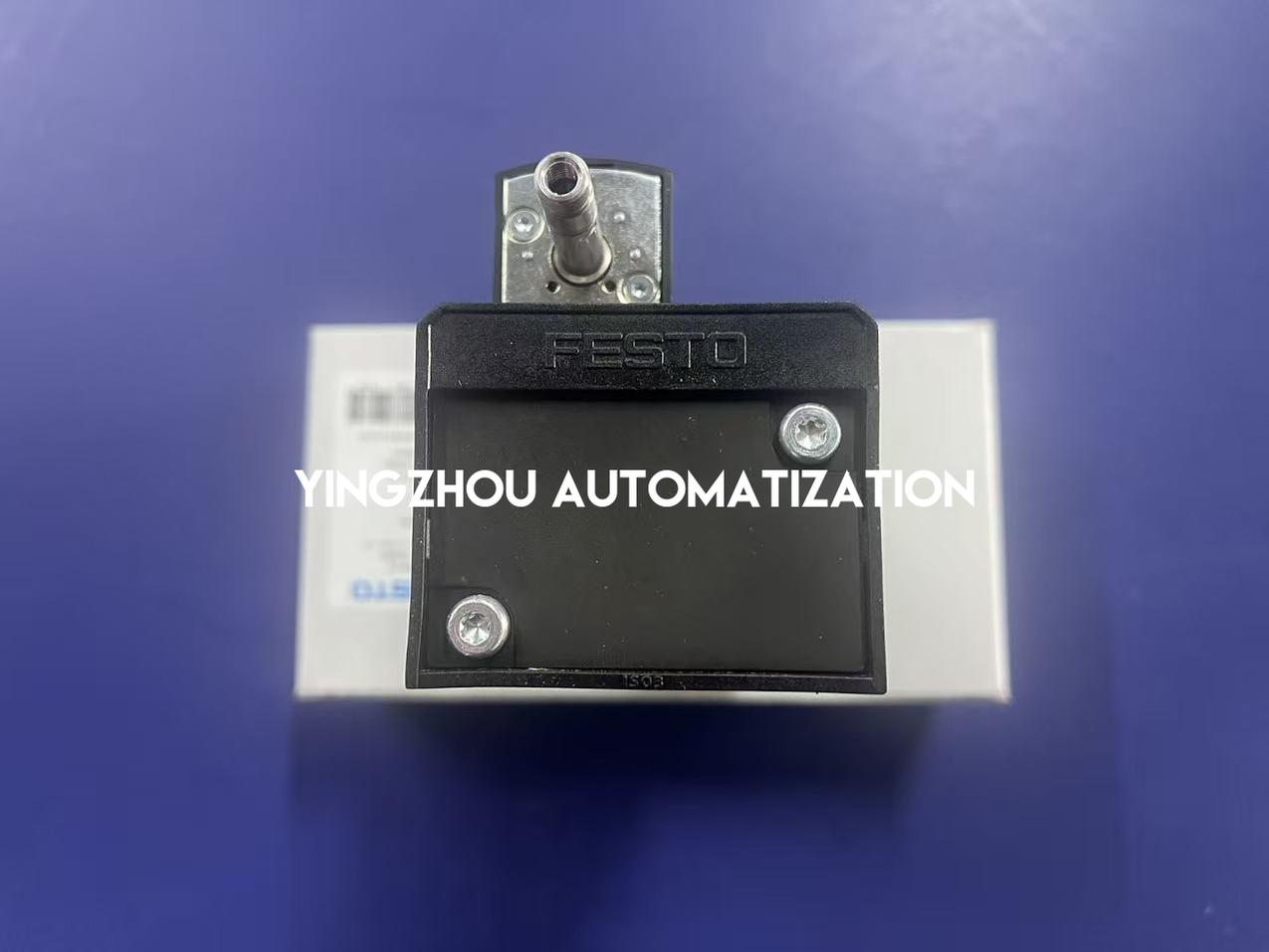

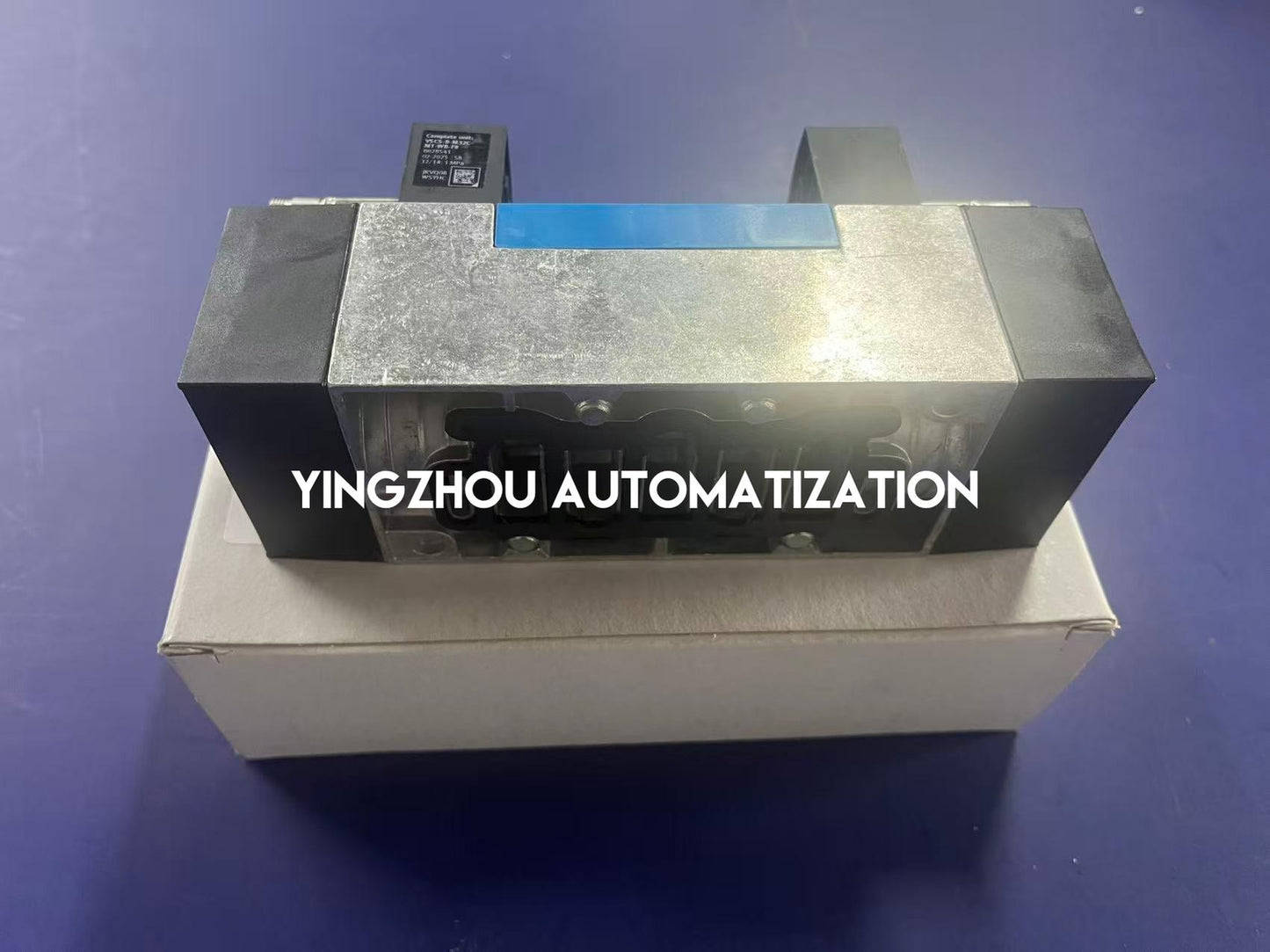

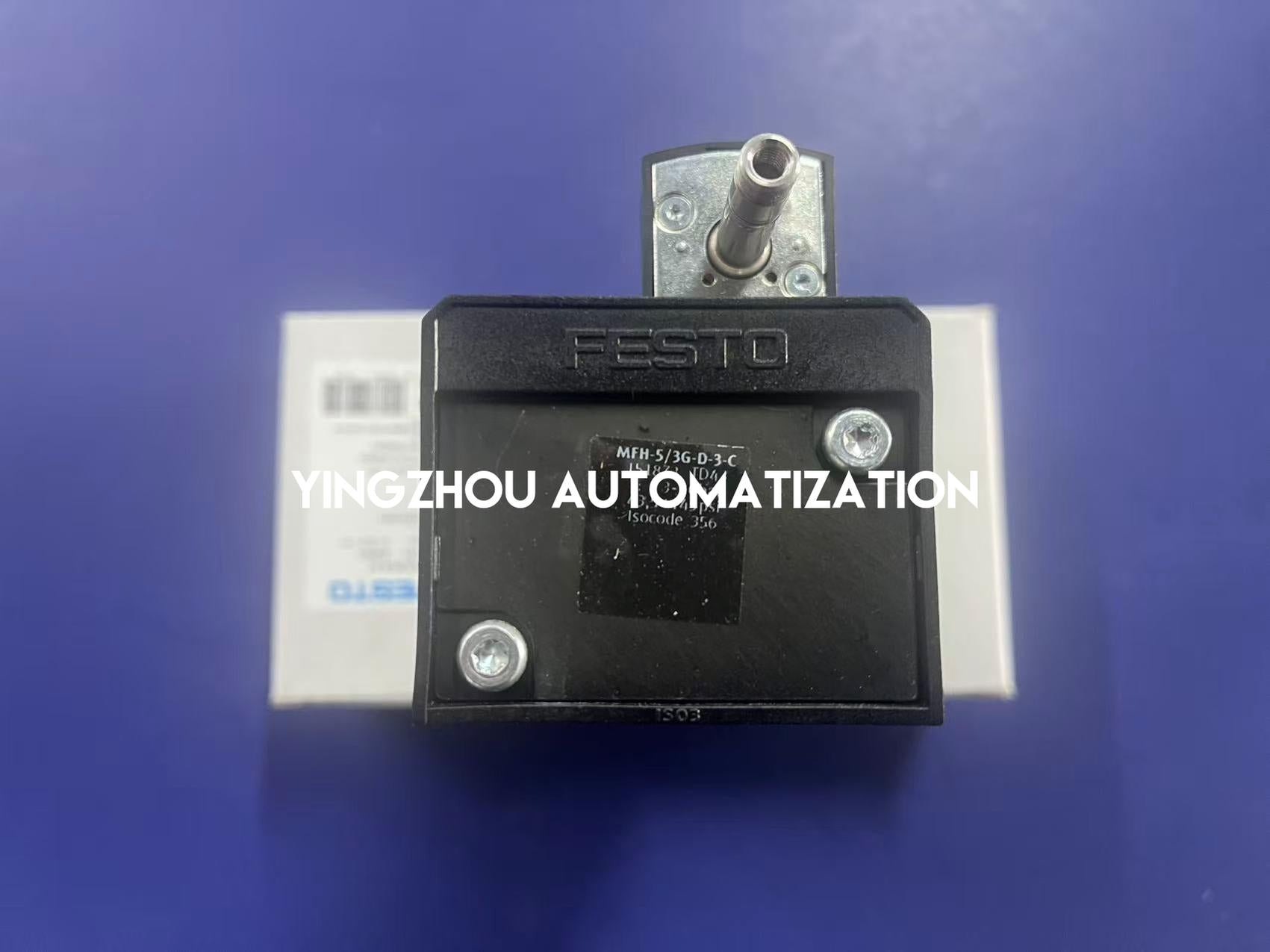

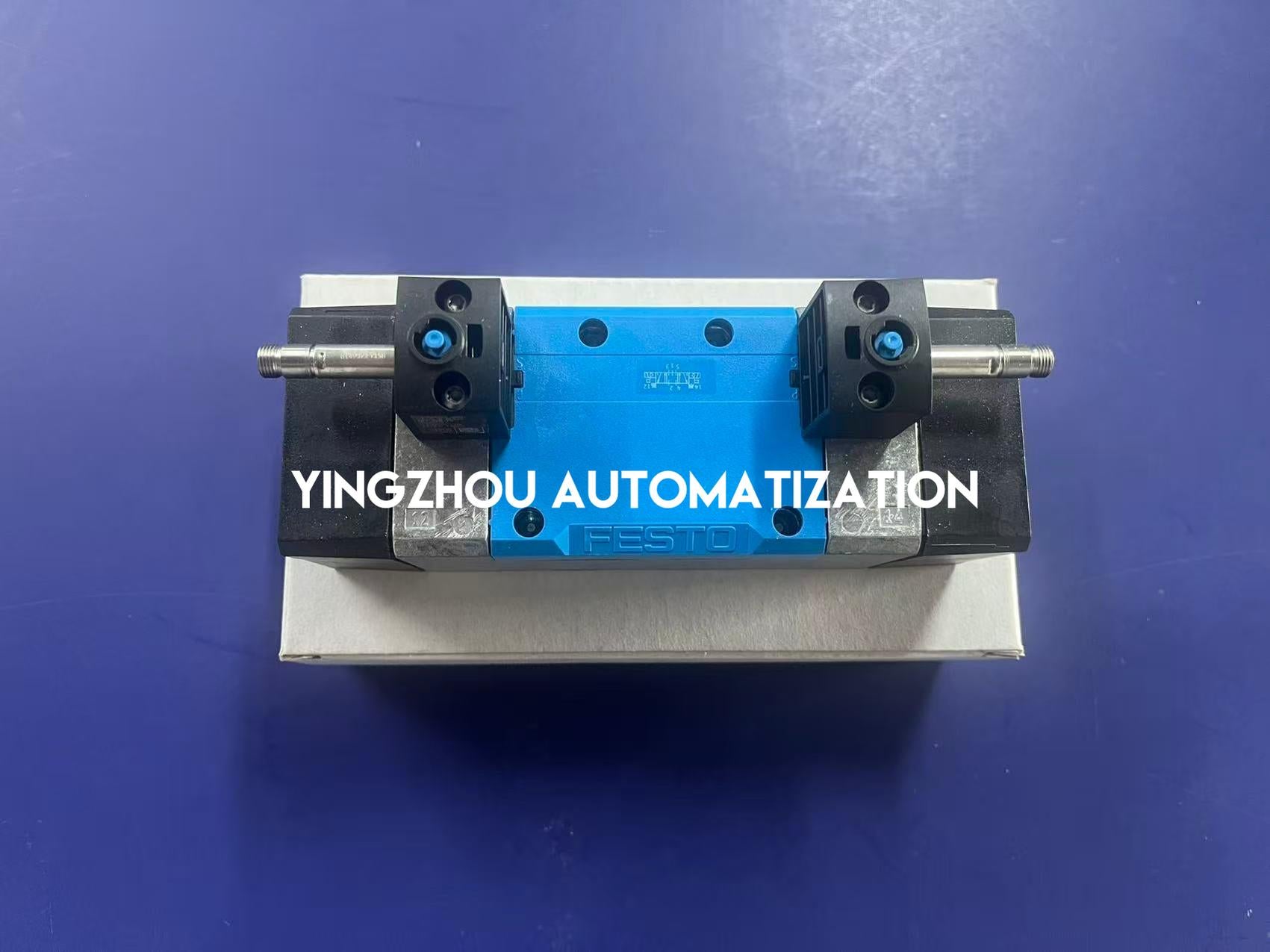

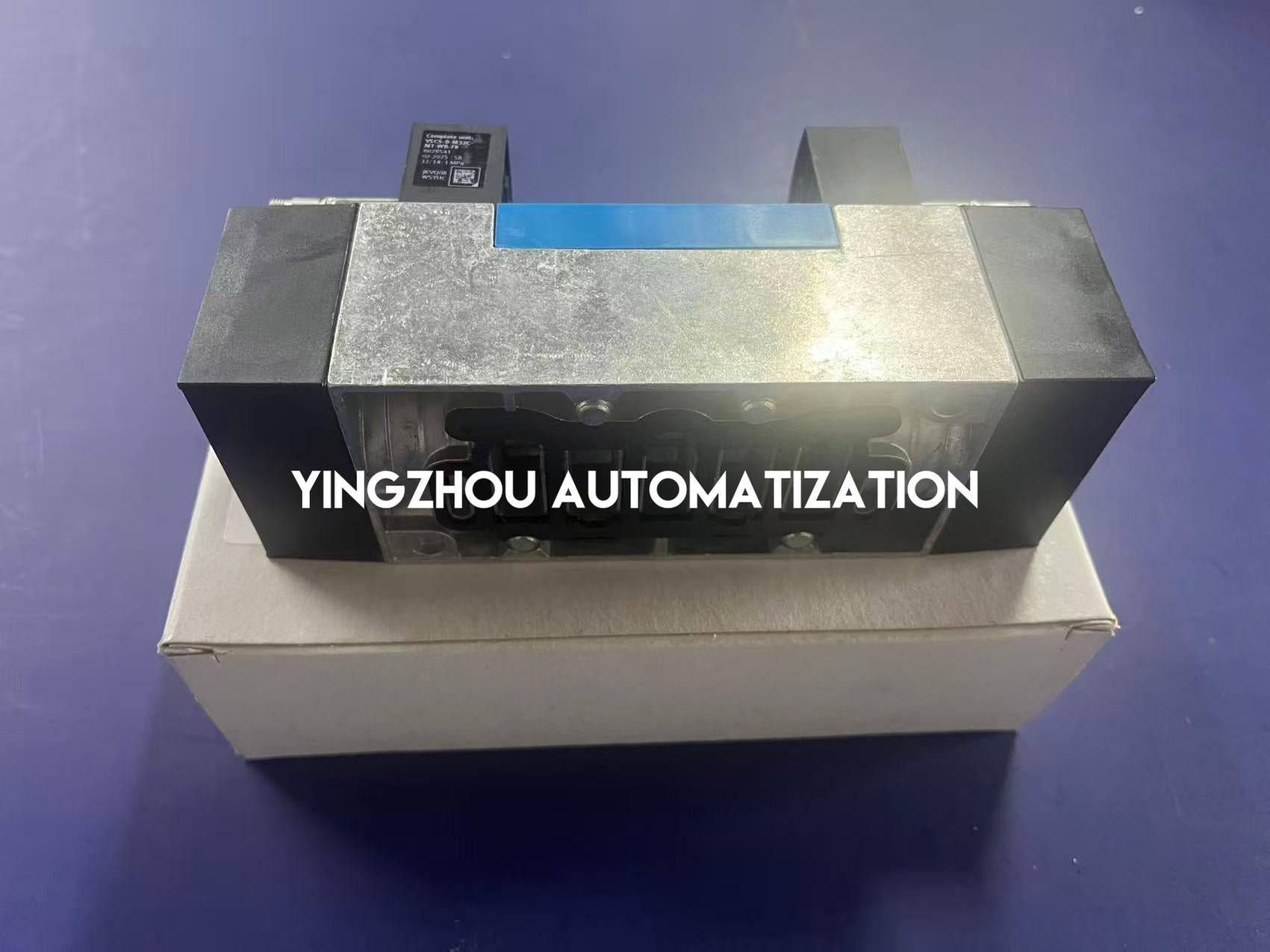

✓ Actual product and packaging photographs supplied

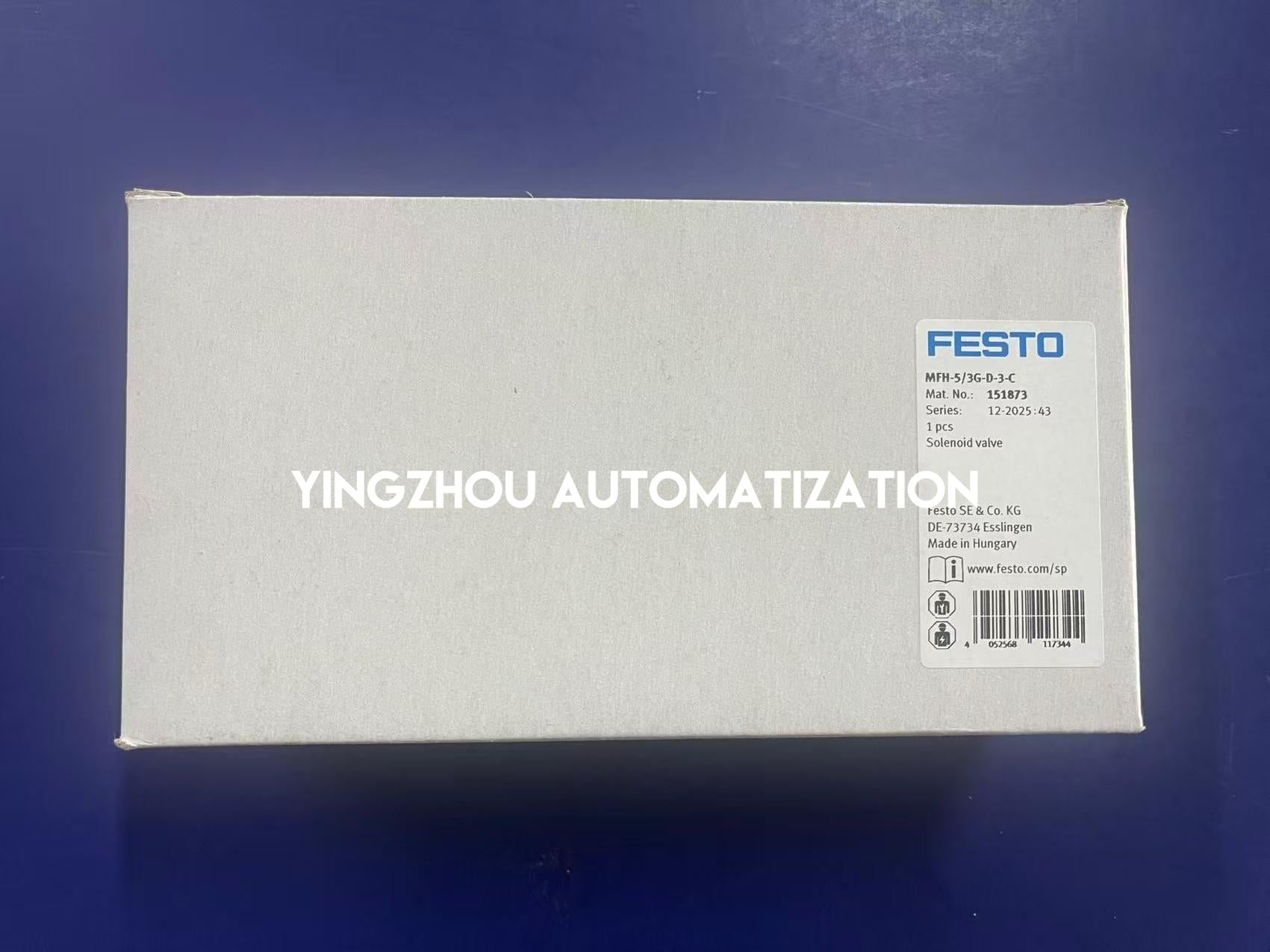

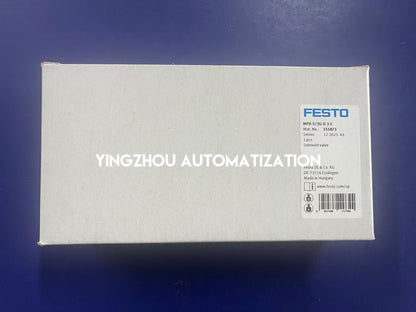

✓ Packaging model: MFH-5/3G-D-3-C
✓ Manufacturer part number: 151873
✓ Packaging identifies FESTO and Made in Hungary
✓ Exact model and part number match the requested product on its packaging
✓ Valve functionality and included electrical accessories have not been independently verified

In Stock & Available to Order

FESTO MFH-5/3G-D-3-C, part number 151873, is marked in stock based on supplied inventory information. Actual product and packaging photographs are available. Confirm required solenoid coil voltage, electrical connectors, mounting configuration and order quantity before purchasing.

IN STOCK

FESTO MFH-5/3G-D-3-C

Contact us for exact-model confirmation, bulk orders and industrial pneumatic sourcing. Please confirm the 5/3 closed-center valve configuration and separately required electrical accessories before ordering.
