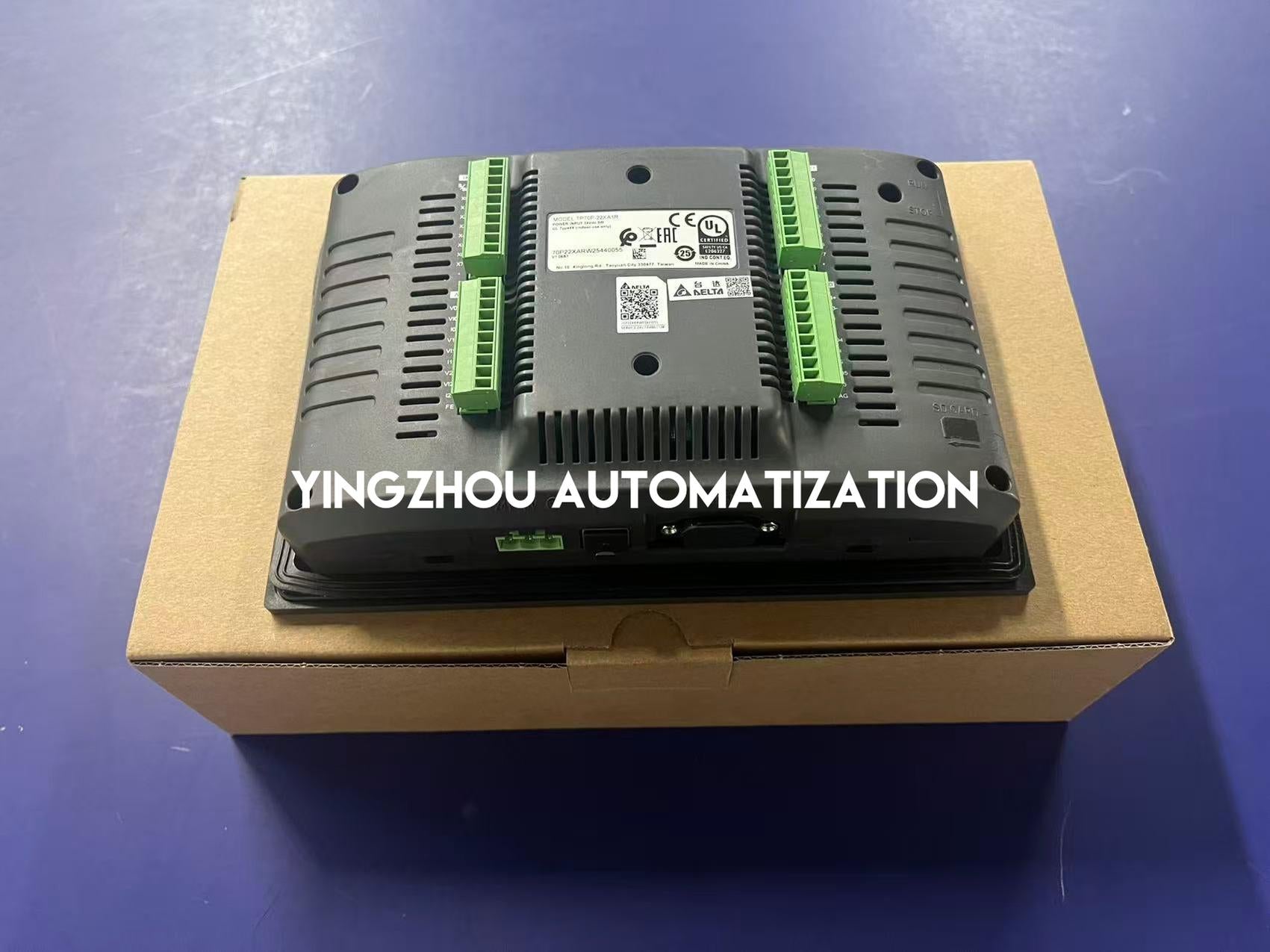

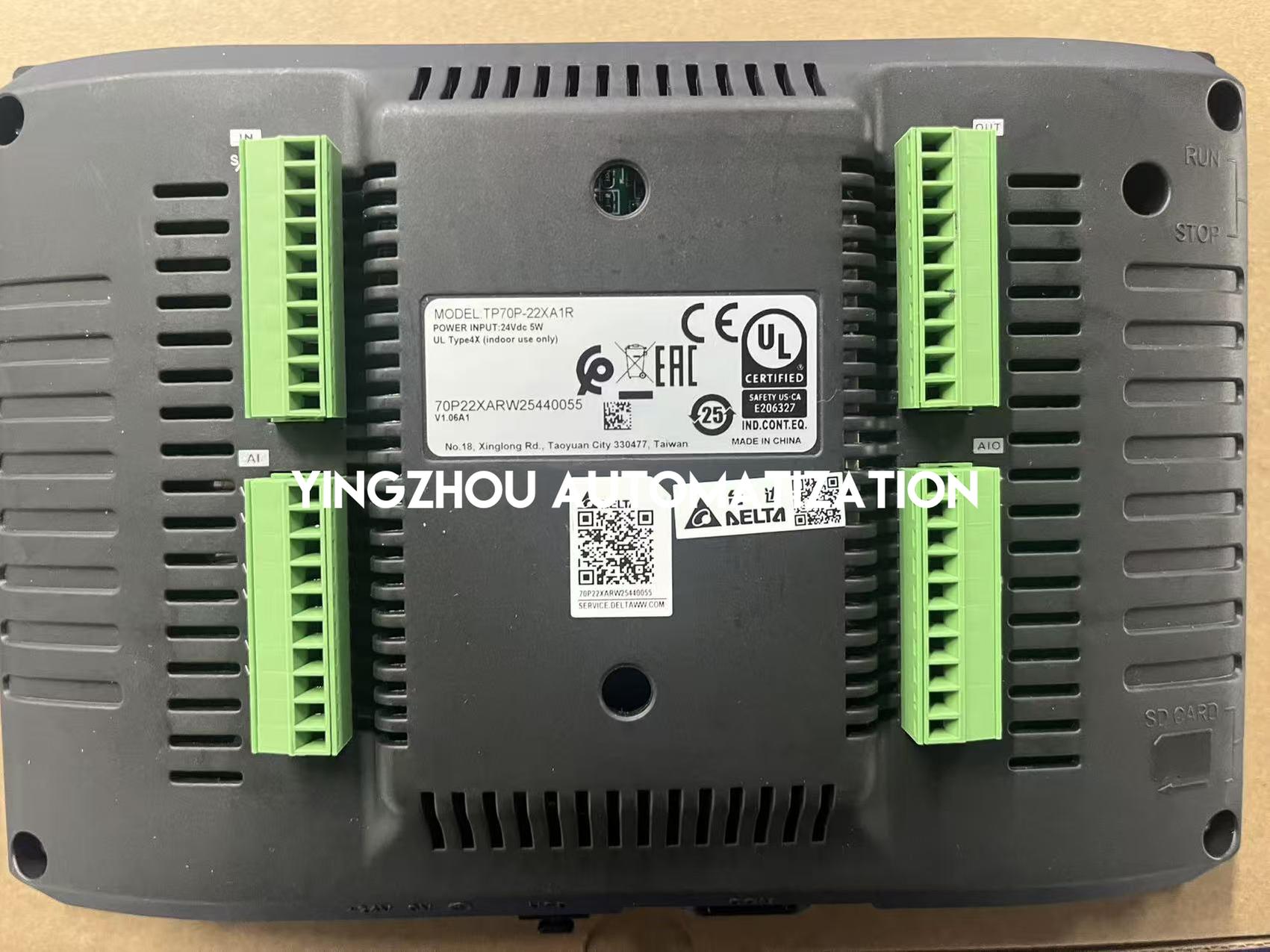

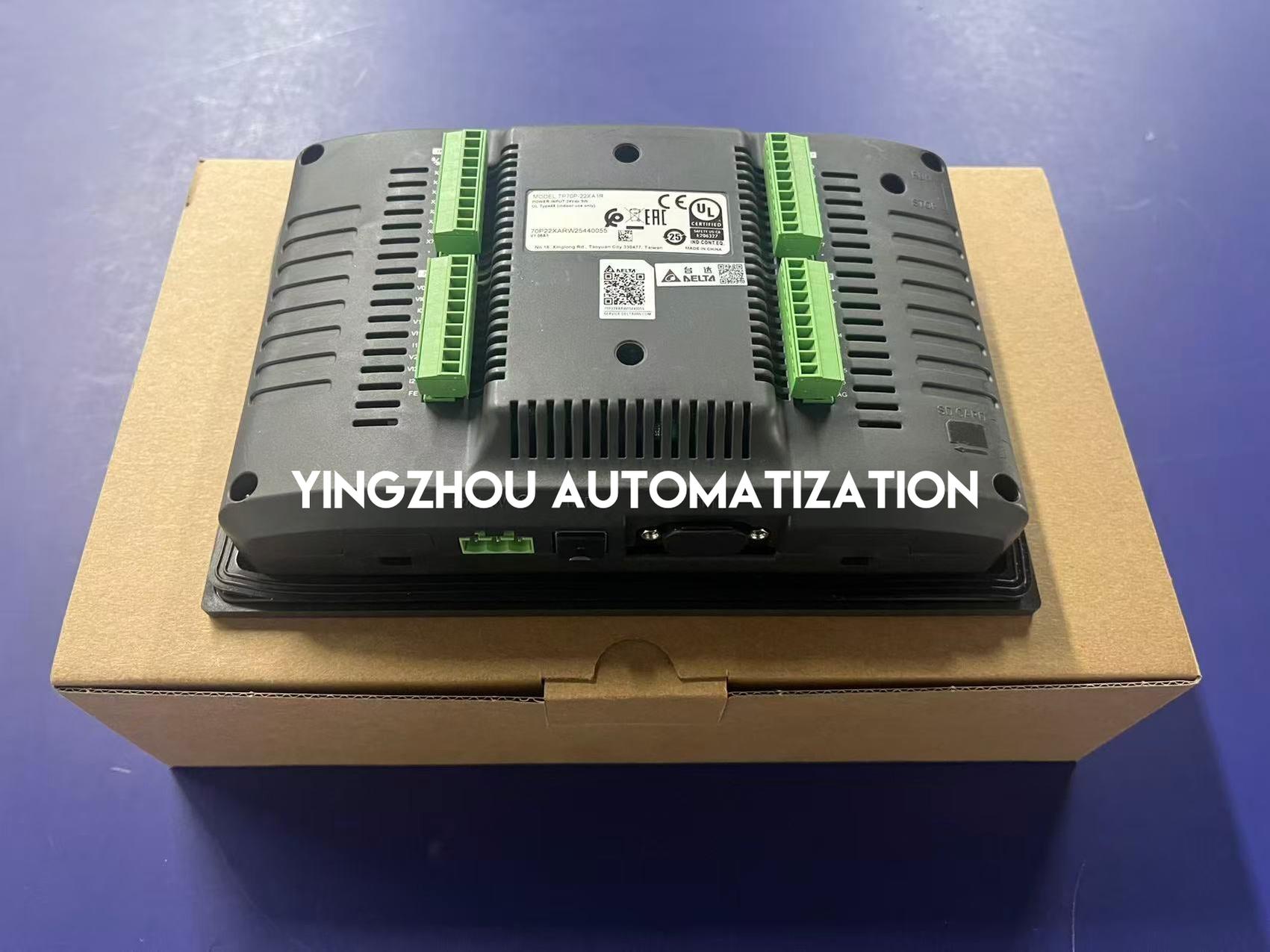

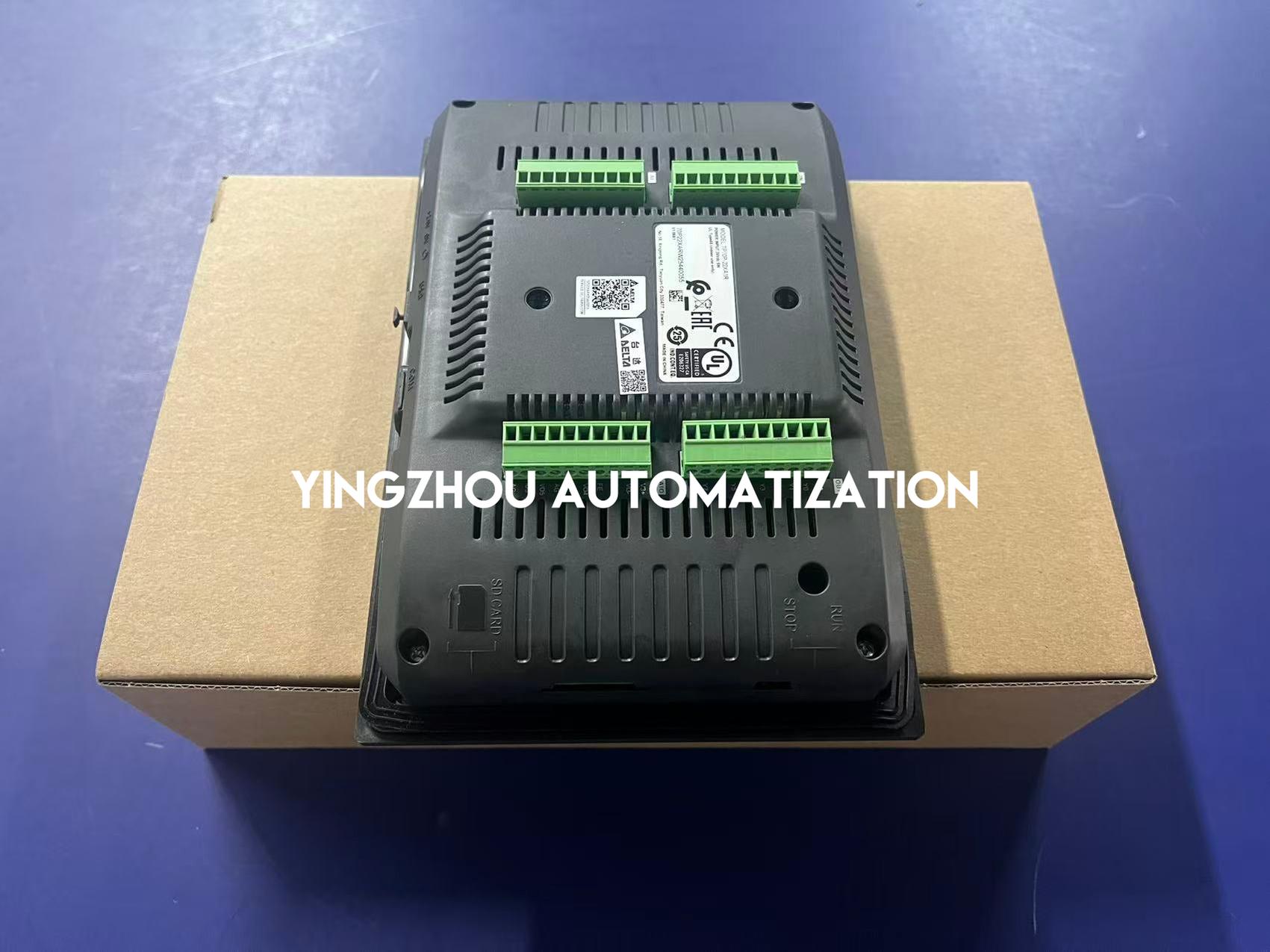

TP70P-22XA1R Integrated HMI

Technical Specifications

📋 Engineering Quick-Check

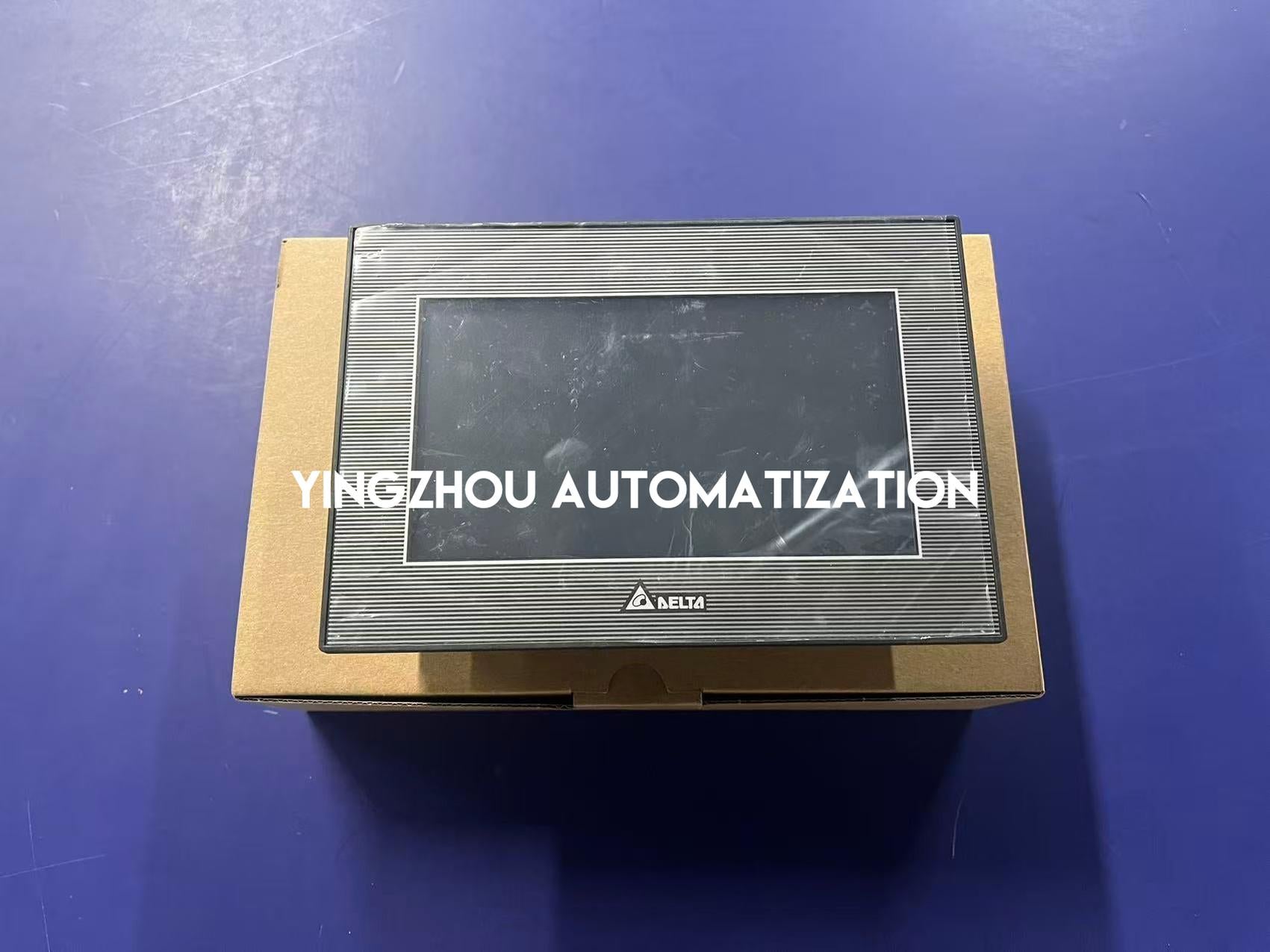

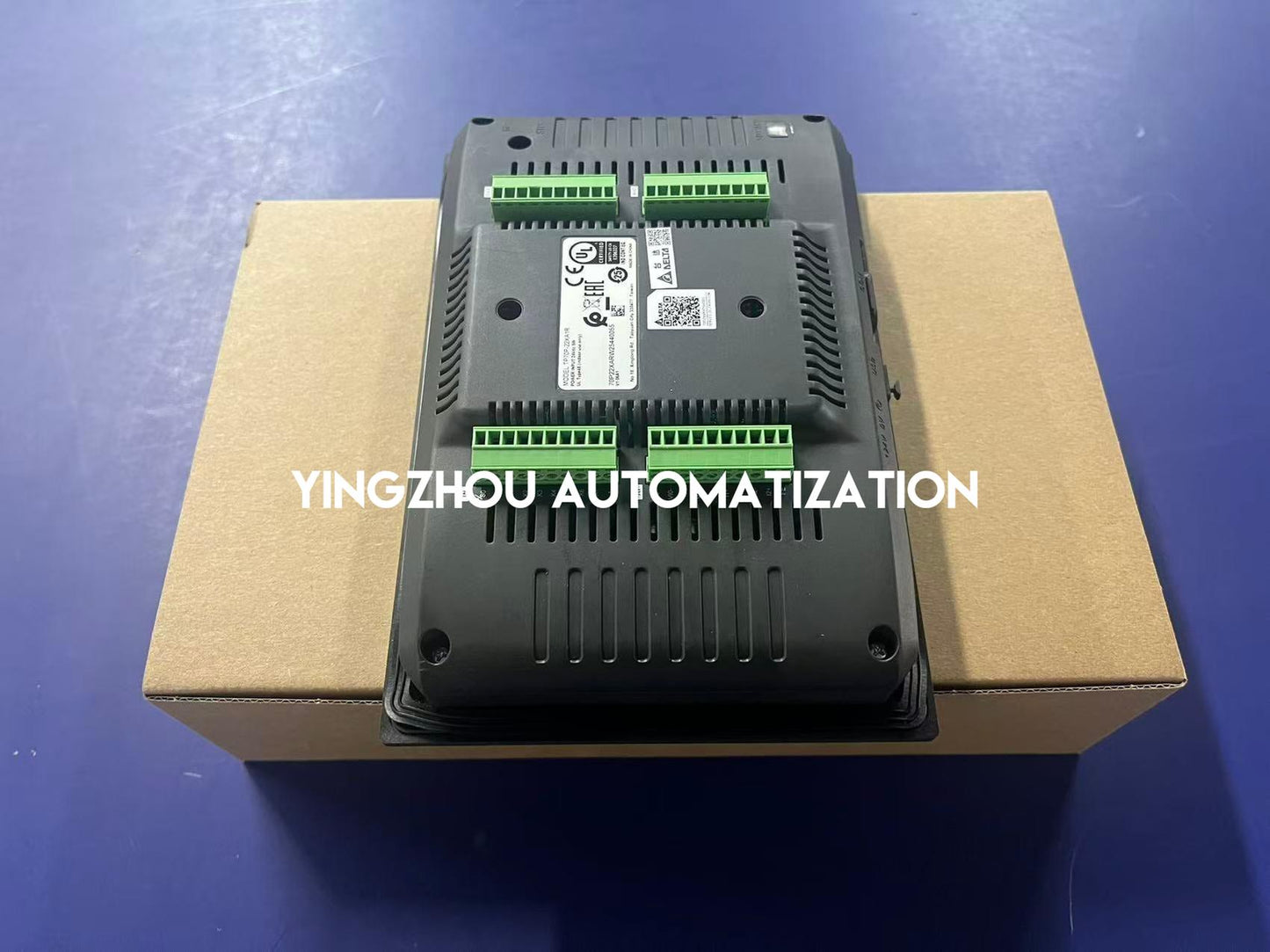

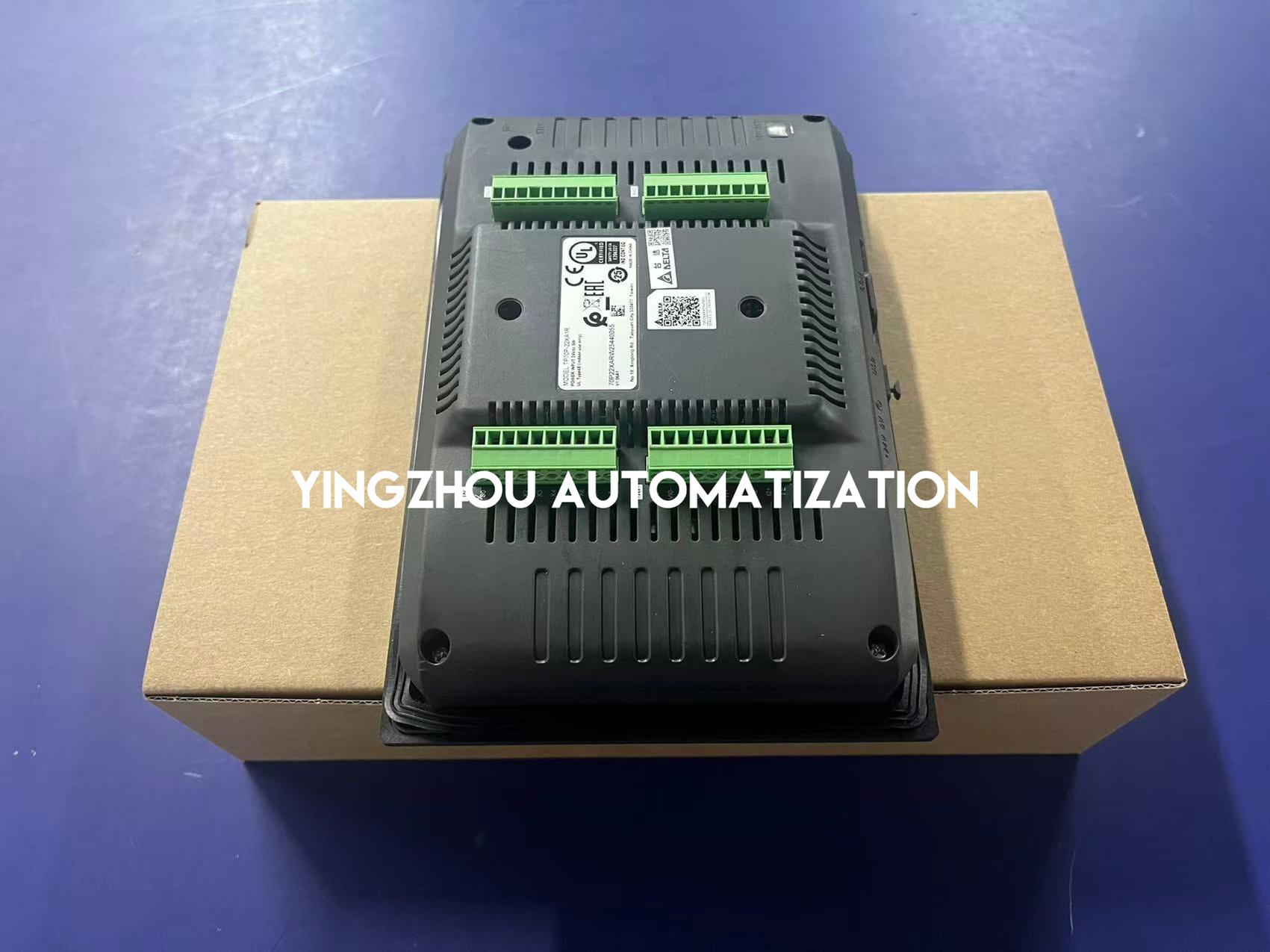

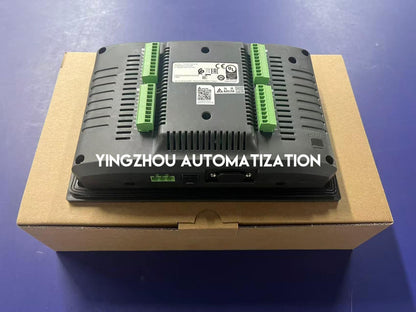

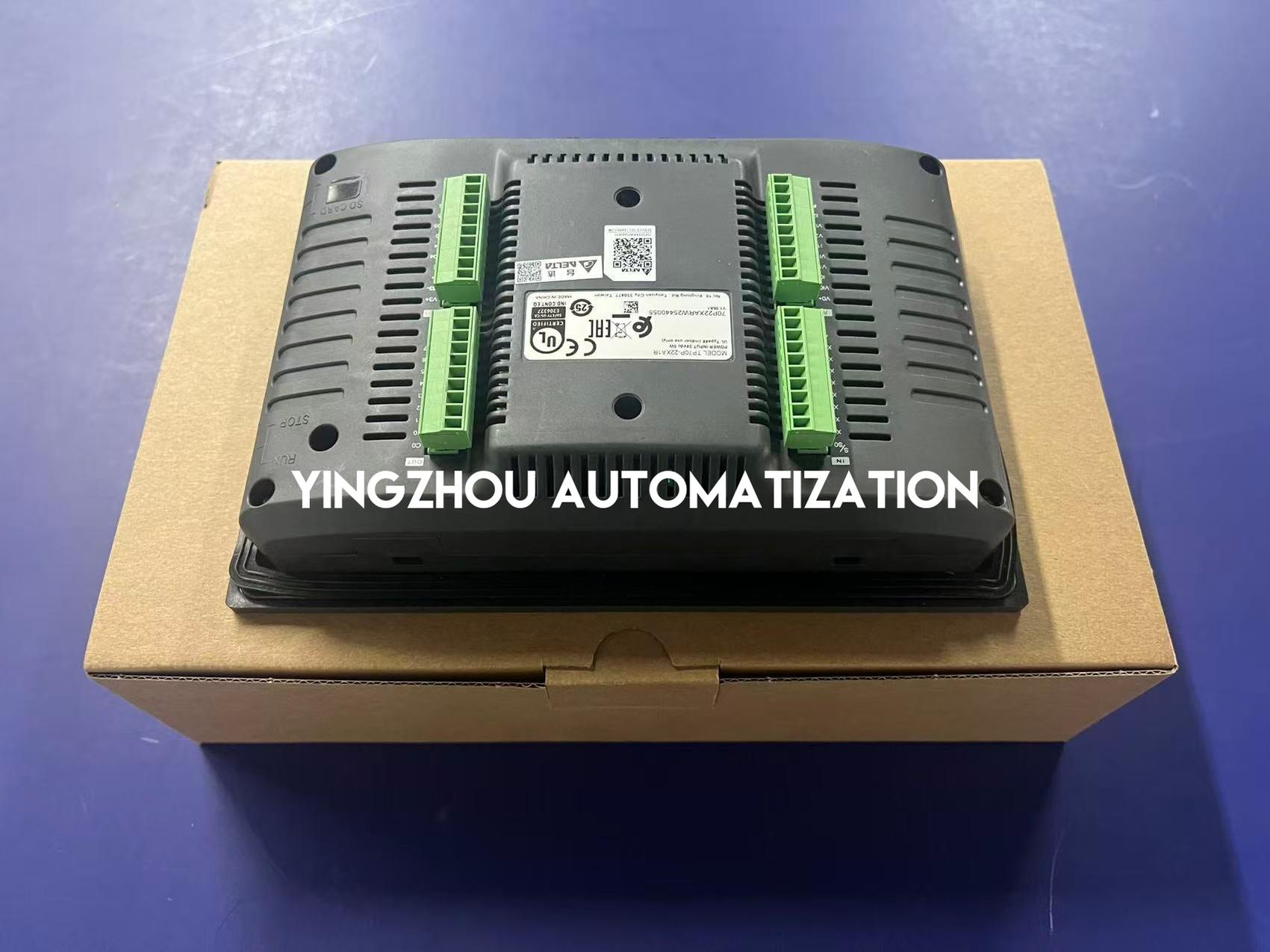

The Delta TP70P-22XA1R represents the ultimate fusion of user interface and control logic. This 7-inch touch panel eliminates the need for separate PLC and analog modules by integrating an 8-point digital input, 8-point relay output, and a complete 4AI/2AO analog section directly into the display housing. Powered by a reliable DVP-SS2 equivalent PLC core, it handles complex tasks like PID temperature control and pressure monitoring with ease. The 65k-color widescreen display provides high-clarity visualization while the dual COM ports ensure seamless communication with secondary devices. For compact OEM machinery and field monitoring systems, the TP70P-22XA1R is the most cost-effective and space-efficient choice on the market today.

Simplify your hardware architecture with the all-in-one TP70P-22XA1R. Delta’s integrated technology offers the precise analog control and visual performance needed for modern compact automation.

Integrated Control Ecosystem:
• Transistor Version: TP70P-22XA1T High-Speed Output
• Sensors & Comms: Delta DTA/DTB Temperature Controllers
