Delta EMC-A22A Analog I/O Extension Card 2AI 2AO 0-10V 4-20mA for C2000 CP2000 CH2000 VFD Drives

Name: Delta EMC-A22A Analog I/O Extension Card 2AI 2AO 0-10V 4-20mA for C2000 CP2000 CH2000 VFD Drives
Brand: Delta
SKU: EMC-A22A
Price: 45.99 USD
Availability: InStock

Delta EMC-A22A Analog I/O Extension Card 2AI 2AO 0-10V 4-20mA for C2000 CP2000 CH2000 VFD Drives

$45.99 USD

Sale Sold out

Model Number EMC-A22A

Product variants

Quantity

YingZhou Industrial Automation | Product Information

Delta EMC-A22A Analog I/O Extension Card

2 Analog Inputs | 2 Analog Outputs | 0-10V | 0-20mA / 4-20mA

✓ IN STOCK & READY TO ORDER | Exact Model: EMC-A22A | Actual Product Photos

Specification	Product Data
Brand	Delta Electronics
Exact Model	EMC-A22A
Product Type	Analog I/O Extension Card
Product Application	Analog Input and Output Expansion for Compatible AC Motor Drives
Main Compatible Drive Series	Delta C2000 / CP2000 / CH2000
Other Documented Applications	CFP2000 / CT2000; Check Exact Drive Configuration
Analog Input Channels	2
Analog Output Channels	2
Total Analog I/O Channels	4 (2AI + 2AO)
Analog Input Terminals	AI10 / AI11
Analog Output Terminals	AO10 / AO11
Analog Common Terminal	ACM
Analog Input Voltage Range	0-10V
Analog Input Current Ranges	0-20mA / 4-20mA
Analog Output Voltage Range	0-10V
Analog Output Current Ranges	0-20mA / 4-20mA
Voltage Input Impedance	20 kOhm (Applicable Delta Drive Manuals)
Current Input Impedance	250 Ohm (Applicable Delta Drive Manuals)
AI10 Mode Selection Switch	SSW3
AI11 Mode Selection Switch	SSW4
AO10 Mode Selection Switch	SSW1
AO11 Mode Selection Switch	SSW2
Input Function Parameters	Pr.14-00 / Pr.14-01
Input Mode Parameters	Pr.14-18 / Pr.14-19
Output Function Parameters	Pr.14-12 / Pr.14-13
Output Mode Parameters	Pr.14-36 / Pr.14-37
Analog Frequency Reference	Available Through Configured Analog Input Channels
Analog Monitoring Output	Available Through Configured Analog Output Channels
Mode Selection	Individual Voltage / Current Switches
POWER Indicator	Included
Drive Connection	Internal Drive Option Connector
Wiring Terminals	Removable Screw Terminal Block
Terminal Wire Gauge	0.2-4 mm² / 24-12 AWG (Applicable Manual)
Terminal Tightening Torque	0.5 N·m (Applicable Manual)
Mounting	Compatible Delta AC Drive Option Card Position
CANopen Communication	Not Included
Ethernet / EtherCAT Communication	Not Included
Standalone Controller	No - VFD Analog I/O Accessory

Product Overview

The Delta EMC-A22A is an analog input and output extension card designed for compatible Delta AC motor drives, including the C2000, CP2000 and CH2000 Series. The card adds two analog input channels and two analog output channels (2AI + 2AO) for industrial frequency control and signal monitoring. Each supported analog channel can be configured for voltage or current signals, with 0-10V, 0-20mA and 4-20mA operating ranges. Onboard selection switches allow the input and output channels to be configured individually. Analog I/O functions and signal modes can be configured through the corresponding drive parameters. The module features an internal drive connector, removable screw terminal block and POWER indicator. The EMC-A22A is an analog I/O accessory, not a CANopen communication card.

Key Product Features

Two analog inputs and two analog outputs for compatible Delta AC motor drives
Selectable 0-10V signals for analog voltage input and output applications
0-20mA and 4-20mA support for configurable analog current signals
Four onboard mode selection switches for individual input and output channels
Documented C2000, CP2000 and CH2000 drive compatibility, subject to exact drive configuration
Drive parameter configuration for analog input/output functions and signal modes
Internal drive connector and screw terminals for integration with a compatible VFD option-card position

Actual Product Verification

✓ Actual product photos

✓ Product model label visible: EMC-A22A

✓ Packaging shown with matching EMC-A22A model label

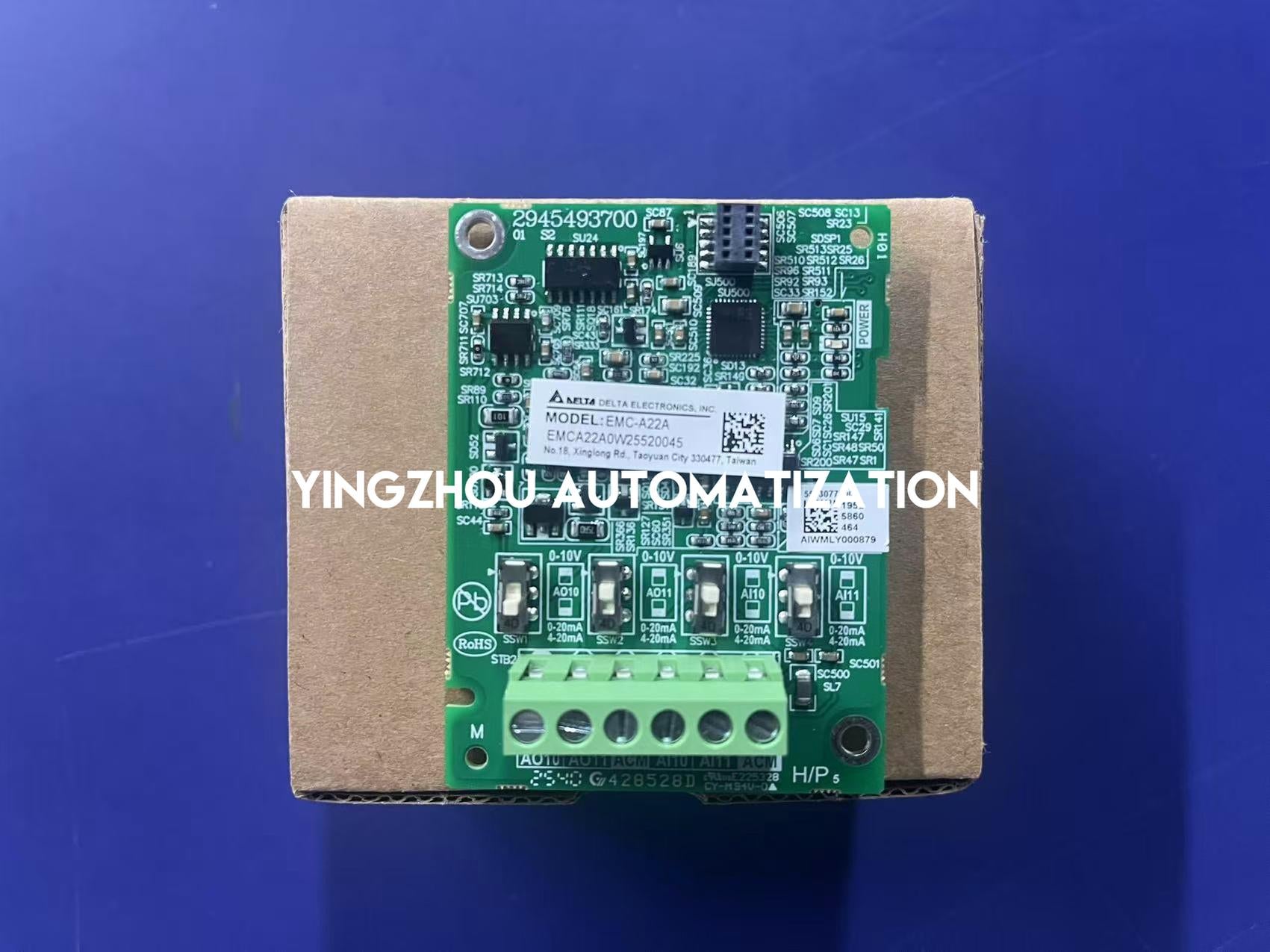

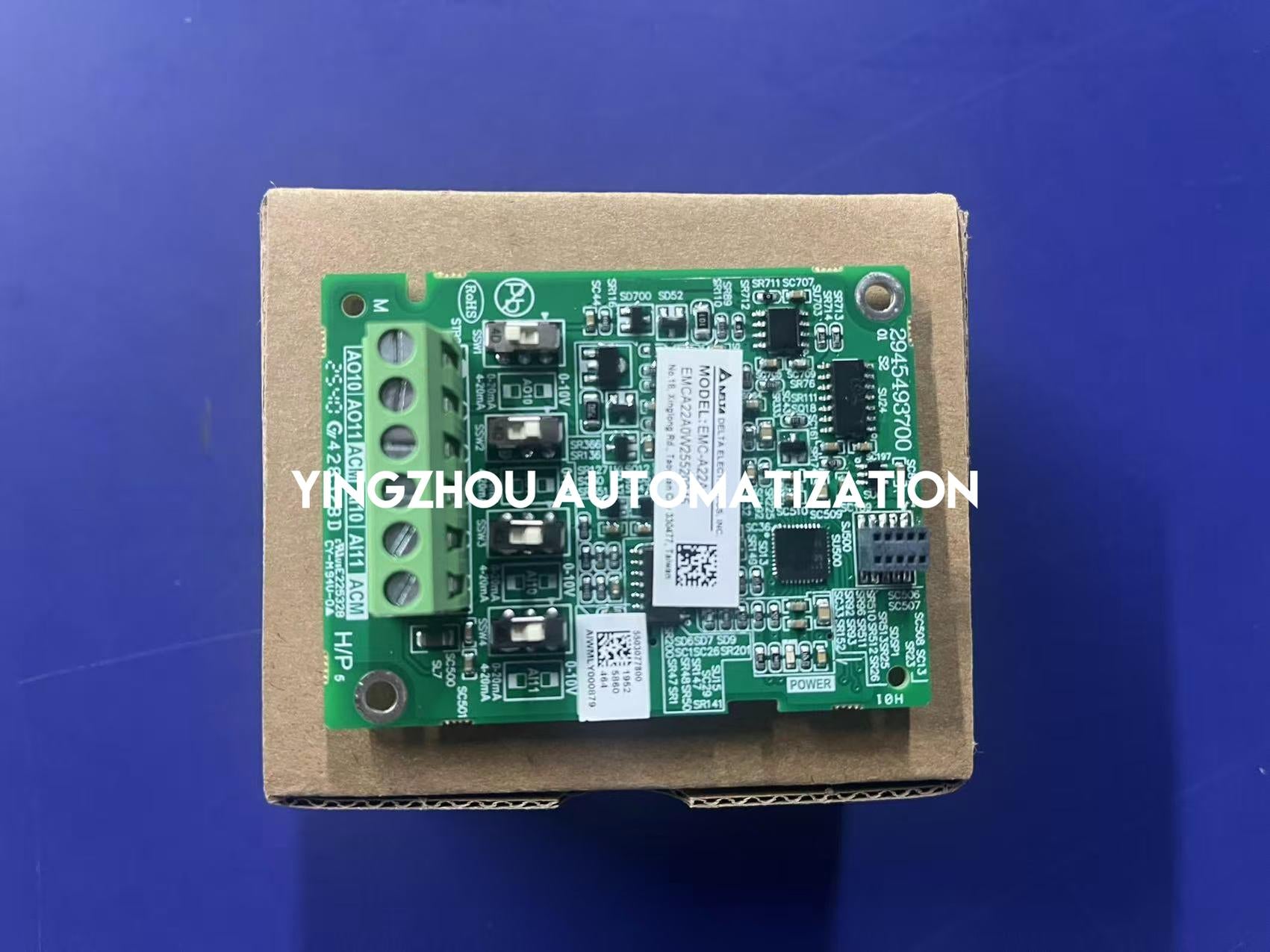

✓ AI10 / AI11 and AO10 / AO11 analog terminal markings visible

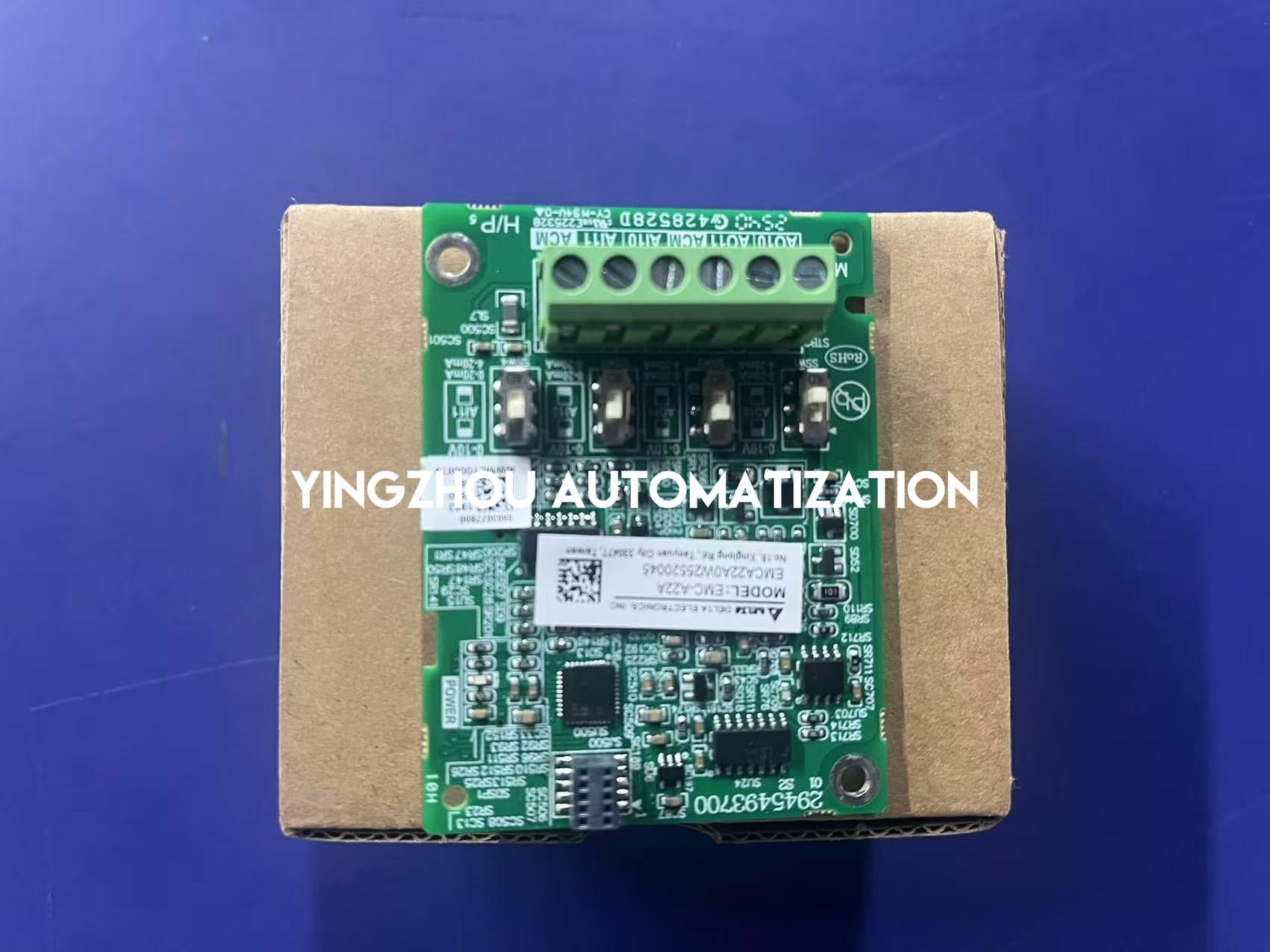

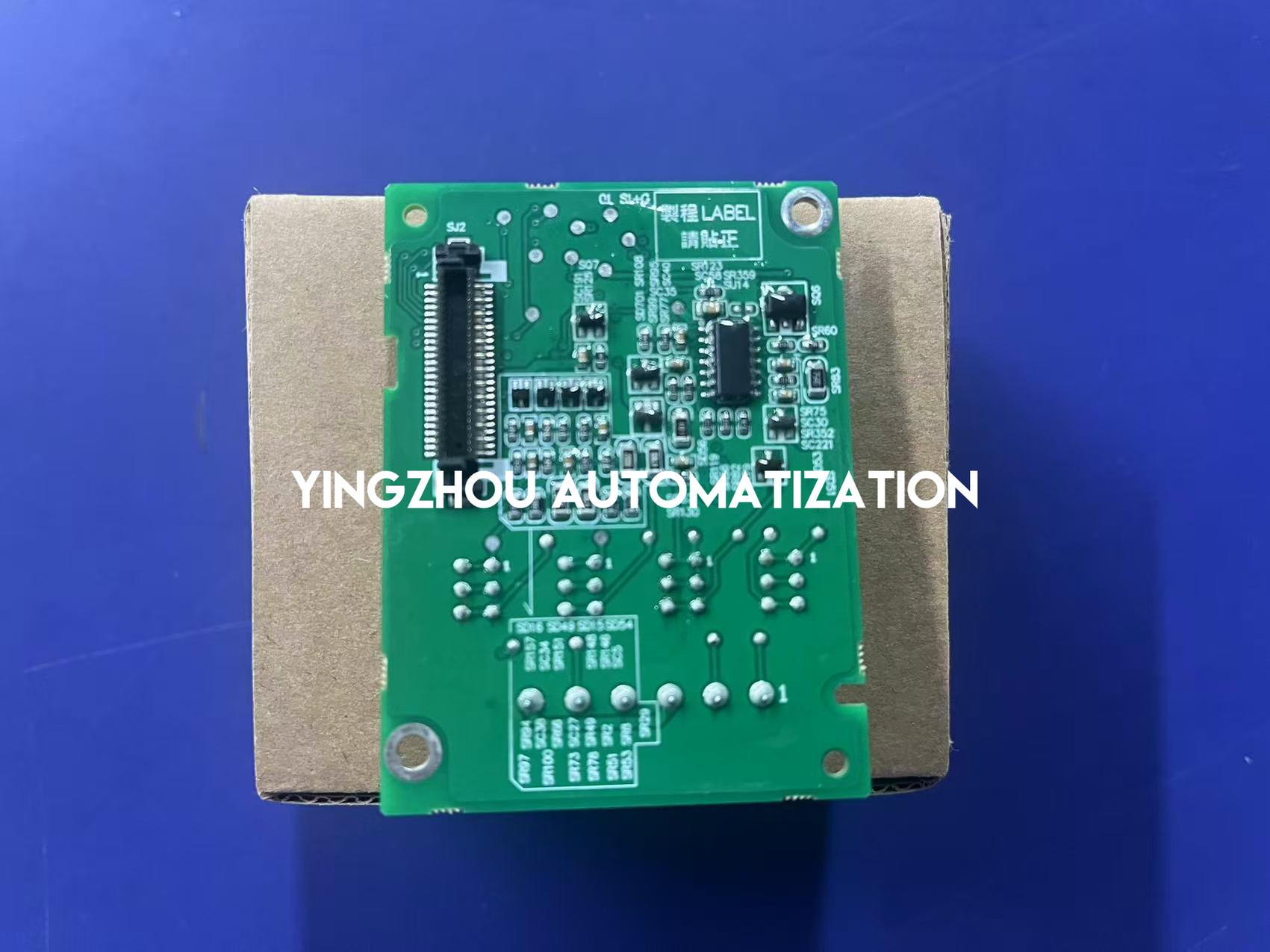

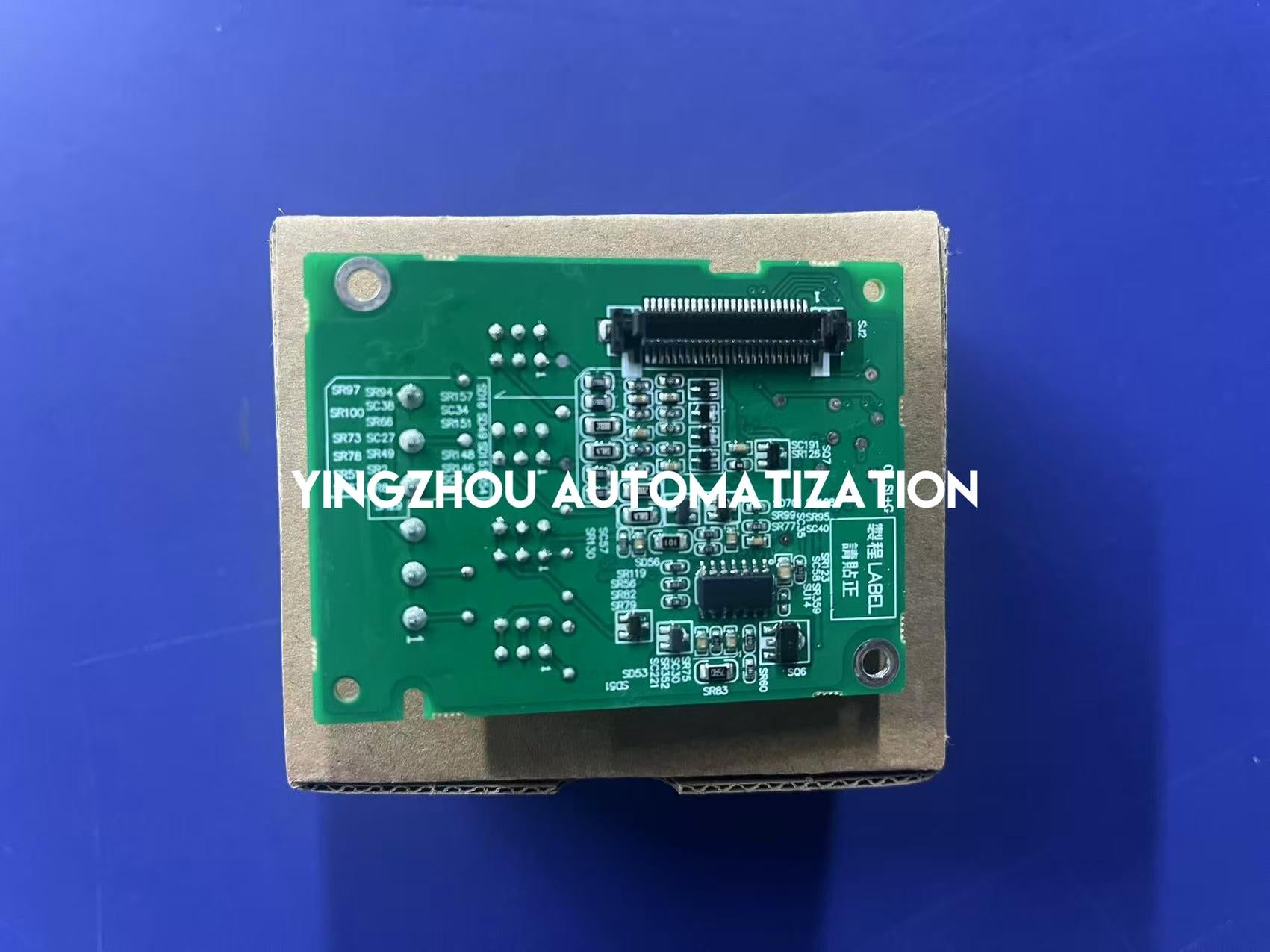

✓ Onboard signal selection switches and drive connector shown

✓ Verify exact model, compatible drive and analog signal configuration before ordering

In Stock & Ready to Order

Delta EMC-A22A is currently in stock. Actual product and packaging photos are available for buyer reference. Please confirm the exact model, compatible Delta VFD series, required 2AI / 2AO channel configuration, voltage or current signal ranges, mounting position and drive parameter settings before ordering.

IN STOCK
