Performance Overview

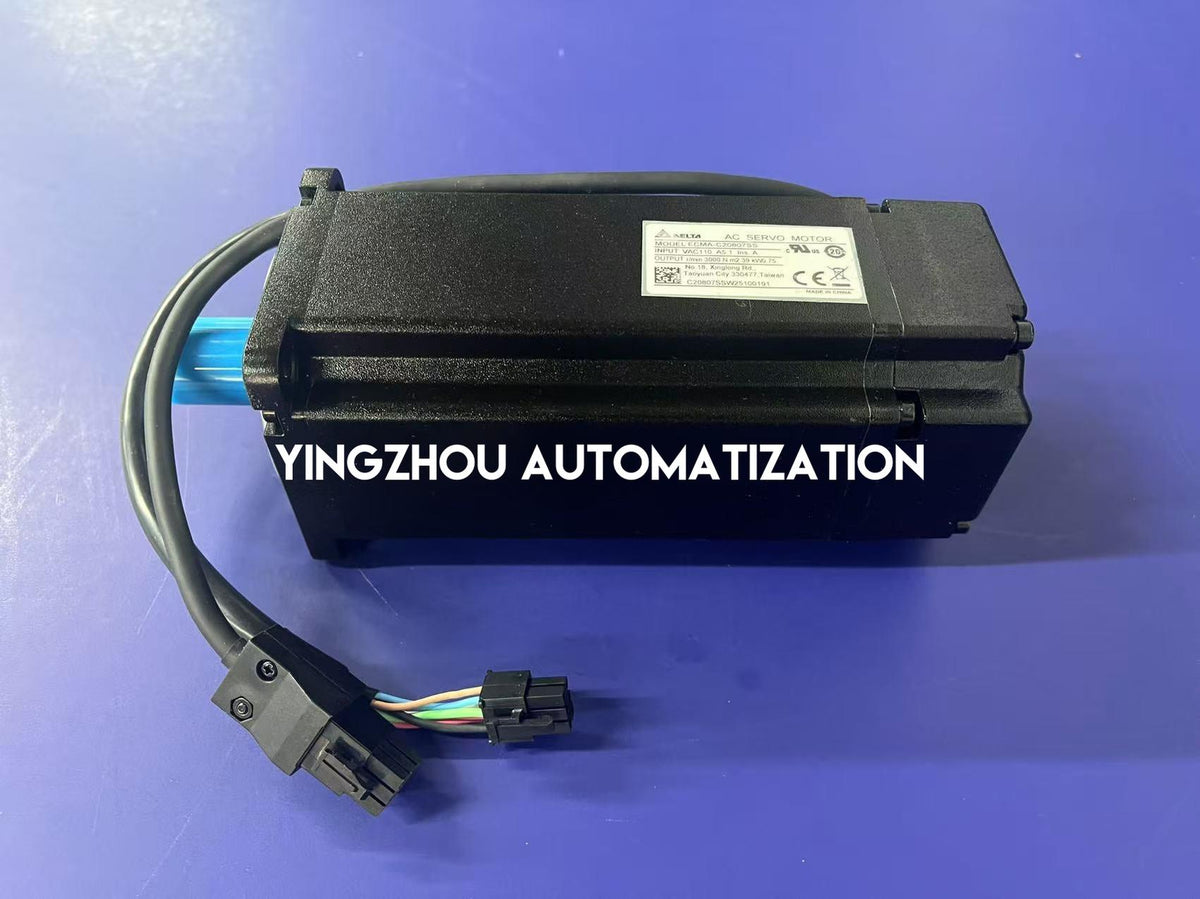

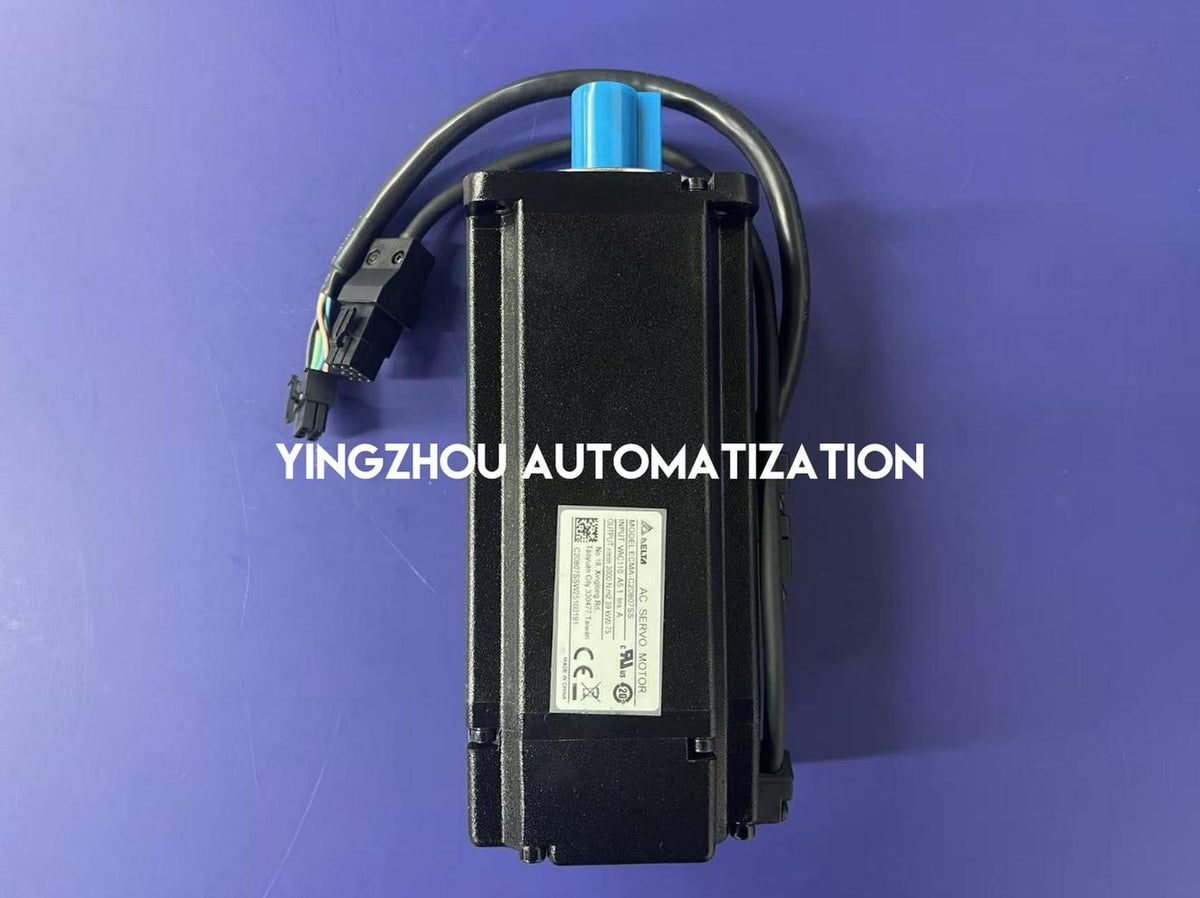

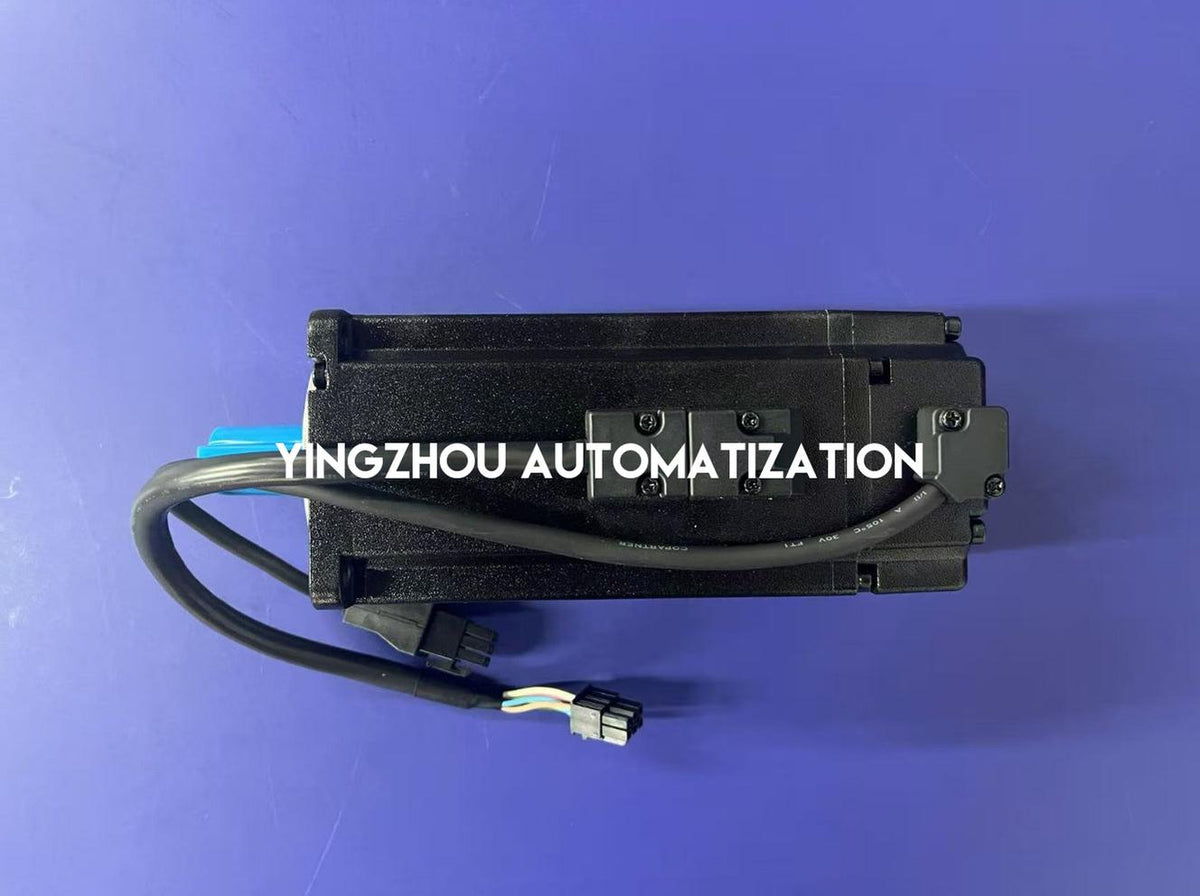

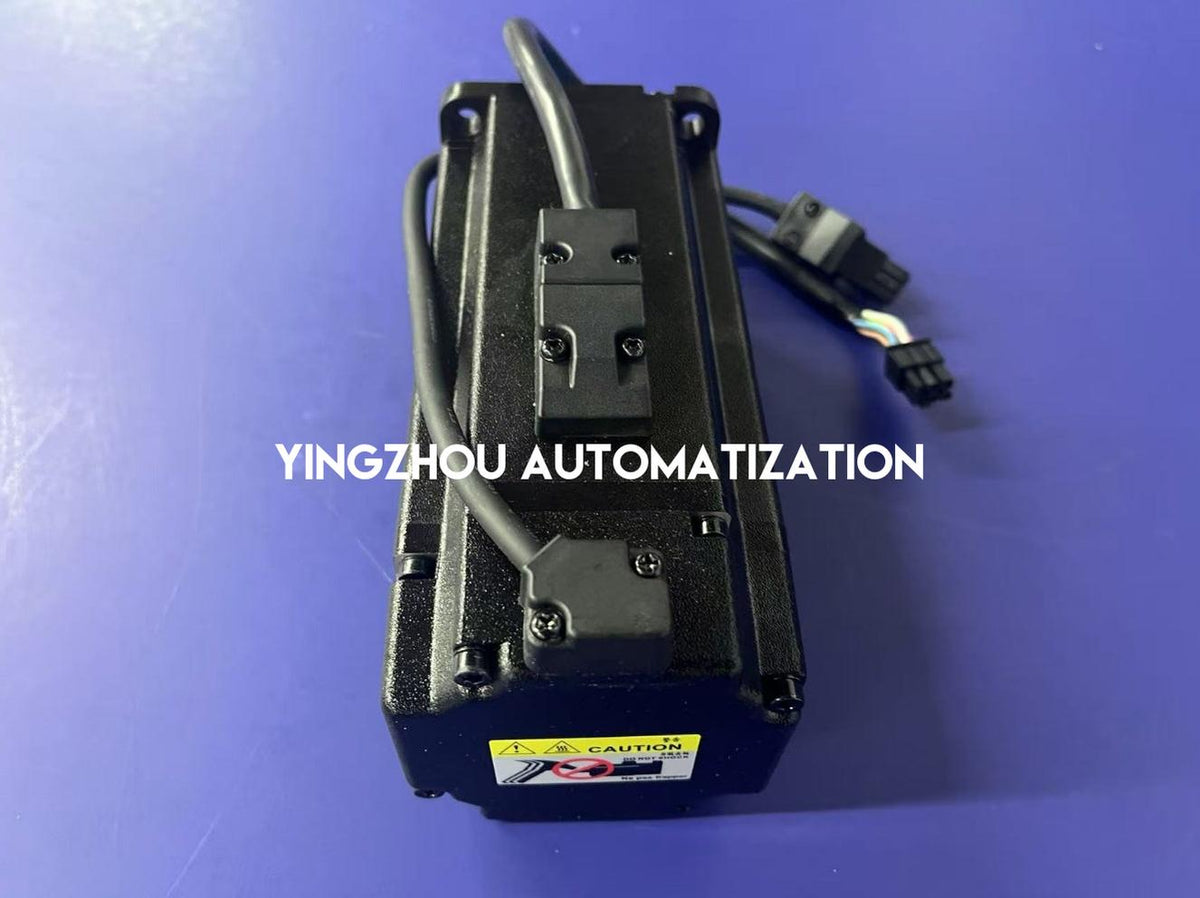

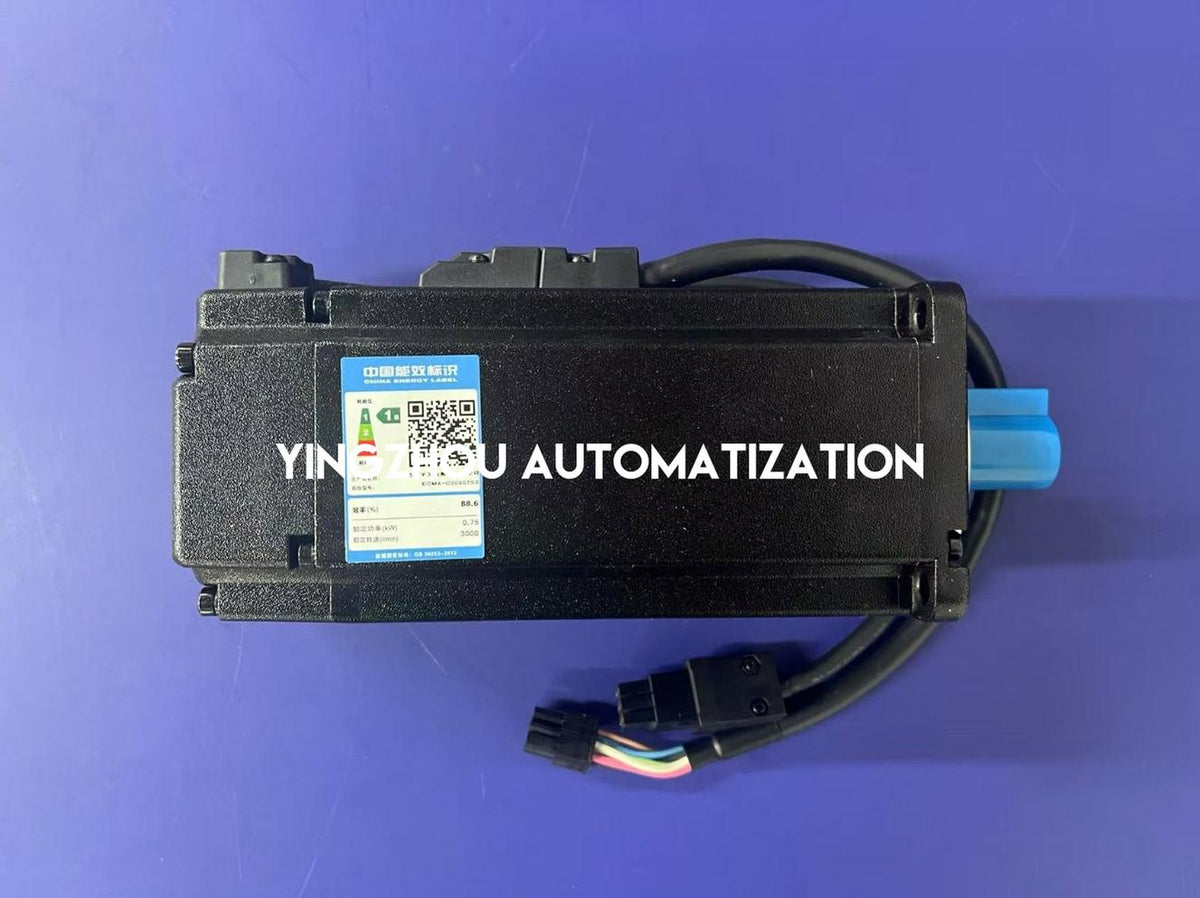

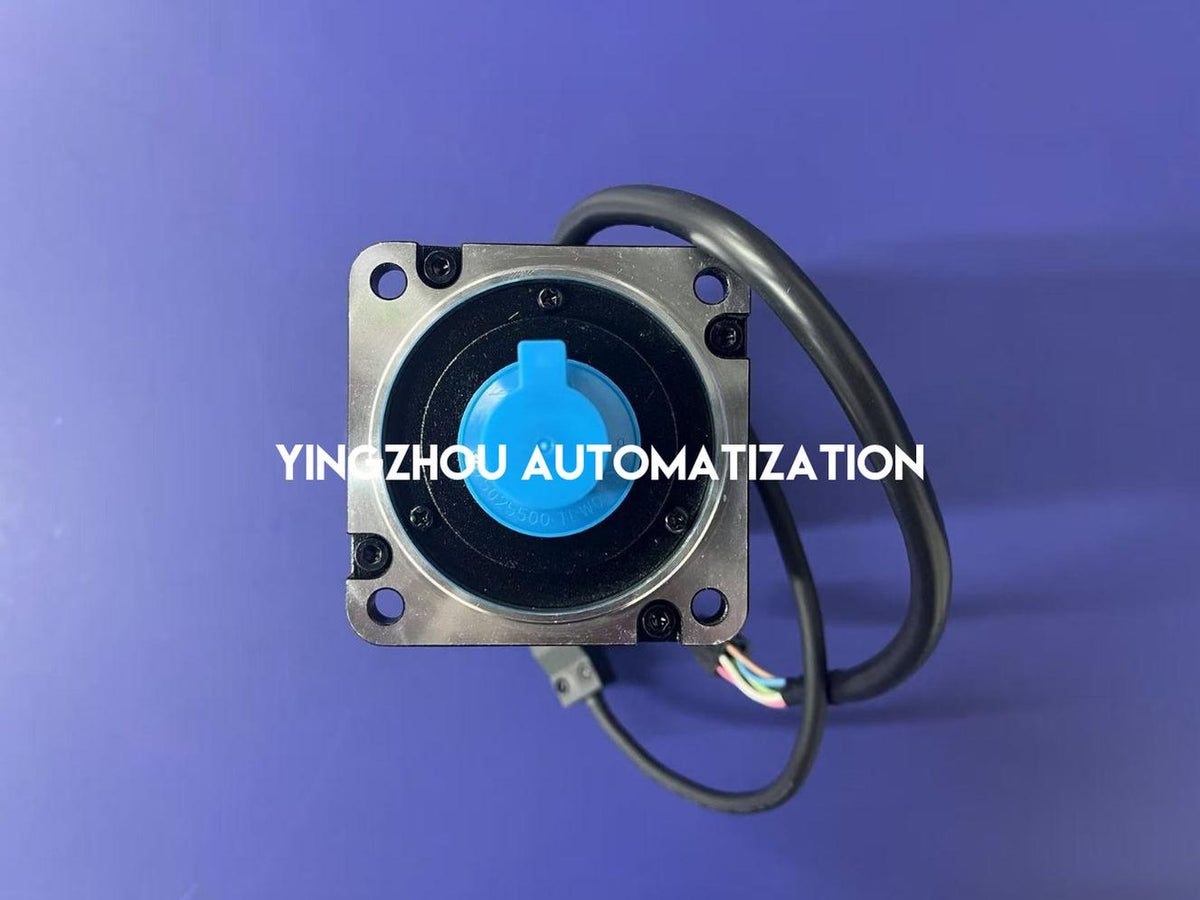

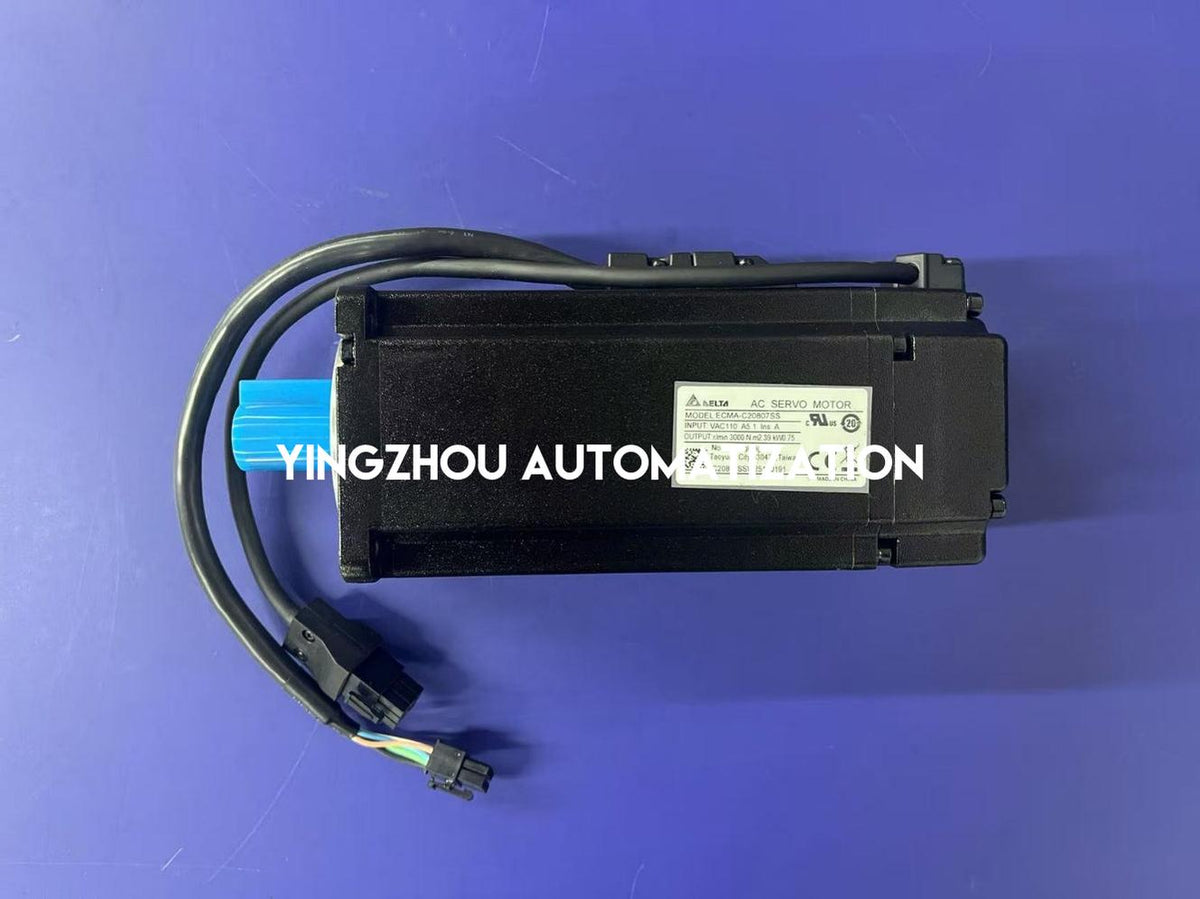

The Delta ECMA-C20807SS is a premium 800W industrial high-inertia AC servo motor meticulously optimized for the foundational ASDA-B2 drive platform. Featuring a compact 80mm square flange configuration, this robust motor produces a stable rated speed of 3000 RPM to execute rapid mechanical movements with smooth velocity curves. It incorporates an integrated 17-bit high-resolution incremental optical encoder that translates over 160,000 feedback pulses per rotation, guaranteeing exceptional position tracking accuracy. Outfitted with a specialized straight-shaft oil-seal layout to minimize liquid ingress, this dynamic motor handles demanding high-friction loading demands effortlessly while ensuring structural alignment and long-term operational uptime.
📋 Critical Application Check
-
Industry: Mechanical Feed Systems, Flying Cut-off Shears, Industrial Cartesian Robotics, Heavy-duty Material Conveying Arrays, CNC Milling Axis Units.
-
High Inertia Mastery: Specifically designed to neutralize high mechanical load resonance, suppressing torque disturbances and positional overshoot under sudden load shifts.
-
Environment Seal: The standard structural oil-seal framework shields the copper windings and optical encoder arrays against splash lubrication mist and minor environmental debris.
Delta Motion Control Integration:
