Delta DVW-W01I2-E1 Industrial Wireless AP Client Gateway IEEE 802.11ac 867Mbps Gigabit Ethernet RS232 RS485 Modbus

Name: Delta DVW-W01I2-E1 Industrial Wireless AP Client Gateway IEEE 802.11ac 867Mbps Gigabit Ethernet RS232 RS485 Modbus
Brand: Delta
SKU: DVW-W01I2-E1
Price: 399.99 USD
Availability: InStock

Delta DVW-W01I2-E1 Industrial Wireless AP Client Gateway IEEE 802.11ac 867Mbps Gigabit Ethernet RS232 RS485 Modbus

$399.99 USD

Sale Sold out

Model Number DVW-W01I2-E1

Product variants

Quantity

YingZhou Industrial Automation | Product Information

Delta DVW-W01I2-E1 Industrial Wireless AP / Client / Gateway

IEEE 802.11ac | 2.4/5GHz | Gigabit LAN | RS-232 / RS-485 | Modbus Gateway

✓ IN STOCK & READY TO ORDER | Exact Model: DVW-W01I2-E1 | Actual Product Photos

Specification	Product Data
Brand	Delta Electronics
Exact Model	DVW-W01I2-E1
Product Type	Industrial Wireless AP / Client / Gateway
Wireless Standards	IEEE 802.11 a/b/g/n/ac
Wireless Frequency Bands	2.4GHz / 5GHz
Wireless Modes	Access Point / Client
Wireless MIMO Configuration	2 x 2 MIMO / 2T2R
802.11ac Maximum Link Rate	Up to 867Mbps
802.11n Maximum Link Rate	Up to 300Mbps
Industrial Roaming	Delta ONE ROAMING
Wireless Quality of Service	IEEE 802.11e / WMM
Wireless Security	WPA-PSK / WPA2-PSK, TKIP / AES
Antenna Connection	2 x RP-SMA, Manufacturer Specification
Ethernet Interface	1 x RJ45 Gigabit LAN
Ethernet Speed	10/100/1000Mbps
Ethernet Auto Negotiation	Supported
Ethernet Auto MDI/MDI-X	Supported
RS-232 Serial Port	1 x 5-Pin Terminal Block
RS-485 Serial Port	1 x 3-Pin Terminal Block
Serial Port Isolation	2kV
Serial Baud Rate	2400 to 115200bps
Serial Data Bits	7 / 8
Serial Parity	None / Even / Odd
Serial Stop Bits	1 / 2
RS-232 Flow Control	RTS / CTS
RS-232 Terminal Signals	RX / TX / SG / RTS / CTS
RS-485 Terminal Signals	D+ / D- / SG
Serial Device Server Function	2 Serial Ports to Ethernet
Modbus Gateway Function	Modbus ASCII / RTU to Modbus TCP
Digital Input	1 Set
Digital Input OFF Voltage	0 to 5VDC
Digital Input ON Voltage	11 to 30VDC
Digital Input Maximum Current	6mA
Alarm Relay Output	1 Relay Output
Alarm Relay Contact Rating	1A at 24VDC
Power Input	Dual Redundant 12-48VDC
Overload Protection	Supported
Reverse Polarity Protection	Supported
Network Management	Web Browser / IEXplorer / Modbus TCP
Network Services	DHCP / BootP / SNTP / SNMP / Syslog
Housing Protection	IP40
Housing Material	PC Plastic
Dimensions (H x W x D)	110 x 28 x 75mm
Weight	198g
Mounting Method	DIN Rail / Wall Mount
Operating Temperature	-10°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% RH, Non-Condensing

Product Overview

The Delta DVW-W01I2-E1 is an industrial wireless AP / Client / Gateway designed for wireless connectivity and serial device networking in industrial automation systems. It supports IEEE 802.11 a/b/g/n/ac wireless standards across the 2.4GHz and 5GHz frequency bands, with 2 x 2 MIMO technology and a maximum 802.11ac wireless link rate of 867Mbps. The unit features one 10/100/1000Mbps Gigabit Ethernet RJ45 port, one RS-232 serial port and one RS-485 serial port. Its integrated serial device server and Modbus ASCII / RTU to Modbus TCP gateway functions support compatible industrial equipment communication over wired or wireless networks. For industrial installation, it provides dual redundant 12-48VDC power inputs, an IP40 enclosure and DIN-rail or wall-mounting options.

Key Product Features

Industrial dual-band wireless networking with IEEE 802.11 a/b/g/n/ac support across 2.4GHz and 5GHz bands
Access Point and Client operation for supported industrial wireless network configurations
2 x 2 MIMO and up to 867Mbps 802.11ac link rate for compatible wireless applications
One Gigabit Ethernet RJ45 interface supporting 10/100/1000Mbps wired connectivity
RS-232 and RS-485 serial communication ports with device server functionality
Built-in Modbus ASCII / RTU to Modbus TCP gateway for compatible serial industrial devices
Dual redundant 12-48VDC power inputs, IP40 enclosure and DIN-rail / wall-mount installation

Actual Product Verification

✓ Actual product photos

✓ Product model/nameplate visible: DVW-W01I2-E1

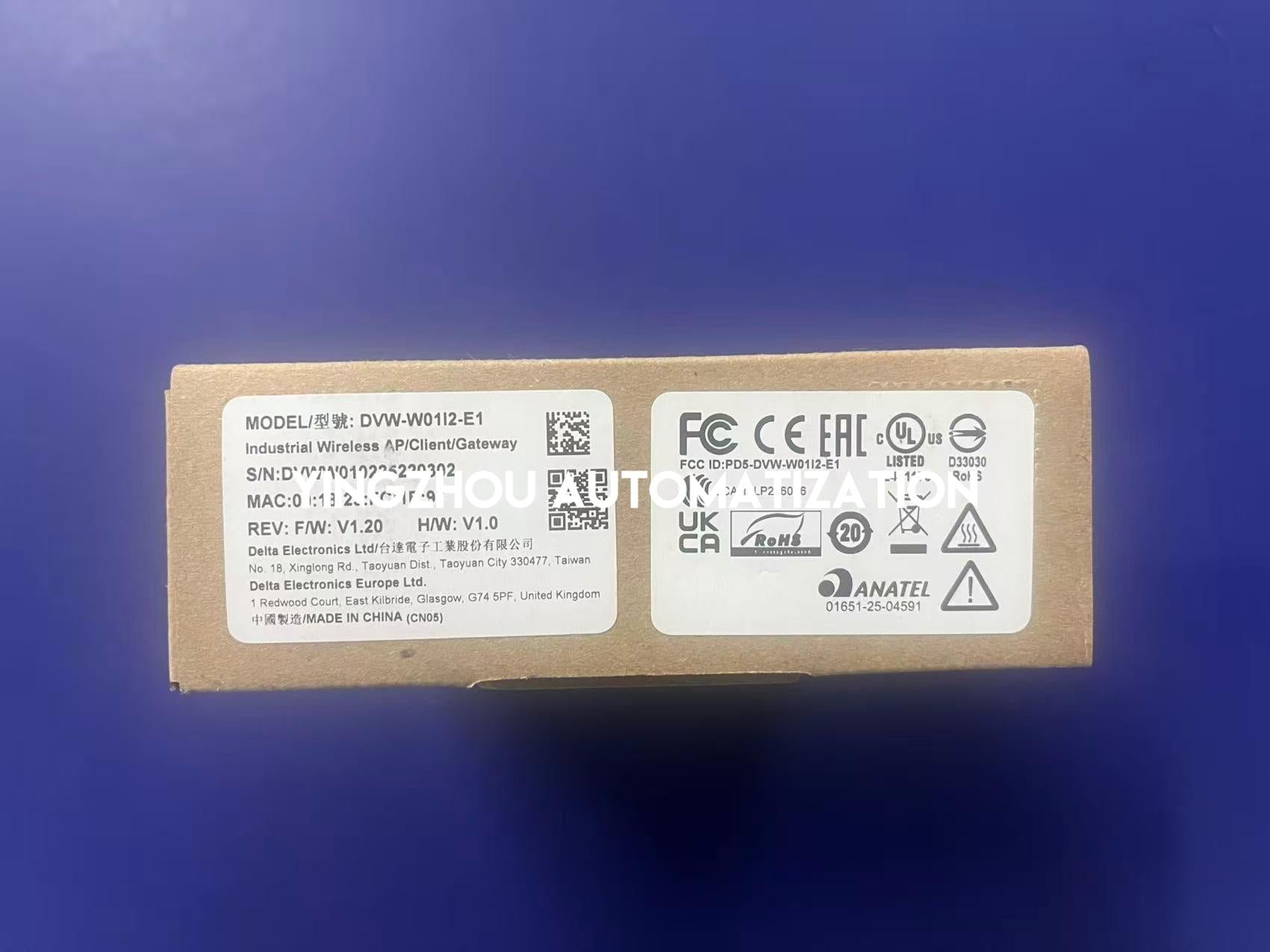

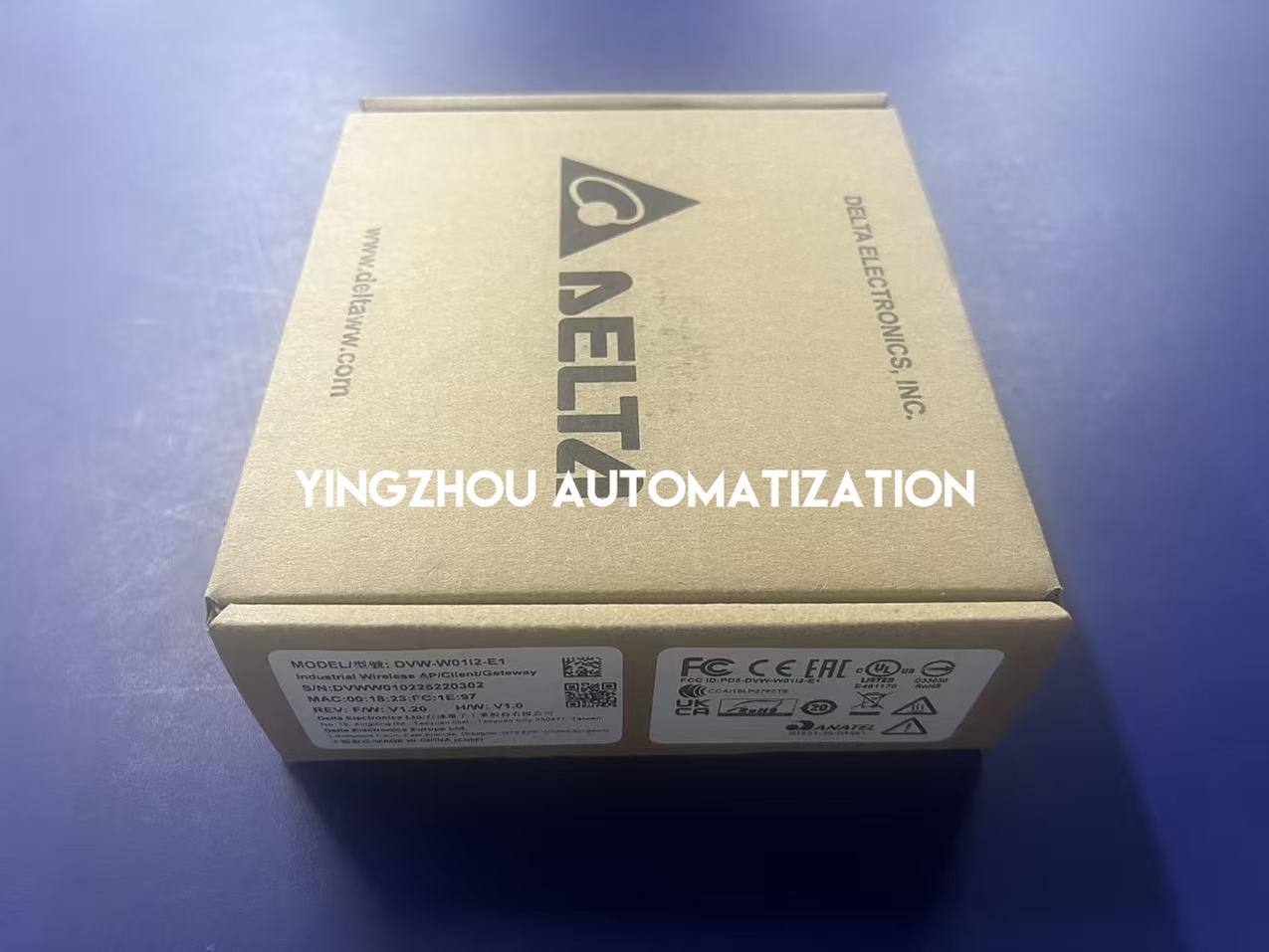

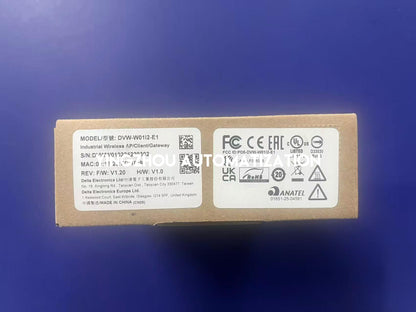

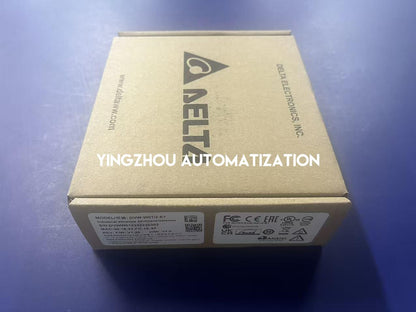

✓ Packaging shown with matching DVW-W01I2-E1 model identification

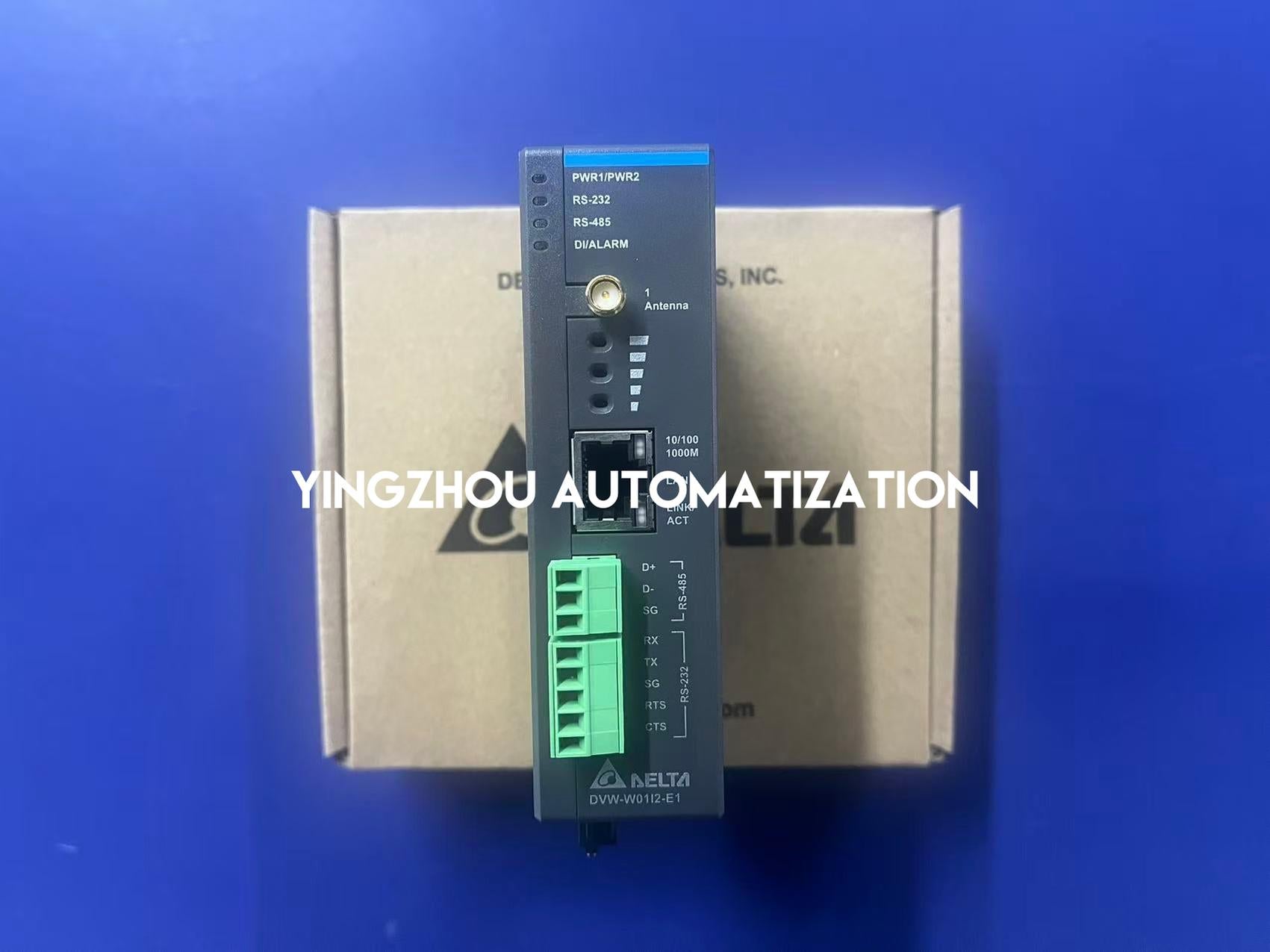

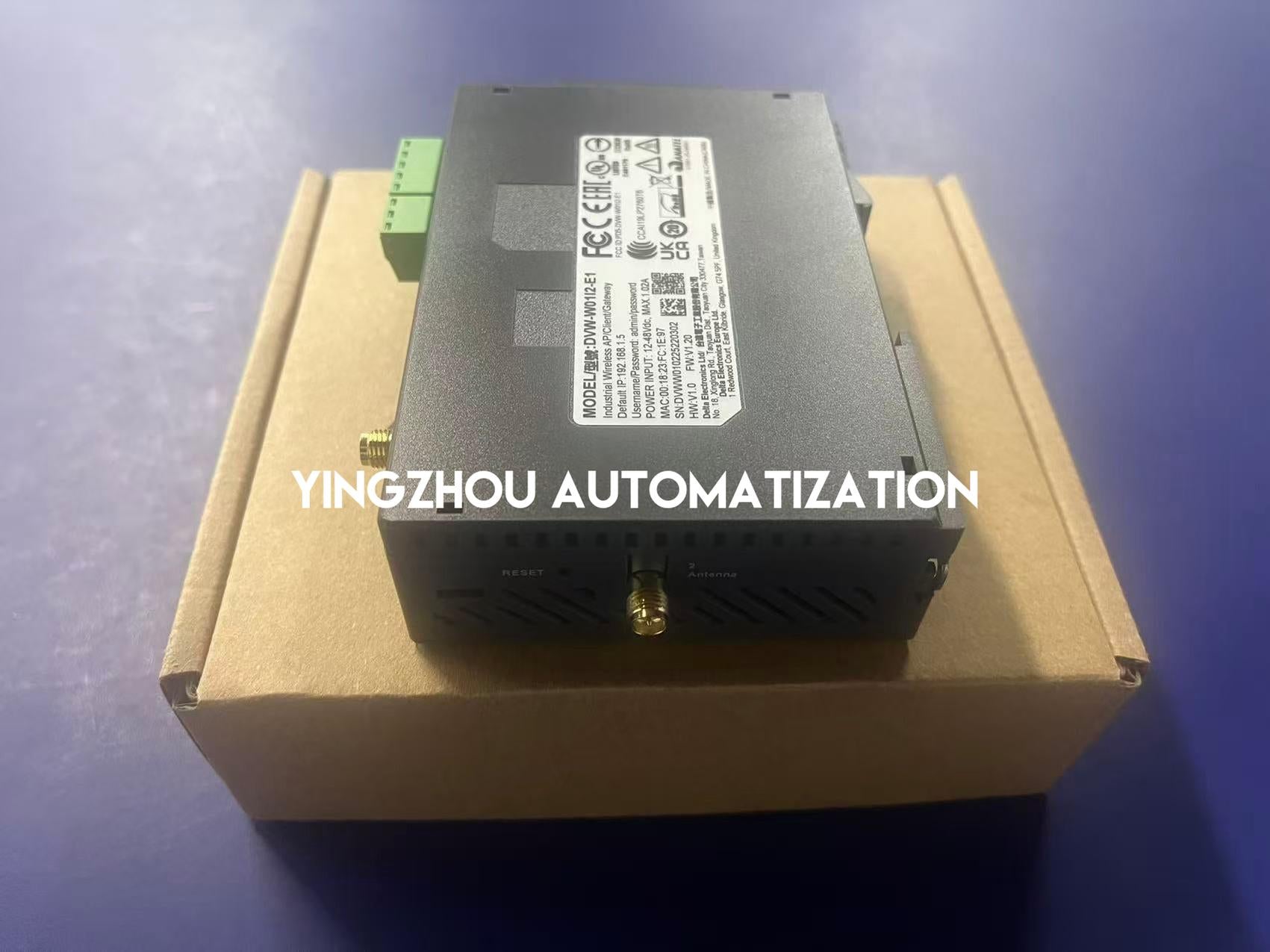

✓ Gigabit LAN, RS-232, RS-485 and antenna connection areas shown

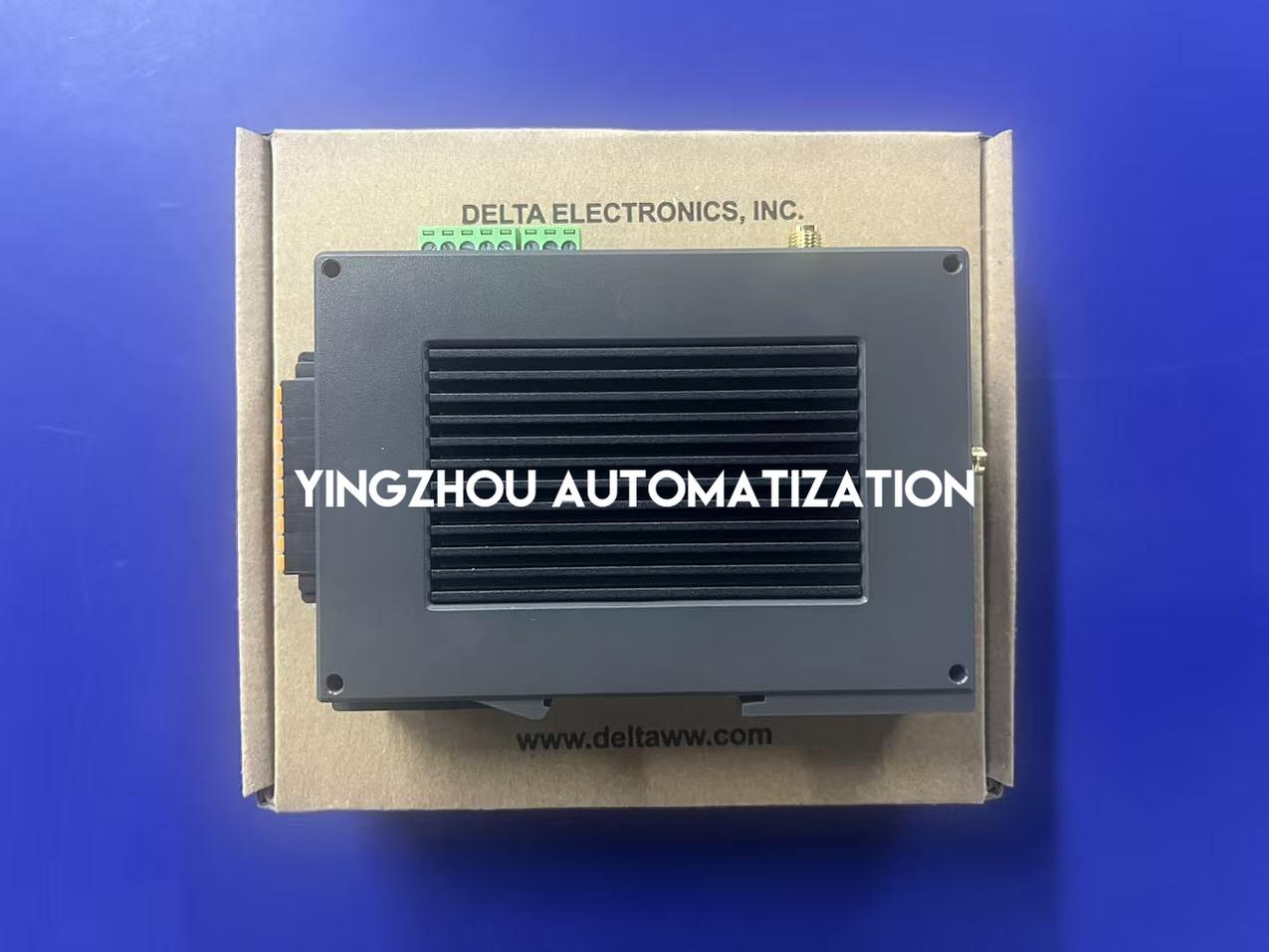

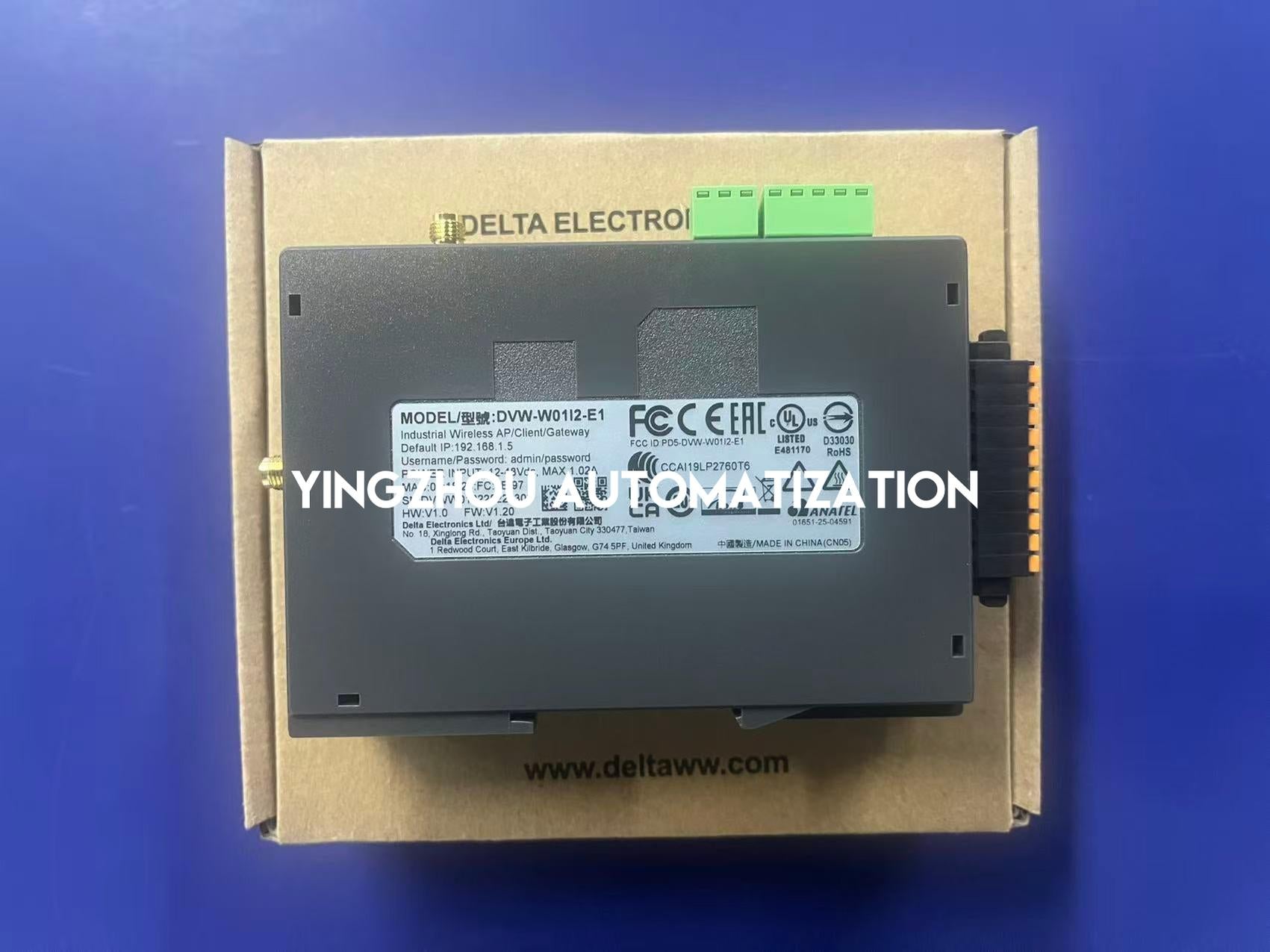

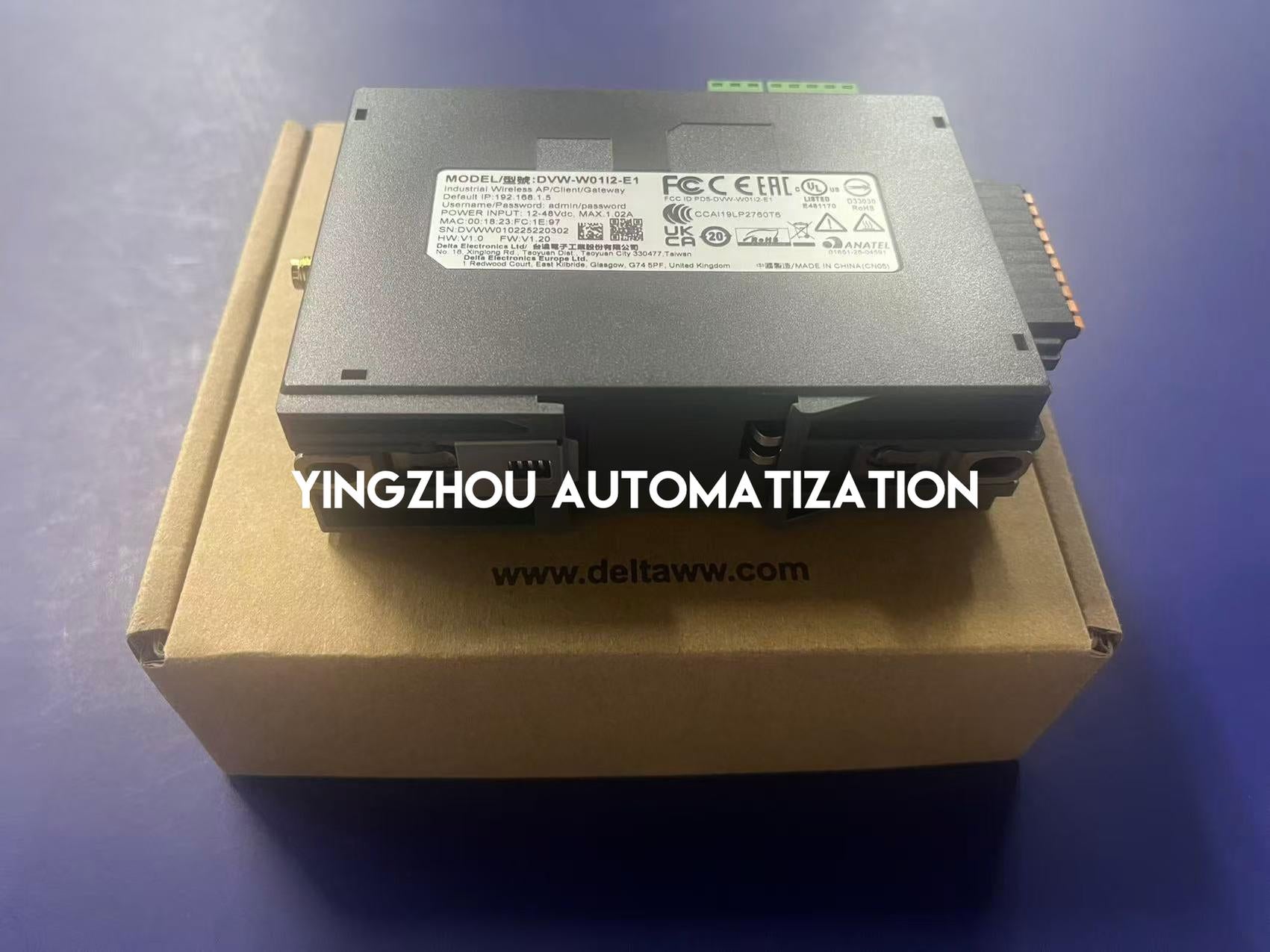

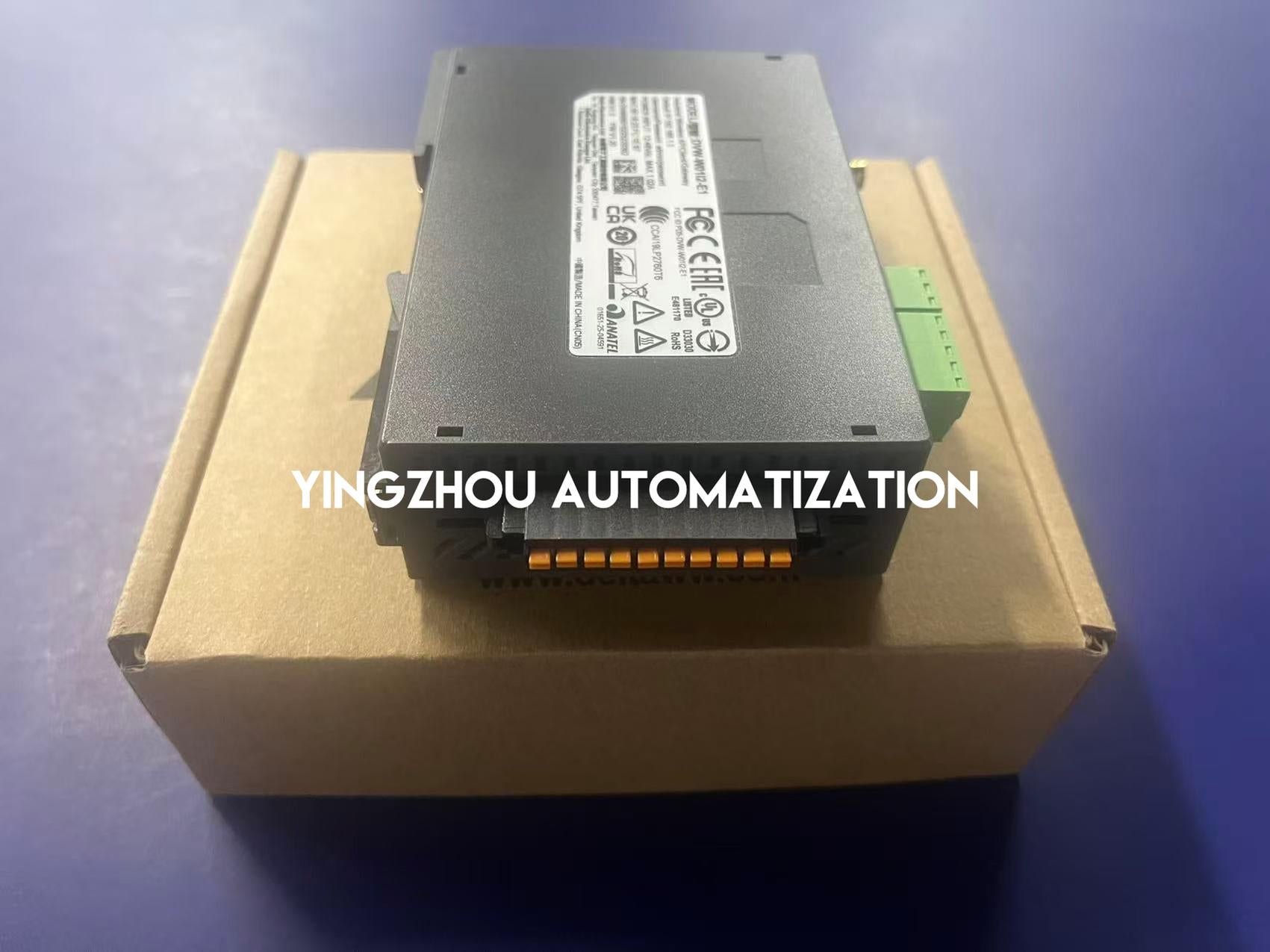

✓ Device housing, front-panel indicators and rear product information label shown

✓ Verify the exact model, power supply, wireless frequency requirements, antenna accessories and serial interface before ordering

In Stock & Ready to Order

Delta DVW-W01I2-E1 is currently in stock. Actual product, model label and packaging photos are available for buyer reference. Please confirm the exact model, 12-48VDC power requirements, supported wireless frequency bands, AP or Client configuration, RS-232 / RS-485 interface needs and Modbus gateway application before ordering.
