Delta DTK4848R01 DTK Series PID Temperature Controller
48 × 48mm | PID Control | AC 100-240V | 250VAC 5A Relay | Single Alarm Output
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DTK4848R01 |
| Series |
DTK Series |
| Product Type |
Intelligent PID Temperature Controller |
| Front Panel Size |
48 × 48 mm |
| Panel Format |
1/16 DIN |
| Panel Cutout |
45 × 45 mm |
| Power Supply |
AC 100-240V ±10% |
| Power Frequency |
50/60Hz |
| Power Consumption |
5VA Max. |
| Sensor Input Channels |
1 |
| Thermocouple Inputs |
K, J, T, E, N, R, S, B, L, U, TXK |
| Platinum RTD Inputs |
Pt100 / JPt100 (3-Wire) |
| Additional Resistance Sensors |
Cu50 / Ni120 |
| Control Modes |
PID / ON-OFF / Manual |
| PID Auto-Tuning |
Supported |
| Control Output Quantity |
1 |
| Control Output Type |
Relay |
| Relay Control Output Rating |
250VAC / 5A Resistive Load |
| Alarm Output Quantity |
1 |
| Alarm Output Type |
Relay |
| Alarm Contact Rating |
250VAC / 3A Resistive Load |
| Alarm Modes |
9 Selectable Modes |
| Alarm Delay / Hold |
Configurable |
| Communication Interface |
None (R01 Configuration) |
| RS-485 / Modbus |
Not Included |
| Temperature Sampling Rate |
0.1 Second / 100 ms |
| Display Method |
PV / SV LCD Display |
| Process Value (PV) |
Red Display |
| Set Value (SV) |
Green Display |
| Temperature Units |
°C / °F Selectable |
| Display Decimal Position |
0 or 1 Decimal Digit |
| Heating / Cooling Selection |
Supported |
| Key Lock |
Supported |
| Front Panel Protection |
IP66 (Front Panel Only) |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +65°C |
| Operating Humidity |
35-80% RH, Non-Condensing |
| Maximum Operating Altitude |
2000 m |
| Vibration Resistance |
10-55Hz, 10m/s² |
| Shock Resistance |
Maximum 300m/s² |
Product Overview
The Delta DTK4848R01 is an
intelligent PID temperature controller
from Delta's DTK Series, featuring a
48 × 48 mm (1/16 DIN) front panel
and a 45 × 45 mm panel cutout.
It operates on AC 100-240V, 50/60Hz
with a maximum power consumption of 5VA.
The controller provides one
250VAC / 5A relay control output,
one 250VAC / 3A alarm relay output,
PID auto-tuning, and selectable ON/OFF and manual control.
It supports thermocouple and RTD sensor inputs
with a 100ms sampling rate.
The exact R01 configuration
does not include RS-485 communication.
Key Product Features
-
48 × 48 mm compact PID temperature controller with 45 × 45 mm cutout
-
AC 100-240V power supply with 5VA maximum consumption
-
250VAC / 5A relay main control output for resistive loads
-
One alarm relay output rated at 250VAC / 3A for resistive loads
-
Thermocouple and RTD inputs with 100ms sampling
-
PID / ON-OFF / Manual control with auto-tuning
-
IP66 front panel; R01 configuration without RS-485 communication
Actual Product Verification
✓

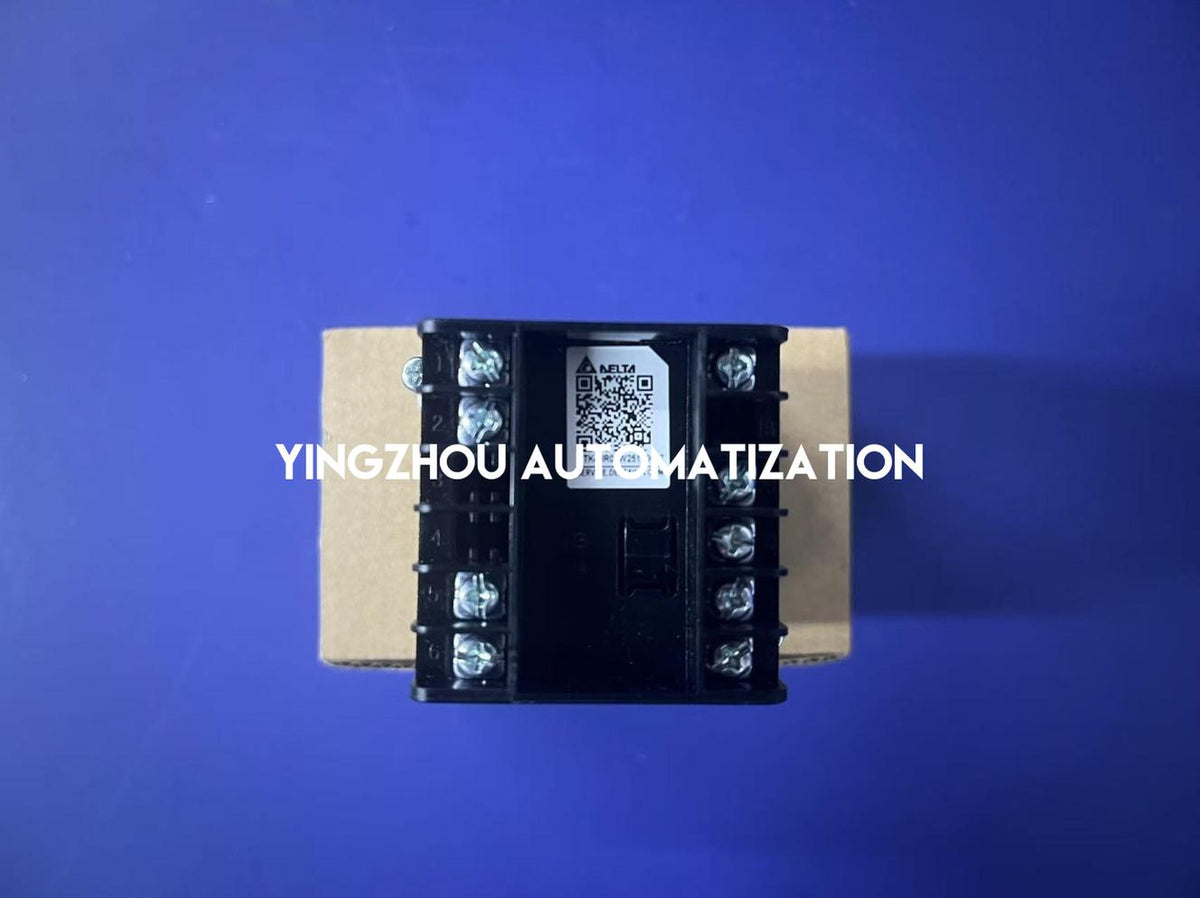

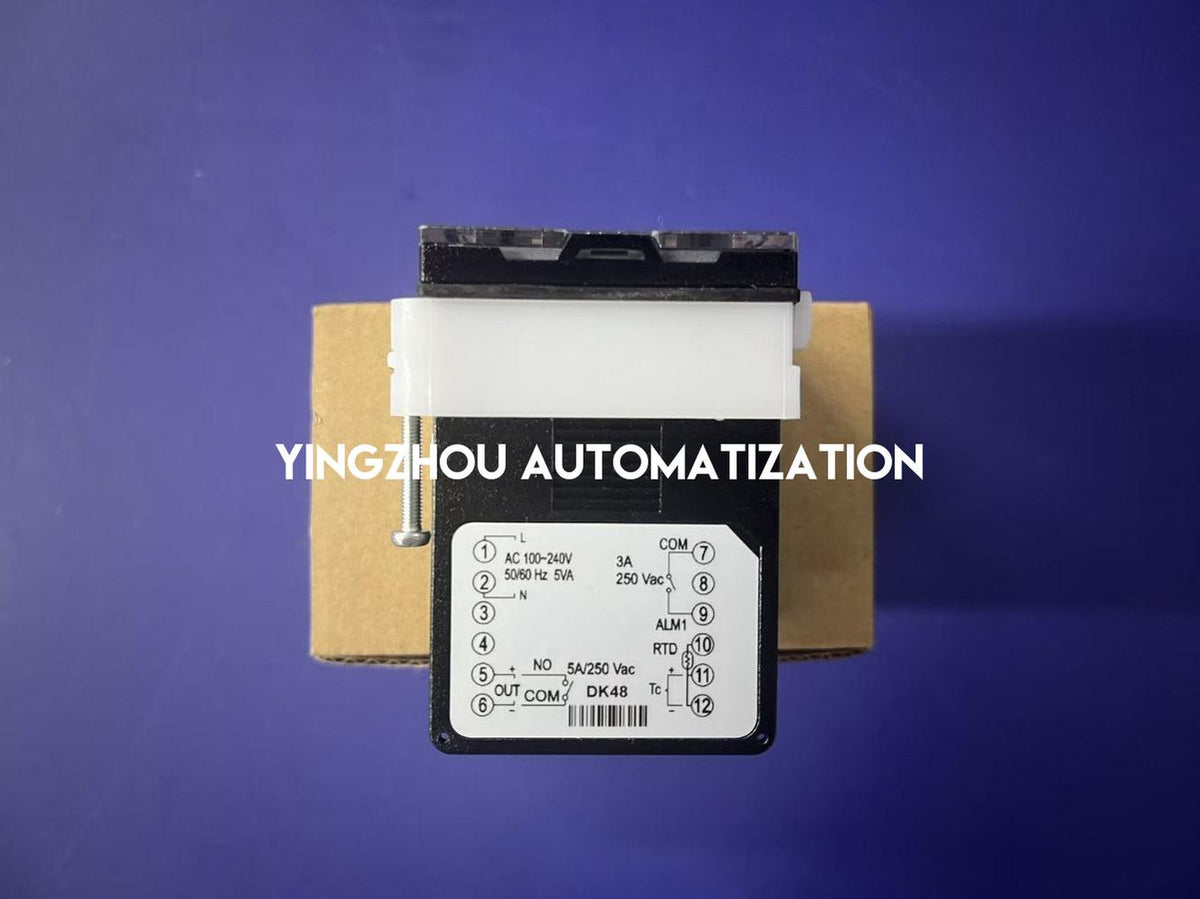

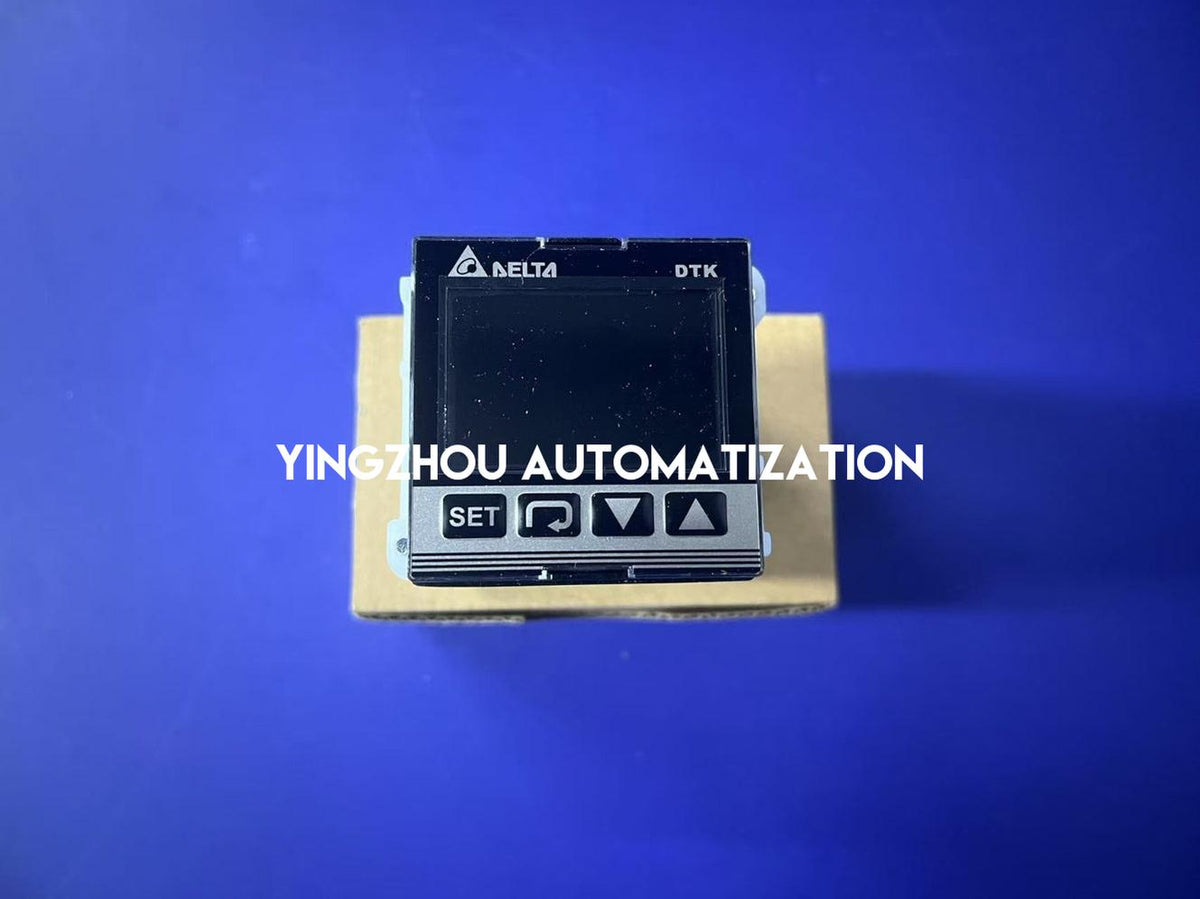

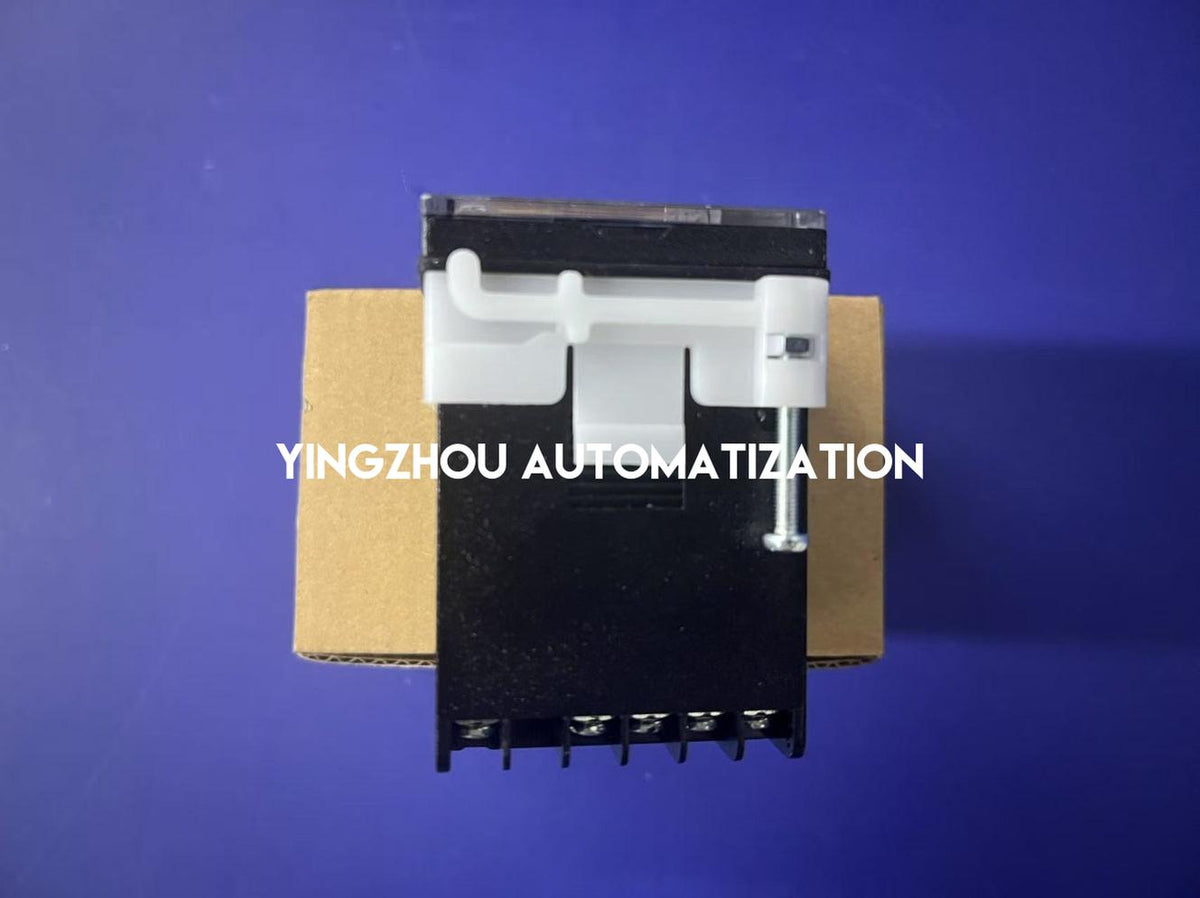

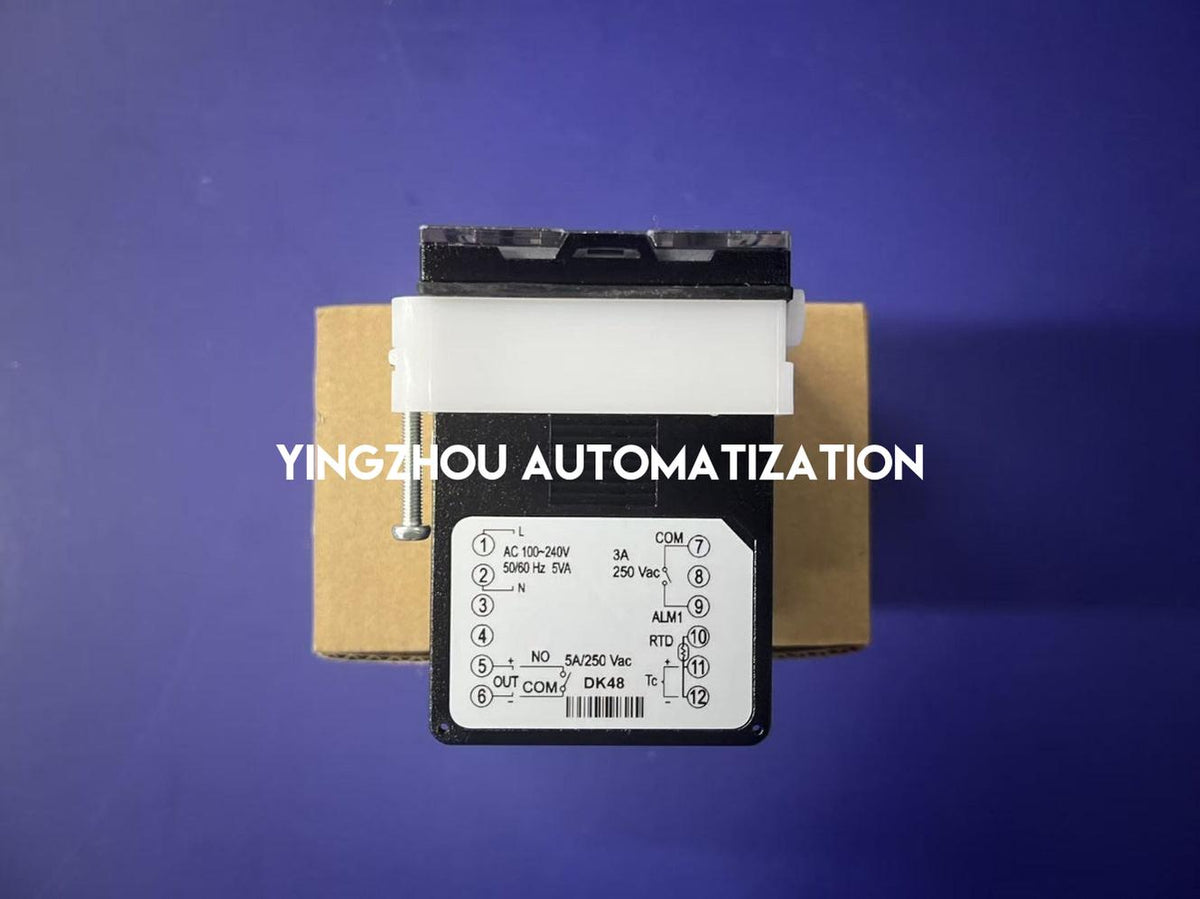

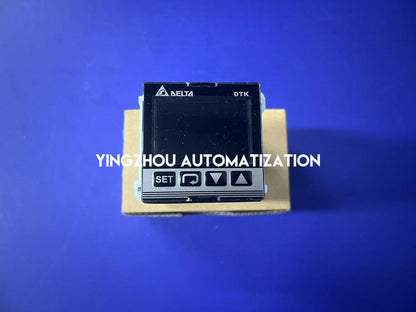

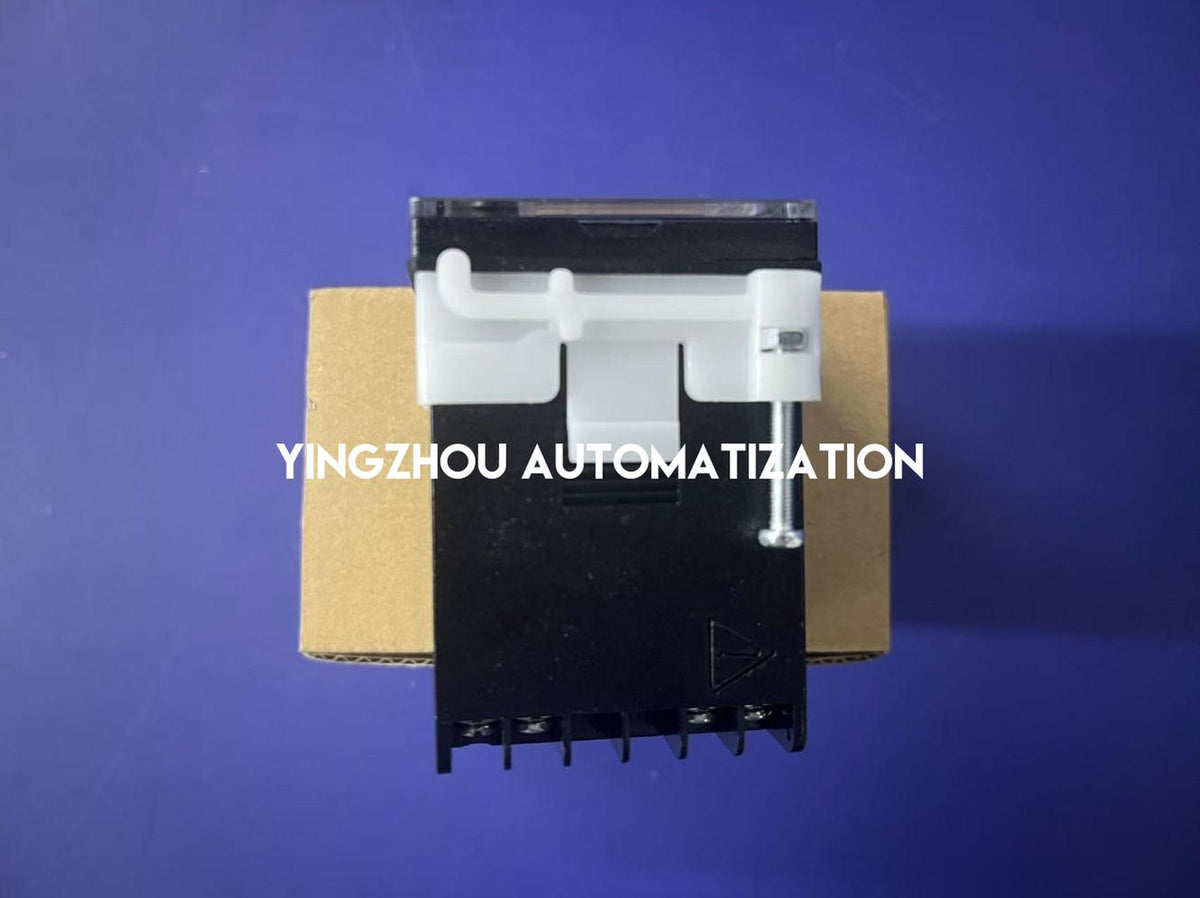

Actual product photos
✓

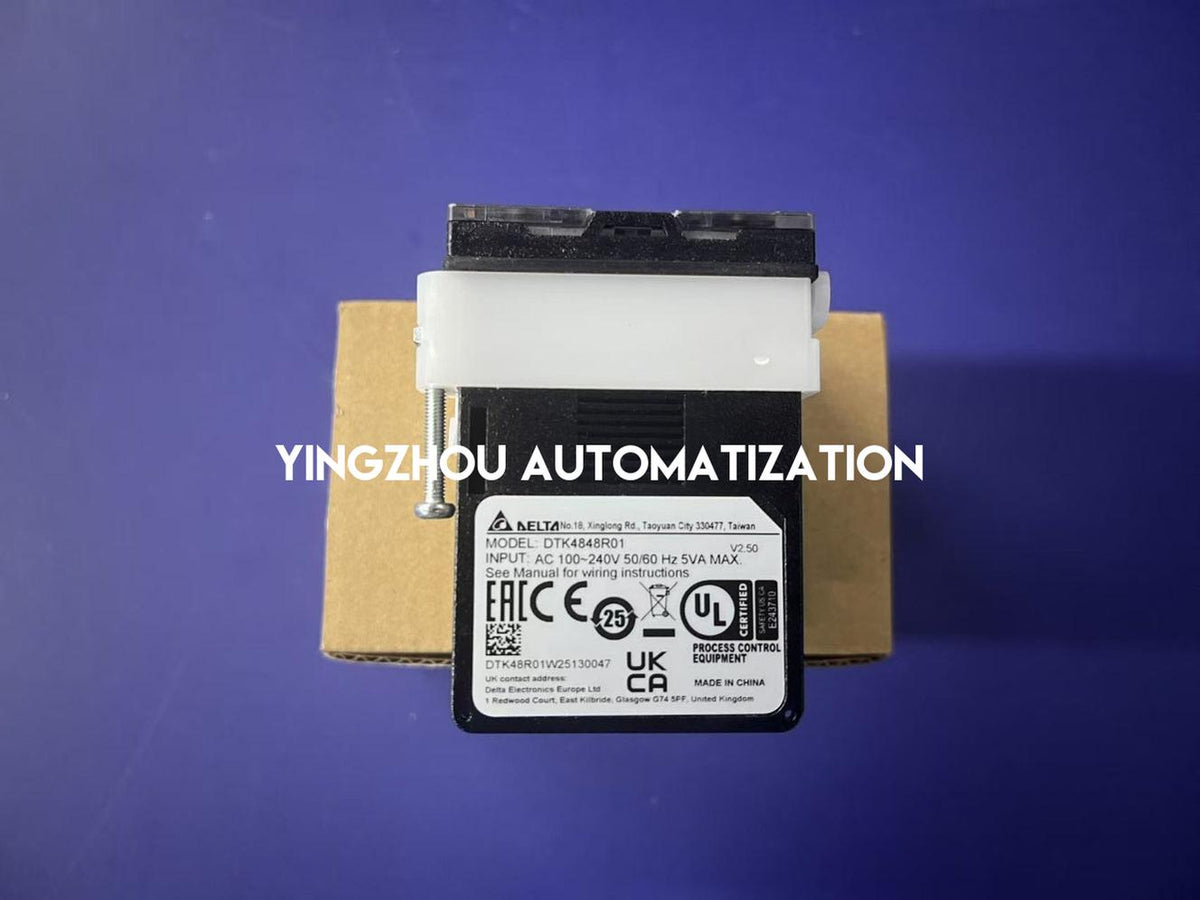

Model/nameplate visible: DTK4848R01
✓

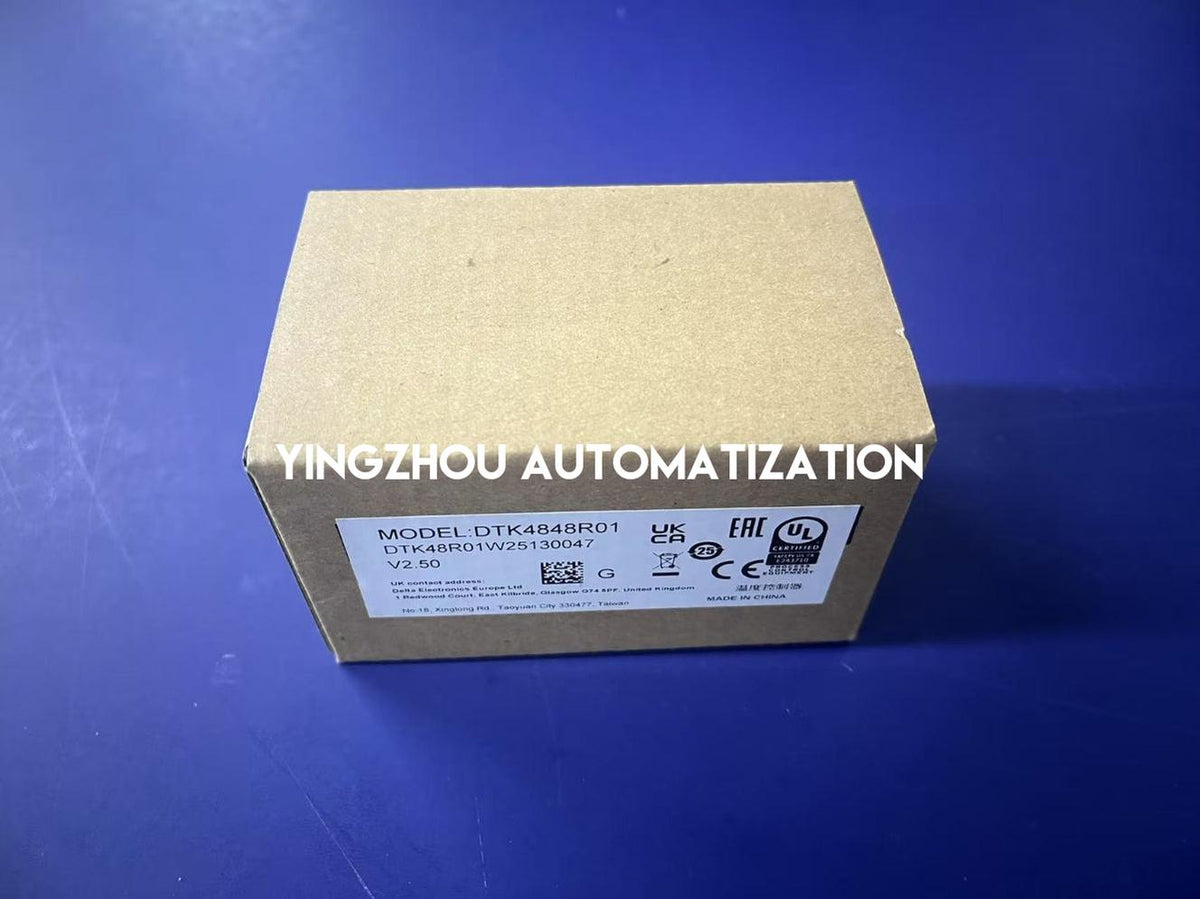

Packaging label shown with matching model
✓
Nameplate confirms AC 100-240V, 50/60Hz, 5VA Max.
✓
Product and packaging labels marked V2.50
✓
Verify exact model DTK4848R01 before ordering
In Stock & Ready to Order
Delta DTK4848R01 is currently in stock.
Actual product and packaging photos are available for
buyer reference.
Please confirm the exact model, thermocouple or RTD
input requirements, relay output configuration,
single alarm requirement, and 45 × 45 mm panel cutout
before ordering.
