Delta DTC1000V DTC Series Modular PID Temperature Controller
24VDC | 12VDC / 40mA Voltage Pulse | RS-485 Modbus | DIN Rail | Modular Expansion
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DTC1000V |
| Series |
DTC Series |
| Product Type |
Modular PID Temperature Controller |
| Controller Position |
Main / First Controller |
| Power Supply |
24VDC |
| Supply Voltage Tolerance |
±10% of Rated Voltage |
| Permissible Supply Range |
21.6-26.4VDC |
| Controller Base Consumption |
3W Without Expansion Modules |
| Maximum Combined Power |
24W Max. for Controller and Connected Expansion Modules |
| Maximum DTC2000 Expansion |
7 Compatible Modules |
| Control Output 1 Type |
DC Voltage Pulse |
| Control Output 1 Voltage |
12VDC |
| Pulse Voltage Tolerance |
+10% / -20% |
| Pulse Output Maximum Current |
40mA |
| Output 2 Type |
SPST Relay |
| Output 2 Contact Rating |
250VAC / 3A Resistive Load |
| Output Functions |
Configurable Control and Alarm Functions |
| Thermocouple Inputs |
K, J, T, E, N, R, S, B, L, U, TXK |
| Platinum RTD Inputs |
Pt100 / JPt100 |
| Analog Voltage Inputs |
0-5V / 0-10V / 0-50mV |
| Analog Current Inputs |
0-20mA / 4-20mA |
| Thermocouple / RTD Sampling Rate |
0.4 Second |
| Analog Input Sampling Rate |
0.15 Second |
| Control Methods |
PID / Programmable PID / ON-OFF / Manual |
| PID Auto-Tuning |
Supported |
| Programmable Temperature Control |
Up to 64 Temperature / Time Settings |
| Alarm Functions |
Selectable Modes (Output Configuration Dependent) |
| Built-in Communication |
RS-485 |
| Communication Protocol |
Modbus ASCII / RTU |
| Communication Baud Rates |
2400 / 4800 / 9600 / 19200 / 38400 bps |
| Password Protection |
3 Levels (Series Function) |
| Status Indication |
LED Indicators |
| Extension Interface |
Built-in Extension Port |
| Module Interconnection |
Internal 24VDC Power and Communication Connections |
| Installation Method |
DIN-Rail Mounting |
| Controller Width |
25.2 mm |
| Controller Height |
90 mm |
| Body Depth Reference |
60 mm |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +65°C |
| Operating Humidity |
35-85% RH, Non-Condensing |
| Maximum Operating Altitude |
Below 2000 m |
| Pollution Degree |
2 |
Product Overview
The Delta DTC1000V is a
modular PID temperature controller
from Delta's DTC Series.
It serves as the main controller for an expandable
DIN-rail-mounted temperature control system and
operates on a 24VDC power supply.
The main control output is a
12VDC voltage pulse output rated at up to 40mA,
while Output 2 is a
250VAC / 3A relay output for resistive loads.
The unit includes RS-485 Modbus ASCII / RTU
communication and supports thermocouple, RTD and analog inputs.
Compatible DTC2000 modules can be connected to expand
the temperature control system.
Key Product Features
-
24VDC supply for modular industrial temperature control
-
12VDC / Max. 40mA main voltage pulse control output
-
250VAC / 3A relay second output for resistive loads
-
Built-in RS-485 Modbus ASCII / RTU communication
-
Thermocouple, RTD and analog inputs for flexible process measurement
-
PID / Programmable PID / ON-OFF / Manual control
-
DIN-rail modular design with extension port and support for up to seven DTC2000 modules
Actual Product Verification
✓

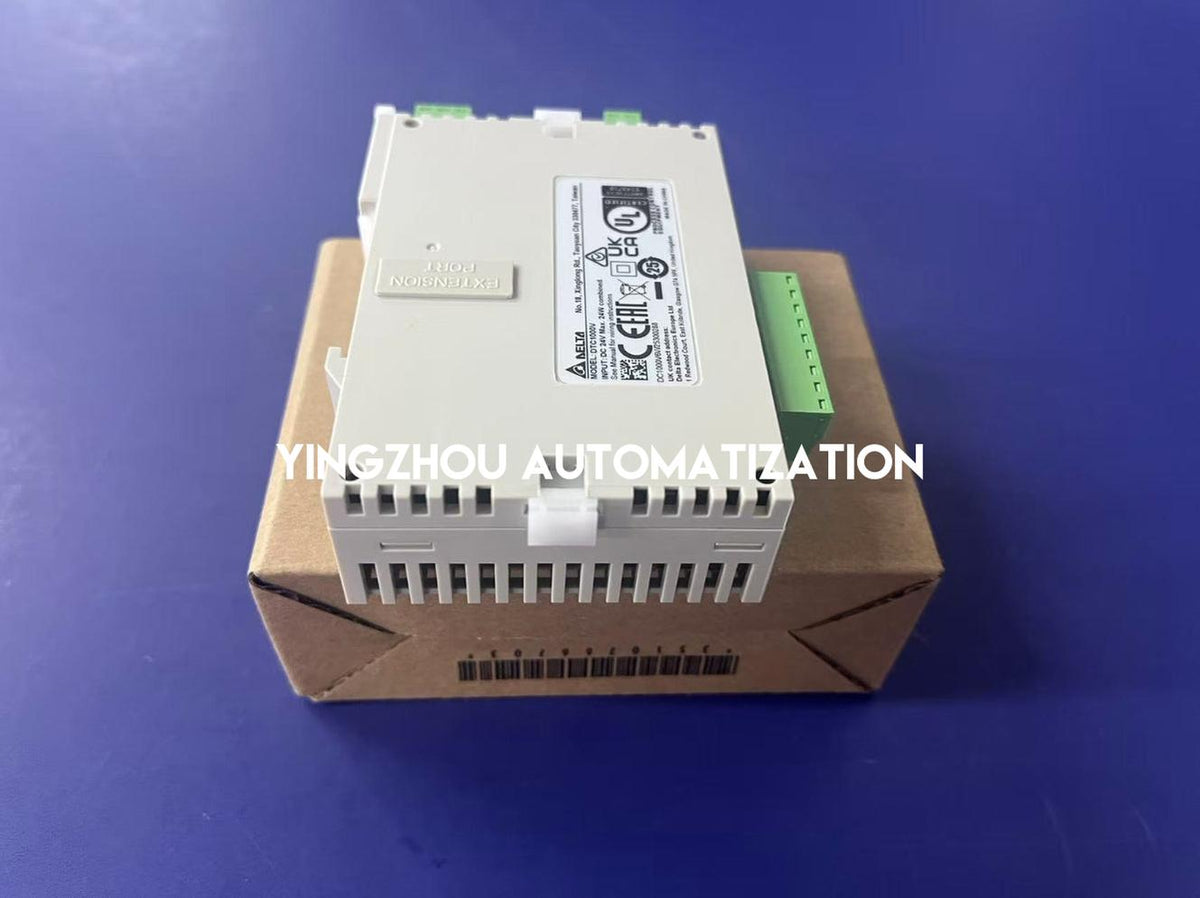

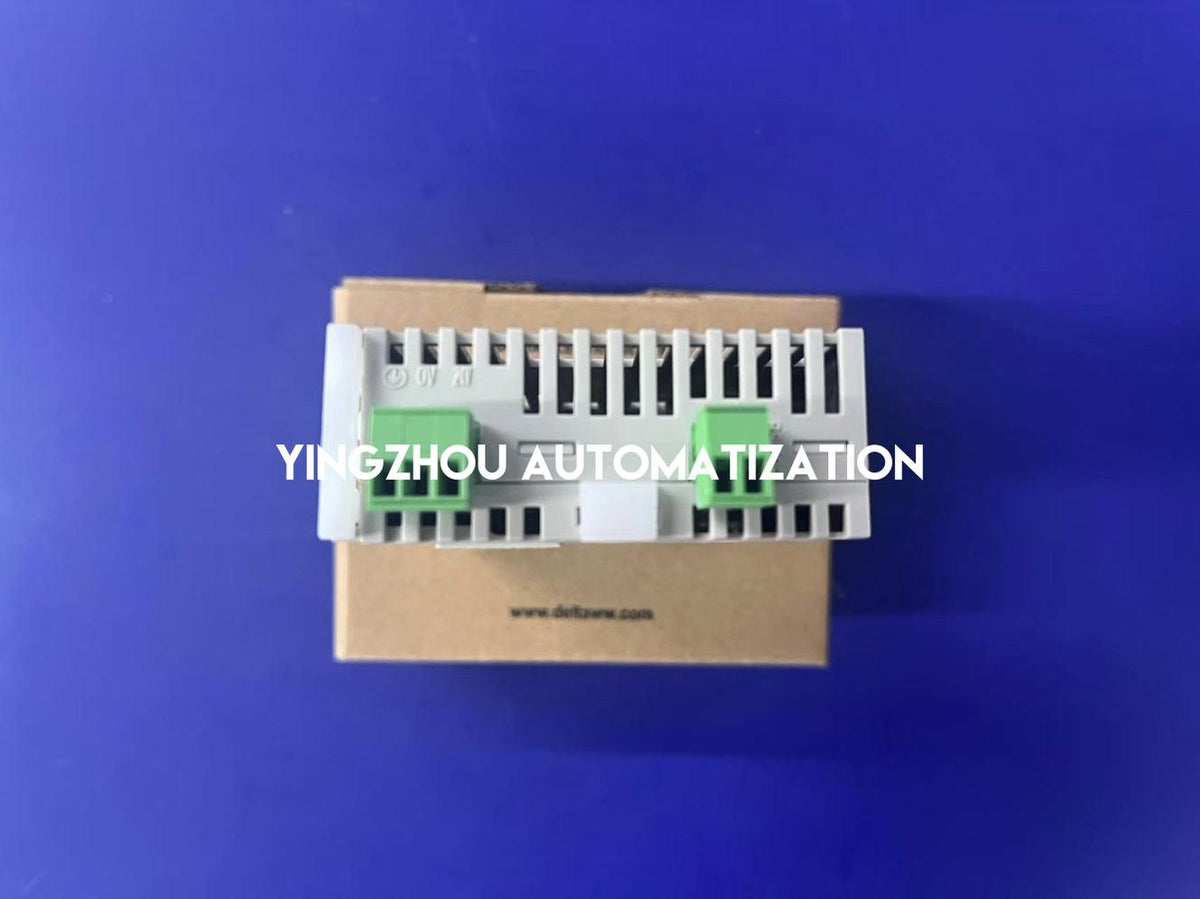

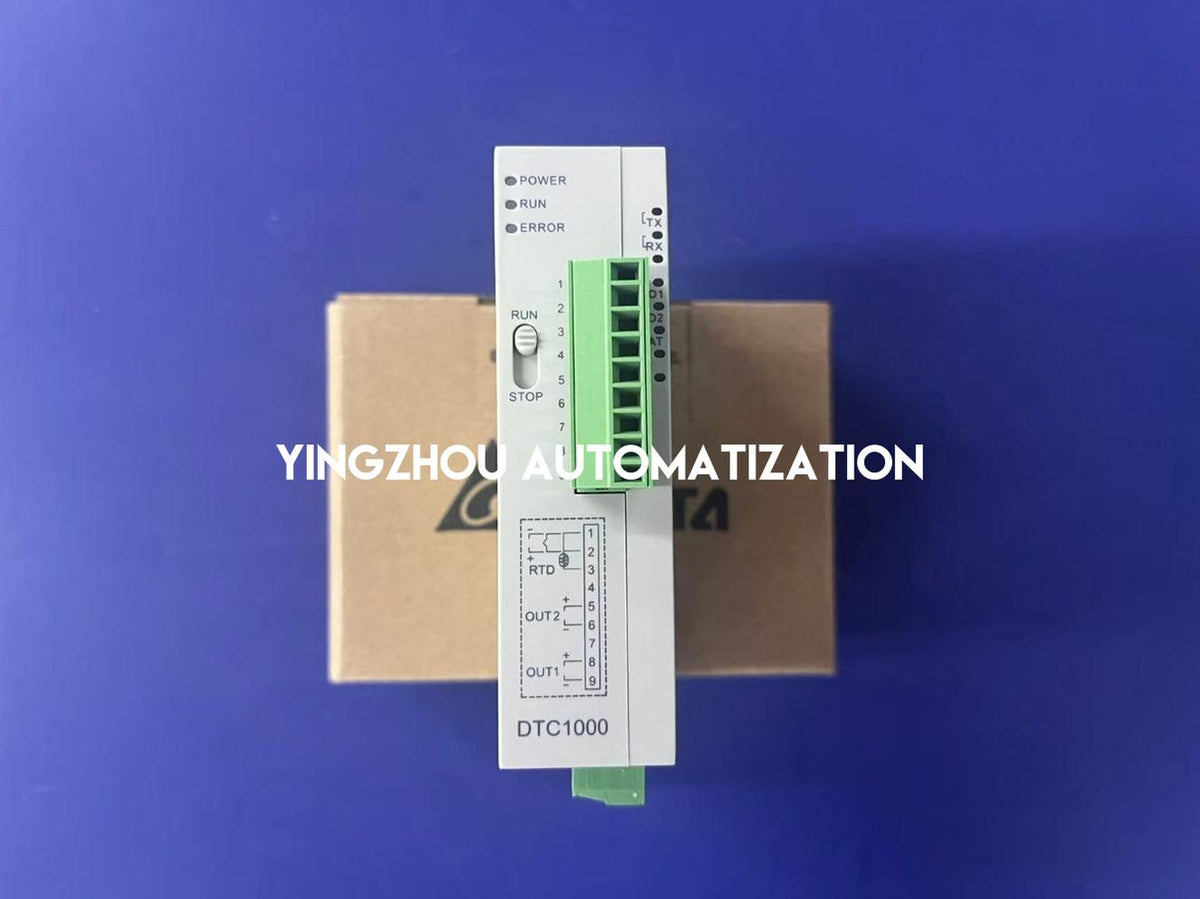

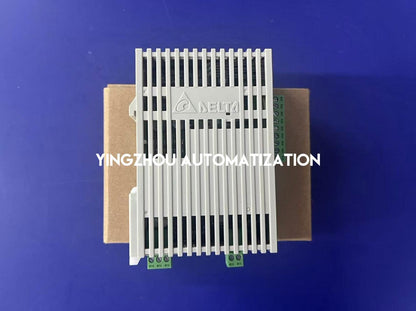

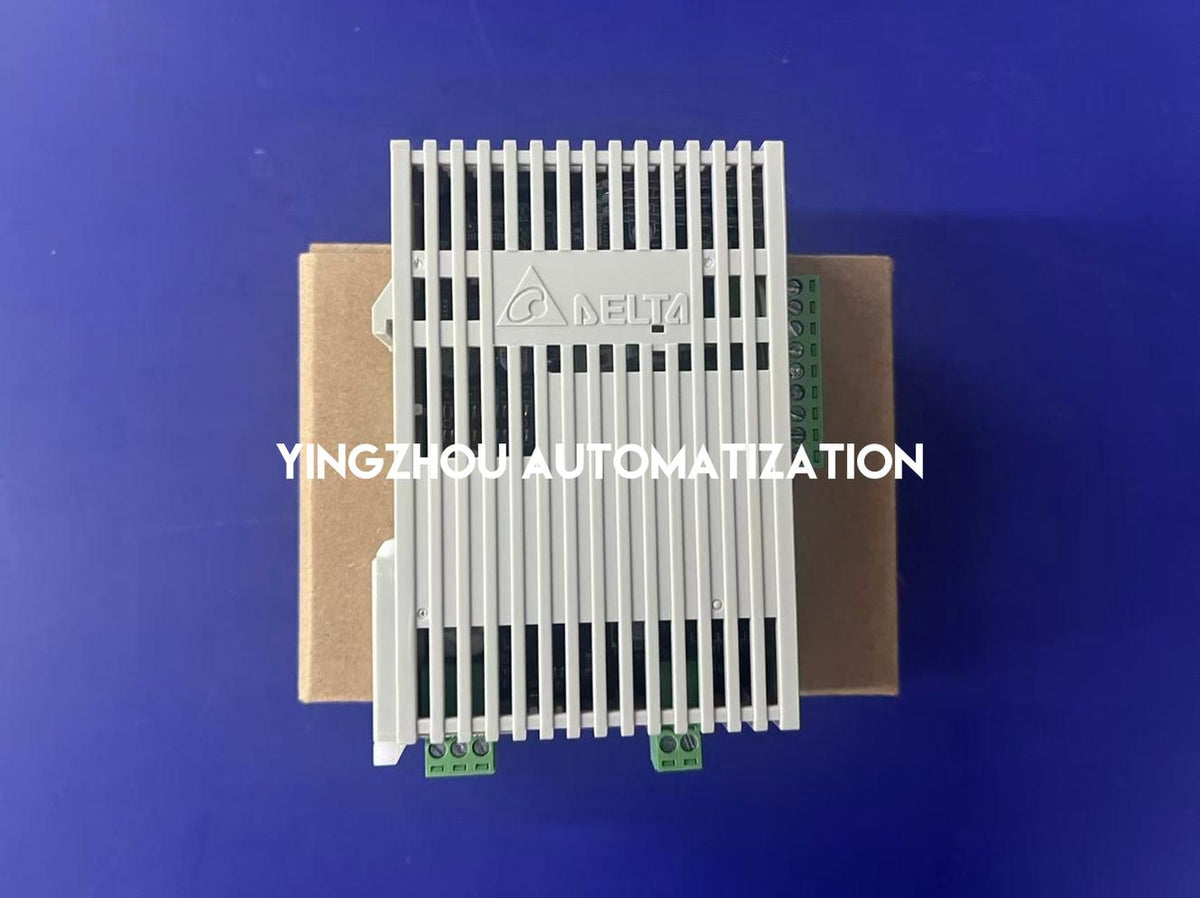

Actual product photos
✓
Model/nameplate visible: DTC1000V
✓

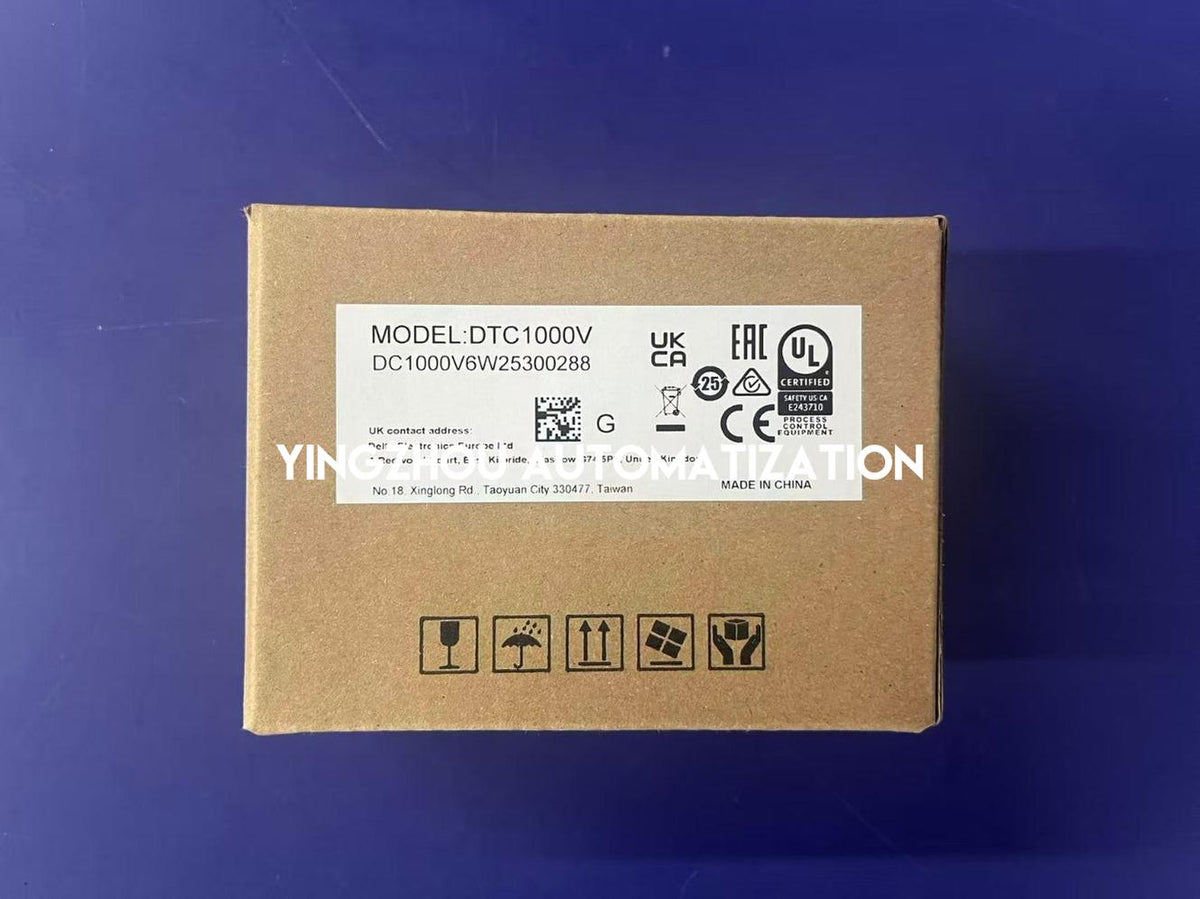

Packaging label shown with matching model
✓

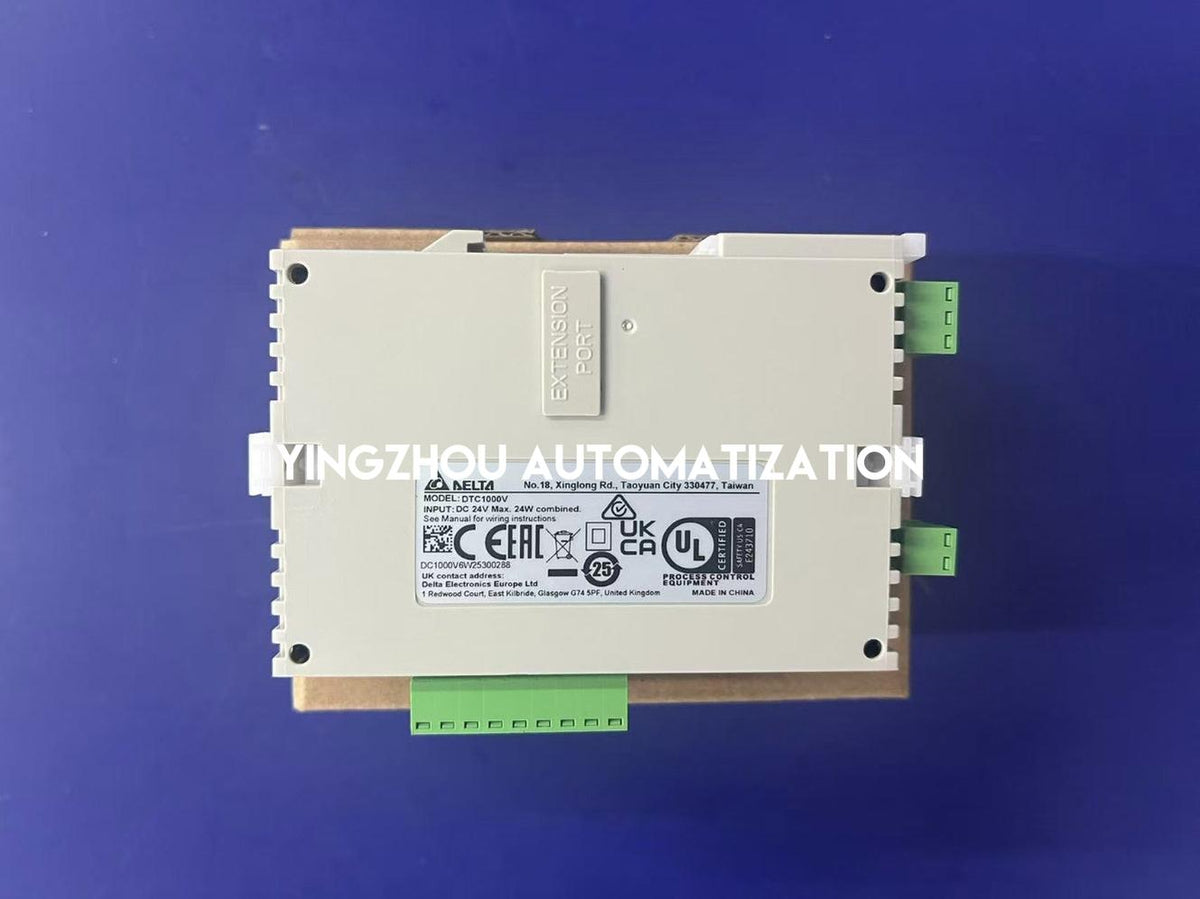

Actual nameplate: DC 24V, Max. 24W combined
✓

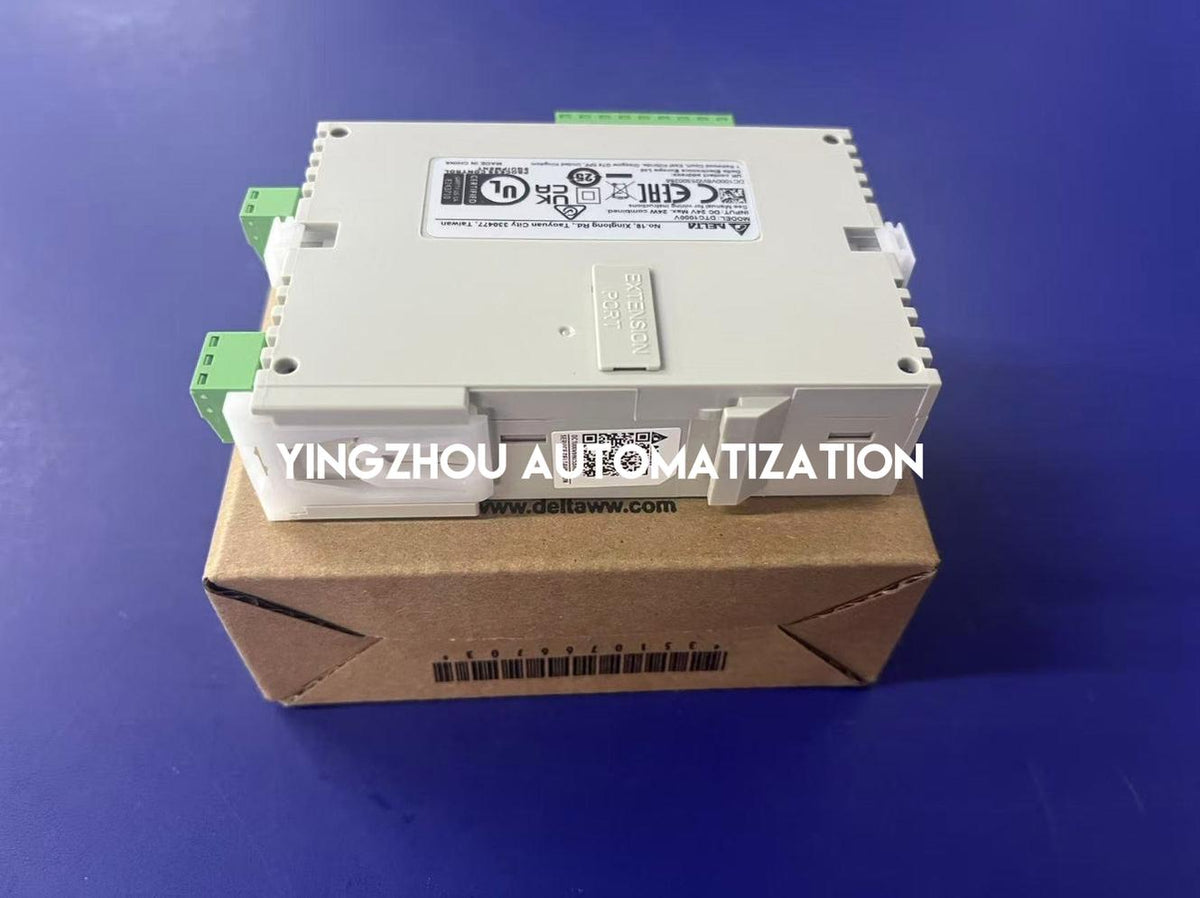

Extension port and connection terminals visible
✓
Verify exact model DTC1000V before ordering
In Stock & Ready to Order
Delta DTC1000V is currently in stock.
Actual product and packaging photos are available
for buyer reference.
Please confirm the exact model, 24VDC power supply,
12VDC pulse output, relay output requirements,
sensor type, RS-485 communication and
any required DTC2000 expansion modules before ordering.
