Delta DTC1000R DTC Series Modular Temperature Controller
24V DC | SPST Relay 250VAC 3A | PID Control | RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DTC1000R |
| Series |
DTC Series |
| Product Type |
Modular Temperature Controller |
| Controller Type |
Main Controller |
| Power Supply |
24V DC |
| Supply Voltage Range |
90%–110% of Rated Voltage |
| Power Consumption |
Max. 24W Combined System |
| Output Type |
Relay, SPST |
| Relay Contact Rating |
250V AC, 3A Resistive Load |
| Control Methods |
PID / Programmable PID / On-Off / Manual |
| Thermocouple Input |
K, J, T, E, N, R, S, B, L, U, TXK |
| RTD Input |
Pt100 / JPt100 |
| Analog Voltage Input |
0–5V / 0–10V / 0–50mV DC |
| Analog Current Input |
0–20mA / 4–20mA DC |
| Temperature Sampling |
0.4 Second |
| Analog Sampling |
0.15 Second |
| Communication |
RS-485 |
| Communication Protocol |
Modbus ASCII / RTU |
| Baud Rate |
2400–38400bps |
| Maximum Expansion |
Up to 7 DTC2000 Modules |
| Operating Temperature |
0°C to +50°C |
| Operating Humidity |
35%–85% RH, Non-Condensing |
| Installation |
DIN Rail |
Product Overview
The Delta DTC1000R is a
DTC Series modular digital temperature controller
designed for industrial temperature monitoring and control.
It operates on 24V DC power, provides
SPST relay output and supports PID control
with built-in RS-485 Modbus communication.
Its modular architecture supports expansion with compatible
Delta DTC2000 units.
Key Product Features
-
SPST Relay Output rated 250V AC / 3A for resistive loads
-
PID Temperature Control with programmable, On/Off and manual modes
-
Universal Sensor Inputs for supported thermocouples, RTDs and analog signals
-
RS-485 Modbus ASCII / RTU communication
-
Modular Expansion with up to seven DTC2000 units
-
Programmable Temperature Profiles with eight patterns and eight steps each
-
DIN Rail Installation with status LEDs and an extension interface
Actual Product Verification
✓

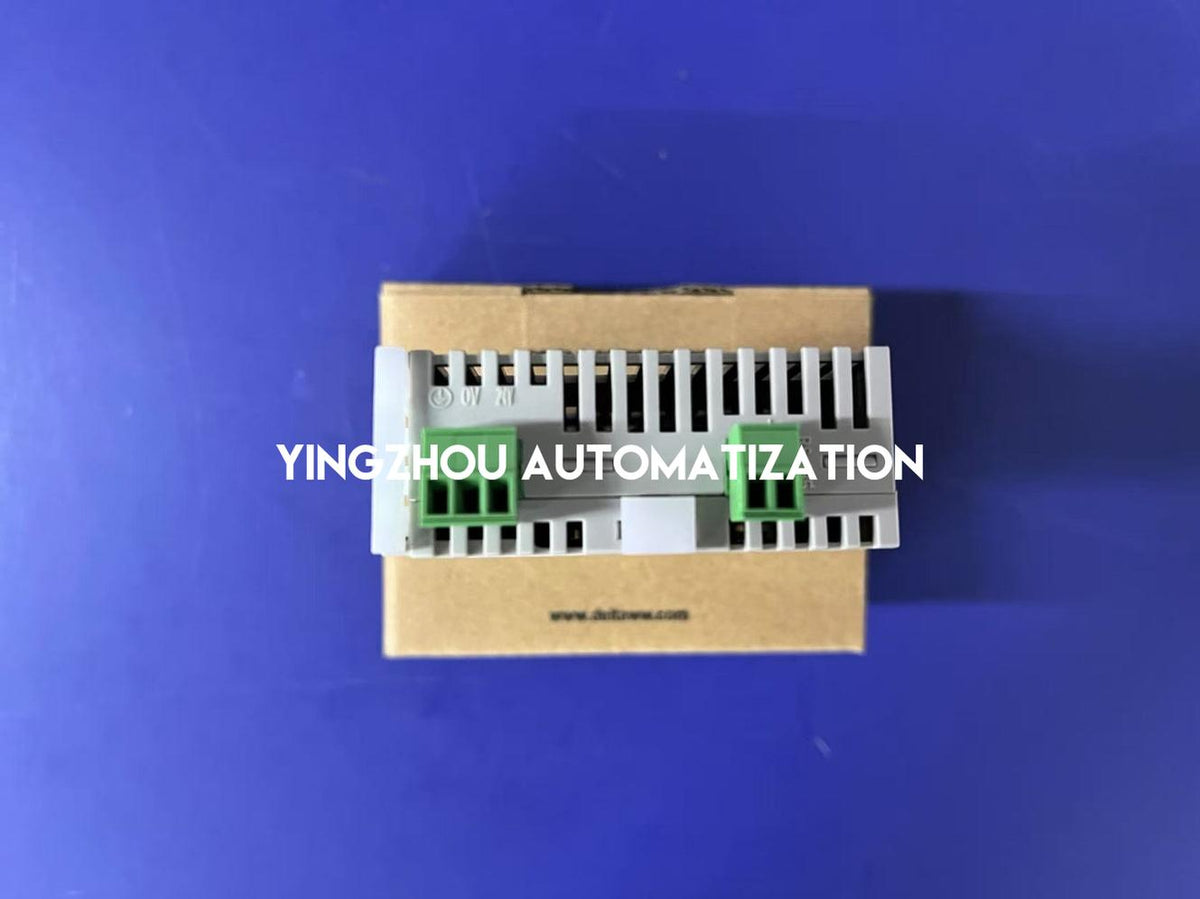

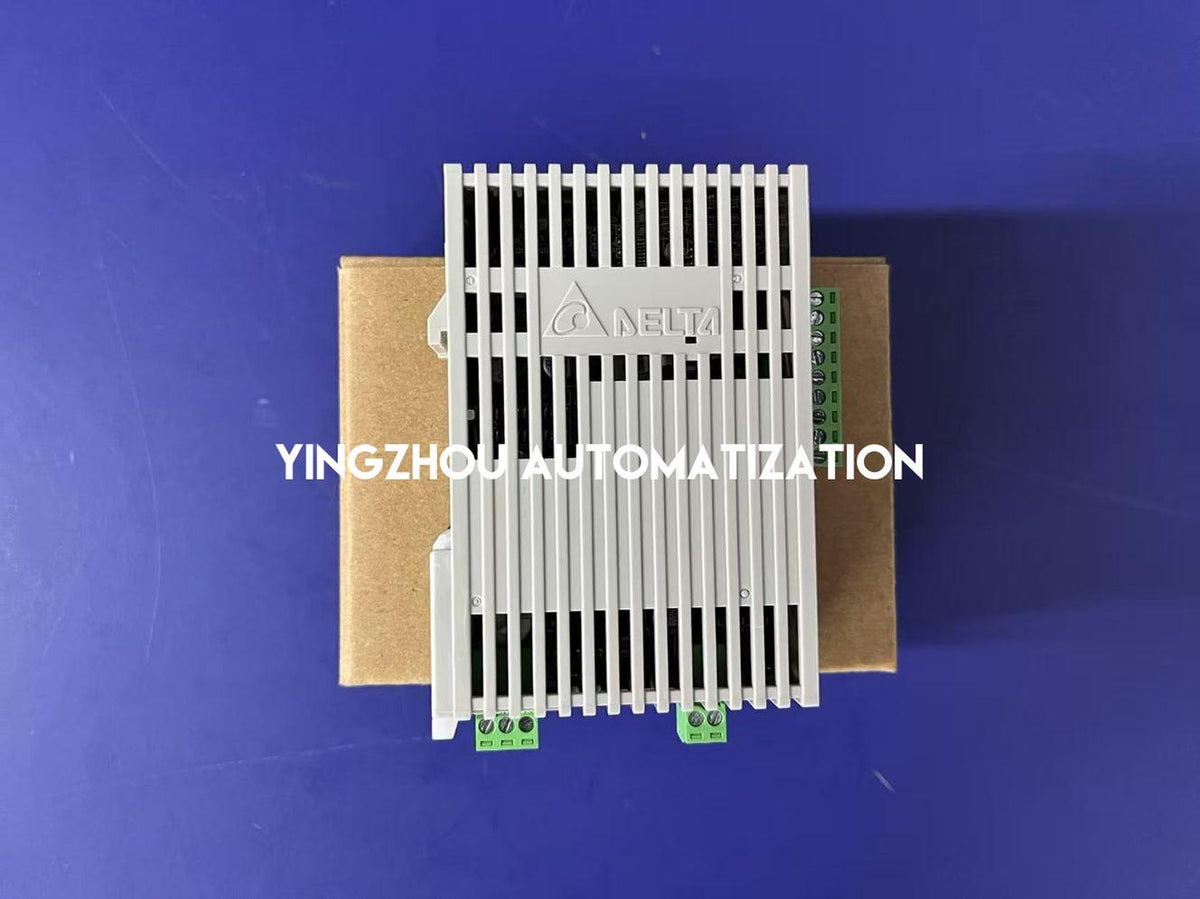

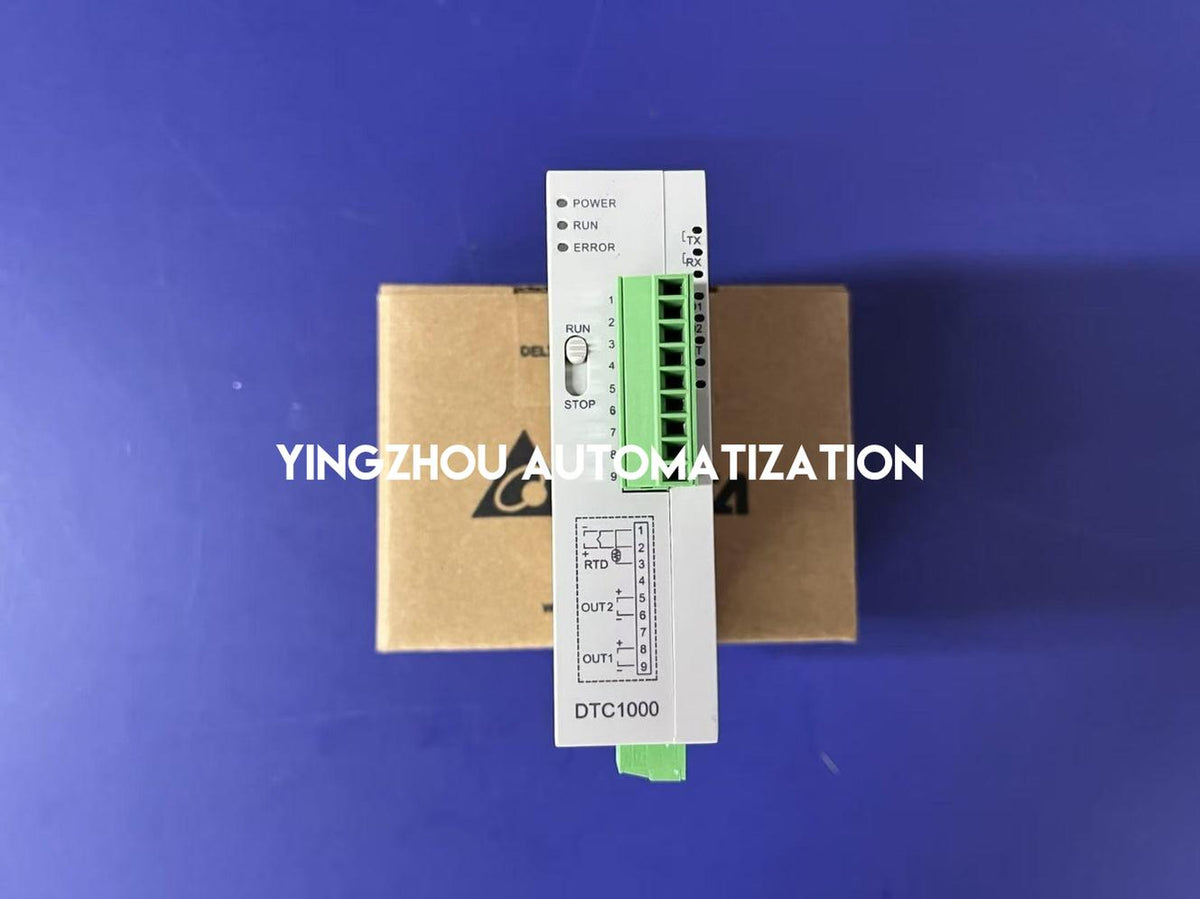

Actual product photos
✓

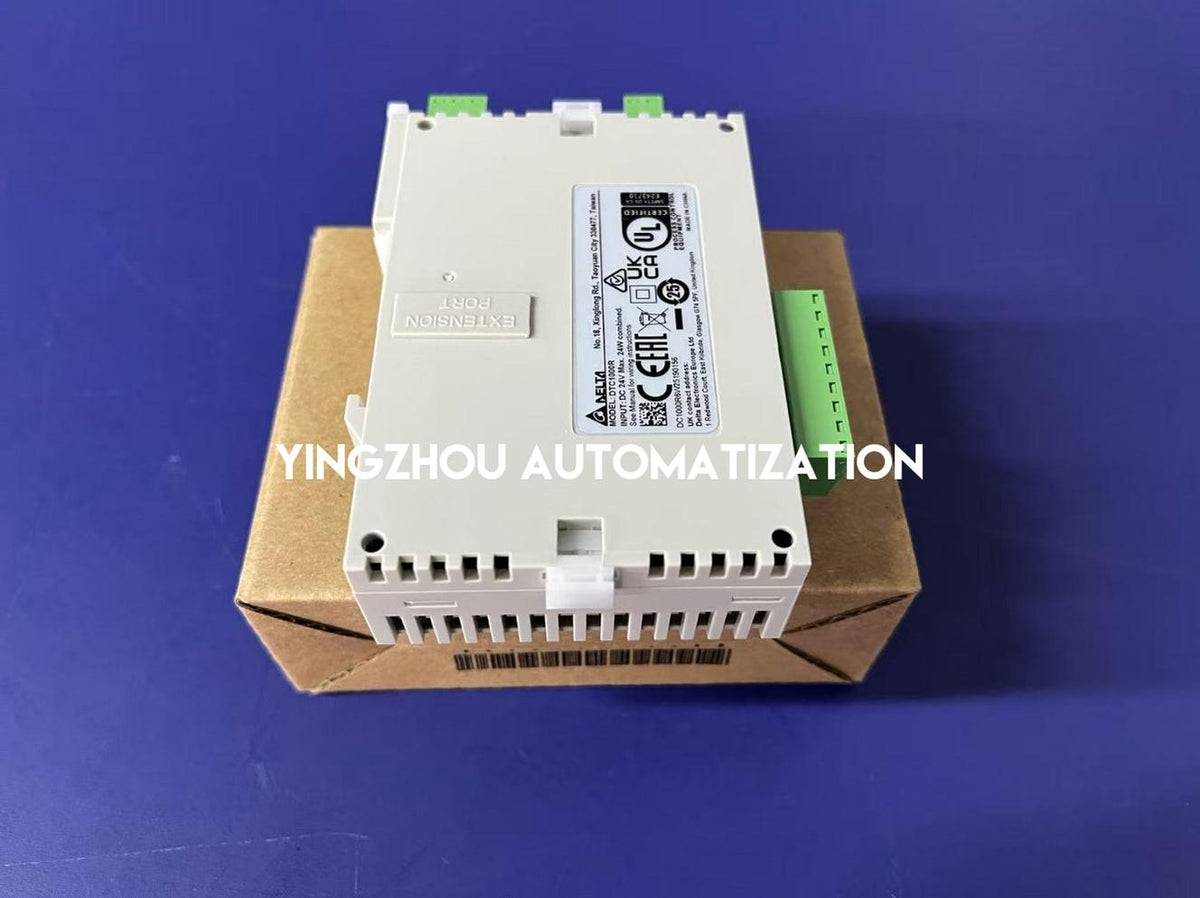

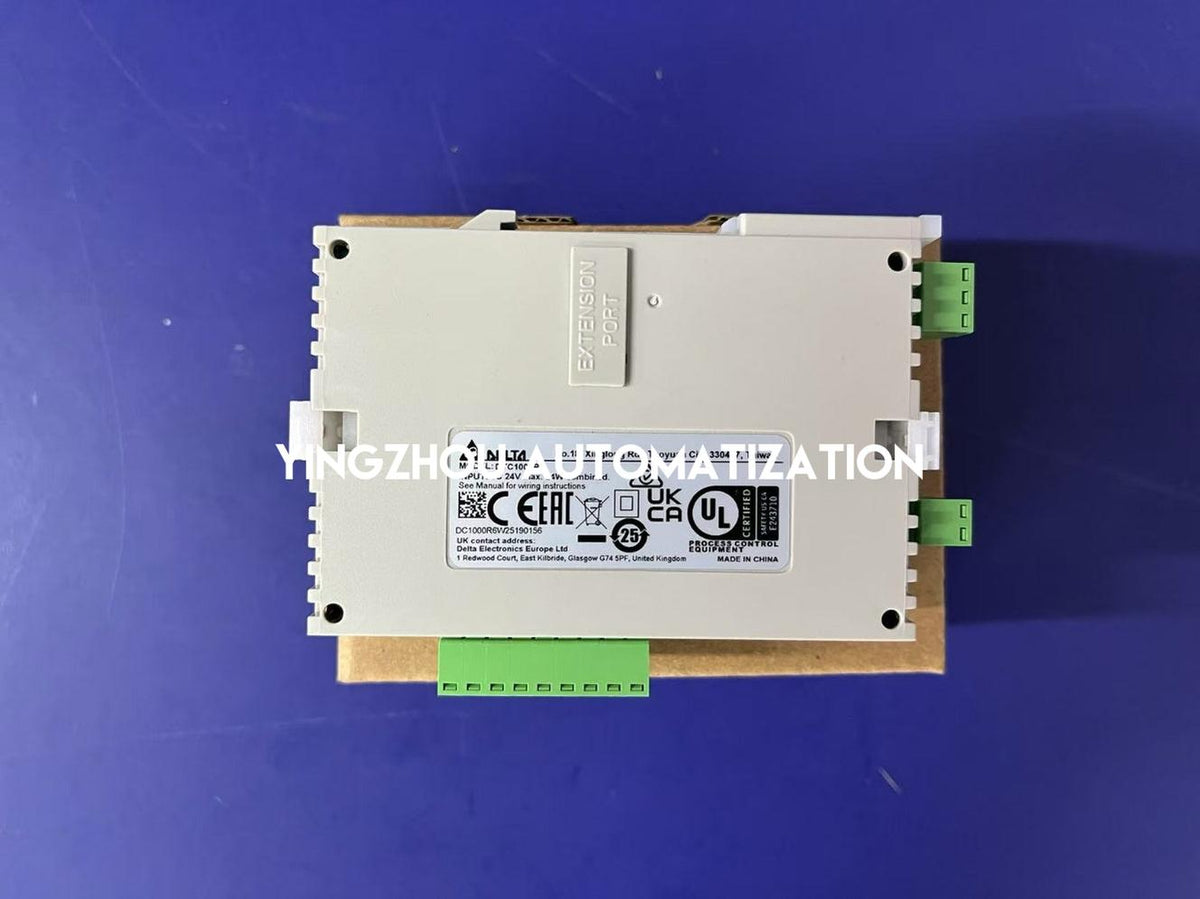

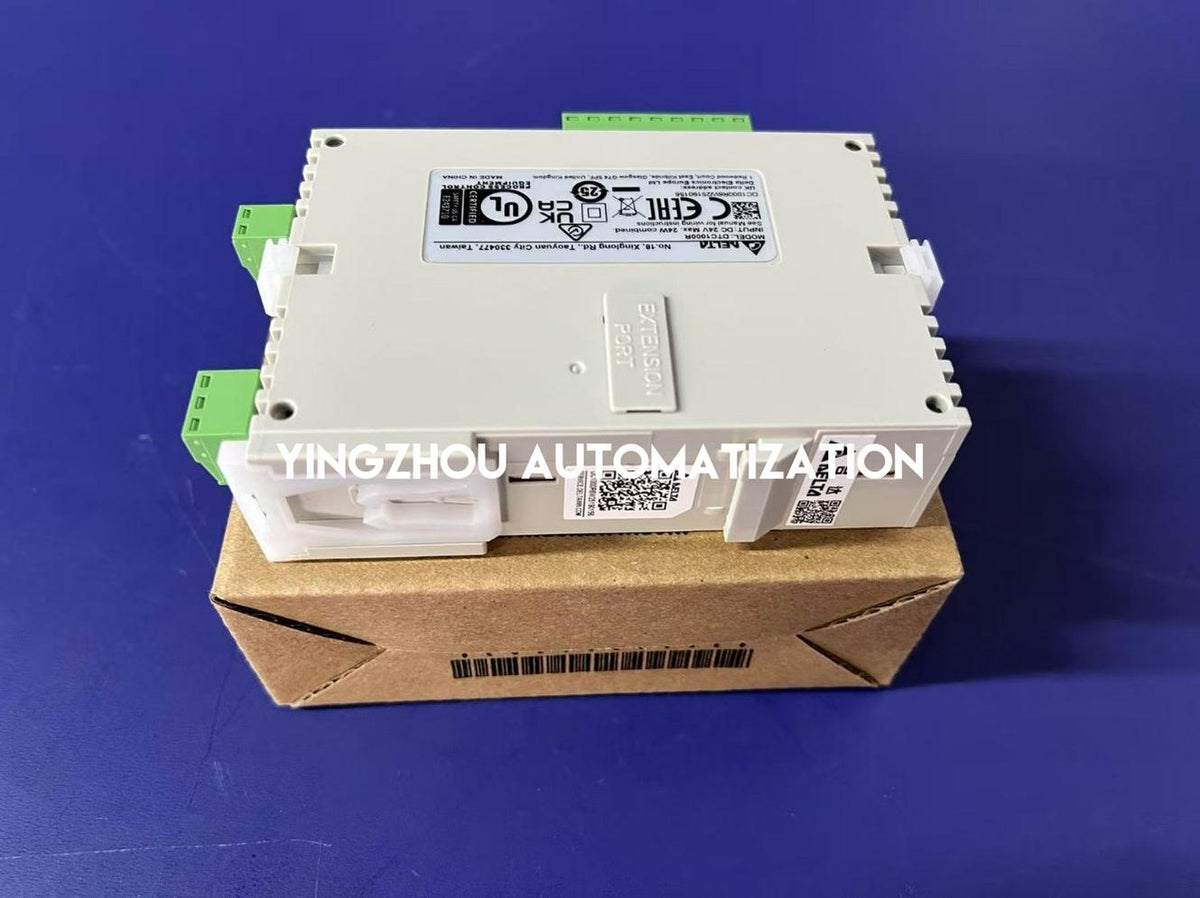

Model/nameplate visible
✓
Packaging shown
✓
Product and packaging labels match model DTC1000R
✓
Verify exact model before ordering
