Delta ASD-B3-1521-M ASDA-B3 CANopen AC Servo Drive
1.5 kW | 220 V Class | Single-Phase / Three-Phase | CANopen CN3 | 8.3 A
|
Specification
|
Product Data
|
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-1521-M |
| Product Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Power |
1.5 kW / 1500 W |
| Voltage Class |
220 V Class |
| Input Phase |
Single-Phase / Three-Phase |
| Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current (3PH) |
6.33 Arms |
| Rated Input Current (1PH) |
11.7 Arms |
| Continuous Output Current |
8.3 Arms |
| Maximum Instantaneous Output Current |
24.3 Arms |
| Nameplate Output |
110 V, 0-500 Hz, 8.3 A |
| Communication Protocol |
CANopen |
| CANopen Communication Connector |
CN3 |
| CANopen Communication Standard |
DS301 / DS402 |
| PC Communication |
Mini USB (CN4) |
| EtherCAT Communication |
Not Supported on B3-M |
| DMCNET Communication |
Not Supported on B3-M |
| RS-485 Communication |
Not Supported on B3-M |
| External Pulse Train Input |
Not Supported on B3-M |
| Encoder Pulse Output (OA / OB / OZ) |
Supported |
| Internal Positioning |
PR Mode Supported |
| High-Speed Capture DI (PR) |
DI3 |
| EtherCAT Touch Probe |
Not Supported on B3-M |
| Digital Inputs |
4 |
| Digital Outputs |
2 |
| Analog Voltage Input / Output |
2 / 2 |
| CN1 Connector |
26 Pins |
| Motor Encoder Connector |
CN2 |
| Drive Resolution |
24-bit |
| Main Circuit Control |
SVPWM |
| Tuning Mode |
Auto / Manual |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Built-In Regenerative Resistor |
100 Ohm |
| Built-In Regenerative Capacity |
40 W |
| Minimum External Regenerative Resistance |
30 Ohm |
| Final Power Dissipation |
99 W |

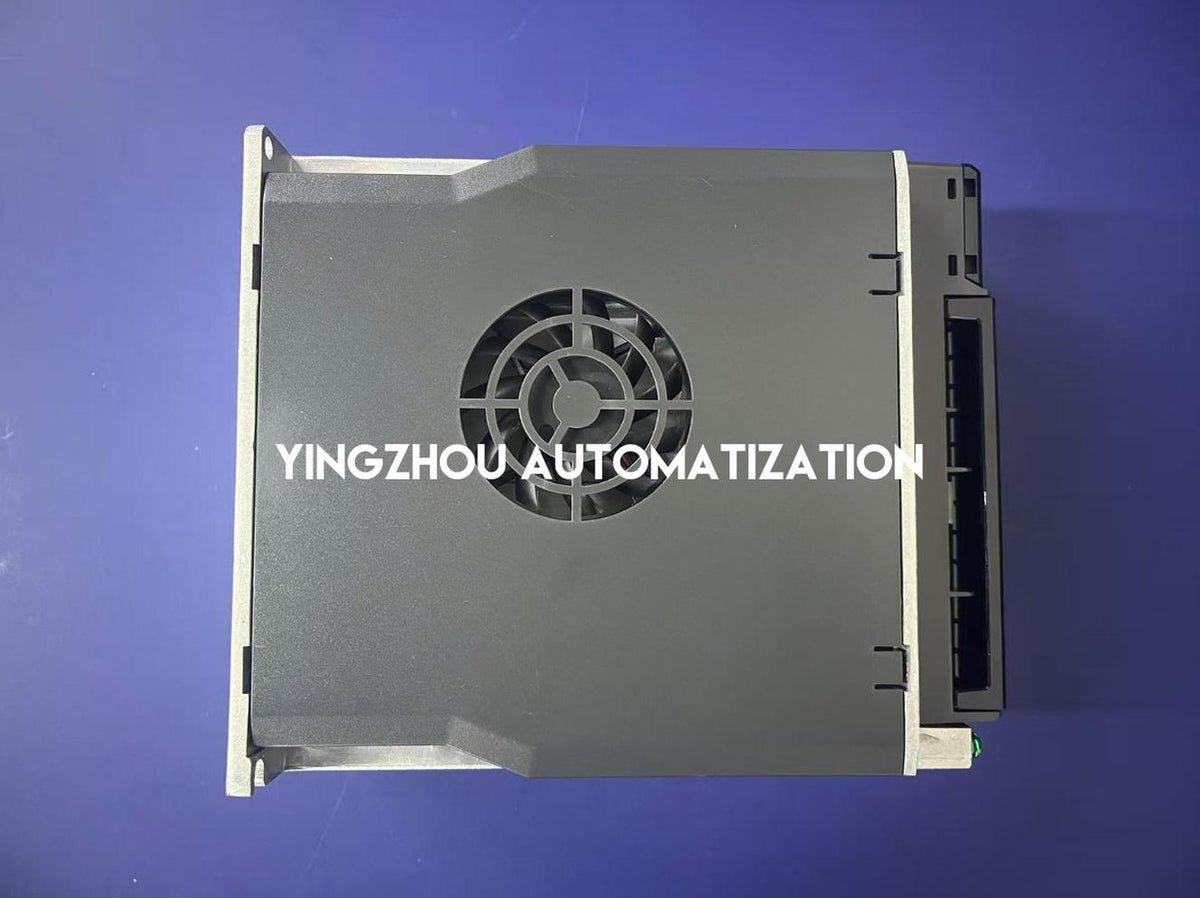

| Cooling Method |
Fan Cooling |
| Hardware STO |
Not Supported on B3-M |
| Hardware Dynamic Brake |
Not Supported on B3-M |
Product Overview
The Delta ASD-B3-1521-M is a
1.5 kW single-axis AC servo drive
from the ASDA-B3 Series.
Designed for 220 V class industrial
motion systems, the drive supports
single-phase or three-phase 200-230 VAC input
and delivers 8.3 A continuous output current.
The B3-M configuration features
CANopen communication via CN3
for integration with compatible controllers.
It also supports internal PR positioning,
high-speed capture through DI3,
configurable digital I/O and a 24-bit
high-resolution servo-control platform.
EtherCAT, DMCNET, RS-485 and external
pulse train input are not supported
on this B3-M model.
Key Product Features
-
1.5 kW Rated Servo Capacity
for compatible industrial AC servo motor systems
-
Single-Phase / Three-Phase 200-230 VAC Input
for flexible 220 V class installations
-
CANopen Communication
through the dedicated CN3 interface
-
CANopen DS301 / DS402
for supported industrial motion-control networks
-
8.3 A Continuous Output
for the 1.5 kW drive configuration
-
Internal PR Positioning
for supported positioning sequences
-
High-Speed Capture DI3
for applicable PR functions
-
4 Digital Inputs and 2 Digital Outputs
for configurable control signals
-
24-bit Drive Resolution
for high-resolution motion control
-
Built-In Regenerative Resistor
with 100 Ohm resistance and 40 W regenerative capacity
Actual Product Verification
✓

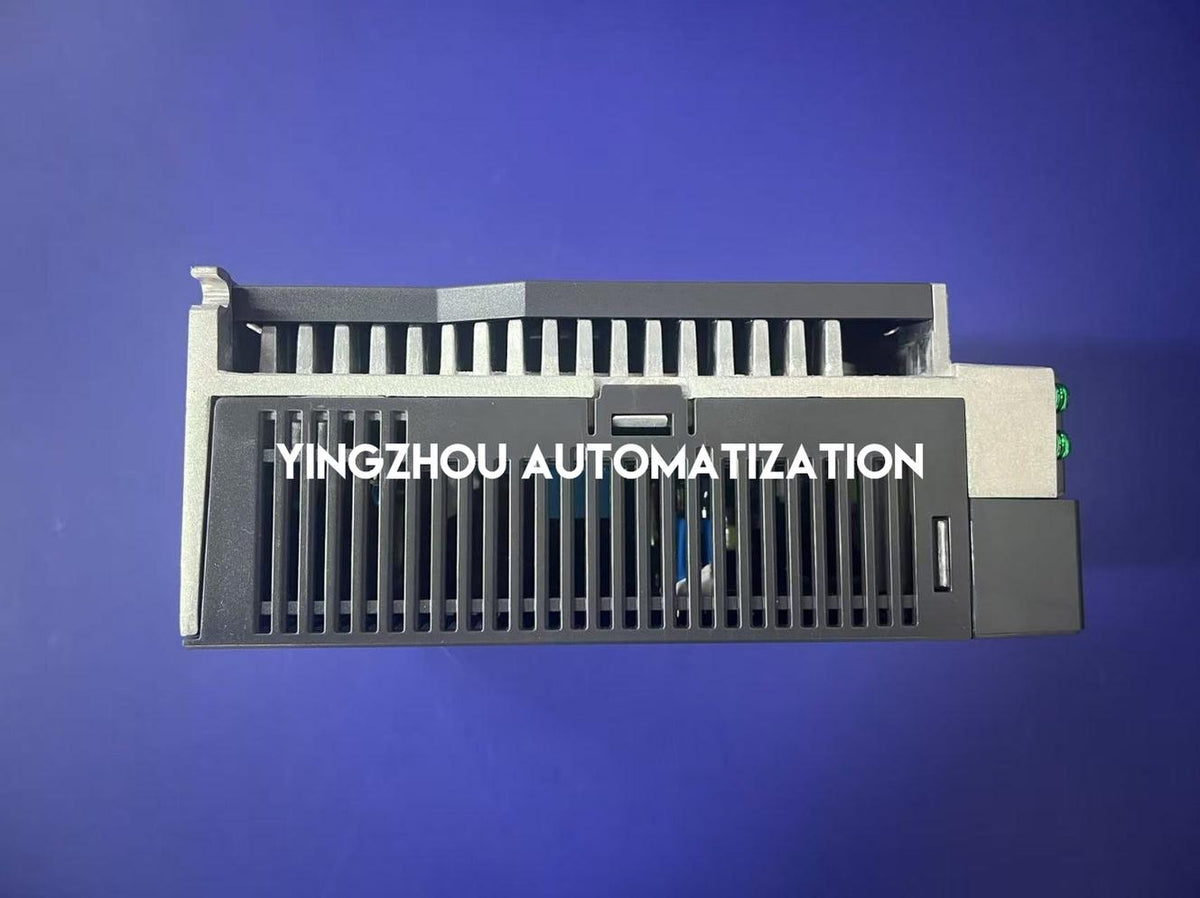

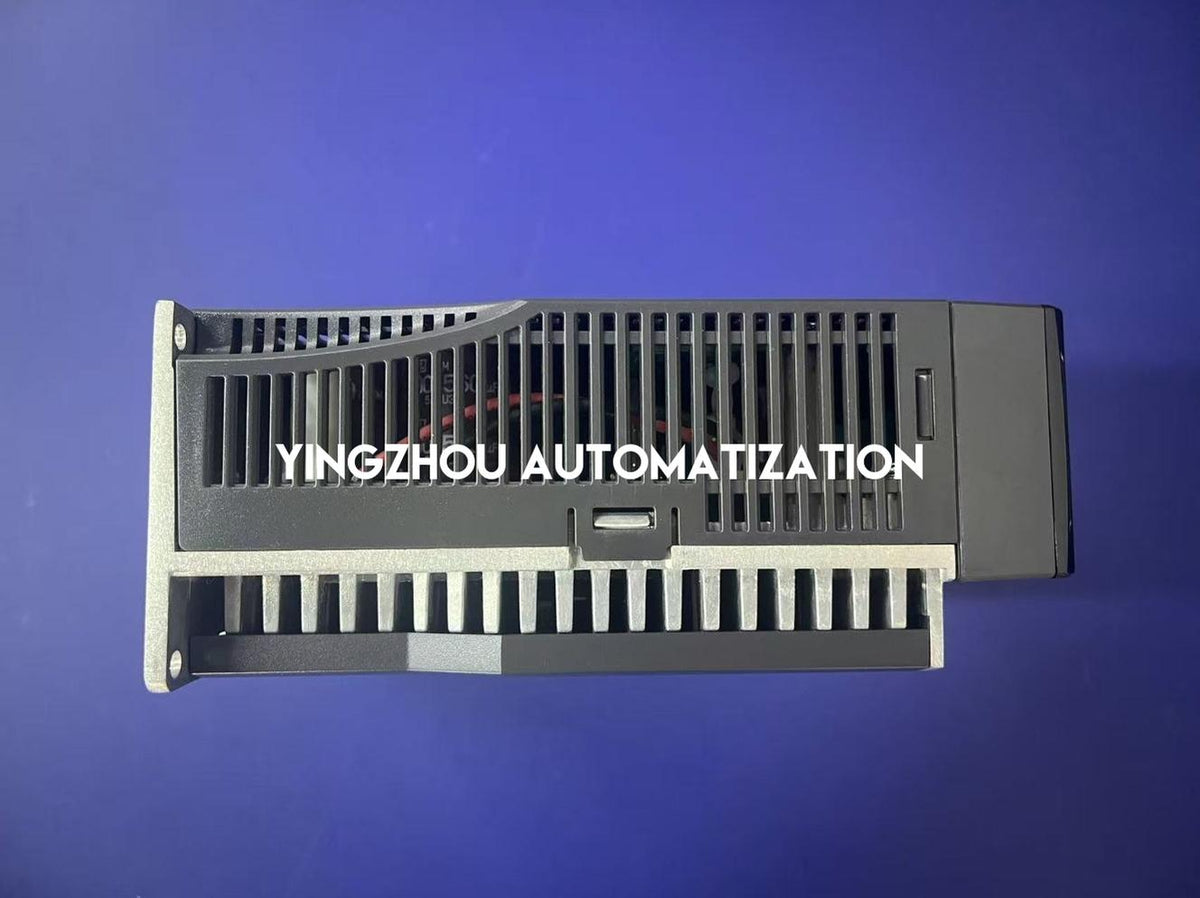

Actual product photos
✓

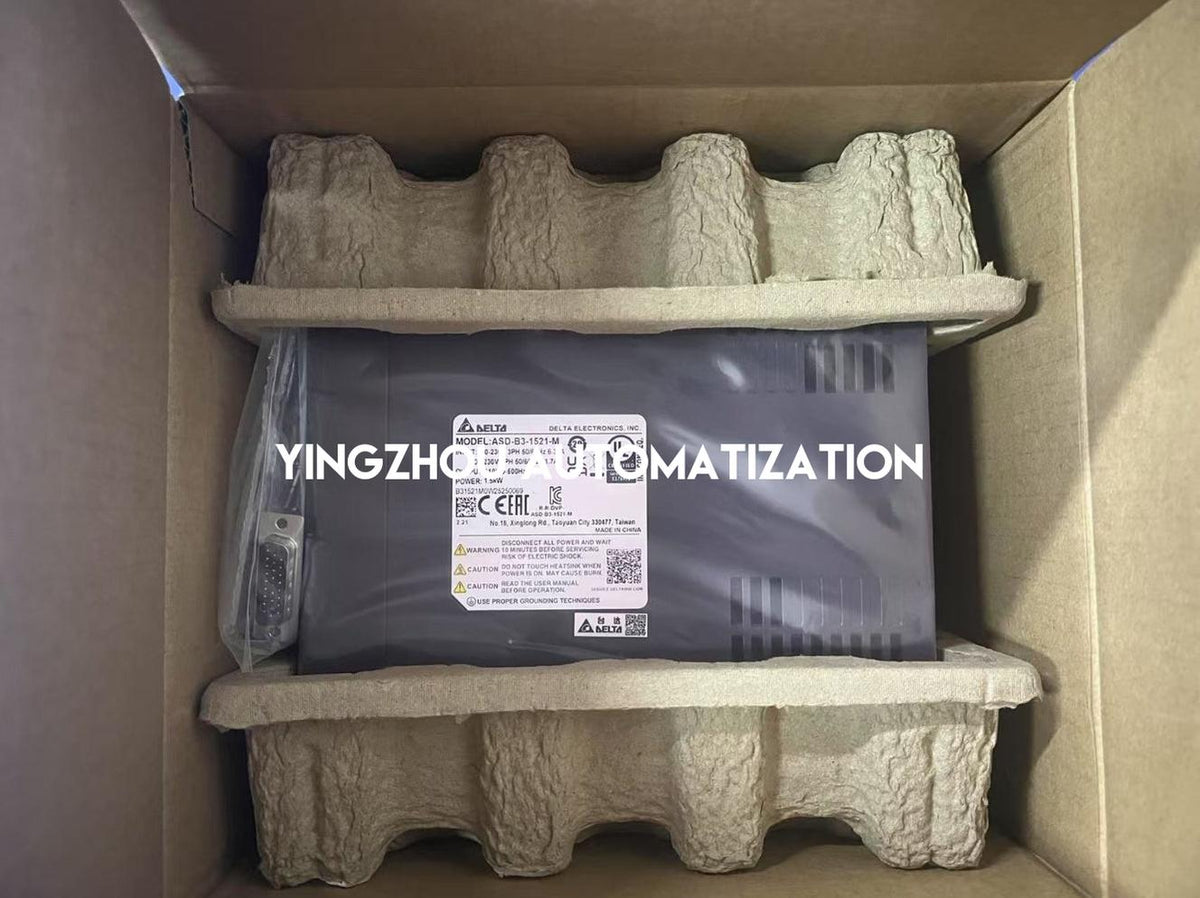

Model/nameplate visible
✓

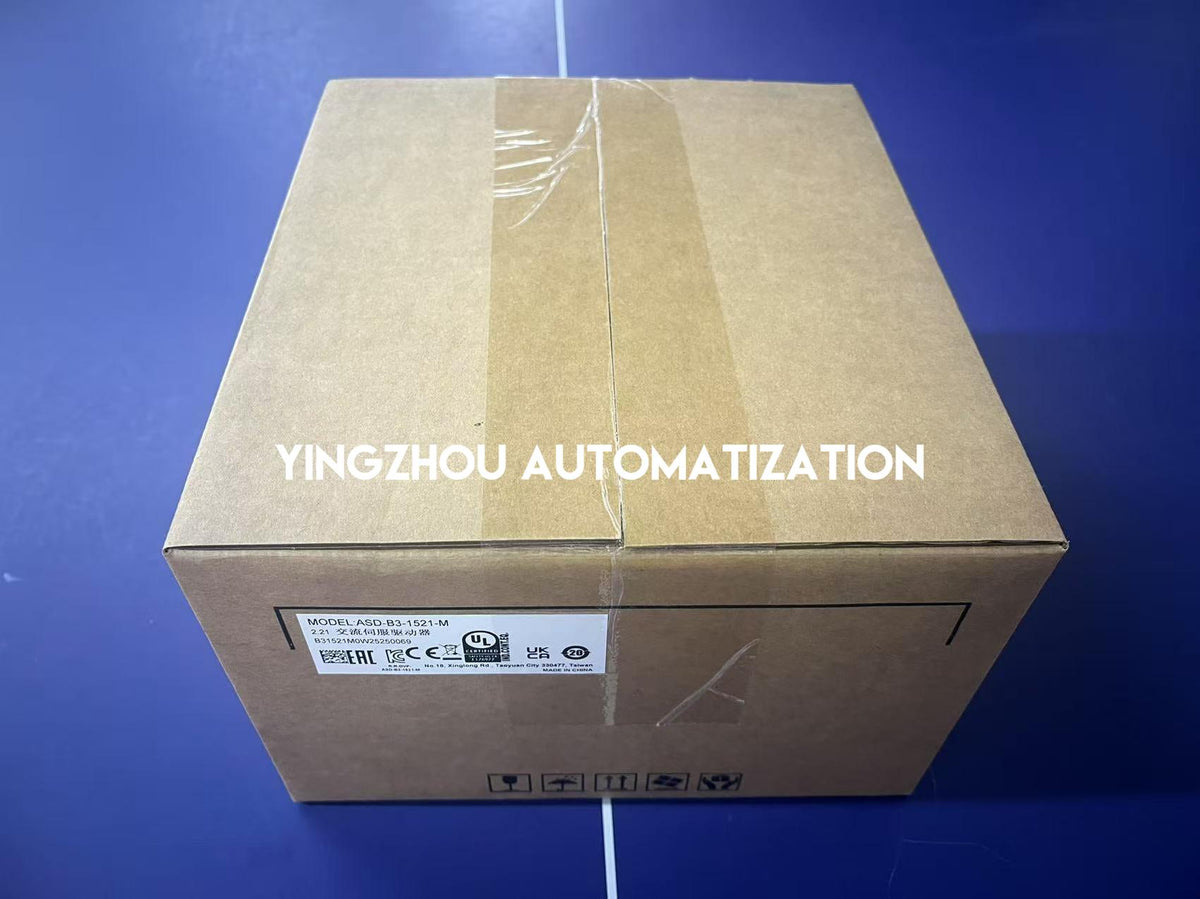

Packaging shown
✓
Device and carton labels match
ASD-B3-1521-M
✓

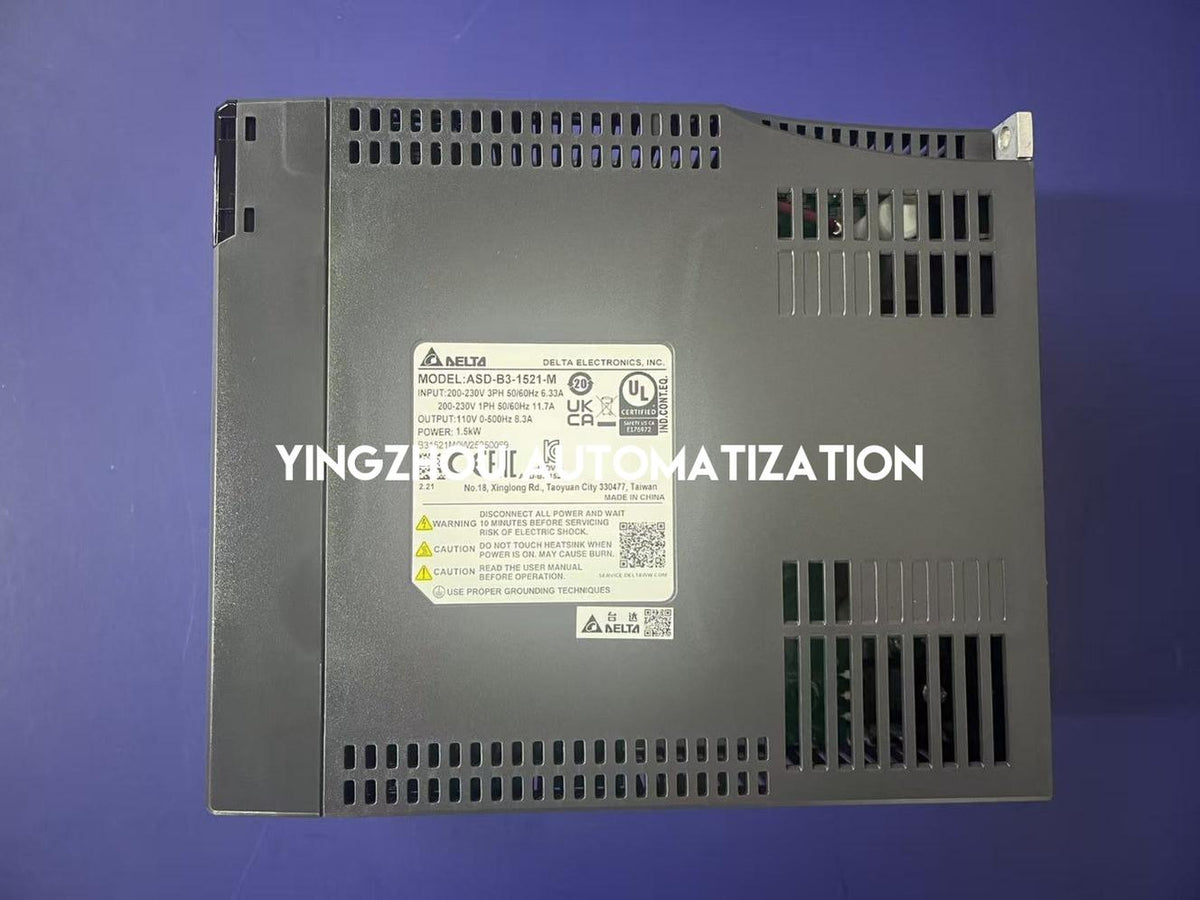

Actual nameplate confirms
1.5 kW, 200-230 VAC input,
6.33 A three-phase input,
11.7 A single-phase input
and 8.3 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-1521-M
is currently in stock.

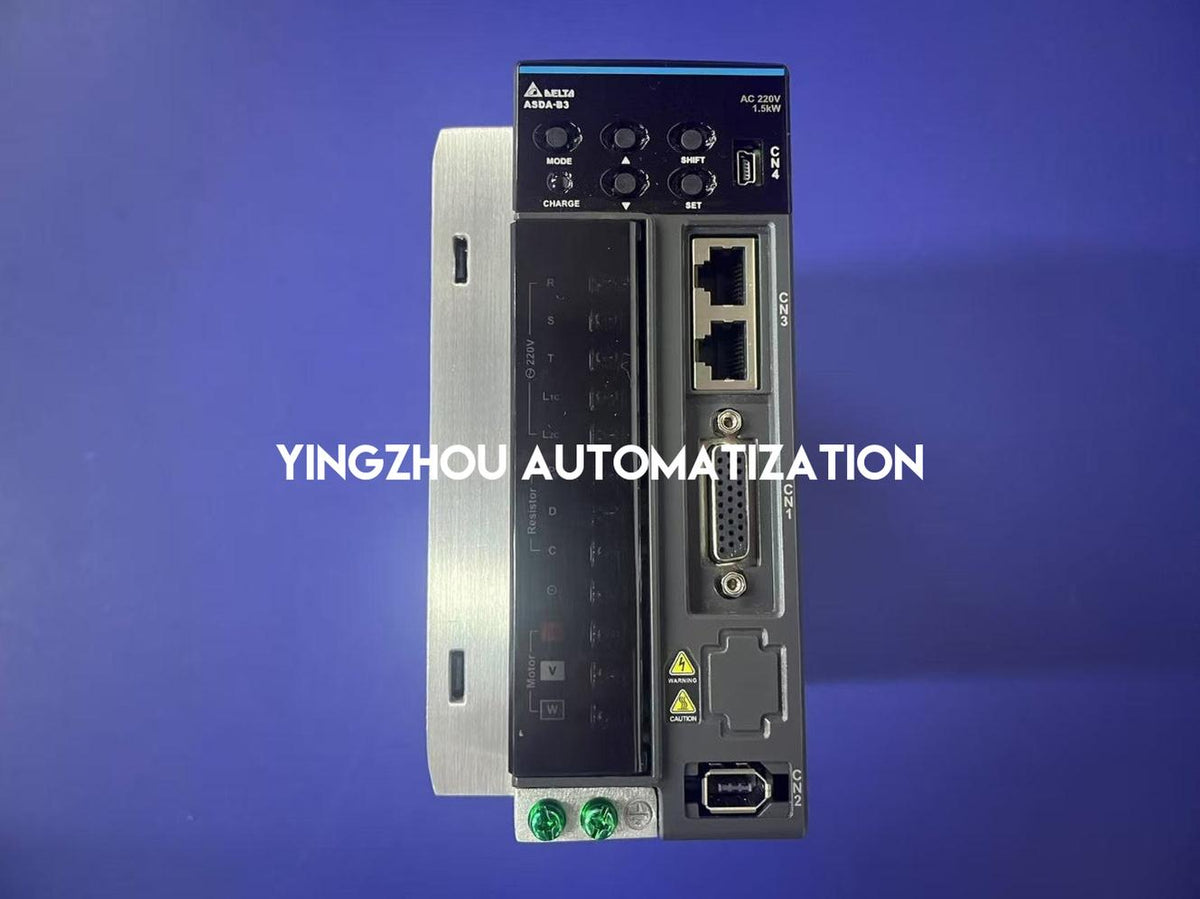

Actual product photos show the servo drive
and its nameplate, together with
matching model information on the carton.
Contact us for project pricing,
quantity requirements and shipping arrangements.
IN STOCK
Delta ASD-B3-1521-M
Order directly using the product page
Add to Cart / Buy Now controls,
or contact us for project and quantity pricing.
Request Project Pricing
