Delta ASD-A2-2043-M ASDA-A2 2 kW 400 V 3-Phase AC Servo Drive CANopen
Delta ASD-A2-2043-M ASDA-A2 2 kW 400 V 3-Phase AC Servo Drive CANopen
Couldn't load pickup availability
Delta ASD-A2-2043-M ASDA-A2 AC Servo Drive
| Specification | Product Data |
|---|---|
| Brand | Delta Electronics |
| Exact Model | ASD-A2-2043-M |
| Series | ASDA-A2 |
| Product Type | Single-Axis AC Servo Drive |
| Rated Motor Capacity | 2 kW / 2000 W |
| Voltage Class | 400 V Class |
| Main Circuit Input Phase | Three-Phase |
| Main Circuit Input Voltage | 380-480 VAC |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 5.65 A |
| Nameplate Motor Output Voltage | 220 VAC |
| Nameplate Output Frequency | 0-166.7 Hz |
| Continuous Output Current | 6.66 A |
| Communication | CANopen + RS-232 / RS-485 Modbus |
| Primary Industrial Network | CANopen |
| CANopen Connector | CN6 |
| CANopen Profiles | DS301 / DS402 |
| Serial Communication Interface | RS-232 / RS-485 |
| Serial Communication Protocol | Modbus |
| Serial Communication Connector | CN3 |
| PC Communication | USB (CN4) |
| EtherCAT Communication | Not Supported on A2-M |
| DMCNET Communication | Not Supported on A2-M |
| External Pulse Train Input | Supported |
| High-Speed Differential Pulse Input | Up to 4 Mpps |
| Open Collector Pulse Input | Up to 200 Kpps |
| Internal Positioning | PR Mode Supported |
| Electronic Cam | E-CAM Supported in PR Mode |
| Control Modes | Position / Speed / Torque |
| Analog Voltage Control | Supported |
| Full-Closed-Loop Feedback Interface | CN5, Subject to Operating Mode |
| Built-In Digital Inputs | 8 |
| Digital Outputs | 5 |
| Extension Digital Input CN7 | Not Provided on A2-M |
| Compatible Motor Encoder Feedback | 20-bit Incremental / 17-bit Absolute |
| Main Circuit Control | SVPWM |
| Tuning Methods | Automatic / Manual |
| Built-In Regenerative Resistor | Not Provided |
| Minimum External Regenerative Resistance | 40 Ohm |
| Hardware Safe Torque Off | Not Provided on A2-M |
Product Overview
The Delta ASD-A2-2043-M is a 2 kW single-axis AC servo drive from Delta's ASDA-A2 Series. Designed for 400 V class, three-phase 380-480 VAC industrial power systems, this drive provides CANopen communication through CN6 and RS-232 / RS-485 Modbus communication through CN3. The A2-M configuration supports external pulse train input, internal PR positioning, E-CAM functions in PR mode and a full-closed-loop feedback interface for supported industrial motion applications using compatible Delta servo motors. The 2 kW, 400 V model does not include a built-in regenerative resistor.
Key Product Features
- 2 kW Rated Servo Capacity for compatible industrial servo motor systems
- 400 V Class Three-Phase Input designed for 380-480 VAC industrial power systems
- CANopen Communication through the CN6 industrial network interface
- RS-232 / RS-485 Modbus Communication through the CN3 serial interface
- External Pulse Train Control for compatible PLC and motion controller position commands
- Internal PR Positioning for supported programmable positioning sequences
- Electronic Cam Function for supported PR mode applications
- Position, Speed and Torque Control with supported analog voltage commands
- Full-Closed-Loop Feedback Interface through CN5 for supported operating modes
- 8 Digital Inputs and 5 Digital Outputs for control integration
- External Regenerative Resistor Support with no built-in resistor on the 2 kW, 400 V model
Actual Product Verification
In Stock & Ready to Order

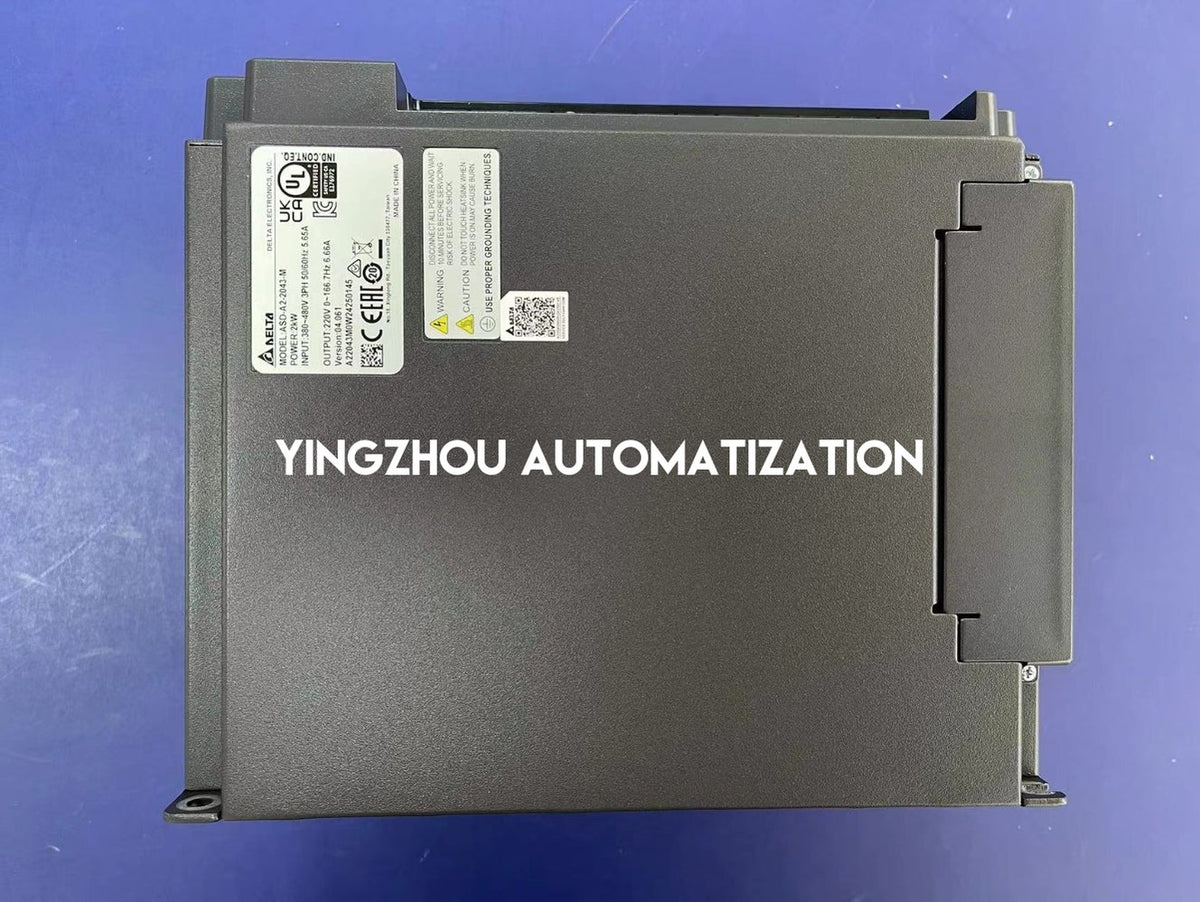

Delta ASD-A2-2043-M is currently in stock. An actual product photo showing the exact model and device nameplate is available for verification. Contact us for project pricing, quantity requirements and shipping arrangements.
