YingZhou Industrial Automation | Product Information
Delta AS02LC-A AS Series Load Cell Module
2-Channel | 24-Bit ADC | 4/6-Wire Load Cell | 24VDC
Product Overview
The Delta AS02LC-A is a
2-channel load cell module for Delta AS Series
control systems. It supports 4-wire and 6-wire load cells
with 24-bit ADC resolution, a ±40 mVDC input range,
and selectable response times for industrial weighing and force
measurement applications.
Key Product Features
-
2-channel load cell measurement
-
24-bit ADC resolution
- Supports 4-wire / 6-wire load cells
-
±40 mVDC input signal range
-
0.04% highest precision
-
2.5–400 ms selectable response time
Actual Product Verification
✓

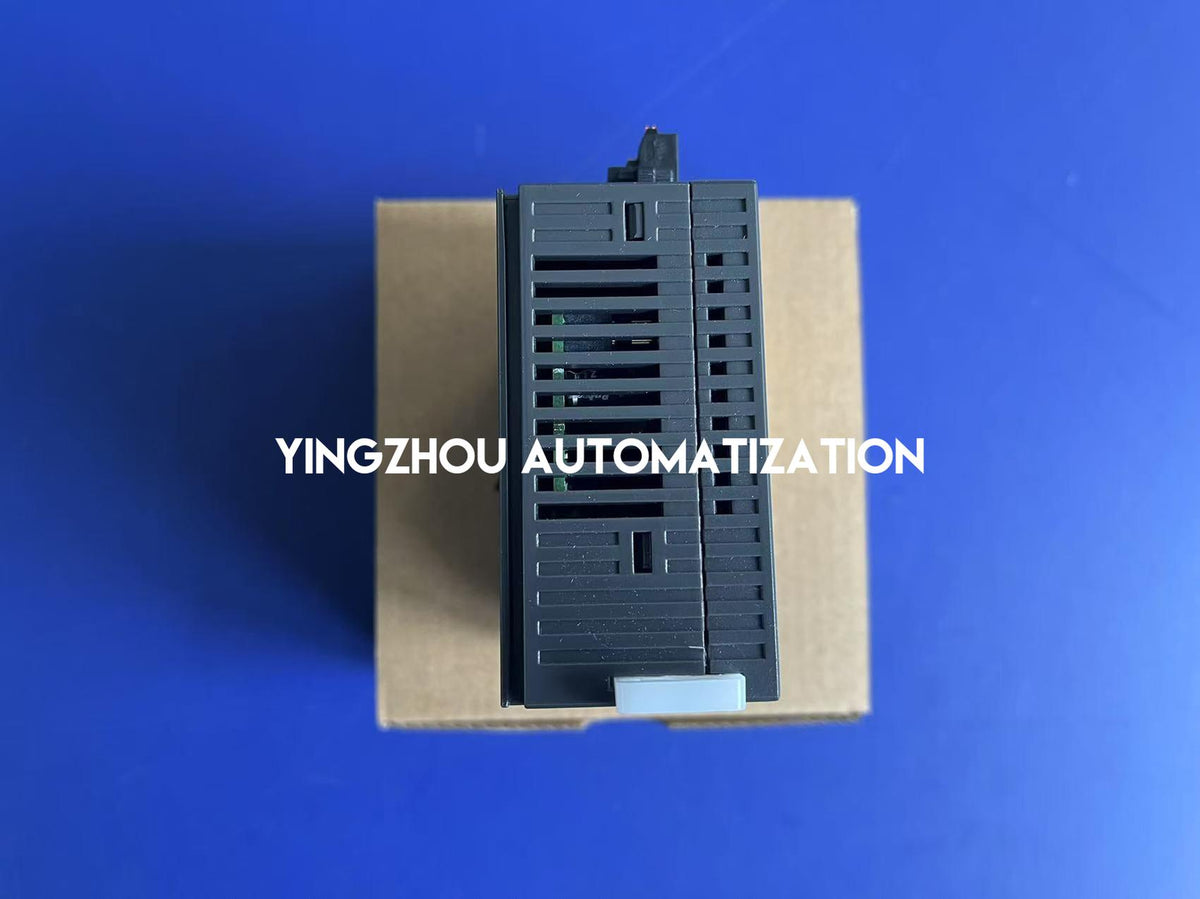

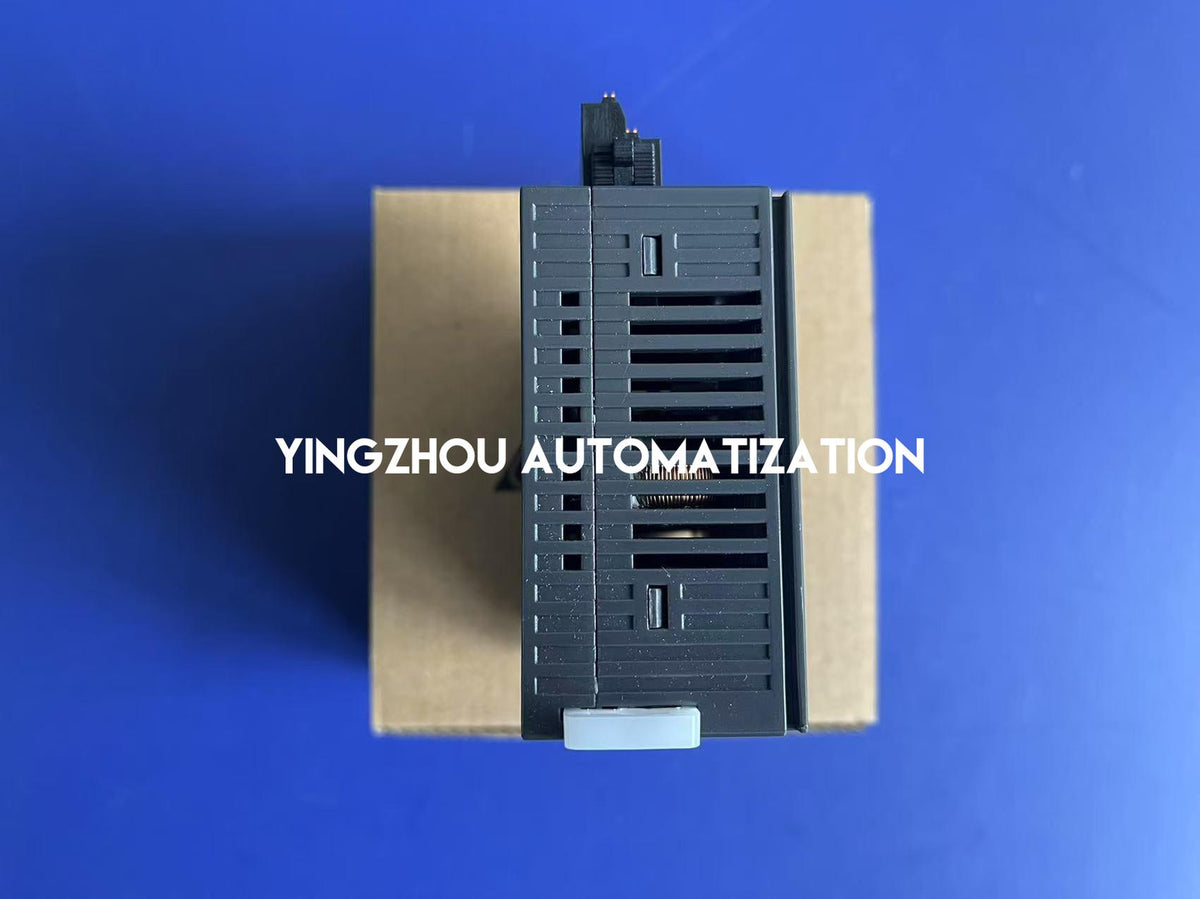

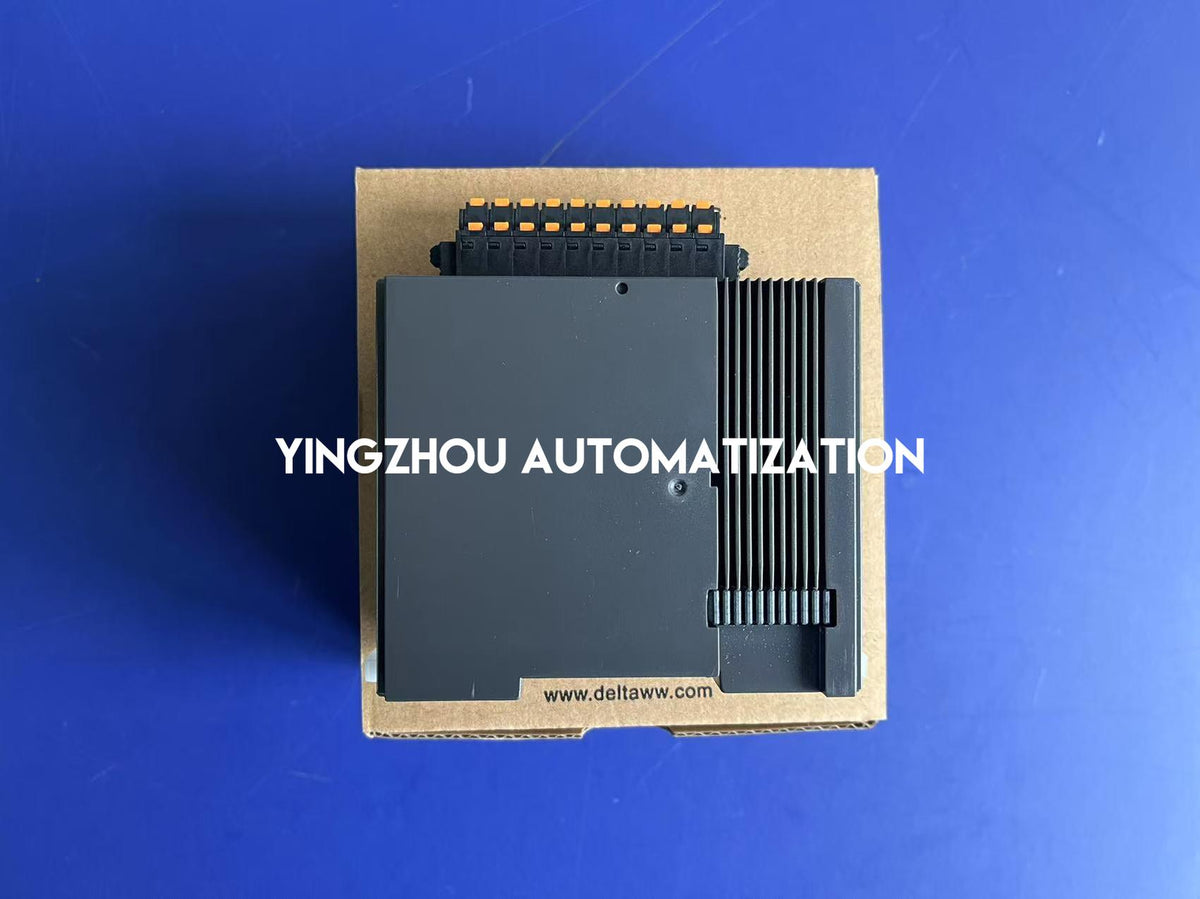

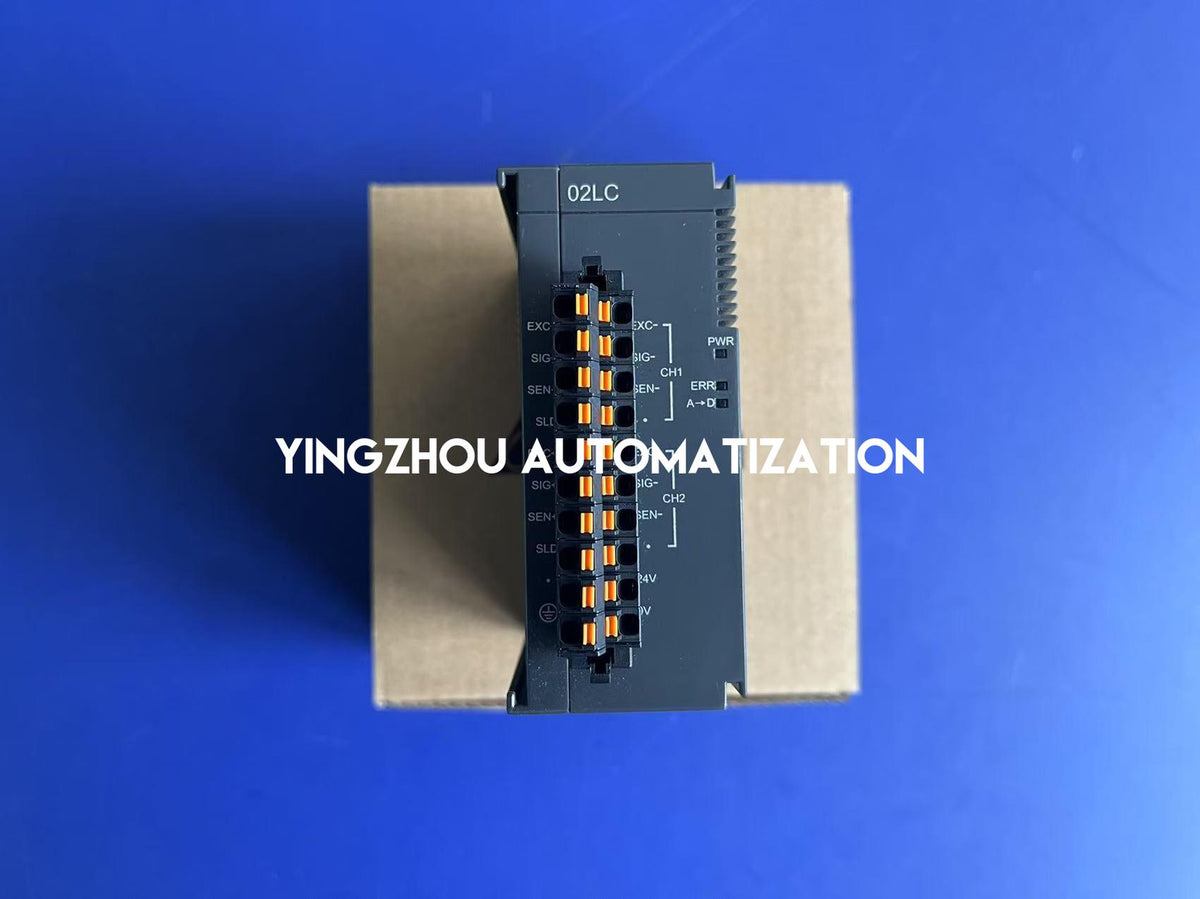

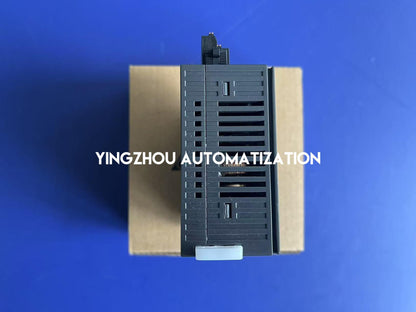

Actual product photos
✓

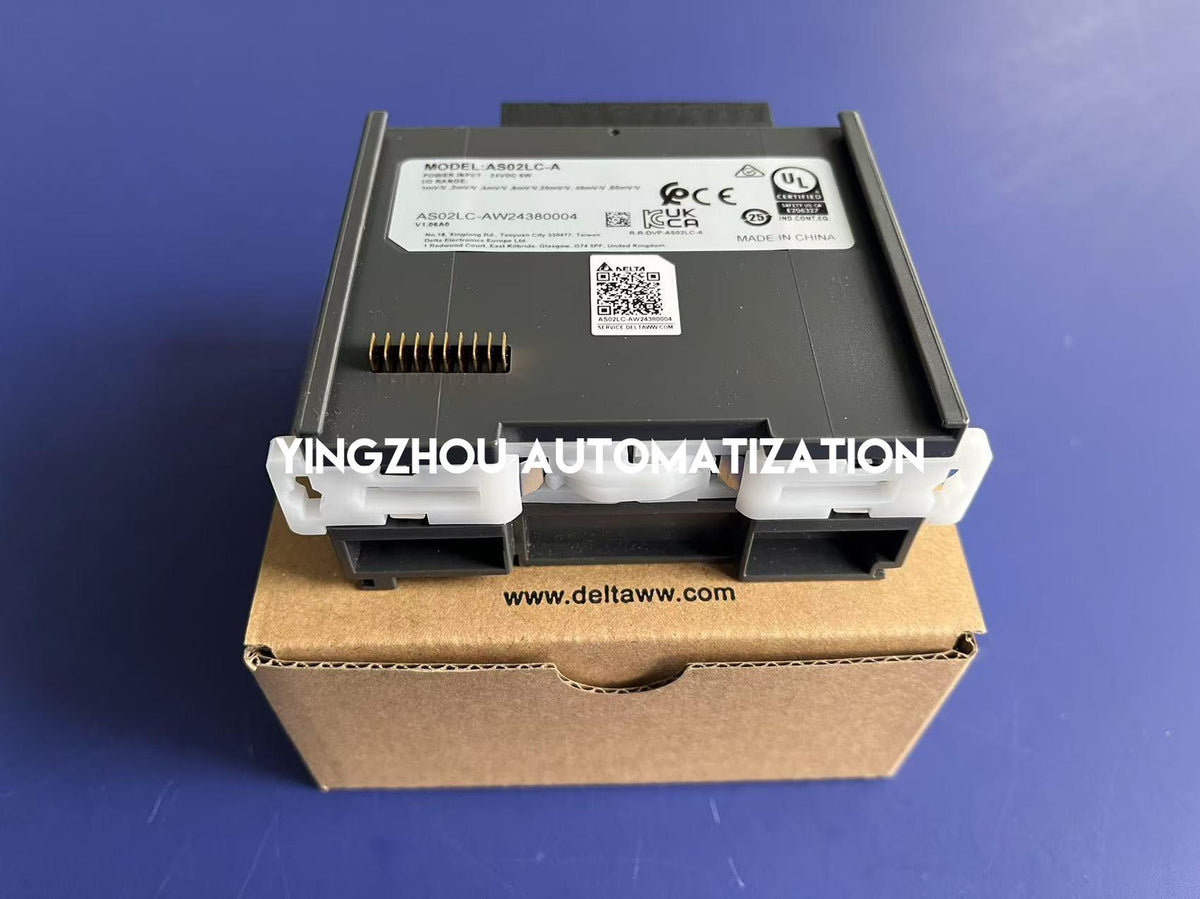

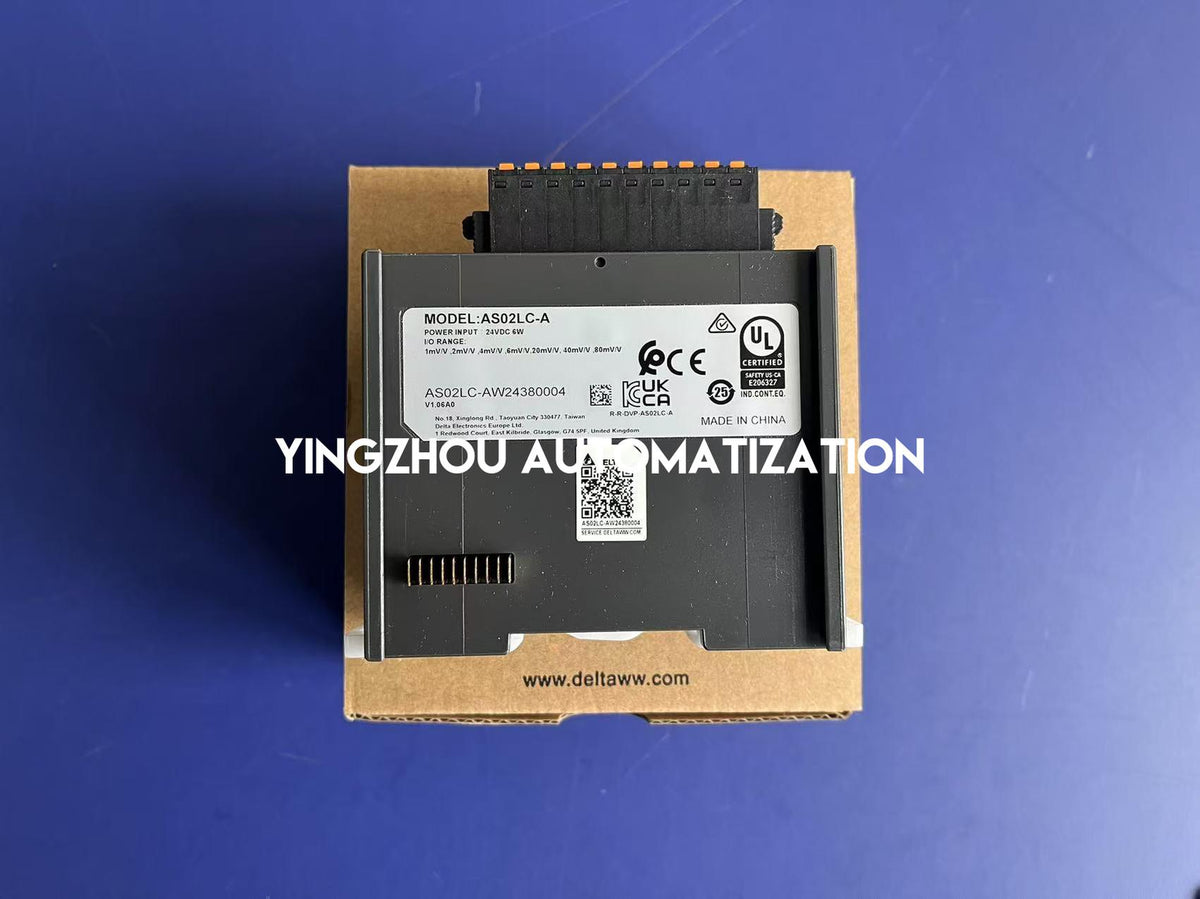

Model/nameplate visible
✓

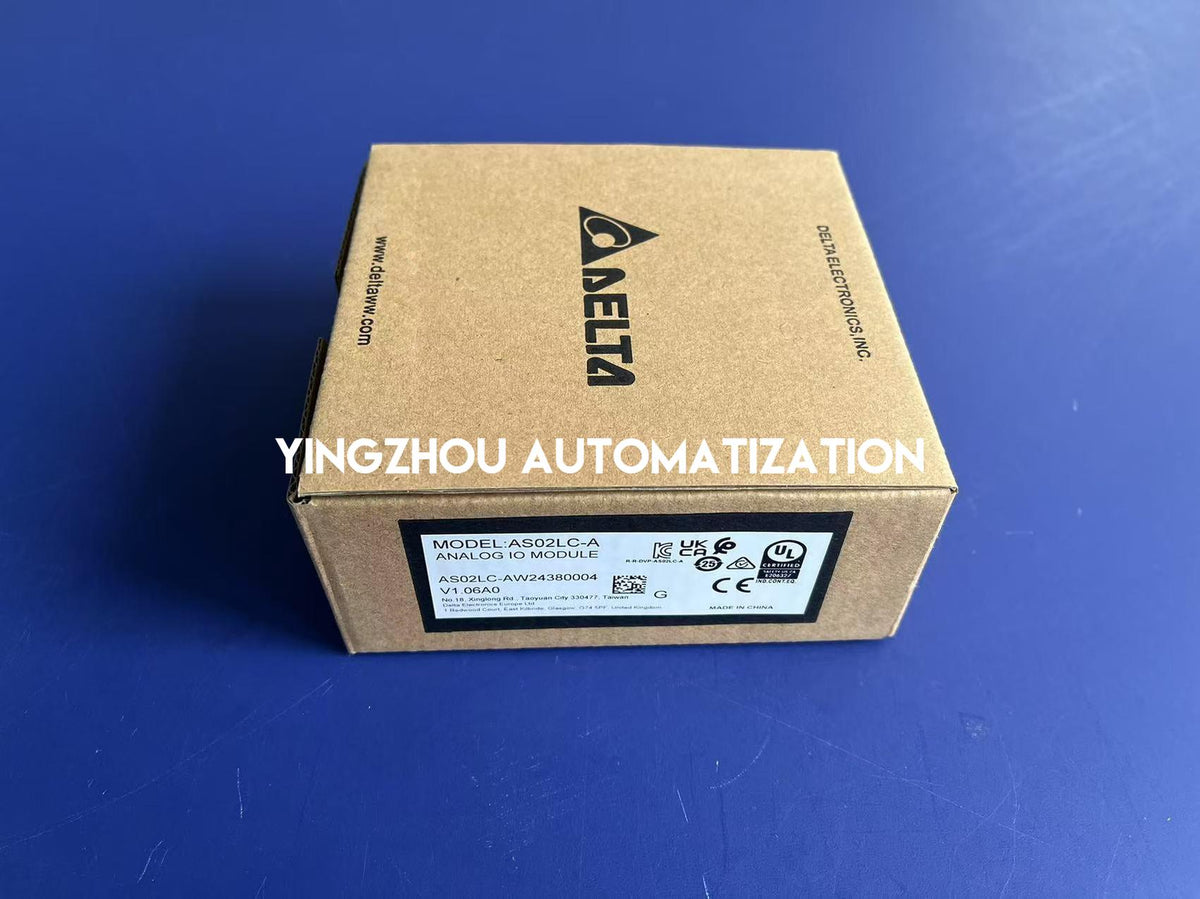

Packaging shown
✓
Verify exact model AS02LC-A before ordering
In Stock & Ready to Order
Delta AS02LC-A is currently in stock.
Brand new original unit with a
1-year seller warranty.
