YingZhou Industrial Automation | Product Information
Allen-Bradley 25B-D2P3N114 PowerFlex 525 AC Drive
0.75 kW / 1 HP | 380–480V 3-Phase | 2.3 A | EtherNet/IP
| Specification |
Verified Product Data |
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Catalog Number |
25B-D2P3N114 |
| Product Family |
PowerFlex 525 (Bulletin 25B) |
| Product Type |
AC Variable Frequency Drive (VFD) |
| Rated Motor Power |
0.75 kW / 1 HP (Normal Duty and Heavy Duty) |
| Input Voltage Rating |
380–480V AC, 3-phase, 47–63 Hz (nameplate) |
| Permitted Input Voltage Range |
323–528V AC, 3-phase (manufacturer specification) |
| Rated Output Current |
2.3 A continuous |
| Motor Output Voltage |
0–460V AC, 3-phase |
| Motor Output Frequency |
0–500 Hz (nameplate) |
| Frame Size |
A |
| Enclosure Classification |
IP20 / NEMA Open Type |
| EMC Filter |
Included (filtered configuration) |
| Communication |
Embedded EtherNet/IP |
| Safety Function |
Integrated Safe Torque-Off (STO) |
| Brake IGBT |
Included |
| Operator Interface |
Integral keypad with potentiometer and LED display |
| Analog Inputs |
2: one unipolar and one bipolar (PowerFlex 525 series) |
| Digital Inputs |
7, of which 6 are programmable (PowerFlex 525 series) |
| Analog Output |
1, selectable 0–10V or 0–20 mA (PowerFlex 525 series) |
| Series Revision (Nameplate) |
A |
| Firmware Marking (Nameplate) |
7.001 |
| Country of Manufacture (Photos) |
China |
Product Overview
The Allen-Bradley 25B-D2P3N114 is a PowerFlex 525 AC variable frequency drive designed for 380–480V AC three-phase input. Rockwell Automation identifies this exact catalog number as a 0.75 kW / 1 HP, 2.3 A drive with Frame A, IP20 / NEMA Open Type enclosure, embedded EtherNet/IP, integrated safety functionality and an EMC filter. Its Safe Torque-Off feature must be integrated and validated as part of the complete machine safety system. The supplied photographs show matching catalog numbers on the drive and carton, both indicating Series A and FW 7.001. Confirm motor sizing, supply conditions, installation accessories and desired control configuration before ordering.
Key Product Features
-
0.75 kW / 1 HP AC Drive — Motor power rating for both normal-duty and heavy-duty classifications.
-
380–480V 3-Phase Input — Designed for the specified three-phase AC supply range.
-
2.3 A Continuous Output — Rated motor output current for the exact model.
-
Embedded EtherNet/IP — Integrated industrial Ethernet connectivity for drive control and monitoring.
-
Integrated Safe Torque-Off — STO safety function is provided; safety system integration must follow Rockwell instructions.
-
Frame A / IP20 — Compact open-type chassis for appropriate control-panel installation.
-
Built-In EMC Filter — Filtered configuration confirmed by the exact-model Rockwell catalog.
-
Actual Product and Carton Photos — Both photographed labels show 25B-D2P3N114, Series A and firmware 7.001.
Actual Product Verification
✓ Actual product nameplate and carton photographs supplied

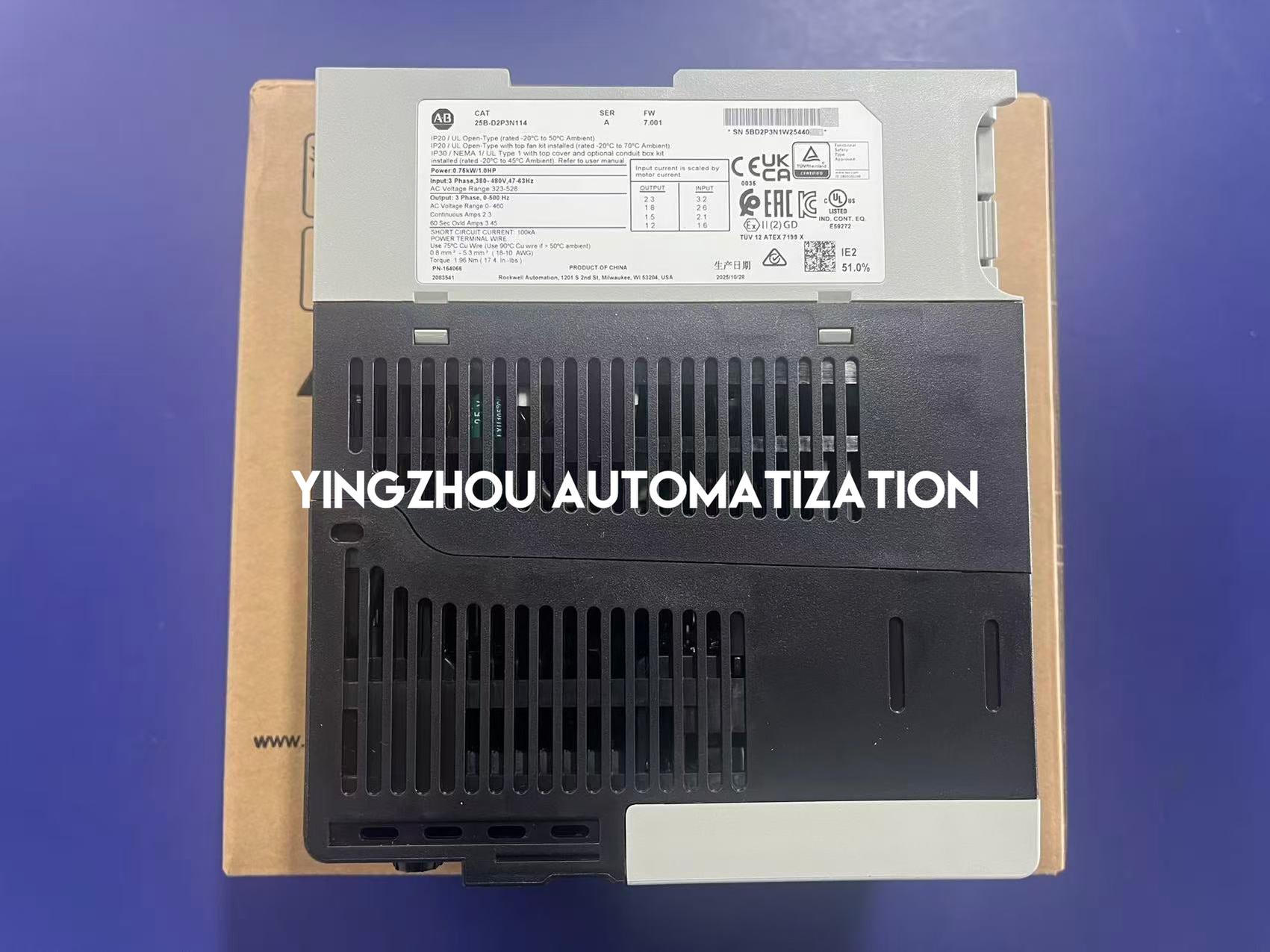

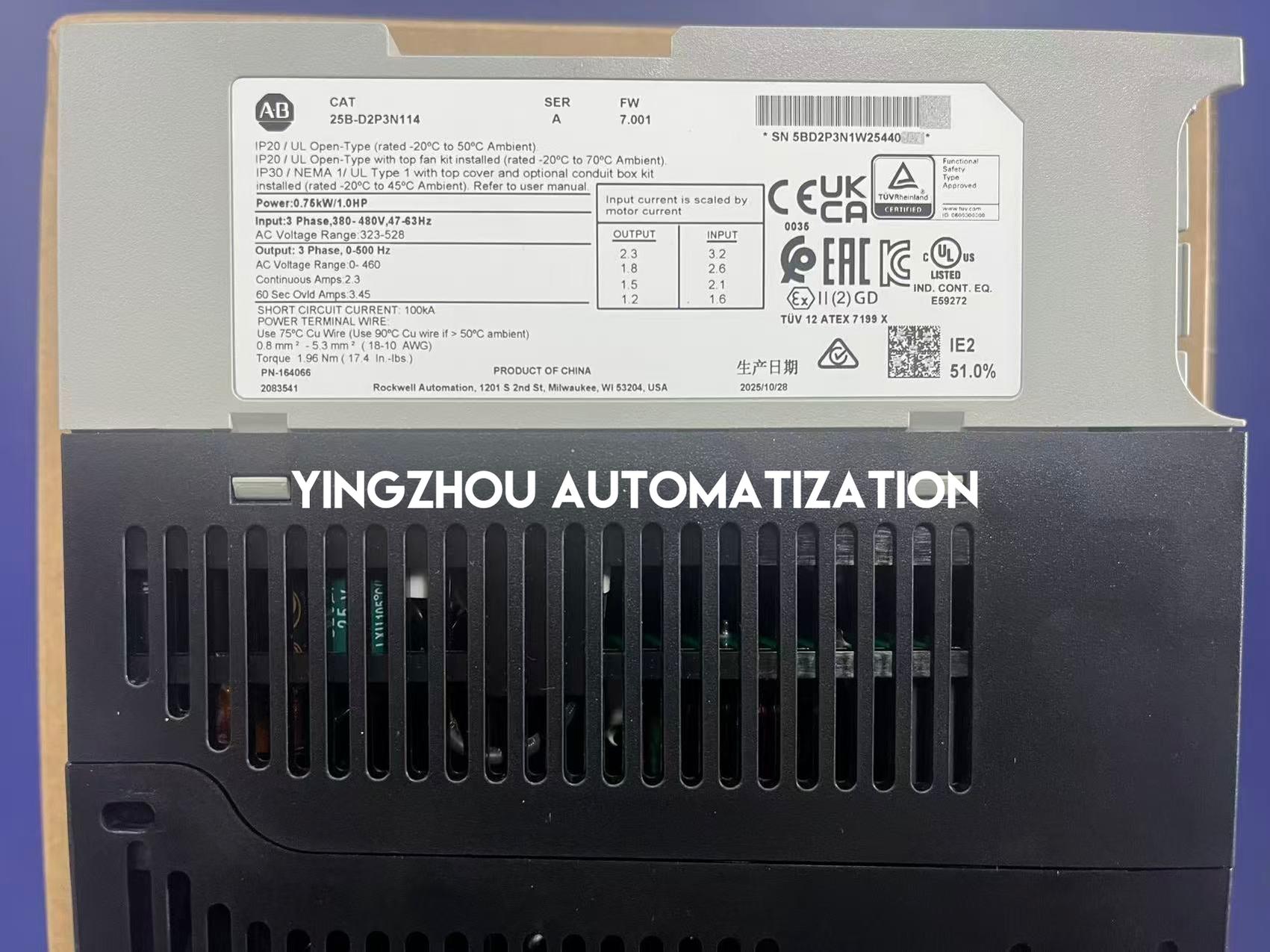

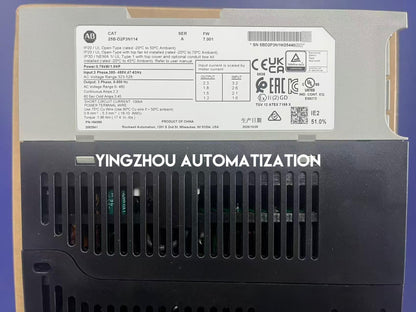

✓ Drive nameplate confirms 25B-D2P3N114, Series A, FW 7.001

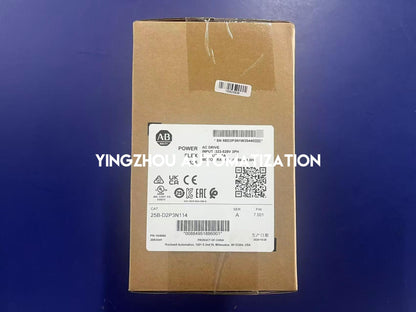

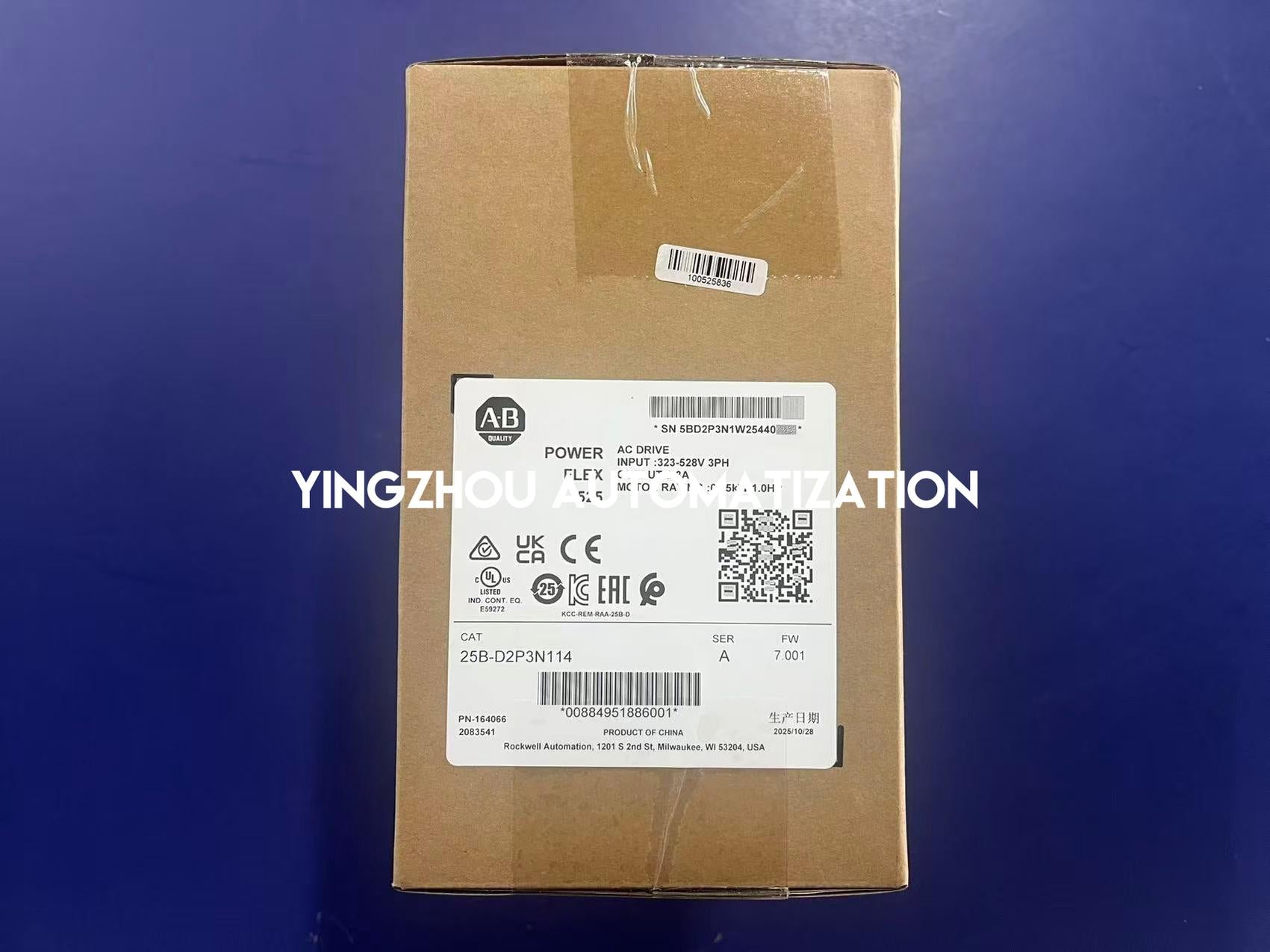

✓ Carton label shows matching catalog number and series / firmware identifiers
✓ Product label indicates Made in China; carton label states Product of China
✓ Please confirm required quantity, accessories and operating requirements before ordering
In Stock & Available to Order
Allen-Bradley 25B-D2P3N114 is marked in stock based on supplied inventory information. Please reconfirm quantity and dispatch date before ordering. Installation accessories, external safety components and commissioning services are not confirmed as included in the supplied photos.
IN STOCK
Allen-Bradley 25B-D2P3N114
Order online or contact us for multiple units and project sourcing. Please verify the exact PowerFlex 525 model, motor rating, three-phase supply and control requirements.
