Performance Overview

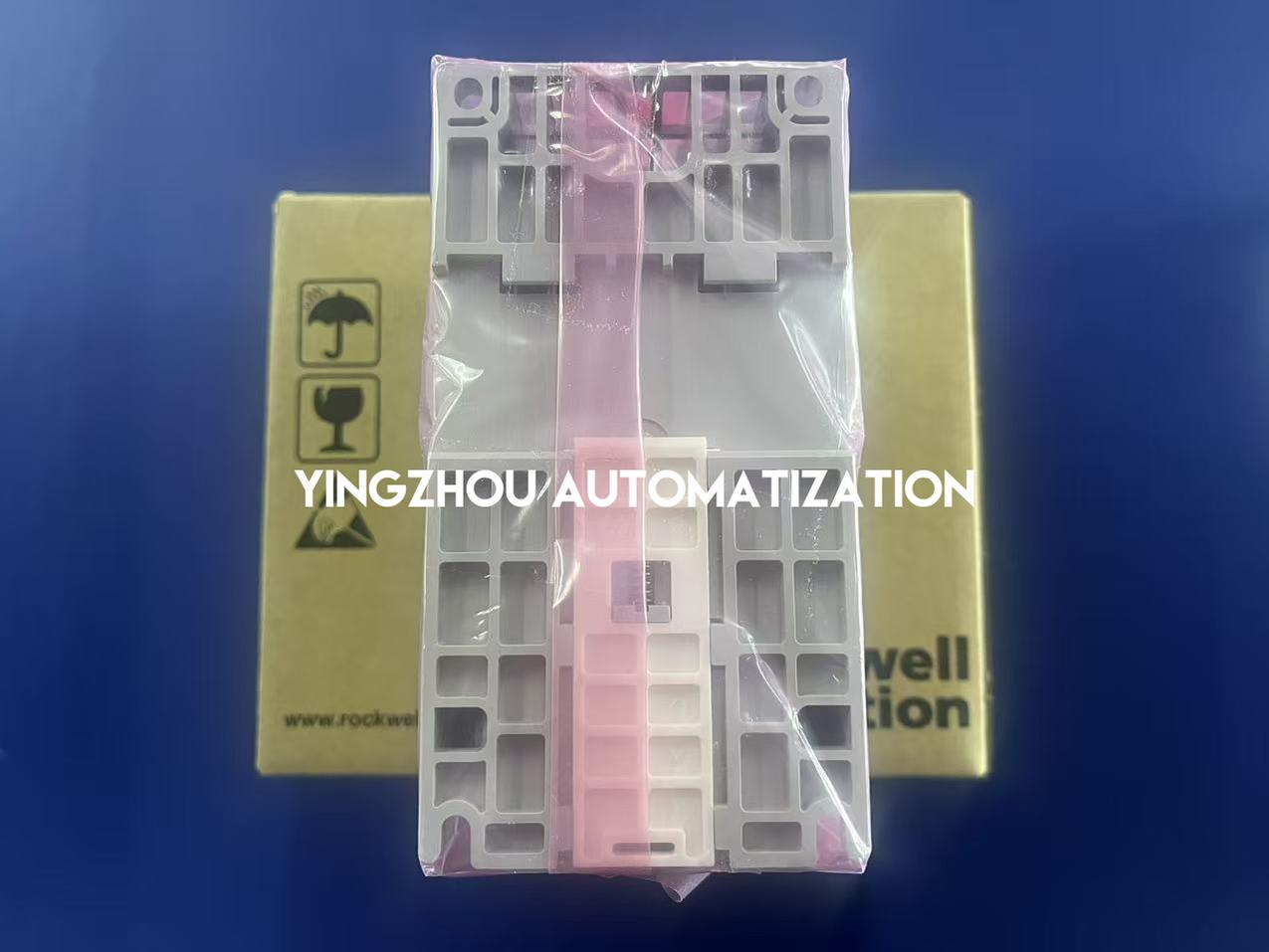

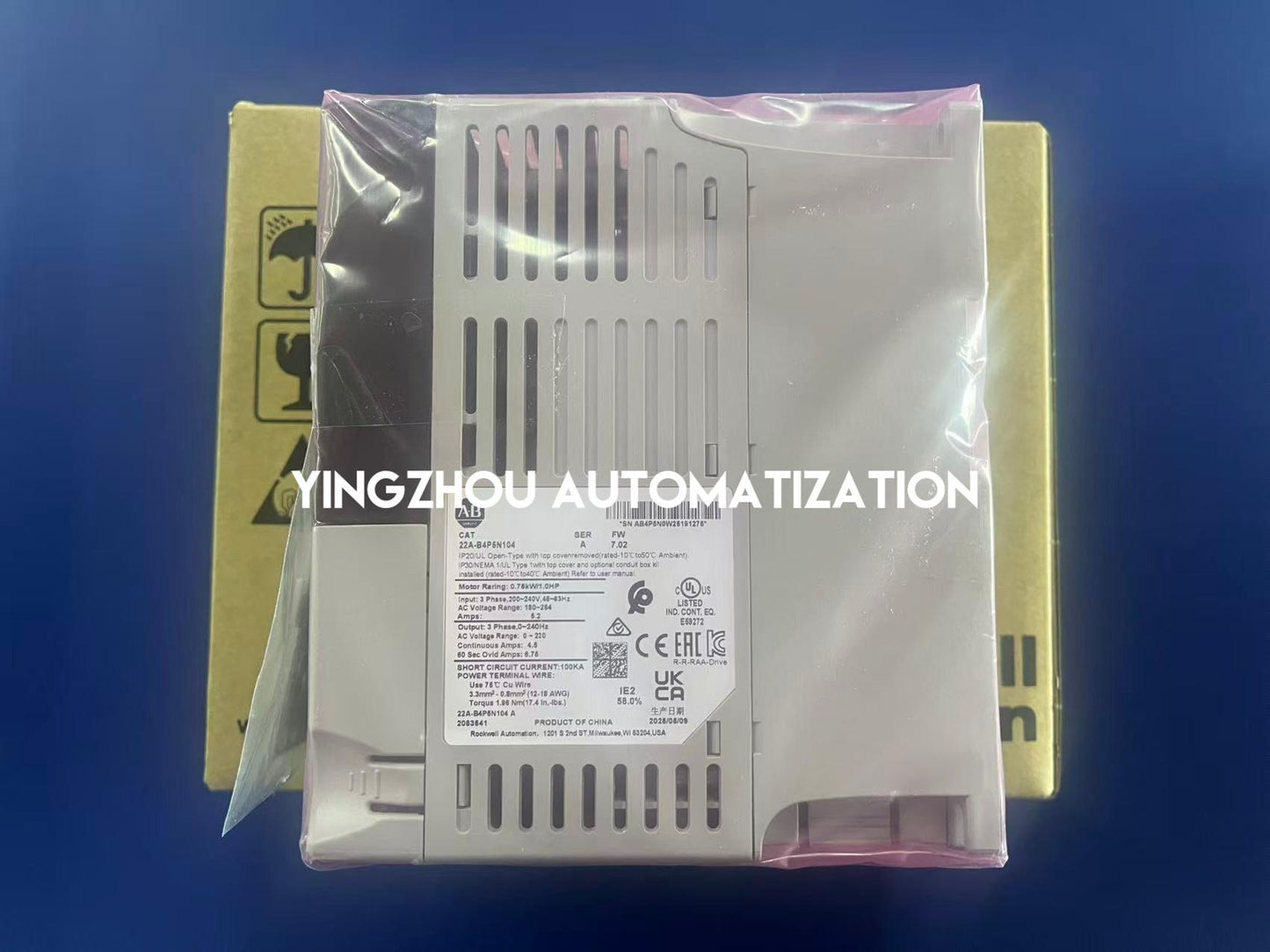

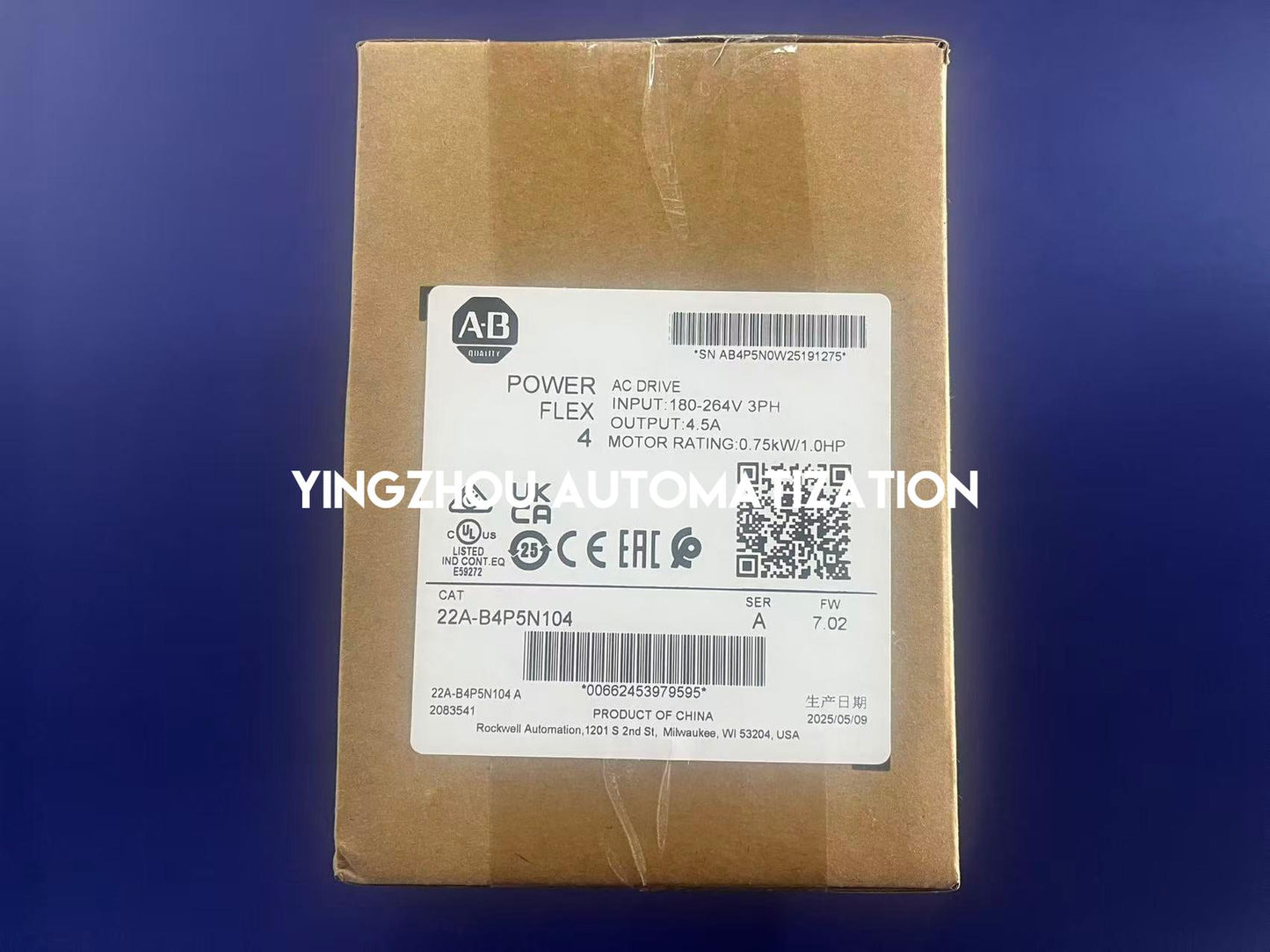

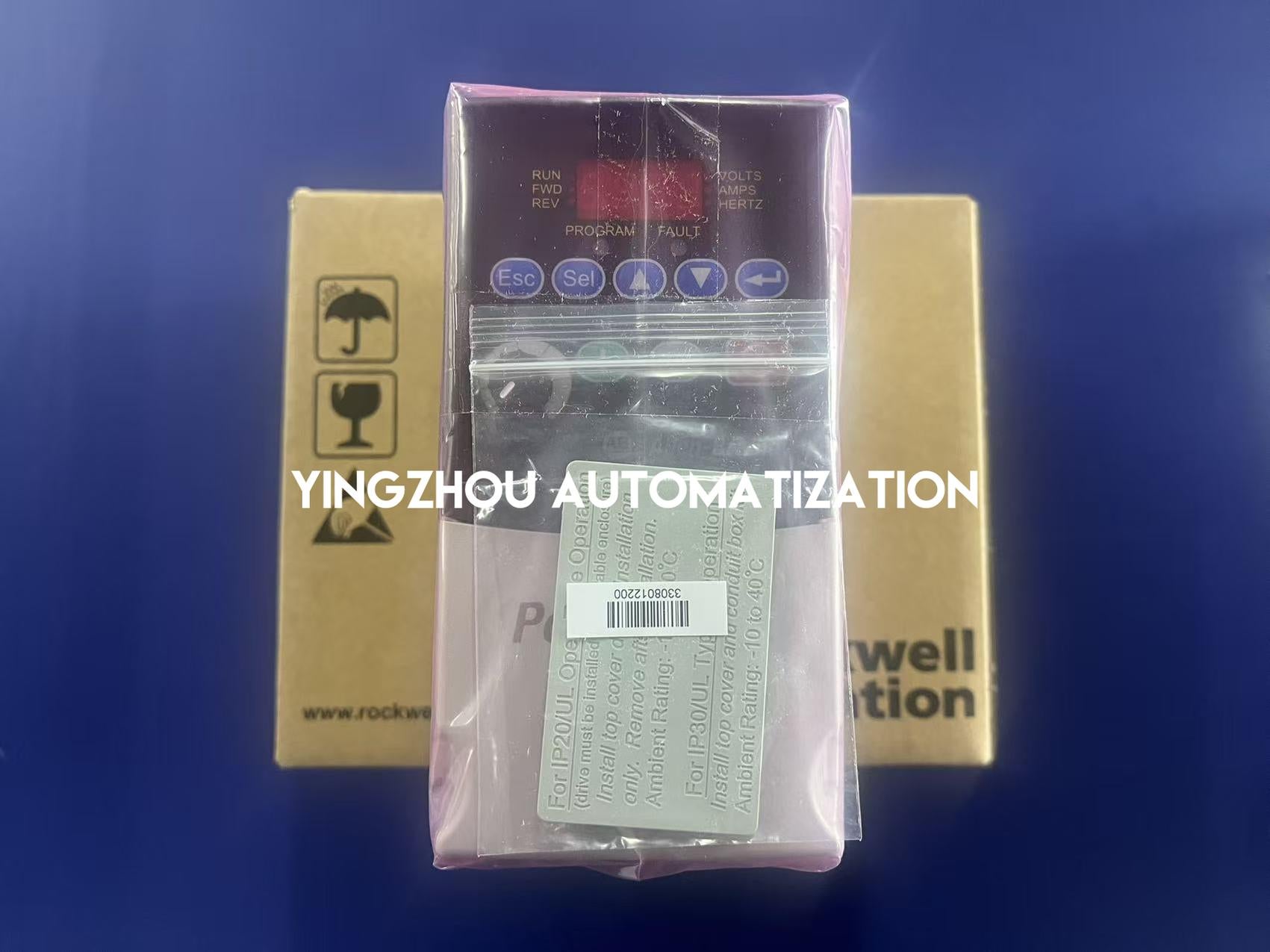

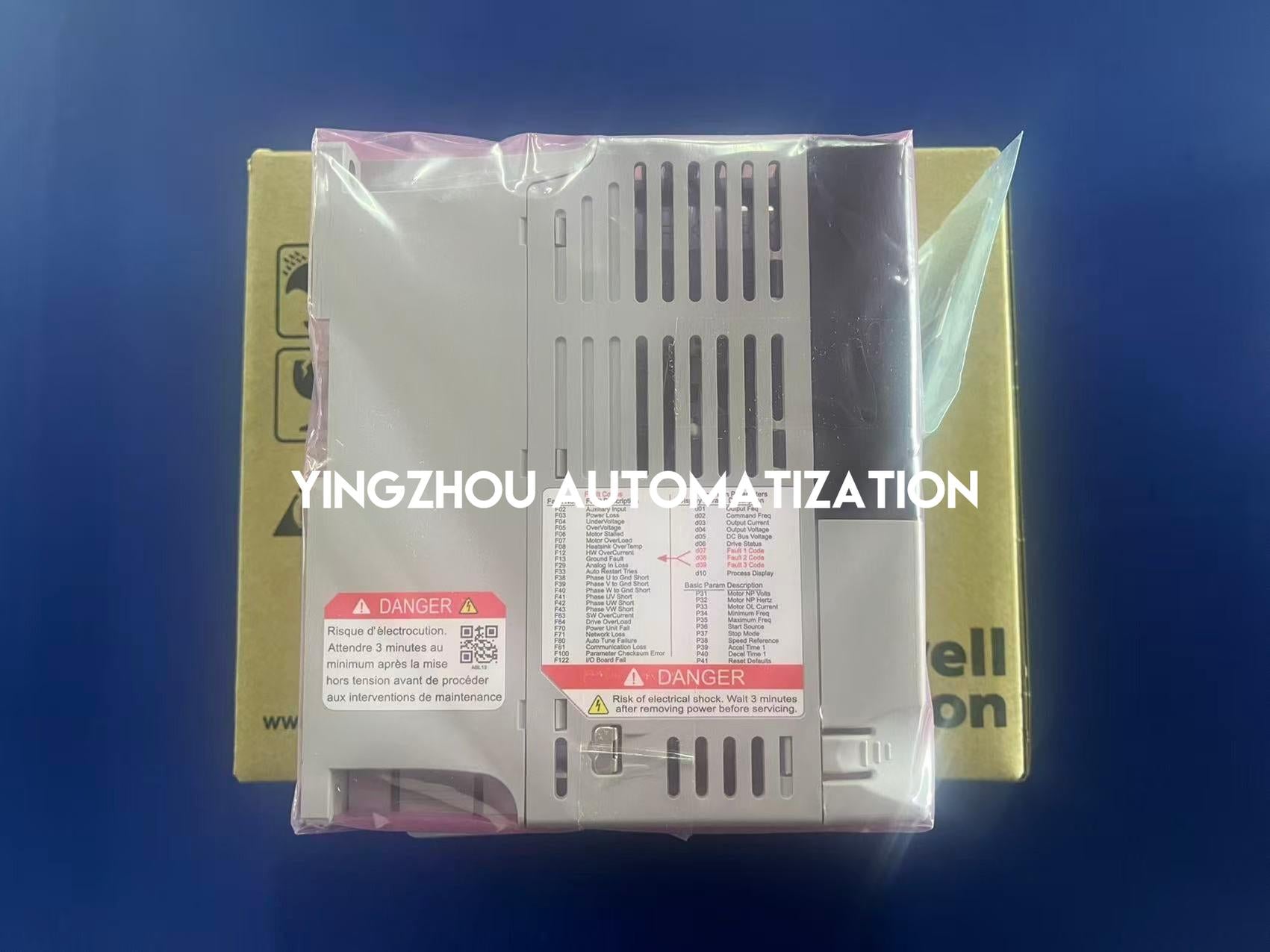

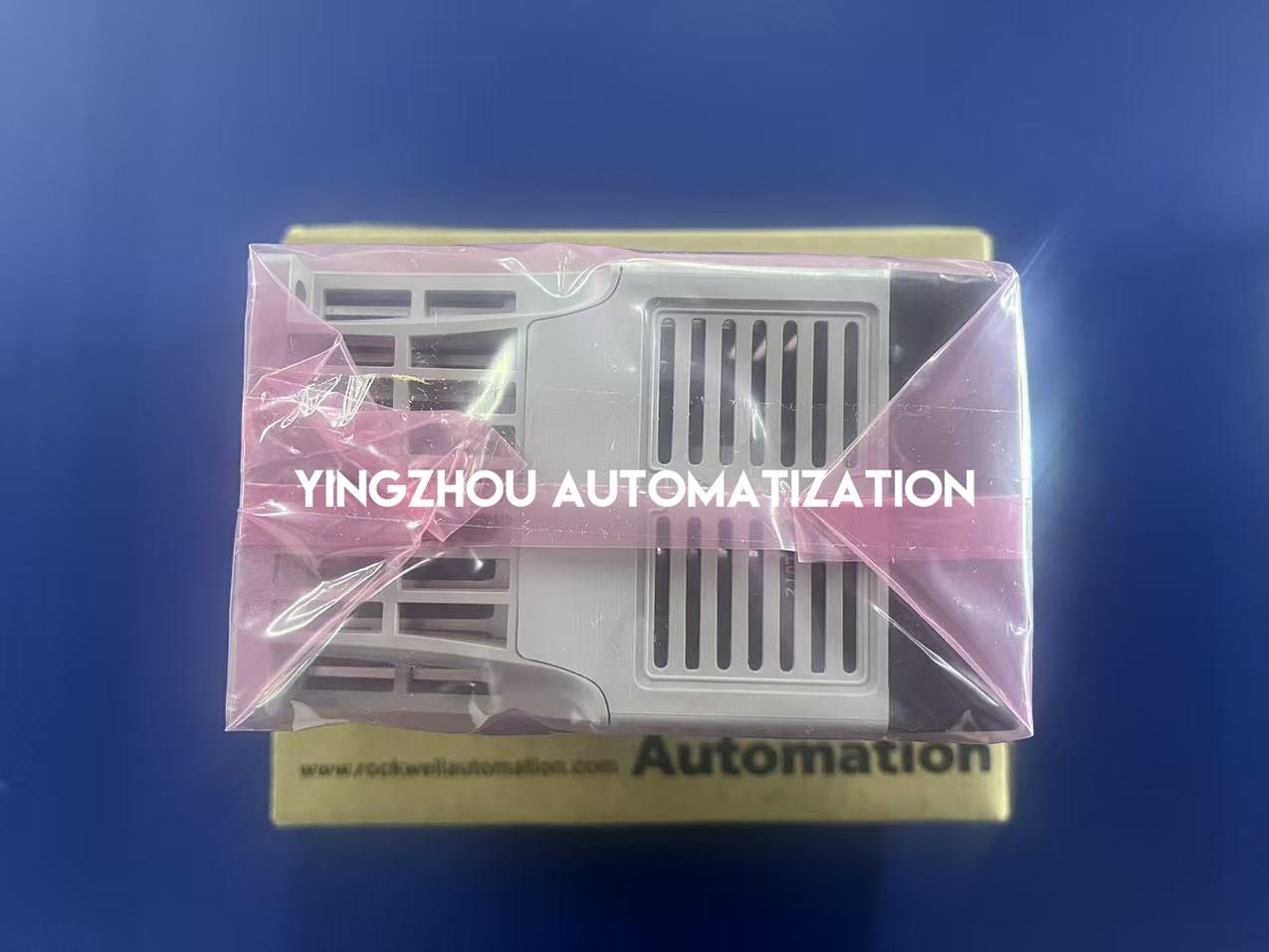

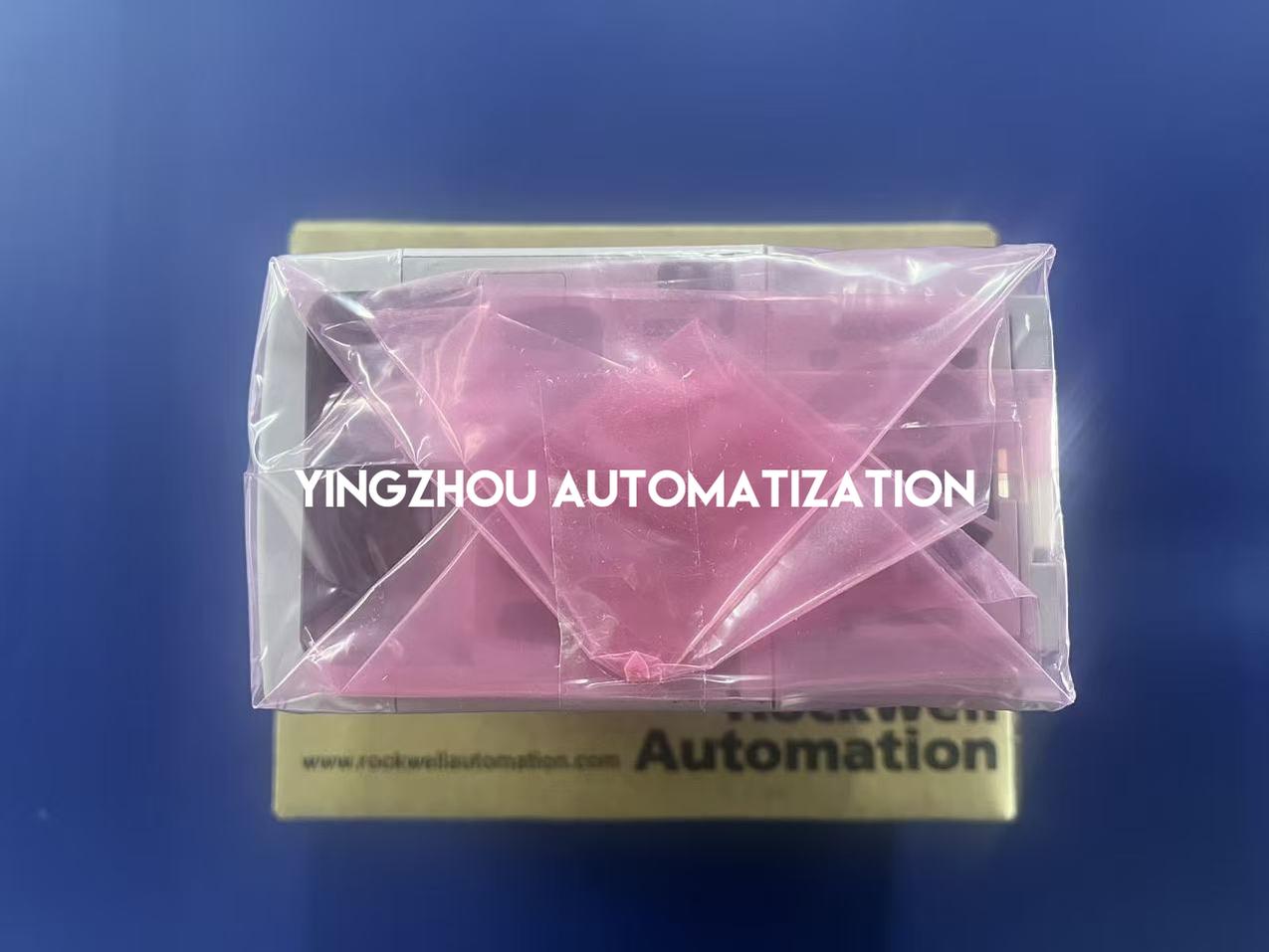

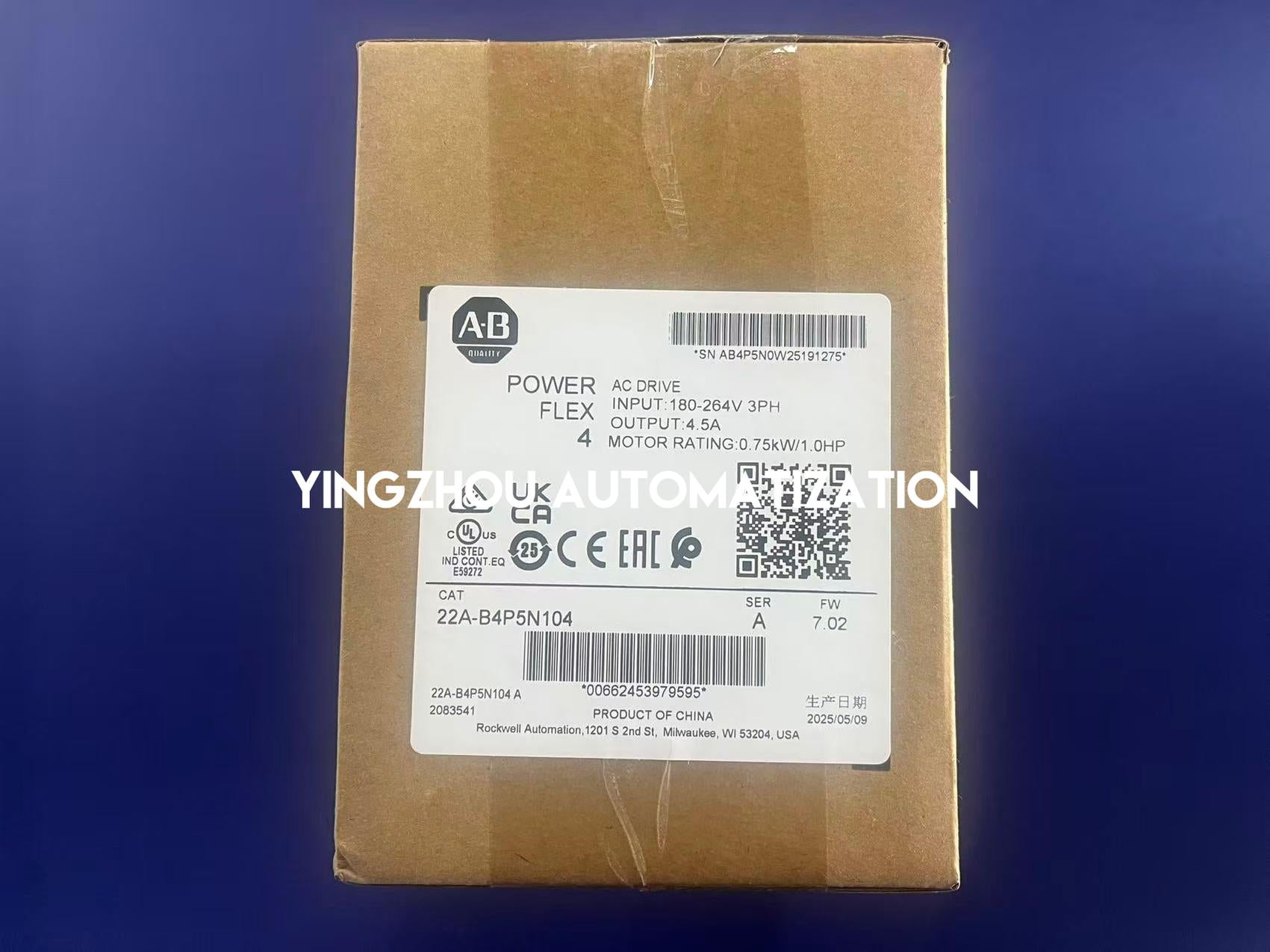

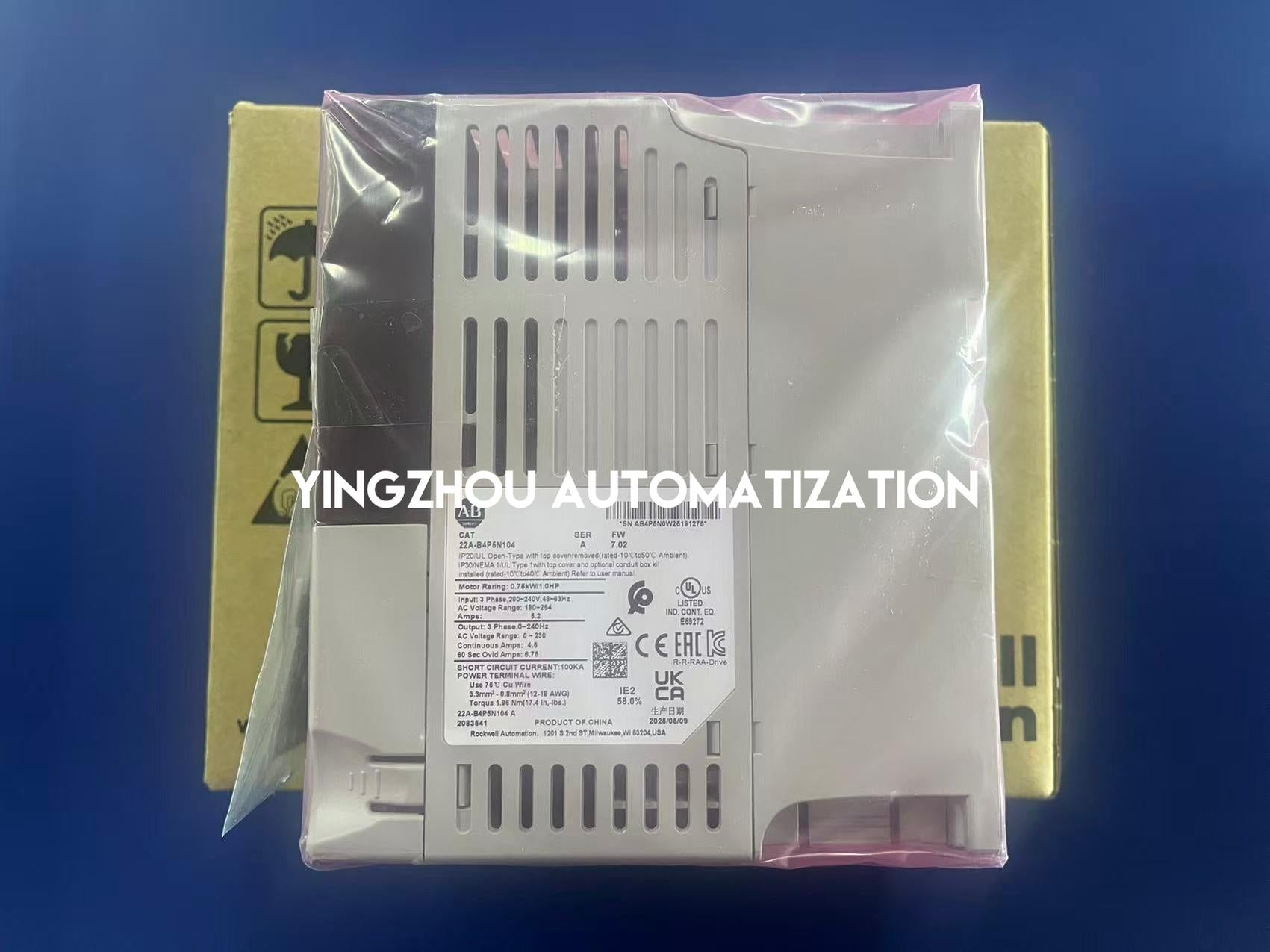

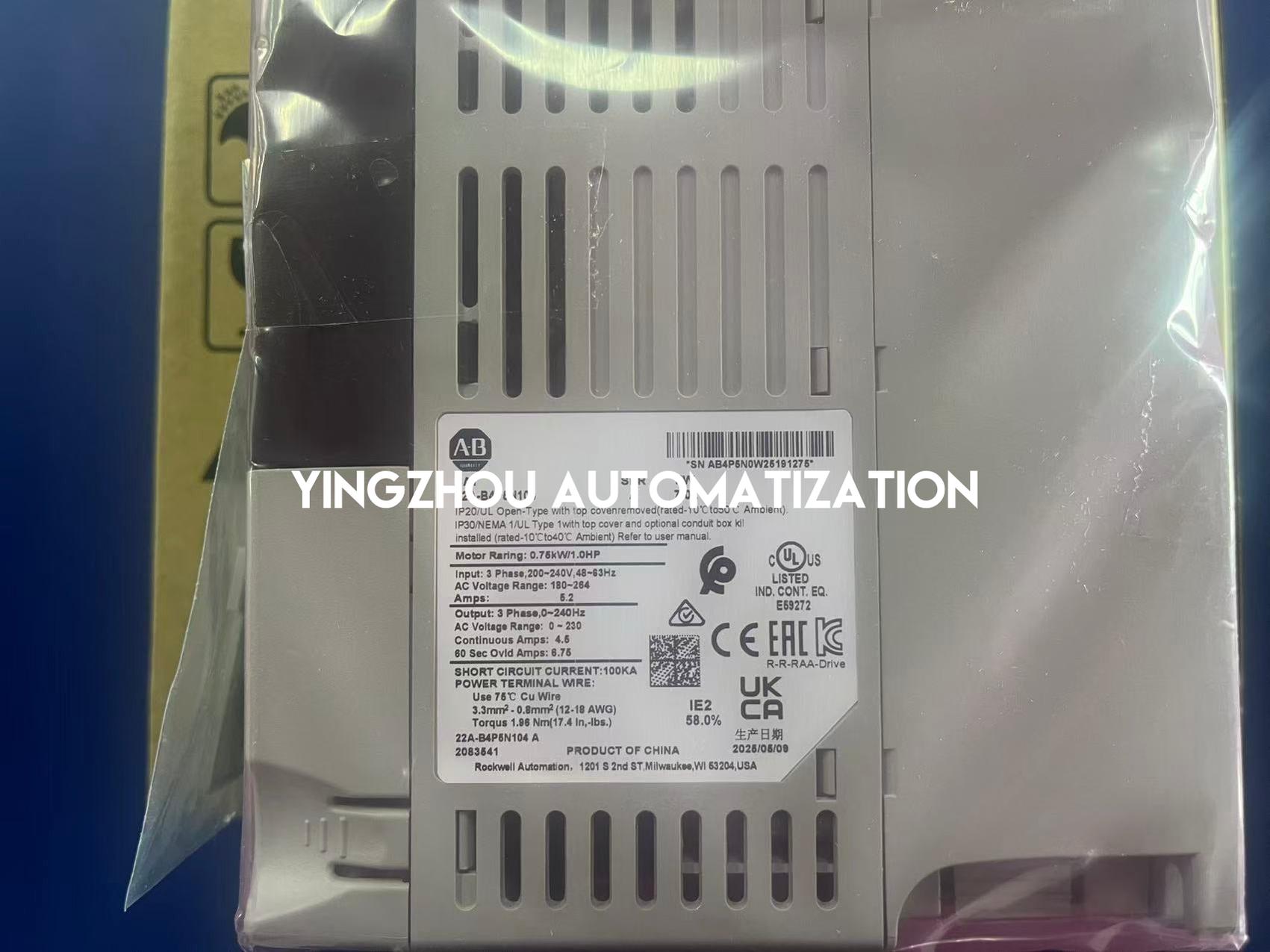

The Allen-Bradley 22A-B4P5N104 is a highly compact, space-optimized adjustable frequency AC drive from the classic PowerFlex 4 component class. Designed for precision 3-phase motor speed regulation at 240V, this Frame A unit yields a steady 0.75 kW (1 HP) power rating with a continuous output of 4.5 A. Featuring a slim form factor that maximizes backpanel layout density, it can be mounted side-by-side or directly on standard DIN-rails. The hardware incorporates an integrated digital LED operator interface, internal braking IGBT paths, and Modbus RTU protocols over an RS-485 serial bus, making it an efficient and dependable option for small-scale machine tools and standalone automation builds.
📋 Critical Application Check
-
Industry: Material Packaging, Commercial Blower Controls, Small Conveyor Line Drives, Woodworking Equipment, Food Processing Auxiliaries.
-
Flexible Interfacing: Equipped with dedicated digital control terminals alongside an analog tracking loop (0-10V / 4-20mA) to receive direct instrument reference lines.
-
Reliability: Manufactured to Allen-Bradley's rigorous global component standards, ensuring industrial-grade thermal stability and exceptional hardware uptime.
Allen-Bradley Motor Control Integration:
