Siemens 6ES7522-1BL01-0AB0 S7-1500 32DO 24VDC 0.5A Digital Output Module

Name: Siemens 6ES7522-1BL01-0AB0 S7-1500 32DO 24VDC 0.5A Digital Output Module
Brand: SIEMENS
SKU: 6ES7522-1BL01-0AB0
Price: 515.99 USD
Availability: InStock

Siemens 6ES7522-1BL01-0AB0 S7-1500 32DO 24VDC 0.5A Digital Output Module

$515.99 USD

Aanbieding Uitverkocht

Model Number 6ES7522-1BL01-0AB0

Productvarianten

Aantal

YingZhou Industrial Automation | Product Information

Siemens 6ES7522-1BL01-0AB0 SIMATIC S7-1500 Digital Output Module

SM 522 | 32 Digital Outputs | 24V DC | 0.5A per Channel | High Feature

✓ IN STOCK & AVAILABLE TO ORDER | Actual Packaging Photos | Exact Packaging Model Verified

Specification	Verified Product Data
Manufacturer	Siemens AG
Catalog Number	6ES7522-1BL01-0AB0
Product Series	SIMATIC S7-1500
Product Family	SM 522
Product Type	High Feature Digital Output Module
Module Designation	DQ 32x24VDC/0.5A HF
Digital Output Channels	32
Channel Grouping	4 groups of 8 channels
Nominal Load Voltage	24V DC
Permissible Load Voltage	19.2–28.8V DC
Output Type	Current-Sourcing
Rated Output Current per Channel	0.5A
Maximum Output Current per Group	4A
Maximum Output Current per Module	16A
Short-Circuit Protection	Yes, Electronically Clocked
Short-Circuit Response Threshold	Typically 1A
Resistive Load Switching Capacity	Maximum 0.5A per output
Lamp Load Switching Capacity	Maximum 5W
Load Resistance Range	48Ω–12kΩ
Output Delay, OFF to ON	Maximum 100µs (resistive load)
Output Delay, ON to OFF	Maximum 500µs (resistive load)
Switching Frequency, Resistive Load	Maximum 100Hz
Switching Frequency, Inductive Load	Maximum 0.5Hz, DC-13
Switching Frequency, Lamp Load	Maximum 10Hz
Isochronous Mode	Supported
Minimum Bus Cycle Time	250µs
Minimum Execution/Activation Time	70µs
Single-Channel Diagnostics	Supported
Diagnostic Alarms	Supported
Maintenance Interrupts	Supported
Substitute Values	Supported
Switching Cycle Counter	Supported
Supply Voltage Monitoring	Supported
Wire-Break Diagnostics	Supported
Short-Circuit Diagnostics	Supported
Maximum Shielded Cable Length	1000m
Maximum Unshielded Cable Length	600m
Front Connector	Screw or Push-in, Ordered Separately
Product Lifecycle	PM300 — Active Product
Net Weight	0.321kg
Packaging Dimensions	15.10 × 15.40 × 4.70cm
EAN	4047623405924

Product Overview

The Siemens 6ES7522-1BL01-0AB0 is a SIMATIC S7-1500 SM 522 High Feature digital output module designed for industrial PLC automation systems. It provides 32 digital output channels arranged in four groups of eight, with a 24V DC nominal load voltage and 0.5A rated output current per channel. Each group supports up to 4A total output current, subject to the manufacturer's operating conditions. The module features electronically clocked short-circuit protection, single-channel diagnostics, diagnostic alarms, substitute values and a switching cycle counter for connected actuators. It also supports isochronous operation for suitable controller configurations. Siemens classifies the product as PM300 Active Product. A compatible front connector with screw or push-in terminals must be ordered separately. The supplied photographs show the packaging label for 6ES7522-1BL01-0AB0, including functional status FS 05 and firmware marking V1.1.2. Buyers should verify controller configuration, load requirements, terminal accessories and the exact catalog number before ordering.

Key Product Features

SIMATIC S7-1500 SM 522 — Siemens High Feature digital output module.
32 Digital Output Channels — Four groups of eight channels.
24V DC Output — Rated 0.5A per channel and up to 4A per group.
Electronic Short-Circuit Protection — Electronically protected outputs with diagnostic capabilities.
Single-Channel Diagnostics — Supports individual output diagnostic functions.
Substitute Values — Configurable substitute output behavior.
Switching Cycle Counter — Supports monitoring the switching cycles of connected actuators.
Isochronous Mode — Supports synchronization in suitable automation configurations.
Diagnostic and Maintenance Interrupts — Supports condition monitoring and fault reporting.
Separate Front Connector — Screw-type or push-in connector must be ordered separately.
PM300 Active Product — Siemens active lifecycle classification.

Actual Product Verification

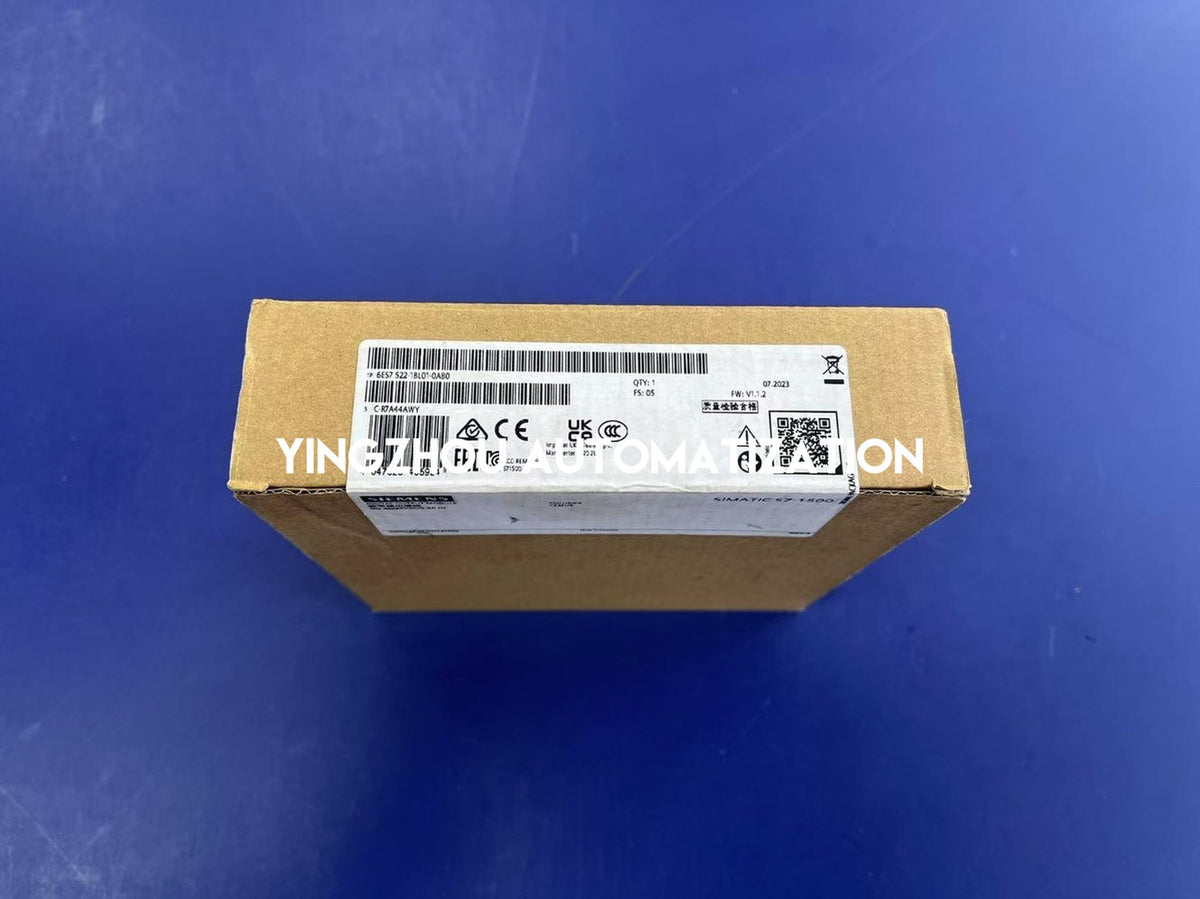

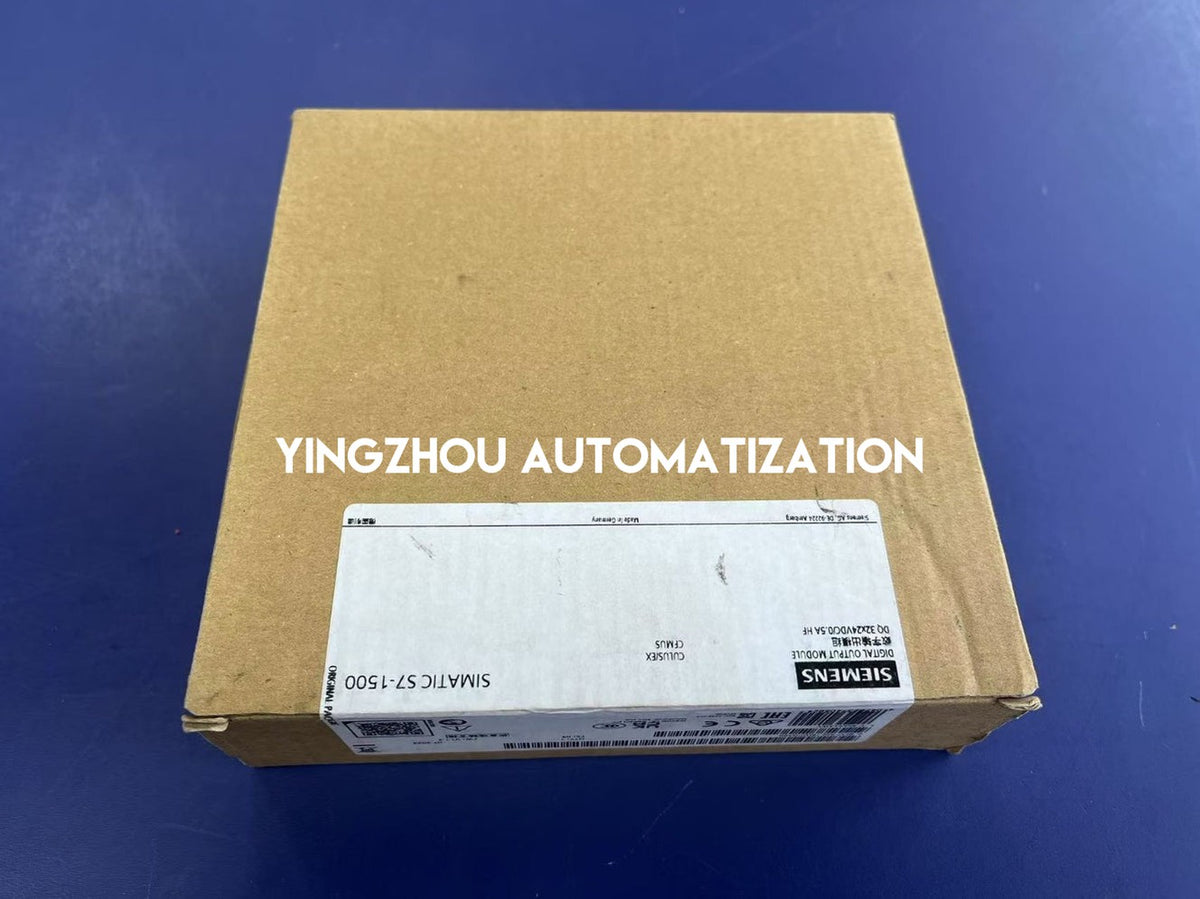

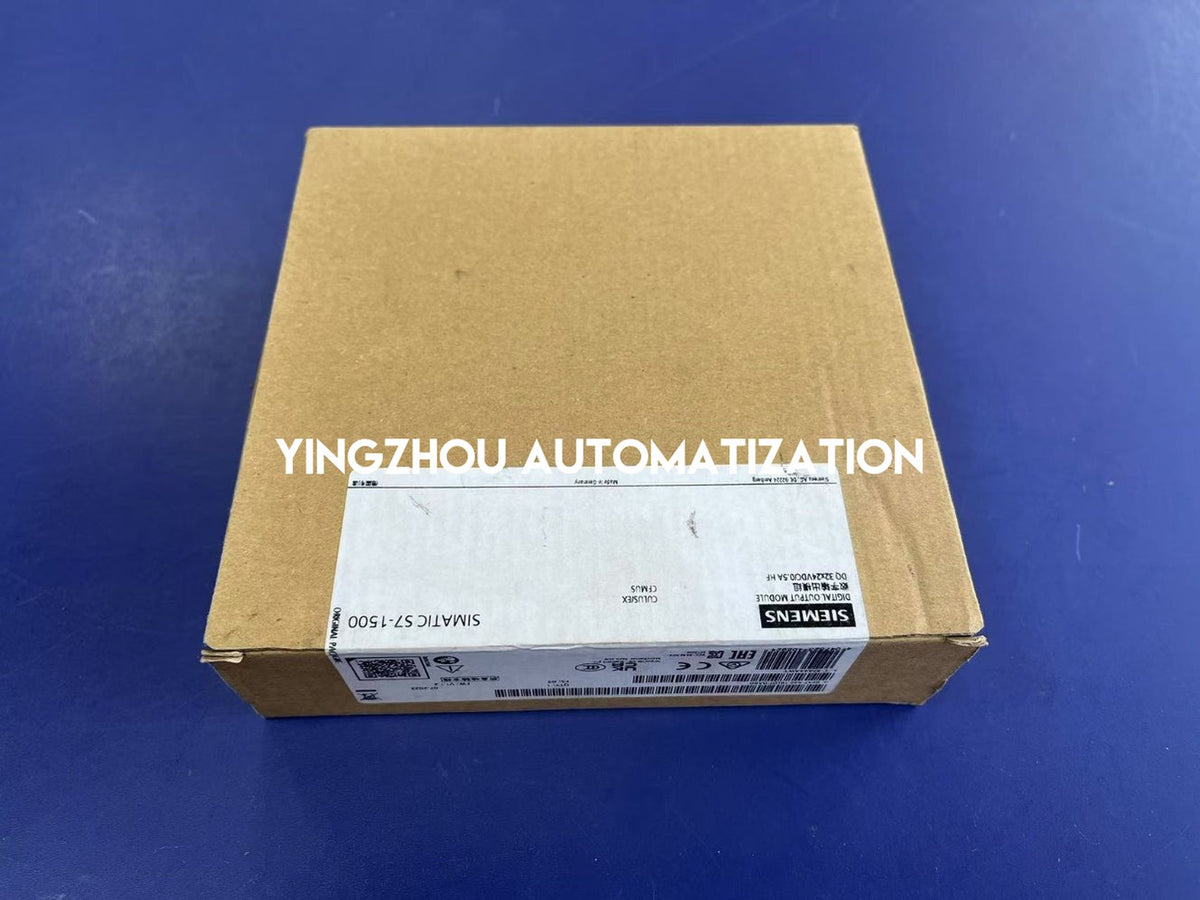

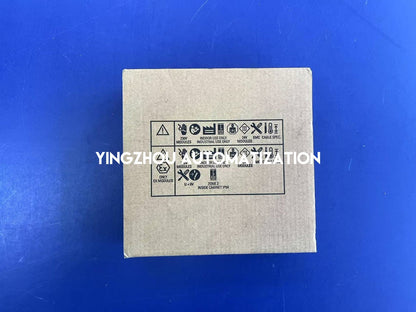

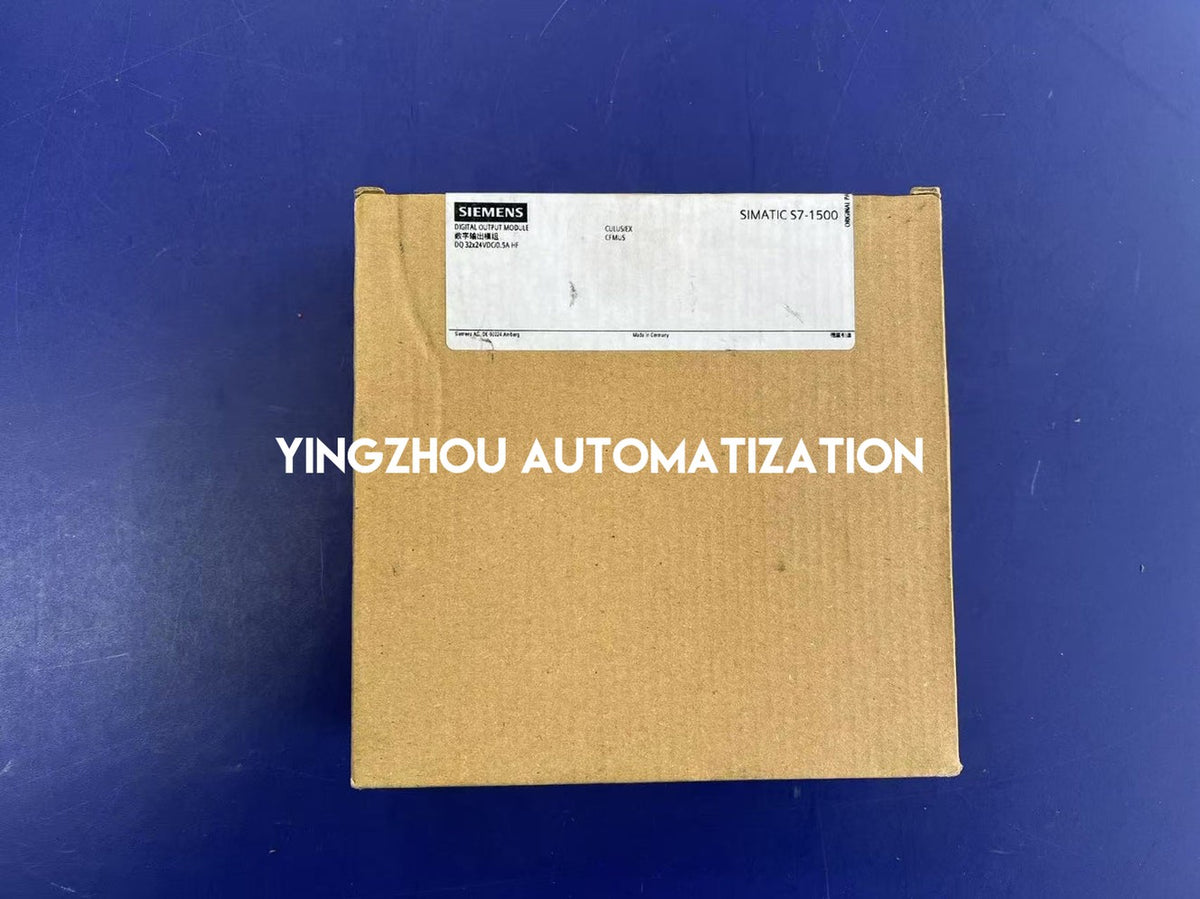

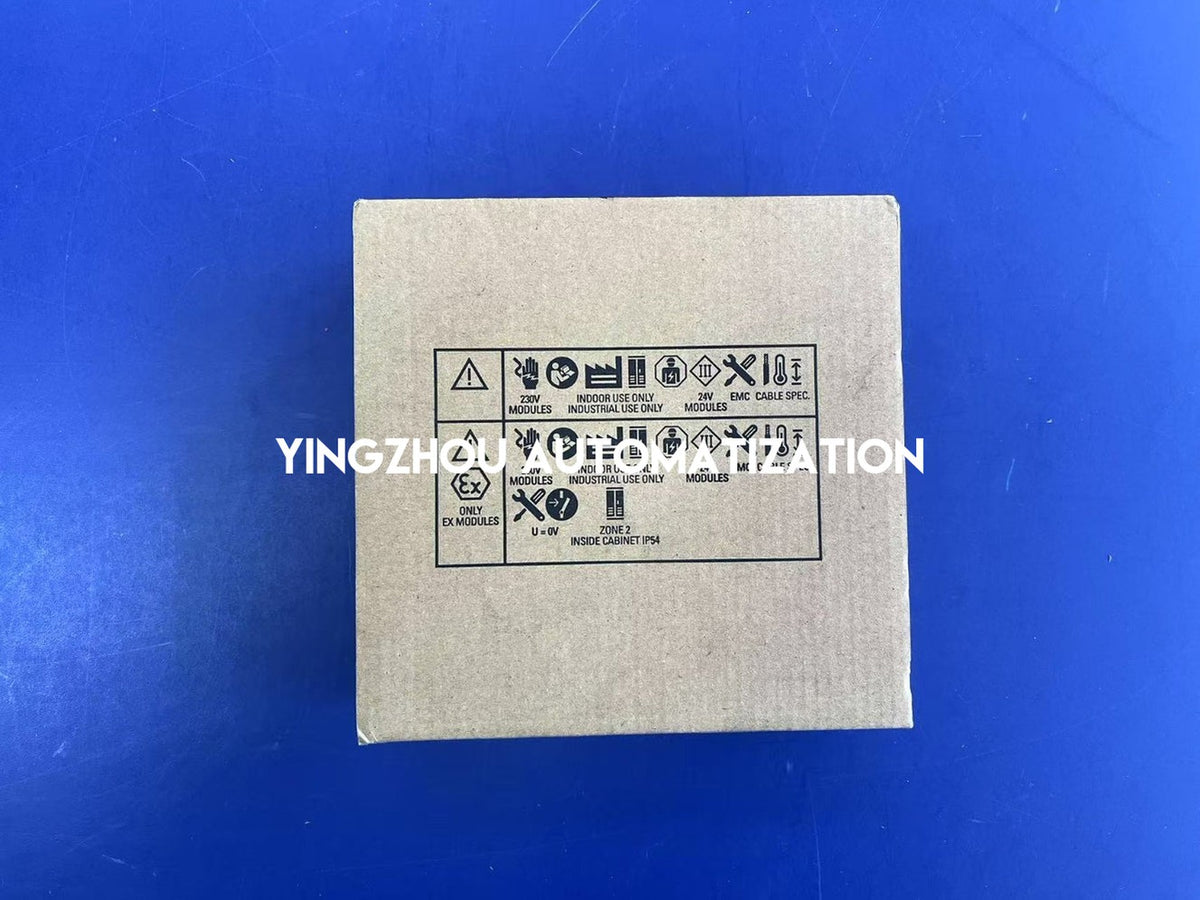

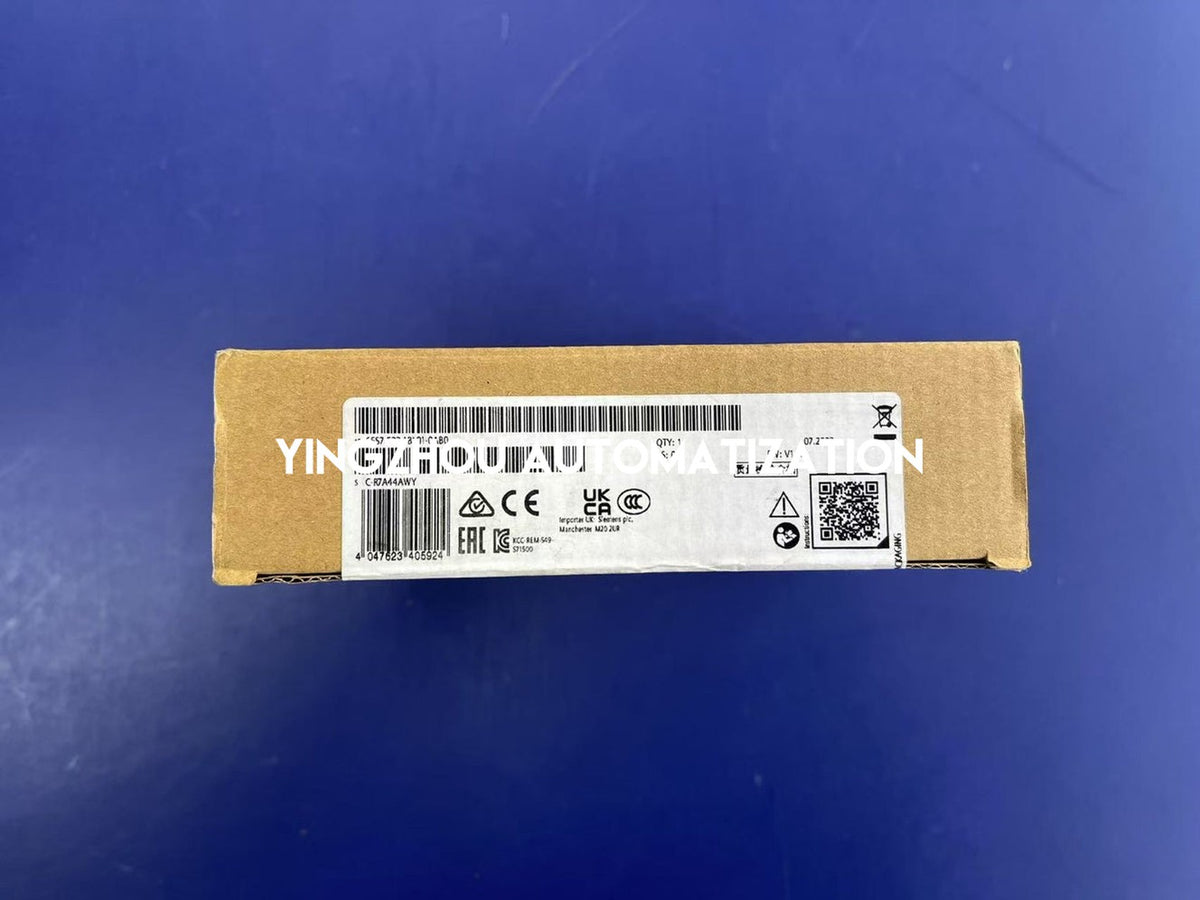

✓ Actual Siemens packaging photographs supplied

✓ Packaging catalog number: 6ES7522-1BL01-0AB0

✓ Product series: SIMATIC S7-1500

✓ Module designation: DQ 32x24VDC/0.5A HF

✓ Packaging functional status: FS 05

✓ Packaging firmware marking: FW V1.1.2

✓ Packaging date marking: 07.2023

✓ Packaging origin marking: Made in Germany

✓ Packaging label matches the requested model number

• Module body nameplate and functional test are not shown in the supplied photographs

• Confirm included front connector and accessories before ordering

In Stock & Available to Order

Siemens 6ES7522-1BL01-0AB0 SIMATIC S7-1500 SM 522 digital output module is marked in stock according to YINGZHOU inventory information. Actual packaging photographs show the matching Siemens catalog number. This 32-channel, 24V DC, 0.5A High Feature digital output module is available for exact-model industrial procurement. Please confirm the required quantity, controller configuration, output load specifications and front connector requirements before ordering.

IN STOCK

Siemens 6ES7522-1BL01-0AB0

Contact YINGZHOU for exact-model verification, multiple units and project sourcing. Confirm the 24V DC load voltage, 0.5A per-channel rating, output configuration and front connector requirements before ordering.
