Siemens 6ES7221-3BD30-0XB0 S7-1200 SB1221 4DI 24V DC 200kHz

Siemens 6ES7221-3BD30-0XB0 S7-1200 SB1221 4DI 24V DC 200kHz

$84.99 USD
$84.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7221-3BD30-0XB0 SB 1221 Digital Input Signal Board

SIMATIC S7-1200 | 4 DI | 24V DC | 200 kHz | Current-Sourcing Inputs
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 6ES7221-3BD30-0XB0
Product Family SIMATIC S7-1200
Product Series SB 1221
Product Type Digital Input Signal Board
Digital Inputs 4 DI
Rated Input Voltage 24 V DC
Input Circuit Type Current-Sourcing
High-Speed Input Rating 200 kHz
Input Groups 1 Group of 4
Backplane Bus Current 40 mA at 5V DC, Typical
Typical Power Loss 1 W
Input Delay Parameterizable
Input Status Indication Yes
Maximum Shielded Cable Length 50 m, Shielded Twisted Pair
Operating Ambient Temperature -20°C to +60°C
Dimensions (W × H × D) 38 × 62 × 21 mm
Approximate Weight 35 g
Packaging FS FS: 04 (Actual Packaging Label)

Product Overview

The Siemens 6ES7221-3BD30-0XB0 is a SIMATIC S7-1200 SB 1221 digital input signal board manufactured by Siemens AG. It provides four digital inputs with a rated input voltage of 24V DC and a manufacturer-specified high-speed input rating of 200kHz. This model uses a current-sourcing input configuration and is designed to expand the digital input capability of supported SIMATIC S7-1200 controllers. The signal board can be installed directly into the compatible CPU signal board location, without using a conventional side-mounted I/O expansion module arrangement. Its compact housing measures approximately 38 × 62 × 21mm, with typical power loss of 1W. Input delay is parameterizable and digital input status indication is supported. The manufacturer specifies an operating ambient temperature range of -20°C to +60°C, subject to installation conditions. The supplied actual packaging photographs identify model 6ES7221-3BD30-0XB0, the SB 1221 product family, 4 × 24V DC inputs and 200kHz operation. The internal signal board itself is not visible in the supplied photographs. Buyers should verify the exact CPU model, input signal type and high-speed requirements before ordering.

Key Product Features

  • SIMATIC S7-1200 SB 1221 — Siemens digital input signal board for supported S7-1200 CPUs.
  • Four Digital Inputs — Four channels grouped together in one signal board.
  • 24V DC Rated Input — Manufacturer-specified input voltage for this exact model.
  • 200kHz Input Capability — High-speed digital input rating for supported control functions.
  • Current-Sourcing Inputs — Input circuit configuration specified by Siemens.
  • CPU Signal Board Installation — Direct installation into the supported S7-1200 CPU signal board slot.
  • Configurable Input Delay — Parameterizable input delay settings.
  • Digital Input Status Indication — Provides input status indication capability.
  • Compact Housing — Approximately 38mm wide, 62mm high and 21mm deep.
  • Official Siemens Technical Data — Specifications checked against Siemens documentation for the exact catalog number.
  • In Stock — Available according to supplied inventory information.

Actual Product Verification

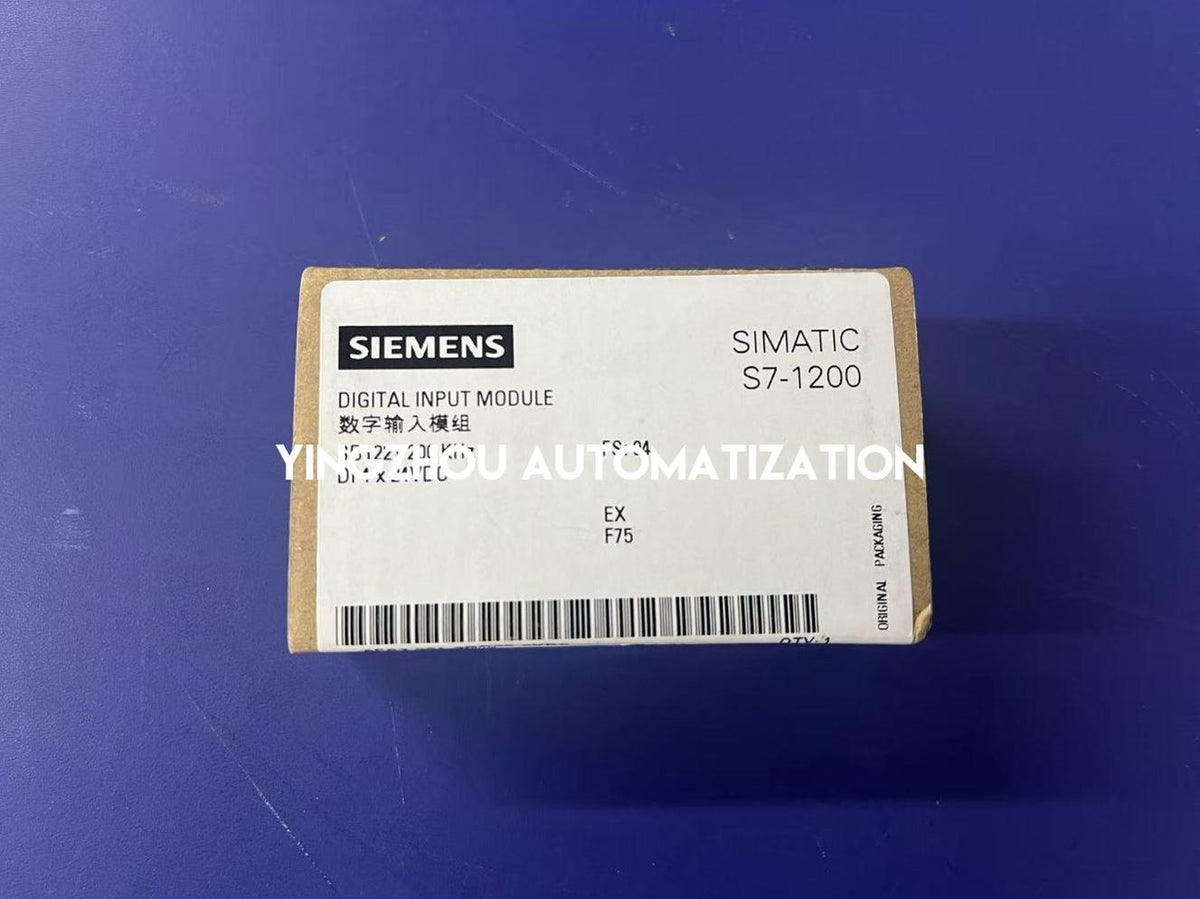

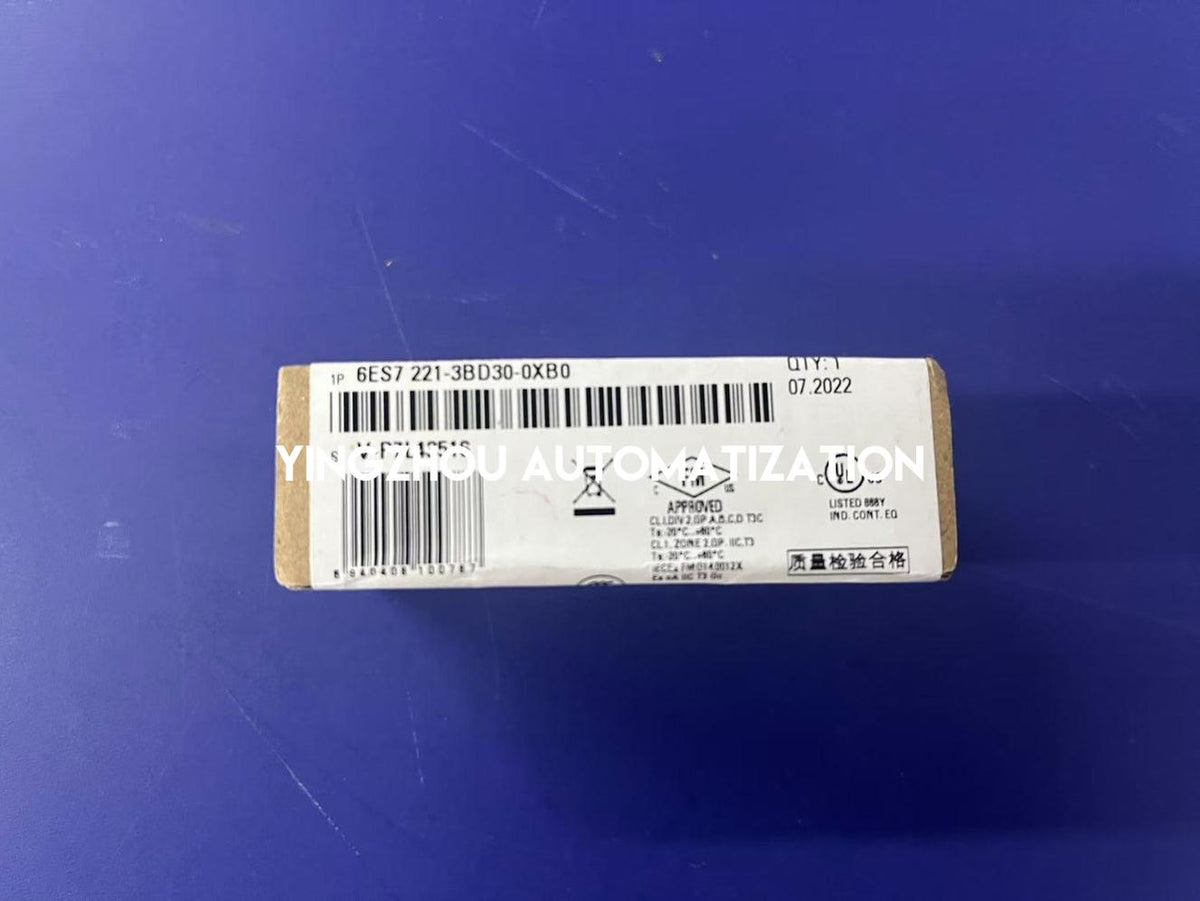

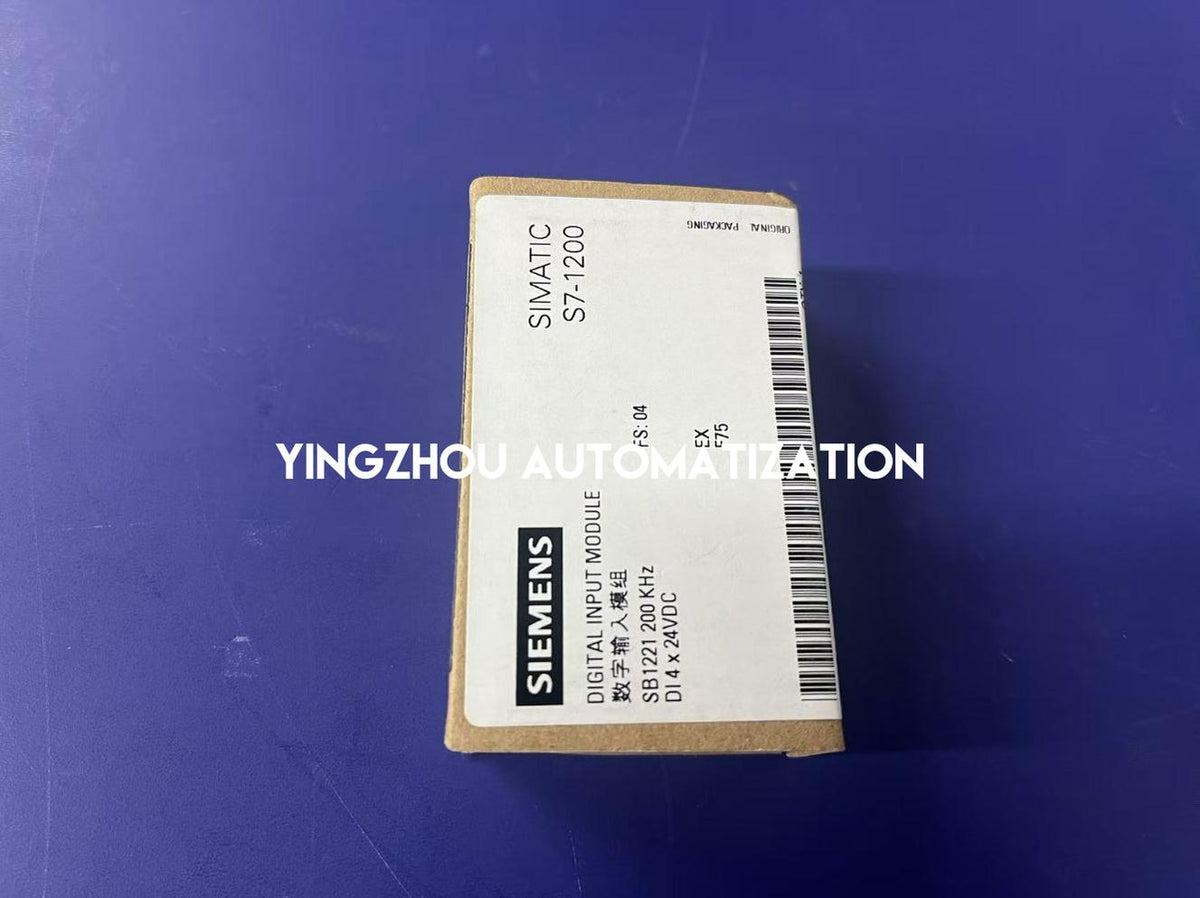

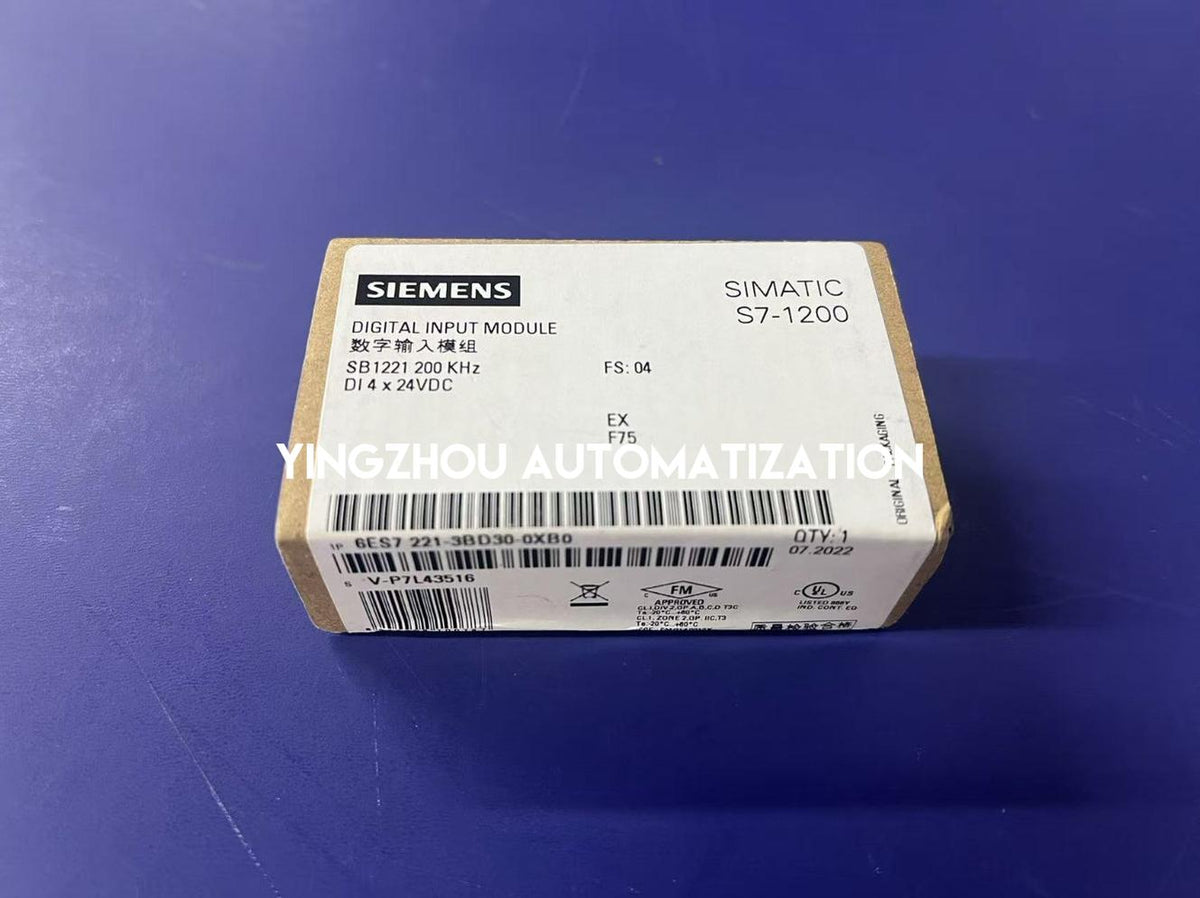

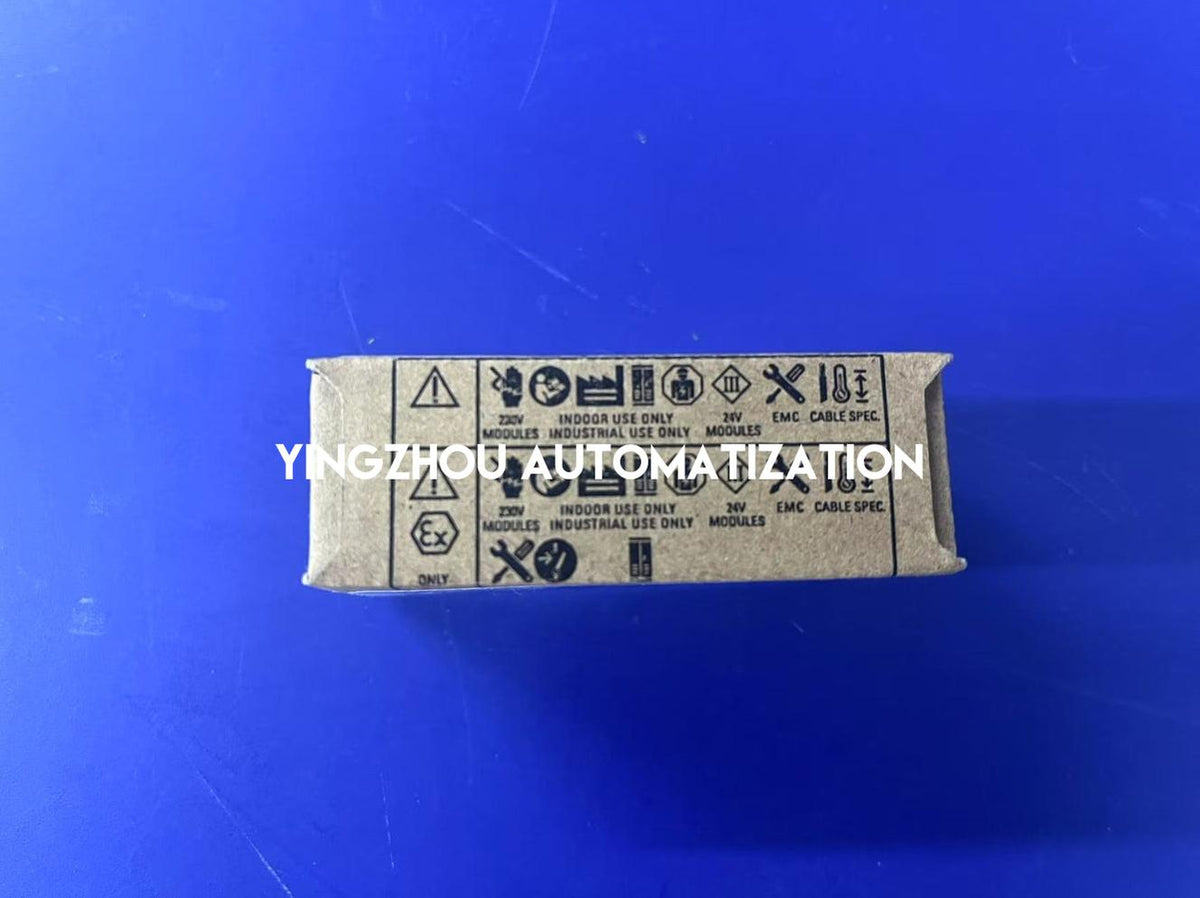

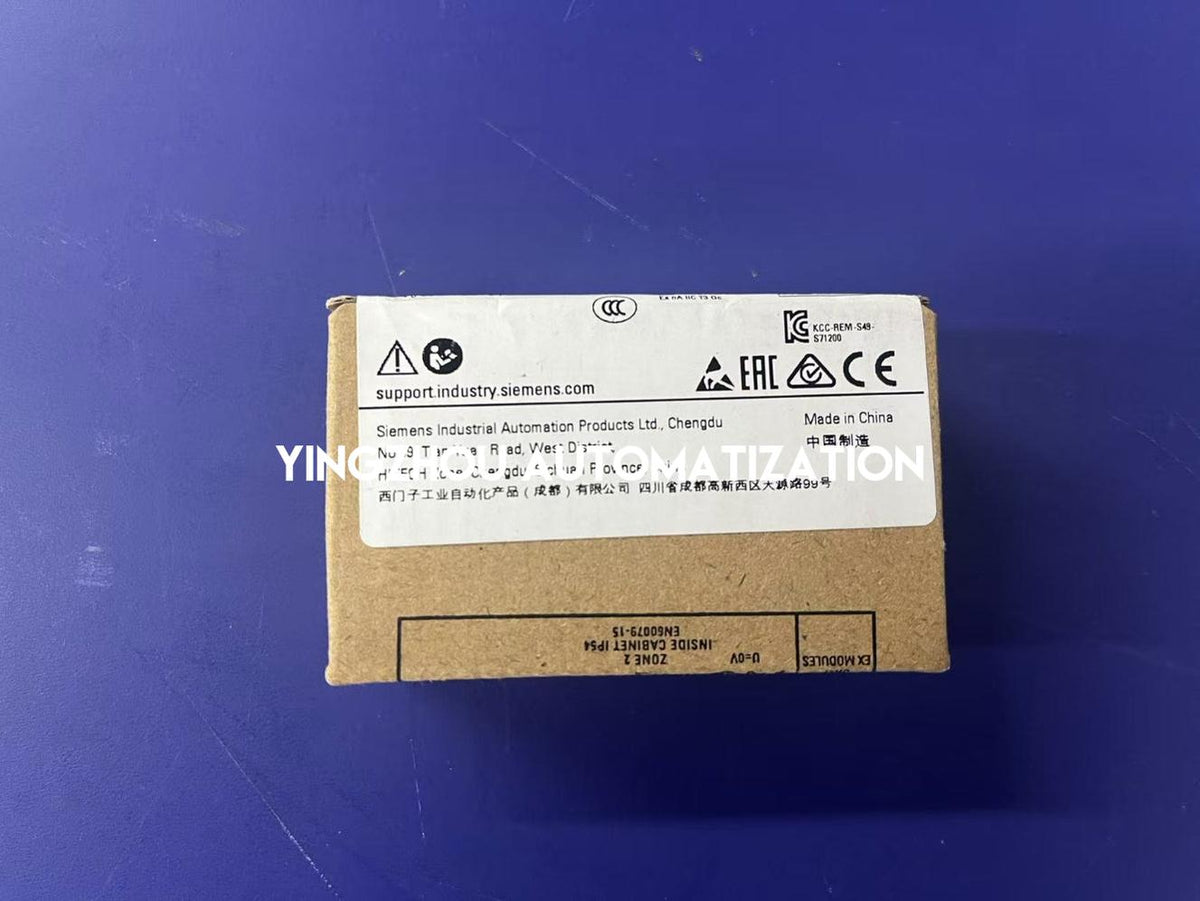

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7221-3BD30-0XB0
✓ Product family marking: SIMATIC S7-1200
✓ Signal board type: SB 1221
✓ Digital input marking: 4 DI
✓ Rated input voltage: 24V DC
✓ High-speed input rating: 200kHz
✓ Packaging hardware marking: FS: 04
✓ Packaging date marking: 07.2022
✓ Packaging model matches the requested catalog number
✓ Manufacturer product specifications independently verified
• Physical signal board nameplate not shown in the supplied photographs
• Confirm the supplied unit identity and CPU compatibility before ordering

In Stock & Available to Order

Siemens 6ES7221-3BD30-0XB0 is marked in stock according to supplied YINGZHOU inventory information. The SB 1221 provides four 24V DC current-sourcing digital inputs with 200kHz high-speed capability for supported SIMATIC S7-1200 controllers. Actual packaging photographs are available to confirm the carton catalog number and product identification. Please verify the required CPU model, signal type, input voltage, hardware requirements and order quantity before purchasing. YINGZHOU supports individual product requirements, bulk orders and mixed-brand industrial automation sourcing. Final available quantities and dispatch arrangements are subject to order confirmation.

IN STOCK

Siemens 6ES7221-3BD30-0XB0

Contact us for exact-model confirmation, current stock quantities, bulk quotations and industrial sourcing support. Please confirm the S7-1200 CPU compatibility, 24V DC current-sourcing input requirements and 200kHz high-speed functionality before placing your order.
