Siemens 3UG4513-1BR20 SIRIUS Phase Monitoring Relay

3-Phase 160–690V AC | Phase Failure & Sequence | Undervoltage | 2 CO
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Photo Verified
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 3UG4513-1BR20
Product Family SIRIUS
Product Series 3UG4
Product Type Phase Monitoring Relay
Monitoring System Three-Phase AC
Monitoring Voltage Range 3 × 160–690 V AC
Frequency 50/60 Hz
Phase Failure Detection Yes
Phase Sequence Monitoring Yes
Phase Asymmetry Detection Yes
Asymmetry Threshold 20% fixed
Undervoltage Monitoring Yes
Overvoltage Monitoring No
Hysteresis 5% fixed
Adjustable Delay 0–20 s
Output Contacts 2 Changeover (2 CO)
Contact Thermal Current 5 A maximum
Control Supply Voltage 160–690 V AC
Rated Insulation Voltage 690 V
Rated Impulse Withstand Voltage 6 kV
Setting Method Analog
Status Display LED
Reset Function Automatic Reset
Electrical Connection Screw Terminal
Net Weight 0.145 kg
Country of Manufacture Germany (Product Marking)
Manufacturer Lifecycle PM400 — Phase-out Announced

Product Overview

The Siemens 3UG4513-1BR20 is a SIRIUS 3UG4 three-phase monitoring relay for monitoring electrical supply conditions in industrial control and motor-related applications. The device monitors a three-phase AC supply across 160–690V at 50/60Hz and provides phase failure, phase sequence, phase asymmetry and undervoltage monitoring. This analog monitoring relay features a fixed 20% asymmetry threshold, 5% hysteresis and an adjustable 0–20 second delay time. Two changeover relay contacts provide signaling and control switching functions. The product uses screw-type electrical terminals and an analog front-panel adjustment interface. Actual product and packaging photographs confirm the exact Siemens catalog number 3UG4513-1BR20. Siemens has announced the phase-out of this model and identifies 3UG5514-1BR20 as its preferred successor; replacement suitability must be checked against the original installation.

Key Product Features

  • Siemens SIRIUS Phase Monitoring — Analog relay for three-phase electrical supply monitoring.
  • 160–690V AC Monitoring — Wide three-phase voltage monitoring range.
  • Phase Failure Detection — Detects missing-phase conditions.
  • Phase Sequence Detection — Monitors incorrect phase sequence.
  • Phase Asymmetry Monitoring — Fixed 20% asymmetry threshold.
  • Undervoltage Detection — Supervises low-voltage conditions.
  • Adjustable 0–20s Delay — Analog time delay setting.
  • 5% Fixed Hysteresis — Defined switching hysteresis.
  • Two Changeover Contacts — 2 CO relay outputs.
  • Automatic Reset — Automatic reset function.
  • Screw Terminal Connection — Electrical terminal connection system.

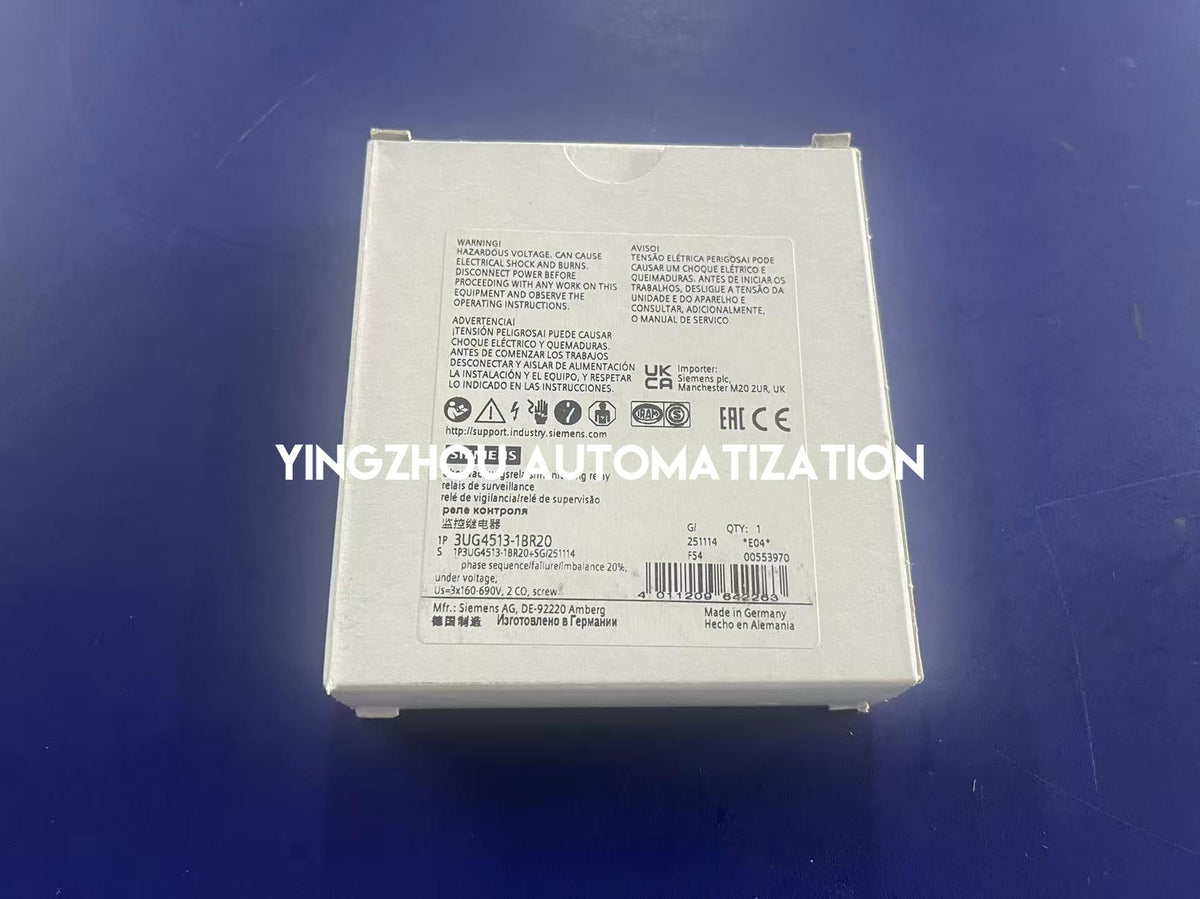

  • Actual Product Photography — Physical device and packaging marked 3UG4513-1BR20.

Actual Product Verification

✓ Actual Siemens product and packaging photographs supplied
✓ Packaging catalog number: 3UG4513-1BR20
✓ Physical device catalog number: 3UG4513-1BR20
✓ Packaging and device catalog numbers match
✓ Product family marking: Siemens SIRIUS
✓ Three-phase monitoring voltage: 160–690V AC
✓ Monitoring functions: Phase failure, phase sequence, asymmetry and undervoltage
✓ Relay output: 2 changeover contacts
✓ Front-panel delay adjustment visible
✓ Packaging country marking: Made in Germany
✓ Packaging quantity: 1 piece
✓ Confirm monitored line voltage, wiring and relay contact requirements before installation

In Stock & Available to Order

Siemens 3UG4513-1BR20 is marked in stock according to the supplied inventory information. This SIRIUS monitoring relay provides three-phase supply monitoring with phase failure, phase sequence, asymmetry and undervoltage functions across 160–690V AC. Actual product and packaging photographs support exact-model identification. The manufacturer has announced the product phase-out, so buyers requiring this specific part number should confirm available quantities and their system requirements before ordering.

IN STOCK

Siemens 3UG4513-1BR20

Contact us for exact-model confirmation, available quantities, bulk pricing and industrial automation component sourcing. Please confirm the 160–690V three-phase monitoring range, required functions, output contacts and installation requirements before ordering.
