Schneider SR3XT43BD Zelio Logic Analog I/O Extension Module
4 Analog I/O | 2 Inputs + 2 Outputs | 24V DC | Zelio Logic
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
SR3XT43BD |
| Series |
Zelio Logic |
| Product Type |
Analog I/O Extension Module |
| Total Analog I/O |
4 Channels |
| Analog Inputs |
2 |
| Analog Outputs |
2 |
| Analog Input Signals |
0–10 V / 0–20 mA / Pt100 (selected input) |
| Analog Output Signals |
0–10 V DC (voltage outputs only) |
| Analog I/O Resolution |
10-bit |
| Rated System Voltage |
24 V DC via compatible SR3 smart relay |
| Compatible Smart Relay |
Zelio Logic SR3B•••BD, 24V DC |
| Programming Mode |
FBD (Function Block Diagram) only |
| Protection Rating |
IP20 terminals / IP40 front panel |
| Dimensions |
35.5 × 90 × 59.5 mm (W × H × D) |
| Net Weight |
0.11 kg |
| Mounting |
35 mm DIN Rail / Screw Fixing |
Product Overview
The Schneider Electric SR3XT43BD is a
4-channel analog I/O extension module for compatible
24V DC Zelio Logic modular smart relays. It provides
2 configurable analog inputs for 0–10V,
0–20mA, or supported Pt100 temperature sensing, plus
2 analog 0–10V voltage outputs. The module
is powered through the compatible SR3 smart relay and is
configured using FBD programming in Zelio Soft 2.
Key Product Features
-
4 analog I/O channels — 2 inputs and 2 outputs
-
0–10V / 0–20mA configurable analog input signals
-
Pt100 input support on the specified input channel
-
2 × 0–10V analog voltage outputs
-
10-bit analog input and output resolution
-
24V DC operation via compatible Zelio Logic SR3 smart relay
-
FBD-only programming with Zelio Soft 2
Actual Product Verification
✓

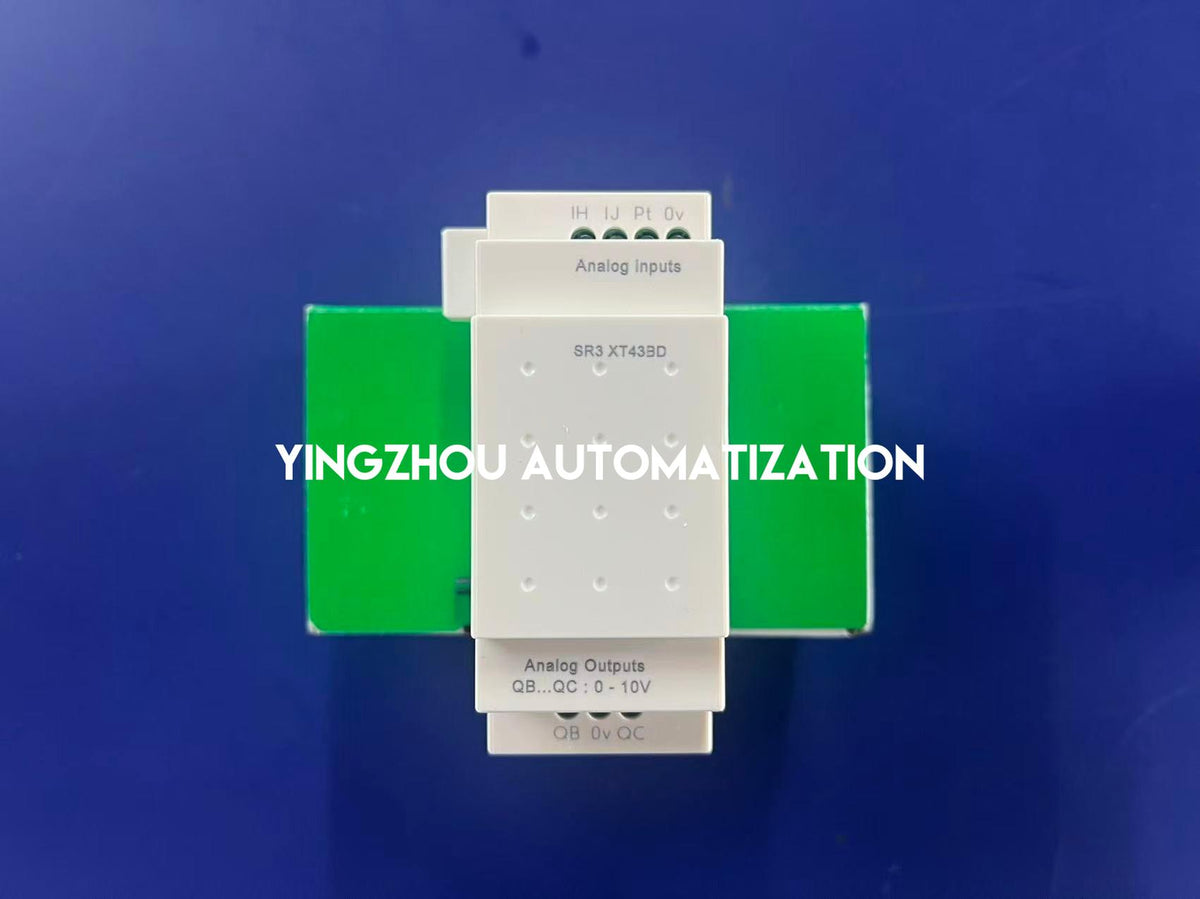

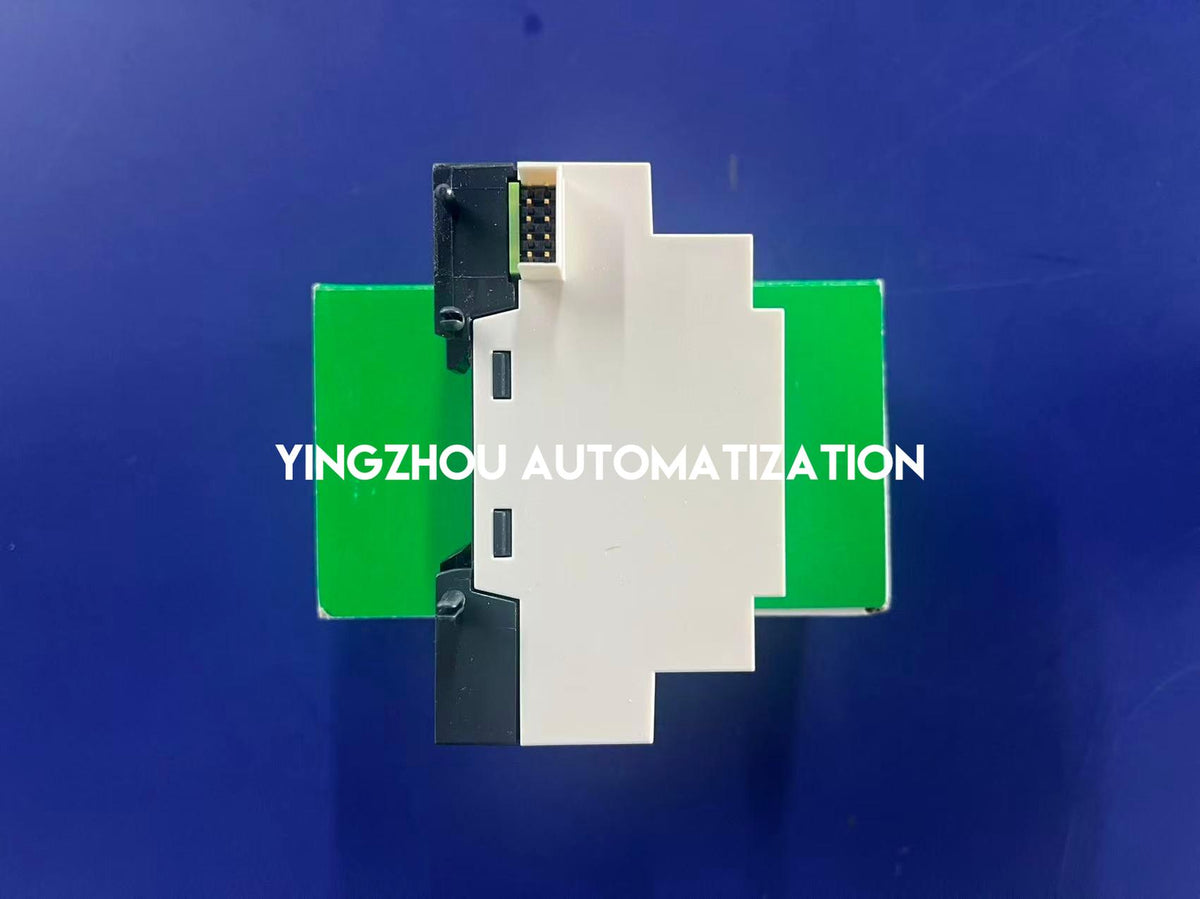

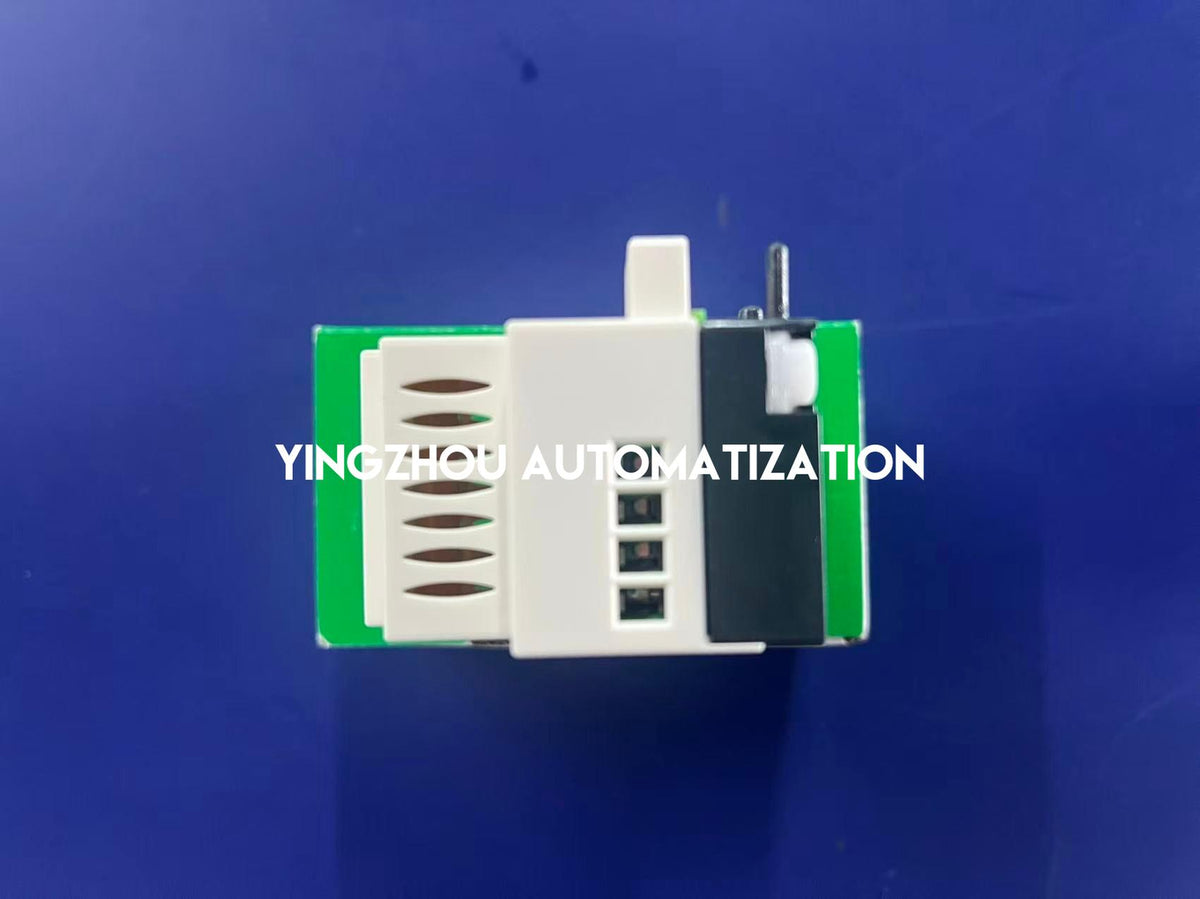

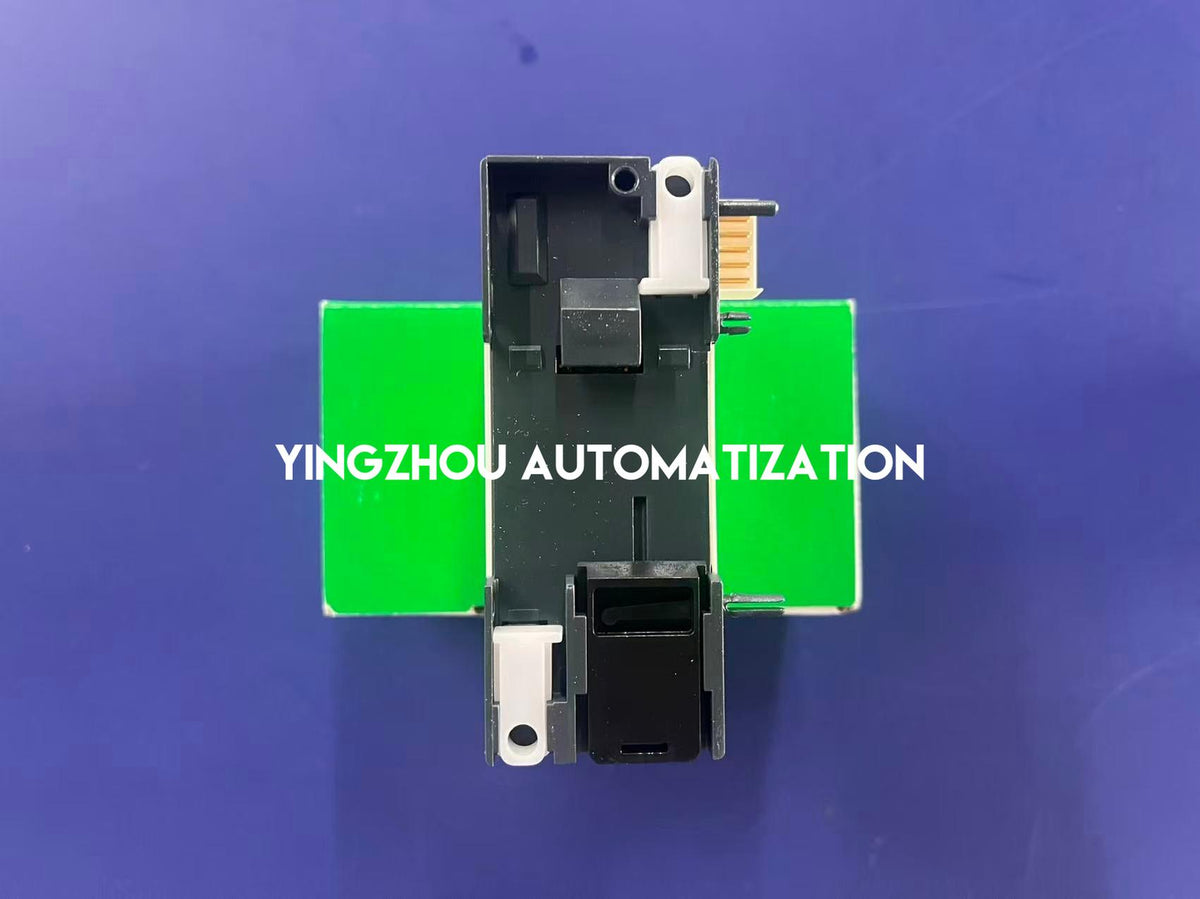

Actual product photos
✓

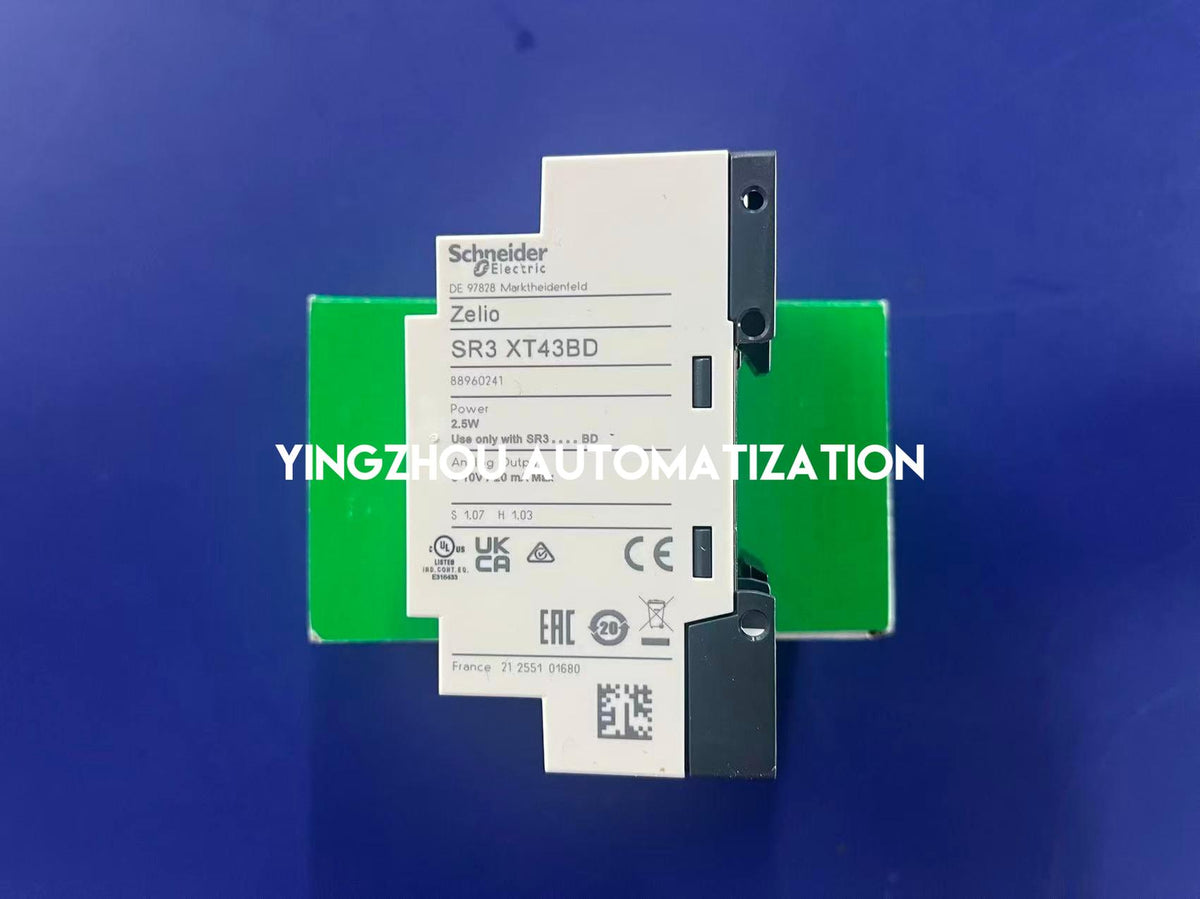

Model/nameplate visible
✓

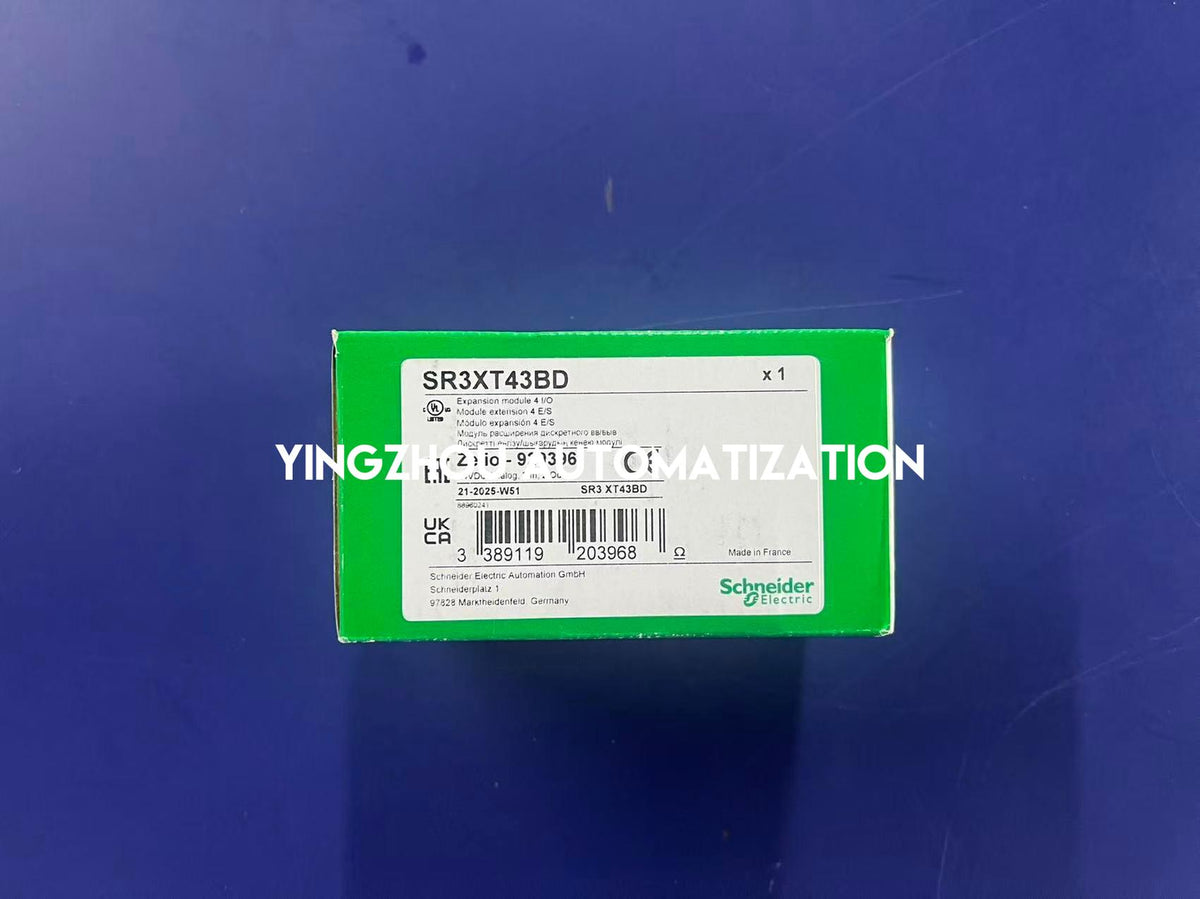

Packaging shown
✓
Verify exact model SR3XT43BD before ordering
In Stock & Ready to Order
Schneider Electric SR3XT43BD is currently in stock.
Actual module and packaging-label photos are provided for
exact-model verification before ordering.
