Schneider SR3NET01BD Zelio Logic Ethernet Communication Module
Ethernet Modbus TCP Server | 10/100BASE-T | 24V DC SR3 System
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
SR3NET01BD |
| Series |
Zelio Logic |
| Product Type |
Ethernet Communication Extension Module |
| Communication Protocol |
Modbus TCP (Server) |
| Ethernet Standard |
10/100BASE-T |
| Ethernet Connector |
1 × Shielded RJ45 |
| Compatible Host |
Zelio Logic SR3B•••BD, 24V DC |
| Power Supply |
Via compatible SR3 smart relay (24V DC system) |
| Module Power Marking |
1.2 W (actual module label) |
| Programming |
FBD via Zelio Soft 2 |
| Status Indicators |
LK/ACT 10/100 and STS LEDs |
| Maximum Ethernet Cable Length |
100 m with shielded Category 5 or better cable |
| Protection Rating |
IP20 terminals / IP40 front panel |
| Housing Dimensions |
35 × 90 × 57 mm (W × H × D; refer to mounting drawing for clearances) |
| Net Weight |
0.11 kg |
| Mounting |
35 mm DIN Rail / Screw Fixing |
Product Overview
The Schneider Electric SR3NET01BD is an
Ethernet communication extension module for compatible
24V DC Zelio Logic SR3 modular smart relays. It provides
Modbus TCP server communication through a
10/100BASE-T RJ45 Ethernet interface. The extension
receives power through the compatible SR3 host and requires
FBD programming using Zelio Soft 2. It is not a
standalone PLC controller or a digital/analog I/O expansion module.
Key Product Features
-
Ethernet communication extension for compatible Zelio Logic SR3 smart relays
-
Modbus TCP server communication mode
-
10/100BASE-T shielded RJ45 Ethernet interface
-
24V DC SR3B•••BD host compatibility
-
Host-powered module with 1.2 W marking on the actual unit
-
Zelio Soft 2 / FBD programming requirement
-
LK/ACT and STS LEDs for communication and status monitoring
Actual Product Verification
✓

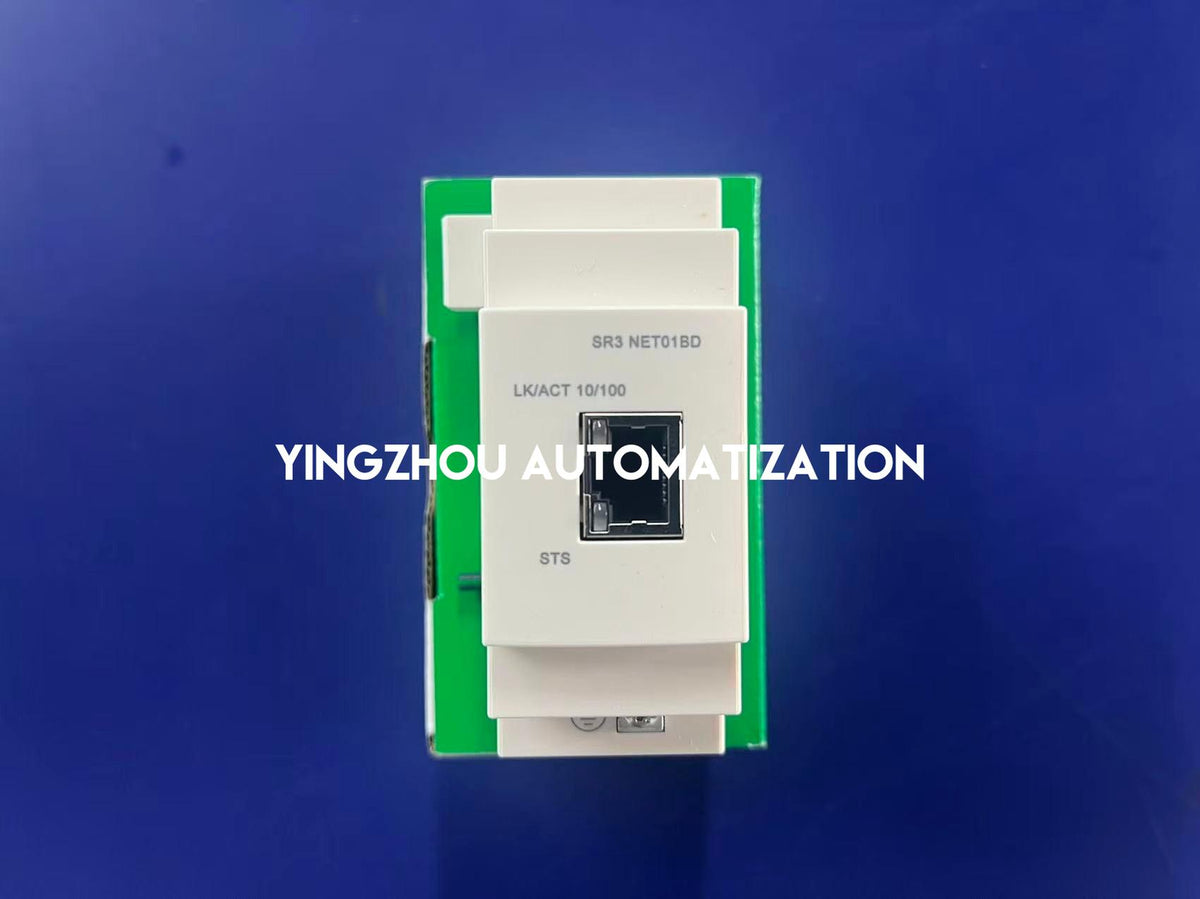

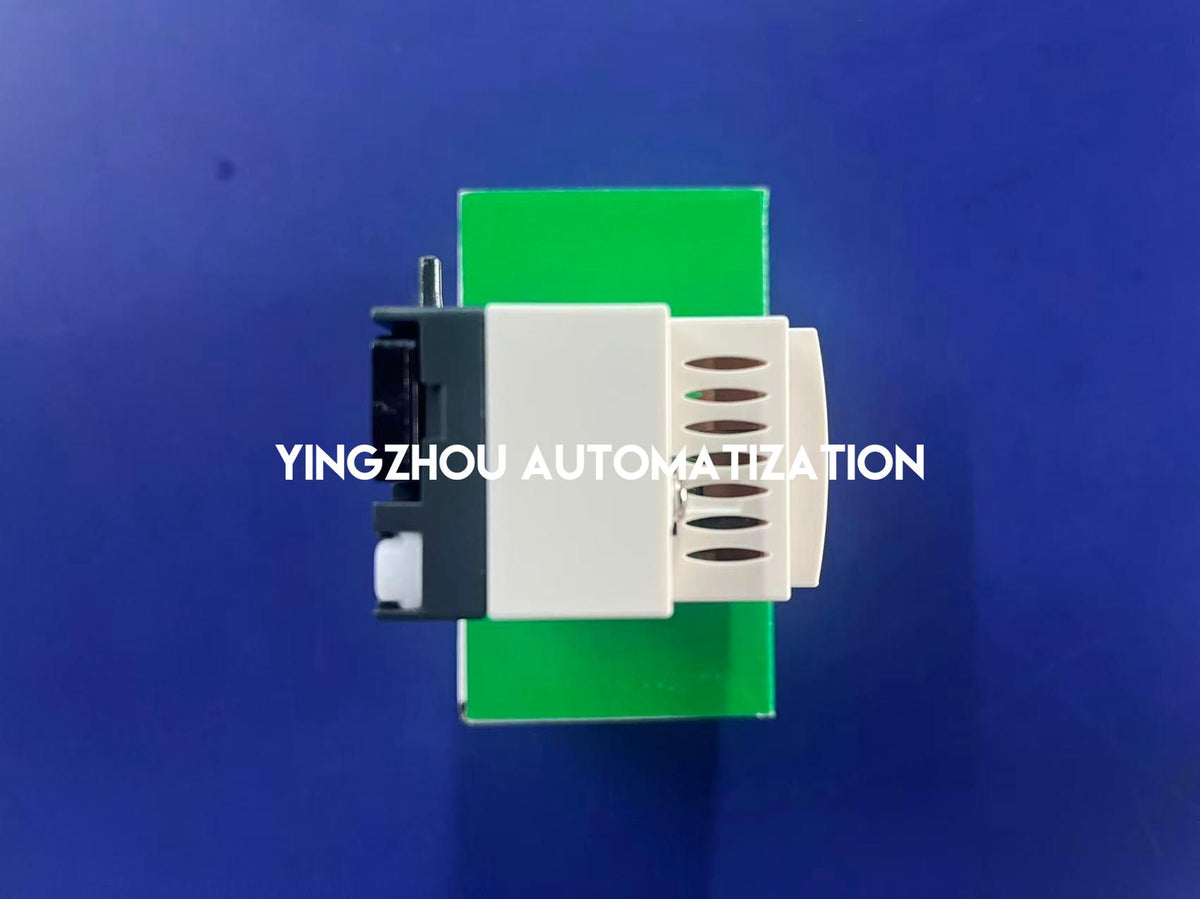

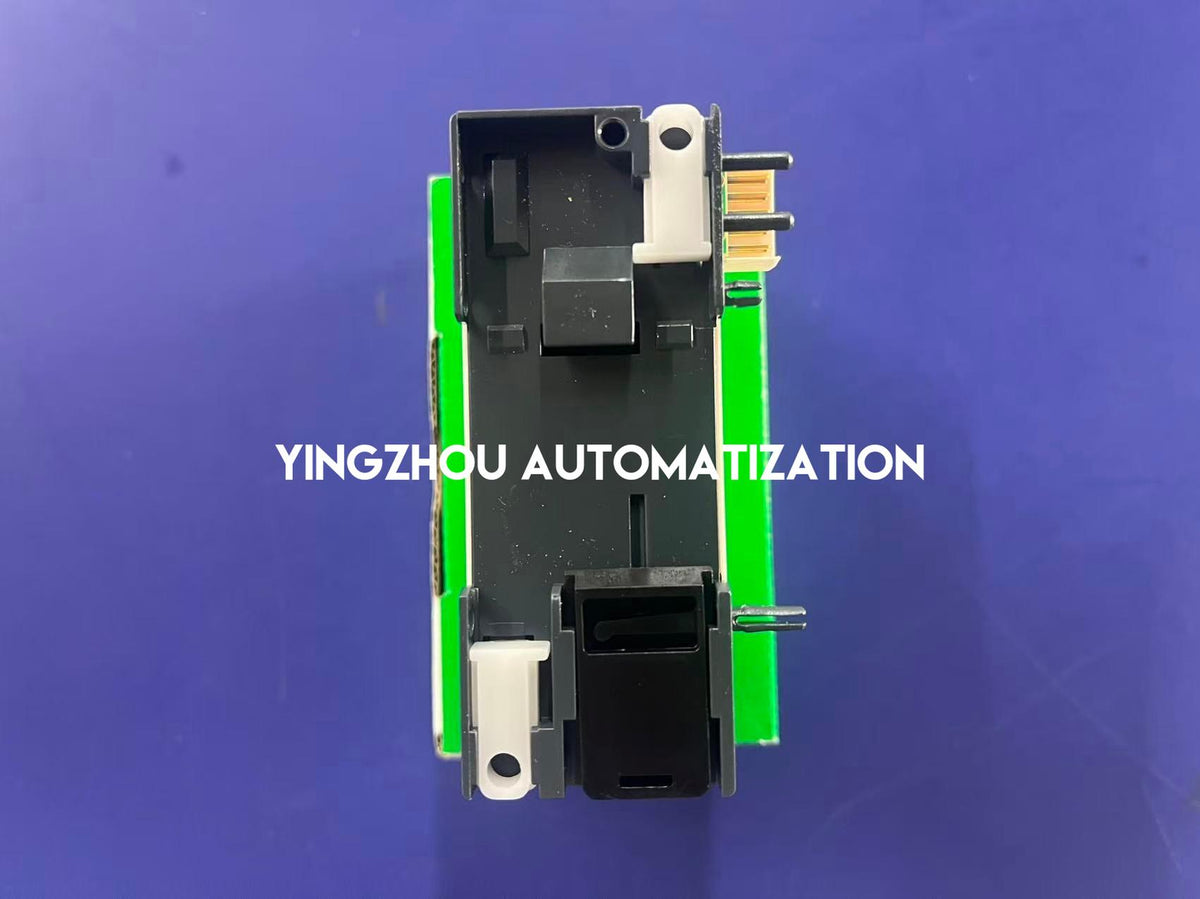

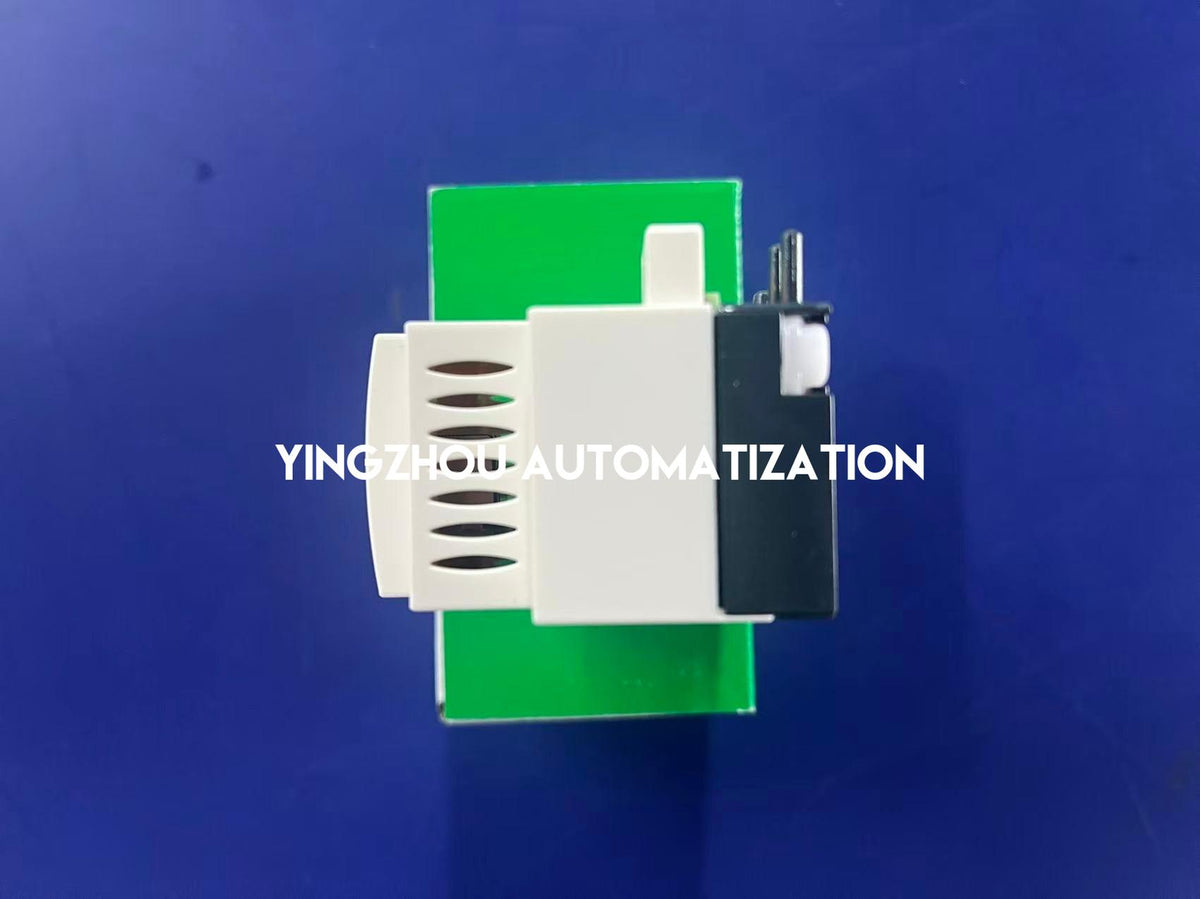

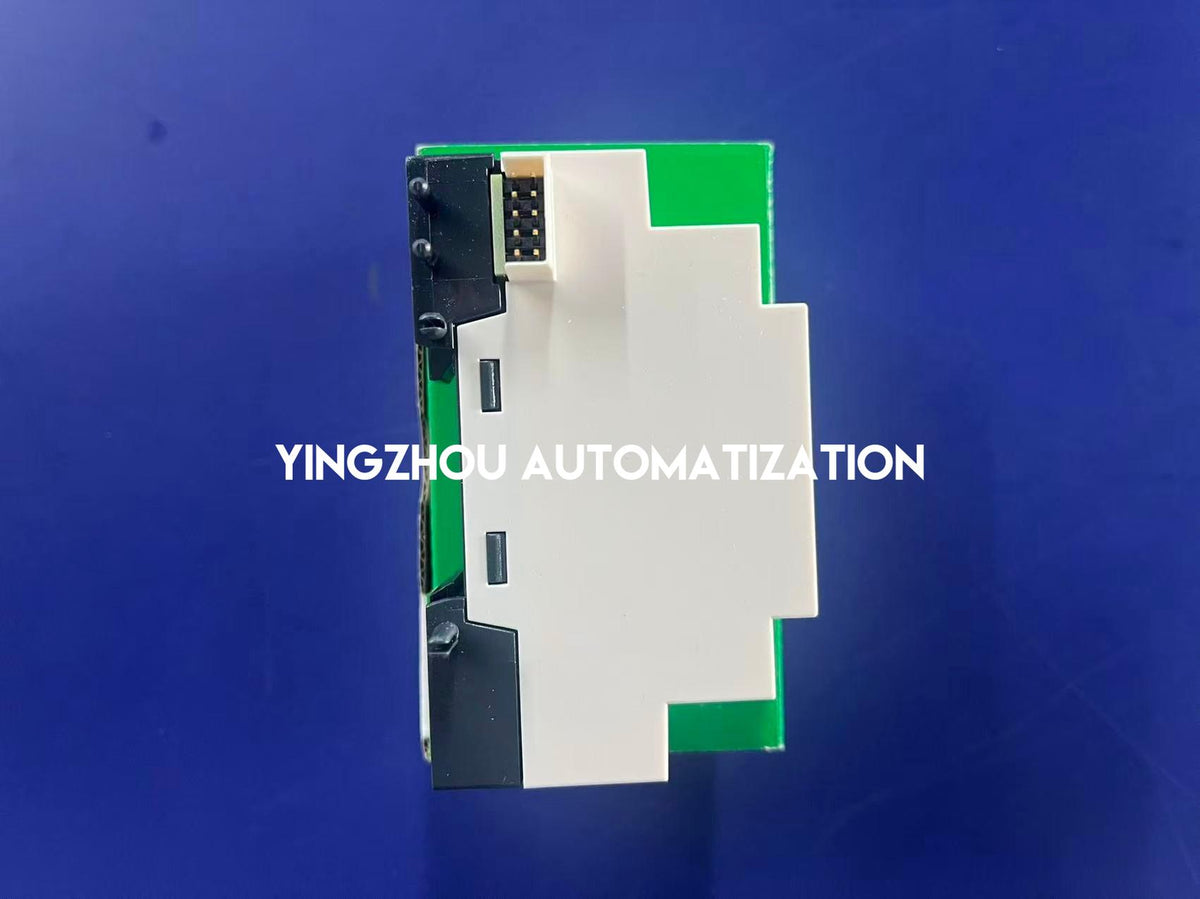

Actual product photos
✓

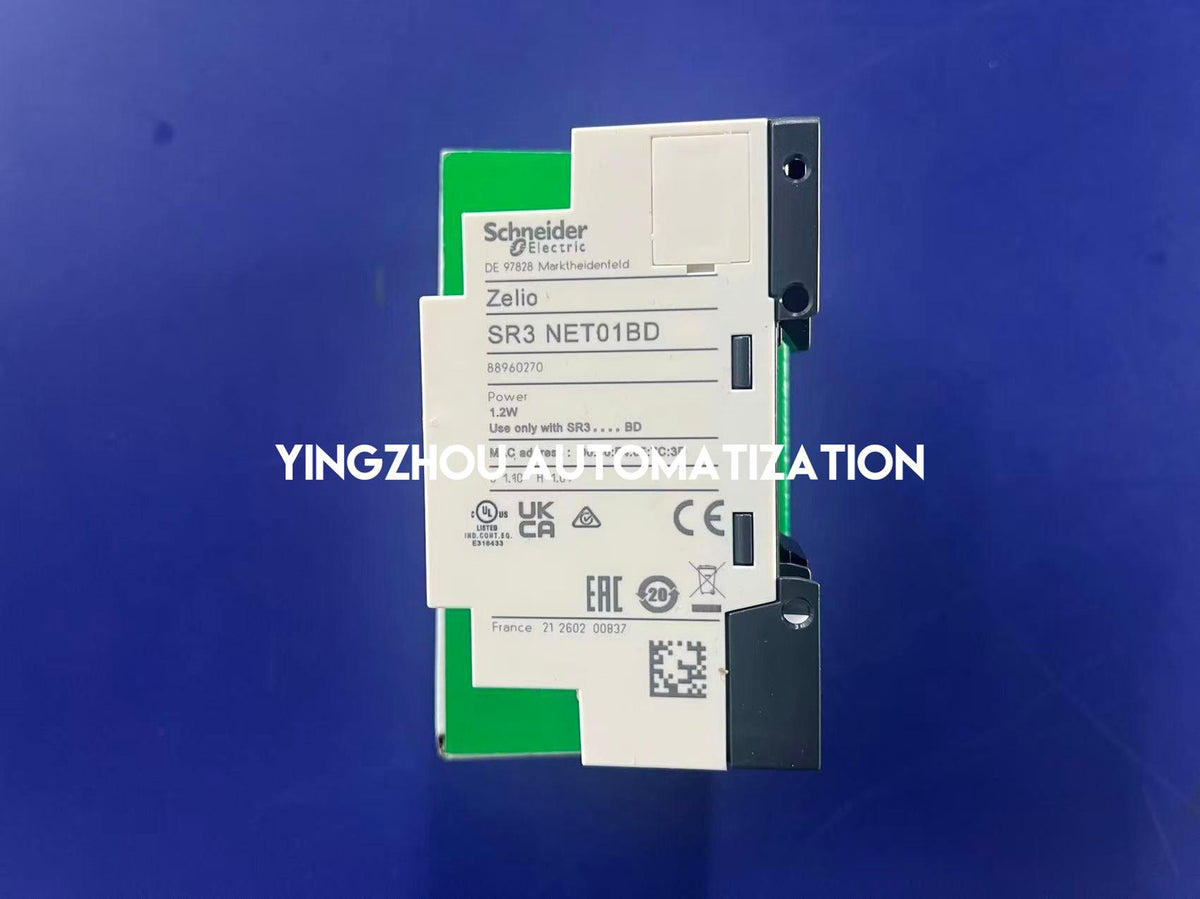

Model/nameplate visible
✓
Packaging shown
✓
Verify exact model SR3NET01BD before ordering
In Stock & Ready to Order
Schneider Electric SR3NET01BD is currently in stock.
Actual module and packaging-label photos are provided for
exact-model verification before ordering.
