Schneider SR2B201FU Zelio Logic Compact Smart Relay
20 I/O | 12 AC Inputs + 8 Relay Outputs | 100–240V AC | Clock & LCD
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
SR2B201FU |
| Series |
Zelio Logic |
| Product Type |
Compact Smart Relay |
| Total Digital I/O |
20 Points |
| Digital Inputs |
12 × 100–240 V AC |
| Analog Inputs |
0 |
| Relay Outputs |
8 Normally Open (NO) |
| Relay Thermal Current |
8 A thermal rating (load and common-terminal limits apply) |
| Relay Output Voltage |
24–250 V AC / 5–30 V DC |
| Rated Supply Voltage |
100–240 V AC, 50/60 Hz |
| Supply Voltage Limits |
85–264 V AC |
| Power Consumption (Official) |
11 VA (manufacturer datasheet; without extension) |
| Power Marking (Actual Unit) |

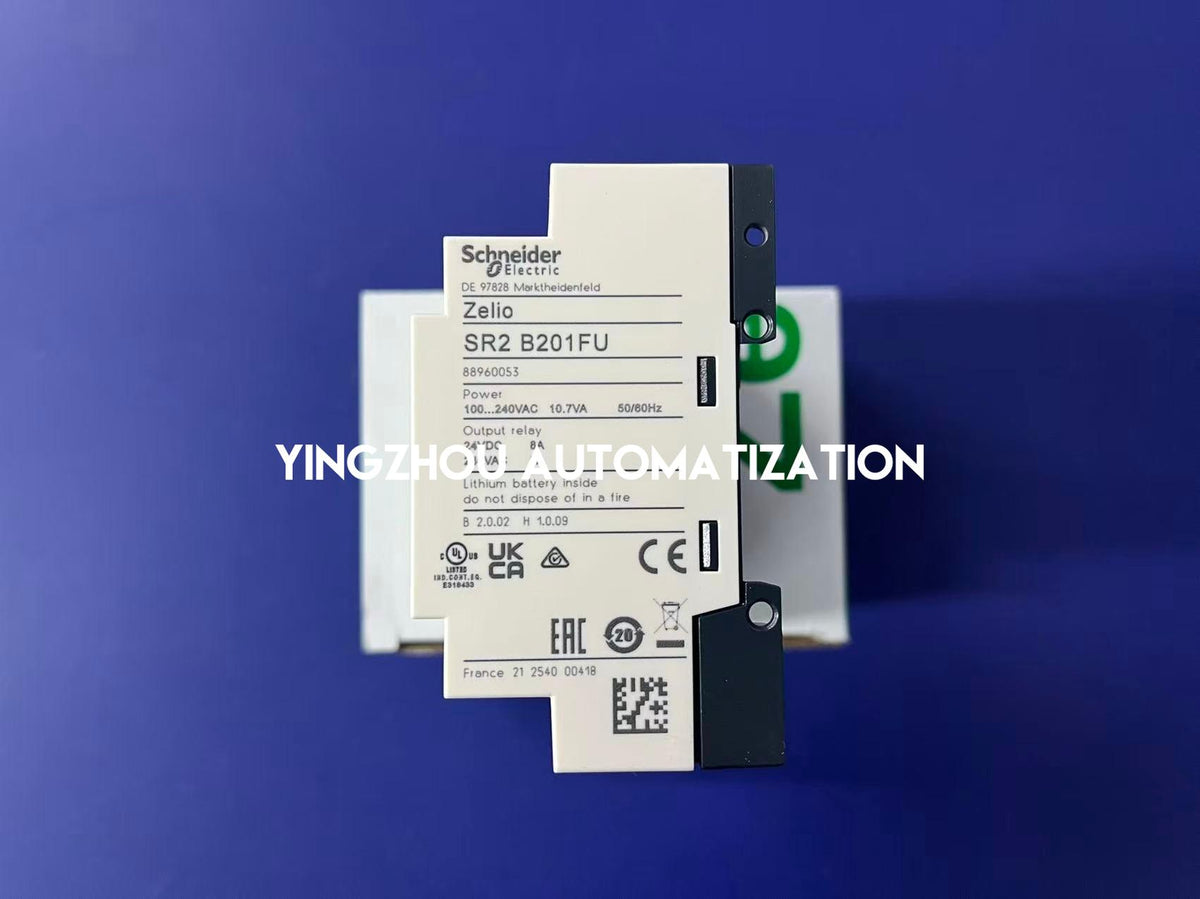

10.7 VA (actual device label) |
| LCD Display |
Integrated |
| Real-Time Clock |
Integrated |
| Programming |
Ladder / FBD (Zelio Soft 2) |
| Terminal Connection |
Screw terminals; 0.5 N·m tightening torque |
| Protection Rating |
IP20 terminals / IP40 front panel |
| Housing Dimensions |
124.6 × 90 × 59.5 mm (W × H × D; housing on DIN rail) |
| Net Weight |
0.38 kg |
| Mounting |
35 mm DIN Rail / Screw Fixing |
Product Overview
The Schneider Electric SR2B201FU is a
20-point compact smart relay from the Zelio Logic
series. It provides 12 digital inputs for 100–240 V AC
and 8 normally open relay outputs. The controller
uses a 100–240 V AC main supply, includes an
integrated LCD display and real-time clock, and
supports Ladder / FBD programming through Zelio Soft 2.
Key Product Features
-
20 digital I/O points — 12 inputs and 8 relay outputs
-
100–240 V AC nominal power supply and digital input voltage
-
8 normally open relay contacts with load-dependent switching limits
-
Integrated LCD display for local information and navigation
-
Ladder / FBD programming with Zelio Soft 2
-
Integrated real-time clock for time-based control logic
-
IP20 terminals / IP40 front in a DIN-rail housing
Actual Product Verification
✓

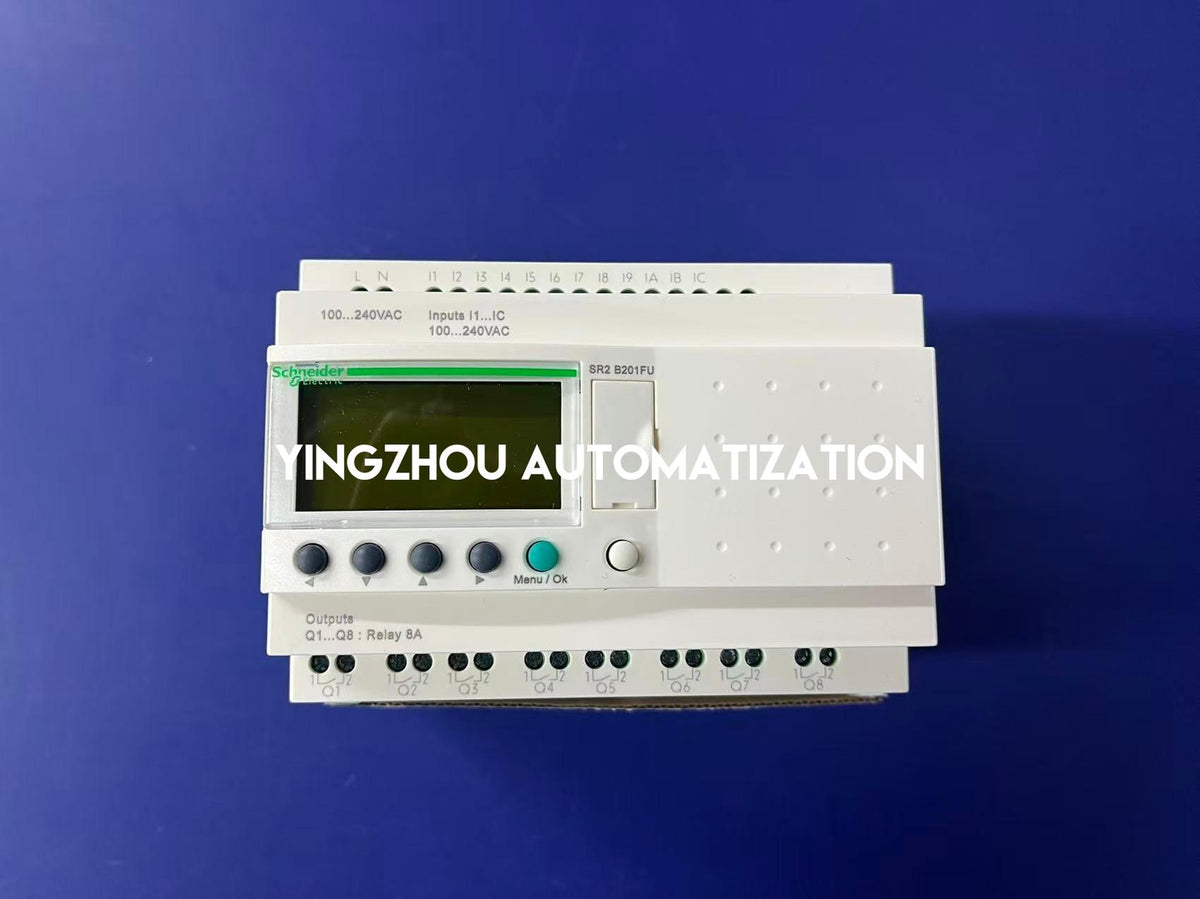

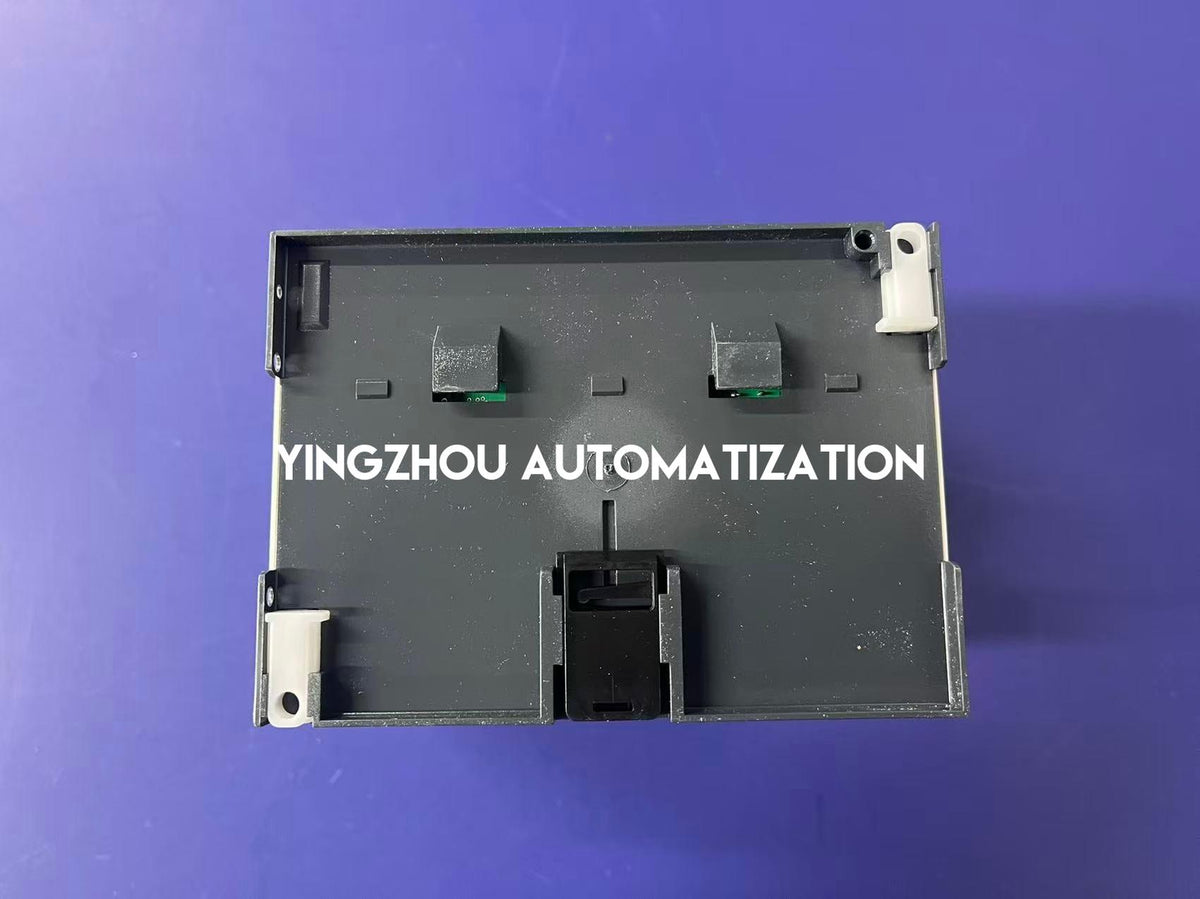

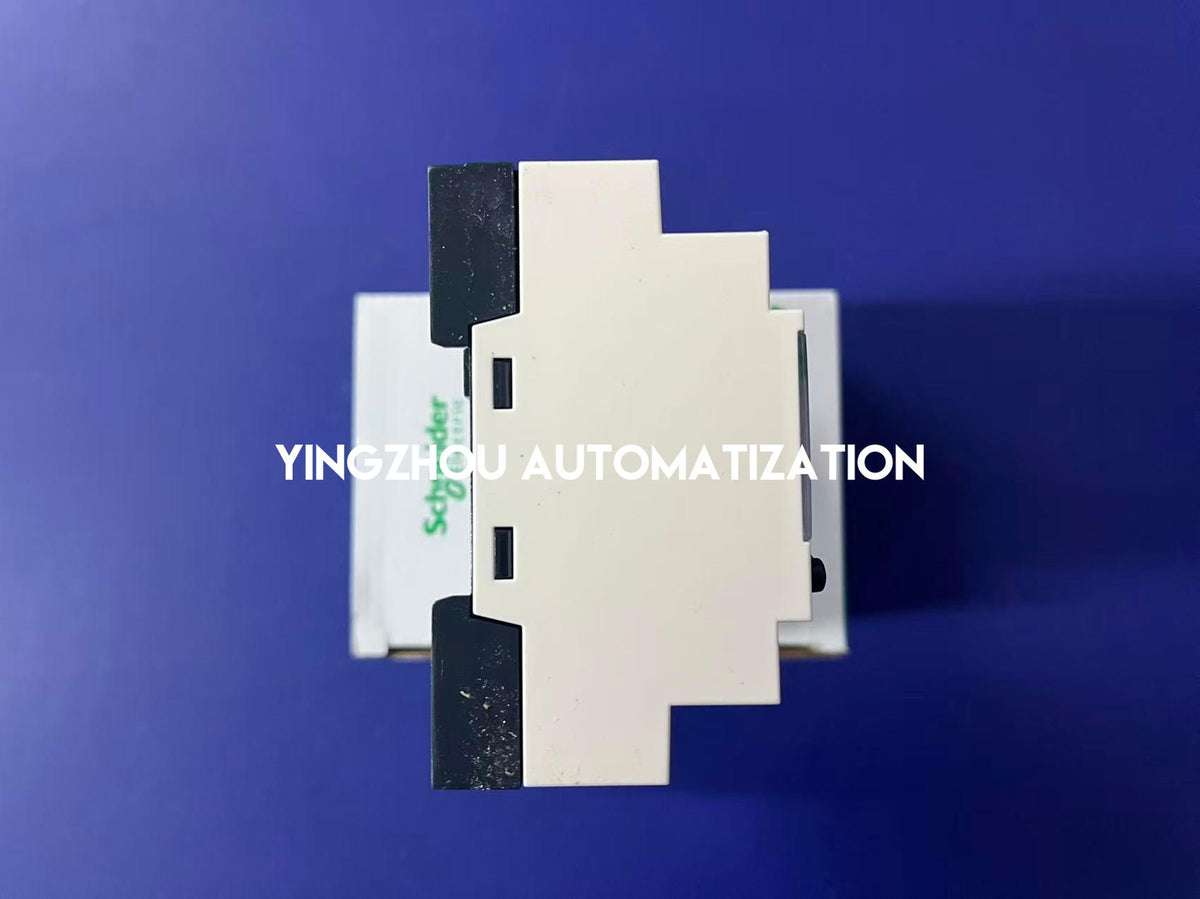

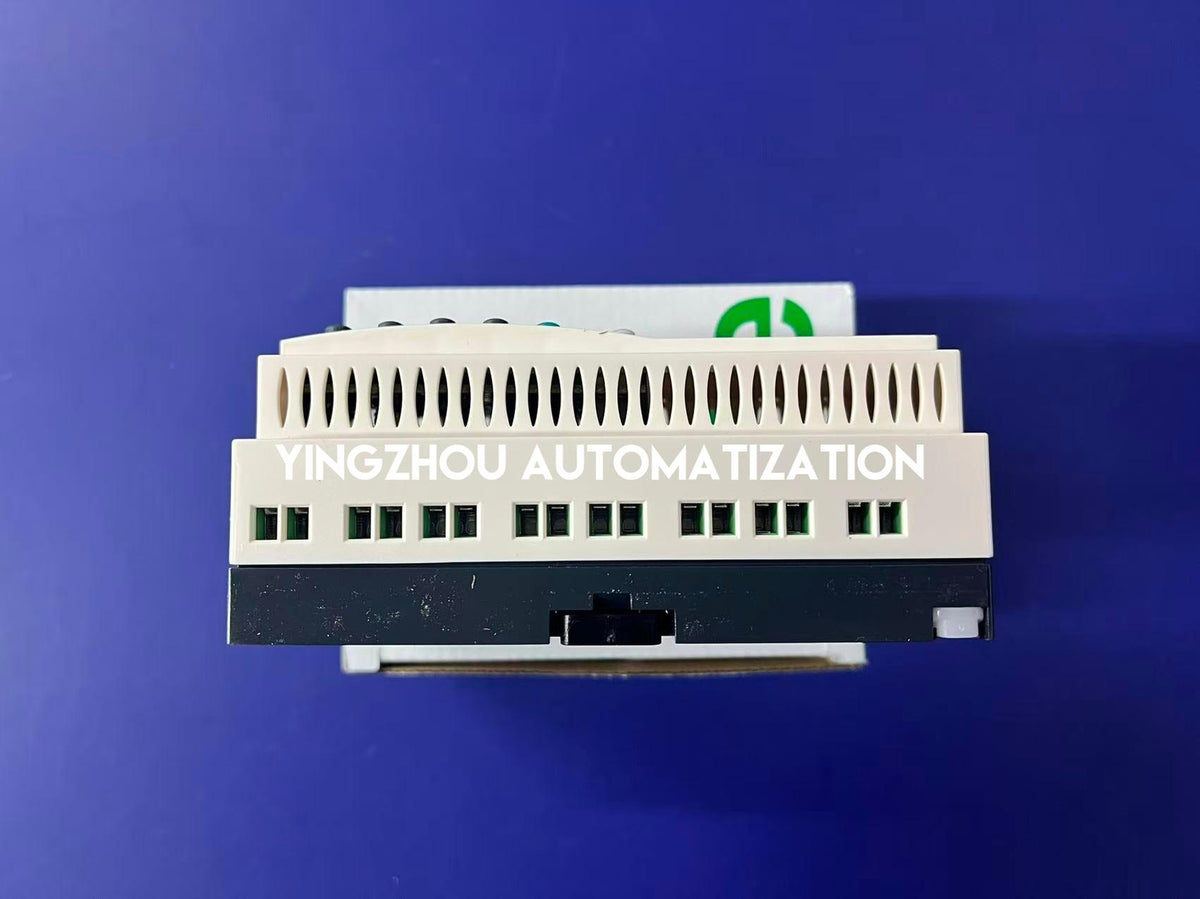

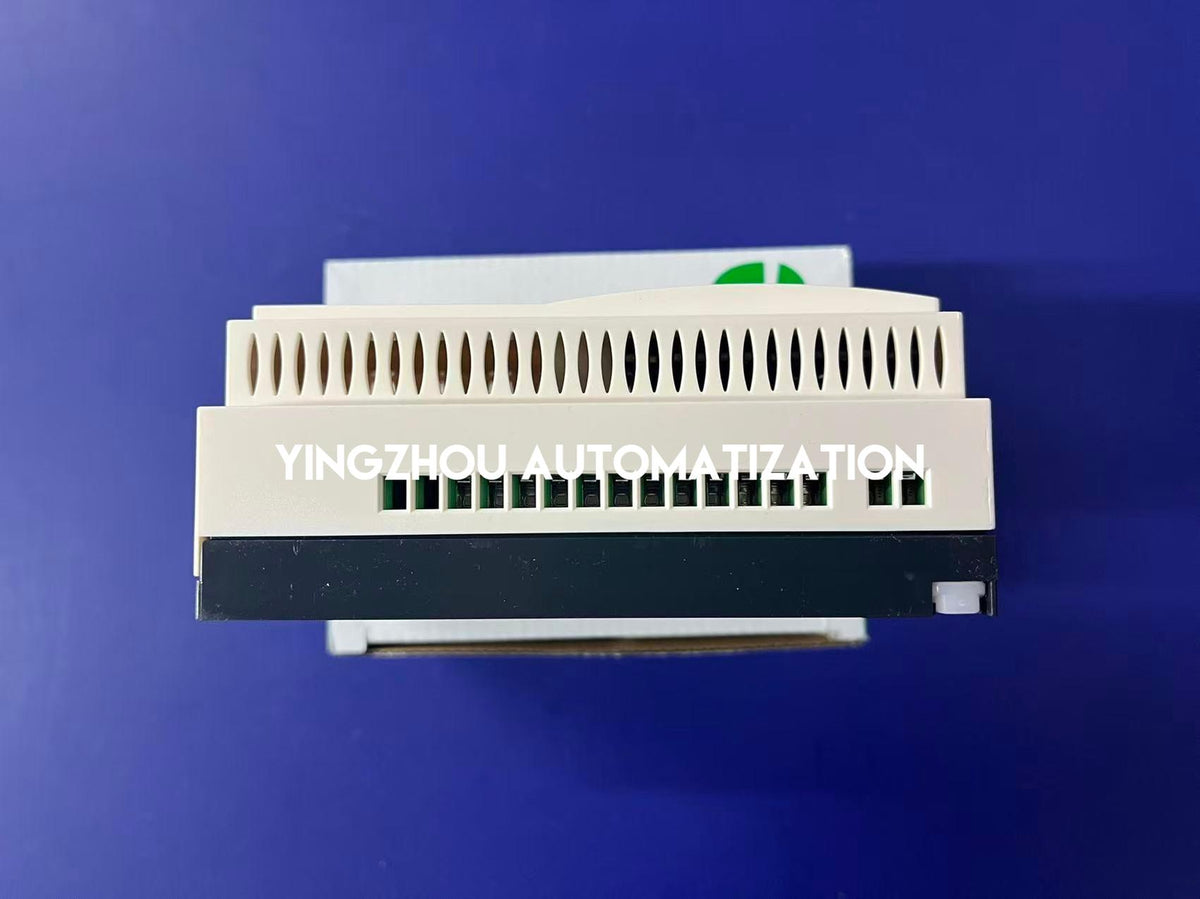

Actual product photos
✓
Model/nameplate visible
✓

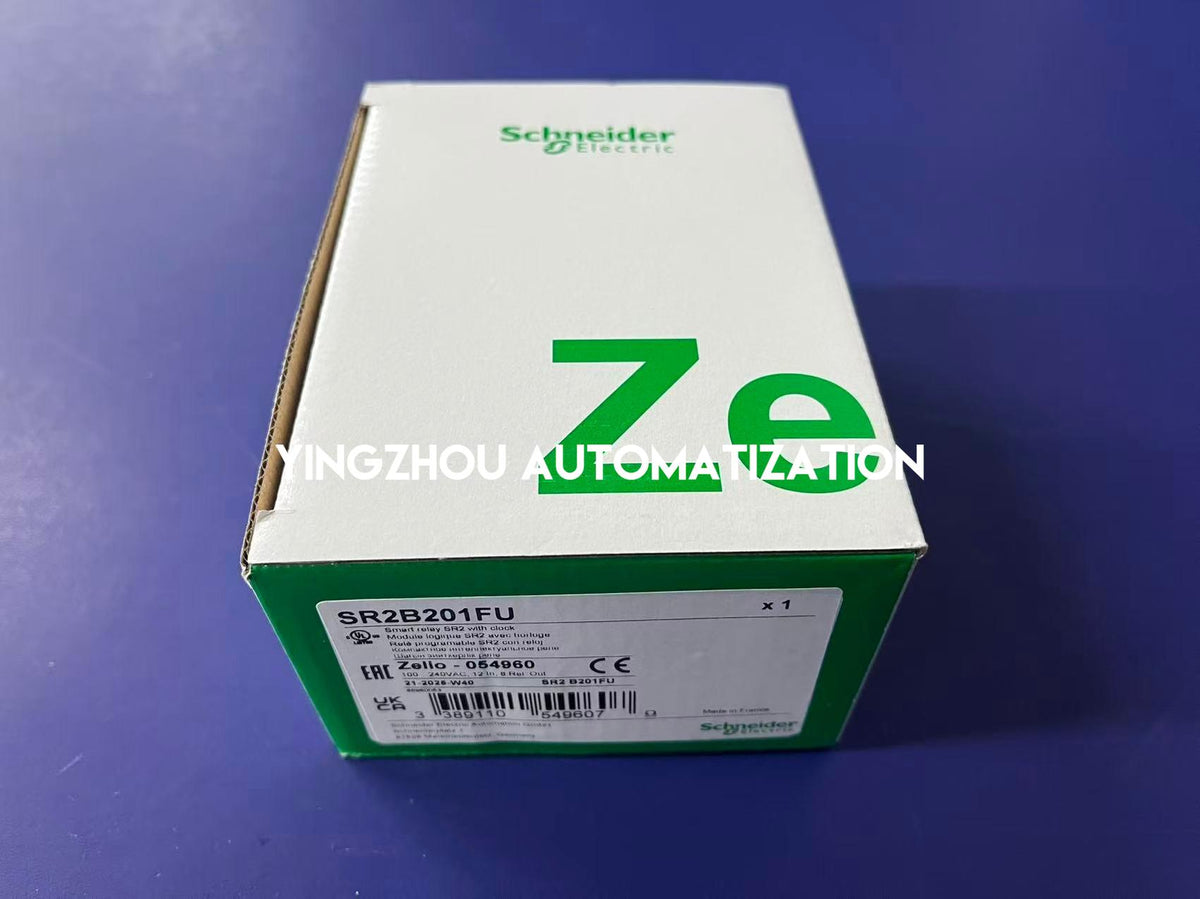

Packaging shown
✓
Verify exact model SR2B201FU before ordering
In Stock & Ready to Order
Schneider Electric SR2B201FU is currently in stock.

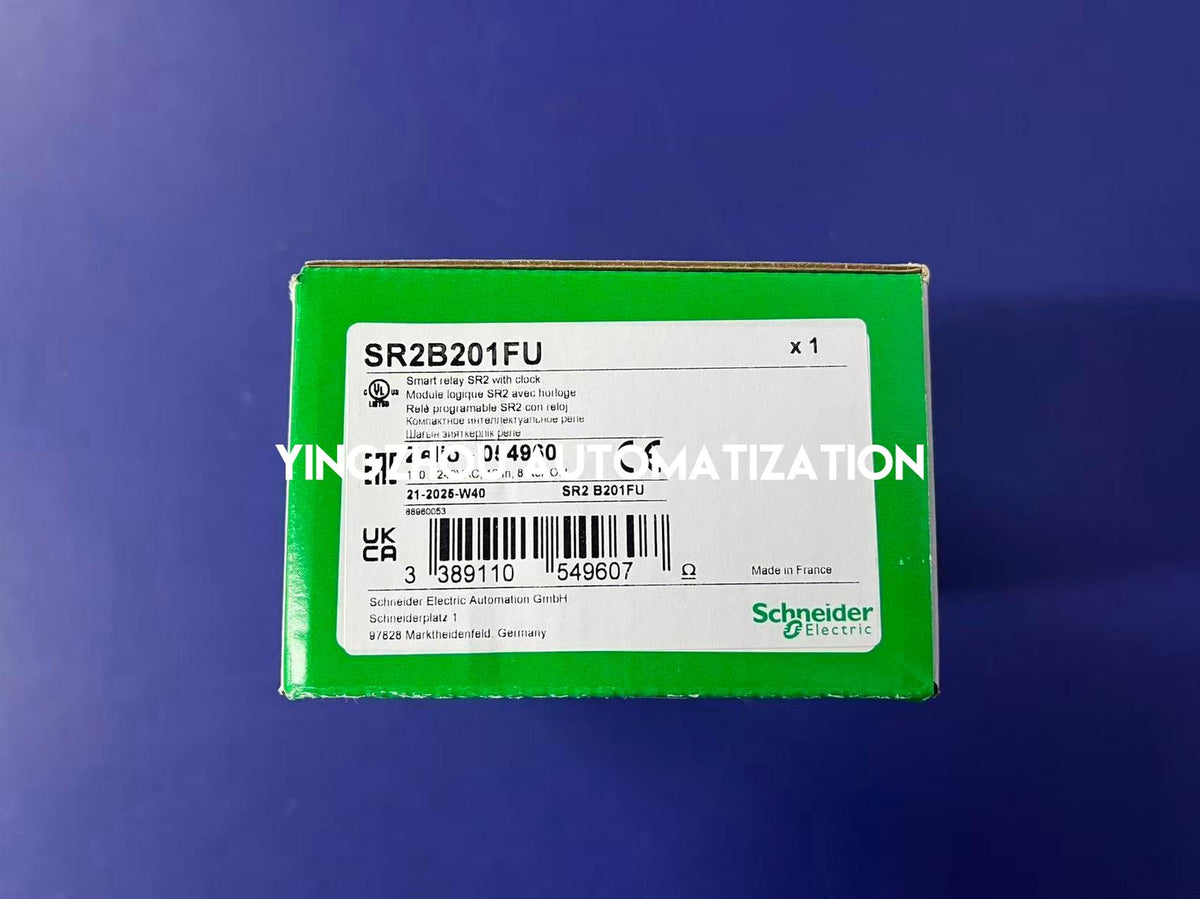

Actual smart relay and packaging-label photos are provided for
exact-model verification before ordering.
