Schneider Electric LUCA18BL TeSys U Standard Motor Control Unit
4.5–18A | 24V DC | Class 10 | 3-Phase Motor Protection | TeSys U
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
LUCA18BL |
| Series |
TeSys U / TeSys Ultra |
| Device Short Name |
LUCA |
| Product Type |
Standard Control Unit |
| Device Application |
Motor Control / Motor Protection |
| Specific Application |
Basic Motor Starter Protection: Overload and Short Circuit |
| Load Type |
3-Phase Self-Cooled Motor |
| Motor Current Adjustment Range |
4.5–18 A |
| Control Circuit Voltage (Uc) |
24 V DC |
| Control Circuit Voltage Limits |
20–27 V DC in Operation |
| Control Circuit Drop-Out Voltage |
14.5 V DC |
| Thermal Overload Class |
Class 10 |
| Thermal Compensation Range |
-25°C to +70°C |
| Tripping Threshold |
14.2 × Ir ±20% |
| Reset Mode |
Manual Reset |
| Overload Protection |
With Compatible Power Base |
| Short Circuit Protection |
With Compatible Power Base |
| Phase Failure Protection |
Yes |
| Phase Imbalance Protection |
Yes |
| Earth Fault Protection |
Yes, Equipment Protection |
| Rated Operational Voltage (Ue) |
690 V AC, Main Circuit of Compatible Starter |
| Network Frequency |
40–60 Hz |
| Utilisation Categories |
AC-41 / AC-43 / AC-44 |
| Motor Power at 400–440V |
7.5 kW at 50/60 Hz |
| Motor Power at 500V |
9 kW at 50/60 Hz |
| Motor Power at 690V |
15 kW at 50/60 Hz |
| Compatible Power Bases |
LUB32 / LUB38 / LUB320 / LUB380 |
| Compatible Reversing Devices |
LU2B32BL / LU2B38BL |
| Typical Closing Current |
220 mA at 24V DC with LUB32/LUB38 |
| Typical Sealed Current |
80 mA at 24V DC with LUB32/LUB38 |
| Control Circuit Heat Dissipation |
3 W with LUB32/LUB38 |
| Control Circuit Opening Time |
35 ms with LUB32/LUB38 |
| Control Circuit Closing Time |
70 ms with LUB32/LUB38 |
| Rated Insulation Voltage (Ui) |
690 V IEC / 600 V UL & CSA |
| Rated Impulse Withstand Voltage (Uimp) |
6 kV |
| Mounting Mode |
Plug-in, Front Face |
| Width |
45 mm |
| Height |
66 mm |
| Depth |
60 mm |
| Net Weight |
0.135 kg |
| Compatibility Code |
LUCA |
| Front Panel / Wired Terminals |
IP20 |
| Front Outside Connection Zone |
IP40 |
| Operating Temperature |
-25°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Maximum Operating Altitude |
2,000 m |
| Standards |
EN/IEC 60947-6-2; UL 60947-4-1; CSA C22.2 No. 60947-4-1 |
| GTIN / EAN |
3389110363852 |
| Manufacturer Package Quantity |
1 Piece |
Product Overview
The Schneider Electric LUCA18BL
is a standard control unit from the
TeSys U / TeSys Ultra
modular motor starter range.
It provides an adjustable
4.5–18A motor current range,
a 24V DC control circuit
and Class 10 thermal overload protection
for three-phase motor applications.
Its basic protection functions support
overload, short-circuit, phase failure,
phase imbalance and equipment earth fault
protection when installed in a compatible
TeSys U starter assembly.
The electronic control unit includes
a current adjustment dial and manual reset.
Its front plug-in construction supports
modular installation and servicing.
LUCA18BL is a standard control unit only,
not a complete motor starter.
A compatible power base and any required
accessories must be selected separately.
Key Product Features
-
TeSys U standard control unit for compatible modular motor starter assemblies
-
4.5–18A adjustable motor current range for three-phase motor protection
-
24V DC control voltage with a 20–27V DC operating range
-
Class 10 thermal overload protection with manual reset
-
Basic motor protection functions including overload, short circuit and phase failure
-
Phase imbalance and equipment earth fault protection in a correctly configured starter assembly
-
Front plug-in modular design for compatible TeSys U power bases
Actual Product Verification
✓

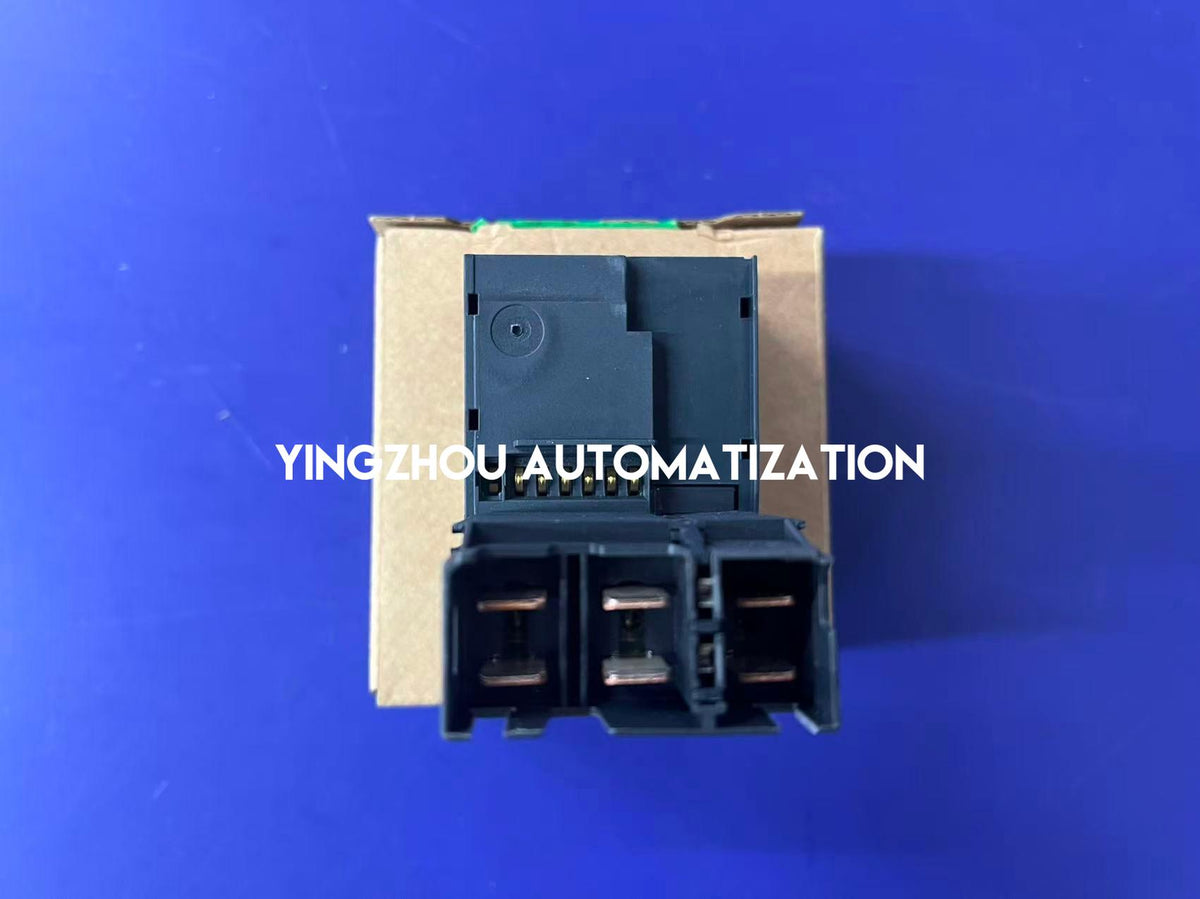

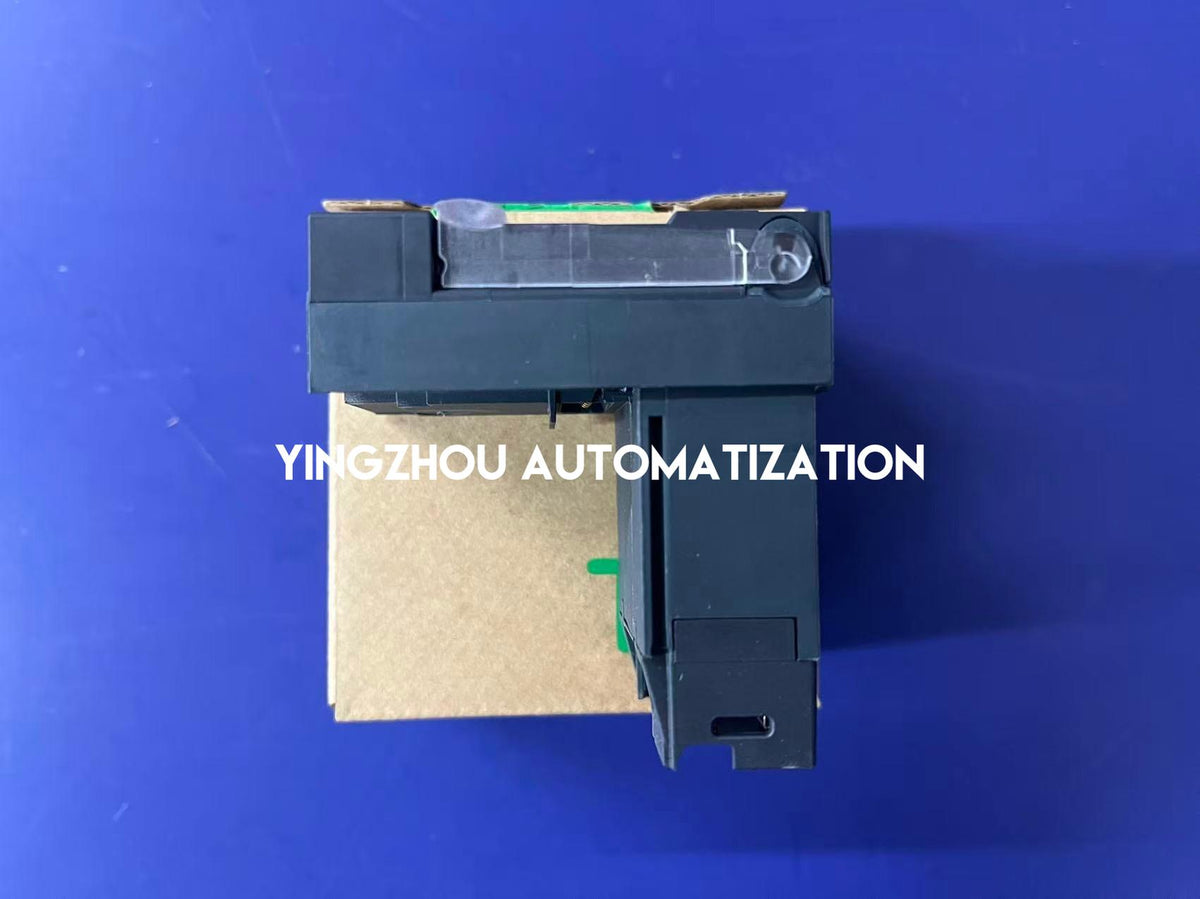

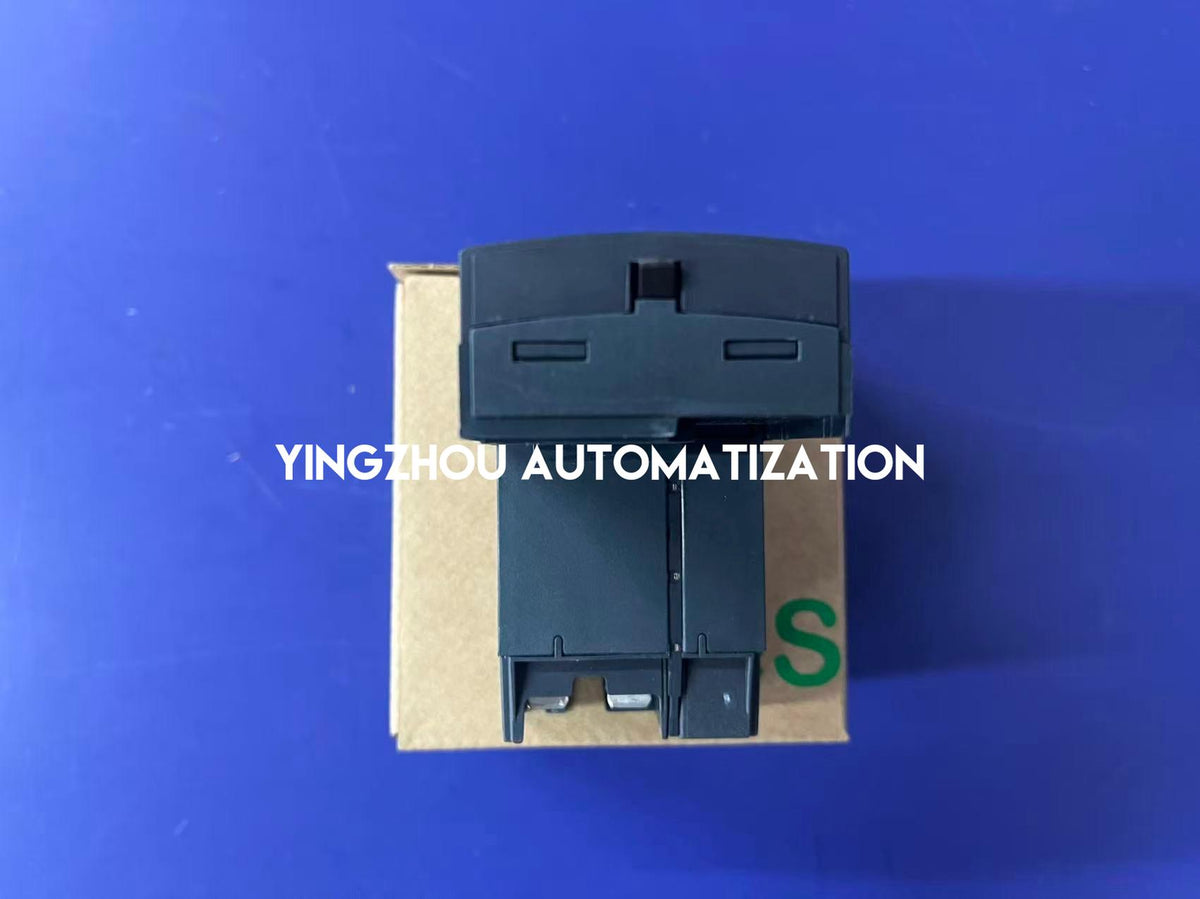

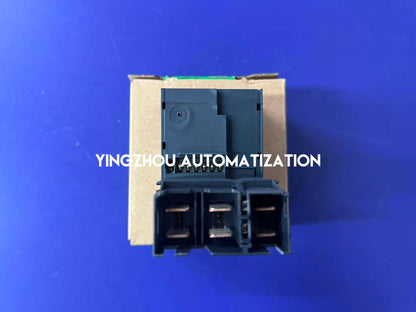

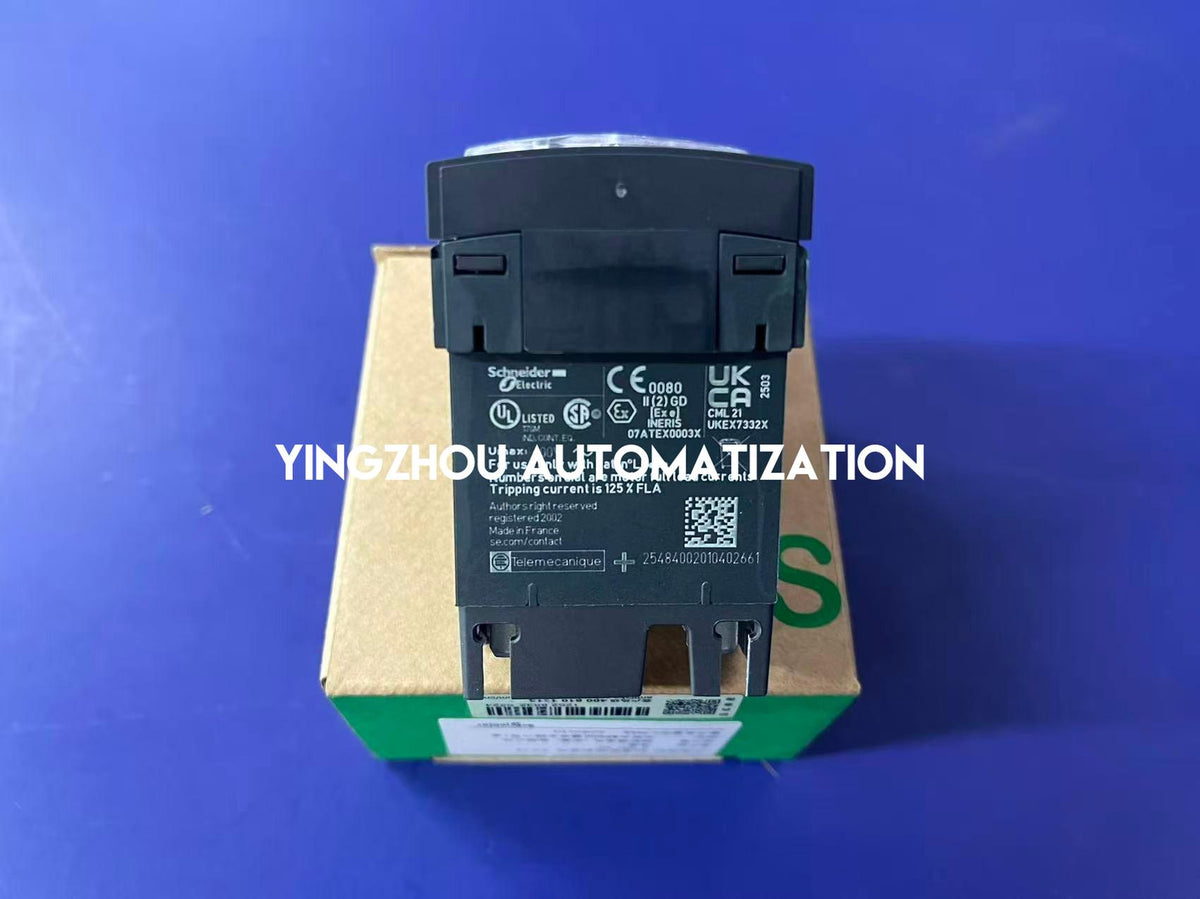

Actual product photos
✓

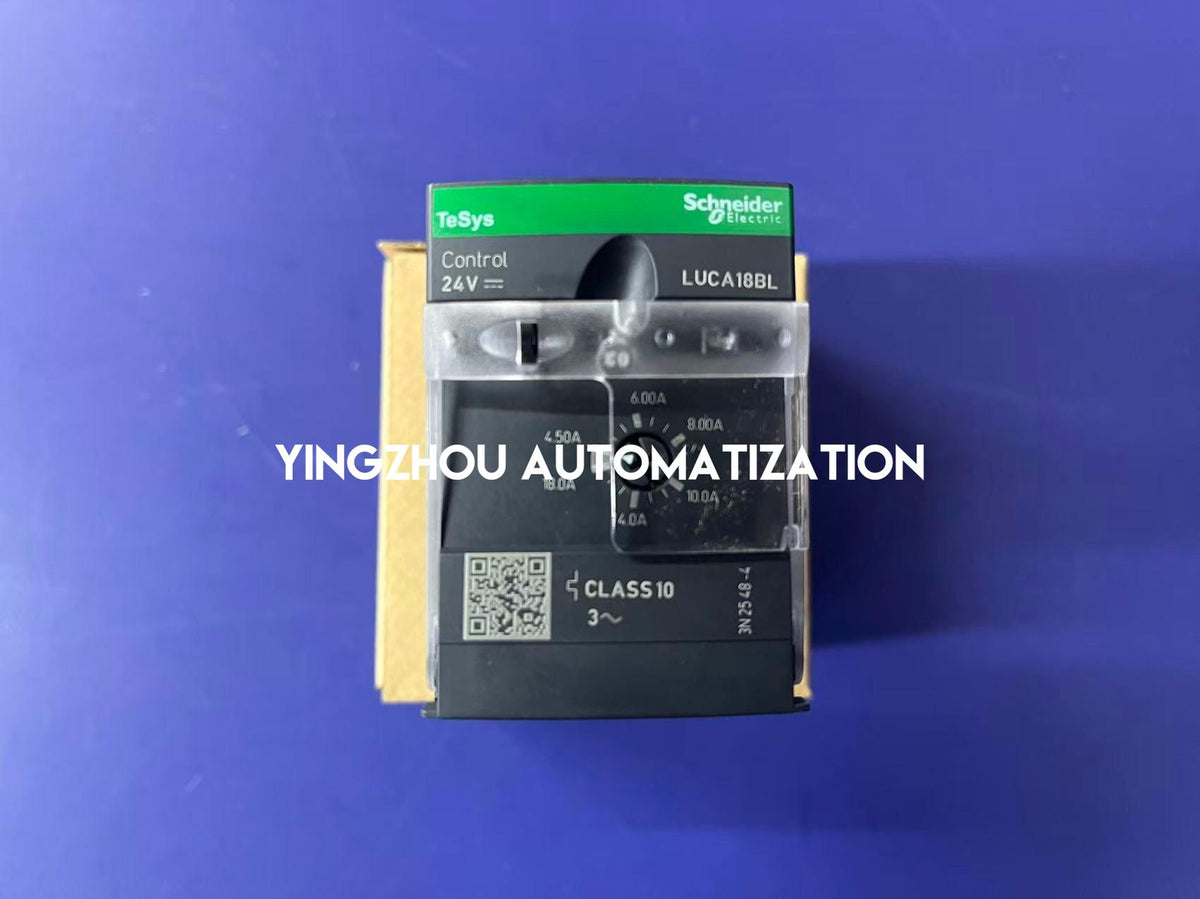

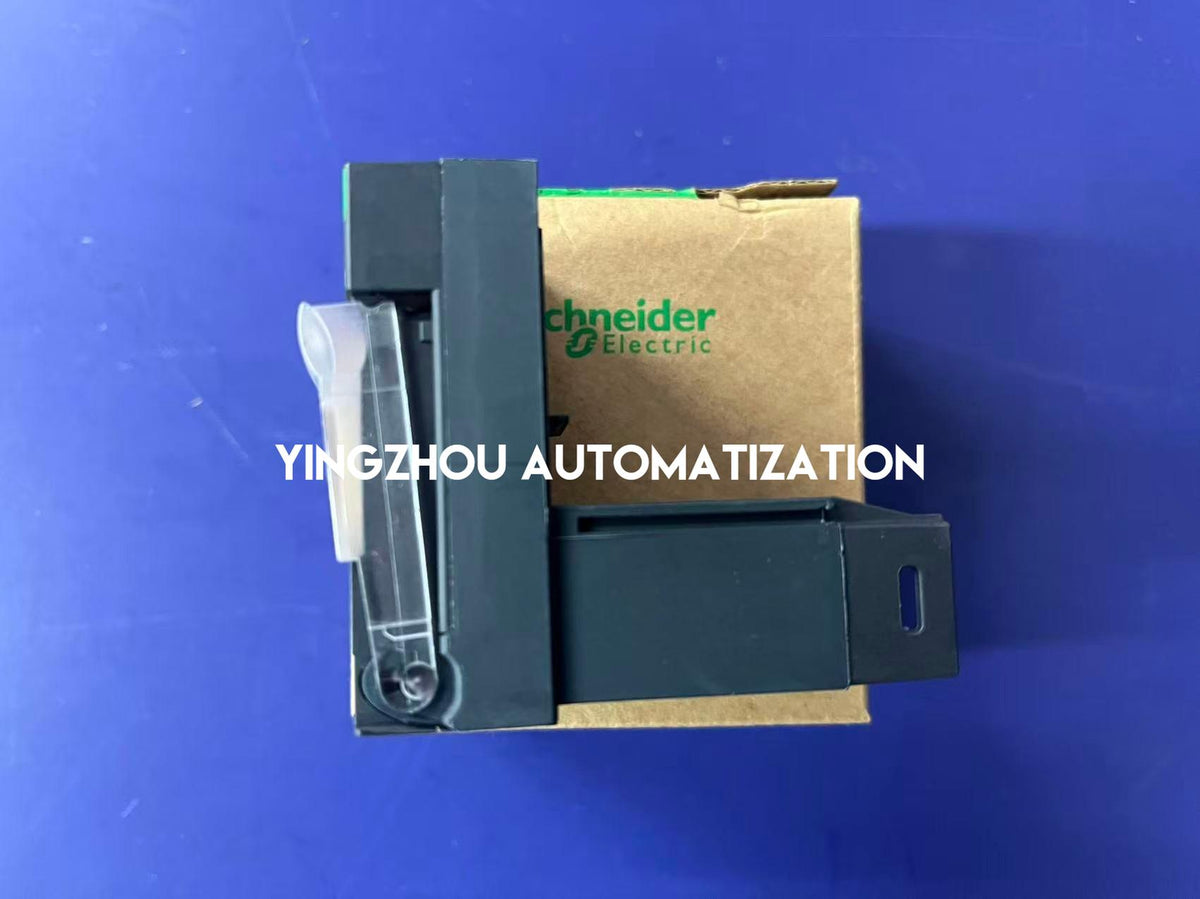

Schneider Electric branding and product body markings visible
✓

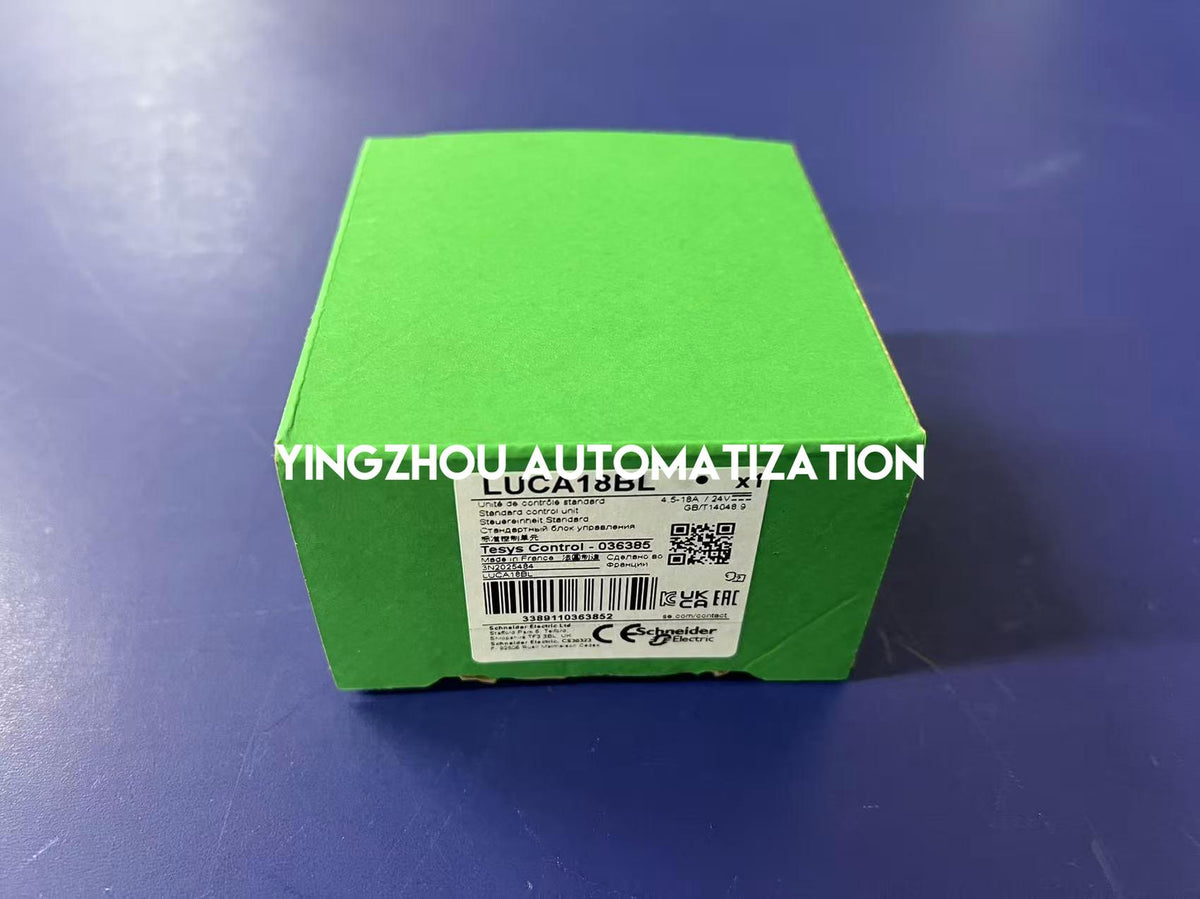

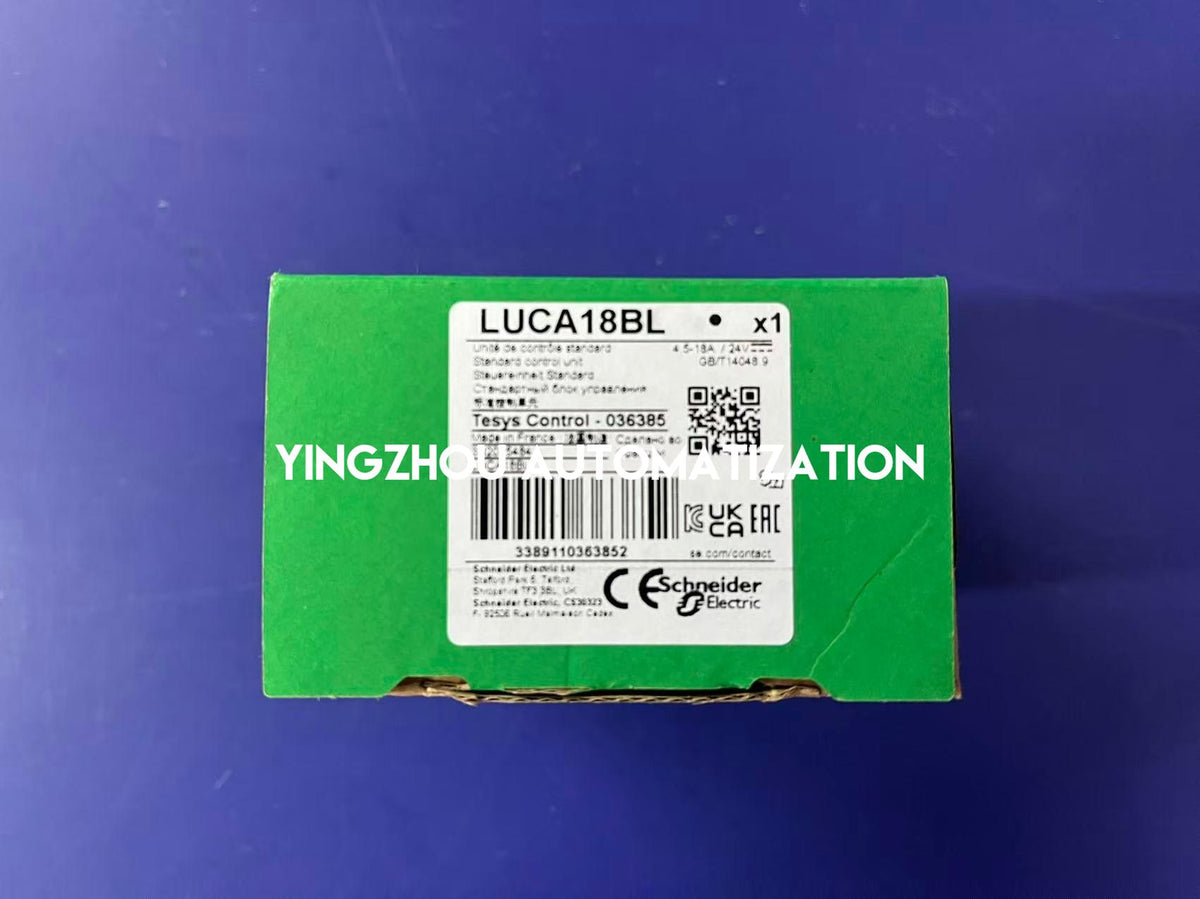

Schneider packaging shown with exact model LUCA18BL visible
✓
Verify exact model LUCA18BL,
24V DC control voltage, 4.5–18A current range
and compatible power base before ordering
In Stock & Ready to Order
Schneider Electric LUCA18BL
is currently reported in stock.
Actual product and Schneider packaging
photos are available for buyer verification.
This TeSys U standard control unit
provides an 4.5–18A adjustable motor current range,
24V DC control voltage
and Class 10 thermal overload protection.
Its basic protection functions support
three-phase motor applications
when used with a compatible power base.
This listing is for the control unit only.
Please confirm the exact model,
motor rated current, control voltage
and approved power base before purchasing.
