Schneider Electric LRD14C TeSys Deca Thermal Overload Relay
7–10A | Class 10A | 3-Pole | Motor Overload Protection
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
LRD14C |
| Product Range |
TeSys Deca |
| Product Series |
TeSys LRD |
| Device Short Name |
LRD |
| Product Type |
Thermal Overload Relay |
| Device Application |
Motor Overload Protection |
| Protection Technology |
Thermal |
| Number of Poles |
3P |
| Thermal Adjustment Range |
7–10A |
| Thermal Overload Trip Class |
Class 10A — IEC 60947-4-1 |
| Trip Threshold |
1.14 ± 0.06 × Ir |
| Phase Failure Sensitivity |
130% of Ir on two phases, third phase at zero |
| Compatible Contactor Range |
Selected LC1D09–LC1D38 Contactors |
| Conventional Thermal Current (Ith) |
5A — Signalling Circuit |
| Rated Impulse Withstand (Uimp) |
6kV |
| Signal Circuit Rating |
3A @ 120V AC-15 |
| DC Signal Circuit Rating |
0.22A @ 125V DC-13 |
| Operating Controls |
Red Stop / Blue Reset Buttons |
| Mounting |
Under Contactor / Plate / Rail with Accessories |
| Terminal Connection |
Screw Clamp |
| Terminal Tightening Torque |
1.7 N·m — Screw Clamp |
| Width |
45mm |
| Depth |
70mm |
| Net Weight |
0.124kg |
| Degree of Protection |
IP20 — IEC 60529 |
| Operating Temperature |
−20°C to +60°C without derating |
| Applicable Standards |
IEC 60947-4-1 / GB 14048.4 |
Product Overview
The Schneider Electric LRD14C
is a three-pole thermal overload relay
from the TeSys Deca / TeSys LRD
range, designed for overload protection
in industrial electric motor control systems.
It features a 7–10A adjustable
thermal protection range, allowing
the protection setting to be selected
according to the motor rated current
and applicable protection requirements.
The LRD14C is specified with a
Class 10A thermal overload
tripping characteristic in
accordance with IEC 60947-4-1.
The relay provides manufacturer-specified
phase-failure sensitivity
for motor protection applications.
Schneider Electric identifies the LRD14C
for use with selected
LC1D09–LC1D38 contactors,
subject to correct motor starter selection.
It supports direct installation beneath
a compatible contactor or alternative
plate and DIN-rail mounting using
the specified accessories.
The relay provides thermal overload
protection and must be used with
suitable coordinated short-circuit
protection equipment.
Actual packaging photographs show the
exact model LRD14C,
the 7–10A adjustment range
and Schneider Electric product identification.
Key Product Features
-
7–10A adjustable thermal protection range
-
Class 10A overload tripping characteristic
-
3-pole thermal overload relay
-
Motor Protection for industrial control systems
-
Phase Failure Sensitivity for motor protection
-
LC1D09–LC1D38 compatible contactor range
-
Red Stop / Blue Reset push-button controls
-
IP20 degree of protection
-
Direct Contactor Mounting or alternative mounting with accessories

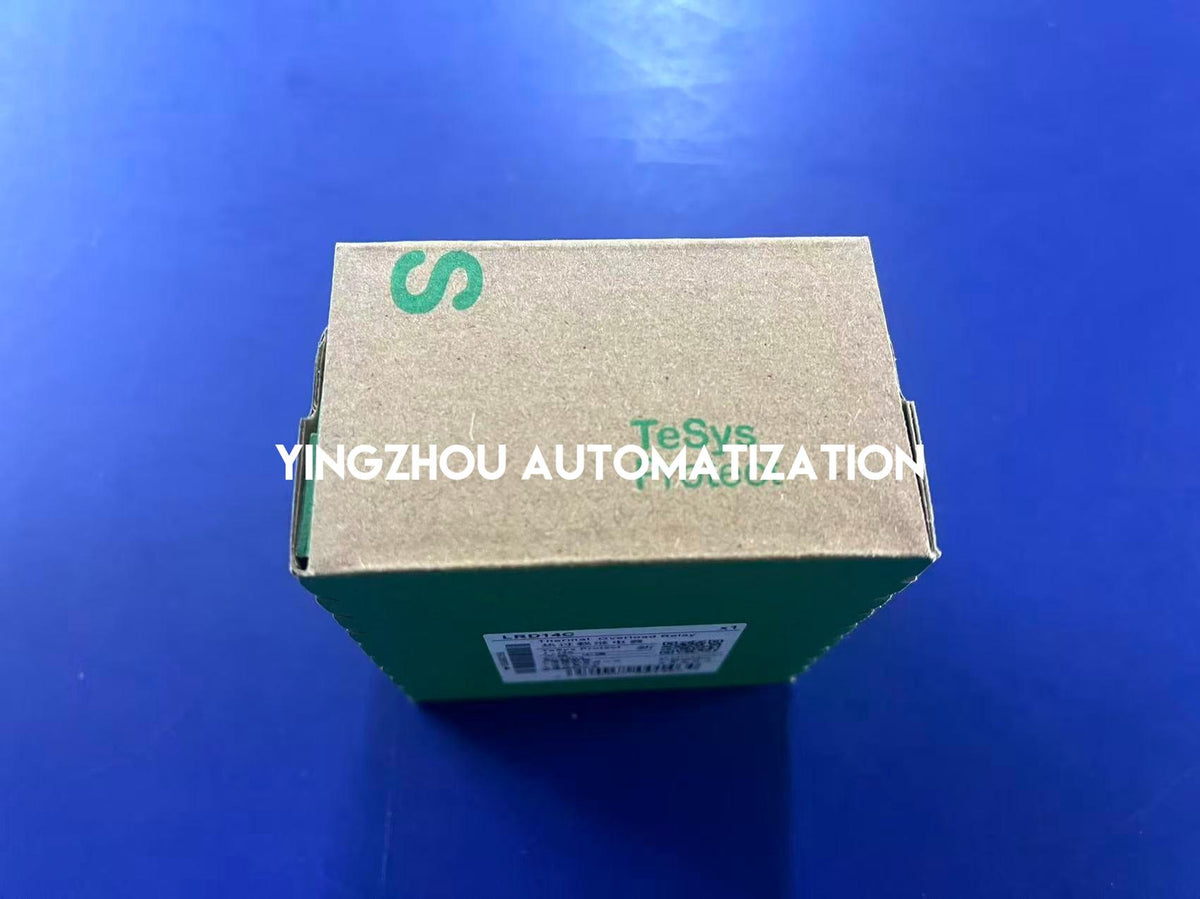

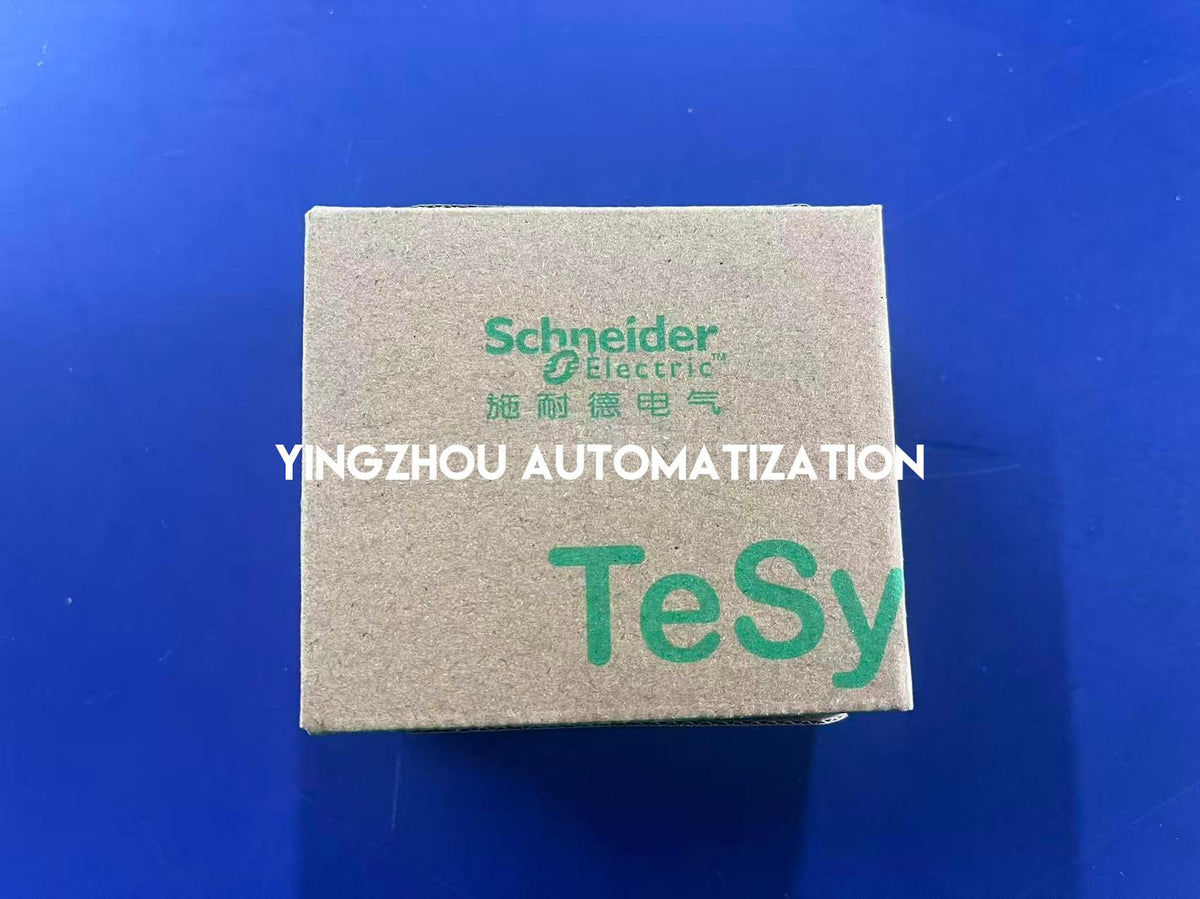

Actual Product Verification
✓
Actual packaging photo provided
✓
Exact model LRD14C visible on packaging
✓
Packaging label shows 7–10A and TeSys product identification
✓
Verify exact model LRD14C before ordering
In Stock & Ready to Order
Schneider Electric LRD14C
is currently in stock according
to our inventory information.
The actual packaging photograph
identifies the exact model and
thermal protection adjustment range.
Please confirm the required quantity,
exact model, motor nameplate current,
required trip class and contactor
configuration before ordering.
Select the protection setting according
to the motor and applicable electrical
protection requirements.
