Schneider BMXCPS3500 Modicon X80 High Power AC Power Supply Module
36W Rated | 100–240V AC | Modicon X80 | Rack Power Supply
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
BMXCPS3500 |
| Series |
Modicon X80 |
| Product Type |
High Power AC Power Supply Module |
| Rated Power |
36 W |
| Primary Voltage |
100–240 V AC |
| Primary Voltage Limits |
85–264 V AC |
| Supply Frequency |
50/60 Hz (47–63 Hz limits) |
| Input Current |
1.04 A at 115 V; 0.52 A at 240 V |
| 3.3V Logic Power |
15 W / 4.5 A for I/O module logic |
| 24V Processor / I/O Power |
31.2 W / 1.3 A |
| 24V Sensor Supply |
21.6 W / 0.9 A |
| Maximum Power Dissipation |
8.5 W |
| Electrical Protection |
Primary internal fuse; secondary overload, overvoltage and short-circuit protection |
| Status LEDs |
Rack Voltage OK / Sensor Voltage |
| Reset Function |
RESET push-button for cold restart |
| Electrical Connections |
5-pin line/earth/sensor connection; 2-pin alarm relay connection |
| Backplane Compatibility |
Modicon X80 compatible single-power-supply backplanes; not BMEXBP••02 |
| Protection Rating |
IP20 |
| Net Weight |
0.36 kg |
| Mounting |
Modicon X80 rack/backplane |
Product Overview
The Schneider Electric BMXCPS3500 is a
36 W high-power AC supply module from the Modicon X80
range for compatible M340 and M580 controller racks. It takes a
100–240 V AC primary supply and provides dedicated
3.3 V DC logic, 24 V DC processor/I/O,
and 24 V DC sensor supply circuits. Verify the X80
backplane and the complete rack power budget before ordering.
This model is not compatible with BMEXBP••02 dual-power-supply backplanes.
Key Product Features
-
36 W rated high-power AC supply module
-
100–240 V AC primary input supply
-
3.3 V DC / 4.5 A I/O logic power supply
-
24 V DC / 1.3 A processor and I/O supply
-
24 V DC / 0.9 A sensor supply circuit
-
Integrated protection for secondary overload, overvoltage and short circuit
-
Modicon X80 rack integration for compatible M340 / M580 systems
Actual Product Verification
✓

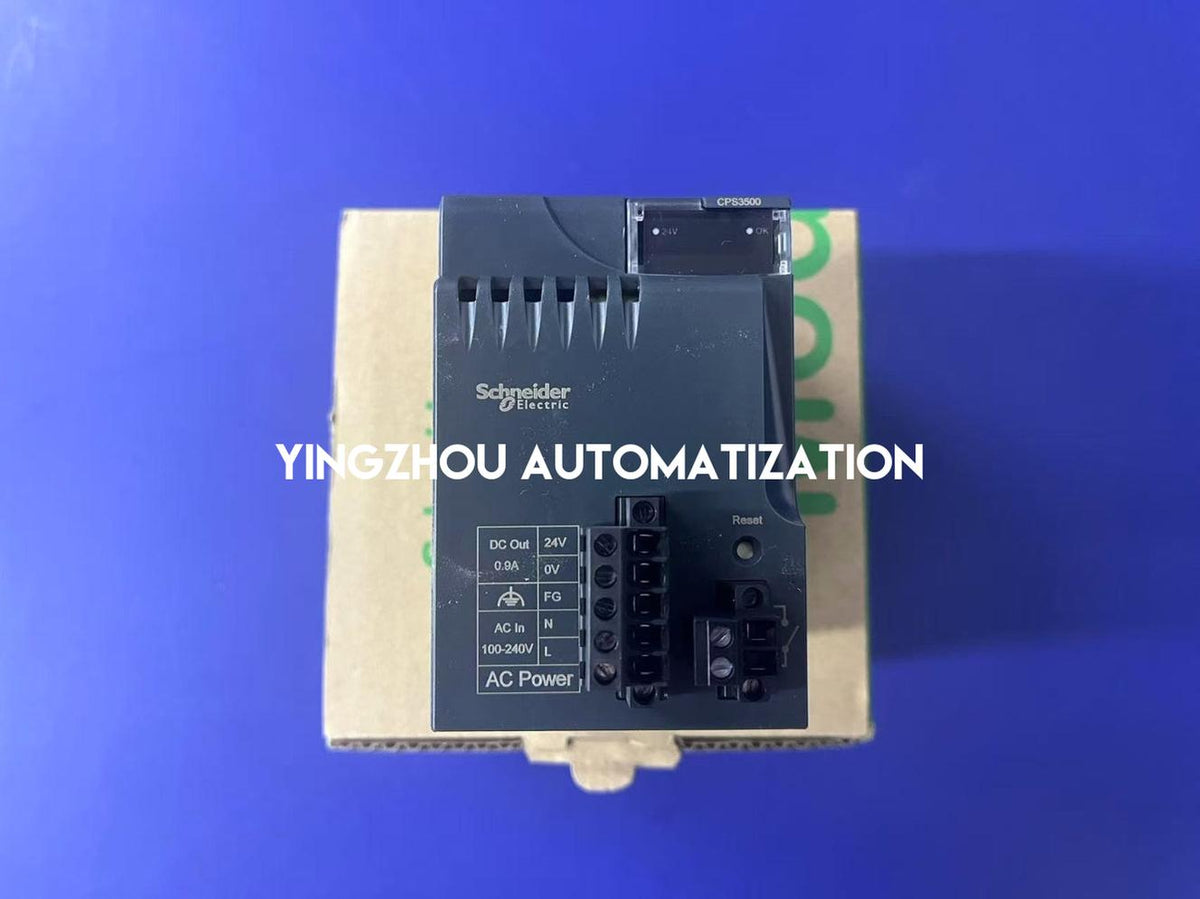

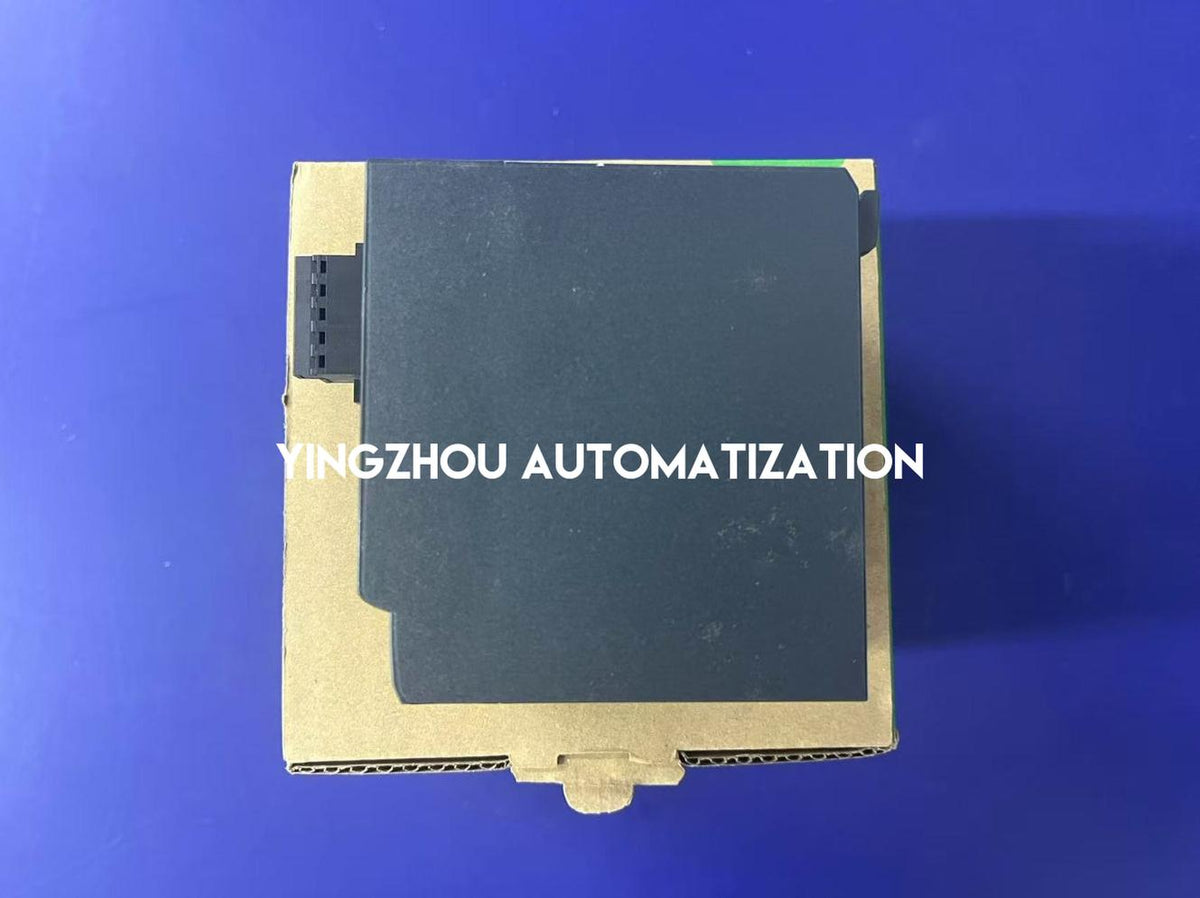

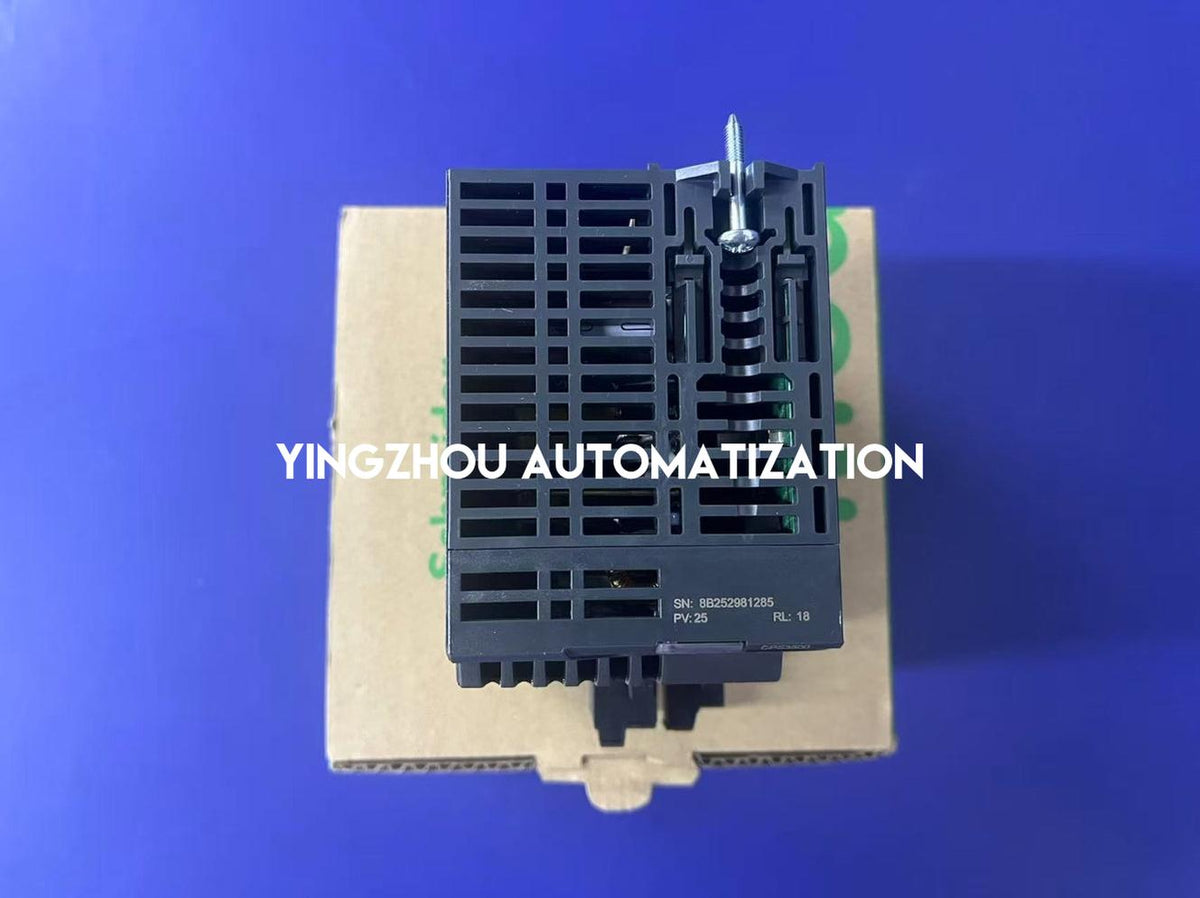

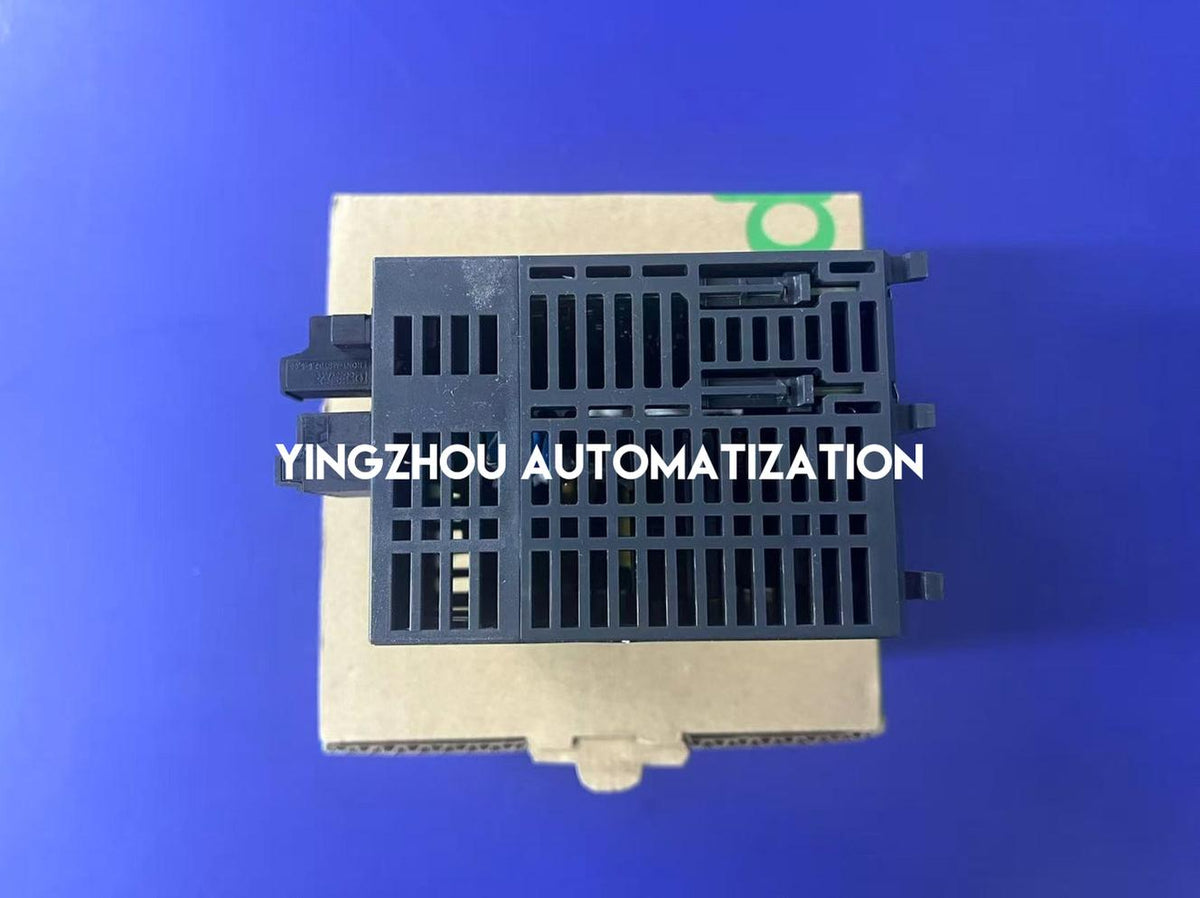

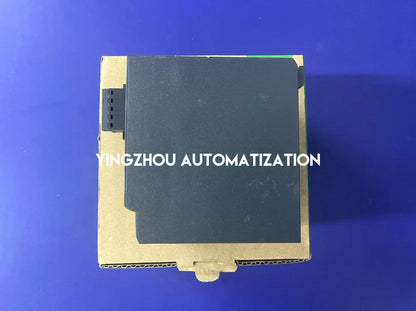

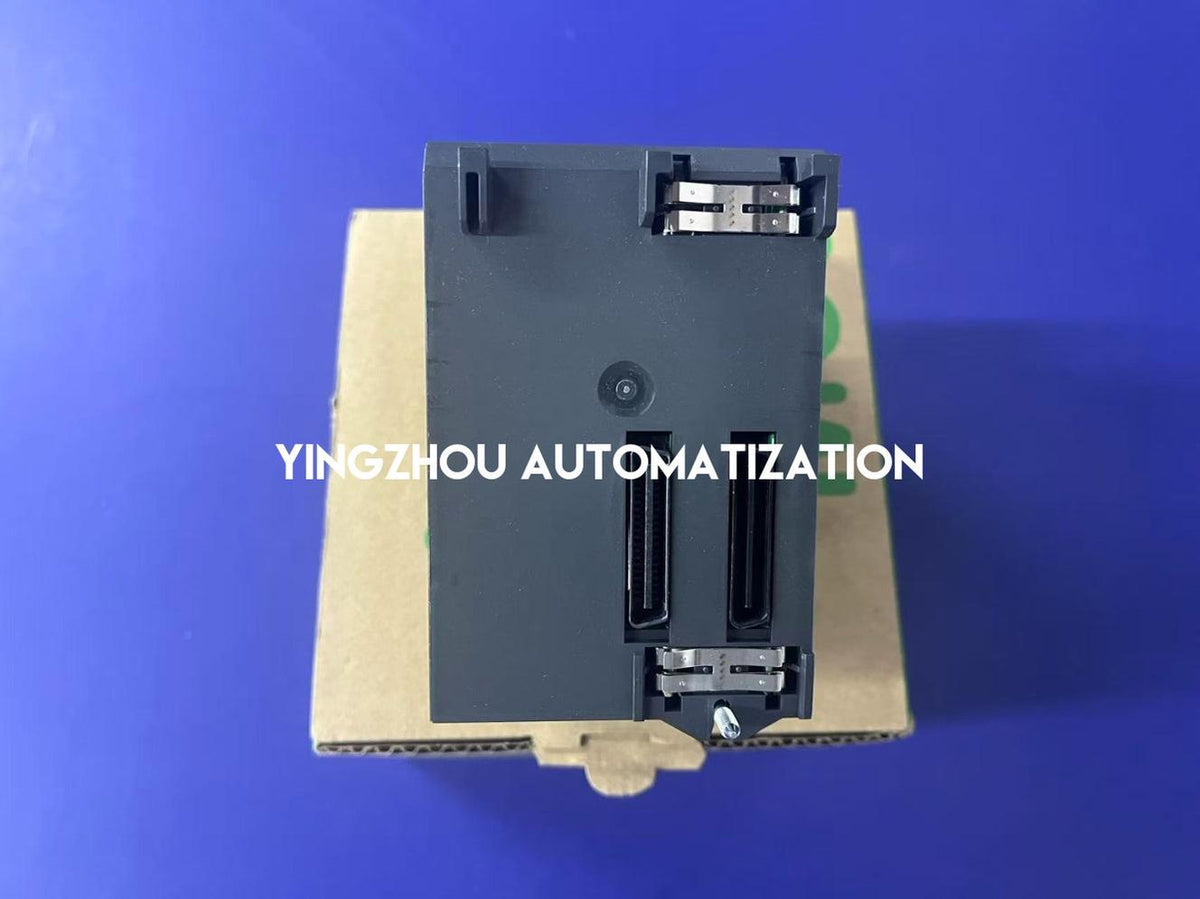

Actual product photos
✓

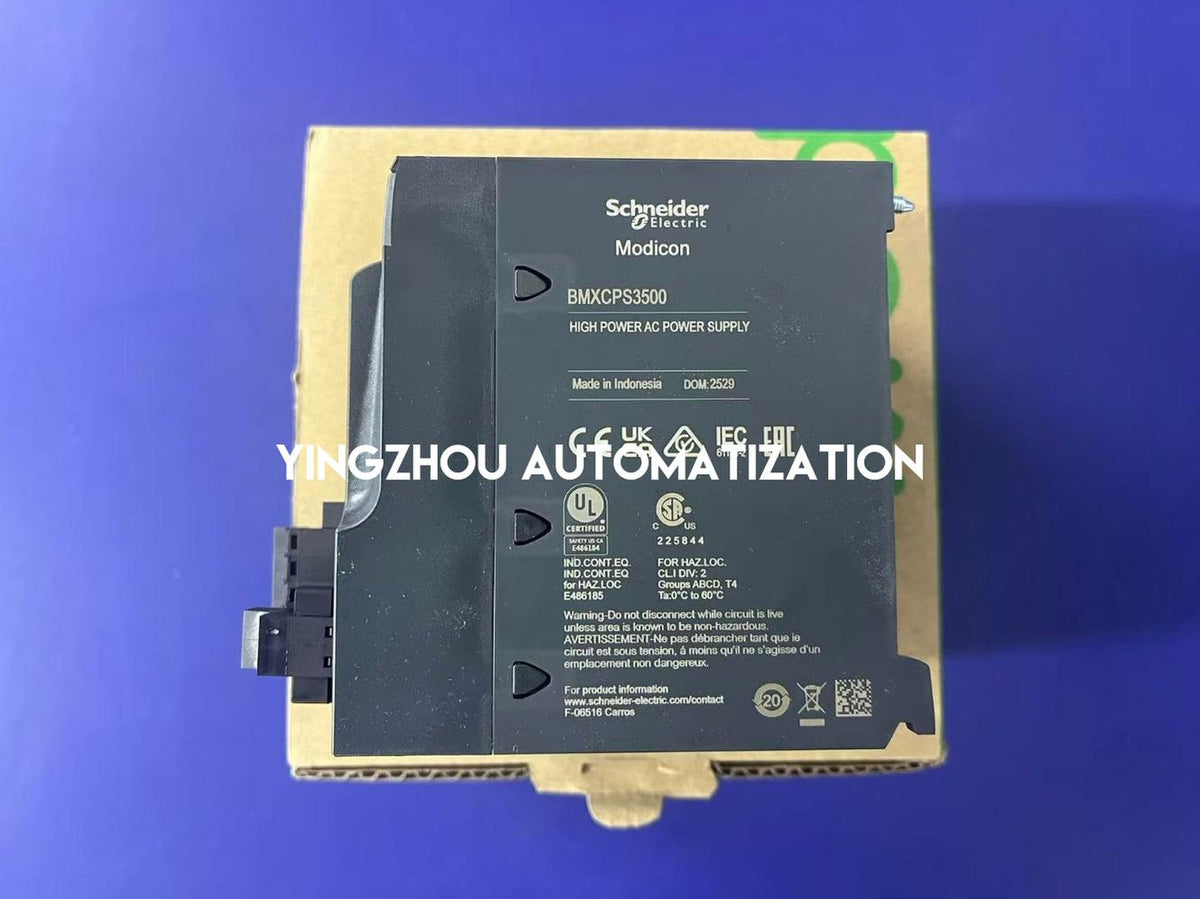

Model/nameplate visible
✓
Packaging shown
✓
Verify exact model BMXCPS3500 before ordering
In Stock & Ready to Order
Schneider Electric BMXCPS3500 is currently in stock.
Actual power module and packaging-label photos are provided for
exact-model verification before ordering.
