Schneider ATV320U15N4C Altivar Machine ATV320 Variable Speed Drive
1.5kW / 2HP | 380–500VAC | 3-Phase | Modbus / CANopen
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATV320U15N4C |
| Series |
Altivar Machine ATV320 |
| Device Short Name |
ATV320 |
| Product Type |
Variable Speed Drive |
| Product Application |
Complex Machines |
| Drive Format |
Compact |
| Motor Power |
1.5 kW / 2 HP (Heavy Duty) |
| Rated Supply Voltage |
380–500 VAC, 3-Phase |
| Output Phases |
3-Phase |
| Supply Frequency |
50–60 Hz |
| Continuous Output Current |
4.1 A at 4 kHz |
| Line Current |
5.8 A at 380 V / 4.4 A at 500 V |
| Maximum Nameplate Input Current |
6.4 A |
| Maximum Transient Current |
6.2 A for 60 s |
| Output Voltage |
Up to Supply Voltage, 3-Phase |
| Output Frequency |
0.1–599 Hz |
| Nominal Switching Frequency |
4 kHz |
| Communication |
Modbus Serial / CANopen |
| Communication Connector |
RJ45 |
| Integrated EMC Filter |
Class C2 |
| Safety Functions |
STO / SS1 / SLS / SMS / GDL |
| Braking Chopper |
Integrated |
| Motor Control |
Synchronous / Asynchronous Motors |
| Protection Rating |
IP20 |
| Cooling Type |
Fan |
| Dimensions |
105 × 142 × 158 mm (W × H × D) |
| Net Weight |
1.3 kg |
Product Overview
The Schneider Electric ATV320U15N4C is a
compact variable speed drive from the
Altivar Machine ATV320 series.
It provides 1.5 kW / 2 HP heavy-duty
motor power with a 380–500 VAC three-phase
supply for industrial machine control.
The drive supports Modbus Serial and CANopen
communication, with a 4.1 A continuous
output current and IP20 protection rating.
It features an integrated braking chopper,
Class C2 EMC filter and supported
drive safety functions.
Key Product Features
-
1.5 kW / 2 HP heavy-duty motor power rating
-
380–500 VAC three-phase supply
-
4.1 A continuous output current
-
Compact variable speed drive format
-
Modbus Serial / CANopen communication
-
Integrated braking chopper for compatible braking arrangements
-
Integrated safety functions including STO
-
IP20 protection and integrated Class C2 EMC filter
Actual Product Verification
✓

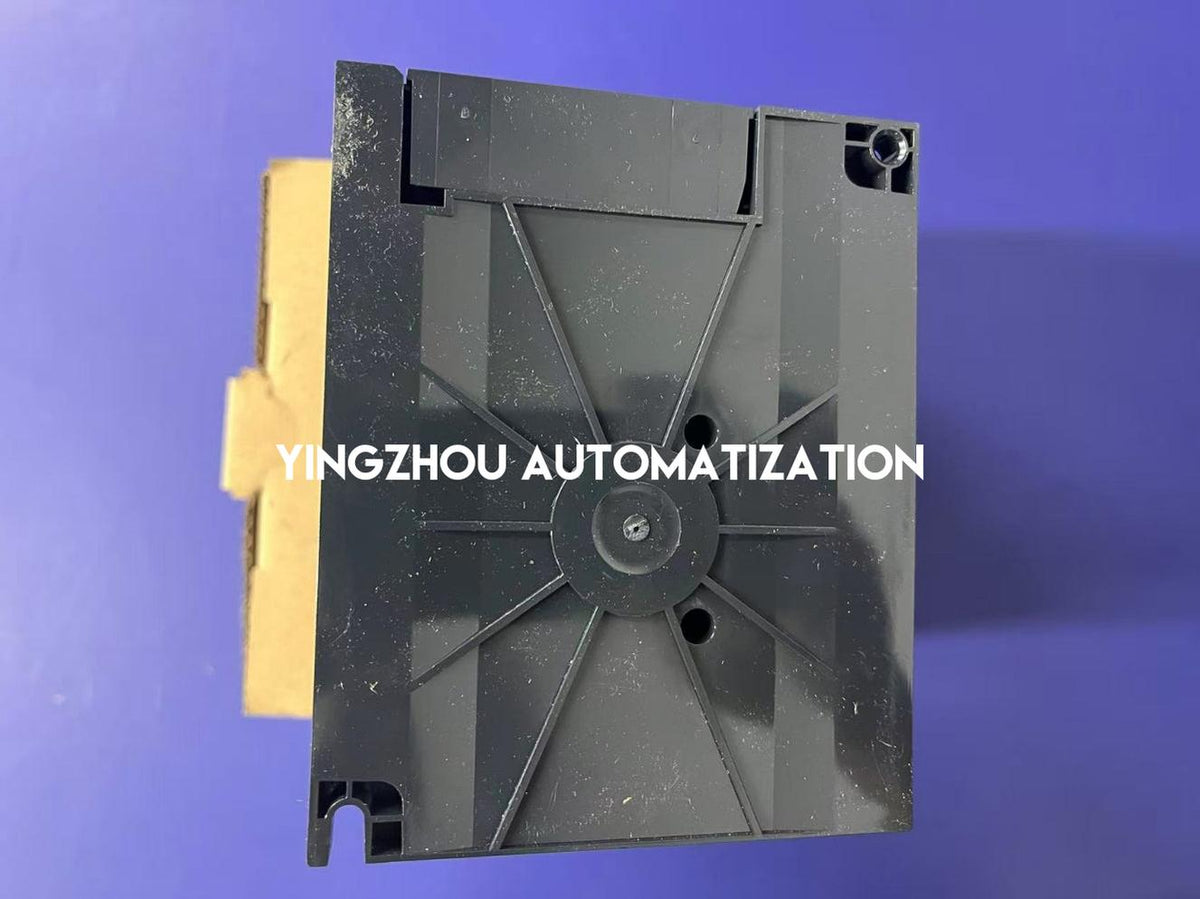

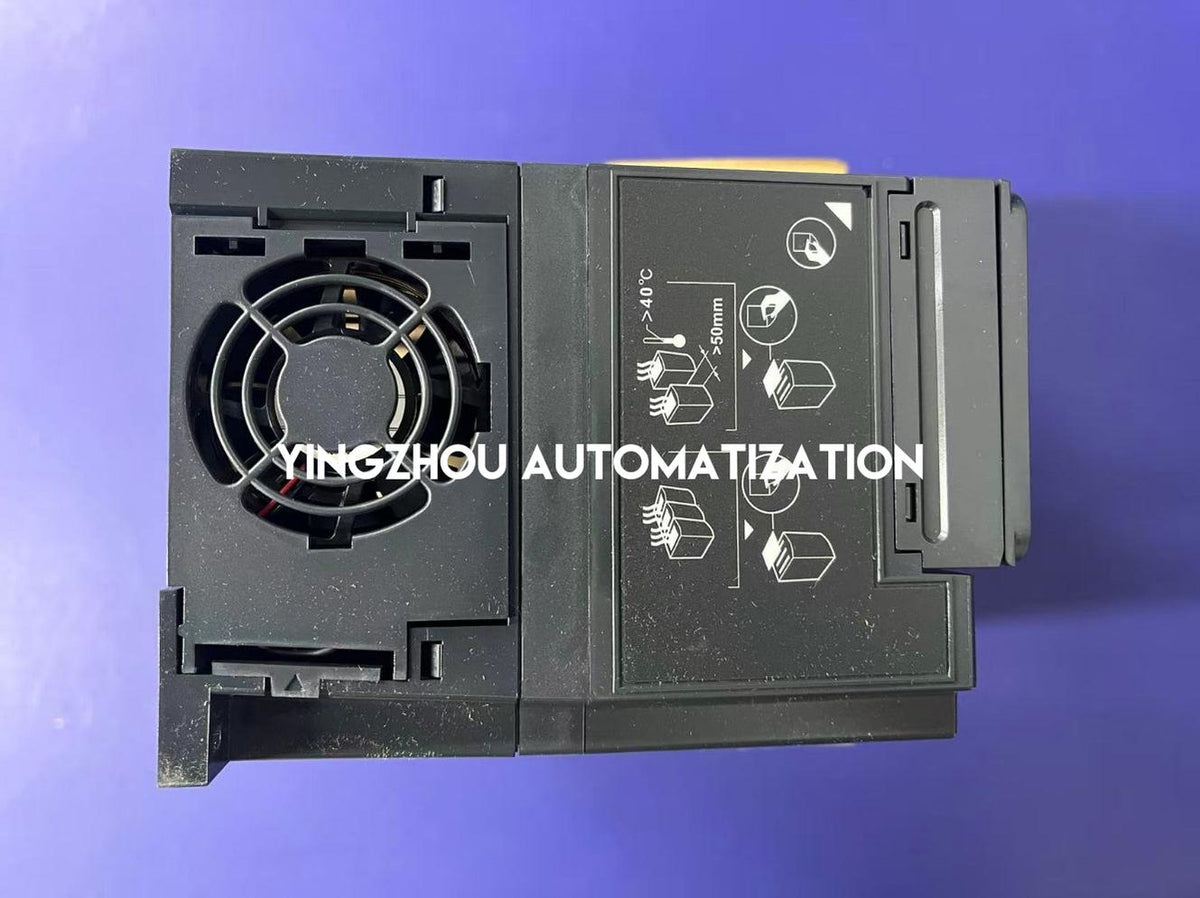

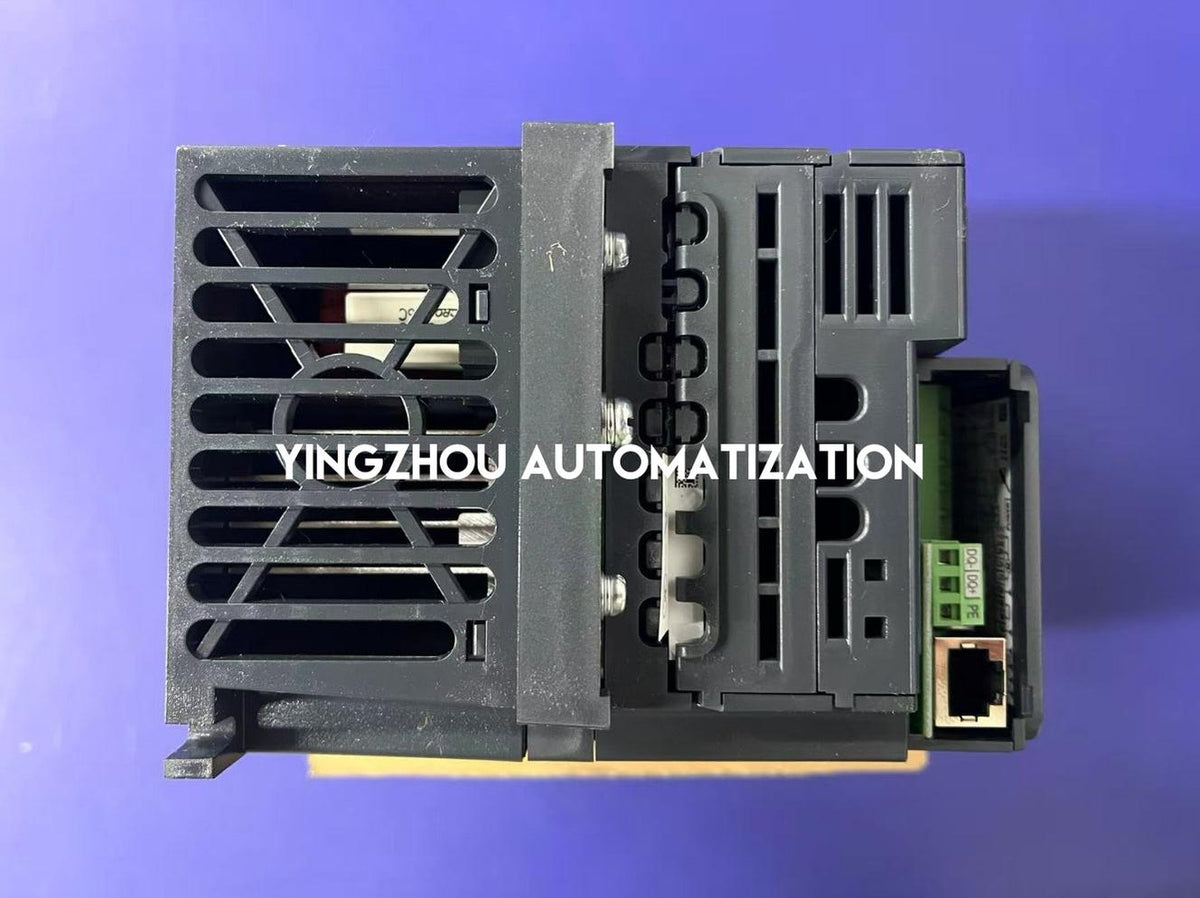

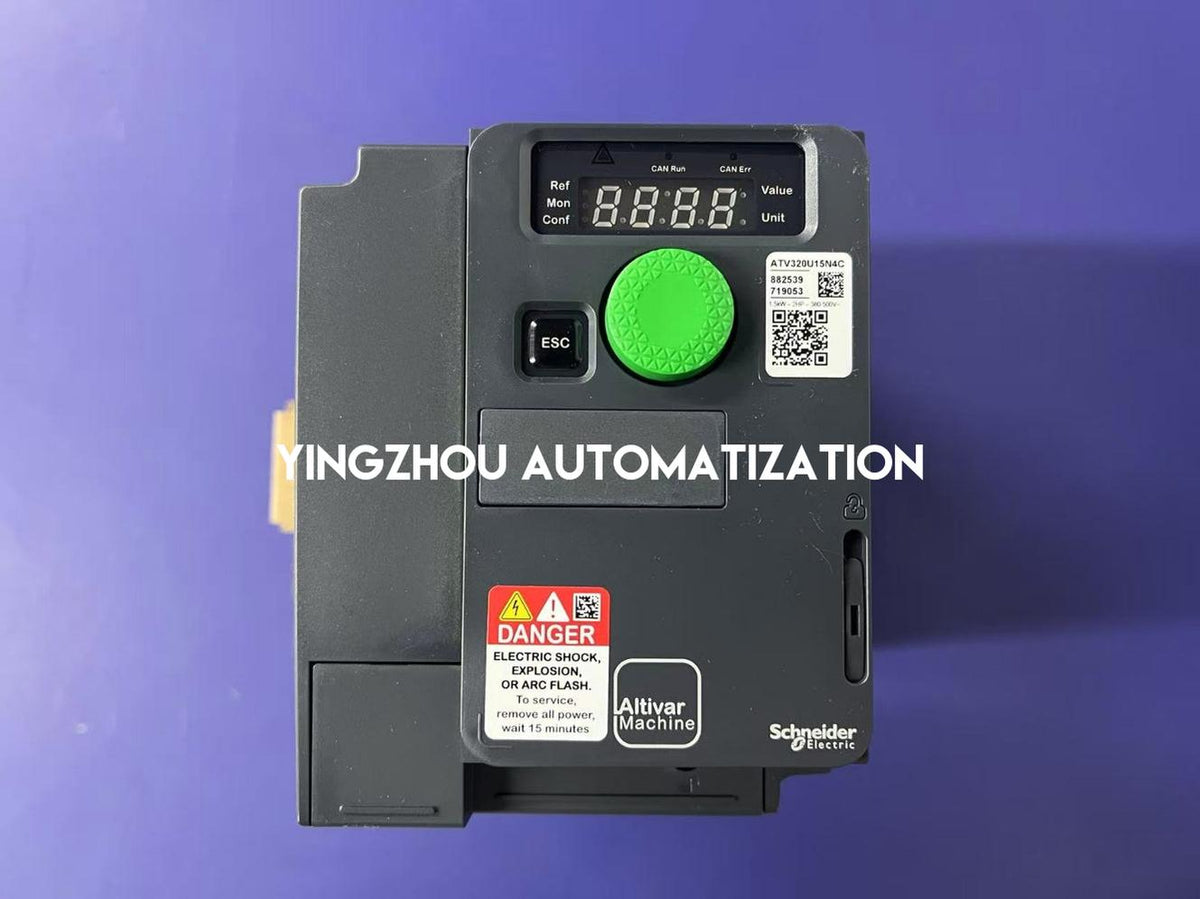

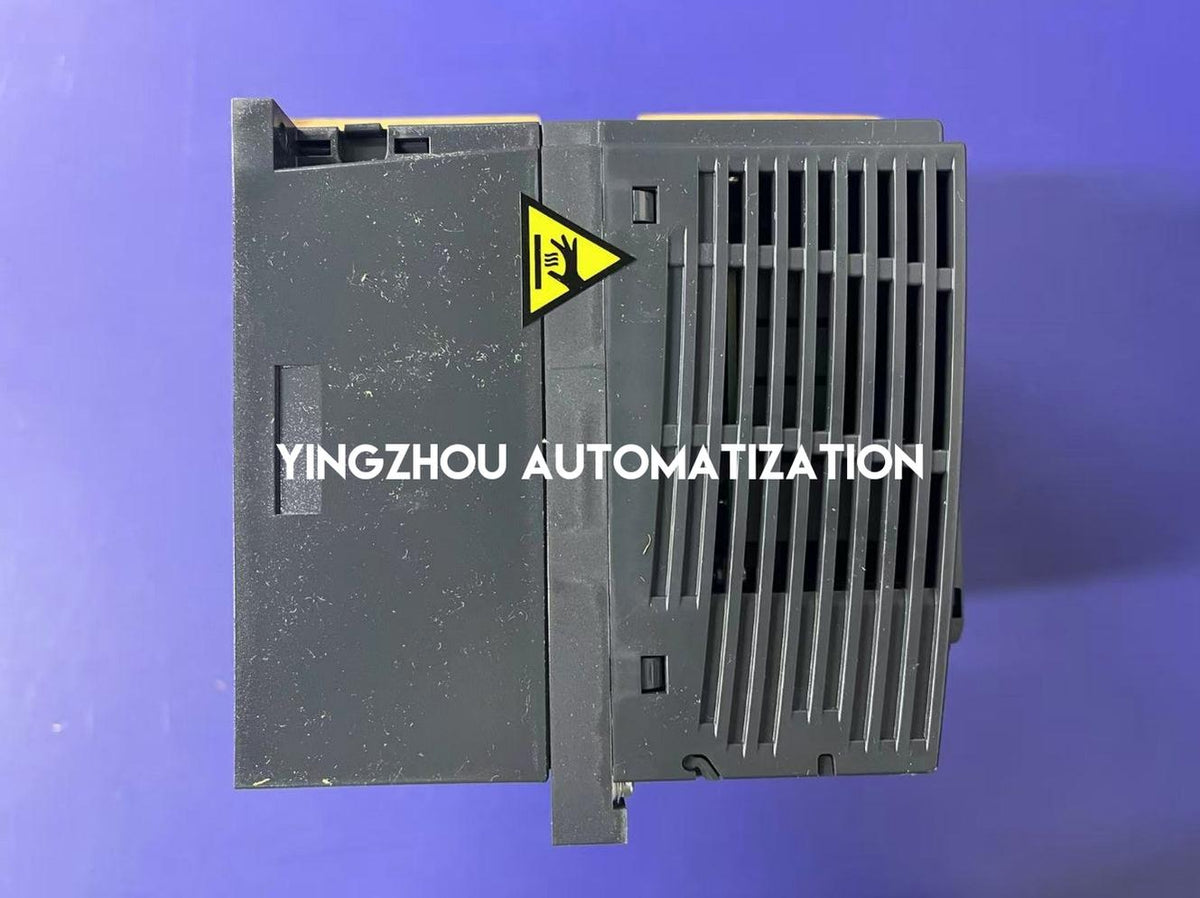

Actual product photos
✓

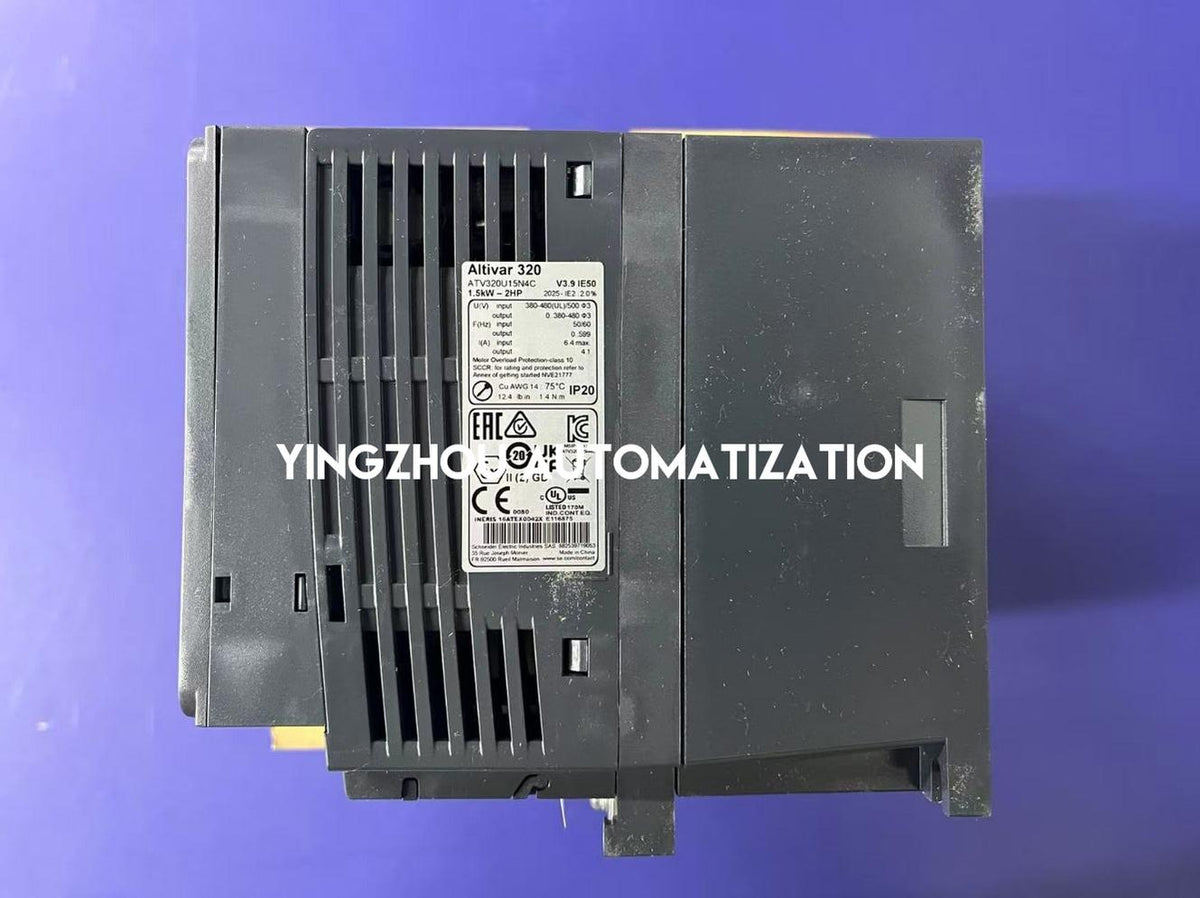

Model/nameplate visible
✓

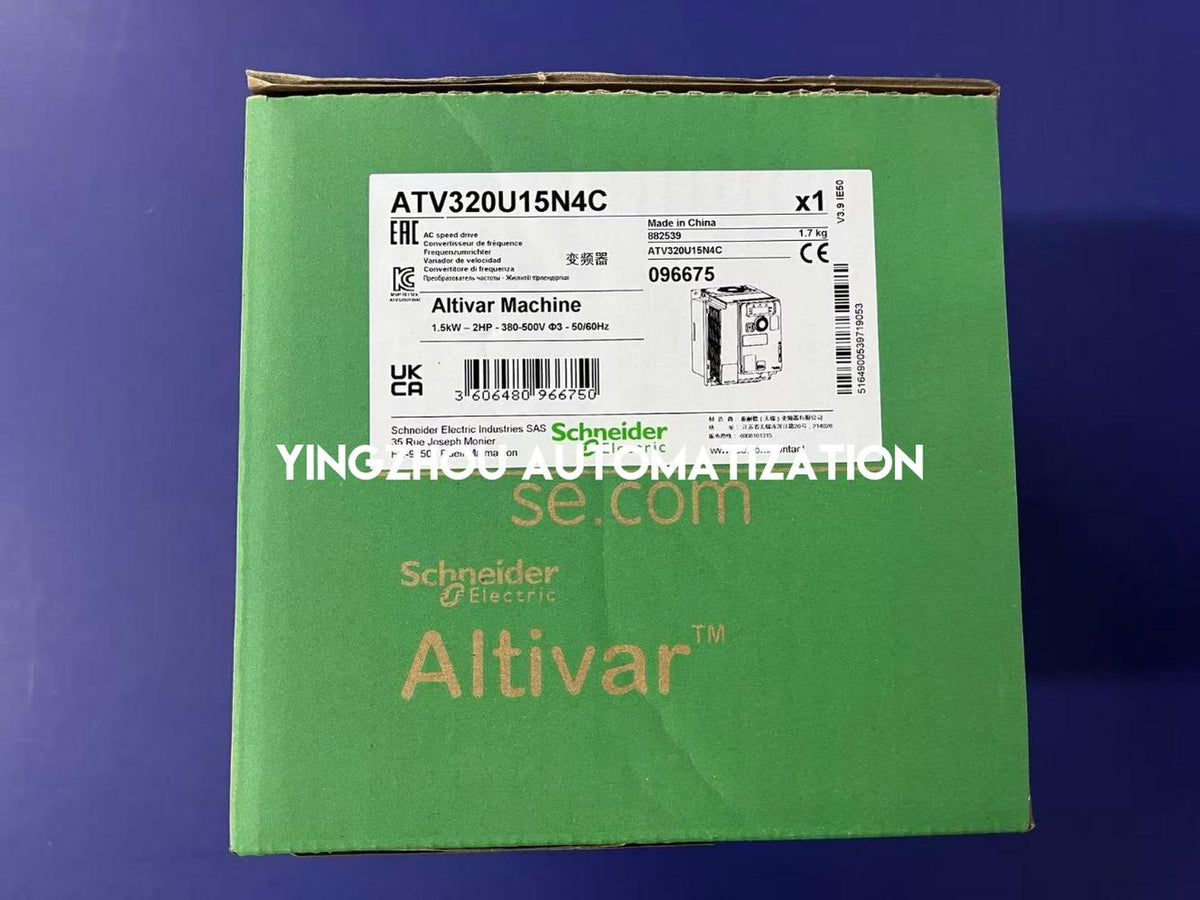

Packaging shown
✓
Verify exact model ATV320U15N4C before ordering
In Stock & Ready to Order
Schneider Electric ATV320U15N4C is currently
in stock. Actual product nameplate and packaging photos
are provided for exact-model verification.
