Omron R88M-1M40030T-S2 400W 200V 3000RPM 1S AC Servo Motor

Omron R88M-1M40030T-S2 400W 200V 3000RPM 1S AC Servo Motor

$244.99 USD
$244.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

Omron R88M-1M40030T-S2 400W AC Servo Motor

400W | 200V Class | 3000RPM | 1.27Nm | 23-Bit Absolute Encoder
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer OMRON Corporation
Catalog Number R88M-1M40030T-S2
Product Family 1S Series
Product Type AC Servo Motor
Rated Power 400 W (0.4 kW)
Motor Rated Voltage 3-Phase AC 200V (Actual Nameplate)
Servo Drive Voltage Class 230V Class
Rated Current 2.5 A
Rated Speed 3000 r/min
Maximum Speed 6000 r/min
Rated Torque 1.27 N·m
Peak Torque 4.5 N·m
Encoder Type Battery-less Absolute Encoder
Encoder Resolution 23 Bit
Holding Brake Without Brake
Oil Seal Without Oil Seal

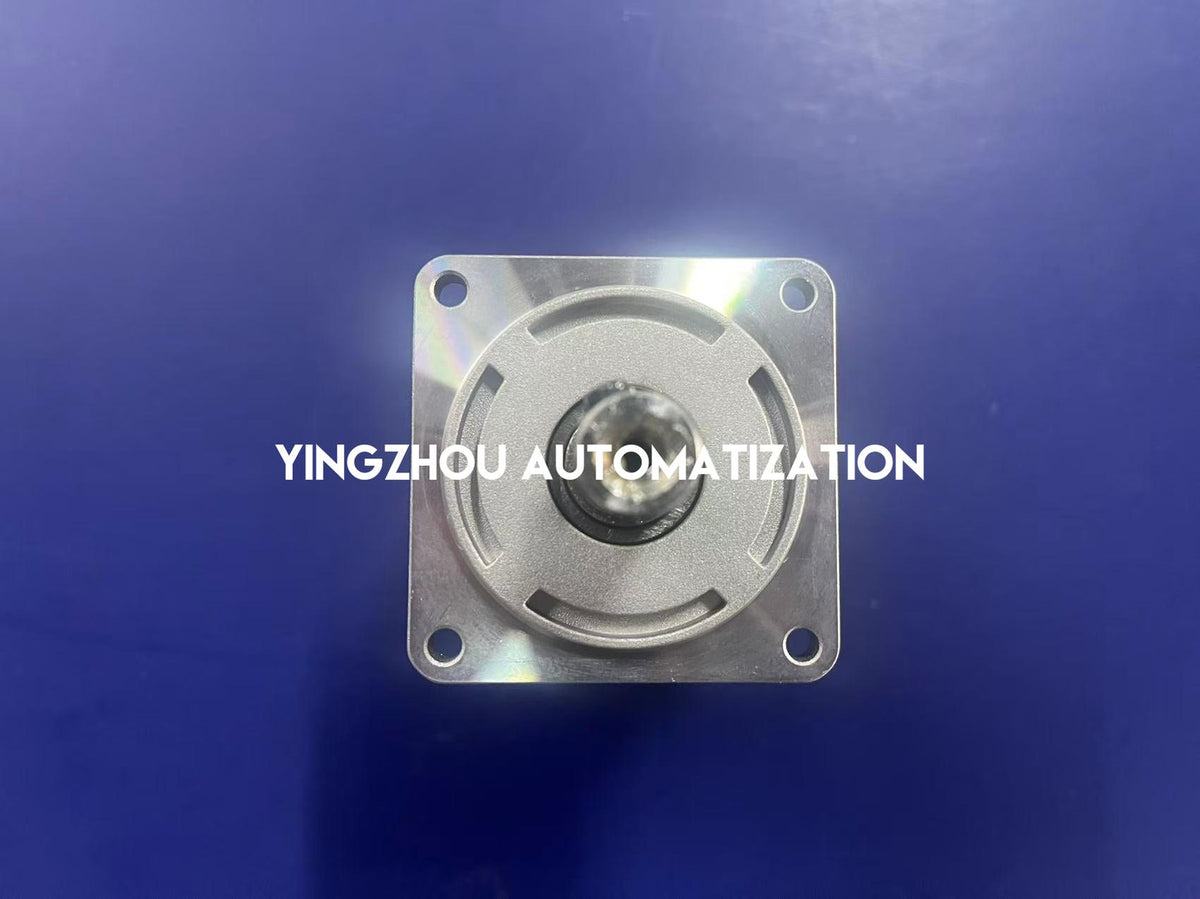

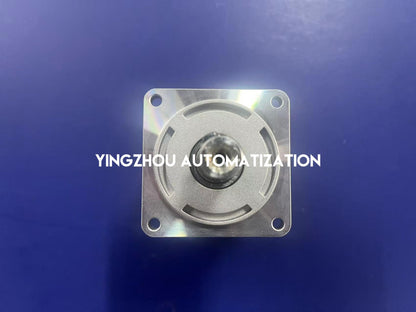

Flange Size 60 mm Square
Shaft Diameter 14 mm
Shaft Type Straight Shaft with Key and Tap
Product Weight 1.4 kg (Unpacked)
Insulation Class Class F (Nameplate)
Protection Rating IP67 (Nameplate; Installation Conditions Apply)
Country of Origin Philippines (Photographed Unit)

Product Overview

The Omron R88M-1M40030T-S2 is a 400W AC servo motor from the Omron 1S Series, designed for precision industrial motion control and compatible servo systems. It features a 3000 r/min rated speed, 1.27 N·m rated torque and 4.5 N·m peak torque. The motor uses a high-resolution 23-bit battery-less absolute encoder for position feedback.

This exact model is configured without a holding brake or oil seal and has a 60 mm square flange with a 14 mm keyed and tapped shaft. The actual motor nameplate specifies three-phase AC 200V, 2.5A and 400W. Omron identifies the motor as part of its 230V-class 1S servo system. A compatible servo drive, appropriate power and feedback cables, and correct commissioning parameters are required for operation.

Key Product Features

  • 400W Rated Output — AC servo motor for compatible 1S Series motion control systems.
  • 3000RPM Rated Speed — Maximum speed of 6000RPM under specified operating conditions.
  • 1.27Nm Rated Torque — 4.5Nm peak torque for short-duration demand.
  • 23-Bit Absolute Encoder — Battery-less high-resolution position feedback.
  • 200V Motor Class — Three-phase AC 200V motor rating shown on the product nameplate.
  • 60mm Square Flange — Compact mounting dimensions for compatible industrial equipment.
  • 14mm Keyed Shaft — Straight shaft with key and tapped end.
  • Brake-Free Configuration — Exact model without a holding brake.
  • No Oil Seal — Standard non-oil-seal configuration.
  • Omron 1S Servo System — Intended for use with manufacturer-specified compatible servo drives and cables.

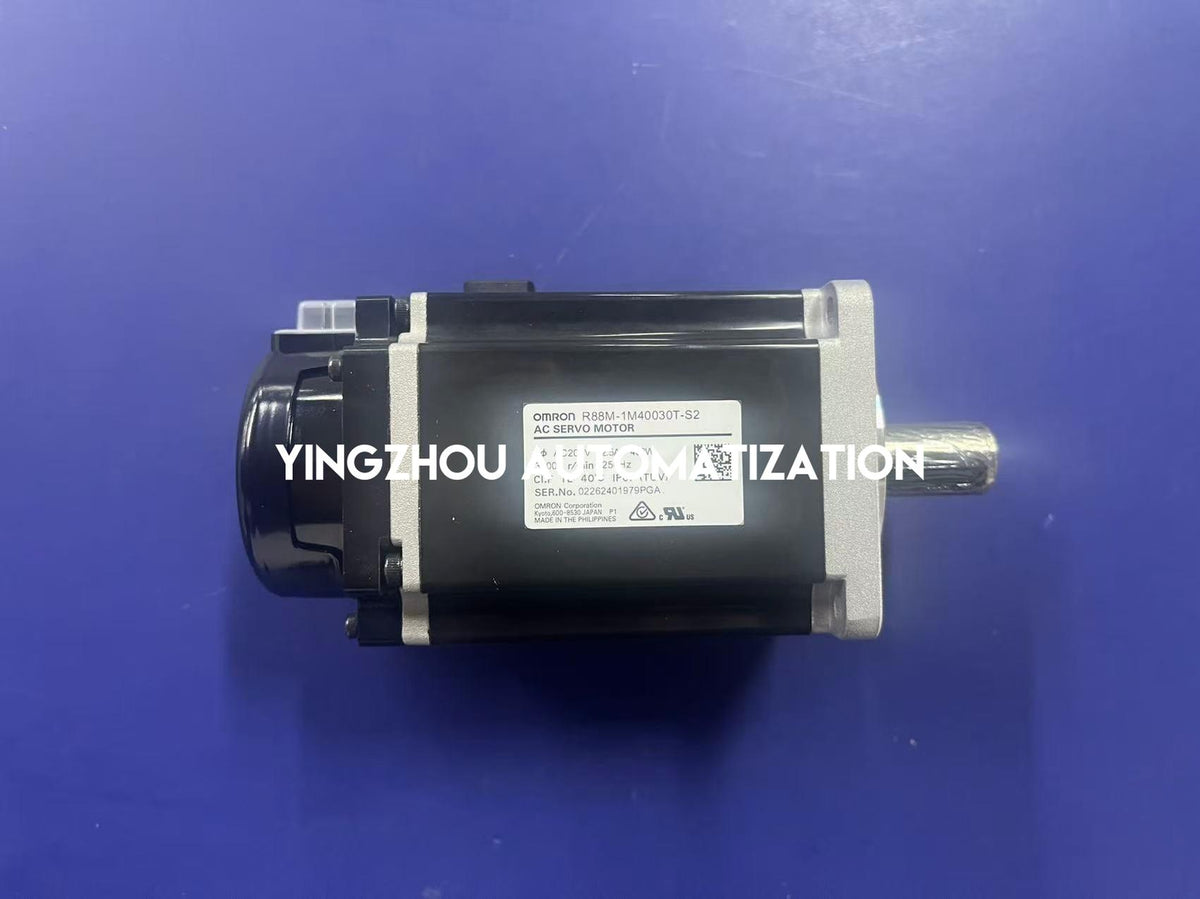

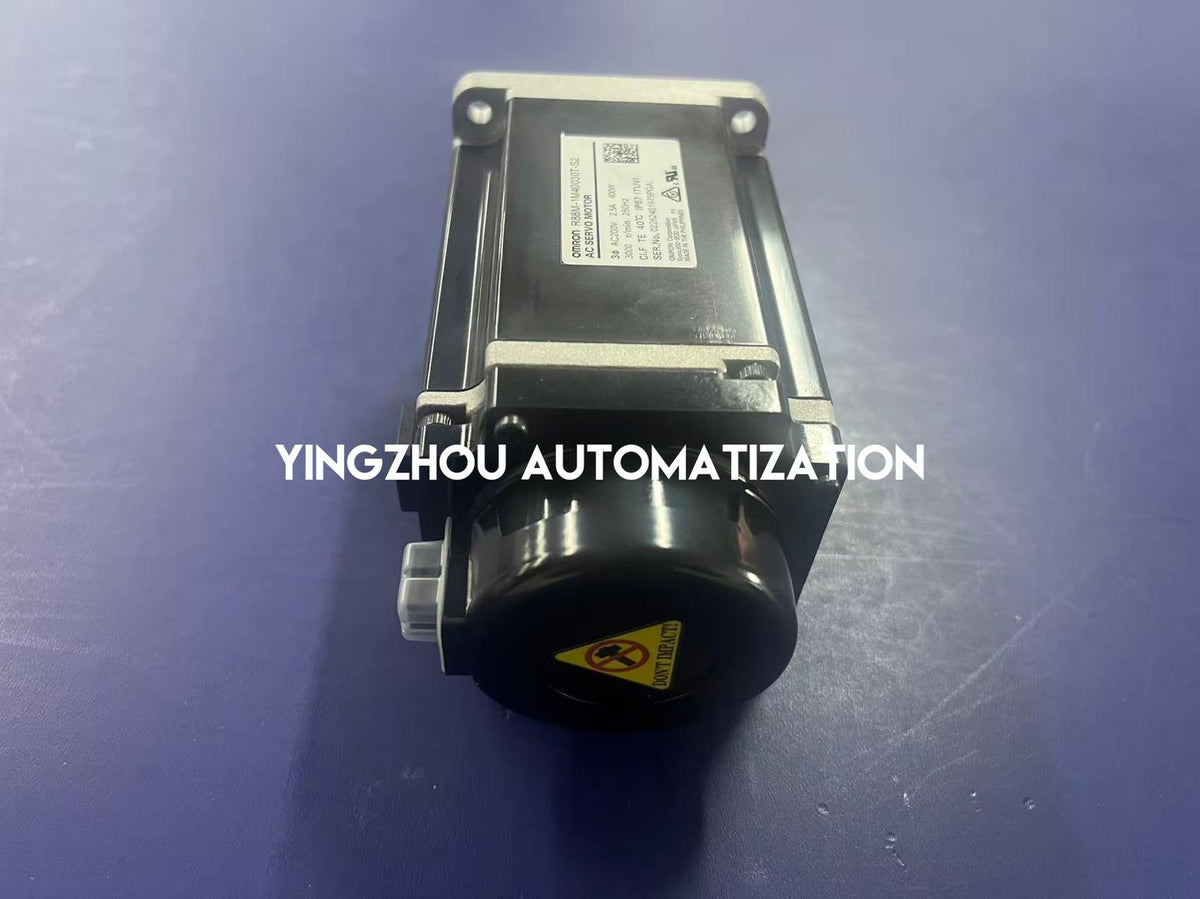

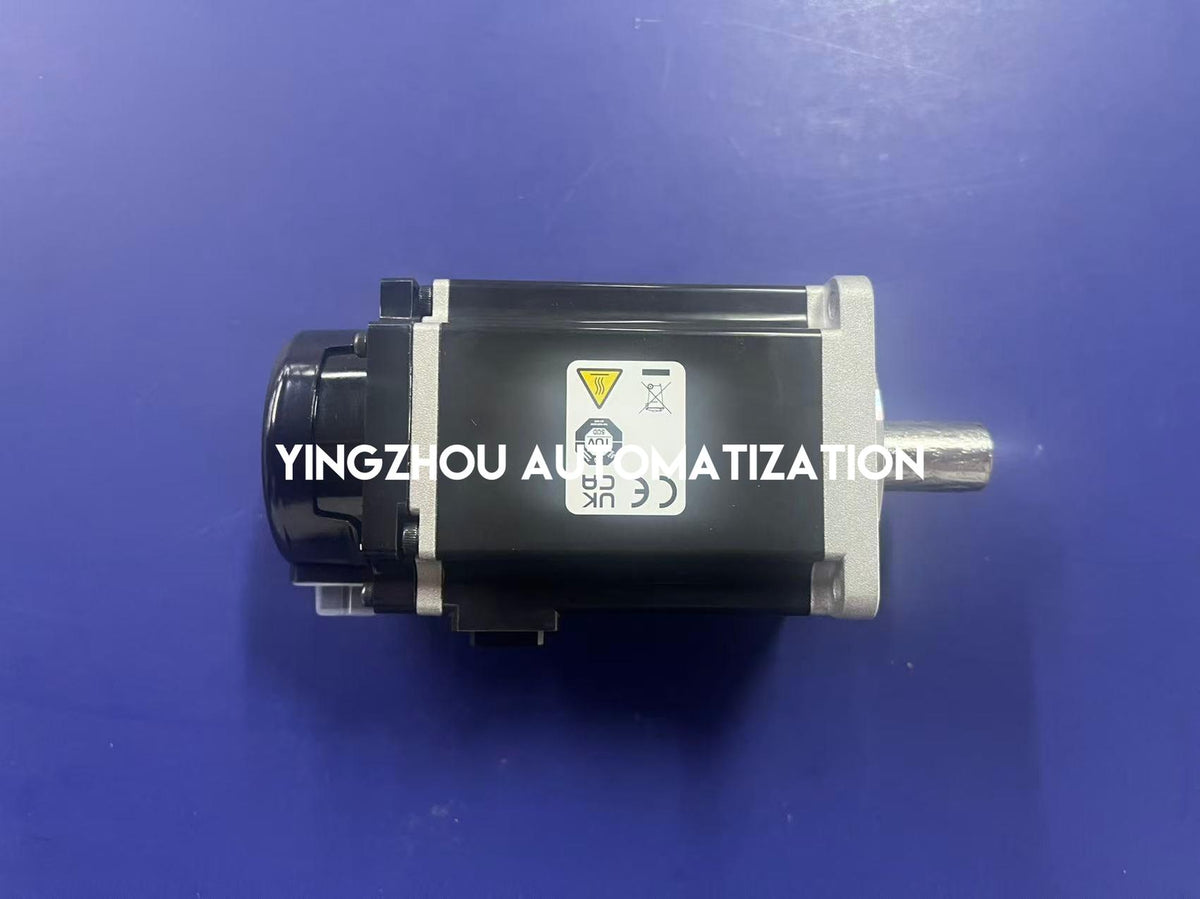

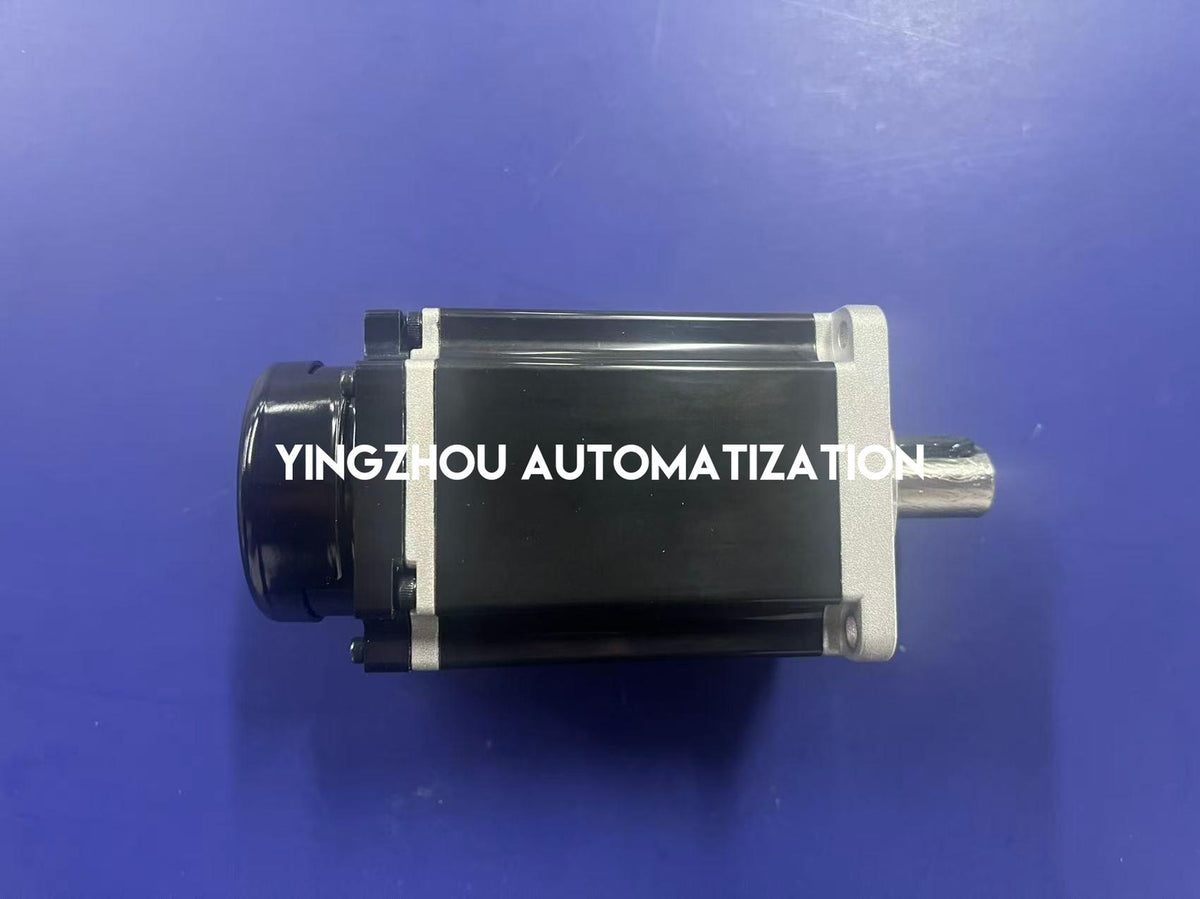

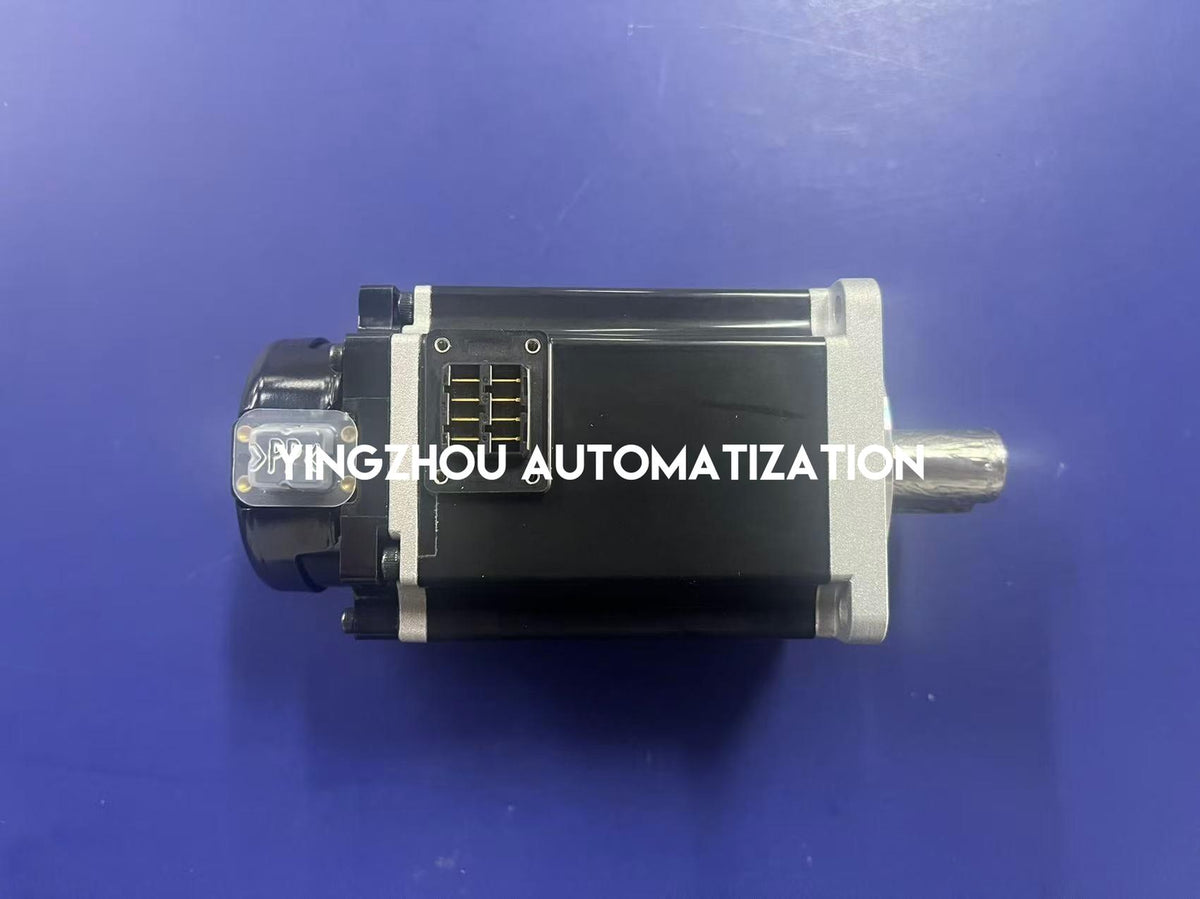

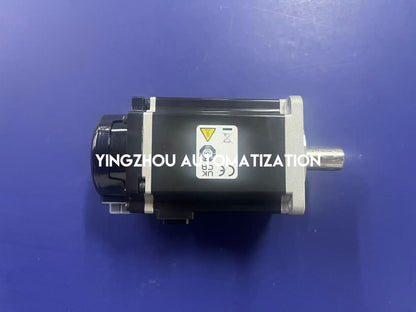

Actual Product Verification

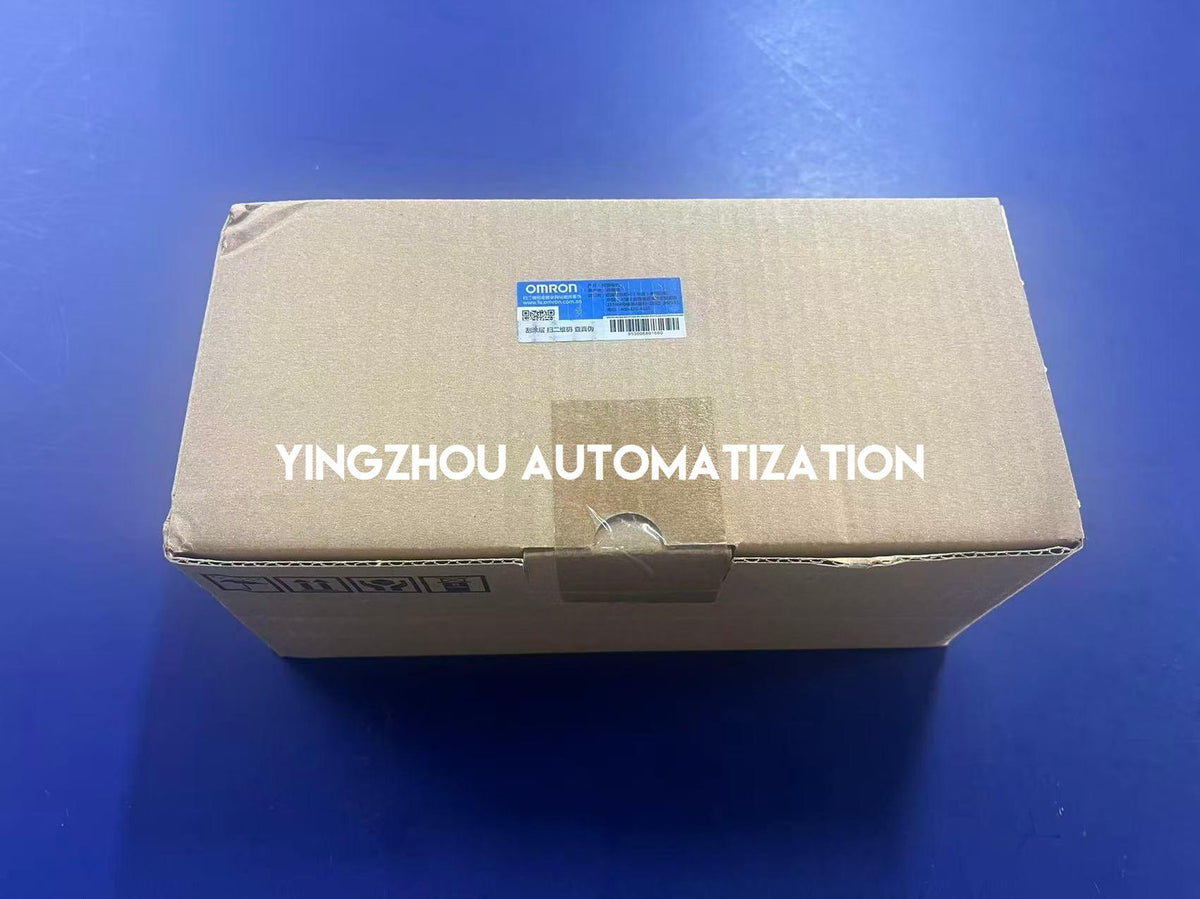

✓ Actual motor and packaging photographs supplied
✓ Motor nameplate model: R88M-1M40030T-S2

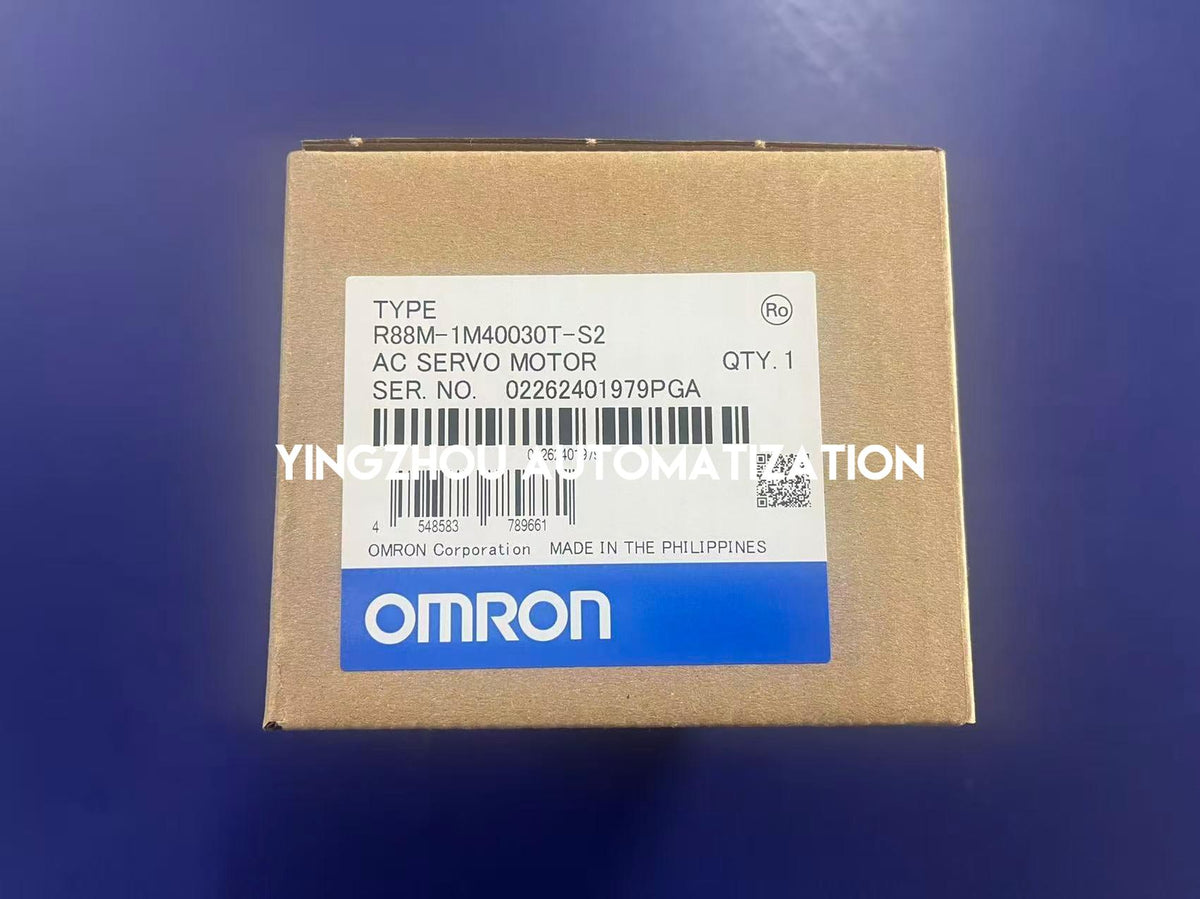

✓ Packaging label model: R88M-1M40030T-S2
✓ Motor and packaging model numbers match
✓ Nameplate rated output: 400W
✓ Nameplate voltage: 3-Phase AC 200V
✓ Nameplate rated current: 2.5A
✓ Nameplate rated speed: 3000 r/min
✓ Serial number: 02262401979PGA
✓ Marked country of manufacture: Philippines

In Stock & Available to Order

Omron R88M-1M40030T-S2 is listed as in stock by YINGZHOU. Actual product and packaging photographs are available for exact-model confirmation. This motor is suitable for qualified industrial automation replacement and machine motion control projects where the specified 1S Series motor configuration is required. Please verify rated power, encoder type, shaft configuration, brake requirements, servo drive compatibility and installation dimensions before ordering.

IN STOCK

Omron R88M-1M40030T-S2

Contact us for model verification, bulk quantity quotations and servo system sourcing. Please confirm your existing servo drive model, motor voltage class, shaft configuration and brake requirements.

Request Bulk Pricing
