Omron NB10W-TW01B NB Series 10.1" HMI Touch Panel
Omron NB10W-TW01B NB Series 10.1" HMI Touch Panel
Kan beschikbaarheid voor afhalen niet laden
Omron NB10W-TW01B NB Series HMI Touch Panel
| Specification | Verified Product Data |
|---|---|
| Manufacturer | OMRON Corporation |
| Exact Model | NB10W-TW01B |
| Product Family | NB Series |
| Product Designation | Programmable Terminal |
| Product Type | Industrial HMI Operator Panel |
| Display Size | 10.1 inches |
| Display Technology | Color TFT LCD |
| Display Resolution | 800 x 480 Pixels |
| Display Colors | 65,536 |
| Backlight Technology | LED |
| Backlight Lifetime | 50,000 Hours at 25°C - Typical |
| Touchscreen Technology | Analog Resistive Membrane |
| Touch Resolution | 1024 x 1024 |
| Touch Operation Life | 1 Million Operations - Manufacturer Specification |
| Rated Supply Voltage | 24V DC |
| Permissible Supply Range | 20.4-27.6V DC |
| Maximum Power Consumption | 14W |
| Internal Memory | 128MB Including System Area |
| Ethernet Interface | 10/100BASE-T |
| Serial Port COM1 | RS-232C |
| Serial Port COM2 | RS-232C / RS-422A / RS-485 |
| USB Host Interface | USB 2.0 Full-Speed Equivalent, Type A |
| USB Slave Interface | USB 2.0 Full-Speed Equivalent, Type B |
| Engineering Software | NB-Designer |
| Front Protection | IP65 - Front Side Only |
| Ambient Operating Temperature | 0 to +50°C |
| Ambient Operating Humidity | 10-90% RH, Non-Condensing |
| Dimensions (W x H x D) | 268.8 x 210.8 x 54.0 mm |
| Panel Cutout (W x H) | 258 x 200 mm |
| Packaging Version | VER. 1.1 - Actual Carton |
| Lot Number | 10425M - Actual Carton |
| Packaging Quantity | 1 Piece |
| Country of Origin | Made in China - Actual Carton |
| Manufacturer Lifecycle | Discontinued March 2025 |
Product Overview

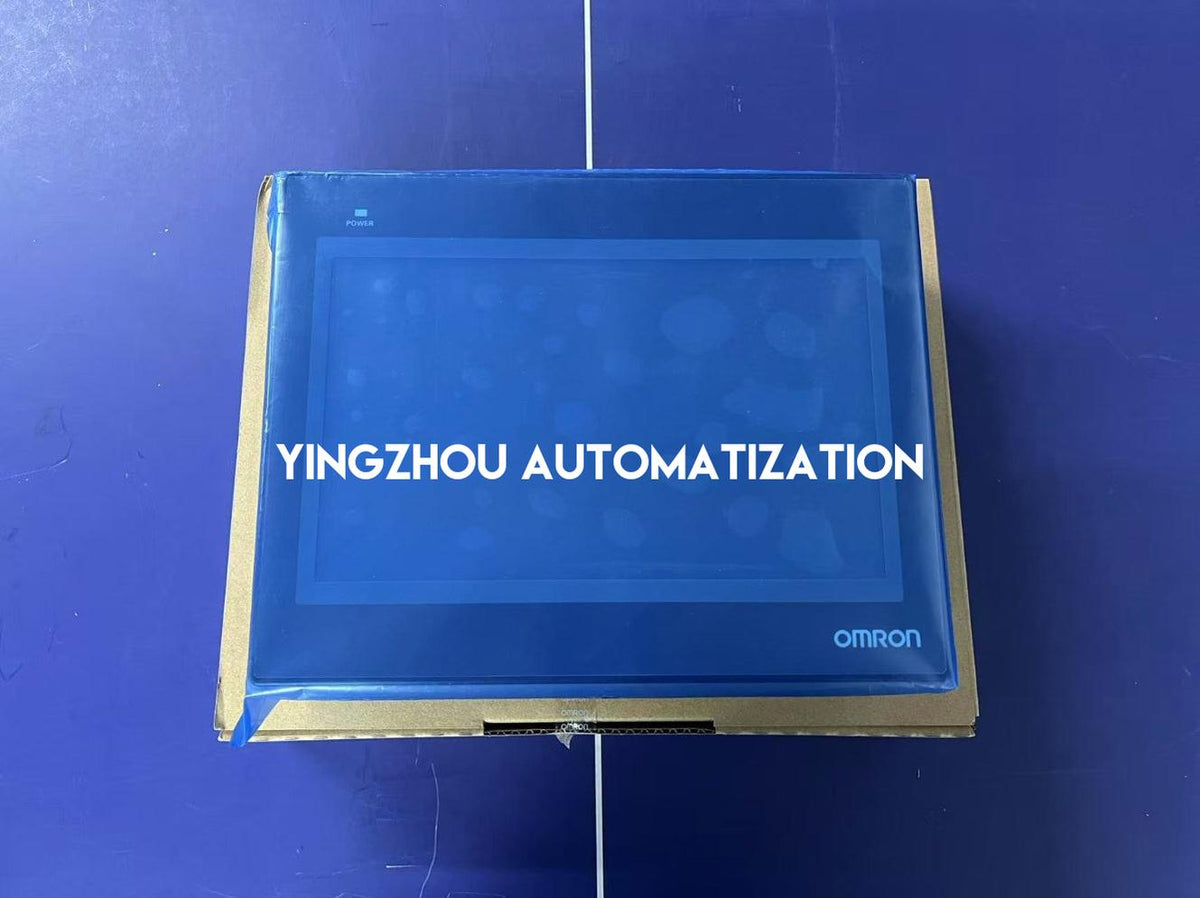

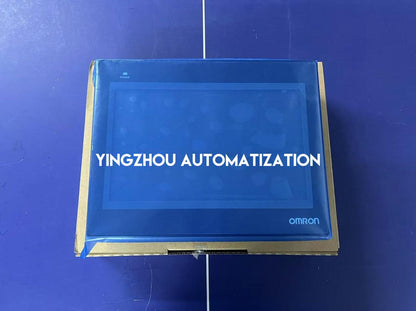

The Omron NB10W-TW01B is an NB Series 10.1-inch industrial HMI programmable terminal designed for machine monitoring, operator control and industrial equipment maintenance. The panel features a 10.1-inch color TFT LCD with 800 x 480 pixel resolution, 65,536 display colors and LED backlighting. Its analog resistive touchscreen provides an operator interface for compatible industrial control systems. The HMI operates from a 24V DC power supply with a permissible range of 20.4-27.6V DC and manufacturer-specified maximum power consumption of 14W. Communication interfaces include 10/100BASE-T Ethernet, COM1 RS-232C, COM2 RS-232C/RS-422A/RS-485, USB Host and USB Slave. The device is engineered using OMRON NB-Designer and provides IP65 protection at the front when correctly installed. The manufacturer specifies external dimensions of 268.8 x 210.8 x 54.0 mm and a panel cutout of 258 x 200 mm. Actual Omron product and carton photographs identify the exact model NB10W-TW01B, with package version 1.1 and lot number 10425M. This non-V1 model has been discontinued by OMRON and must not be confused with the NB10W-TW01B-V1 version, which uses a different display resolution. The HMI front display and powered operating status have not been verified from the supplied photographs.
Key Product Features
- OMRON NB Series HMI — Industrial programmable touchscreen terminal for machine operation and monitoring.
- 10.1-Inch Color TFT Display — Wide-format LCD with 800 x 480 pixel resolution.
- 65,536 Display Colors — LED-backlit color display for industrial graphical interfaces.
- Analog Resistive Touch — Manufacturer-specified touchscreen technology for operator interaction.
- 24V DC Power Supply — Permissible input voltage range of 20.4-27.6V DC.
- Ethernet Communication — Integrated 10/100BASE-T interface.
- Dual Serial Ports — COM1 RS-232C and COM2 RS-232C/RS-422A/RS-485 for supported connections.
- NB-Designer Engineering — OMRON software environment for compatible NB Series HMI projects.
Actual Product Verification
In Stock & Available to Order

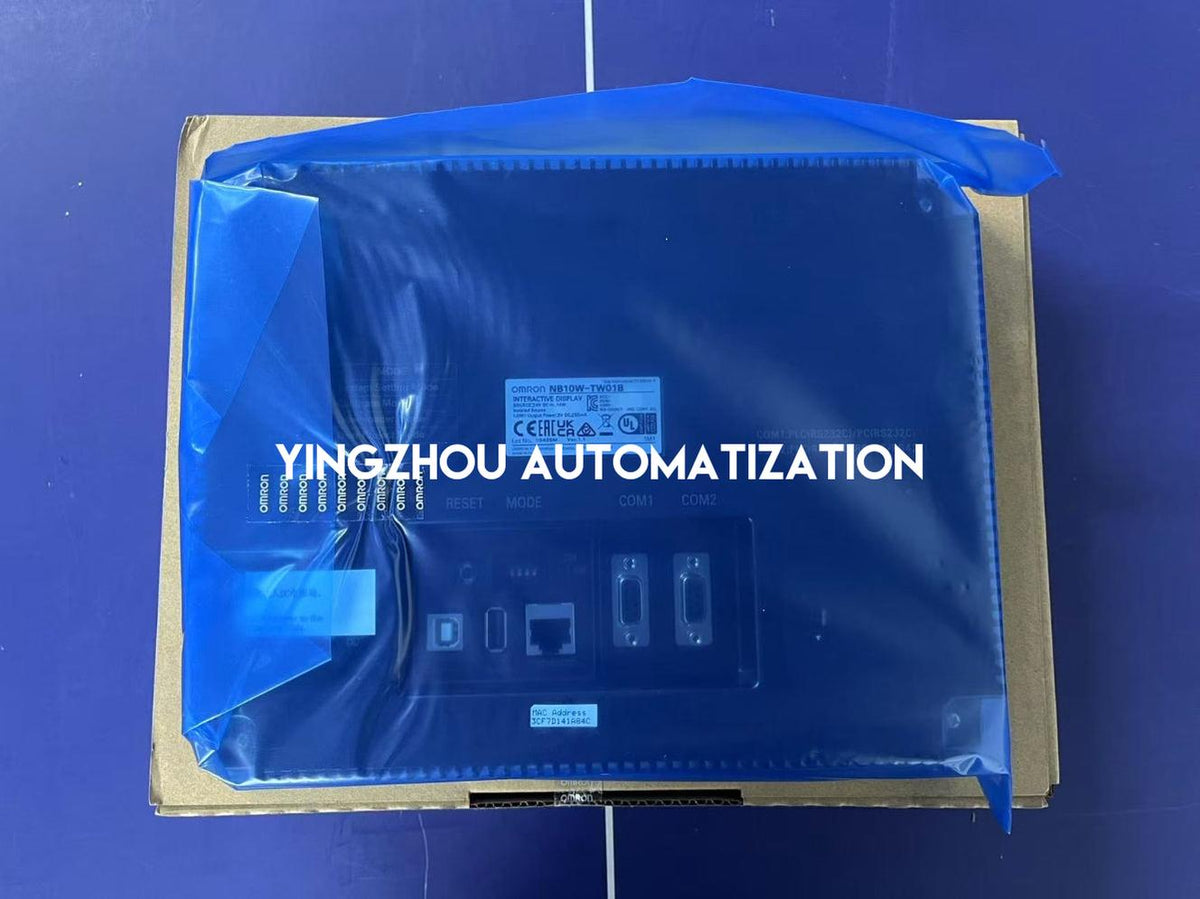

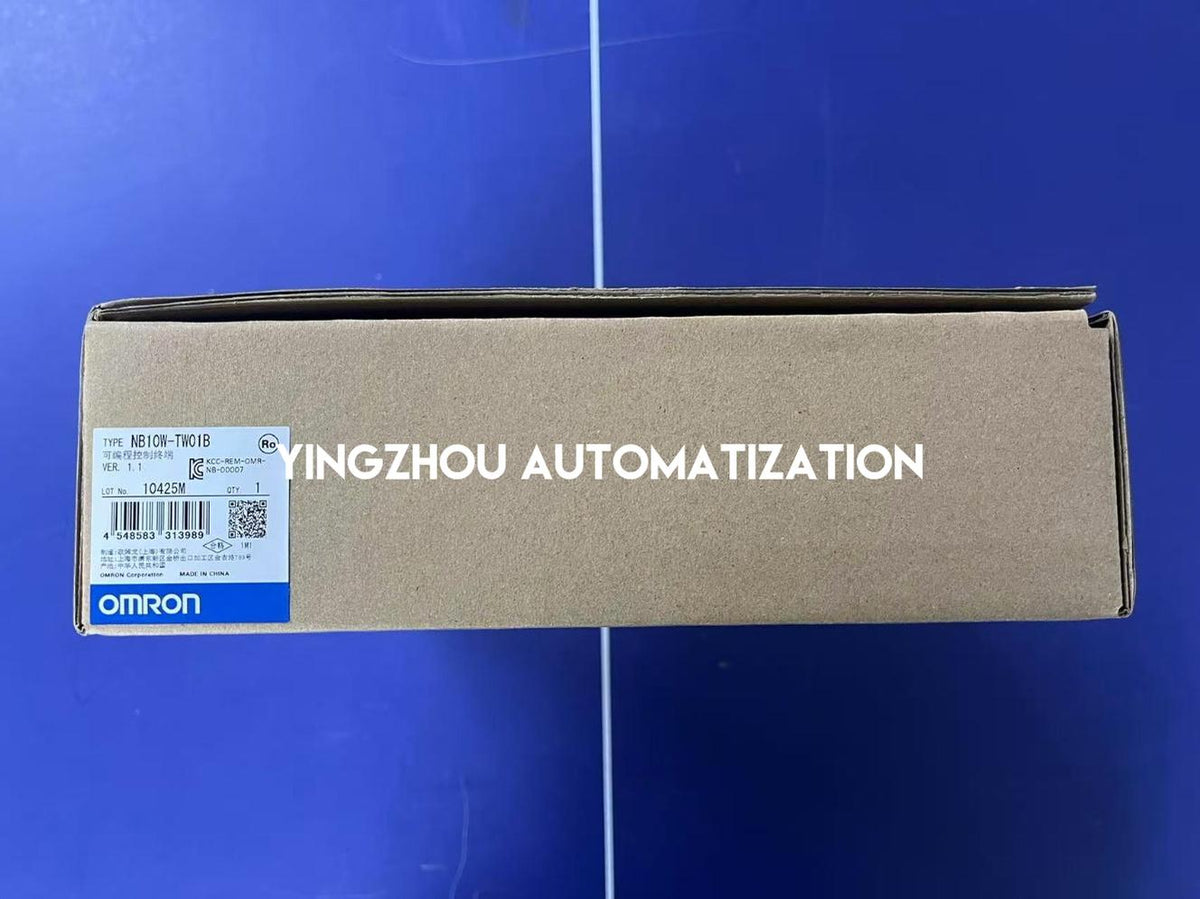

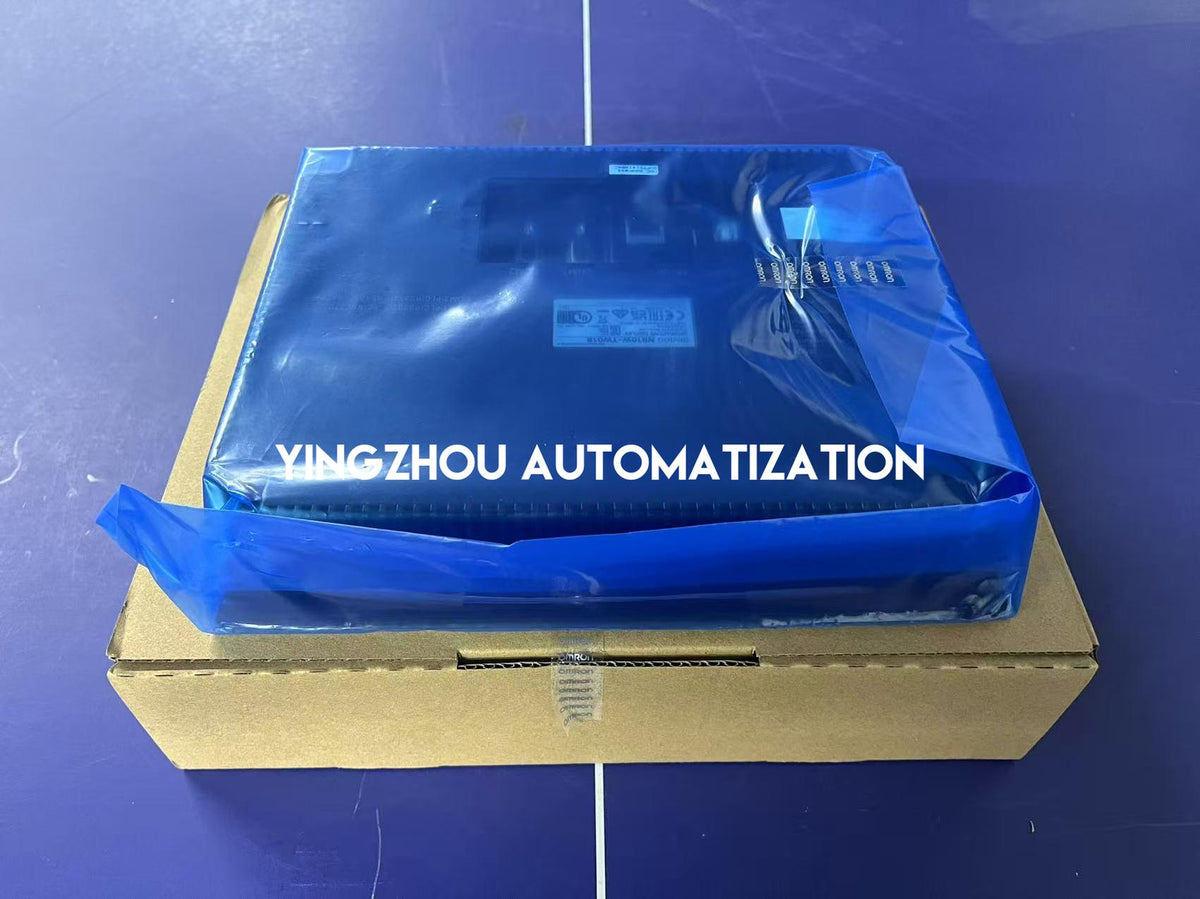

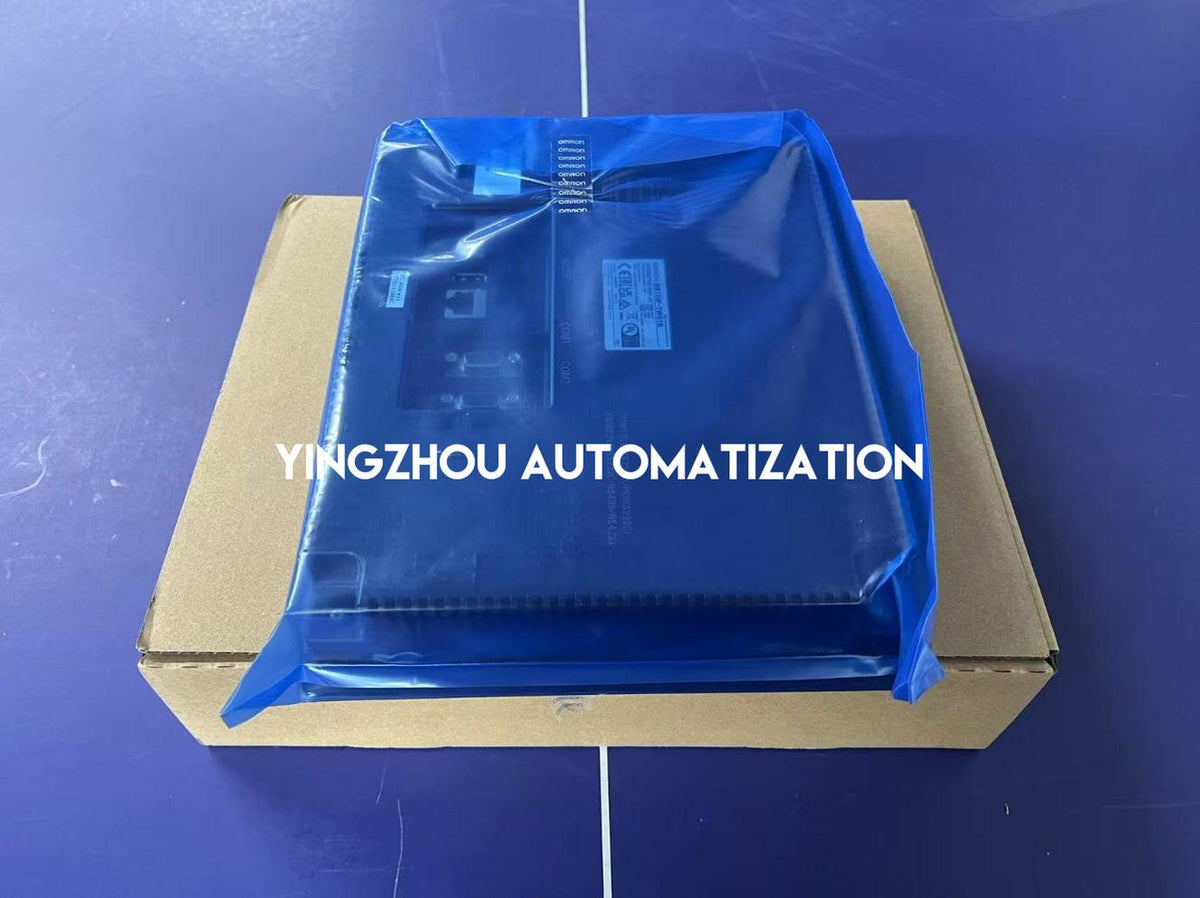

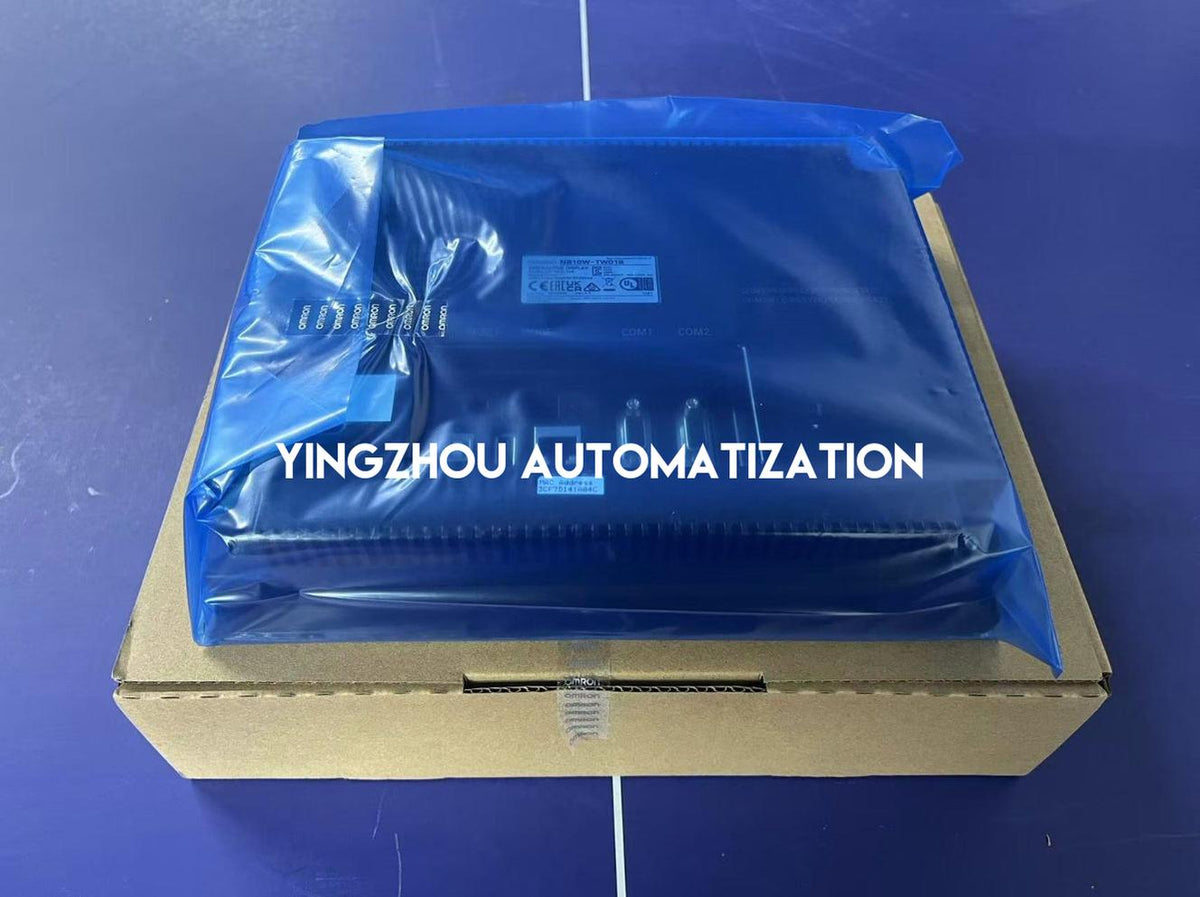

Omron NB10W-TW01B is marked in stock based on the supplied inventory information. Actual HMI rear housing and carton photographs show the matching model number. This 10.1-inch NB Series HMI is offered for industrial equipment maintenance, existing machine support and exact-model replacement procurement. The original non-V1 NB Series was discontinued by OMRON in March 2025; current availability refers to seller-confirmed stock rather than ongoing manufacturer production. Please confirm the required quantity, 800 x 480 display resolution, 24V DC supply, Ethernet and serial communication requirements, compatible NB-Designer engineering project and mounting dimensions before ordering. Do not assume direct interchangeability with the NB10W-TW01B-V1 model. The front touchscreen, functional status and included accessories should be checked before shipment.
Omron NB10W-TW01B
Contact us for exact-model verification, replacement sourcing and multiple units. Please confirm your existing NB10W model, 800 x 480 display resolution, 24V DC power supply, PLC communication and NB-Designer project requirements before ordering.
Request Bulk PricingLooking for other Omron industrial automation products?
Explore Omron Industrial Automation ProductsShare
