FESTO VUVS-L25-M32C-MD-G14-F8-1C1 575477 Solenoid Valve

24V DC | 3/2-Way Normally Closed | G1/4 | Mechanical Spring Return

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Exact Model Confirmed on Label

Specification	Verified Product Data
Manufacturer	Festo SE & Co. KG
Product Number	575477
Product Family	VUVS-L25
Product Type	Pneumatic Solenoid Valve
Exact Model	VUVS-L25-M32C-MD-G14-F8-1C1
Valve Function	3/2-Way, Normally Closed, Monostable
Operating Voltage	24 V DC
Coil Power	3.3 W
Operating Pressure	2.5 to 10 bar
Pneumatic Working Port	G1/4
Standard Nominal Flow Rate	1000 l/min
Valve Size	26.5 mm
Nominal Width	6.3 mm
Reset Method	Mechanical Spring
Pilot Control	Pilot-Operated, Internal Pilot Air
Flow Direction	Non-Reversible
Electrical Connection	Form C, EN 175301-803
Protection Rating	IP65 with Suitable Plug Socket
Ambient Temperature	-10°C to +60°C
Country of Origin (Photo)	China

Product Overview

The FESTO VUVS-L25-M32C-MD-G14-F8-1C1, manufacturer part number 575477, is an industrial 3/2-way normally closed pneumatic solenoid valve from the FESTO VUVS-L25 series. It operates with a 24 V DC supply and features a mechanical spring return for monostable operation. The valve provides G1/4 pneumatic connections, a manufacturer-specified 1000 l/min standard nominal flow rate, and an operating pressure range of 2.5 to 10 bar. Its internally piloted design is intended for suitable compressed-air directional control applications.

Key Product Features

FESTO VUVS-L25 Series — Industrial solenoid valve with exact part number 575477.
3/2-Way Normally Closed — Monostable pneumatic directional control configuration.
24 V DC Coil — Electrical actuation with 3.3 W coil power.
G1/4 Pneumatic Ports — Threaded air connections for suitable pneumatic installations.
1000 l/min Nominal Flow — Manufacturer-specified standard nominal flow rate.
Mechanical Spring Return — Return mechanism for monostable operation.
2.5–10 bar Operating Pressure — Pilot-operated design with internal pilot air supply.

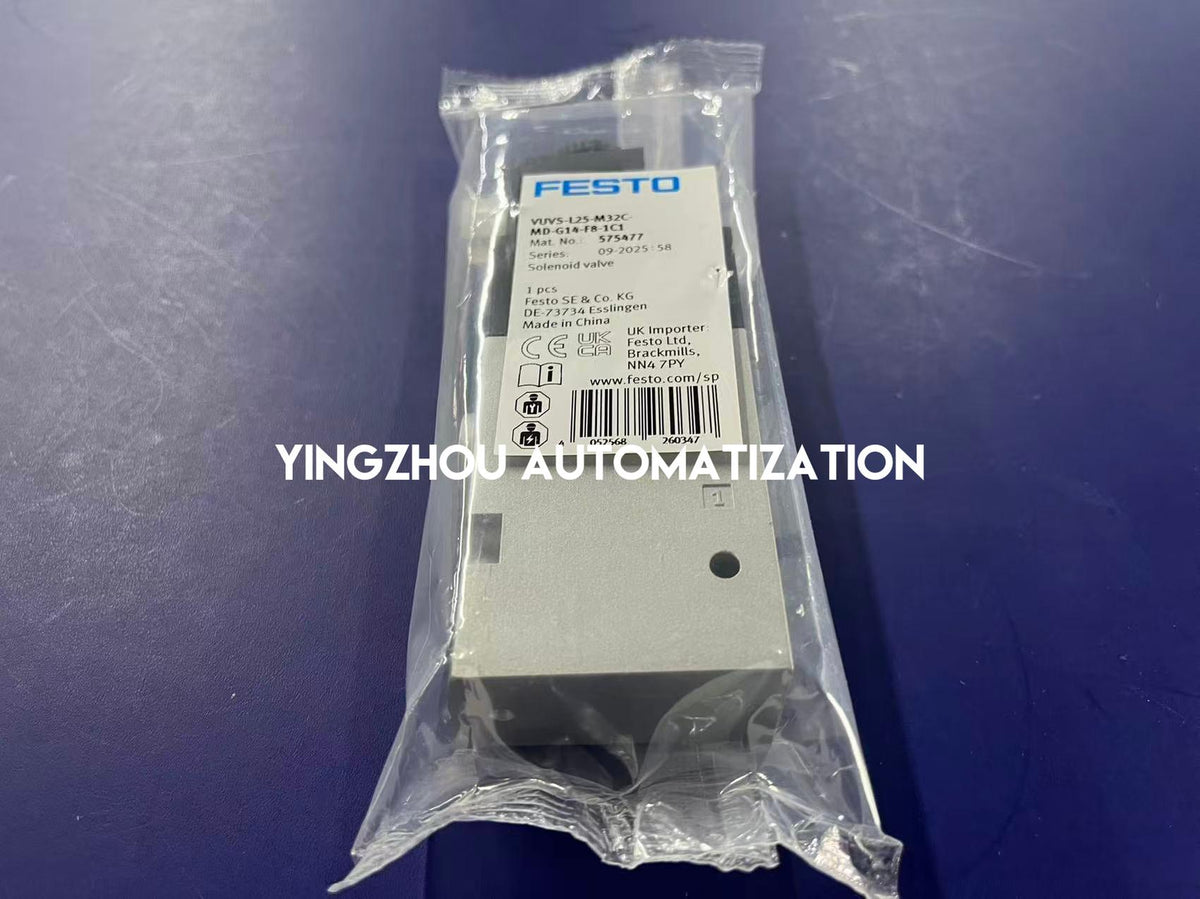

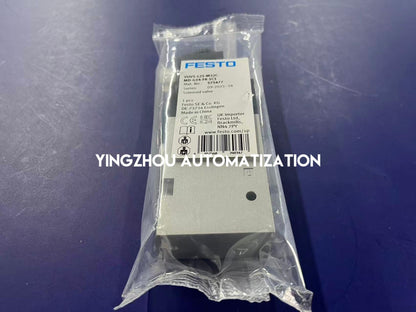

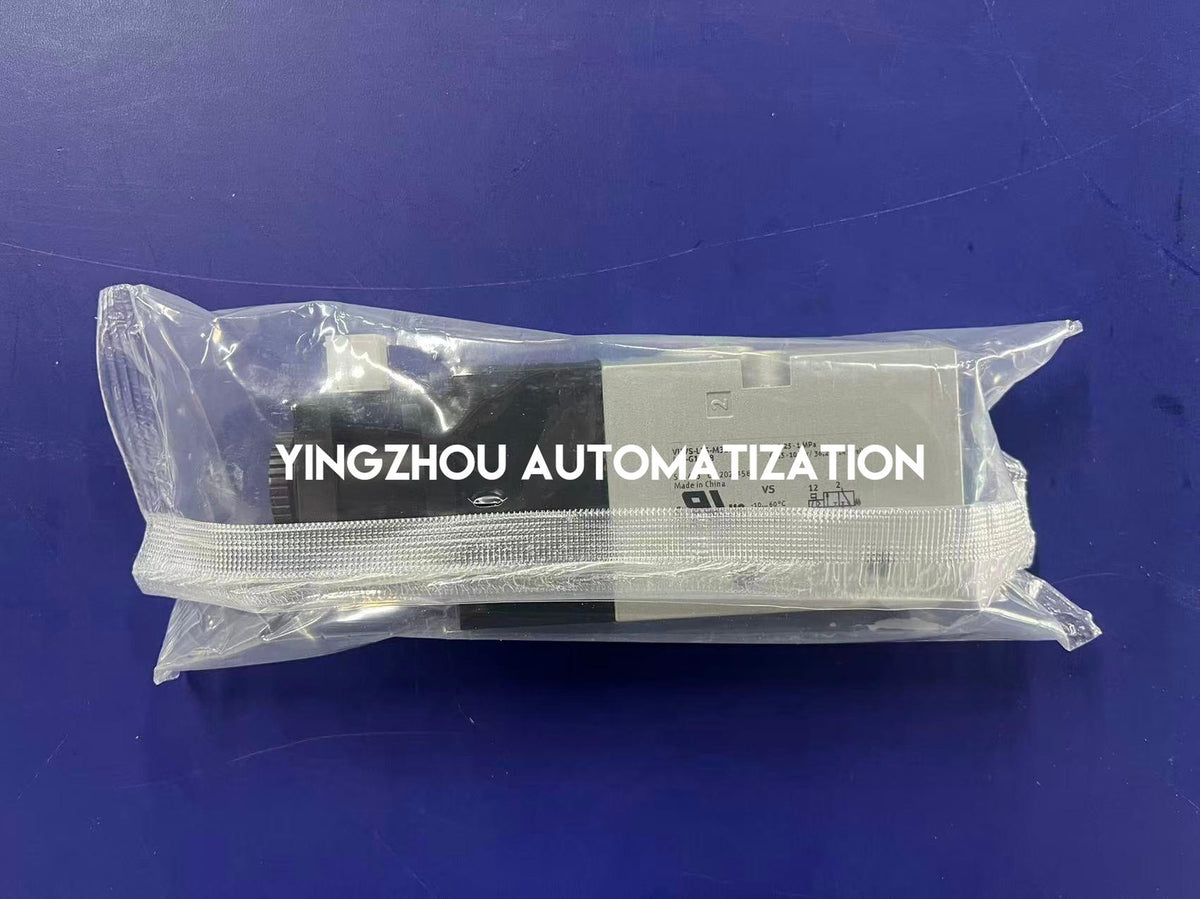

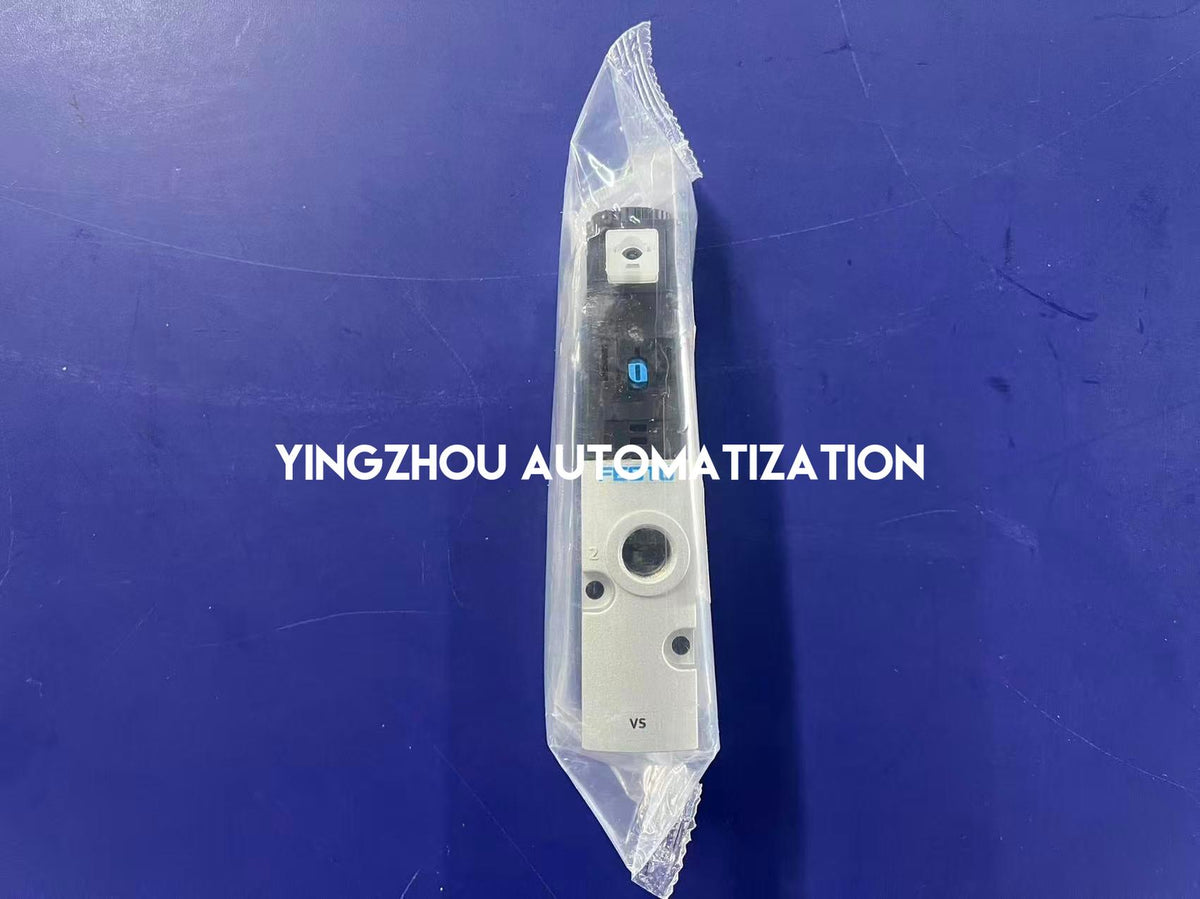

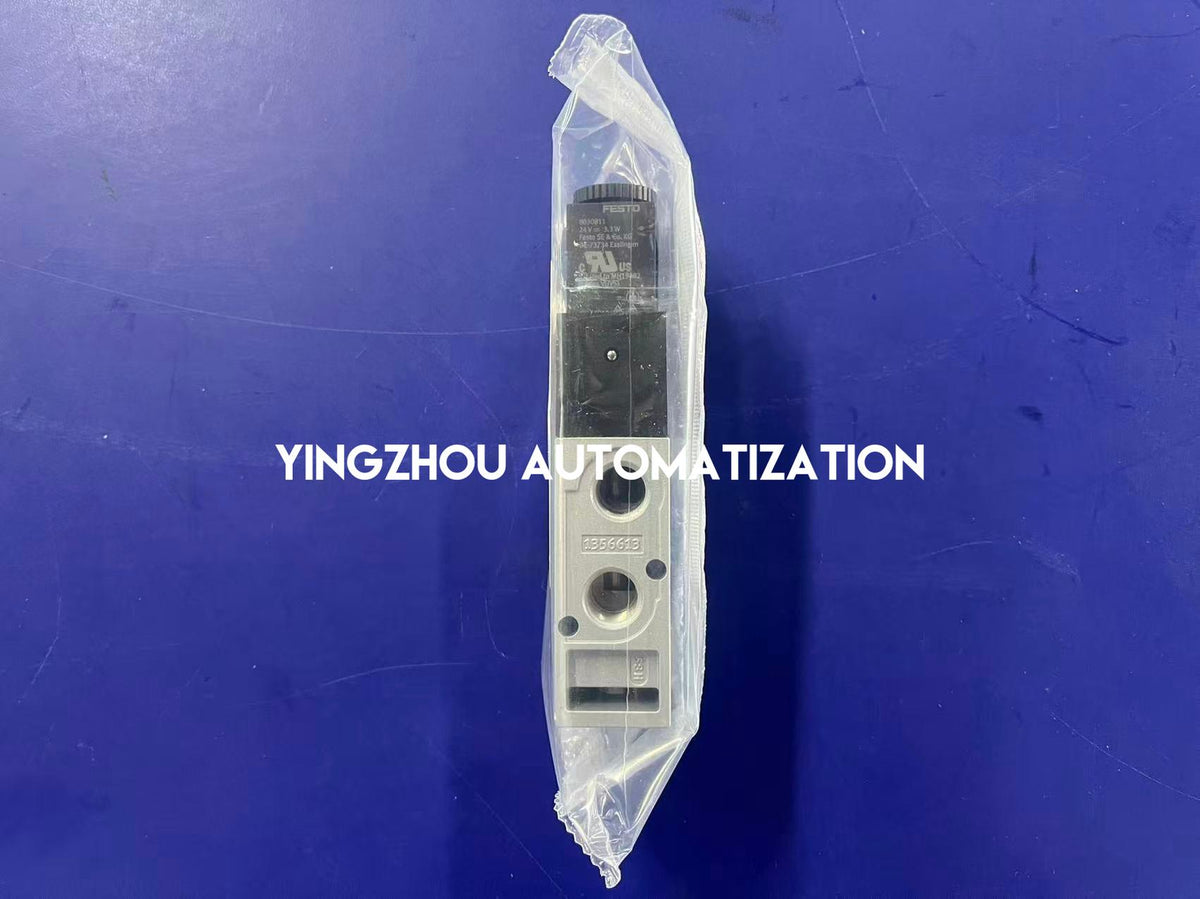

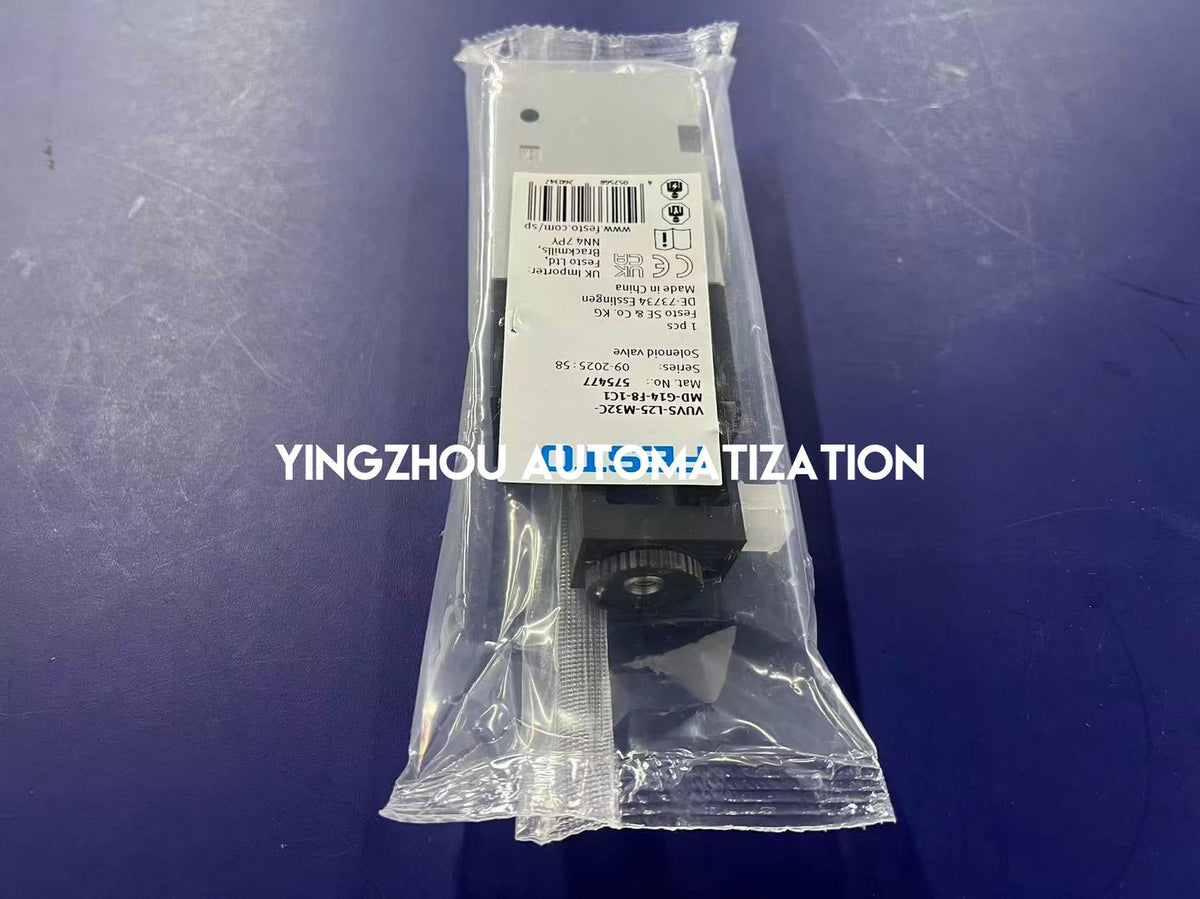

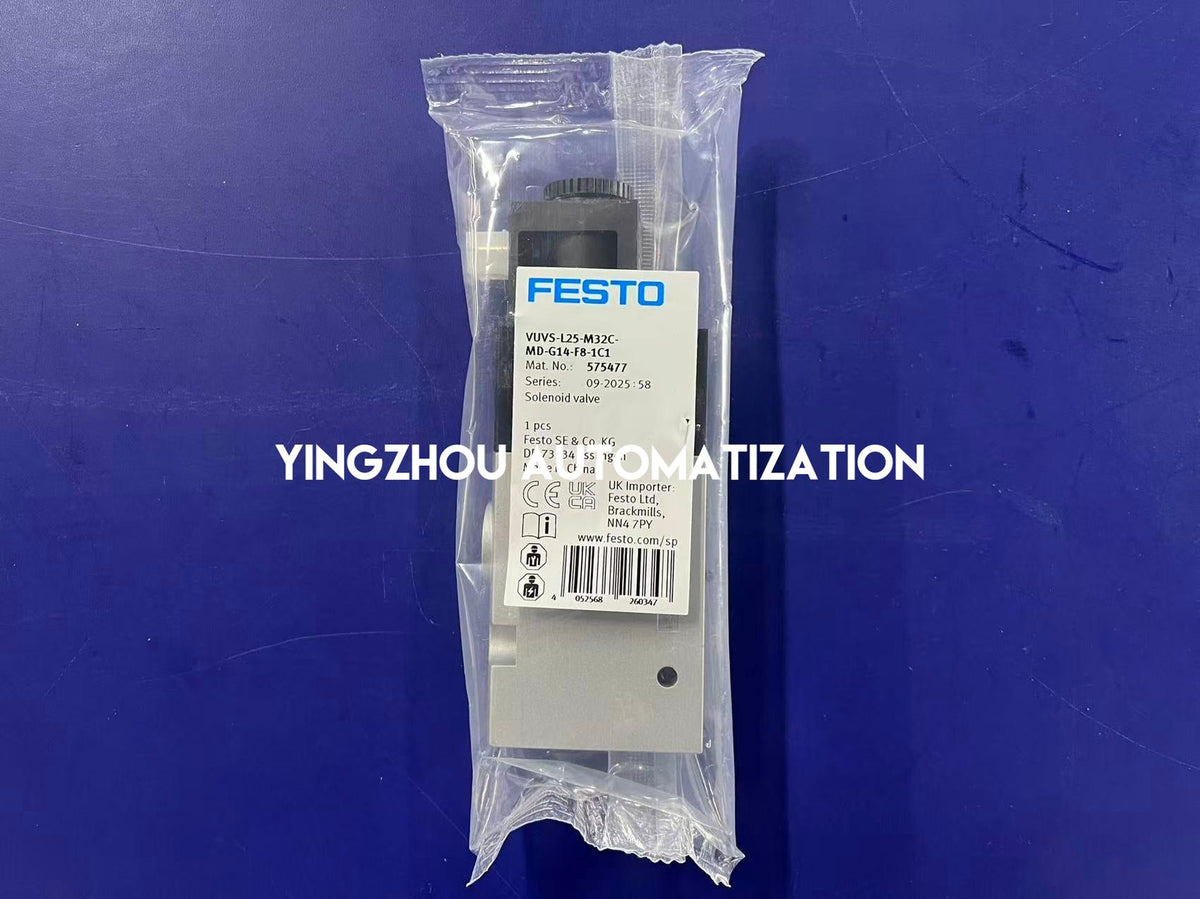

Actual Product Verification

✓ Actual FESTO packaged valve photograph supplied

✓ Packaging label identifies model VUVS-L25-M32C-MD-G14-F8-1C1

✓ Manufacturer material number: 575477

✓ Product category marked: Solenoid valve

✓ Packaging series marking: 09-2025:58

✓ Labelled manufacturer: Festo SE & Co. KG

✓ Labelled country of origin: China

✓ Requested model matches the photographed package label

✓ Protective packaging and valve body visible

In Stock & Available to Order

FESTO VUVS-L25-M32C-MD-G14-F8-1C1 (575477) is marked in stock based on the supplied inventory information. Actual packaging photography is available for model confirmation. This 24 V DC, 3/2-way normally closed solenoid valve features G1/4 pneumatic connections and mechanical spring return. Please confirm the required electrical connector, compressed-air operating conditions, installation requirements and shipping arrangements before ordering.

IN STOCK

FESTO VUVS-L25-M32C-MD-G14-F8-1C1 575477

Contact us for exact-model verification, multiple units and pneumatic solenoid valve sourcing. Please confirm the 24 V DC supply, 3/2-way normally closed function, G1/4 connections and application requirements before ordering.
