FESTO MFH-5-1/4 6211 5/2-Way Pneumatic Solenoid Valve G1/4 1000 L/min

FESTO MFH-5-1/4 6211 5/2-Way Pneumatic Solenoid Valve G1/4 1000 L/min

$49.99 USD
$49.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

FESTO MFH-5-1/4 6211 Pneumatic Solenoid Valve

5/2-Way Monostable | G1/4 | 1000 L/min | 2.2–8 bar
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Model and Part Number Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number MFH-5-1/4
Part Number 6211
Product Type Pneumatic Solenoid Valve
Valve Function 5/2-way, Monostable
Actuation Type Electrical
Reset Method Mechanical Spring
Construction Poppet Seat
Type of Piloting Pilot-operated
Standard Nominal Flow Rate 1000 L/min
Flow Reference DIN 1343
Pneumatic Working Port G1/4
Operating Pressure 0.22–0.8 MPa / 2.2–8 bar
Operating Voltage Via solenoid coil; coil ordered separately
Protection Rating IP65
Nominal Size 7 mm
Construction Width 30.5 mm
Grid Dimension 32 mm
Exhaust-Air Function Can be throttled
Sealing Principle Soft
Mounting Position Any
Manual Override Detenting
Flow Direction Non-reversible
Switching Time — On 9 ms
Switching Time — Off 29 ms
Operating Medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion Resistance Class CRC 1 — Low corrosion stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Manufacturer GTIN 4052568001131
Packaging Series 07-2025:23 — Actual Packaging Label
Packaging Quantity 1 Piece — Actual Packaging Label
Country of Origin Made in India — Actual Packaging Label

Product Overview

The FESTO MFH-5-1/4, manufacturer part number 6211, is an electrically actuated, pilot-operated pneumatic directional control valve with a 5/2-way monostable function and mechanical spring return. The manufacturer specifies a standard nominal flow rate of 1000 L/min according to DIN 1343 and a working pressure range of 2.2 to 8 bar. The valve uses G1/4 pneumatic connections, a 7 mm nominal size, and a poppet-seat construction. Its manufacturer-specified protection rating is IP65, and its manual override is detenting. The valve has a specified construction width of 30.5 mm and grid dimension of 32 mm. The operating voltage is supplied through a compatible solenoid coil, which must be ordered separately. The exact coil voltage, coil part number and supplied accessory configuration must therefore be confirmed before ordering. Actual product and packaging photographs supplied for this listing show matching FESTO model MFH-5-1/4 and material number 6211. The packaging is marked Made in India. Please verify the pneumatic function, working pressure, G1/4 connections and compatible coil configuration against the intended installation before purchase.

Key Product Features

  • FESTO MFH Series Valve — Manufacturer model MFH-5-1/4, part number 6211.
  • 5/2-Way Monostable Function — Pneumatic directional control with mechanical spring reset.
  • Electrical Pilot-operated Actuation — Designed for pneumatic automation and directional control.
  • 1000 L/min Nominal Flow — Manufacturer-specified flow standardized according to DIN 1343.
  • G1/4 Pneumatic Connection — Standard threaded pneumatic interface.
  • 2.2–8 Bar Operating Pressure — Manufacturer-specified working pressure range.
  • IP65 Protection Rating — Manufacturer-specified valve protection rating.
  • Detenting Manual Override — Manual override function specified in the official technical data.

Actual Product Verification

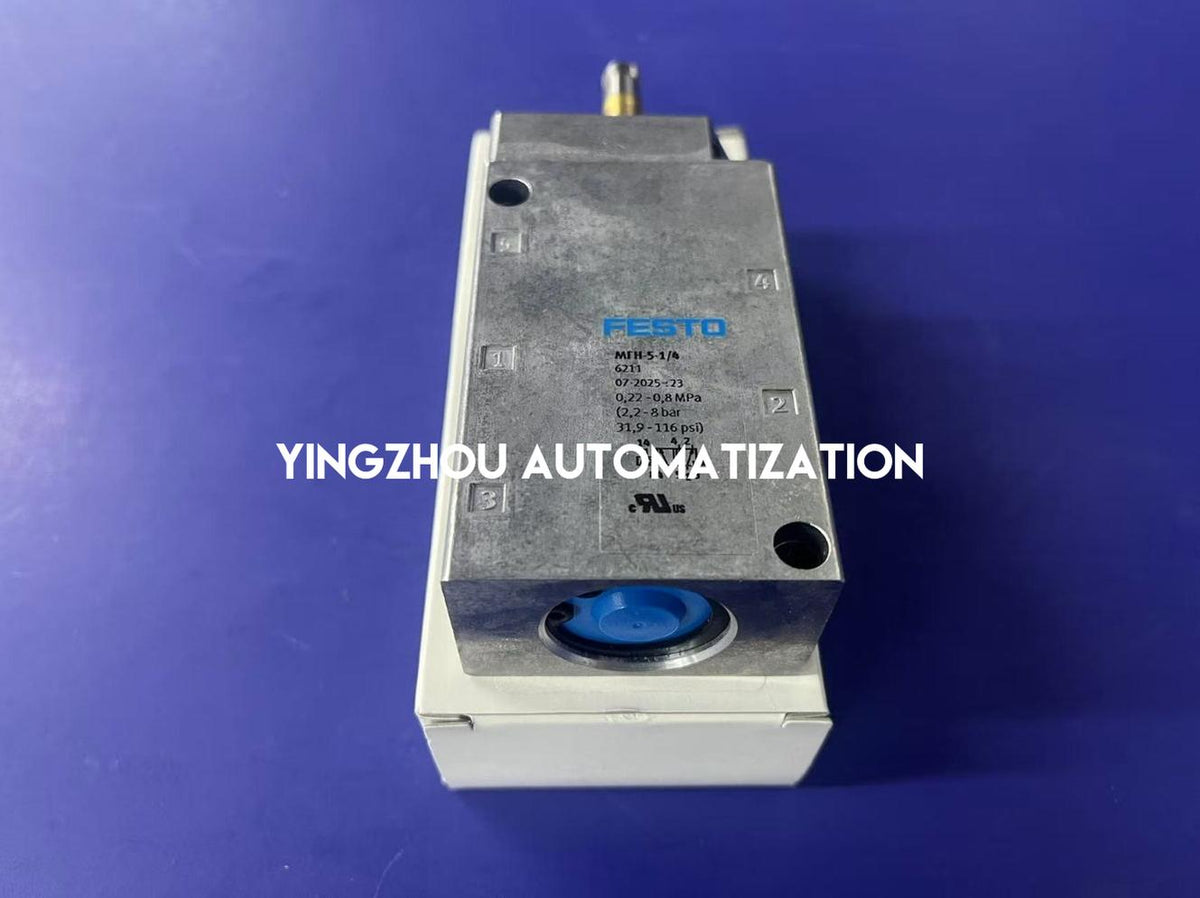

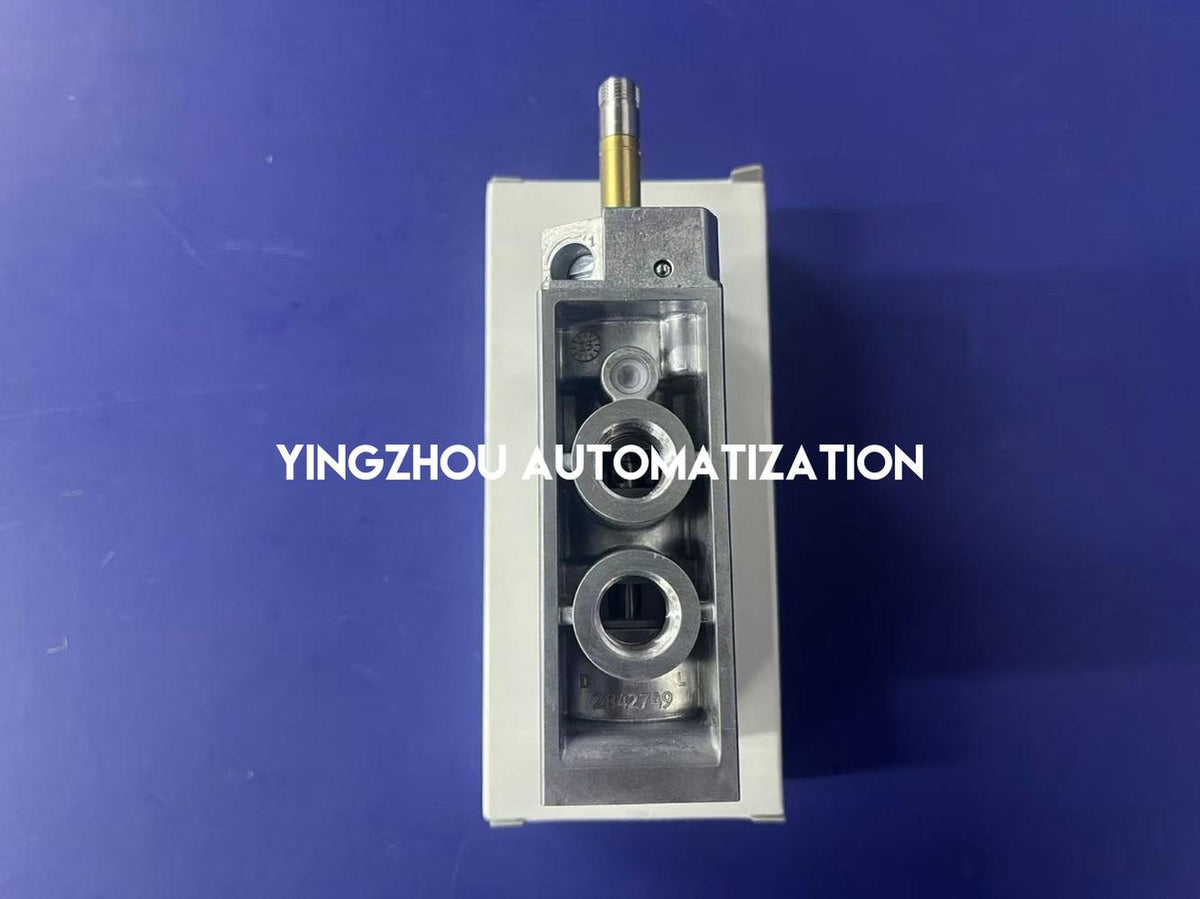

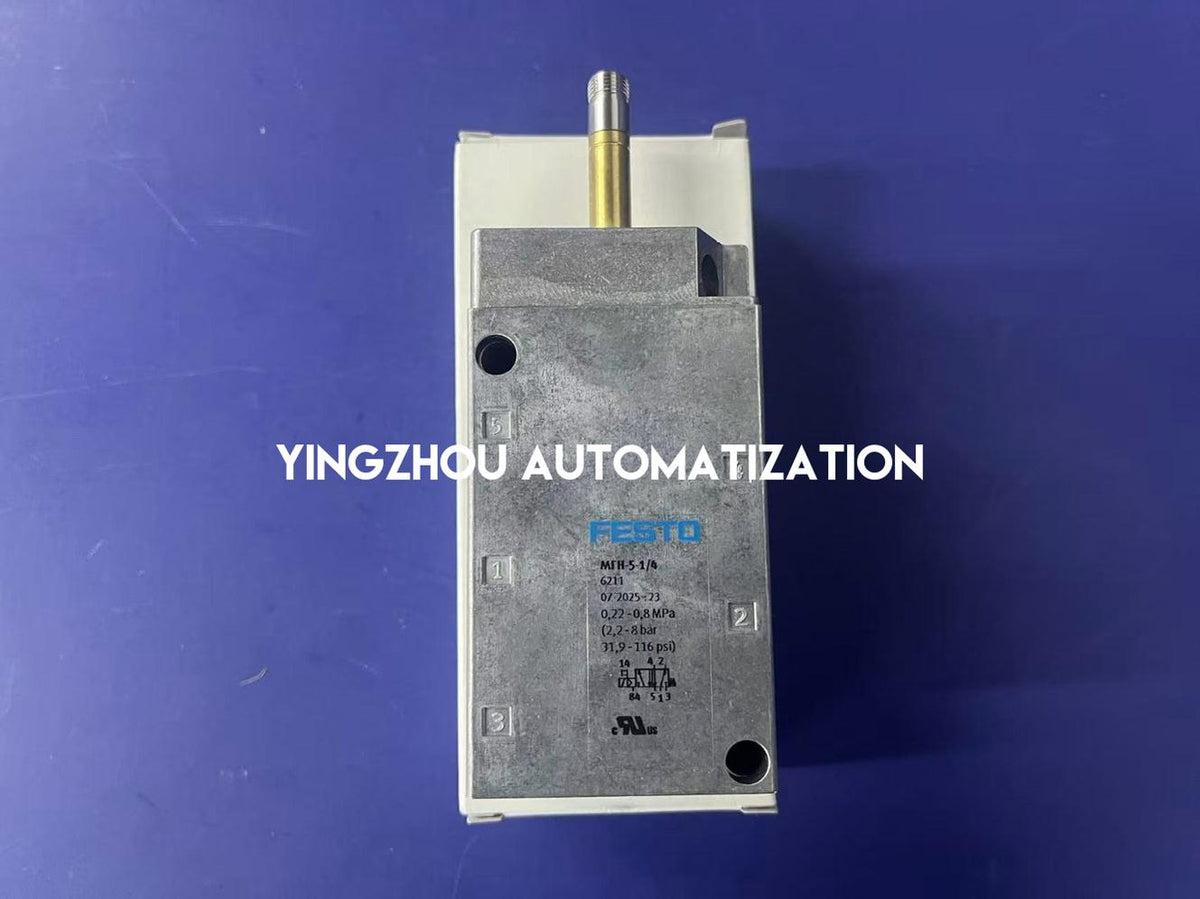

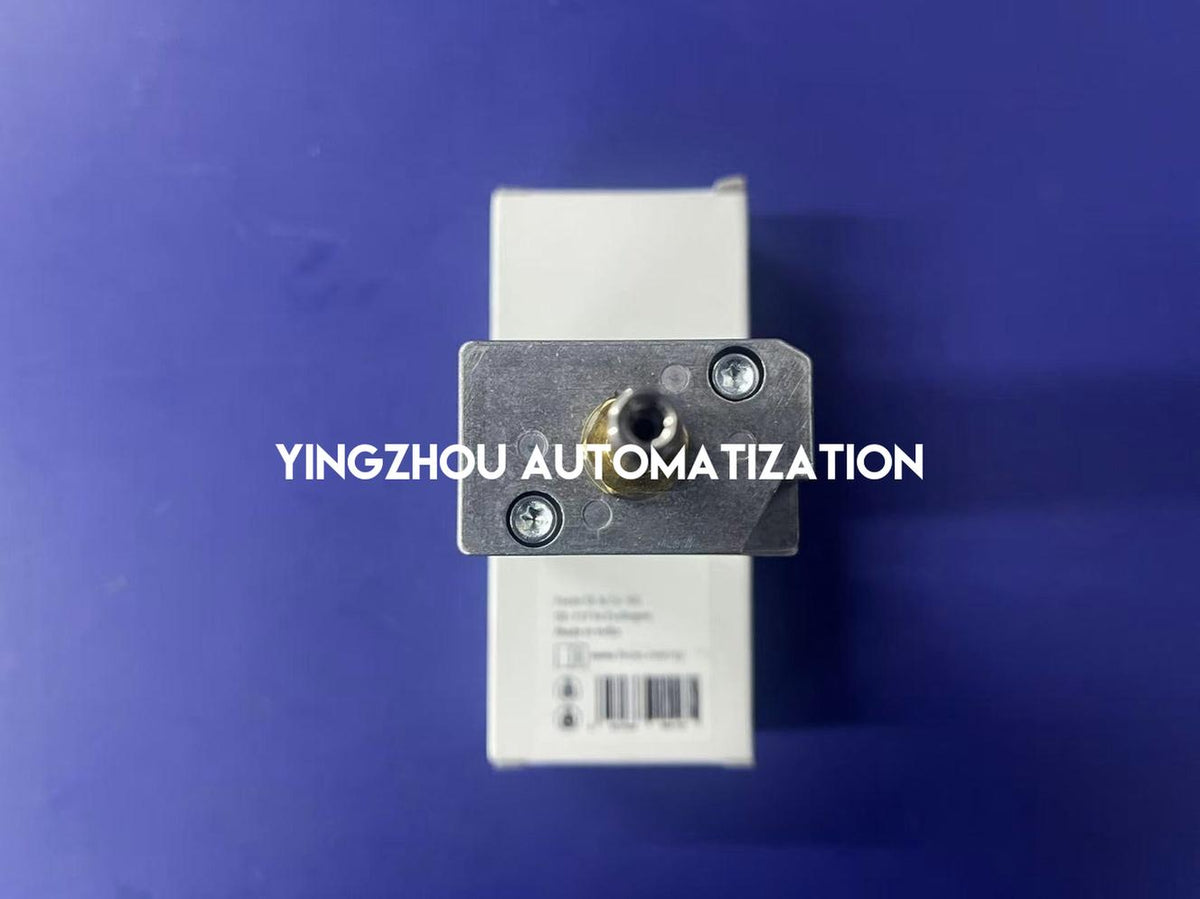

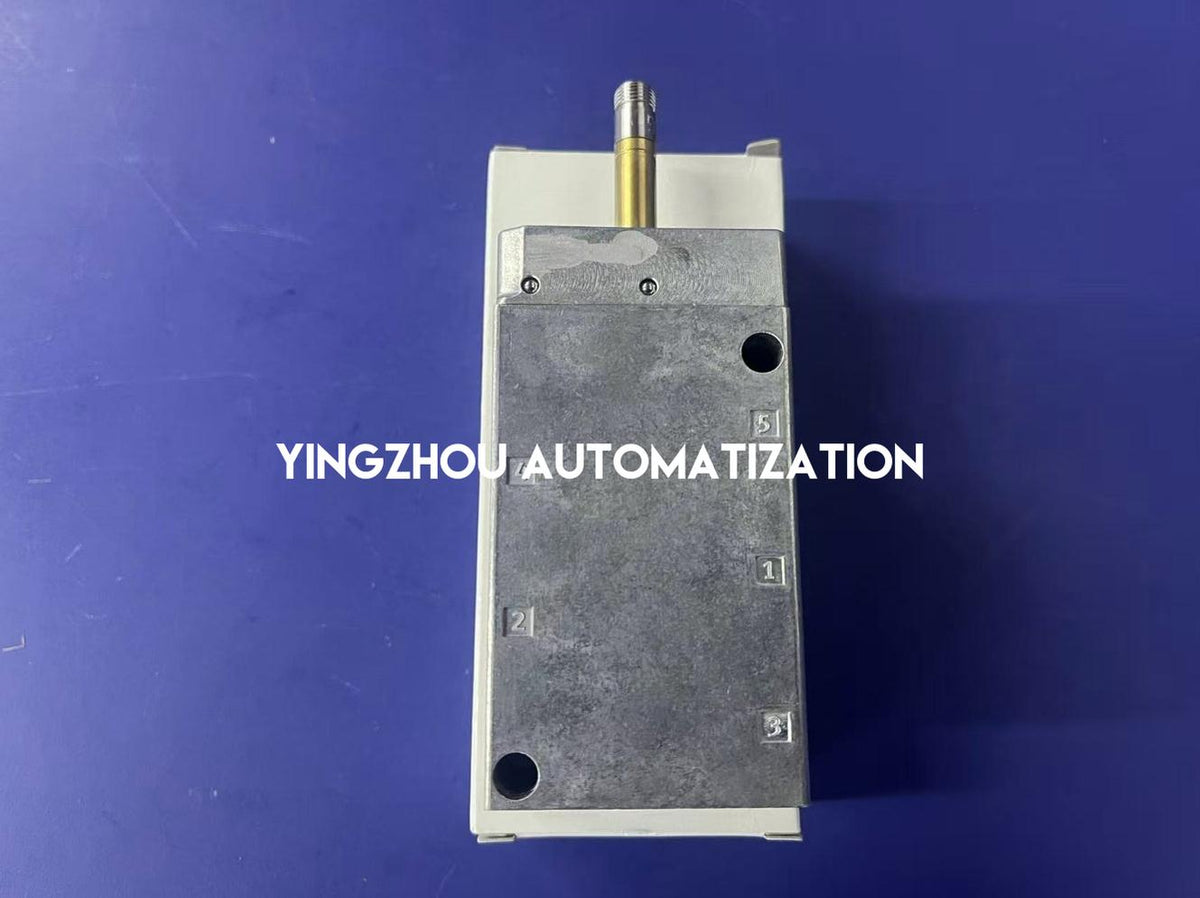

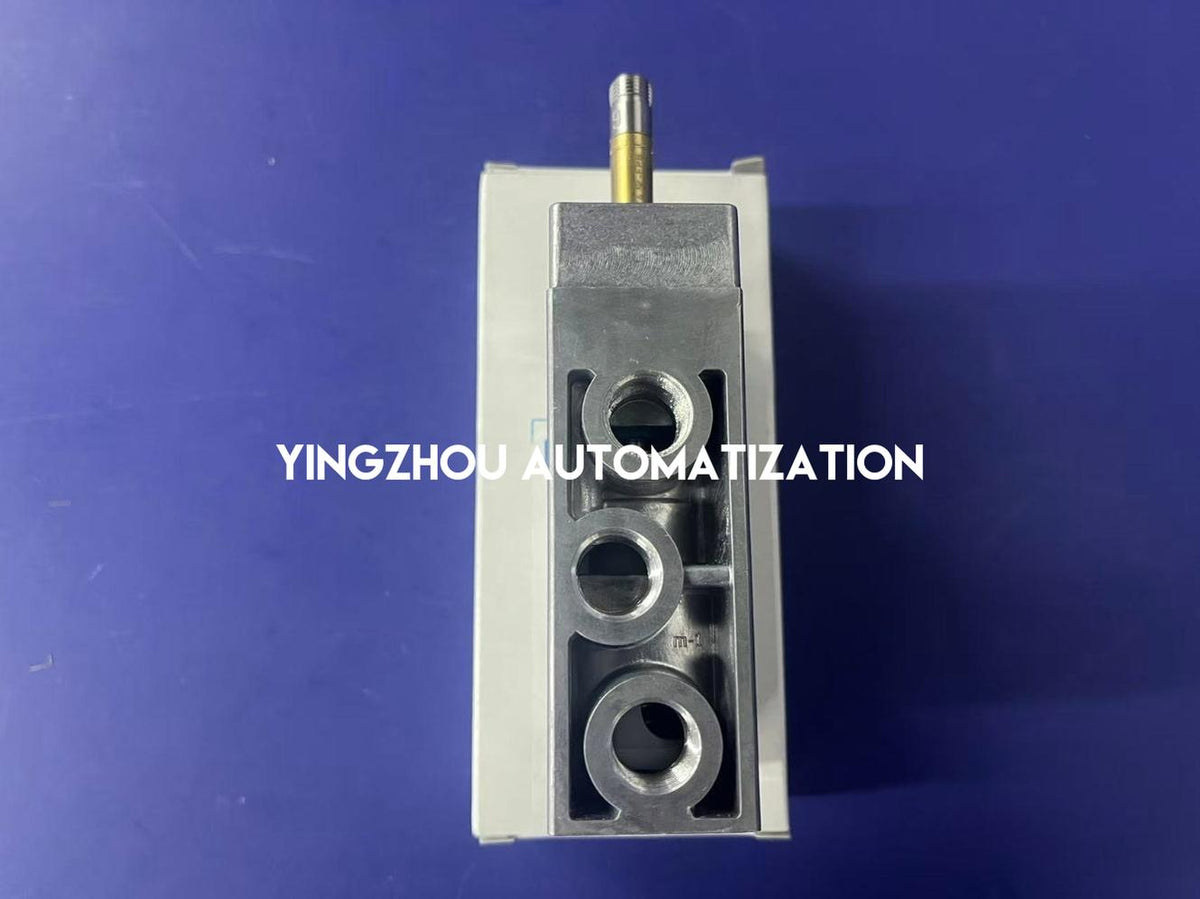

✓ Actual FESTO product photograph supplied

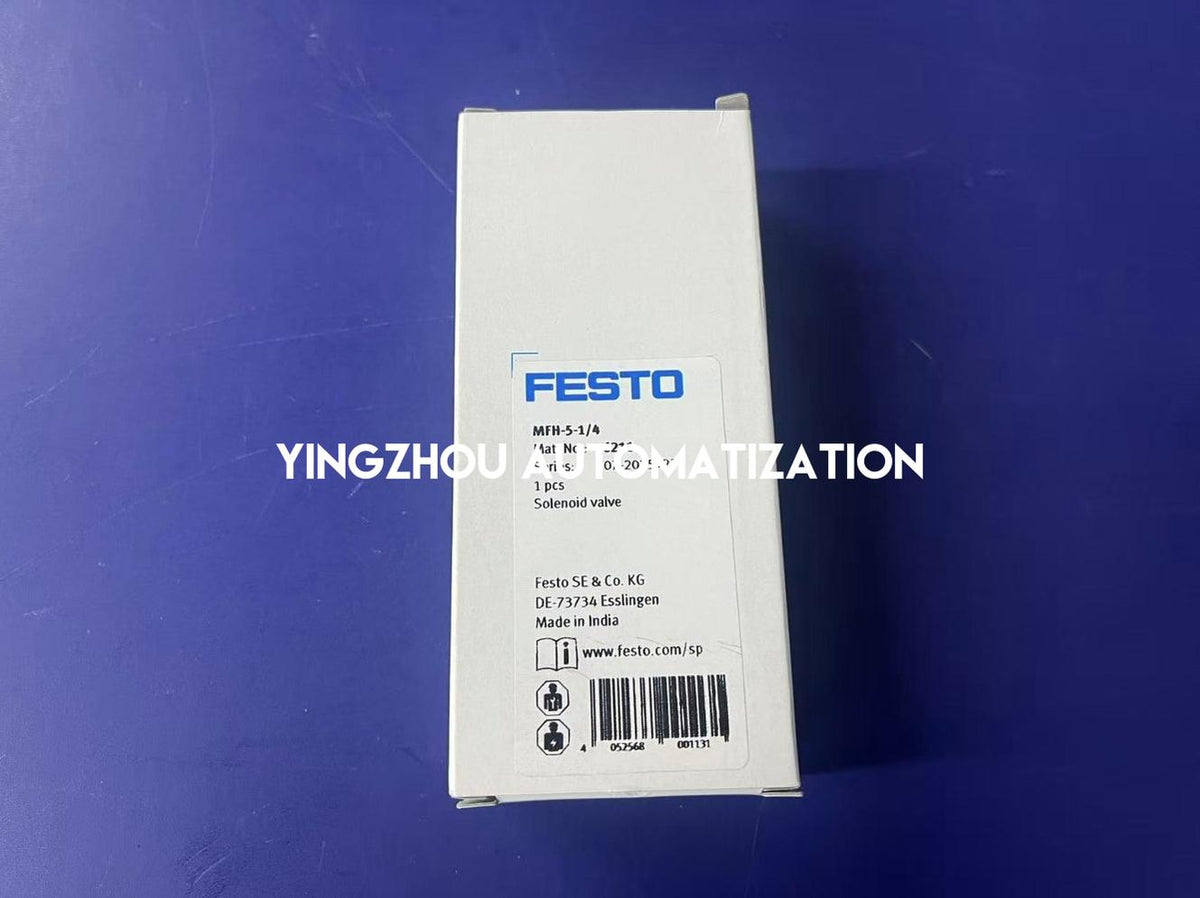

✓ Actual manufacturer packaging photograph supplied
✓ Product body manufacturer: FESTO
✓ Product body model: MFH-5-1/4
✓ Product body material number: 6211
✓ Product body pressure marking: 0.22–0.8 MPa / 2.2–8 bar
✓ Product body pneumatic symbol visible
✓ Packaging model: MFH-5-1/4
✓ Packaging material number: 6211
✓ Packaging series marking: 07-2025:23
✓ Packaging quantity marking: 1 Piece
✓ Packaging origin marking: Made in India
✓ Product body and packaging model numbers match
✓ Solenoid coil configuration must be confirmed separately
✓ Electrical switching and pneumatic leakage tests not performed

In Stock & Available to Order

FESTO MFH-5-1/4 6211 is marked in stock based on the supplied inventory information. This 5/2-way monostable pneumatic solenoid valve is offered for industrial automation maintenance, pneumatic directional control and exact-model replacement sourcing. Actual supplied photographs show the product body and packaging marked with matching model MFH-5-1/4 and part number 6211. Before ordering, please verify the 5/2-way valve function, G1/4 pneumatic connections, 2.2–8 bar operating pressure and the compatible solenoid coil. The coil must be ordered separately, so the required voltage, coil part number and included accessories must be confirmed before dispatch.

IN STOCK

FESTO MFH-5-1/4 6211

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the operating pressure, pneumatic connections and required solenoid coil voltage before ordering.
